USER MANUAL 270462 SILVERLINE

Collection of safety and compliance symbols including helmet, hand gesture, cloud, warning sign, warning triangle, lightning bolt, shield, shield symbol, and 'CE' icon.

silverlinetools.com

18 17 16 15 14 13 12 11 10 9 7 6 5 4 3 SILVERLINEC DIY SERIES

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Technical line drawing of a sewing machine with screwdriver inserted (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of a plug with two connectors and a cable (no text or symbols)

Pure mechanical diagram showing a piston-cranked valve mechanism without any text or symbols

Fig. VI

45° 45°

Fig.VII

Pure mechanical diagram showing a hand pressing a button on a curved surface (no text or symbols)

Fig. VIII

Line drawing of a car interior showing a hand holding a knob (no text or symbols)

Fig. IX

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Fig. X

Pure mechanical diagram showing a cross-section of a component with no text or symbols

English ......04

Français ......10

Deutsch......16

Español......22

Italiano......28

Nederlands ......34

Polski ......40

Introduction

Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction manual

Toxic fumes or gases!

Dust extraction required or recommended

Caution!

Class II construction (double insulated for additional protection)

Conforms to relevant legislation and safety standards

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

Technical Abbreviations Key

V	Volts	W, kW	Watt, kilowatt
~, a.c. Alternating current		/min or min ^-1	Operations per minute
A, mA Ampere, milli-Amp
n _o	No load speed	dB(A) Decibel sound level (A weighted)
n Rated speed
^a Degrees		m/s ^2	Metres per second squared (vibration magnitude)
Hz Hertz

Specification

Voltage: 230V\~, 50Hz

Power: 350W

No load speed: 2800min ^-1

Saw blade type: T-shank (U-shank compatible)

Stroke length: 18mm

Cutting capacity: Wood 55mm

Cutting capacity: Steel 5mm

Cutting capacity: Aluminium....10mm

Bevel range: L 45°, R 45°

Ingress protection: IPXO

Protection Class:

Power cord length: 1.8m

Dimensions (L x W x H): 185 x 65 x 195mm

Weight: 1.36kg

As part of our ongoing product development, specifications

of Silverline products may alter without notice.

Sound and vibration information:

Sound pressure L_FE : 86.9dB(A)

Sound power L_1A : 97.9dB(A)

Uncertainty K: 3dB(A)

Weighted vibration (wood):....ahB = 10.898 m/s²

Weighted vibration (Metal sheet):....ahM = 11.607 m/s²

Uncertainty: 1.5m/s²

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.

Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.

General Power Tool Safety Warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.

d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific Safety

Jigsaw Safety

WARNING: Before connecting a tool to a power source (mains switch power point receptacle, outlet etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.

- Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

- Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.

For safety relating to protective clothing/equipment and general health hazards relating to power tools; refer to General and Electrical Safety sections in this manual

• Do not let anyone below 18 years of age operate this jigsaw
• Ensure there is adequate lighting
• Rags, cloths, cord and string etc should not be left around the work area
• Keep the area free of tripping hazards
• Inspect the workpiece and remove all embedded objects before starting work
• Support or clamp the workpiece to avoid vibration, and ensure a good cut
• See specification section of this manual for the correct type of blade. Incorrect blades may not be secured correctly, causing a safety hazard
• Only use blades that are in good condition
• If you are interrupted when operating the saw, complete the process and switch off before looking up
• Keep your hands away from the underside of the workpiece
• Ensure that an appropriate blade is used for the material being cut. Ensure all supports and power cables are completely clear of the cutting path
  • Where guards exist, ensure they are in place
• Do not put pressure on the tool. Allow the blade to cut at its own pace. This will produce better results and maximise the service life of the tool
• Before cutting, check that there is sufficient clearance for the blade under the workpiece
  • Always keep the shoe pressed against the workpiece
• Do not attempt to cut material thicker than detailed in the specifications section of this manual
• Do not force the blade to bend or twist whilst cutting
• If a cut does not extend to the edge of the workpiece, allow the blade to come to a complete stop before lifting it from the workpiece
• Do not use your hands to remove sawdust, chips or waste close by the blade
• Do not reach over the blade to remove waste or off-cuts
• Blades heat up during use. Allow to cool completely before handling
• If a blade jams, disconnect the tool from the power supply prior to releasing the blade
  • Periodically check that all nuts, bolts and other fixings, tighten where necessary

Cutting tool safety

WARNING. Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

Use the correct cutting tool

- Ensure the cutting tool is suitable for the job. Do not assume a tool is suitable without checking the product literature before use

Protect your eyes

- Always wear appropriate eye protection when using cutting tools - Spectacles are not designed to offer any protection when using this product; normal lenses are not impact resistant and could shatter

Protect your hearing

• Always wear suitable hearing protection when tool noise exceeds 85dB

- Protect your breathing

- Ensure that yourself, and others around you, wear suitable dust masks

Protect your hands

- Do not allow hands to get close to the cutting wheel or blades. Use a suitable push stick for shorter workpieces with appropriate power tools

Be aware of others around you

- It is the responsibility of the user to ensure that other people in the vicinity of the work area are not exposed to dangerous noise or dust and are also provided with suitable protective equipment

Hidden objects

• Inspect the workpiece and remove all nails and other embedded objects before cutting
• Do not attempt to cut material that contains embedded objects unless you know that the cutting tool fitted to your machine is suitable for the job
• Walls may conceal wiring and piping, car body panels may conceal fuel lines, and long grass may conceal stones and glass. Always check the work area thoroughly before proceeding

Beware of projected waste

- In some situations, waste material may be projected at speed from the cutting tool. It is the user's responsibility to ensure that other people in the work area are protected from the possibility of projected waste

Fitting cutting tools

• Ensure cutting tools are correctly and securely fitted and check that wrenches / adjusters are removed prior to use
• Only use cutting tools recommended for your machine
• Do not attempt to modify cutting tools
• Ensure blades are sharp, in good condition and correctly fitted
• Do not attempt to resharpen blades that are not suitable for resharpening, these may include specially hardened blades or blades made from hardened alloys typically containing tungsten
• Blades that can be resharpened should be resharpened only according to the blade manufacturer's instructions. These may include a limited number of times the blade can be resharpened
• Sharpened blades should be more thoroughly inspected before use and replaced immediately if there is any doubt about their condition and suitability for use
• In the event blades encounter an embedded object in use that the blades are not suitable for, blades should be replaced immediately

Beware of heat

- Cutting tools and workpieces may become hot in use. Do not attempt to change tools until they have been allowed to cool completely

Control dust / swarf

• Do not allow dust or swarf to build up. Sawdust is a fire hazard, and some metal swarf is explosive
• Be especially careful when cutting wood and metal. Sparks from metal cutting are a common cause of wood dust fires
• Where possible, use a dust extraction system to ensure a safer working environment

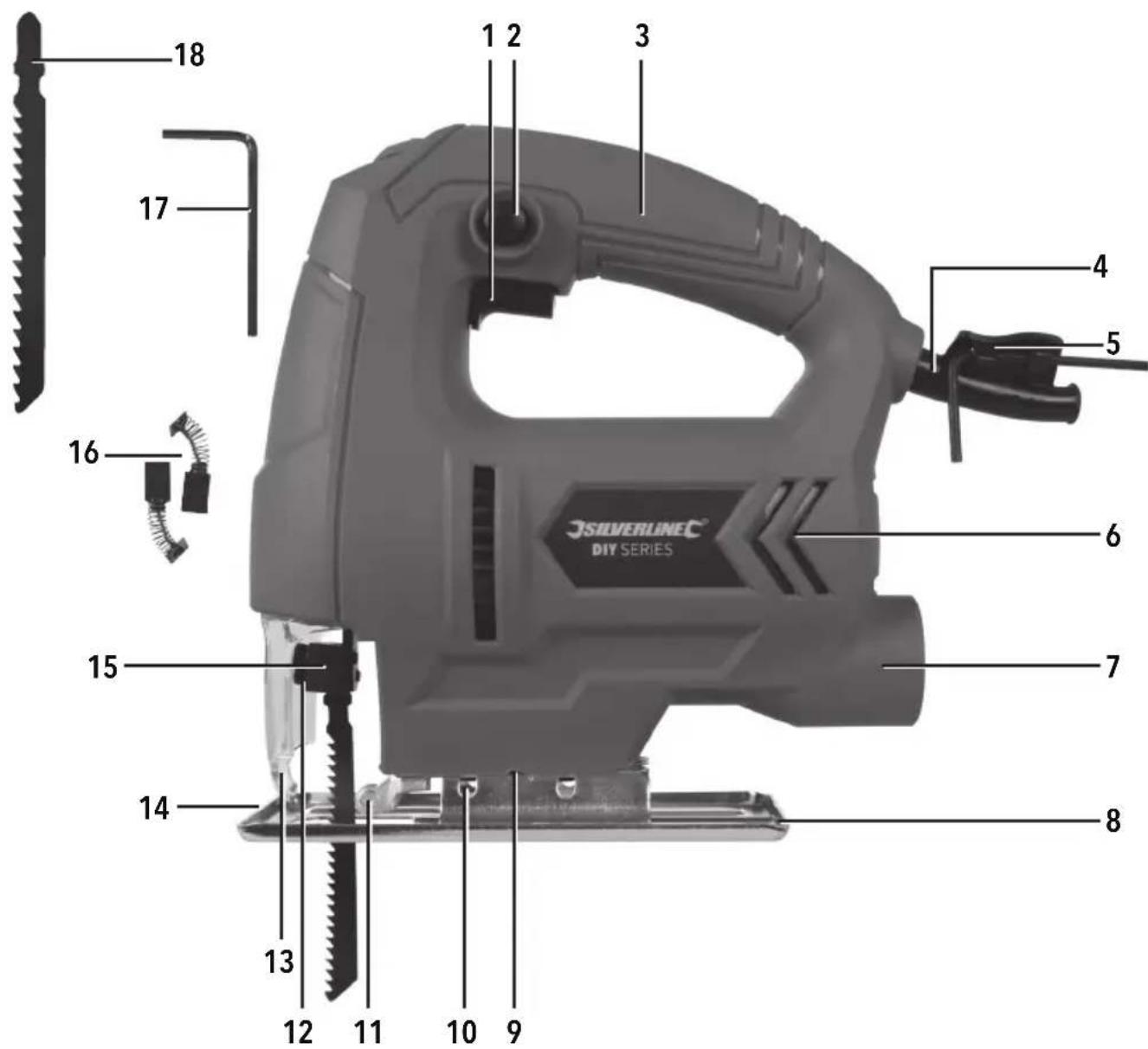

Product Familiarisation

1	ON/OFF Trigger Switch
2	Lock ON Button
3	Handle
4	Power Cord
5	Hex Key Holder
6	Motor Vents
7	Dust Extraction Port
8	Adjustable Shoe
9	Bevel Gauge
10	Bevel Guide Slot
11	Blade Guide Roller
12	Blade Locking Screws
13	Blade Guard
14	Cutting Guide
15	Blade Housing
16	Carbon Brushes
17	Hex Key
18	Blade

Intended Use

Single-speed jigsaw for light duty cutting tasks of wood, plastic and thin sheet metal (when using appropriate blades).

Unpacking Your Tool

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
• Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

WARNING: Always wear suitable gloves when handling blades or other sharp accessories

Fitting a blade

• ALWAYS use the correct blade type for the material to be cut (refer to the blade manufacturer's guidelines before use)
• Only fit blades that are in perfect condition. Blunt, bent and cracked blades should be discarded
• Loosen both Blade Locking Screws (12) (Fig. I), using the Hex Key (17) provided
• Insert a suitable Blade (18) into the Blade Housing (15) ensuring the teeth of the blade are facing away from the tool and the blade is located in the centre of the Blade Guide Roller (11) (Fig. II)
• Tighten the Blade Locking Screws
• Before use, check that the blade is secure and cannot be pulled out of the Blade Housing

Note: ALWAYS apply a lubricant between the blade and the roller, if you plan on cutting metal or other hard materials.

Note: T-shank and U-shank blades are compatible with this jigsaw.

Dust Extraction

WARNING: Always connect the tool to a suitable vacuum cleaner or workshop dust extraction system if the dust contains harmful substances, such as particles from old paint, varnish, surface coatings etc. Always dispose of harmful dust according to laws and regulations.
WARNING: Take special care to guard against harmful and toxic dusts when cutting lead-based painted surfaces, woods and metals, particularly if you are unsure about the exact substances involved. All persons entering the work area must wear a mask specially designed for protection against the toxic dust and fumes involved. Children and pregnant women MUST NOT enter the work area. DO NOT eat, drink or smoke in the work area.
IMPORTANT: It is essential to take proper measures to prevent dust entering the motor and other internal mechanisms of this tool. Failure to do so may seriously reduce the life and performance of this tool.
WARNING: Take special care when cutting some woods (such as beech, oak, mahogany and leak), as the dust produced is toxic and can cause extreme reactions. Always wear appropriate respiratory protection.
WARNING: DO NOT use a dust bag when cutting metal. Hot metal particles and sparks could ignite residual wood dust, or cause the bag to catch fire. Always connect the jigsaw to a workshop dust extraction system when cutting metal. Always clean the tool THOROUGHLY when switching from cutting wood to sanding metal, and vice versa.

Connecting the dust extraction system

- Connect a vacuum or dust extraction system to the tool using via the Dust Extraction Port (7) (Fig. III)

Note: An adaptor may be required depending on the vacuum or dust extraction system.

Setting bevel angle

• This jigsaw is equipped with an Adjustable Shoe (8), which allows bevel cuts to be made up to 45° to the left or right
  • To adjust the bevel angle:

• Invert the jigsaw and loosen but do not remove the two bevel locking screws using the supplied Hex Key (17) (Fig. IV)

• Align the two screws with the Bevel Guide Slots (10) (Fig. V)
• Adjust the Shoe to the required angle using the Bevel Gauge (9) (Fig. VI)
• Tighten the bevel locking screws

Note: Before use, ensure that the Adjustable Shoe is secured firmly in position.

Operation

WARNING: ALWAYS wear appropriate personal protective equipment, including eye protection when working with this tool.
WARNING: DO NOT use this tool without the Blade Guard (13) in place
WARNING: Allow the motor and blade to come to a complete stop before placing the tool down. Always unplug the tool if it is to be left unattended.

• Ensure workpiece is secure before cutting
• ALWAYS ensure the ON/OFF Trigger Switch (1) is in the OFF position before connecting the tool to the mains power supply

Switching ON & OFF

To switch the tool ON:

1. Hold the jigsaw securely using the Handle (3)
2. Squeeze the ON/OFF Trigger Switch (1) (Fig. VII)
3. Allow the blade to reach full speed before cutting

To switch the tool OFF:

1. When operating, release the ON/OFF Trigger Switch (1)

Note: this tool features a Lock ON mechanism for constant use when cutting longer workpieces.

To activate the Lock ON mechanism:

1. Squeeze the ON/OFF Trigger Switch (1)
2. While the ON/OFF Trigger Switch is pressed, press and hold the Lock ON Button (2) (Fig. VIII)
3. Release the ON/OFF Trigger Switch followed by the Lock ON Button
4. The tool will now remain ON
5. To deactivate the Lock ON feature, squeeze then release the ON/OFF Trigger Switch

Making a cut

WARNING: ALWAYS wear appropriate safety equipment. Use of this tool requires eye protection, gloves, ear defenders, and good quality respiratory protection.

1. Hold the jigsaw securely by the Handle (3) and rest the front edge of the Adjustable Shoe (8) on the edge of the workpiece (Fig. IX)

Note: If starting a cut away from the edge of the workpiece, drill a pilot hole inside the workpiece, large enough for the blade to pass through, where you wish to start the cut.

1. Align the Cutting Guide (14) as a reference for the cutting line of the blade (Fig. X)
2. Check that the blade is not in contact with the workpiece, or any other object
3. Switch the tool ON (see 'Switching ON & OFF')
4. Allow the motor to reach full speed, and smoothly push the jigsaw forwards across the workpiece
5. Maintain a steady movement, and ensure that the Adjustable Shoe is kept pressed against the workpiece. Ensure that the Power Cord (4) is kept away from the front of the saw during the cut
6. Allow the blade to pass through the material before releasing the ON/OFF Trigger Switch
7. Alternatively, if the cut does not reach the edge of the workpiece, back the saw blade teeth away from the cutting face and release the ON/OFF Trigger Switch. Allow the blade to stop moving before lifting out of the cut
8. DO NOT place the tool down until the motor and blade have completely stopped

Metal cutting

• ALWAYS use a suitable coolant/cutting oil when cutting metal. Failure to do so will cause significant blade wear
• A continuous line of grease can be applied to the underneath of the workpiece, instead of applying a coolant from above
• Apply lubricant or cutting oil between the blade and roller when cutting metal or other hard materials. Failure to do so will shorten the service life of your blade and roller

Accessories

• A full range of accessories including blades is available from your Silverline stockist
• Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight. They may vibrate loose over time
• Prior to each use, inspect the power supply cord of the tool for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Lubrication

- At regular intervals, lubricate all moving parts with a suitable lubricant spray

Cleaning

WARNING: ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device's service life
• Clean the body of your tool with a soft brush, or dry cloth
• Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended
  • Water must never come into contact with the tool
• Ensure the tool is thoroughly dry before using it
• If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)

Brushes

• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Powerbox

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that:

This declaration has been issued under the sole responsibility of the manufacturer. The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 270462

Description: DIY 350W Jigsaw

Conforms to the following directives and standards:

• Machinery Directive 2006/42/EC

• EMC Directive 2014/30/EU

• RoHS Directive 2011/65/EU

• EN 62841-1:2015

• EN 62841-2-11:2016

• EN 55014-1:2017

• EN 55014-2:2015

• EN 61000-3-2:2014

• EN 61000-3-3:2013

Notified body: Bureau Veritas

The technical documentation is kept by: Silverline

Date: 18/01/2019

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox,

Boundary Way, Lufton Trading Estate, Yeovil, Somerset, BA22 8HZ, United Kingdom.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Stroke length: 18 mm

Cutting capacity: Wood 55 mm

Cutting capacity: Steel 5 mm

Cutting capacity: Aluminium....10 mm

Bevel range: L 45°, R 45°

Ingress protection: IPXO

Protection Class:

Power cord length: 1.8 m

Dimensions (L x W x H): 185 x 65 x 195 mm

Weight: 1,36 kg

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

BA22 8HZ, United Kingdom.

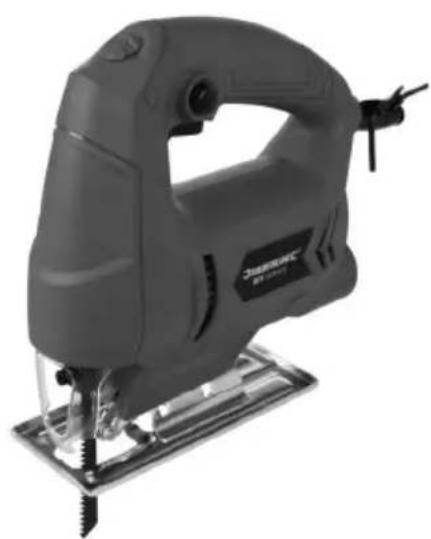

Exterior view of a gray J-shaped push tool on a metal base (no text or symbols visible)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
