USER MANUAL UniversalPump 18V BOSCH

(4) Rechargeable battery

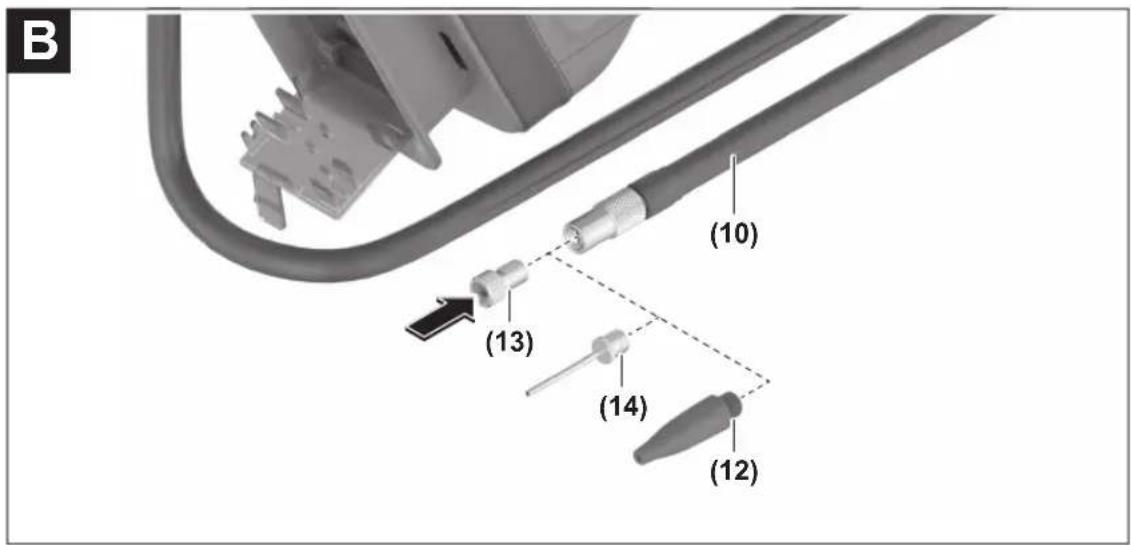

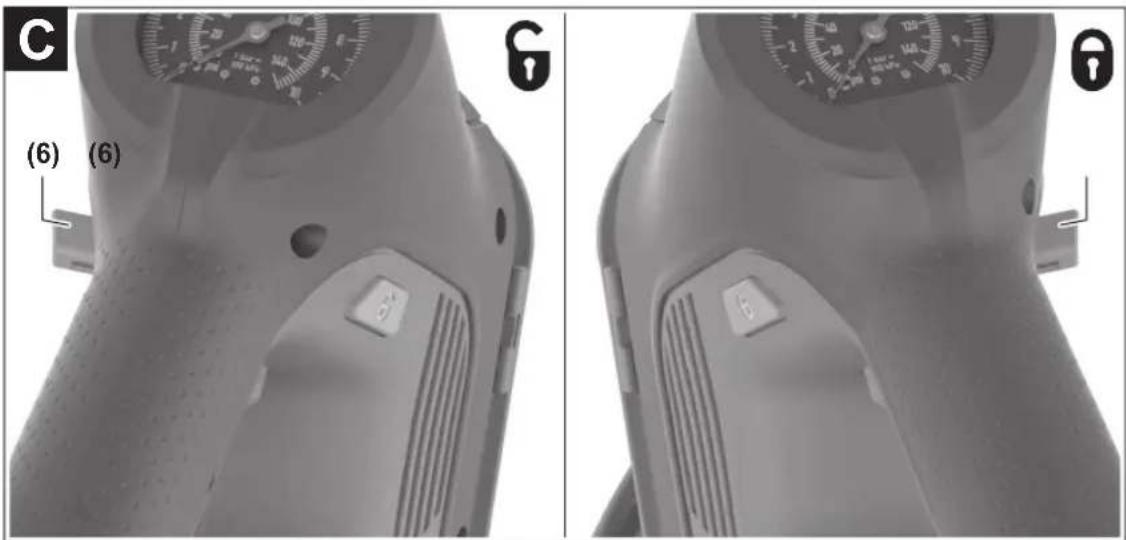

(5) On/off switch (6) Lock-off button (7) Lid of the adapter storage compartment (8) Hose bracket (9) Hose clamp (10) Pressure hose (11) Worklight (12) Volume adapter (13) Valve adapter (14) Ball needle adapter Bosch Power Tools 1 609 92A 6BC | (09.12.2021)12 | English (15) Storage compartment locking mechanism

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless air pump UniversalPump 18V Article number 3603J471.. Rated voltage V= 18 Max. output volume l/min 30 Max. pressure bar 10.3 psi 150 Weight according to EPTA-Pro- cedure01:2014

kg 1.5(1.5Ah) to 1.8(6.0Ah) Recommended ambient tem- perature during charging °C 0 to +35 Permitted ambient temperature during operation and during storage °C –10 to +40 Recommended rechargeable batteries PBA 18V...W-. Recommended battery char- gers

AL 18... A) Depends on battery in use B) The following chargers are not compatible with the PBA re- chargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV Noise/Vibration Information Noise emission values determined according toEN62841‑1. Typically, the A-weighted sound pressure level of the power tool is78dB(A). Uncertainty K=3dB. The noise level when working can exceed the volume stated. Wear hearing pro- tection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN62841‑1:

www.bosch-pt.com/serviceaddresses Bosch Power Tools 1 609 92A 6BC | (09.12.2021)118 | Srpski

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless air pump Article number

• Robert Bosch Power Tools GmbH (PT/ECS) 70538 Stuttgart GERMANY Henk Becker Chairman of Executive Management Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 02.02.2021 Bosch Power Tools 1 609 92A 6BC | (09.12.2021)IV 1 609 92A 6BC | (09.12.2021) Bosch Power Toolsi Declaration of Conformity Cordless air pump Article number UniversalPump 18V 3 603 J47 100 We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015 EN 1012-1:2010 EN 55014-1:2017+A11:2020 EN 55014-2:2015 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 21/06/2021 Bosch Power Tools 1 609 92A 6BC | (09.12.2021)
