TEO3000B - Oven Tomado - Free user manual and instructions

Brand	Tomado
Model	TEO3000B
Product type	Domestic oven
Supply voltage	220-240 V ~ 50 Hz
Timer	Mechanical, adjustable from 5 to 120 minutes with Constant position
Capacity	30 litres (estimated)
Maximum load per grid	2.5 kg
Interior lighting	Yes, integrated lamp
Included accessories	Grid, baking tray, handle for grid/tray
Cooking functions	Bottom heat, top+bottom heat, top heat with fan, hot air, bottom heat with fan, top heat (grill)
Installation type	Can be placed on worktop, 10 cm free space around required
Door material	Tempered safety glass
Interior cleaning	Soft cloth and soapy water, avoid abrasive products
Cleaning of accessories	Dishwasher or warm soapy water
Safety	Automatic shut-off by timer, tempered glass door, temperature indicator light
Warranty	24 months
Intended use	Domestic only
Repairability	Do not repair yourself, contact technical service

Frequently Asked Questions - TEO3000B Tomado

How to use the oven for the first time?

Before first use, remove all packaging and stickers. Clean the interior and accessories with a damp cloth. Heat the oven at maximum temperature for 15 minutes in top+bottom heat mode to eliminate production odors.

How to set the timer?

Turn the timer knob clockwise to the desired time (from 5 to 120 minutes). For long cooking (>120 min), use the Constant position: the oven operates continuously until you turn the knob back to 0.

What is the difference between cooking modes?

The modes are: Bottom heat (cooking from below), Top+bottom heat (even cooking), Top heat with fan (crispy crust), Hot air (homogeneous cooking all around), Bottom heat with fan (crispy base) and Top heat (grill).

Can I use paper or plastic molds in the oven?

No, these materials are not suitable. Use only heat-resistant dishes (glass, ceramic, metal). Never cover the bottom of the oven with aluminum foil, as this could cause overheating.

How to clean the interior of the oven?

After each use, clean the warm interior with a soft cloth and warm water with a little dish soap. Do not use abrasive products or metal scouring pads. Dry well before next use.

Can I put the accessories in the dishwasher?

Yes, the grid, baking tray and handle can be washed in the dishwasher. Dry them well before reuse.

What to do if the oven does not heat?

Check that the timer is set to a value >0, that the temperature knob is set to a position, that the plug is properly connected and that the circuit breaker has not tripped. If the problem persists, contact technical service.

Why does the thermostat light turn on and off?

This is normal: the light turns on when the oven heats up and turns off when the set temperature is reached. It turns on again if the temperature drops.

Can I store food in the oven?

No, never use the oven interior as storage space. Do not leave bread, cookies or other food inside, as this poses a fire risk.

What is the warranty on this oven?

The warranty is 24 months from the date of purchase, for domestic use in accordance with the instructions. Keep the original proof of purchase.

USER MANUAL TEO3000B Tomado

Black TOMADO microwave oven with open lid and control knobs (no visible text or symbols)

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

1. Behuizing
2. Handgreep
3. Ovendeur
4. Bedieningspaneel

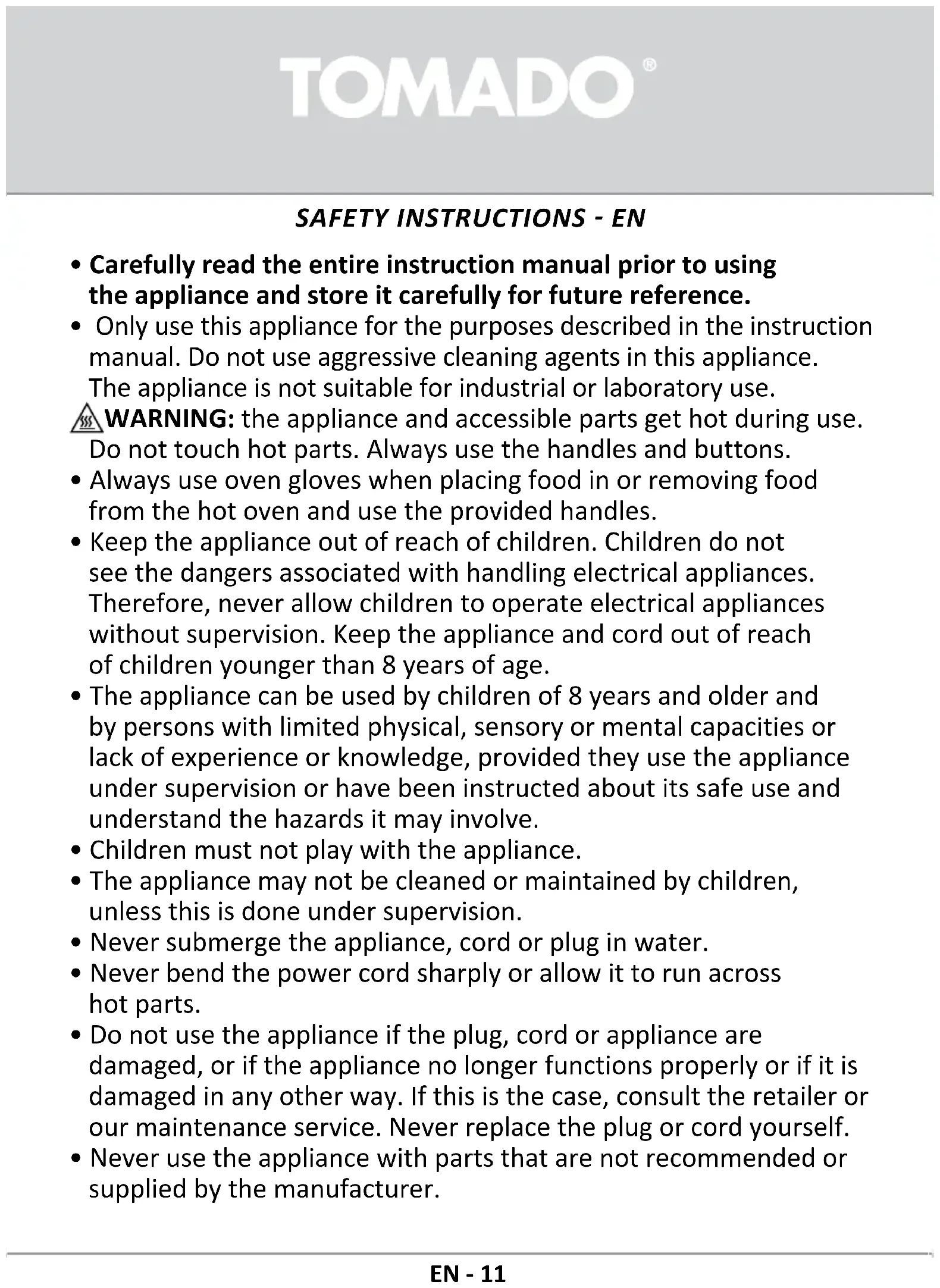

• Carefully read the entire instruction manual prior to using the appliance and store it carefully for future reference.
• Only use this appliance for the purposes described in the instruction manual. Do not use aggressive cleaning agents in this appliance. The appliance is not suitable for industrial or laboratory use.
  WARNING: the appliance and accessible parts get hot during use. Do not touch hot parts. Always use the handles and buttons.
• Always use oven gloves when placing food in or removing food from the hot oven and use the provided handles.
• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and by persons with limited physical, sensory or mental capacities or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards it may involve.
  • Children must not play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Never submerge the appliance, cord or plug in water.
• Never bend the power cord sharply or allow it to run across hot parts.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service. Never replace the plug or cord yourself.
• Never use the appliance with parts that are not recommended or supplied by the manufacturer.

TOMADO®

• In order to guarantee good air circulation, a free space of 10 cm is required around the oven.
• Never cover the ventilation holes.
• Always remove the plug from the socket when the appliance is not being used or when you want to clean it. Allow the appliance to cool down properly, before cleaning it.
• The following materials are not suitable for use in the oven: cardboard, paper, plastic or similar materials.
• If the oven is covered or comes in contact with combustible material, there is a fire hazard.
• Do not use the interior of the oven as storage space. Do not store any biscuits, bread, etc. in the appliance.
• The maximum bearing capacity of the grille/ baking tray is 2.5 kg.
• The door of the oven has been provided with tempered safety glass. This is stronger than ordinary glass and is also better resistant to breaking.
• When there are scratches on the glass pane of the oven door, it could break. Do not use scrapers or sharp or abrasive cleaning agents.
• Do not place accessories or oven dishes on the opened oven door.
• Never cover the bottom with aluminium foil. Aluminium foil could lead to overheating of the oven.
• Only use and store the appliance indoors.
• The oven cannot be used with a timer or a separate remote control.
  • Always make sure the appliance is placed on an sturdy, flat surface.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Do not leave the appliance unsupervised if the appliance is operational.
• If you want to move the appliance, make sure the appliance is switched off. Use both hands when moving the appliance.

TOMADO®

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.
• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group may be overloaded or an earth leakage current may have occurred.
• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.
• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

TOMADO®

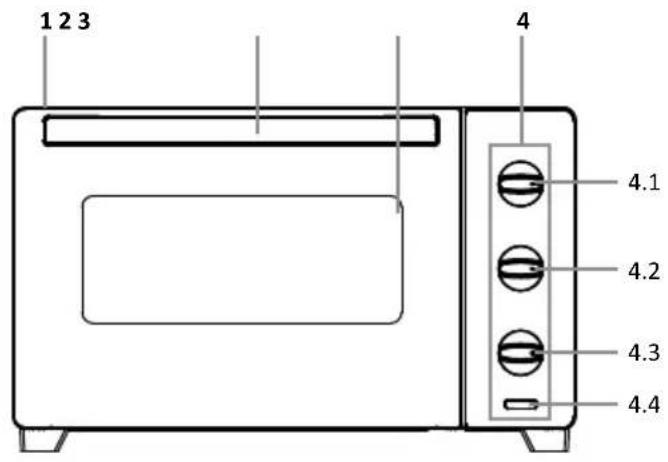

PRODUCT DESCRIPTION

1 2 3 4 4.1 4.2 4.3 4.4

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

1. Base unit
2. Handle
3. Oven door
4. Operating panel

4.1. Temperature knob
4.2. Oven position knob
4.3. Timer knob
4.4. Thermostat led

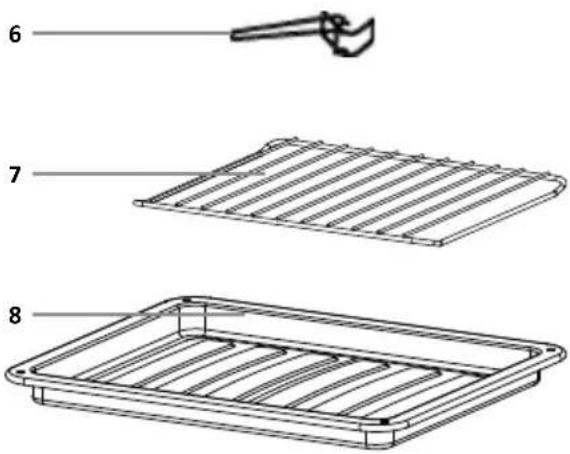

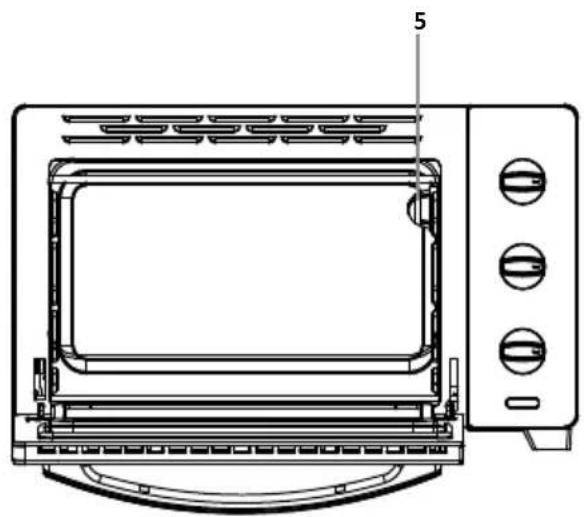

1. Oven lamp
2. Handle for grille and baking tray
3. Grille
4. Baking tray

TOMADO®

USING THE APPLIANCE FOR THE FIRST TIME

Before using the microwave oven for the first time, please proceed as follows: carefully unpack the oven and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport.

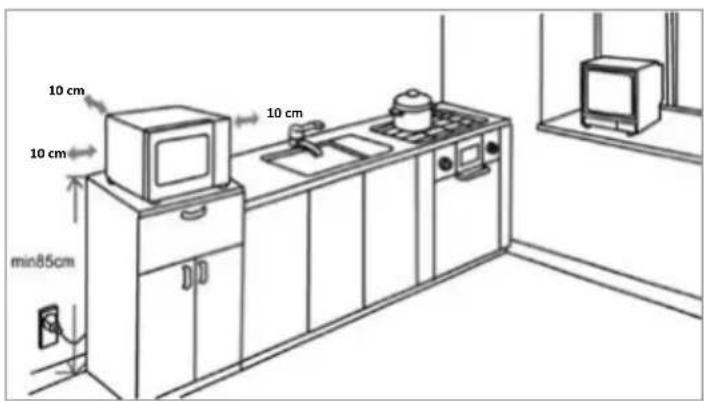

Place the appliance on a sturdy, flat surface and make sure there is enough space all around for sufficient ventilation.

At least 10 cm is required between the oven and the walls. Do not remove the feet from the oven. Do not cover the ventilation holes.

Clean the oven and accessories with a slightly damp cloth. The oven is ready for use. The oven can smell "new" when used for the first time. This is entirely normal, will do no harm and the smell will disappear automatically.

Check that the voltage corresponds with what is stated on the information plate and insert the plug in the socket. Make sure the timer knob is on [0].

Prior to first use, switch on the oven for 15 minutes at maximum temperature and the position for heat from above and below to remove the production odours.

The heating elements will turn red slowly when the oven gains temperature. The thermostat led indicates that the oven is on. Once the oven has reached the set temperature, the thermostat led switches off.

10 cm 10 cm min85cm 10 cm

USING THE OVEN

Food such as bread, pizza and meat, that is being roasted in the oven for too long, could burn. This can be prevented by regularly checking the food in the oven and not leaving it in the switched on oven for too long. Never heat food in jars or cans directly in the oven. These jars or cans could explode due to the heat and cause injury. Always use oven resistant oven dishes and plates.

The oven has the following modes:

Oven mode Description
[3KBA]	Heat from below	Only the lower elements are on. Specific for pastry that must be baked from the bottom (e.g. moist pastry with fruit).
	Heat from above and below	The heat comes evenly from above and below. Always place the dish in the centre of the oven. For pizza, meat, pie or cake.
	Heat from above with fan	The heat from the upper elements and the fan ensure that the dish is heated from all sides and gets a crispy crust.
	Hot air	The heat from the elements and the fan ensure that the dish is heated from all sides.
	Heat from below with fan	The heat from the lower elements and the fan ensure that the dish is heated from all sides and gets a crispy bottom.
	Heat from above	Only the upper elements are on. For grilling meat, fish or bread, or for au gratin dishes.

TOMADO®

SWITCHING THE OVEN ON AND OFF

• Turn the oven position knob to the required position and set the correct temperature with the temperature knob.
• Turn the timer knob to the required time (minimum 5 minutes and maximum 120 minutes) and the oven switches on. The thermostat led indicates that the oven is on. Once the oven has reached the set temperature, the thermostat led switches off.
• Open the oven door. Place the food that you want to prepare on the baking tray or grille and place it on the runners in the oven. Caution: the maximum bearing capacity of the grille/ baking tray is 2.5 kg.
• Close the door.

• A beep sounds when the set time has expired and the oven will switch off.

• Always place the baking tray at the bottom of the oven when using the grille. In that case, the baking tray serves as a receptacle for dripping fat, etc.

• When the food is cooked, while the set time has not yet expired, you can manually switch off the oven by turning the timer knob back to [0].

Caution: use oven gloves to remove the food from the hot oven.

• Open the oven door with the handle.
• Remove the baking tray from the oven using the provided handle.
• Close the oven door and check that the timer knob is on [0].

TIMER KNOB

Turn the timer knob clockwise to the required time. If, for instance, you want to roast large pieces of meat for a longer time, you can also use the CONSTANT position. In that case, the oven remains on constantly, without a timer. To switch off the oven, turn the timer knob to [0].

CLEANING AND MAINTENANCE

SWITCH OFF THE APPLIANCE BEFORE CLEANING IT. REMOVE THE PLUG FROM THE SOCKET AND ALLOW THE APPLIANCE TO COOL DOWN FULLY.

Interior

Clean the interior of the oven after each use to prevent accumulation of grease and food residues.

Preferably clean the oven after each use while it is still moderately warm. Caked food residues will still be soft and can be removed easily by means of a soft cloth and warm water to which some washing-up liquid has been added. Thoroughly dry the interior with a cloth after cleaning.

Do not use abrasives or metal scrapers. These will damage the oven.

Accessories

Clean loose accessories such as grille, baking tray and handle with warm water and a mild washing-up liquid or put them in the dishwasher. Properly dry everything before using it again.

Exterior

Clean the exterior of the appliance with a damp cloth or sponge. If necessary, you can clean the exterior of the appliance by means of a mild washing-up liquid. Also thoroughly clean the door.

TOMADO®

ROASTING TABLE

Type of food	Amount or thickness	Temperature (°C)	Time (minutes)
Chicken	half a chicken	175-200°C	30-40	Place the chicken in the oven. Turn the chicken around after 20-25 minutes.
Sausages 3-4	200-220°C 8-10	Regularly turn the sausages to cook them evenly.
Hamburger 2-3	200°C 3-5	Turn the hamburgers halfway the preparation time to cook them evenly.
Steak 1-2 cm	220°C	10-15 Turn the steak after 8 minutes and continue roasting it according to your own taste.
Fish		200°C 7-10	Set the timer to 10 minutes and after that allow the fish to continue cooking at a lower temperature until it almost flakes apart.
Bread/toasted sandwich	2-3 200°C	3-5 Place the toasted sandwiches on the highest level.Keep an eye on the bread, because it can easily burn on the grille position. Turn the toasted sandwiches halfway the preparation time, so that the bread is toasted on both sides.
Cake		150°C	60-75 Place the cake tin on the oven grille.

The table above provides an indication. Adjust the times to your personal preferences. Regularly check the food that is placed in the oven to prevent it from burning.

TECHNICAL DATA

Type number	TEO3000B
Voltage	220-240 V~50/60Hz
Connected load	1600 Watt
Timer	120 minutes
Capacity	30 litres
Exterior dimensions – wxdxh	520 x 410 x 320 mm
Interior dimensions – wxdxh	340 x 320 x 260 mm
Nett weight	8.1 kg

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collection of electric and electronic products. Correct disposal of the product prevents negative consequences for the environment and for public health. The packaging material of this product can be recycled 100%, return packaging material separately.

TOMADO®

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

1. Carcasa
2. Asa
3. Puerta del horno
4. Panel de control

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

1. Kabinet
2. Håndtag
3. Ovnlåge
4. Betjeningspanel

4.1. Temperaturknap
4.2. Indstillingsknap
4.3. Timerknap
4.4. Termostatlampe

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

Line drawing of a microwave oven with labeled parts (no text or symbols beyond label)

6 7 8

Line drawing of a microwave oven with labeled components (no text or symbols beyond label)

6 7 8

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support
