MX 50 - Blender STEBA - Free user manual and instructions

Product type	Immersion blender
Brand	Steba
Model	MX 50
Power	500 W (estimated)
Power supply	220-240 V ~ 50/60 Hz
Speed	Continuous speed control by pressure
Mixing beaker capacity	500 ml (estimated)
Blending shaft material	Plastic and stainless steel
Blending shaft length	Approximately 25 cm
Dimensions (total length)	Approximately 40 cm
Weight	Approximately 0.8 kg
Main functions	Blend, puree, whisk
Included accessories	Blending shaft, whisk, beaker with lid
Safety	Automatic shut-off in case of overload, shaft not removable when powered
Care and cleaning	Wipe housing with damp cloth, wash blending shaft by hand, whisk and beaker dishwasher safe
Maximum operating time	1 minute
Warranty	2 years (legal warranty)
Country of origin	China (estimated)

Frequently Asked Questions - MX 50 STEBA

How to use the Steba MX 50 immersion blender?

Insert the blending shaft into the motor unit until it clicks. Submerge the shaft in the container, then press the speed button. The harder you press, the higher the speed. Do not operate for more than 1 minute continuously.

Can I blend hot food directly in the pot?

Yes, you can blend hot soups directly in the pot, but be careful of splashes. Turn off the appliance before immersing and let it cool slightly if needed. Never immerse the appliance above the lower edge of the upper cone.

How to clean the Steba MX 50 blender?

Always unplug the appliance. Clean the motor housing with a damp cloth. The blending shaft is not dishwasher safe, wash it by hand with soapy water. The whisk (without the plastic cap) and the mixing beaker are dishwasher safe.

Can the whisk beat heavy batter?

No, the whisk is designed for light ingredients such as egg whites (max 4), cream (max 400 ml) or light cake batters. Do not use it for margarine and sugar, as this could damage it.

What to do if the appliance does not work?

First check that the plug is properly inserted and that the blending shaft is correctly engaged. If the appliance does not start, it may have overheated: let it cool down for 10 minutes. If the problem persists, contact after-sales service.

Can I use an extension cord?

Yes, but the extension cord must have a cross-section of at least 1.5 mm². If you use a power strip, its maximum load must not exceed 3680 W. Ensure that no one trips over the cable.

How to avoid splashes when blending?

To avoid splashes, tilt the container slightly if there is not much liquid. Start blending at the bottom, then move upwards towards the surface in circular motions. Prefer a tall, narrow container.

Can children use this appliance?

This appliance can be used by children aged 8 years and above under supervision. They must understand the risks and be instructed on its use. Keep the appliance and cord out of reach of children under 8 years.

What is the motor's lifespan?

The motor is designed for domestic use. Never exceed 1 minute of continuous operation. If the housing becomes hot (more than warm), let it cool down before using again. This will extend its lifespan.

Where to find spare parts?

Contact Steba after-sales service at the address indicated in the manual. Use only original spare parts to ensure safety and proper functioning.

USER MANUAL MX 50 STEBA

Exterior view of a Reba brand blender with a whisk, a small stand, and a clear glass mug (no text or symbols visible)

220-240 V\~; 50/60 Hz; 1000W

Stabmixer

MX 50

Instructions for use 12

Mode d'emploi 20

Simple line drawing of a funnel with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

2

3

Arbeitsplatz

Wichtig:

Simple line drawing of a vertical cylindrical device with a handle and base, labeled '2)' (no text or symbols on the device itself)

6) 7)

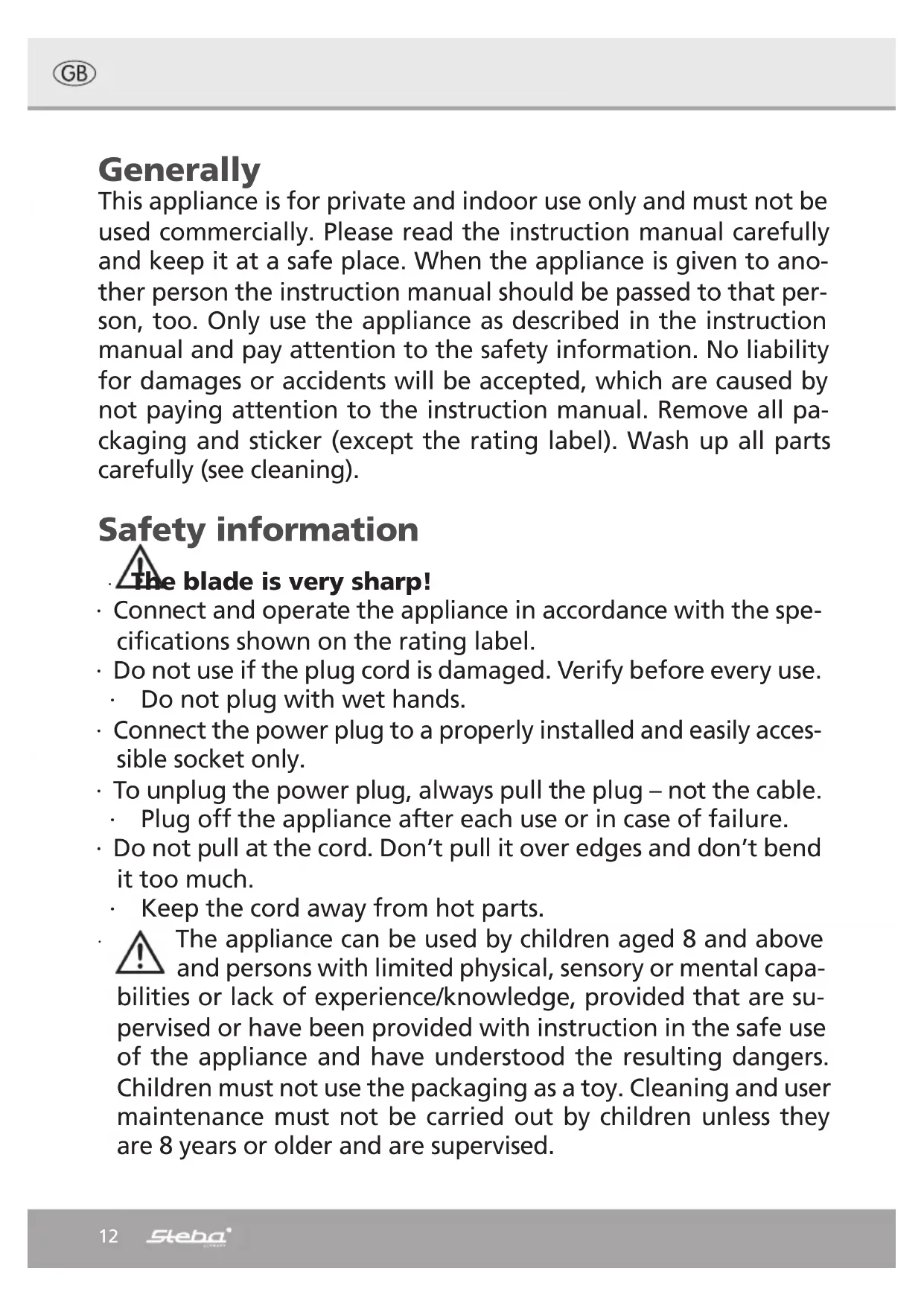

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker (except the rating label). Wash up all parts carefully (see cleaning).

Safety information

The blade is very sharp!

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!

- Never leave the appliance unattended when in use.

- Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

- Only use the device as described in this manual.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments

o by clients in hotels, motels and other residential type environments

o bed and breakfast type environments.

- Before initial use: clean all parts carefully and leave to dry.

- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

- Make sure that children do not tease the cable or that a trip hazard occurs.

- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

- Hygiene: Please always clean the device to avoid bacteria and mould formation.

Simple line drawing of a funnel with an arrow indicating flow or direction (no text or symbols)

The appliance is watertight up to the lower edge of the handle.

- Please note the following instructions:

o Never immerse the appliance deeper than the lower edge of the handle in any liquid. If this happens by accident, the appliance must not be used anymore and send to authorized service for repair.

o Only switch the appliance on, when the mixing stick is in a bowl, jar or similar pot.

o Avoid any contact of the knife to finger, hair, clothes, knives or other tools, because this can cause severe injuries.

o If the appliance is on heavy duty, the housing can get warm. Most work is done in seconds. If the appliance gets more than hand-warm, let it cool down.

maximum operating time is 1 minute.

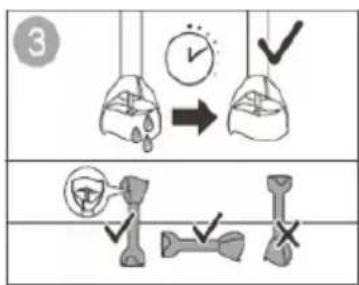

Cleaning

ttention! Pull the plug before cleaning.

- Never immerse the unit into water.

- Food residues must be removed for reasons of hygiene.

Attention! Blade is sharp!

- Clean the housing with a damp cloth.

- Press the release button to pull the blending stick off the motor part. The blending stick cannot be cleaned in the dishwasher!

• The measuring cup and the whisk (without plastic cap) can be cleaned in the dishwasher.
• Do not use abrasive or acidic cleaning agents or steel sponges.
• Some foods, such as carrots, can discolour the plastic. Rub with vegetable oil can help.

	√
			√

Simple line drawing of a tool tip with an arrow indicating upward motion (no text or symbols)

2

3

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

1) 3)

4) 5)

Line drawing of a cylindrical device with a handle and spout, labeled '2)' (no text or symbols on the object itself)

6) 7)

1) Motor part
2) Blending stick
3) Stepless speed control
4) Gear cap
5) Whisk
6) Lid
7) Measuring cup

Blending stick:

- For pureeing soups, fruits, baby food, dips, sauces and much more.

Speed:

- If the button is pressed lightly, the appliance starts at low speed. The harder the button is pressed, the higher the speed.

Whisk:

• Suitable for beating light ingredients such as egg whites, cream and also ready-made mixtures.
• It is not suitable for heavy mixtures such as margarine and sugar - this will damage the whisk.
• Process no more than 4 egg whites or 400 ml cream at a time.
• Move the whisk in a clockwise direction.

Measuring cup:

- When using the mixing cup, be aware that the volume of some foods (e.g. cream) increases when whisking and may overflow. Adjust the amount accordingly

Usage

• Mix small quantities in small bowls, large quantities in large bowls. Narrow, tall bowls are better than wide, low bowls.
• Only switch the appliance on when the blending stick is inside a bowl.
• Large amounts of soup, sauce etc. can be mixed directly in the pot. Attention: Danger of splashes
• Whether in the pot or a bowl: always move the mixer in a circular motion from the bottom at the edge. Always lift the mixer a little to start a circulation of the food. For more solid food do not press the mixer on it to avoid an overheating of the motor.
• If there is only little liquid inside a bowl, put the bowl in a slight angle to avoid excessive splashes.
• When making whipped cream or mayonnaise place the blending stick at the bottom of the jar and then pull it slowly upwards. This should be repeated several times until the intended consistency is achieved.

Blending with the stick

Blending with the whisk

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Simple line drawing of a funnel with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

2

3 ✓ ✓ ✓ ✓ ✓

Plan de travail

Simple line drawing of a vertical cylindrical device with a handle and base, labeled '2)' (no text or symbols on the device itself)

6) 7)

Simple line drawing of a funnel with an arrow indicating direction (no text or symbols)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

2

3 ✓ ✓ ✓ ✓ ✓

Plaatsing

Belangrijk:

Simple line drawing of a handheld device with a handle and base, labeled '2)' (no text or symbols on the device itself)

6) 7)
