FRV 50 ME - Pressure washer Kärcher - Free user manual and instructions

Brand	Kärcher
Model	FRV 50 ME
Product type	Surface cleaner for pressure washer
Use	Cleaning floor surfaces
Maximum water pressure	25 MPa (250 bar)
Maximum water temperature	85 °C
Compatible nozzle orifice	036 - 125 (depending on nozzle kit)
Rotating arm	Yes, two nozzles
Waste water drainage	Via hose (max height 1 m)
Initial assembly	Short fitting for handle with rotary regulator; long fitting for handle without regulator
Lubrication	Grease O-rings before assembly
Maintenance	Rinse with clean water after use; protect from frost; do not deform bristles
Storage	Do not rest on brush
Safety	Do not direct spray at people, animals, or electrical installations; wait for rotating arm to stop before intervention; wear gloves and goggles
Danger levels	Danger, Warning, Caution, Attention
Spare parts	Nozzles, O-rings, hose, brush (ref. 6.371-011.0), nozzle kit
Accessories	Flexible attachment, dirt collector, flexible holder, extension hose
Warranty	Refer to the complete manual
Weight	Approximately 5 kg
Dimensions	Approximately 50 x 30 x 20 cm

Frequently Asked Questions - FRV 50 ME Kärcher

How to install nozzles on the rotating arm?

Insert the O-ring into the notch of the rotating arm, place the nozzle, then tighten the cap nut. Adjust the wrench flat of the nozzle parallel to the rotating arm. Use the supplied wrench to tighten the cap nut (22 mm opening).

What is the maximum water pressure?

The maximum water pressure is 25 MPa (250 bar). Do not exceed this pressure.

Can I use hot water with this surface cleaner?

Yes, the maximum water temperature is 85 °C. After using hot water, cool the unit by rinsing with cold water for 2 minutes.

What to do if the rotating arm does not turn?

Check if the cleaning nozzles are dirty. If clogged, clean them. Make sure the water pressure is sufficient.

Why does the suction power drop?

This may be due to a worn brush crown (to replace), a clogged suction channel or hose (to clean), or a clogged injector nozzle (to clean).

How to maintain the surface cleaner?

After each use, rinse the steering wheels with clean water, then spray with lubricating oil. Protect the unit from frost and do not let it rest on the brush.

What accessories are available?

Accessories: flexible attachment (ref. 2.642-528.0), dirt collector (2.642-532.0), flexible holder (2.042-001.0), FRV 50 ME brush (6.371-011.0), extension hose (4.441-040.0).

How to choose the right nozzle kit?

Read the nozzle orifice size on the nameplate of your pressure washer. Select the corresponding kit from the table in the manual (e.g., orifice 036-040 → kit 2.431.0).

What are the important safety instructions?

Never direct the spray at people, animals, electrical installations or the unit itself. Wear protective gloves and goggles. Wait for the rotating arm to stop completely before intervening.

How to connect the surface cleaner to the pressure washer?

Grease the O-rings of the fitting, screw the pressure washer gun handle onto the surface cleaner and tighten firmly by hand (or using a 27 mm open-end wrench).

USER MANUAL FRV 50 ME Kärcher

Line drawing of a mechanical cleaning or cleaning device with a central handle and wheels (no text or symbols)

Deutsch 3

English 6

Français 9

Italiano 12

Nederlands 15

Español 18

Português 21

Dansk 24

Norsk 27

Svenska 30

Suomi 33

Ελληνικά 36

Türkçe 40

Русский 43

Magyar 47

Čeština 50

Slovenščina 53

Polski 56

Românește 59

Slovenčina 62

Hrvatski 65

Srpski 68

Български 71

Eesti 75

Latviešu 78

Lietuviškai 81

Українська 84

1 HD 4/13 P 1.520-200.0 230 V 1~ 50 Hz 2,1 kW IPX5 20,5 kg 5/8 6,7 l/min 13 MPa max.17 MPa max./0 °C nozzle 028 Alfred Karcher GmbH & Co.KG, P 0. Box 160, 71349 Winn. Made in Germany Year nozzle 028

5 1 3

2 1 2 3 4

Technical diagram showing a tool being inserted into a power tool, labeled with parts 2 and 4.

Technical illustration of mechanical fasteners and fittings (no text or symbols)

Diagram of a cleaning machine with two close-up views of the tool (no text or symbols present)

4 1 2

7 2. 1.

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Safety instructions

⚠️DANGER

Risk of injury due to defective device.

Check the proper condition of the device prior to starting work. The device must not be used if it is not in a flawless condition.

The appliance may not be modified.

⚠️DANGER

Risk of injury due to rotation arm. Never reach underneath the device while the high-pressure cleaner is running.

The rotation arm continues to rotate for a while after the high-pressure cleaner has been switched off. Wait for the rotation arm to stop before starting any work on the appliance.

High-pressure jets can be dangerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

Health hazard. Wear appropriate protective clothing when cleaning surfaces contaminated with hazardous substances.

⚠ WARNING

Risk of injury due to high-pressure water jet.

When working with hot water: Danger of burns from hot surfaces and risk of scalding.

Wear protective gloves and safety goggles when working with the surface cleaner.

Risk of hearing impairment while working on noise-making parts! If so, wear ear plugs.

Risk of slipping due to residual water. Wear slip-resistant shoes. Remove residual water when cleaning is completed.

Observe safety instructions of the high-pressure cleaner.

Hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

⚠ WARNING

Risk of injury due to rotation arm. Never reach underneath the device while the high-pressure cleaner is running.

The rotation arm continues to rotate for a while after the high-pressure cleaner has been switched off. Wait for the rotation arm to stop before starting any work on the appliance.

For operation with hot water:

⚠ WARNING

Risk of burns!

Do not touch hot surfaces!

Before first use of the patio and wall cleaner read these instructions and act in accordance with them.

Use as intended

The surface cleaner is suitable for cleaning floors in combination with a high-pressure cleaner.

Maximum water pressure 25 MPa (250 bar).

Maximum water temperature 85 °C.

The wastewater is drained off via a hose.

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but ge for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old

appliances. Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Nozzles packet

You need to use the matching high pressure nozzles to ensure that your high pressure cleaner works properly.

Note:

The required packets of nozzles have been adjusted to suit the corresponding high pressure cleaners and must therefore be ordered separately.

Figure 1, see cover page

1 Nozzle size (example)

→ Read the nozzle size from the type plate of the high-pressure cleaner.
→ Select the nozzle package that is suitable for the high-pressure cleaner from the following table.

Nozzle size high-pressure cleaner	Nozzle package	Nozzle size nozzle package
036...040 2.64	2-431.0 2x10	+ 20
041...045 2.64	2-432.0 2x11	+ 23
046...050 2.64	2-433.0 2x12	+ 26
051...080 2.64	2-982.0 2x20	+ 40
081...100 2.64	3-769.0 2x30	+ 40
101...125 2.64	3-768.0 2x38	+ 50

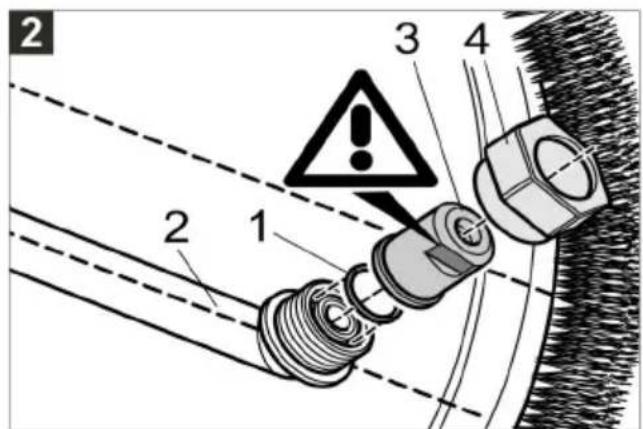

Assemble nozzle packet

Figure 2, see cover page

1 O ring
2 Rotation arm
3 Nozzle
4 Union joint

→ Inser the O ring in the nut of the rotation arm.

→ Place the nozzle on it.

→ Slightly fasten the nozzle with the Union joint.

Note:

The exit jet must be directed parallel to the rotation arm.

Figure 3, see cover page

→ Adjust the wrench area of the nozzle (width 10) so that it is parallel to the rotation arm.
→ Tighten the Union joint (width 22) using a wrench.
→ Repeat the process on the second rotation arm.

Note:

Do not attach the nozzles for the surface cleaner to the spray lance of the high-pressure cleaner.

Figure 4, see cover page

1 Injector nozzle
2 W r e n c h

→ Screw the injector nozzle into the injector using the wrench and tighten it fingertight (8 Nm).

The wrench is included with the nozzle set.

Operation

Figure 5, see cover page

1 Trigger gun with control knob
2 Trigger gun without control knob
3 Nipple, short
4 Nipple, long

In delivery condition, the short nipple is installed on the device for use on a trigger gun with a control knob.

For use with a trigger gun without a control knob, the short nipple must be unscrewed and replaced by the enclosed long nipple. Grease the O-rings of the nipple before installation.

Figure 6, see cover page

→ Connect the trigger gun of the high-pressure cleaner to the surface cleaner and hand-tighten it.
Tighten using a wrench (27 mm) if needed.

△CAUTION

A strong wastewater jet will emerge from the hose connection. Do not use the surface cleaner without a hose.

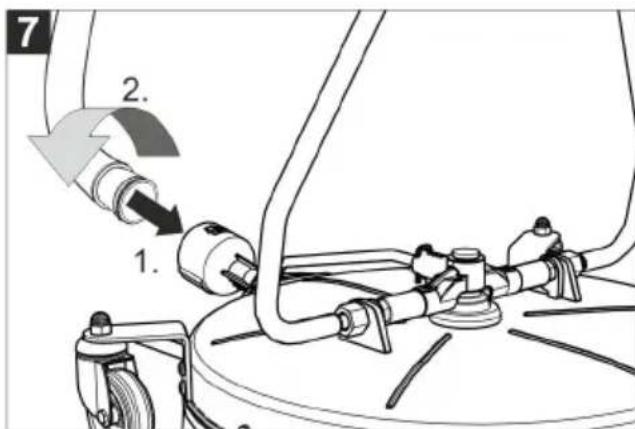

Figure 7, see cover page

→ Grease the O-ring at the end of the hose using the accompanying grease prior to installation.
→ Insert the accompanying hose at the hose connection of the surface cleaner and secure it by turning.
→ Route the other end of the hose to a drain and secure it by means of the accompanying hook-and-loop tape.

Note:

If possible, lay hose without any slopes. Maximum delivery height of the waste water is 1 m.

The free end of the hose can be attached by means of the included Velcro tape (e.g. on a drain grid).

If necessary, use extension hose (see "Accessories").

→ Hold the trigger gun and the handle of the surface cleaner firmly with both hands.
→ Guide the surface cleaner so that it remains close to the surface to be cleaned.

Shutting down

→ After operation with hot water, operate the surface cleaner with cold water for two minutes to cool it down.
→ If necessary, rinse the surface cleaner and the suction hose with clear water.

Care

→ Protect the appliance against frost.
→ Do not allow bristles to deform during storage.

Note:

In order to ensure a good suction result, please do not place the surface cleaner onto the brush crown after use.

→ Rinse the steering rollers with clear water after use and spray with creeping oil after they have dried.

Accessories

Accessories Order number
Hose fastener (suction cup to install on smooth surfaces)	2.642-528.0
Dirt catcher (coarse dirt separator)	2.642-532.0
Hose support (wall mount)	2.042-001.0
Brush crown FR 50 ME	6.371-011.0
Extension hose 4.441-04	0.0

Troubleshooting

Rotation arm does not rotate:

→ Check if the cleaning nozzles are dirty.

Vacuum performance decreasing:

→ Bristle crown worn - replace bristle crown.
→ Suction channel/suction hose blocked - clean suction channel and suction hose.
→ Injector nozzle blocked - clean the injector nozzle.
