Product type	High-pressure cleaner for weed removal
Brand	Kärcher
Model	WR 20
Working width	200 mm
Minimum inlet temperature	90 °C
Maximum inlet temperature	100 °C
Inlet flow rate	5.8 – 8.3 l/min
Weight	0.3 kg
Intended use	Weed removal with hot water (max. 100°C)
Main components	Spray lance, holder, flow limiter, nozzles
Included accessories	Adapter for flow limiter, spray lance
Safety instructions	Do not direct the jet at people, animals, or electrical installations. Wear gloves and protective goggles.
Routine maintenance	Clean dirt and residues, check nozzles for clogging, rinse with clear water after use
Frost protection	Store frost-free
Spare parts	Use only genuine Kärcher parts
Compatibility	Kärcher hot water high-pressure cleaners (list in manual)
Warranty	See general terms and conditions of sale

Frequently Asked Questions - WR 20 Kärcher

How to install the flow limiter on the WR 20?

Place the nozzle and copper washer in the nozzle holder, screw on the adapter, then screw the assembly onto the high-pressure outlet of the cleaner. Then connect the high-pressure hose to the outlet of the flow limiter.

What water temperature should be used to remove weeds?

The device works with hot water between 90°C and 100°C. Set the high-pressure cleaner to a maximum of 98°C for optimal results.

How to mount the spray lance?

Screw the spray lance onto the lance tube, then tighten the connection with a wrench. Make sure the openings are oriented downwards.

What to do if steam comes out of the lance?

Lower the temperature of the high-pressure cleaner. Steam indicates too high a temperature.

Why is the water coming out at too high pressure?

Check that the flow limiter is installed and the correct nozzle is used. Refer to the nozzle table in the manual.

How to maintain the WR 20 after use?

Let the device cool down, then run cold water for 2 minutes to rinse the lance. Clean dirt and plant residues from the frame.

Can I use the WR 20 with a cold water high-pressure cleaner?

No, the WR 20 is designed for hot water high-pressure cleaners. Cold water will not effectively remove weeds.

What safety precautions should I follow?

Never direct the jet at people, animals, or electrical installations. Wear gloves and protective goggles. Beware of hot surfaces.

How to store the WR 20?

Store the device in a frost-free place. Clean it before storage and check that the nozzles are not clogged.

Where to find spare parts for the WR 20?

Use only original Kärcher accessories and spare parts. Visit www.kaercher.com or your dealer.

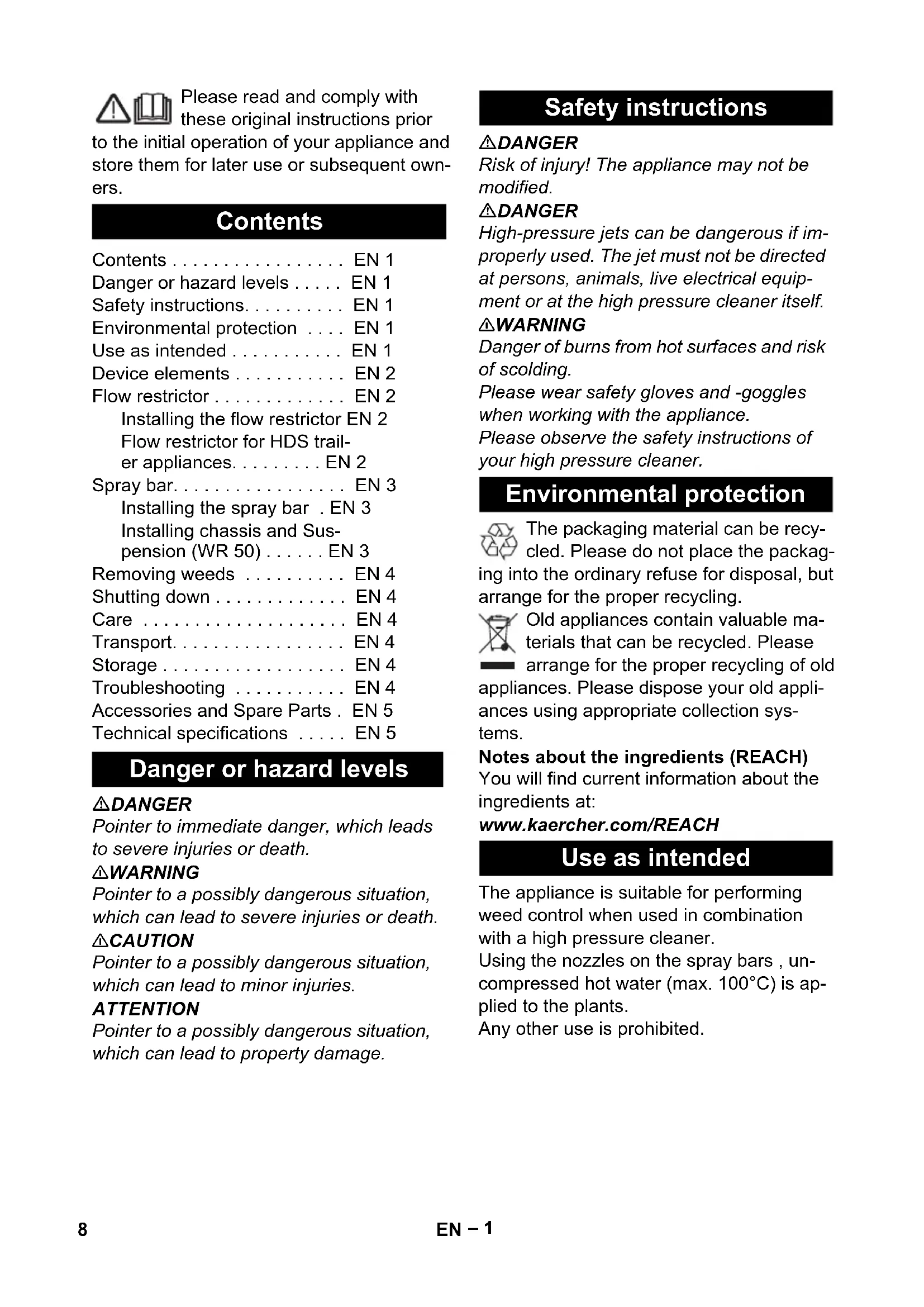

USER MANUAL WR 20 Kärcher

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Contents EN1

Danger or hazard levels . . . . EN 1

Safety instructions. EN 1

Environmental protection . . . EN 1

Use as intended. EN 1

Device elements EN 2

Flow restrictor EN 2

Installing the flow restrictor EN 2

Flow restrictor for HDS trailer appliances. . EN 2

Spray bar. EN 3

Installing the spray bar . EN 3

Installing chassis and Suspension (WR 50) . . . . EN 3

Removing weeds EN 4

Shutting down EN 4

Care EN4

Transport. EN 4

Storage EN4

Troubleshooting EN 4

Accessories and Spare Parts. EN 5

Technical specifications . EN 5

Danger or hazard levels

△DANGER

Pointer to immediate danger, which leads to severe injuries or death.

WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Safety instructions

△DANGER

Risk of injury! The appliance may not be modified.

△DANGER

High-pressure jets can be dangerous if improperly used. The jet must not be directed at persons, animals, live electrical equipment or at the high pressure cleaner itself.

WARNING

Danger of burns from hot surfaces and risk of scolding.

Please wear safety gloves and -goggles when working with the appliance.

Please observe the safety instructions of your high pressure cleaner.

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but go for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old

appliances. Please dispose your old appliances using appropriate collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Use as intended

The appliance is suitable for performing weed control when used in combination with a high pressure cleaner.

Using the nozzles on the spray bars, uncompressed hot water (max. 100^ ) is applied to the plants.

Any other use is prohibited.

Device elements

Illustration on the inside of the front cover

1 Screw connections
2 Star handle screw
3 Holder for spray bar
4 Chassis and suspension (WR 50)
5 Spray bars
6 Nozzles spray bars

Flow restrictor

To ensure the water temperature remains even (above 90^ ), you will need to install a flow restrictor on the high-pressure output of the high-pressure cleaner.

Note

The required adapter is not included in the scope of delivery. The required nozzle has been adjusted to suit the corresponding high pressure cleaner and must be ordered separately.

Hot water high-pressure cleaner	Order number nozzle
HDS 6/14 C 2.885-494.0
HDS 6/14-4 C 2.885-494.0
HDS 7/12-4 M 2.883-805.0
HDS 7/16 C 2.883-027.0
HDS 8/17 C 2.883-846.0
HDS 8/18-4 C 2.883-846.0
HDS 8/18-4 M 2.883-846.0
HDS 9/18-4 M 2.883-821.0
HDS 10/20-4 M 2.883-397.0
HDS 12/18-4 S 2.883-804.0
HDS 13/20-4 S 2.883-401.0
HDS 1000 De 2.883-846.0
HDS 1000 Be 2.883-846.0
HDS 13/20 DeTr.1 2.883-846.0
HDS 17/20 DeTr.1 2.883-846.0

Note: Talk to your service partner for nozzles for hot water high-pressure cleaners not included above.

Installing the flow restrictor

1 Nozzle holder
2 Copper disc
3 Nozzle
4 Adapter

A Input (unit output connection)
B Output (High pressure hose connection)

Screw nozzle and copper washer into the nozzle holder.
Screw adapter onto the nozzle holder.
Screw flow restrictor to the high-pressure output of the appliance.
Screw the high pressure hose onto the output of the flow restrictor.

Flow restrictor for HDS trailer appliances

When using an HDS trailer device, the flow restrictor must be installed between the spray lance and trigger gun.

Observe the information in the operating instructions of the high-pressure cleaner!

1 Trigger gun
2 Flow restrictor
3 Spray lance

Install flow restrictor between trigger gun and spray lance.
Check that the screw connections are leak-tight after installation.

Spray bar

Installing the spray bar

Screw the spray bars onto the spray lance.
Tighten the screw connection with a wrench.

Note

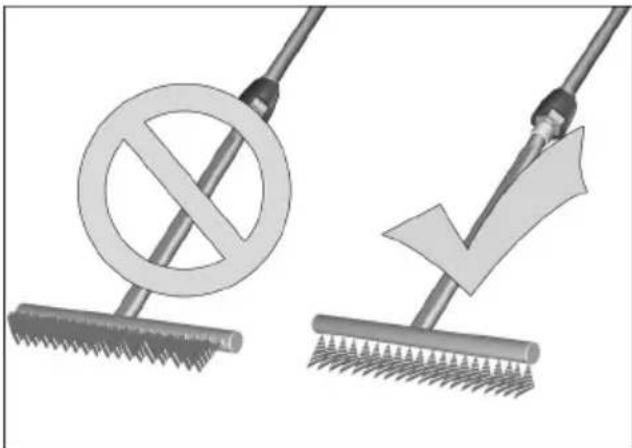

The openings of the spray bar must face downwards not forwards.

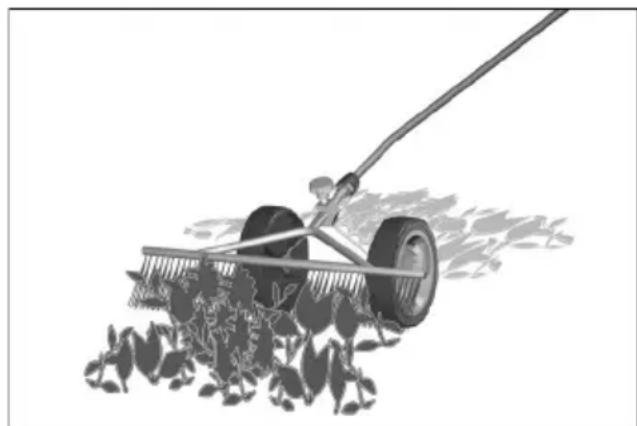

Installing chassis and Suspension (WR 50)

Note

If necessary, the WR 50 can be used with the chassis and suspension.

Insert spray bar into the chassis and suspension support.

Note

On the support, adjust the clearance between the spray bar and the surface (approx. 50mm - 100mm above the surface).

Loosen the star handle screw.
Move the spray bar in the holder.
Tighten star handle screw.

Removing weeds Shutti

WARNING

Risk of burns! The spray bar must be installed in such a way that the outlet openings face downwards.

Do not direct the water jet on persons or animals.

Do not touch the WR 20/WR 50 or hold the water jet while the machine is running.

Set the device switch on the high-pressure cleaner to max. 98^
If installed, set the Servo Control to the max. setting.
Switch on the high pressure cleaner and pull the lever of the high pressure gun.
Wait until hot water emerges from the spray bar.

Note

Depending on the high-pressure cleaner in use, the heating-up time can last between 2 and 5 minutes.

Guide the spray bar slowly over the weed.
Repeat the procedure several times if required.

Note

The optimal effect is achieved when hot water escapes almost unpressurised without any steam.

down

WARNING

Risk of burns! Allow the WR20 / WR 50 to cool down before disassembly.

After the operation, operate the spray bar with cold water for two minutes in order to cool it down.
If necessary, rinse off the spray bar and chassis and suspension (WR 50) with clear water.

Care

Protect the appliance against frost.
Clean the chassis and suspension (WR 50) of dirt, earth and plant residues
Regularly check the nozzles on the spray bar for blockages.

Transport

Mind the weight of the appliance during transport.

Storage

Consider the weight of the appliance when storing it.
Store the appliance in a frost free area.

Troubleshooting

Steam is coming out of the spray bar:
Reduce the temperature setting on the high-pressure cleaner.

The emerging water pressure is too high:

Install the flow restrictor.
Select a suitable nozzle (see table).

High-pressure cleaner switches off/the high-pressure cleaner burner does not start:

Check the nozzles on the spray bar for soiling.
Check the nozzles on the spray bar for calcification.

The wheels of the chassis and suspension (WR 50) do not turn:

Check wheel axle and bearings for soiling.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.

For information about accessories and spare parts, please visit www.kaercher.com.

Technical specifications

	WR 20	WR 50
Working width 200mm	500mm
Input temperature min.	90°C
Max. feed temperature	100°C
Input amount l/min 5.8	8.3	8.3 - 16.7
Weight (kg) 0.3 2.2
