Product type	Kitchen hood
Brand	Hotpoint
Model	HHPN 6.4F AM OW
Dimensions (H x W x D)	85-110 cm x 60 cm x 50 cm (telescopic height)
Air outlet diameter	150 mm (adaptable: 15 cm, 12.5 cm, 12 cm)
Power supply	220-240 V ~50/60 Hz
Total absorbed power	Approx. 200 W (see rating plate)
Lighting	LED, 12 V - 20 W max (G4)
Number of speeds	3 + intensive (timed 5 min)
Control	Soft Touch Button with delayed shut-off
Special functions	Automatic high temperature detection, programmable automatic shut-off
Filtration type	Metal grease filter (washable) + activated charcoal filter (optional)
Filter saturation indicator	Yes (LED: flashing for charcoal, on for grease)
Noise level	Approx. 55-65 dB(A) depending on speed
Weight	Approx. 15 kg
Installation	External extraction or recirculation (charcoal kit optional)
Minimum mounting distance	50 cm (electric) / 65 cm (gas or mixed)
Grease filter maintenance	Monthly cleaning (manual or low-temperature dishwasher)
Charcoal filter replacement	Every 4 months (max), non-washable
Lamp replacement	By after-sales service (integrated LED)
Safety	Automatic shut-off on overheating, no flambé cooking, electrical protection

Frequently Asked Questions - HHPN 6.4F AM OW HOTPOINT

How to install the Hotpoint HHPN 6.4F AM OW hood?

Installation should be carried out by a qualified professional. Respect the minimum distance of 50 cm above an electric cooktop and 65 cm above a gas cooktop. Follow the fixing and electrical connection instructions provided in the manual. The hood can be installed in ducting version (external extraction) or filtering version (recirculation with charcoal filter).

What is the minimum mounting height?

The distance between the lowest part of the hood and the cooking surface must be at least 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. If the cooktop manufacturer specifies a greater distance, that takes precedence.

How to clean the grease filters?

The metal grease filters should be cleaned at least once a month. You can wash them by hand with a non-aggressive detergent or in a dishwasher at low temperature on a short cycle. Dishwashing may cause discoloration, but this does not affect filtration performance.

When to replace the charcoal filter?

The activated charcoal filter cannot be cleaned and must be replaced at most every 4 months, or earlier if the saturation LED flashes. The frequency depends on usage and how regularly the grease filter is cleaned. It is available from after-sales service.

How to enable/disable the charcoal filter saturation indicator?

The charcoal filter saturation LED is normally disabled. To enable it, with the hood off, press simultaneously the T1 and T4 keys until L1 then L2 flash. To disable, repeat the operation until only L1 flashes.

What to do if the hood is not working?

First check that there is no power failure and that a speed has been selected. If the problem persists, disconnect the hood from the power supply for about 5 seconds, then reconnect it. If this does not solve the problem, contact the competent repair service.

How to set the automatic shut-off?

On Soft Button control models, press the T4 key to program the automatic shut-off. The duration depends on the selected speed: 20 minutes at low speed, 15 minutes at medium speed, 10 minutes at high speed and 5 minutes at intensive speed.

How to replace the LED lamp?

The LED lamps are integrated and their replacement must be carried out by the technical assistance service. Do not attempt to replace them yourself. Always disconnect the appliance before any intervention and ensure the lamps are cool.

Can I use the hood in filtering version without extraction?

Yes, the hood can be used in filtering version (recirculation) if you install the activated charcoal filter kit (not supplied). In this mode, the air is degreased and deodorized before being returned to the room. Check whether the kit is included or must be purchased separately.

What are the different speed modes?

The hood offers 3 speeds (low, medium, high) plus a timed intensive speed of 5 minutes. The intensive speed activates automatically in case of high temperature detection. The speeds are selectable via the T1 and T2 keys on the control panel.

USER MANUAL HHPN 6.4F AM OW HOTPOINT

Line drawing of a mechanical component with a 1x multiplier label (no text or symbols on the diagram itself)

2x

2x Ø 120 mm Ø 125 mm Ø 150 mm 1x

Warning symbols for human and hand use, including a cross symbol with warning sign and a hand holding a glove.

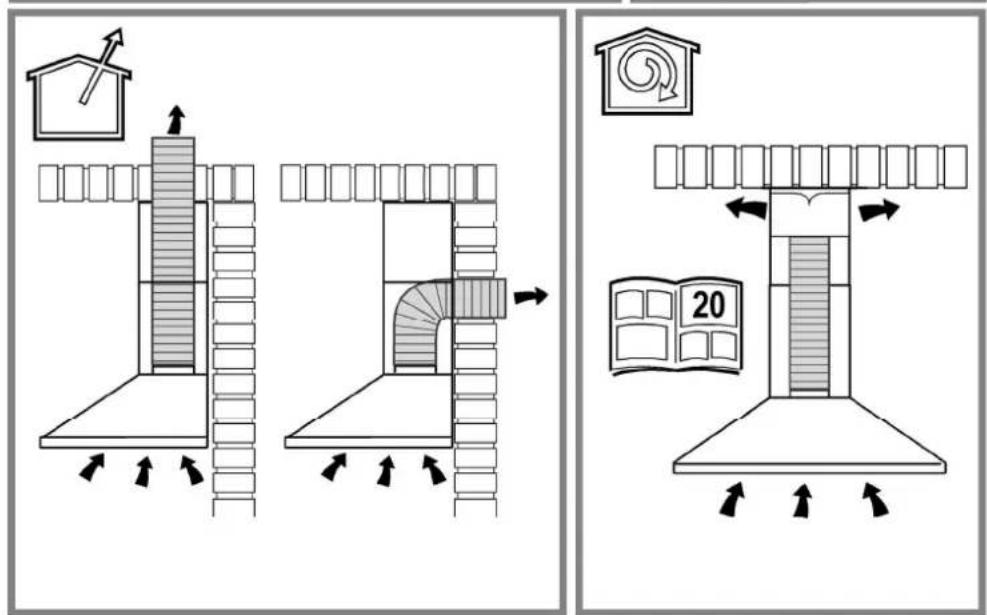

Diagram illustrating building ventilation and door opening process with labeled components and directional arrows

Diagram illustrating a mechanical setup with labeled components and dimension lines, including a hand holding a tool near a platform.

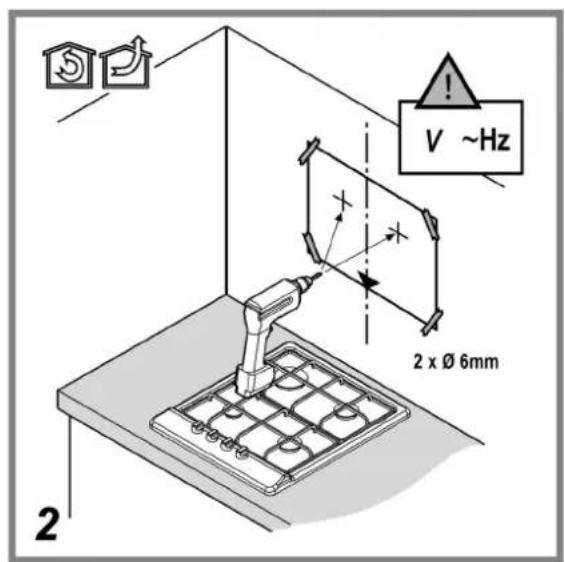

V ~Hz 2 x Ø 6mm 2

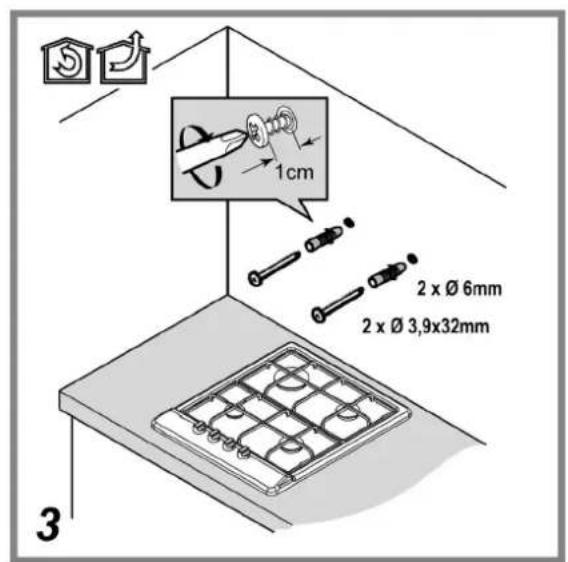

1cm 2 x Ø 6mm 2 x Ø 3,9x32mm 3

4

5

Diagram illustrating a kitchen or oven setup with labeled components and directional arrows, including a hand pointing to a component.

Diagram illustrating a mechanical press or press mechanism with labeled components and directional arrows, including a numbered section '7' at the bottom.

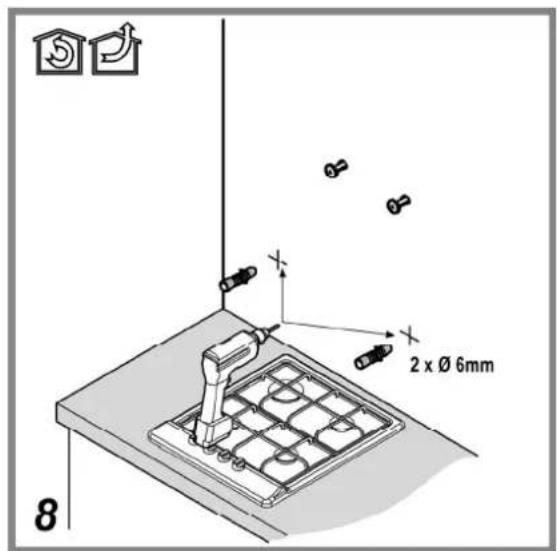

2 x Ø 6mm 8

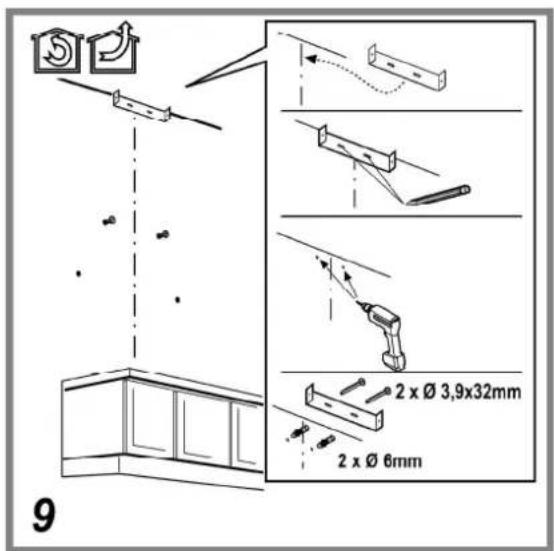

9 2 x Ø 3,9x32mm 2 x Ø 6mm

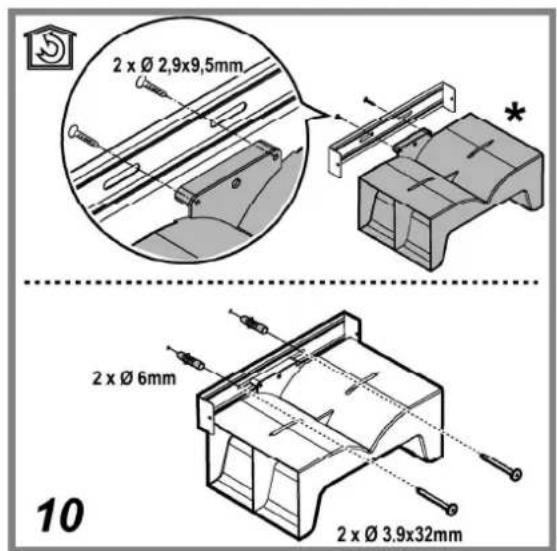

2 x Ø 2,9x9,5mm 2 x Ø 6mm 2 x Ø 3,9x32mm 10

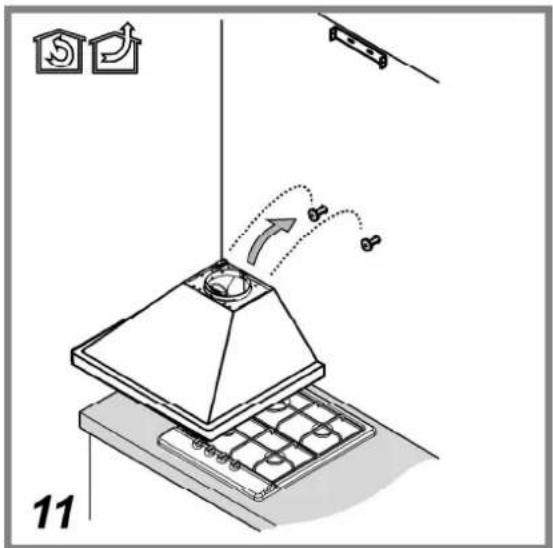

Diagram illustrating a mechanical or electrical setup with labeled components and motion arrows, including icons for home control and device placement.

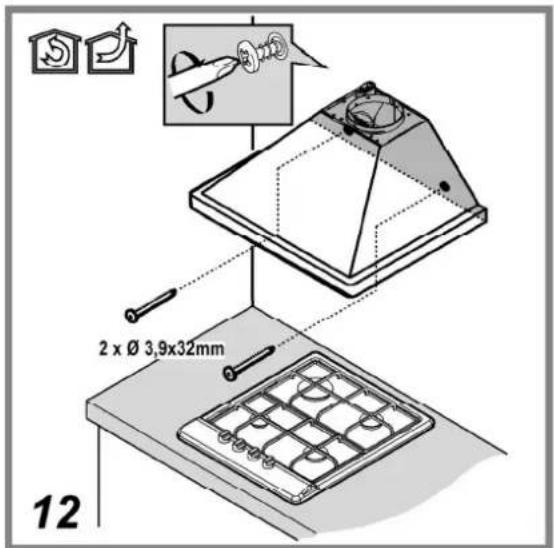

2 x Ø 3,9x32mm 12

Technical diagram of a mechanical assembly with two views and a central component, labeled '13' (no text or symbols on the diagram itself)

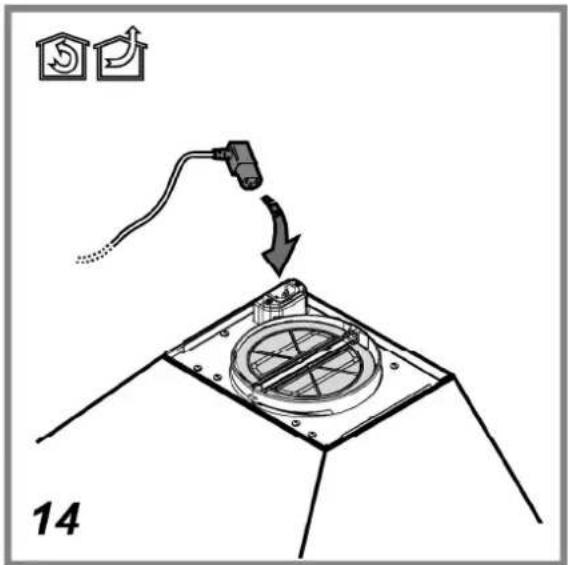

14

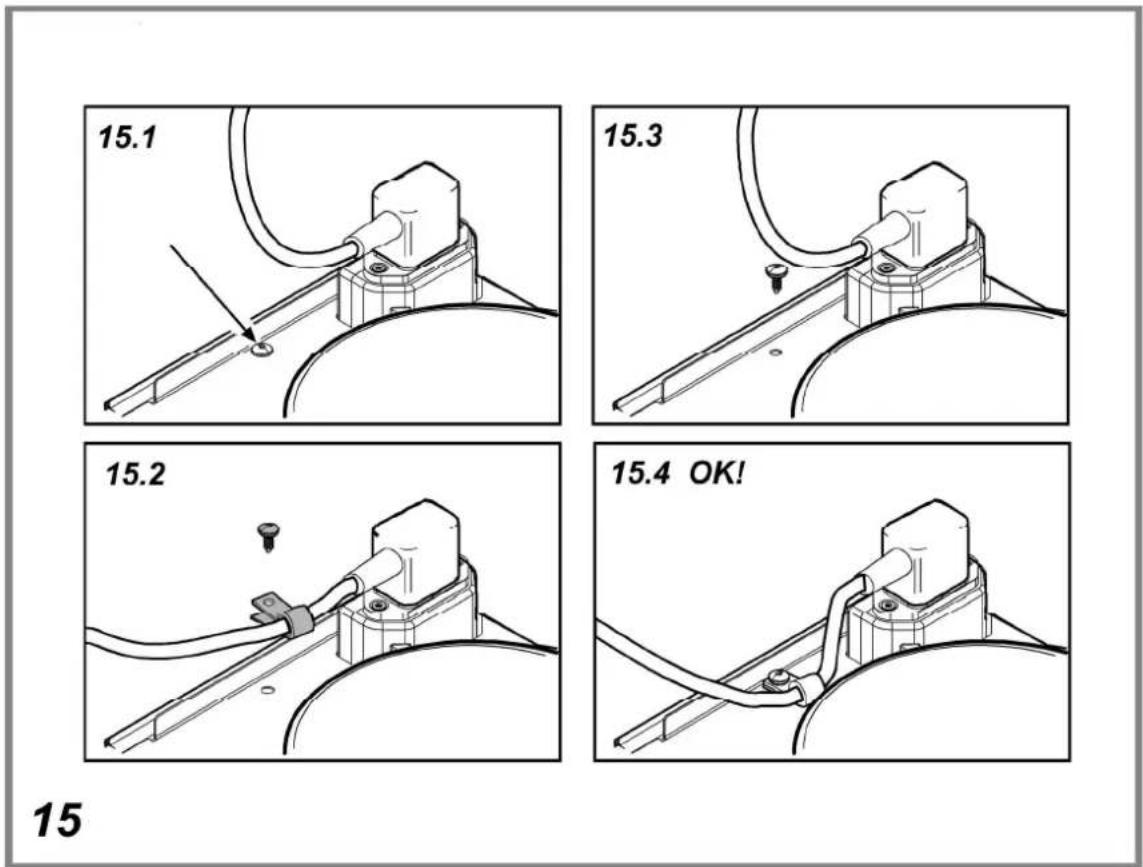

15.1 15.3 15.2 15.4 OK! 15

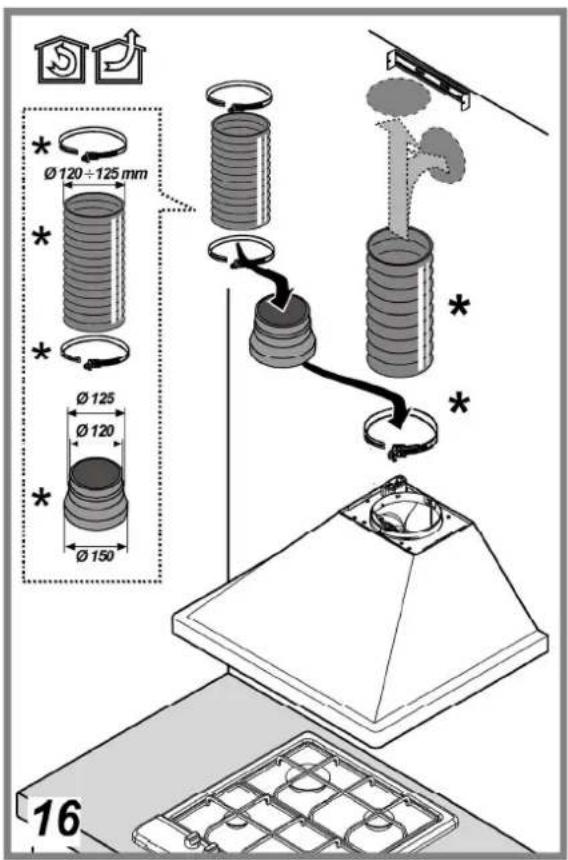

Ø 120 ÷ 125 mm Ø 125 Ø 120 Ø 150 16

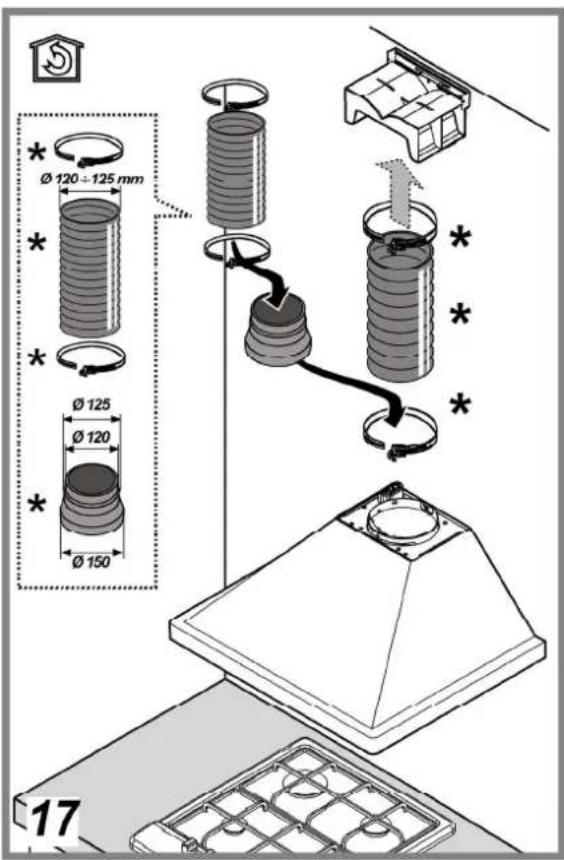

Ø 120÷125 mm Ø 125 Ø 120 Ø 150 17

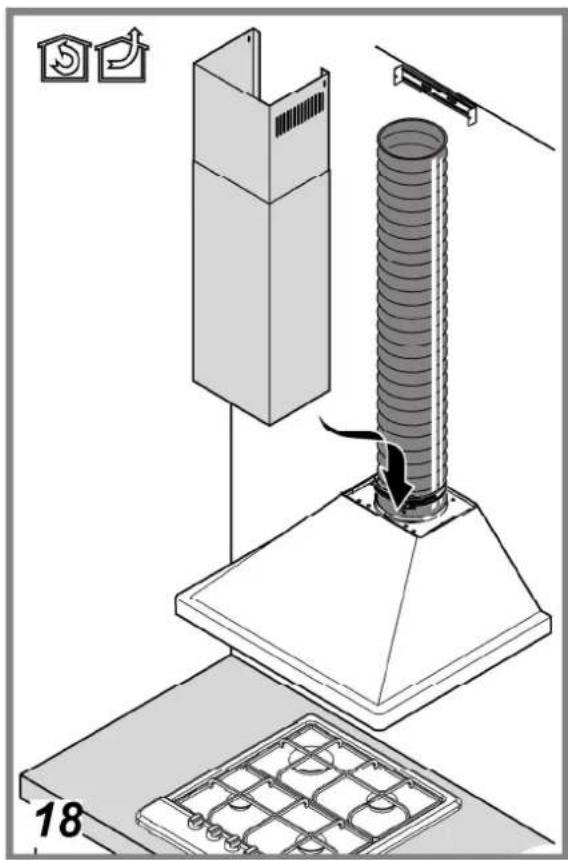

Technical illustration of a mechanical device with a cylindrical component mounted on a base, showing assembly steps (no text or symbols)

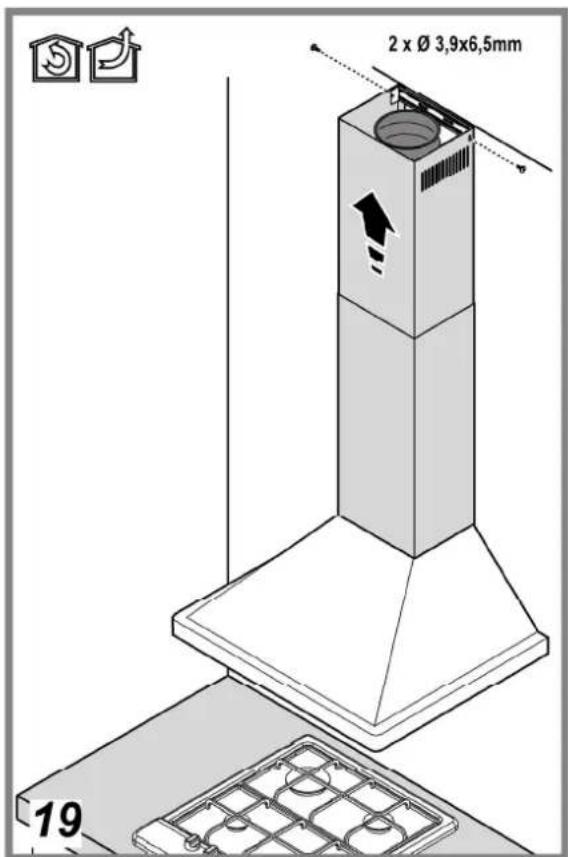

2 x Ø 3,9x6,5mm 19

2 x 20

Diagram of a door frame with an arrow indicating clockwise motion, no text or symbols present

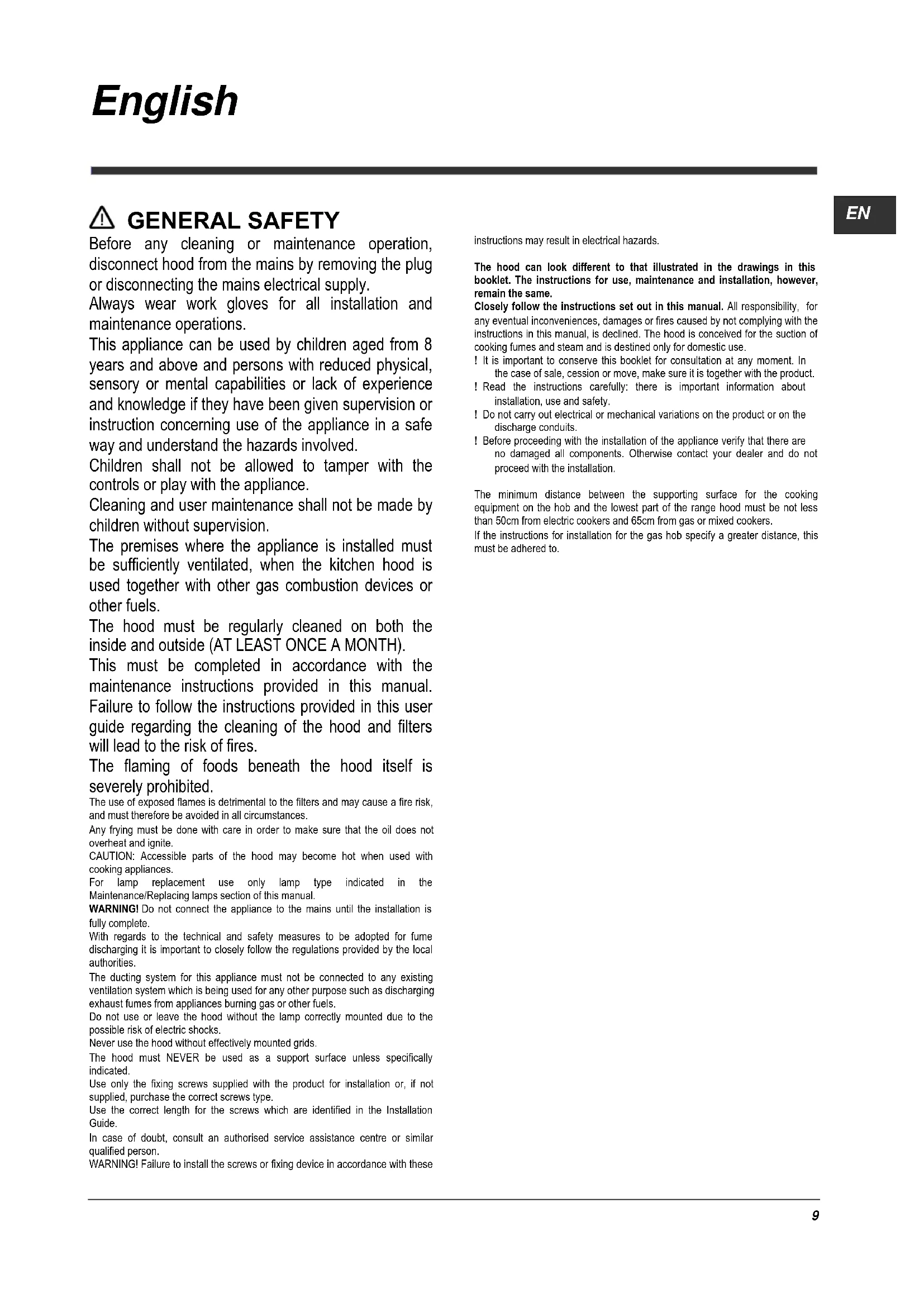

GENERAL SAFETY

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

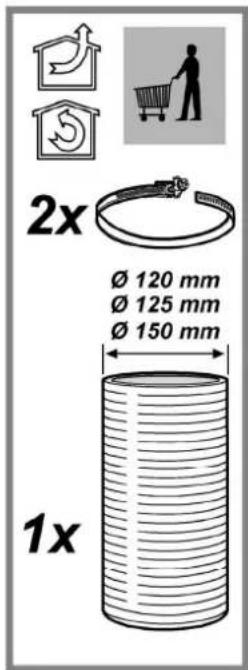

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Models with mechanical control panel

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

T1. ON/OFF light switch
T2. Speed 1/OFF switch
T3. 2-speed selection
T4. 3-speed selection

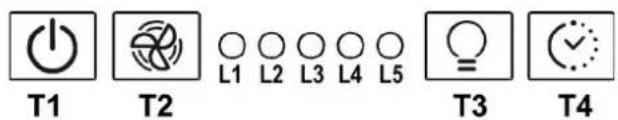

Models with Soft Button panel + Delay OFF

RHHPN 9.7F AB X

T1 T2 L1 L2 L3 L4 L5 T3 T4

T1. Button ON/OFF suction motor
T2. Selection button operating suction speed (power)

Note: The intensive suction speed (power) (LED L3 flashing) lasts for approximately 5 minutes, then the medium suction speed (power) is automatically set (LED L2 on)

T3. Button ON/OFF lighting
T4. Automatic shutdown button:

Note: press this button to set the automatic shutdown after:

Low suction speed (power): 20 minutes

Medium suction speed (power): 15 minutes

High suction speed (power): 10 minutes

Intensive suction speed (power): 5 minutes

L1. LED low suction speed (power)
L2. LED medium suction speed (power)
L3. LED high suction speed (power)
L4 LED intensive suction speed (power) - timed (5 min.).
L5 LED for filter saturation:

flashing: carry out maintenance of the charcoal filter;

on: carry out maintenance of grease filters.

L1+L2+L3 flashing in sequence: automatic operation at high temperature (see related section)

Reset filter saturation

After carrying out filter maintenance, press and hold button T1, LED L5 switches off.

Activation of the LED for charcoal filter saturation

The LED for charcoal filter saturation is normally disabled. To activate it, proceed as follows:

With the hood off, press and hold for a long time and simultaneously T1 and T4: L1 flashes at first, then L2 as well, to indicate successful activation.

Disabling the LED for charcoal filter saturation: repeat the above operation, first L1 and L2 start flashing then only L1 to indicate successful disabling.

Automatic operation at high temperature

The hood is fitted with a sensor that detects the temperature. When this becomes too high, the sensor automatically switches on the medium suction speed (power). The hood switches off when the temperature detected by the sensor has lowered significantly.

Models with Soft Button panel + Silent Speed

HHPN 9.7F LB X

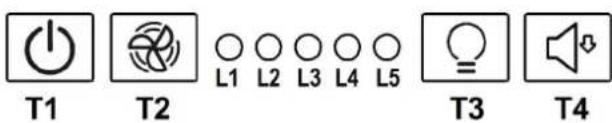

T1 T2 L1 L2 L3 L4 L5 T3 T4

T1. Button ON/OFF suction motor
T2. Selection button operating suction speed (power)

Note: The intensive suction speed (power) (LED L3 flashing) lasts for approximately 5 minutes, then the medium suction speed (power) is automatically set (LED L2 on)

T3. Button ON/OFF lighting
T4. Selection button 'silent' suction speed (power)

L1. LED medium suction speed (power)
L2. LED high suction speed (power)
L3 LED intensive suction speed (power) - timed (5 min.).
L4 LED filter saturation:

flashing: carry out maintenance of the charcoal filter; on: carry out maintenance of grease filters.

L5 LED low (silent) suction speed (power)

L1+L2+L3 flashing in sequence: automatic operation at high temperature (see related section)

Reset filter saturation

After carrying out filter maintenance, press and hold button T1, LED L4 switches off.

Activation of the LED for charcoal filter saturation

The LED for charcoal filter saturation is normally disabled. To activate it, proceed as follows:

With the hood off, press and hold for a long time and simultaneously T1 and T4: L1 flashes first then L2 as well, to indicate successful activation.

Disabling the LED for charcoal filter saturation: repeat the above operation, L1 and L2 start flashing first, then only L1, to indicate successful disabling.

Automatic operation at high temperature

The hood is fitted with a sensor that detects the temperature. When this becomes too high, the sensor automatically activates the medium suction speed (power). The hood switches off when the temperature detected by the sensor has lowered significantly.

MAINTENANCE

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

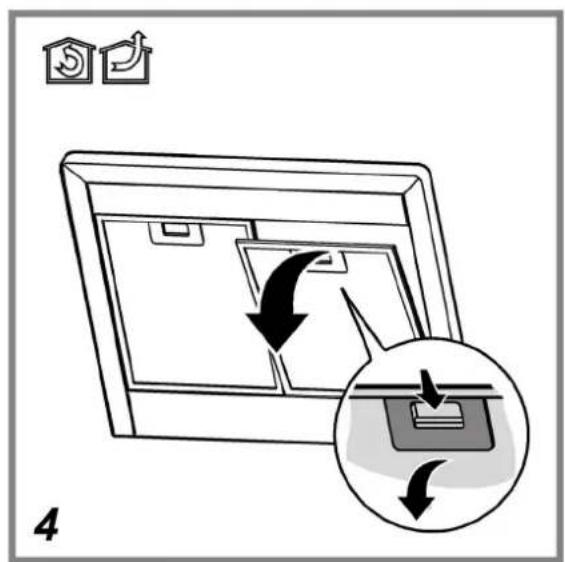

To remove the grease filter, pull the spring release handle.

Illustration of a hand holding a metal tool with a clip, no text or symbols present

Maintenance of the charcoal filter

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

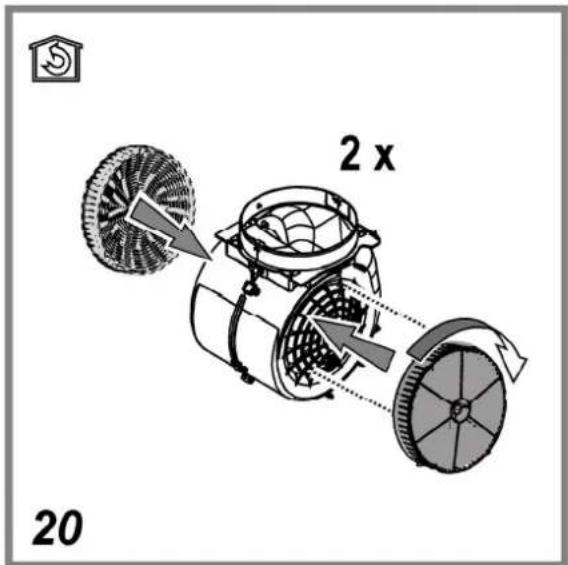

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

2 x

Replacing lamps

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down. Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

Illustration of a hand holding three circular components with a pointer and magnifying glass nearby (no text or symbols)

HHPN 9.7F LB X

The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

DISPOSAL

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

• The power has not been disconnected.
• A speed has been selected.
• If the hood performs inefficiently:

Check that:

• The motor speed selected is sufficient for the amount of smoke and vapours released.
• The kitchen is sufficiently ventilated to allow air intake.
• The charcoal filter is not worn (hood in filtering version).
• If the hood has turned off during normal functioning:

Check that:

• The power has not been disconnected.
• the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model	Height (cm)	Width (cm)	Depht (cm)	∅ of exhaust tube (cm)
HHPN6.4FAMXRHPN6.4FAMX7HHPN6FAMOWHHPN6.4FAMOW7HHPN6FAMANHHPN6.4FAMAN	85-110	60		50 15-12,5-12
HHPN9.7FAMOWHHPN9.7FAMANHHPN9.7FLBXRHHPN9.7FABX	85-110	90		50 15-12,5-12

Please check the plate in order to verify the total absorption and the light absorption.

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

	Power (W)	Voltage (V)	Cap	Dimensions (mm)
Halogen 2 x 20W 12		G4 33x∅	0

HHPN 9.7F LB X

The hood is equipped with a lighting system based on LED technology. For replacement, contact the technical service.

Components not provided with the product

⚠ SICUREZZA GENERALE

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW

HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN

HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small blue object, with a magnifying glass and a tool nearby (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Potenza (W) Tensione (V) Attacco					Dimensioni (mm)
Alogena 2 x 20W 12 G4			33x∅10

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a metal clamp or bracket with a small object on top (no text or symbols)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a magnifying glass with a pointer and a small blue object, no text or symbols present.

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW

HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

	Puissance(W)	Tension(V)	Culot	Dimensions(mm)
Halogène	2 x 20W 12	G4 33x∅1	0

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW

HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN

HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a magnifying glass with a pointer and a small blue object, alongside another hand holding a circular dial (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW

HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Reset filter verzadiging indicator

Reset filter verzadiging

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Sluit de stroom af.

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a metal tool with a bracket (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a magnifying glass and a small blue object, with no text or symbols present.

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small blue object, with a magnifying glass and circular components above (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a metal tool with a bracket (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a magnifying glass with a blue lens, alongside another hand holding a circular component (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a U-shaped tool or bracket with a small mechanical component (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW

HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN

HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small blue object, with a magnifying glass and circular components nearby (no text or symbols)

HHPN 9.7F LB X

Odsávač pary je vybavený systémom osvetlenia založenom na technoloógii LED.

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW

HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a small transparent object with a magnifying glass above it, alongside another hand holding a circular lens and a pointer (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

	Куат (Вт)	Кернеу (В)	Какпак	Өлшемдер (mm)
Alogena	2 x 20W	12	G4	33x∅10

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X

7HHPN 6F AM OW - HHPN 6.4F AM OW - 7HHPN 6F AM AN HHPN 6.4F AM AN - HHPN 9.7F AM OW - HHPN 9.7F AM AN

Illustration of a hand holding a metal tool with a bracket (no text or symbols)

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6 AM OW HHPN 6.4F AM OW - 7HHPN 6 AM AN - HHPN 6.4F AM AN HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X

Illustration of a hand holding a magnifying glass with a pointer and three circular components (no text or symbols)

HHPN 9.7F LB X

HHPN 6.4F AM X - RHPN 6.4F AM X - 7HHPN 6F AM OW HHPN 6.4F AM OW - 7HHPN 6F AM AN - HHPN 6.4F AM AN

HHPN 9.7F AM OW - HHPN 9.7F AM AN - RHHPN 9.7F AB X
