USER MANUAL HB0703AX0 HOTPOINT

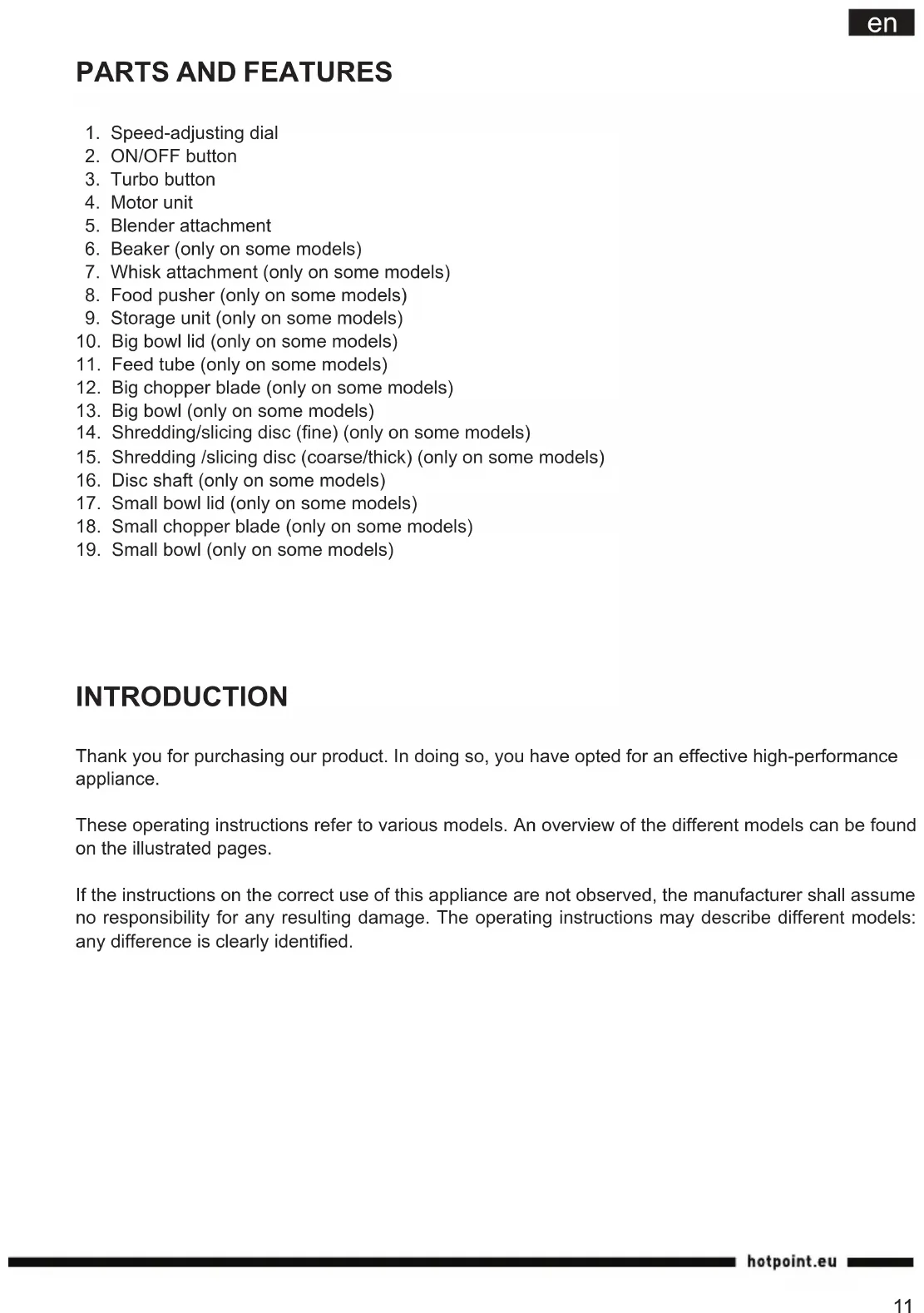

1. Speed-adjusting dial

5. Blender attachment

6. Beaker (only on some models)

7. Whisk attachment (only on some models)

8. Food pusher (only on some models)

9. Storage unit (only on some models)

10. Big bowl lid (only on some models)

11. Feed tube (only on some models)

12. Big chopper blade (only on some models)

13. Big bowl (only on some models)

14. Shredding/slicing disc (ne) (only on some models)

15. Shredding /slicing disc (coarse/thick) (only on some models)

16. Disc shaft (only on some models)

17. Small bowl lid (only on some models)

18. Small chopper blade (only on some models)

19. Small bowl (only on some models)

INTRODUCTION Thank you for purchasing our product. In doing so, you have opted for an effective high-performance appliance. These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages. If the instructions on the correct use of this appliance are not observed, the manufacturer shall assume no responsibility for any resulting damage. The operating instructions may describe different models: any difference is clearly identied.12

pouring any contents from the bowl.

18. Be sure to switch off the appliance after

each use of your food processor. Make sure the motor stops completely before disassembling.

19. Do not put your ngers or other objects into

the unit opening while it is in operation. If any food gets stuck in the opening, use the food pusher or another piece of fruit / vegetable to push it down. When this method is not possible, turn the motor off and disassemble the unit to remove the remaining food.

20. Do not attempt to tamper with the lid interlock

21. The metal blades and disc are extremely

sharp: handle with care. Always hold the blade attachments away from the cutting edges, both when handling and cleaning the unit.

22. Do not use outdoors.

23. This appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been provided supervision or instructions on the use of the appliance by a person responsible for their safety.

24. Children should be supervised to ensure that

they do not play with the appliance.

25. This appliance is intended to be used for

household and similar applications such as:

• staff kitchen areas in shops, ofces and other working environments;

• by clients in hotels, motels and other residential-type environments;

• bed&breakfast-type environments.

26. Always make sure that the appliance is in

good working order and that all its removable parts are secure. Regularly check the power supply cord and plug for cuts or damage.

27. Be sure your hands are completely dry

before touching the switch.

Carefully wipe the outside of the appliance to remove any dust that may have accumulated. Dust with a dry cloth. Do not immerse the supply IMPORTANT INFORMATION ON SAFETY Before using the electrical appliance, always follow basic safety precautions, including the following:

1. Read all the instructions.

2. Save these instructions.

3. Before using it, check that the voltage of the

wall outlet corresponds to the voltage shown on the rating plate.

4. Do not operate any appliance with a damaged

cord / plug. If the appliance malfunctions or is dropped or damaged in any manner return the appliance to the nearest authorised service facility for examination, repairs or electrical / mechanical adjustment.

5. If the supply cord is damaged, have it

replaced by the manufacturer, an authorised service agent or a qualied technician in order to avoid hazards.

6. Unplug it from the outlet when not in use,

before installing / removing any parts and before cleaning it.

7. Do not let the cord hang over the edge of

in water, as this would give rise to electric shocks.

9. Avoid contacting moving parts.

10. Keep your hands and utensils out of the

container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used when the food processor is not running.

11. To avoid blunting the blade, do not use on

dry or hard substances

12. Make sure the lids are securely locked in

place before operating the appliance.

13. The use of accessory attachments

not recommended by the appliance manufacturer may cause injuries or damage.

14. Do not operate the appliance for anything

other than its intended use.

15. Never insert food by hand. Always use the

off the unit and wait until the blades have come to a complete stop.13

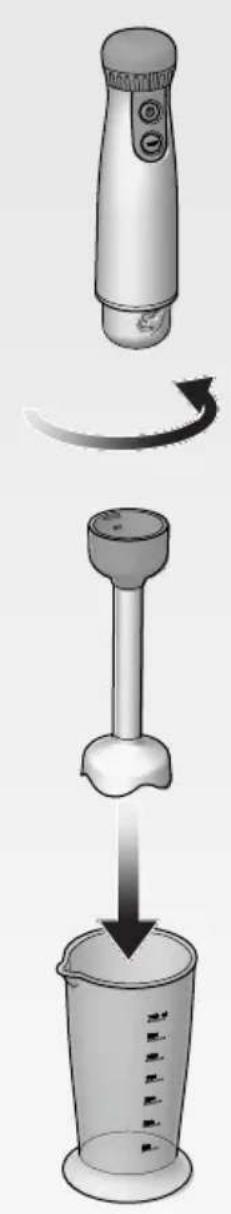

cord in water or other liquids. Blades and discs are very sharp: handle with care. USING YOUR BLENDER (A) The blender attachment is suitable for blending juices and vegetables.

1. To assemble the blender attachment to the

motor unit, turn the stem clockwise until tightened.

2. Peel or core the fruits and then cut them into

small pieces. Then put the fruit pieces or vegetables into the beaker. Usually a certain amount of water has to be added to facilitate smooth running, the proportion of food and water being 2:3. The mixture amount should not exceed the max capacity of the cup.

3. Plug the appliance into the power outlet.

4. Lower the hand blender into the food and

rotate the speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the blender starts blending immediately. For maximum-speed blending use the TURBO button for a short time. The speed-adjusting dial is not suitable for the TURBO button. Max operation at high speed each time shall not last longer than 30 seconds. Instead of the beaker, you can use any kitchen container with a suitable shape. USE THE WHISK ATTACHMENT (only on some models) (B) The whisk attachment is mainly suitable for whisking egg whites.

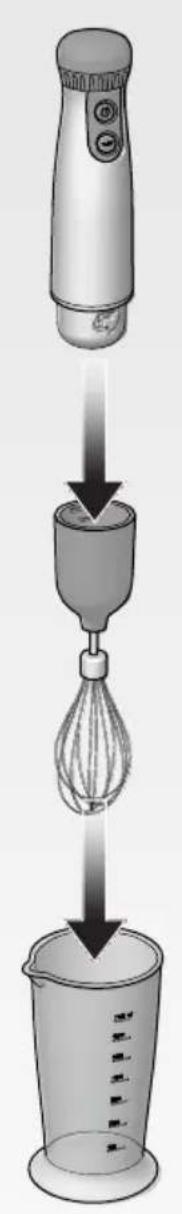

1. To assemble the whisk attachment to the

motor unit, turn the stem clockwise until tightened.

2. Place the food into the beaker.

3. Plug the appliance into the power outlet.

4. Lower the whisk into the food and rotate the

speed-adjusting dial to select the desired speed. Pressing and holding the ON/OFF button, the attachment starts whisking immediately. For maximum-speed whisking use the TURBO button for a short time. The speed adjusting dial cannot be used with the TURBO button. Max operation at high speed each time shall not last longer than 30 seconds. Instead of the beaker, you can use any kitchen container with a suitable shape.

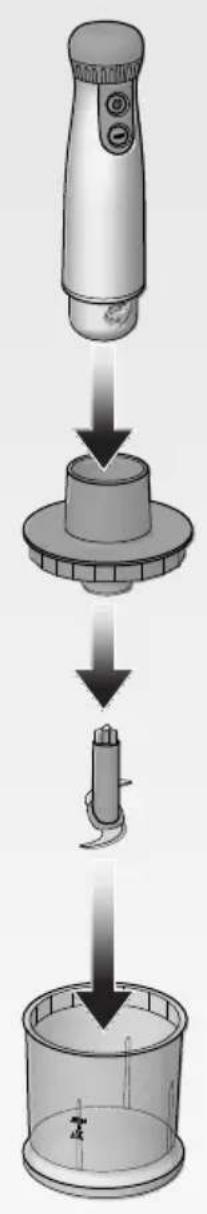

USE THE SMALL BOWL FOR FINE

CHOPPING (only on some models) (C)

1. First of all make sure the non-slip ring is

xed to the bottom of the bowl.

2. Fit the knife blade on the pin in the bowl -

always t the knife blade before adding the ingredients.

3. Cut the food into small pieces and put them

into the bowl. A small amount of water can facilitate the smooth running of the appliance. The mixture amount should not exceed the max capacity of the bowl. Max operation at high speed each time shall not last longer than 30 seconds.

4. Close with the lid.

5. Assemble the motor unit into the bowl lid and

turn it clockwise to lock them.

6. Plug the appliance into the power outlet.

7. Rotate the speed-adjusting dial to select the

desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. The speed adjusting dial cannot be used with the TURBO button. Never remove the lid until the blade has come to a complete stop.

8. Remove the knife blade rst before pouring

out the mixture. The knife blade is very sharp: take care when handling. Max operation at high14

speed each time shall not last longer than 30 seconds.

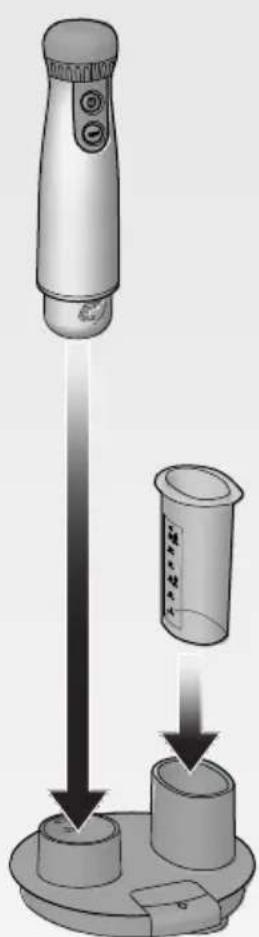

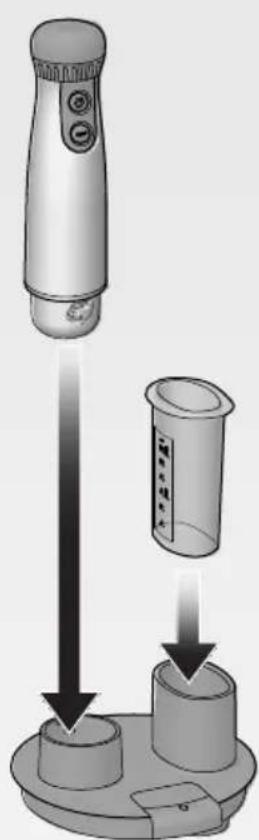

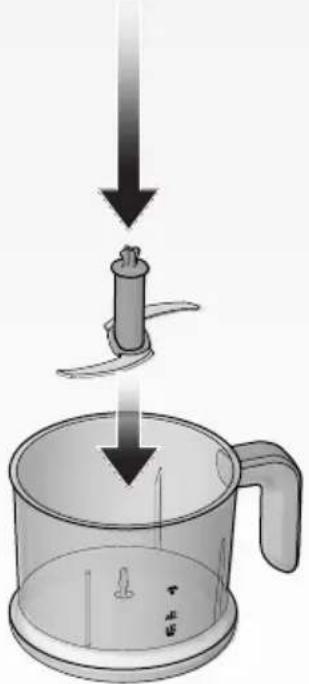

PROCESSOR ATTACHMENT To use the chopping bowl (only on some models):

1. First of all make sure the non-slip ring is

xed to the bottom of the bowl.

2. Fit the knife blade on the pin in the bowl -

always t the knife blade before adding the ingredients.

3. Cut the food into small pieces and put them

into the bowl. A small amount of water can facilitate the smooth running of the appliance. The mixture amount should not exceed the max capacity of the bowl. Max operation at high speed each time shall not last longer than 30 seconds.

4. Align the two fasteners of the bowl lid with

the two clip positions of the bowl and push down to lock them in place. Be sure to align the arrow on the lid and the arrow on the bowl. The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates. Make sure the food pusher is properly tted into its housing on the cover.

5. Assemble the motor unit into the bowl lid and

turn it clockwise to lock them.

6. Plug the appliance into the power outlet.

7. Rotate the speed-adjusting dial to select the

desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. The speed adjusting dial cannot be used with the TURBO button. Never remove the lid until the blade has come to a complete stop.

8. Remove the knife blade rst before pouring

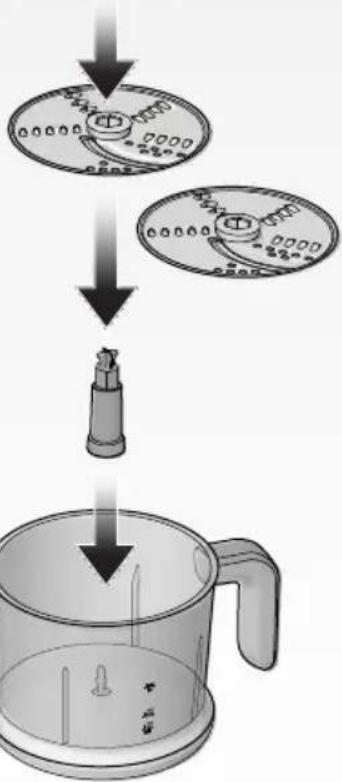

out the mixture. The knife blade is very sharp: take care when handling. Max operation at high speed each time shall not last longer than 30s. Using the bowl and shredding/slic- ing discs for processing (only on some models) (E).

1. First of all make sure the non-slip base is

xed to the bottom of the bowl.

2. Then insert the disc shaft into the pin on

the bottom of the bowl, select the desired shredding/slicing disc (ne or coarse) and assemble the shredding /slicing disc onto the shaft with the appropriate side upwards (one side is for shredding, the other side is for slicing). Extreme caution must be taken when handling discs as they are very sharp. Pull the two fasteners towards the outside to t the lid onto the bowl, making sure the lid arrow is aligned with the bowl arrow. The fasteners must be locked in the two clip positions, otherwise during operating the bowl lid may rotate as the motor rotates.

3. Insert the bottom part of the motor unit

into the opening on the bowl lid, and turn it clockwise to lock.

4. Plug the appliance into the power outlet.

5. Put the food inside the feeding tube and

push it slowly with the food pusher. Do not push heavily.

6. Rotate the speed-adjusting dial to select the

desired speed. Pressing and holding the ON/ OFF button, the attachment starts chopping immediately. For maximum speed press the TURBO button for a short time. The speed adjusting dial cannot be used with the TURBO button. Never remove the lid until the cutting disc has come to a complete stop.15

Never introduce very hard foods (e.g. hard chocolate), ice or frozen foods when using shredding or slicing attachments. TIPS

• Use the shredding side for carrots, potatoes and foods of a similar texture.

• Use the slicing side for food items such as carrots, potatoes, cabbages, cucumbers, courgettes and onions.

• Use fresh ingredients.

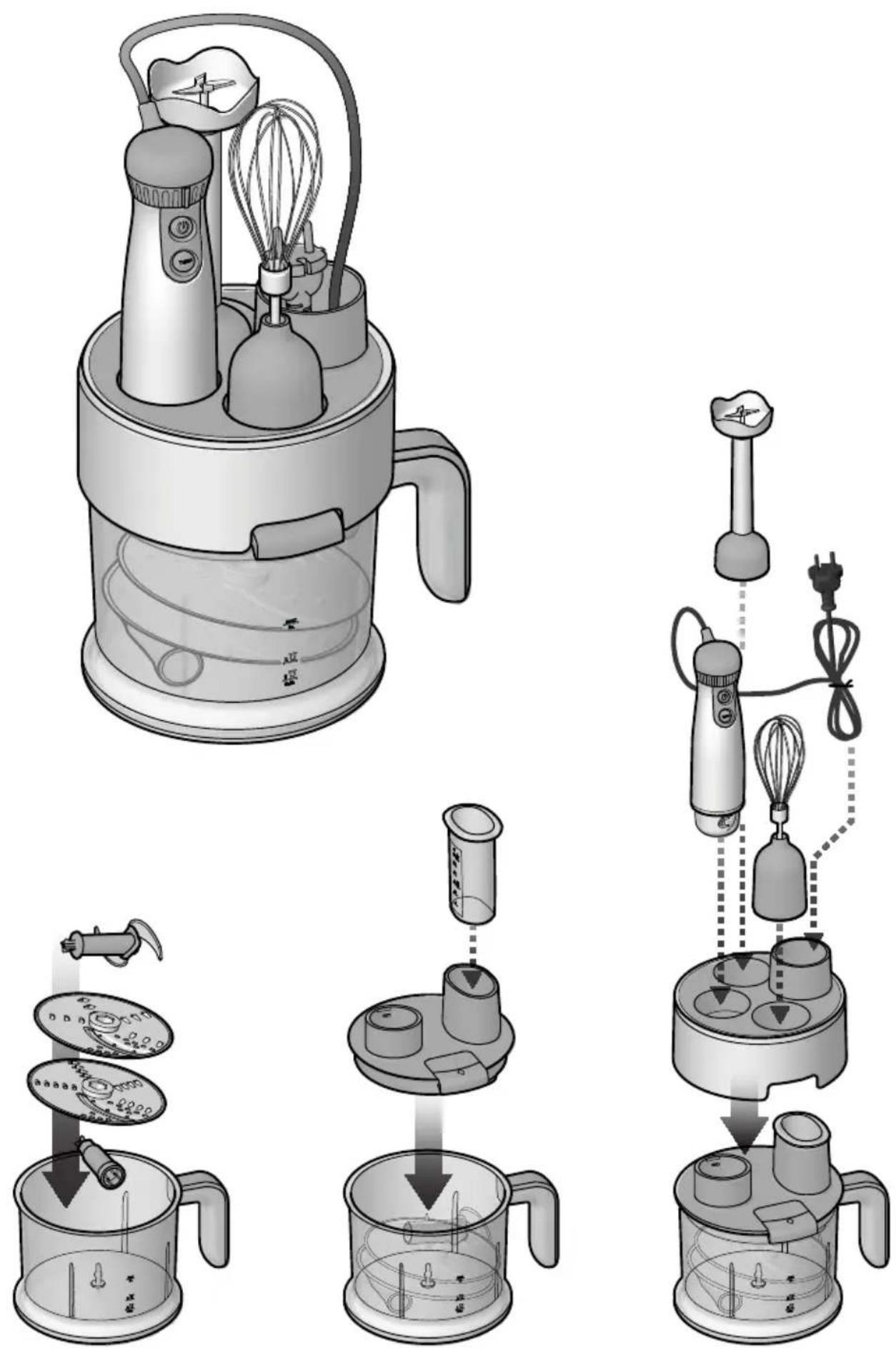

• Do not cut food too small. Fill the feed tube uniformly. This prevents the food from pouring out during processing. STORAGE SYSTEM (F) When not in use, the detachable stem, whisk and motor unit can be stored on the bowl lid. When placing the discs inside the bowl for storage, make sure the cutting edges do not scratch the bowl walls. CLEANING AND MAINTENANCE Unplug the appliance from the power supply before cleaning.

1. Wash the blender attachments and lids

under running water without any abrasive cleaners or detergents. After cleaning, place them upright so that any water that may have got in can drain out. Do not immerse the blender and lids in water, as the lubrication on the bearings may be washed away over time.

2. Wash the containers and whisk in warm

soapy water. All removable parts can be washed in warm soapy water and then carefully rinsed and dried. If necessary, use a nylon-bristle brush to complete the cup cleaning operation.

3. Wipe the motor unit with a damp cloth. Never

immerse it in water for cleaning purposes, as electric shocks may occur.

4. The non-slip base on the bottom of the bowl

can be removed and cleaned. Make sure it is re-placed correctly before using it again.

5. Dry all detachable parts thoroughly.

Blades are very sharp: handle with care. TIP For quick cleaning between processing tasks, ll the cup or bowl with water halfway, assemble the hand-held blender according to the description in the operation section and start the blending / chopping function for a few seconds.

ELECTRICAL APPLIANCES The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsor- ted municipal waste stream. Old appliances must be collected sepa- rately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the en- vironment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.16
