Product Type	TV Wall Mount
Brand	Tripp Lite
Model	DMPDS4970
Usage	Indoor Only
Screen Compatibility	124.5 to 177.8 cm (49 to 70 inches)
Compatible VESA Standards	200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
Maximum Load Capacity	Not specified in the manual, respect the indicated limits
Material	Steel
Main Features	Fixed wall mount with integrated anti-tip steel cable
Installation	By a qualified person, with assistance
Safety	Do not exceed maximum load, check every 3 months, use the anti-tip cable
Maintenance	Check fastening and condition every 3 months, clean with a soft cloth
Warranty	5-year limited (materials and workmanship defects)
Spare Parts	Available upon request via Tripp Lite customer service
Additional Information	Made in the USA, continuous improvements without notice

Frequently Asked Questions - DMPDS4970 Tripp Lite

Which screens are compatible with the DMPDS4970 mount?

The mount is designed for screens 124.5 to 177.8 cm (49 to 70 inches) with VESA patterns from 200x200 to 600x400.

What is the maximum weight capacity of this mount?

The manual does not specify an exact value but warns not to exceed the maximum weight capacity indicated. Respect the limits provided with your screen.

Can I install this mount outdoors?

No, this product is intended for indoor use only. Outdoor use could cause failure and injury.

How to properly install the mount?

Read the entire instruction manual before installation. Use an assistant or lifting equipment, attach the brackets to the screen then attach the screen to the wall mount. Tighten firmly but do not overtighten.

What to do if parts are missing or defective?

Visit tripplite.com/support for assistance. Check the component list before installation.

How to secure the screen against tipping?

Install the provided anti-tip steel cable to prevent the screen from tipping.

What maintenance is required?

Check at regular intervals (at least every 3 months) that the screen is securely fastened and the mount is in good condition.

What is the warranty period?

Tripp Lite offers a 5-year limited warranty against defects in materials and workmanship from the original purchase date.

Can I use screws other than those provided?

It is recommended to use the included screws. If different screws are needed, ensure they are suitable for the load and wall type.

How to clean the wall mount?

Use a soft, dry cloth to dust. Do not use abrasive products or solvents.

USER MANUAL DMPDS4970 Tripp Lite

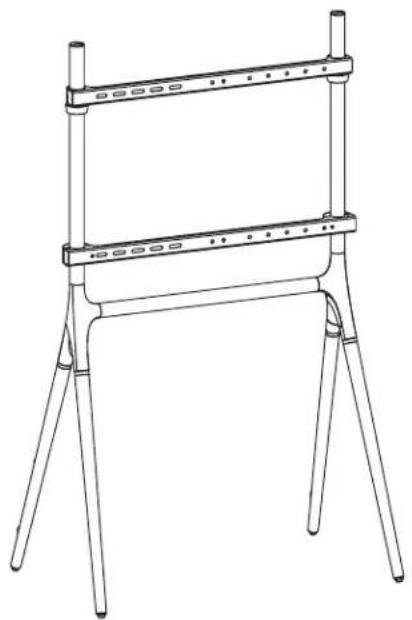

Portable Digital Signage Stand for 49" to 70" Screens

Model: DMPDS4970

CAUTION:DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200x200/300x200/ 300x300/400x200/

400x300/400x400/600x400

Espanol 8·Français 15·Pycckn 22·Deutsch 29

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Safety Instructions

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This mount was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
  This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening screws can damage the items, greatly reducing their holding power.
  This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

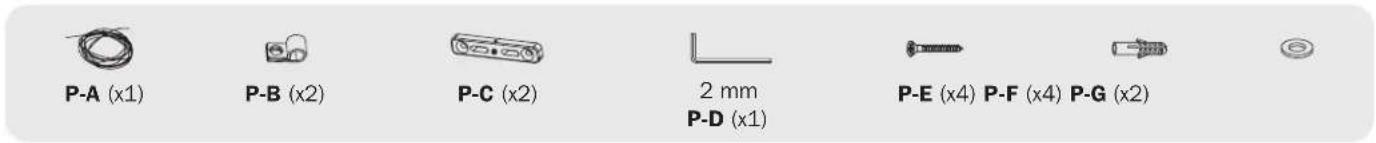

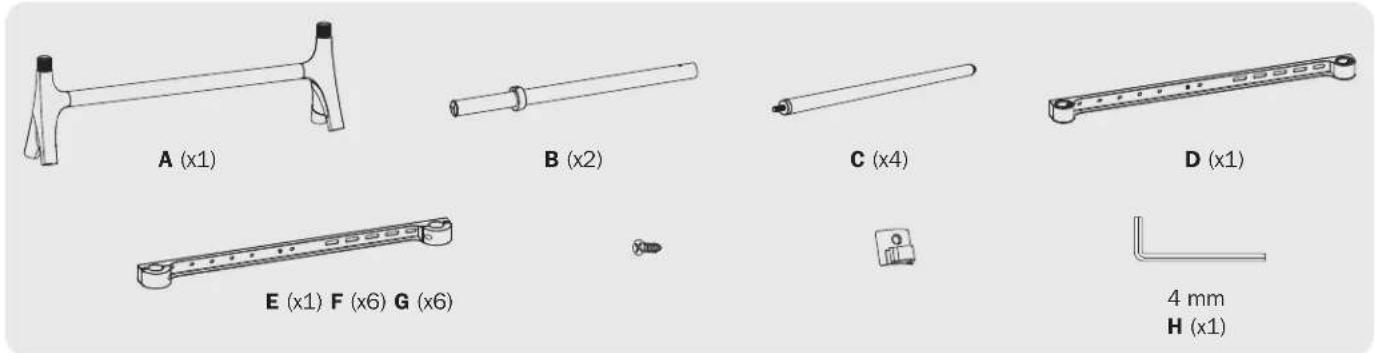

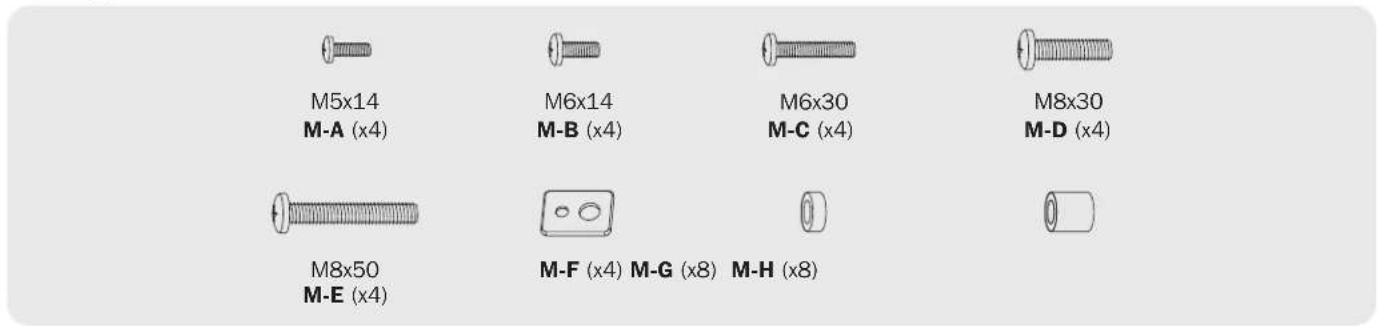

Component Checklist

IMPORTANT:

Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit triplite.com/support for service.

Package W - F through H

Package P

Package M

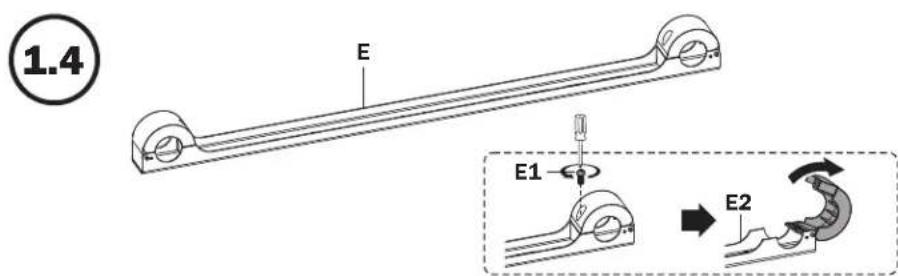

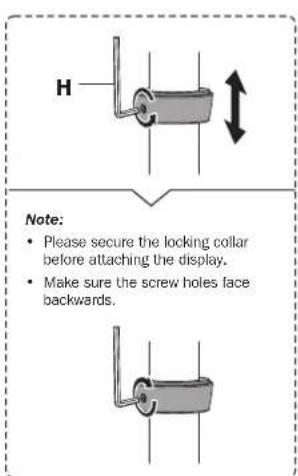

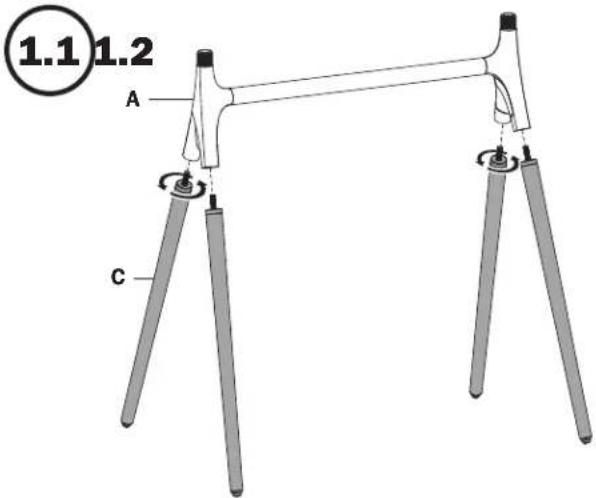

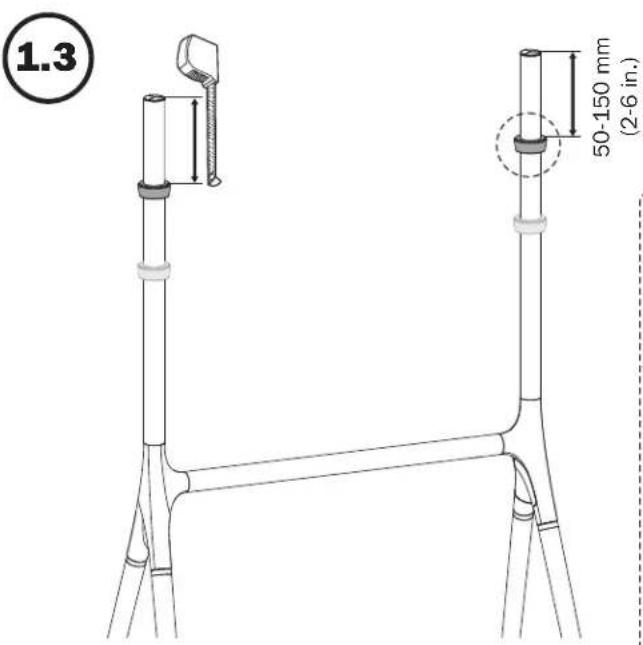

1. Assembling the Stand

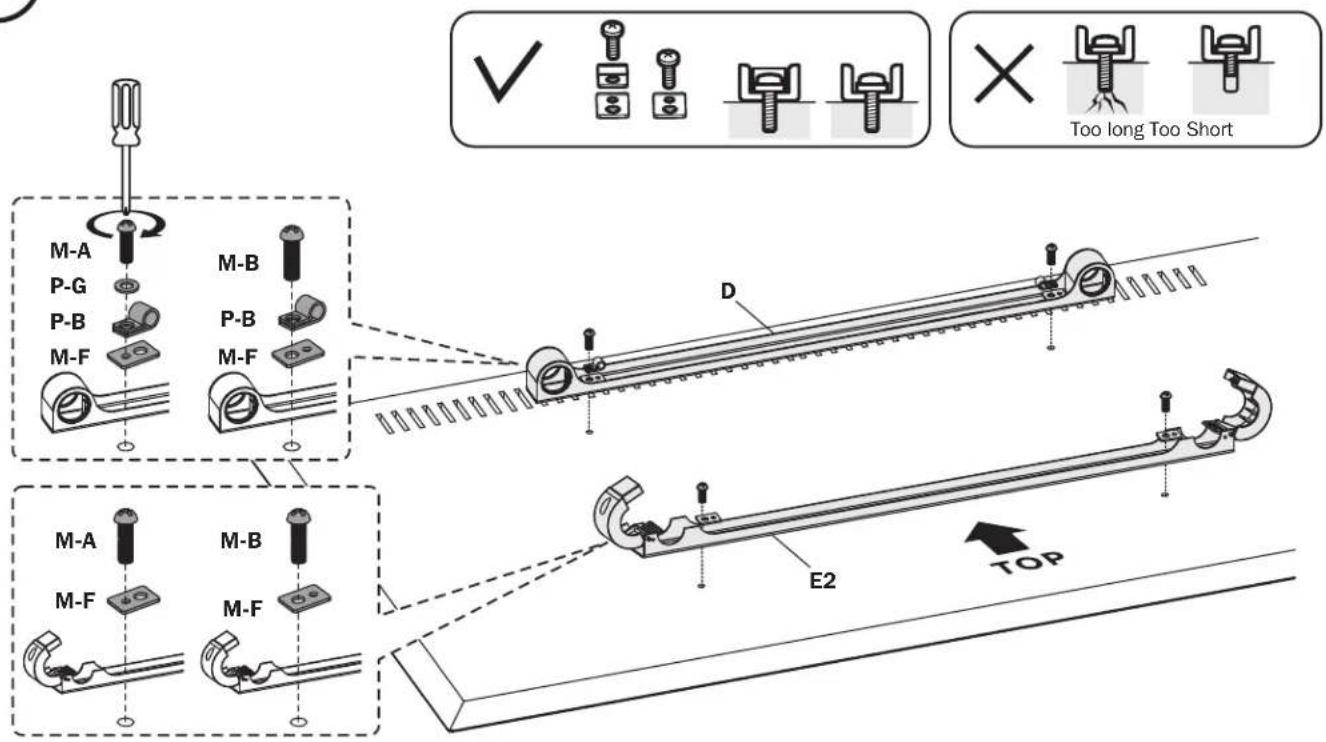

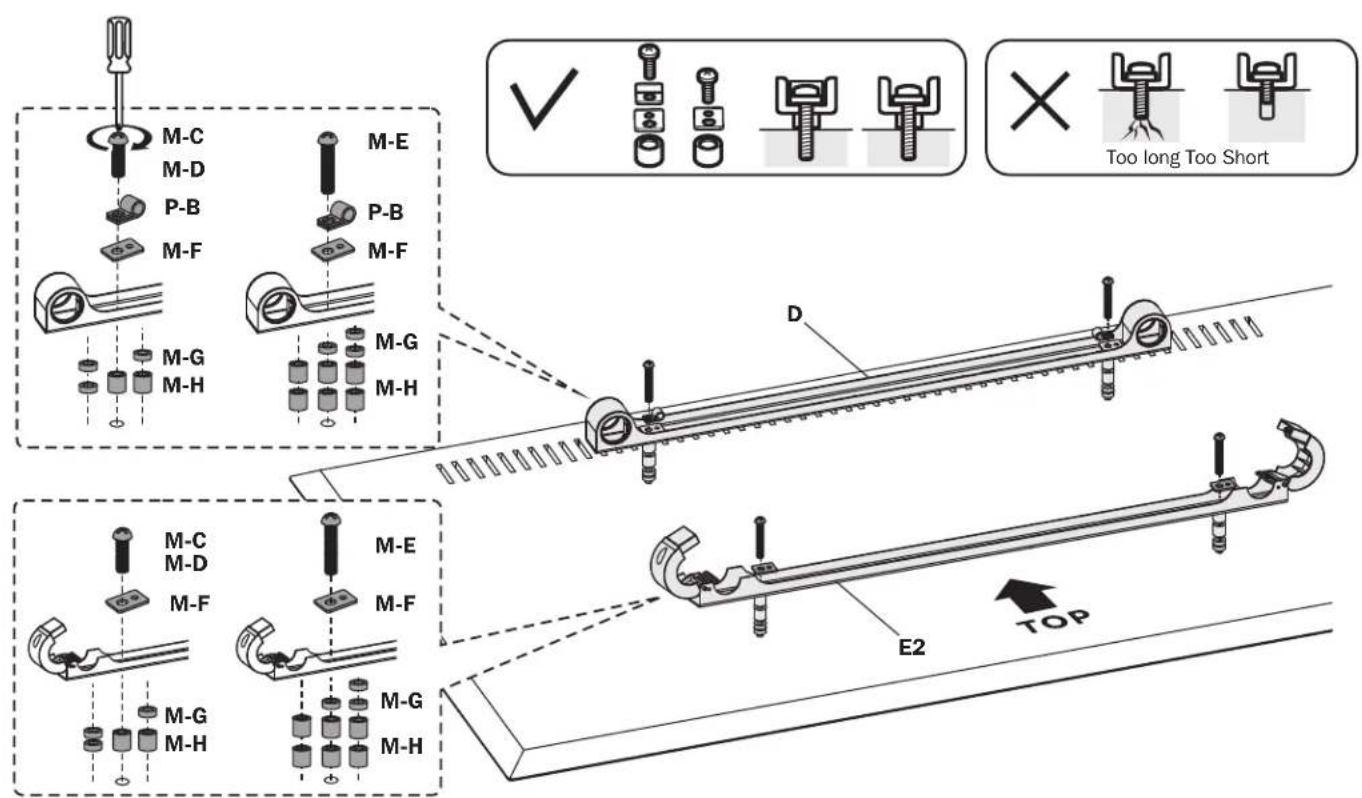

2. Attaching the Brackets to the Display

Make sure the cable clips (P-B) are attached to the upper bracket for the following security installations:

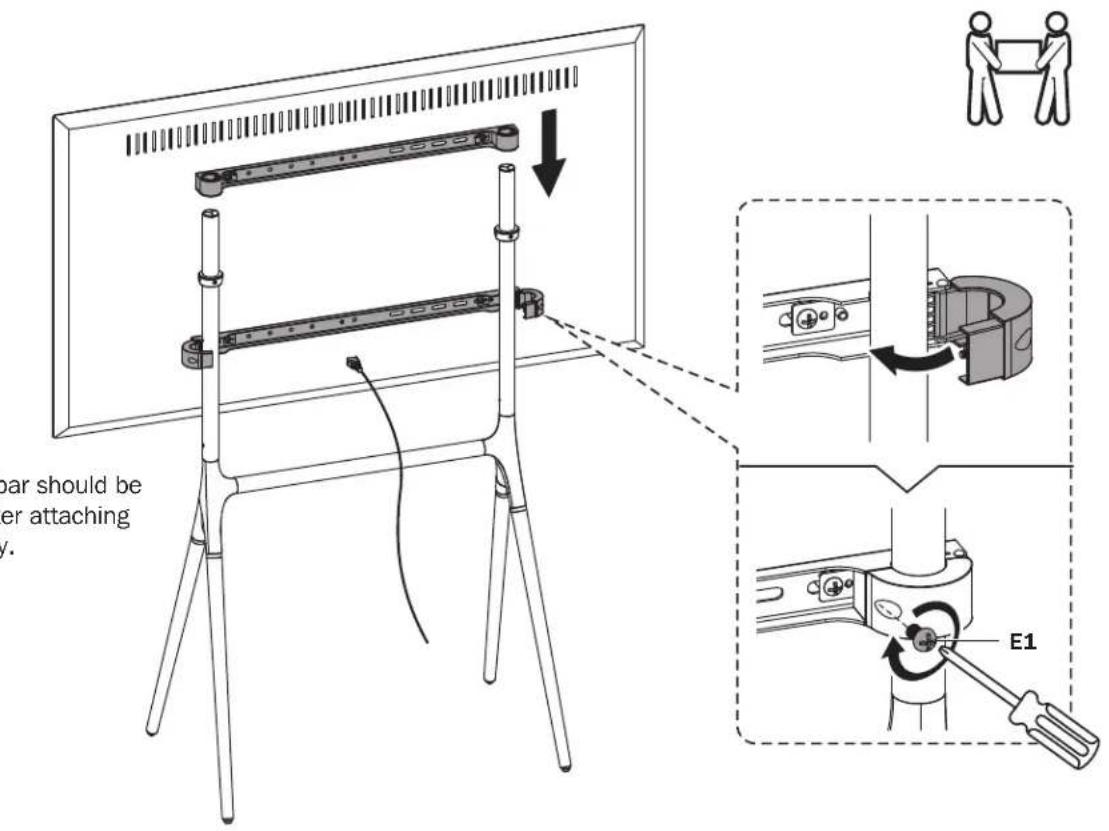

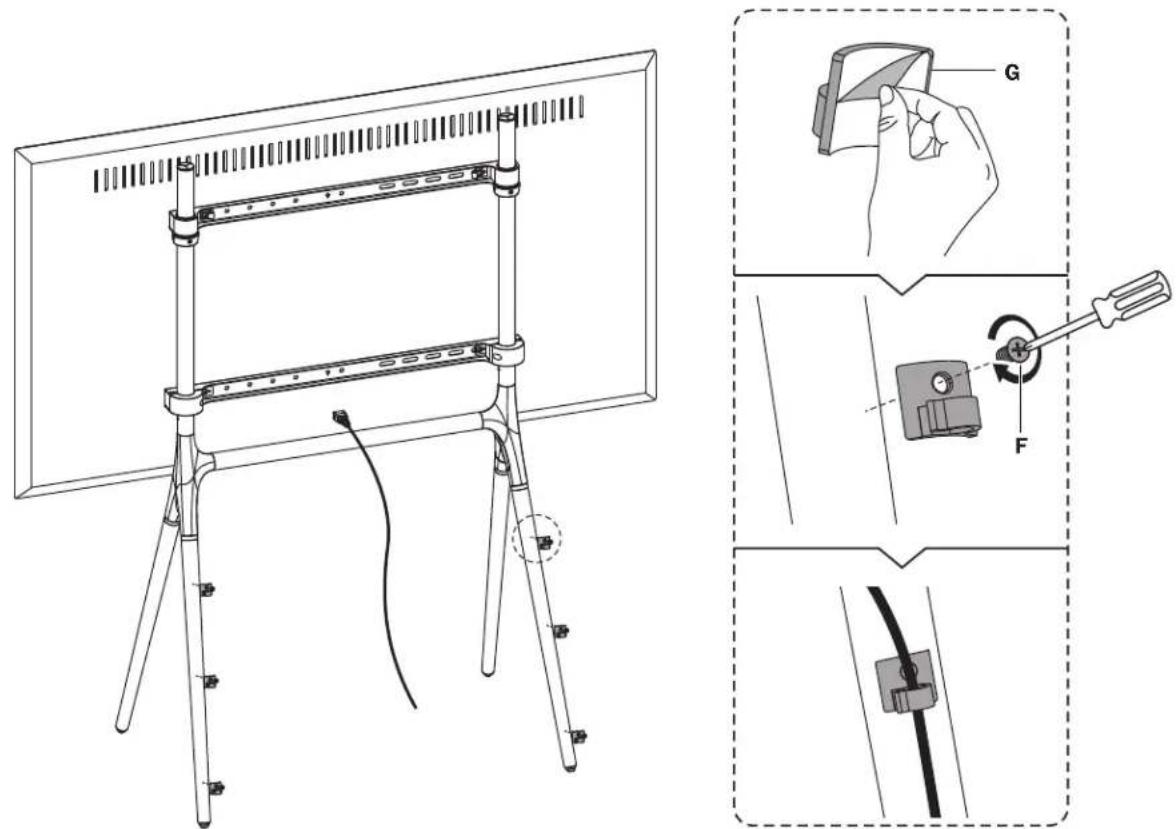

3. Attaching the Display to the Stand

The crossbar should be hidden after attaching the display.

3. Attaching the Display to the Stand

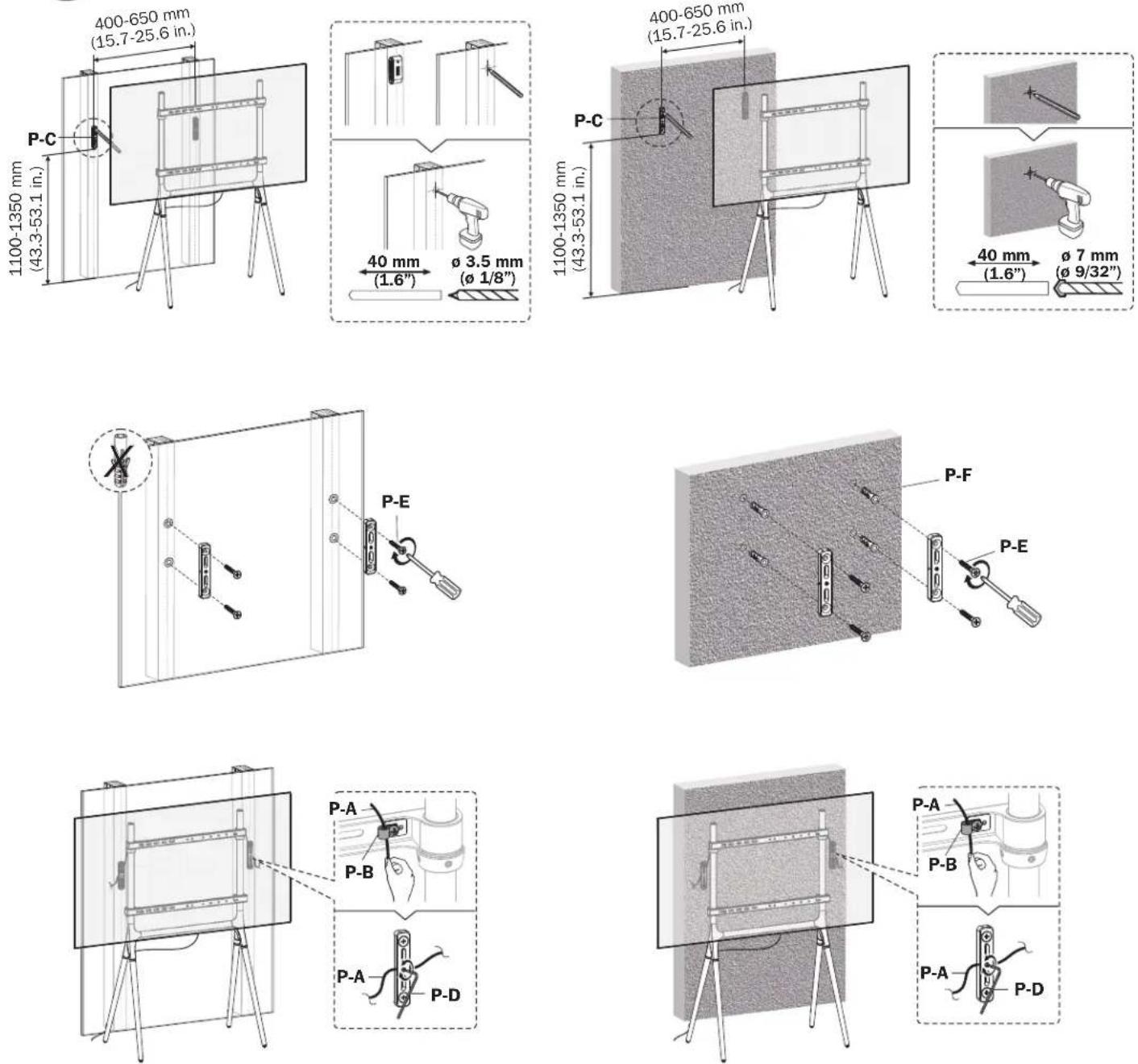

To prevent the display from tipping, anti-fall wire rope should be installed.

MAINTENANCE: Check at regular intervals (at least every 3 months) to make sure the display is secure and safe to use.
