USER MANUAL DDR1327SQFC1 Tripp Lite

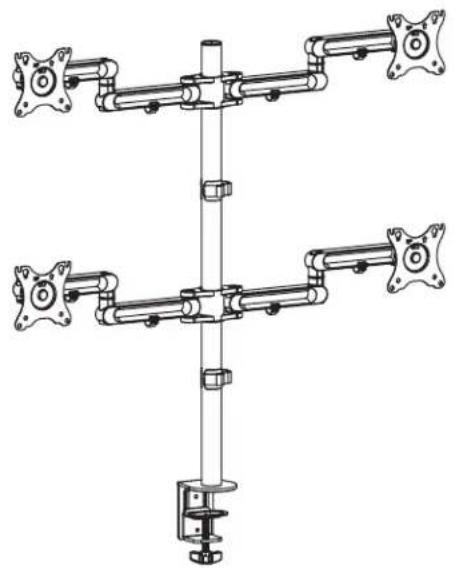

Quad Flat-Screen Flex-Arm Desk Clamp

Model: DDR1327SQFC-1

Espanol 8·Français 15·Pycckn 22·Deutsch 29

CAUTION:DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

75x75/100x100

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Safety Instructions

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This mounting bracket was designed to be installed and used ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening screws can damage the items, greatly reducing their holding power.
  This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A
(x1)

B
(x1)

C
(x2)

D
(x1)

E
(x2)

Package M (x4)

M-A
M4x12
(x4)

M-B
M5x12
(x4)

M-C
D5 Washer
(x4)

Package P

F
Small Flathead
Screw (x2)

G
Medium Flathead
Screw (x3)

H
4mm Hex Key
(x1)

0
6mm Hex Key
(x1)

Assembly

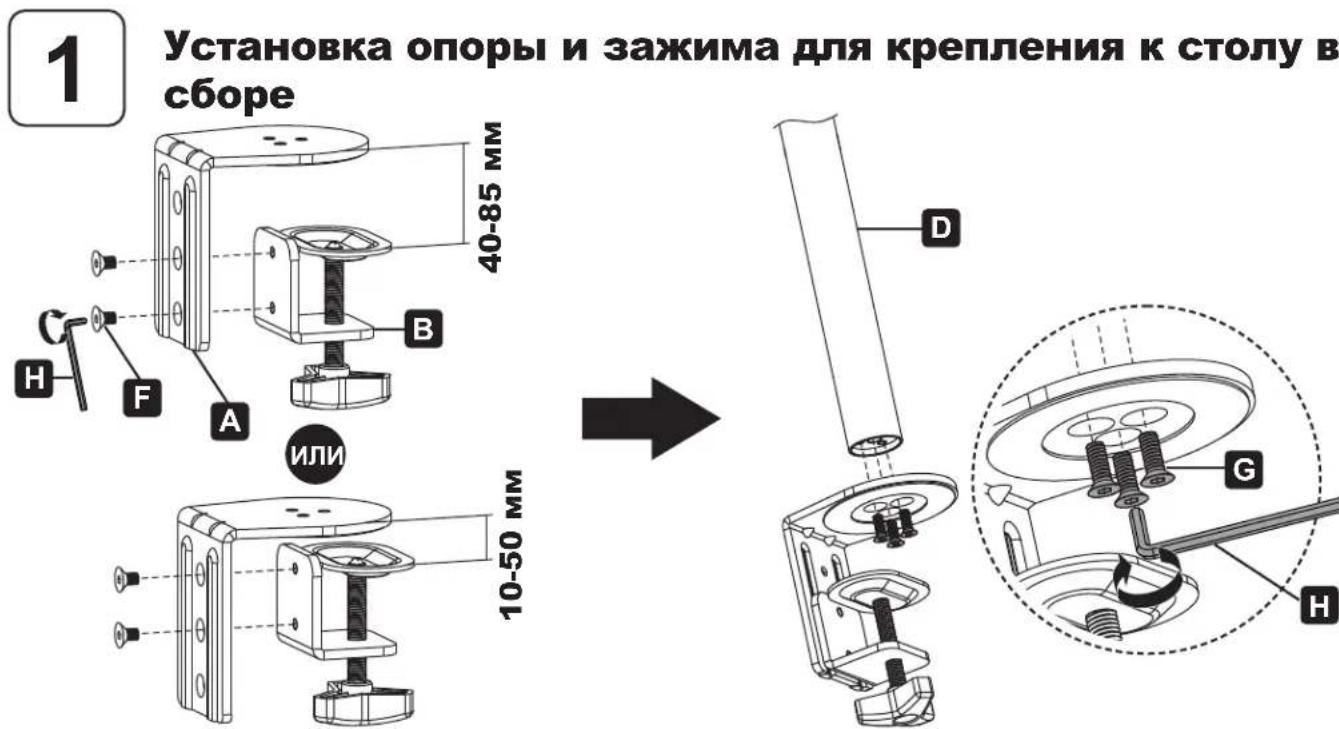

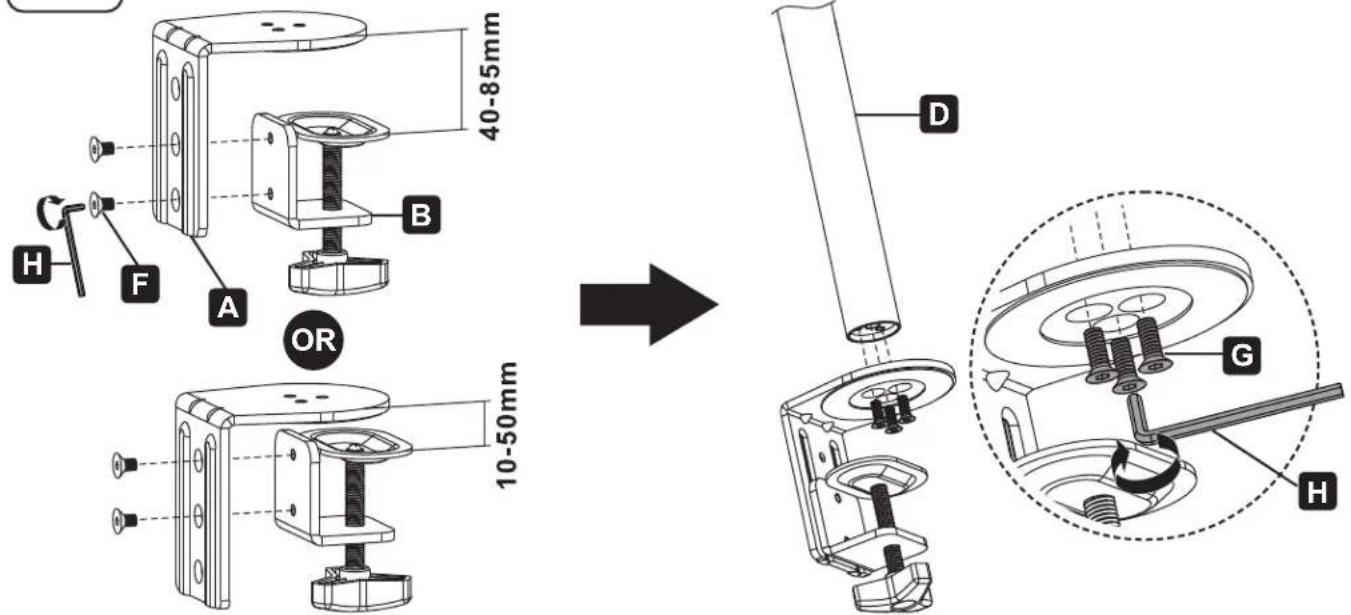

Install the Pole and Desk Clamp Assembly

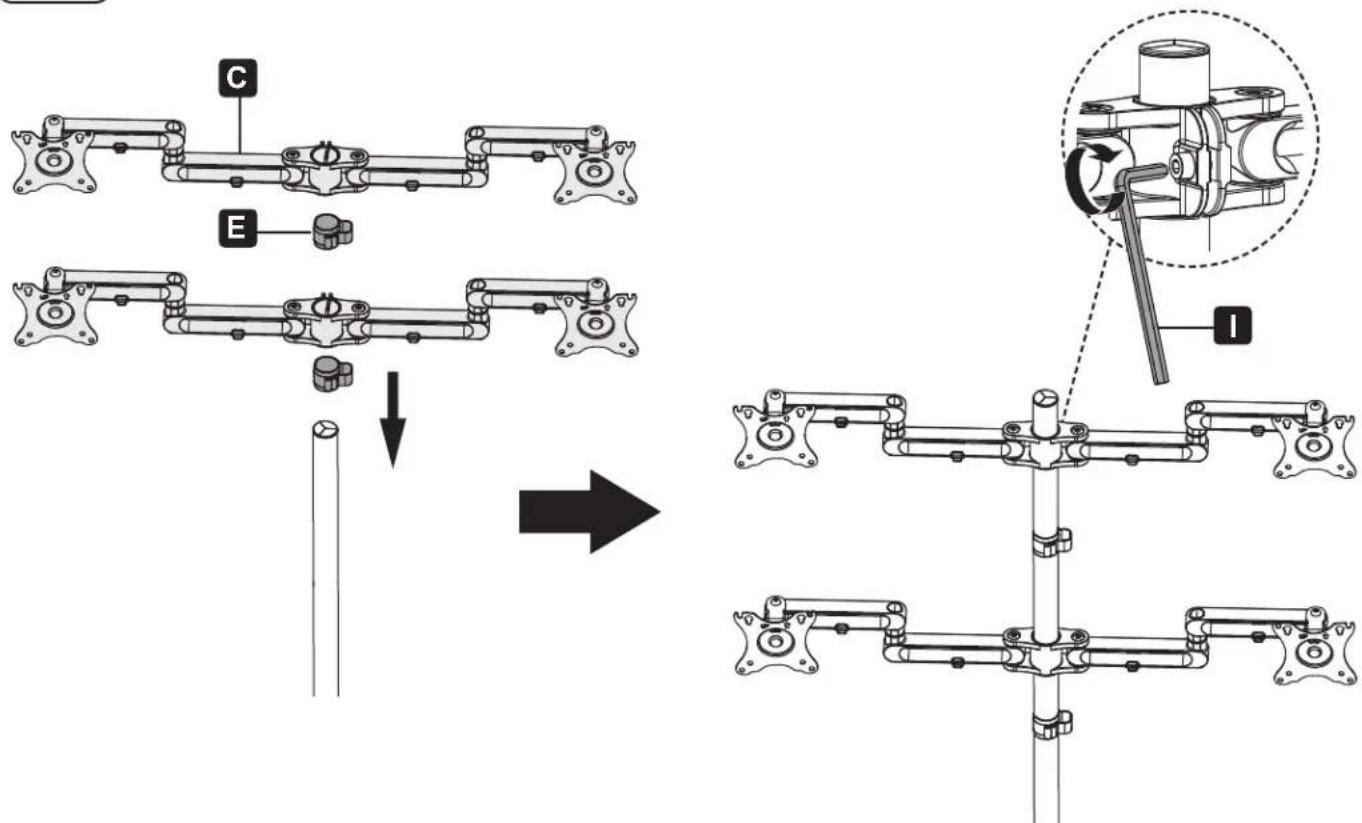

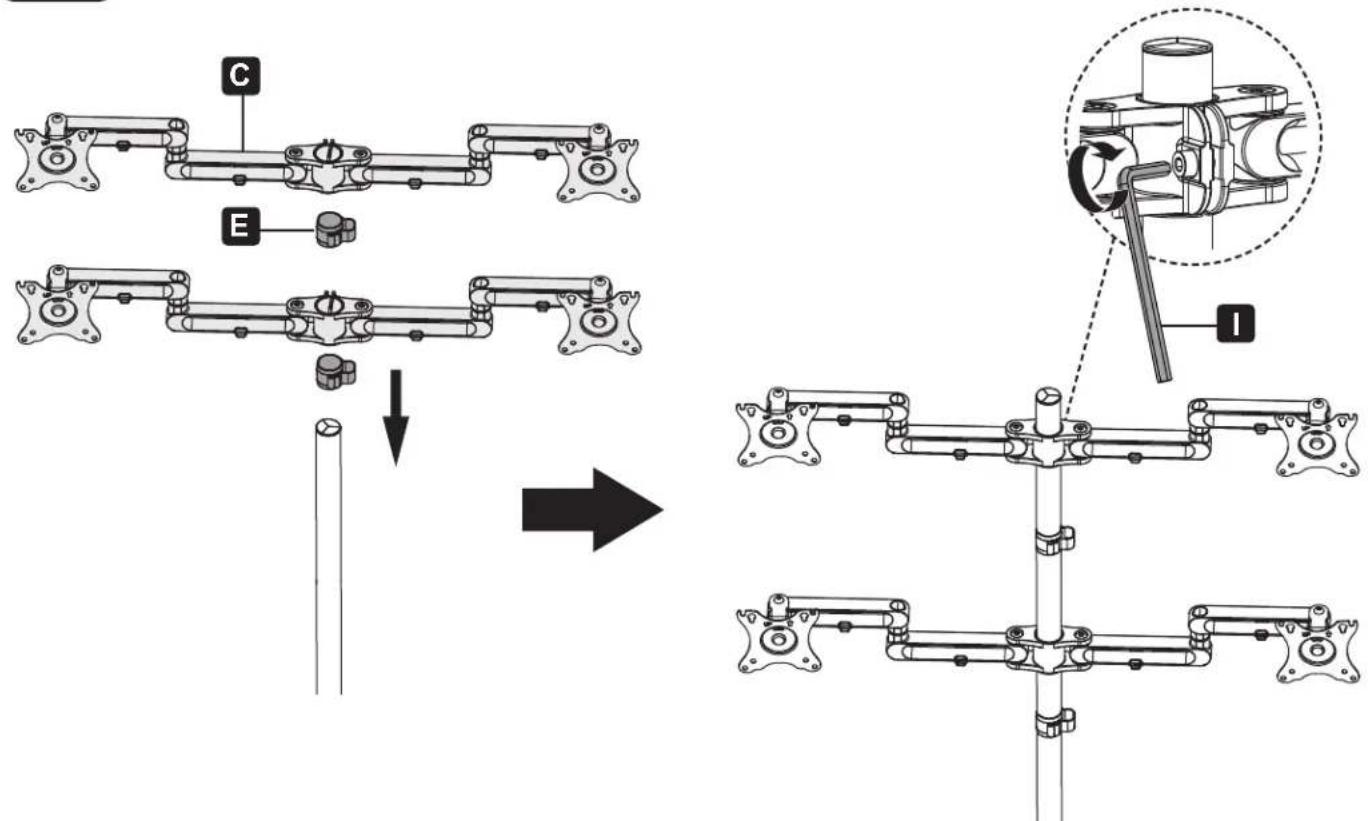

Install Adapter Bracket Assemblies

Assembly

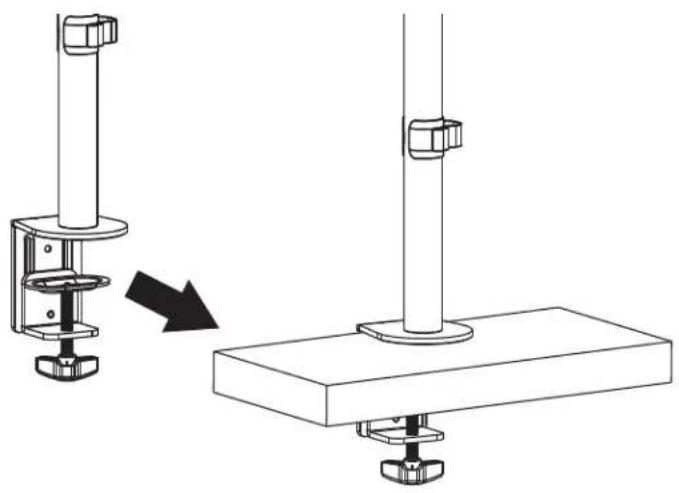

3 Desk Installation

Note: min. desktop thickness=10mm (.4") max. desktop thickness=85mm (3.3")

• Determine approximate location for mount, keeping in mind display size, height adjustment and pitch/roll requirements.
• Slip the desk mount assembly over the edge of desk so that clamp fully contacts desk edge.
• Turn the knob to adjust the clamp to edge of desk and secure it tightly.

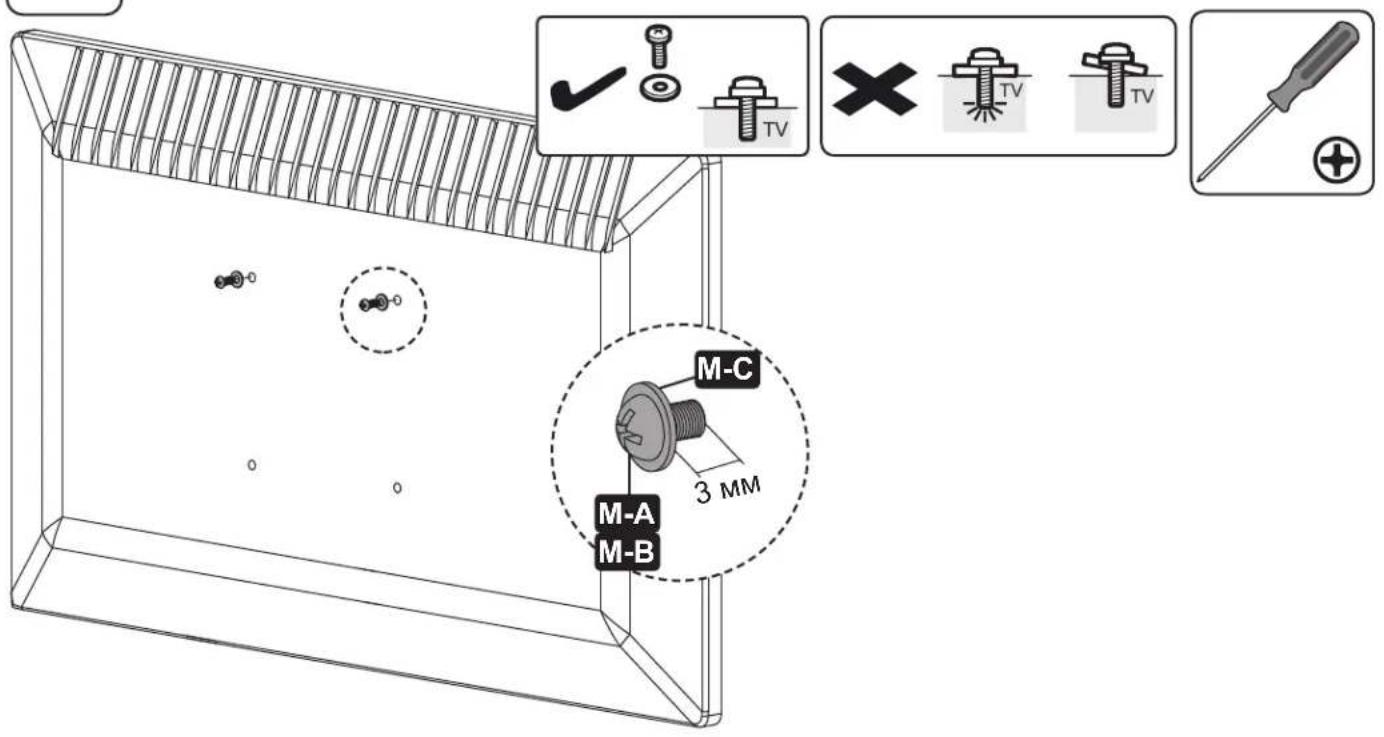

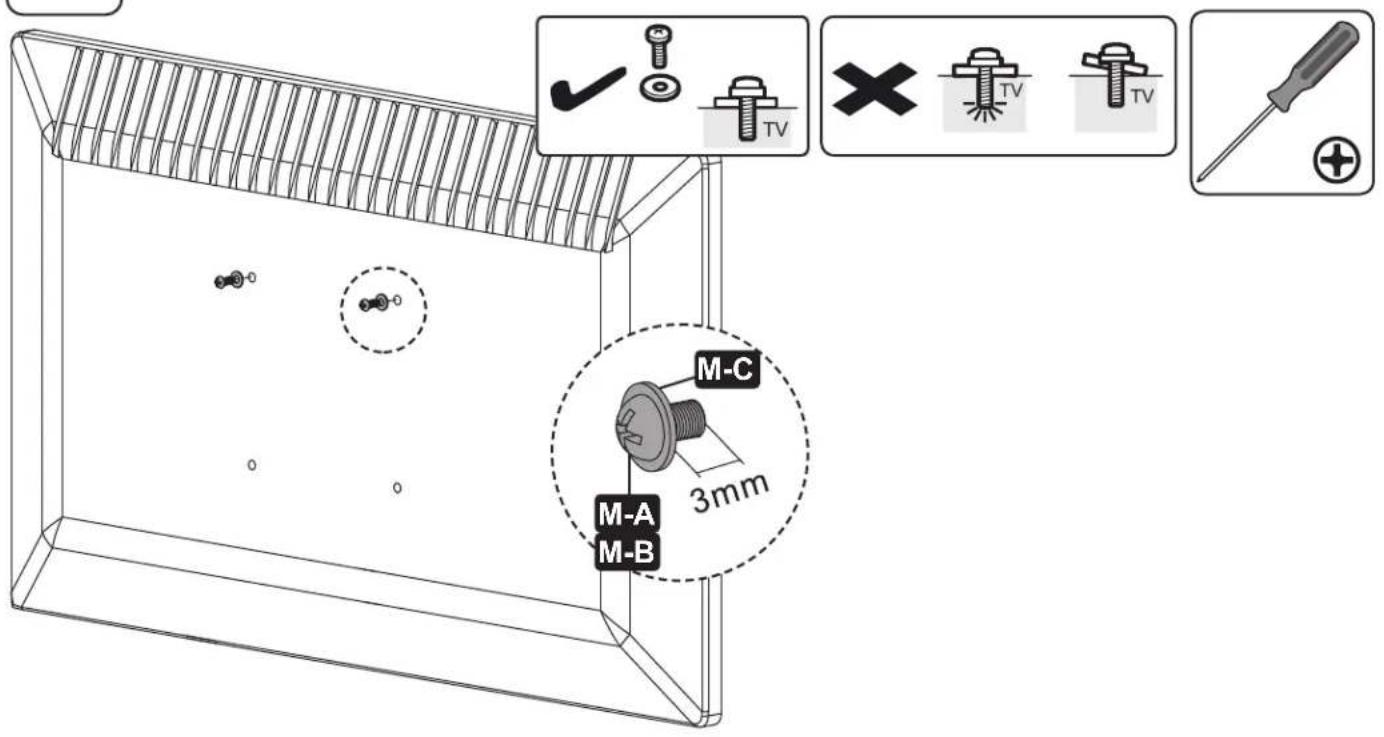

4 Install Top VESA Plate Screws

Assembly

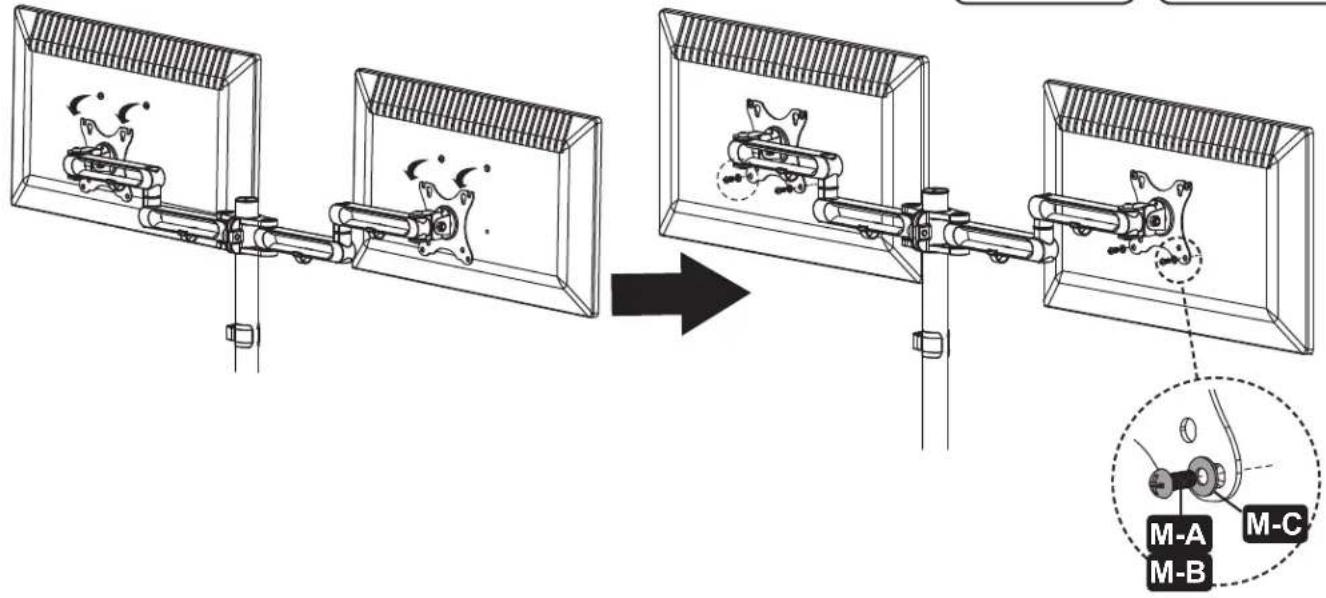

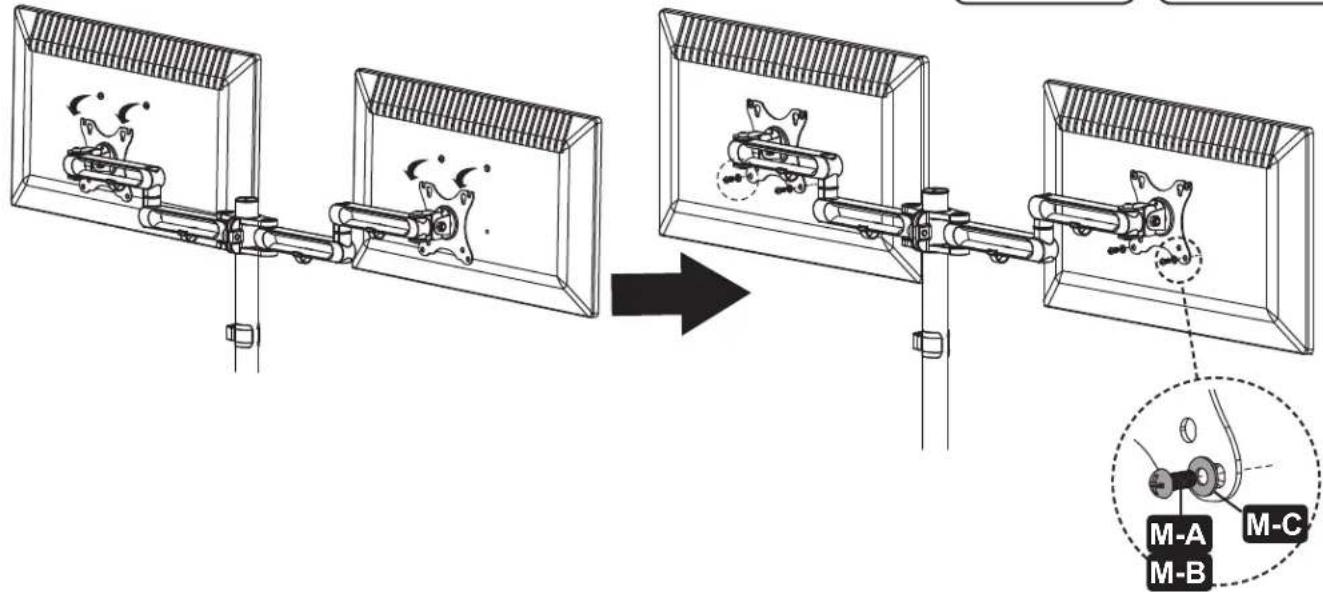

5 Install VESA Plates

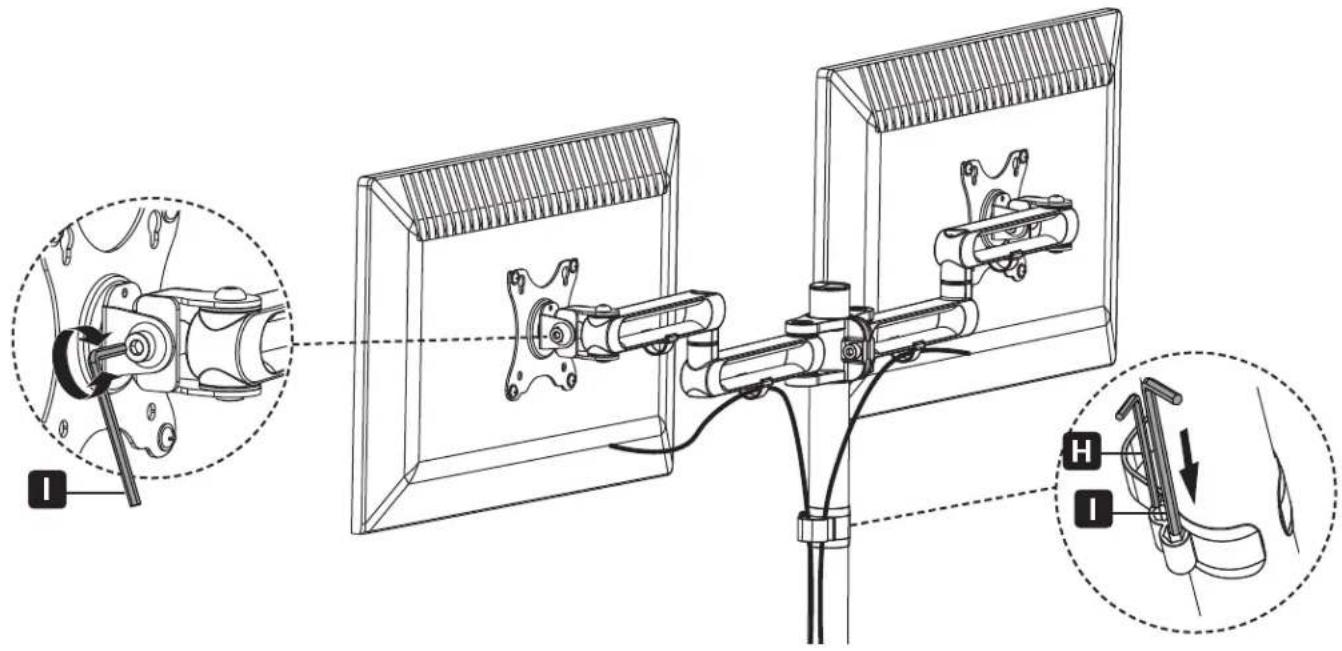

6 Adjust VESA Plates

Assembly

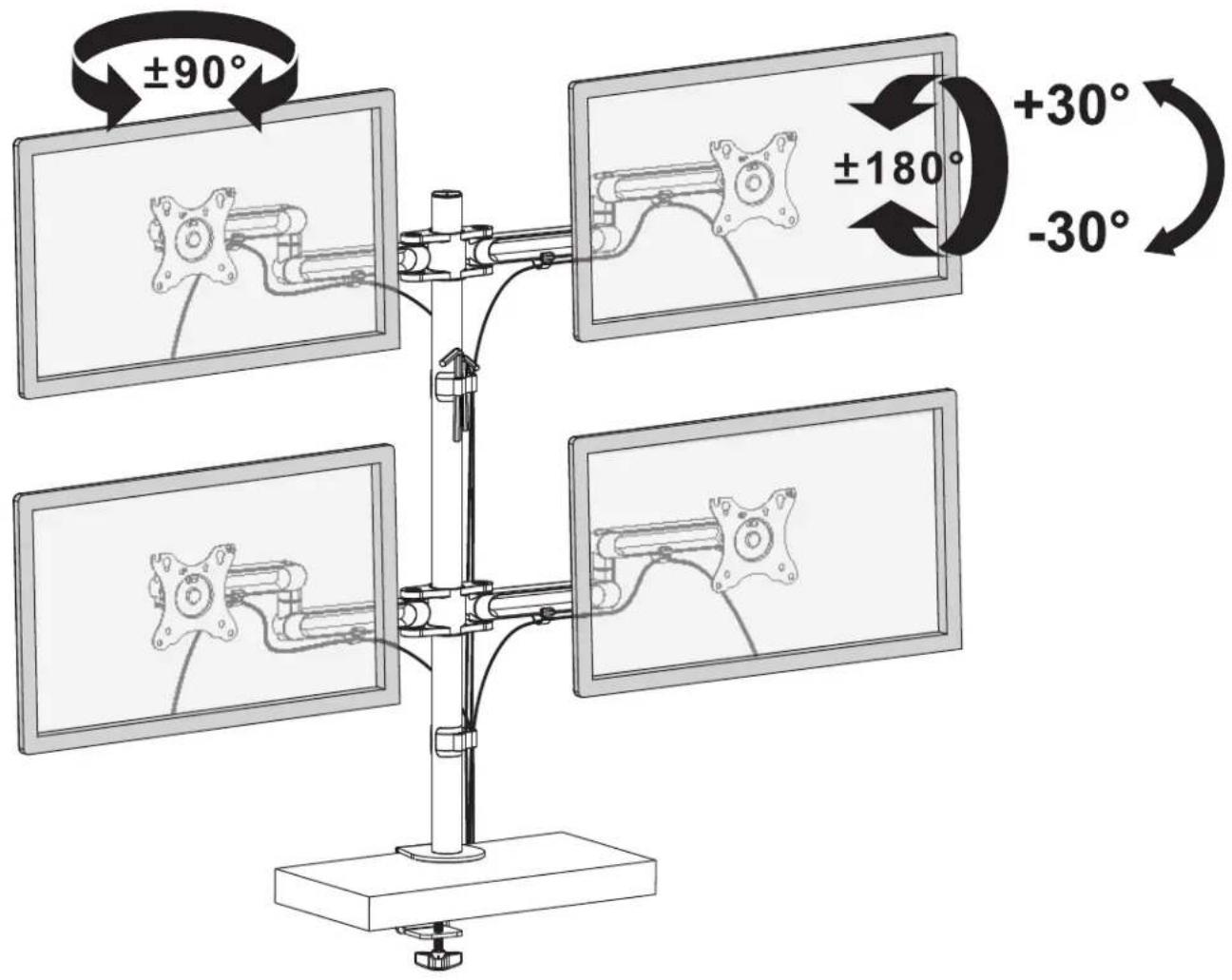

7 Adjustment

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit triplite.com/support if you have any questions.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

YetbipexMecTHbI 3axnM C rN6kM

Плechом Дли

YnaKOBOHyBk KomnIeKT P

F
BnHT cnnocKoIroNOBKO MaBbI(2wT.)

G
BnHT C nIOCKoI rOIOBkoCpeHm(3 wT.)

H
Knou 电TnpaHbHn Ha4MM(1Wt.)

1
Knou WecnturpaHHbH Ha6 MM (1Wt.)

Poprajok c6opkn

2 YctaHOBka nepexoHbIX KpoHtTeiHOB B c6ope

Poprajok c60pkn

3

Hactonbna yctahOBka

PnmueyaHne. MN. TOJUINHa CTOJeWHuCbI = 10 MM MAKC. TOJUINHa CTOJeWHuCbI = 85 MM

• OnpeDenntb npn6n3nteHbHe MeCtonoNoKeHne KPOHHTeHa C yueTOM pa3Mepa Dncnner, dnaana3OHa perynipOBKn BbcOTbI n Tpe6oBaHm K Wary pe3b6bl / BpauneHIO perynipOBQHOrO BNHTa.
  HacaNTb KPOHTeIN Dnla HAcTOnbHOro MONTaHa Kaai CTOna TAKIM O6pa3OM, YTO6bl 3axm NOnHOCTbIO npineraK Kpaio CTOna.
• POBepHyTb ΦHKcnpyUOyU raKy dny noIroHKn 3aKIma K kpaO cTOna n ero nIOtHO fIKcaUN.

4

YctaHOBka BnHTOB BepXHei PJIactHbI VESA

Poprajok c6opkn

YctahOBka nlaactnVESA

PerynpoBka nlaactnVESA

Poprajok c6opkn

7 KoppeKtnpOBka noJoxKeHna

TexHnueckoe 06cnyxuBaHne

Perynphno (He pexe, yem pa3 B Tpr Mecaa) npOBepaTe HaedxHocb KpePiHnKPOHtEHa n 6e3onacHocb ero NCNoIb3OBAHn.
B cnlyae Bo3HNKHOBeHnKaKnx-1n6o BOnpocOB nocetnte ctpaHnuy tripplite.com/support.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

21-05-218-33-377 RevA
