N48412RJ - Network Equipment Tripp Lite - Free user manual and instructions

Product type	High-density copper/fiber cassette
Brand	Tripp Lite
Model	N48412RJ
Series	N484
Number of ports	12 RJ45 ports
Connector type	RJ45 (copper)
Enclosure compatibility	N484-00U, N484-01U, N484-01U-MINI
Power supply	None (passive device)
Housing material	Steel
Cassette dimensions (approx.)	22 x 10 x 3 cm
Weight (approx.)	0.5 kg
Operating temperature	0 °C to 50 °C
Operating humidity	0% to 95% (non-condensing)
Installation	Insert into compatible bay, secure with thumb screws
Main features	High-density network connectivity, integrated cable management, removable blanking panels
Warranty	Limited lifetime warranty
Care and cleaning	Clean with a dry cloth; do not use solvents
Safety	Do not use with life support devices
Certifications	CE, RoHS
Package contents	Cassette, mounting brackets, screws, quick start guide
General information	Manufacturer: Eaton; Publication no. 23-08-374 / 93-341E_RevF

Frequently Asked Questions - N48412RJ Tripp Lite

How to install the N48412RJ cassette in an N484-01U enclosure?

To install the cassette, insert it into a free slot in the enclosure after removing the blanking panel by unscrewing the thumb screws. Align the cassette with the mounting holes, then tighten the thumb screws to secure it.Make sure the cassette is fully inserted before tightening.

What type of cables to use with this cassette?

The N48412RJ cassette is equipped with RJ45 ports and accepts category 6, 6a, or 7 copper cables. For optimal performance, use shielded cables (STP) in environments with high interference.

Is this cassette compatible with fiber optic connectors?

No, the N48412RJ is a copper cassette with RJ45 ports. For fiber optics, use N484 series models ending with LC or M12, such as the N484-12LC.

How to remove a blanking panel?

To remove a blanking panel, unscrew the thumb screws located on the opposite side of the panel. Then pull the panel out of the slot. Keep the screws for later reuse.

What is the warranty for this product?

Eaton (Tripp Lite) offers a limited lifetime warranty against defects in materials and workmanship. The warranty does not cover normal wear, accidents, or misuse. For returns, visit Tripplite.Eaton.com/support/productreturns.

Can this product be used with life support medical equipment?

No, this product is not intended for use with life support devices. A failure could result in serious consequences. Follow the safety warnings in the manual.

How to clean the connectors?

Clean the RJ45 connectors with a lint-free cloth moistened with isopropyl alcohol. Let them dry completely before reconnecting. Avoid contact with harsh solvents.

What are the compatible enclosure models?

Compatible enclosures are the N484 series models: N484-00U, N484-01U and N484-01U-MINI. Refer to the quick start guide for the full list.

Where to find the complete installation guide?

The complete installation guide is available for free download at notice-facile.com and on the Eaton website. It covers the installation of all N484 series cassettes and enclosures.

What to do if the mounting screws are lost?

The mounting screws are standard thumb screws. You can order replacement screws from Tripp Lite or use M6 screws of appropriate length. Contact technical support for exact references.

USER MANUAL N48412RJ Tripp Lite

High-Density Copper/Fiber Cassette Solutions

Modular Cassette Enclosures*

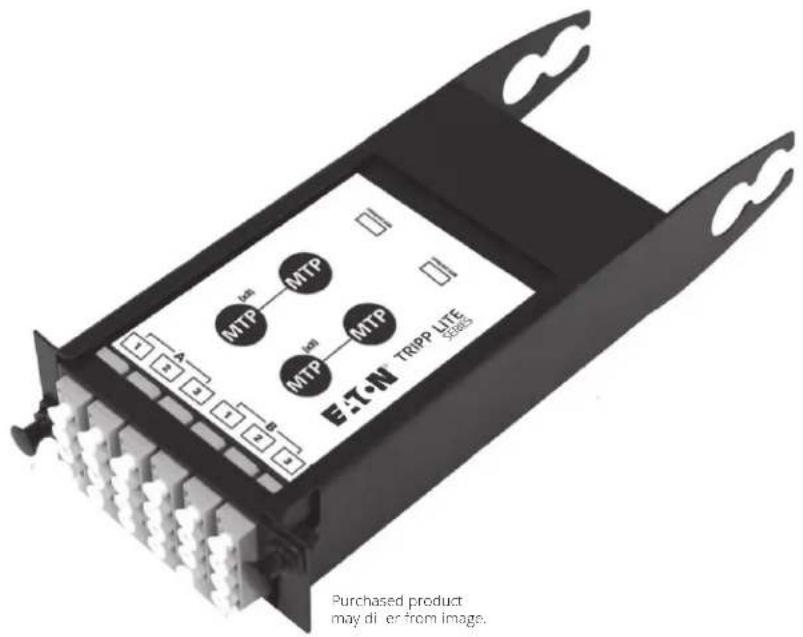

Cassettes*

• This Quick Start Guide covers installation of all N484-Series enclosures and cassettes. Any new models, even if not listed above, will include this Quick Start Guide and can be installed by following its instructions.

Models:

N484-00U

N484-01U

N484-01U-MINI

N484-1M24-LC12

N484-2M12-LC12

N484-3M8-LC12

N484-3M8L125

N484-2M24-6M12

N484-12LC

N484-12M12

N484-12M24

N484-12RJ

Espanol 4

Français 7

Deutsch 10

Italiano 13

Installation

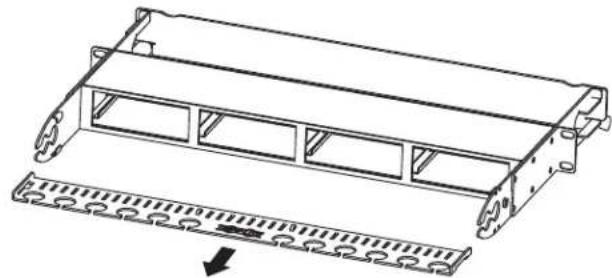

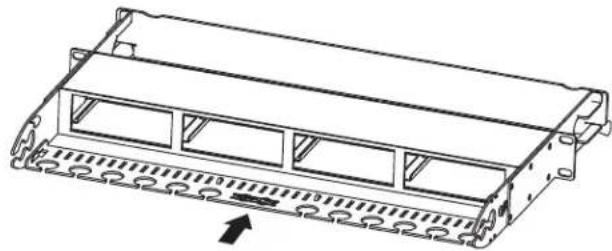

Installing the Cable Management Bracket:

The panel rails on the back of the N484-01U enclosure contain mounting notches that allow the cable management bracket to be installed on the top or bottom of the rails. Choose the top or bottom notches, insert the bracket into the notches, and slide the bracket inward to secure it into place.

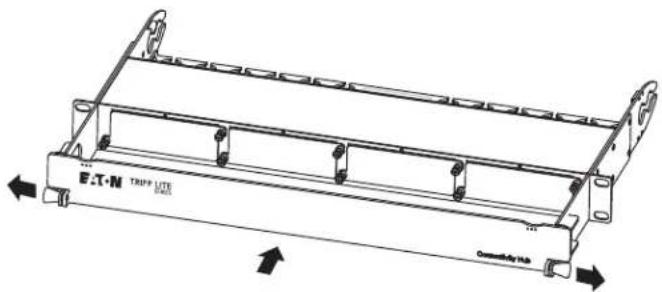

Installing the Panel Shield Bracket:

The N484-01U contains a shield bracket that attaches to the front of the enclosure. Mounting holes are located on the right and left front panel rails for bracket attachment. To attach the bracket, pull on the pull tabs found on each side of the bracket to move the connected pins outward. Then insert the bracket into the enclosure. Once the pins are lined up with the mounting holes on the panel rail sides, release the pull tabs to lock the bracket into place. The bracket slides up and down to allow access to the enclosure or to shield it from contact.

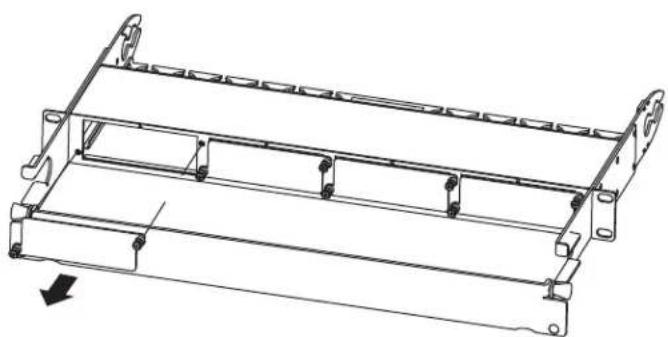

Inserting/Removing Blanking Panels:

The N482-01U comes with pre-installed blanking panels attached to the enclosure's cassette slots. When a slot is needed, remove the blanking panel by unscrewing the thumbscrews located on the opposite side of the blanking panel. To attach a blanking panel to an empty cassette slot, line up the blanking panel with the corresponding holes on the enclosure. Then tighten the thumbscrews to secure the blanking panel into place.

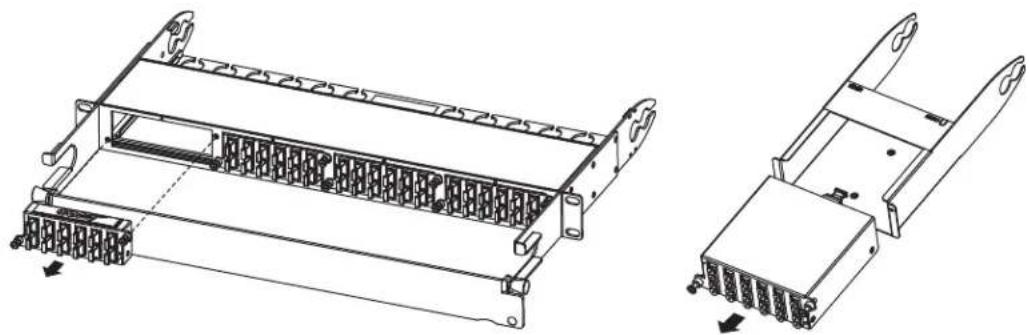

Inserting/Removing Cassettes:

After creating an open slot by removing a blanking panel, line up a cassette with the corresponding slot on the enclosure and insert the cassette into the slot. Then tighten the thumbscrews to secure it into place. To remove a cassette, unscrew the thumbscrews to release it from the enclosure.

Installation

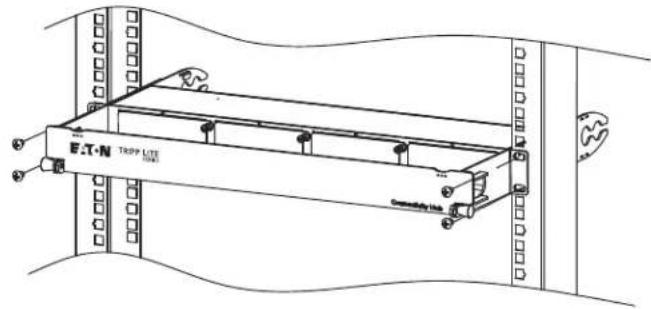

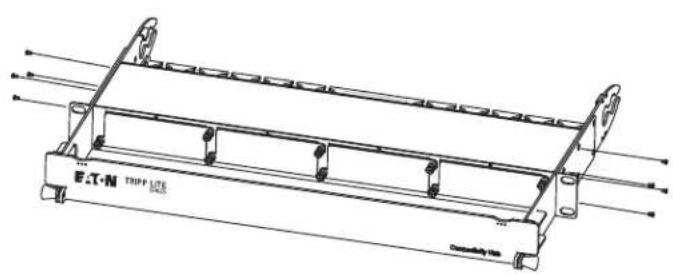

Mounting the Enclosure:

To mount the enclosure, you must rst fasten the included mounting brackets to the sides of the enclosure with the supplied screws. Once attached, secure the enclosure to the rack with appropriate user-supplied mounting hardware.

Note: The N484-00U's magnets are designed for mounting onto the metal surface of a rack enclosure, cable manager or other similar structure. Ideal placement should be away from direct contact with any active equipment (e.g., UPS, server, switch).

Warranty

Limited Lifetime Warranty

Eaton warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for life. If the product should prove defective in material or workmanship within that period, we will, subject to the foregoing terms and limitations, replace the product, in its sole discretion, as your exclusive remedy for our breach of the limited warranty. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair.

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. Eaton MAKES NO WARRANTYIES OTHER THAN THE LIMITED WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations or exclusion of implied warranties, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate, or safe for the use intended. Because individual applications are subject to great variation, we make no representation or warranty as to the suitability or fitness of these devices for any specific application.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton

All Rights Reserved

Publication No. 23-08-374 / 93-341E_RevF

September 2023

Eaton is a registered trademark.

All trademarks are property of their respective owners.
