USER MANUAL N2520246ASH Tripp Lite
24-Port Cat6a Shielded Patch Panel - STP, 110 Punchdown, 1U, RJ45, TAA
Model: N252-024-6A-SH
Espanol 9 • Français 17 • Pycckn 25 • Deutsch 33
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!
tripplite.com/warranty
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Installation

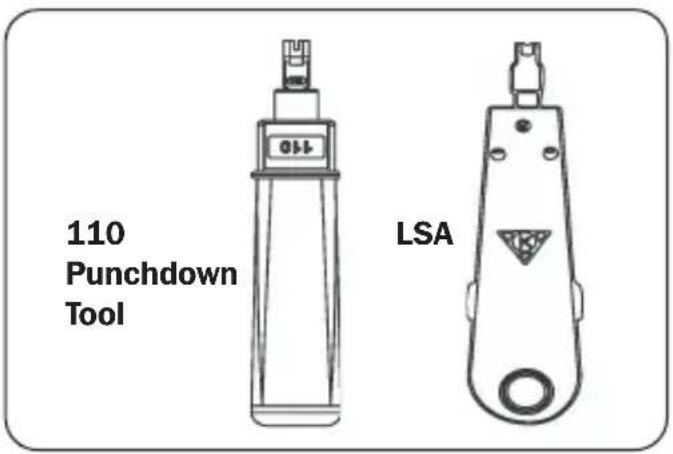

1 Choose a proper impact tool.

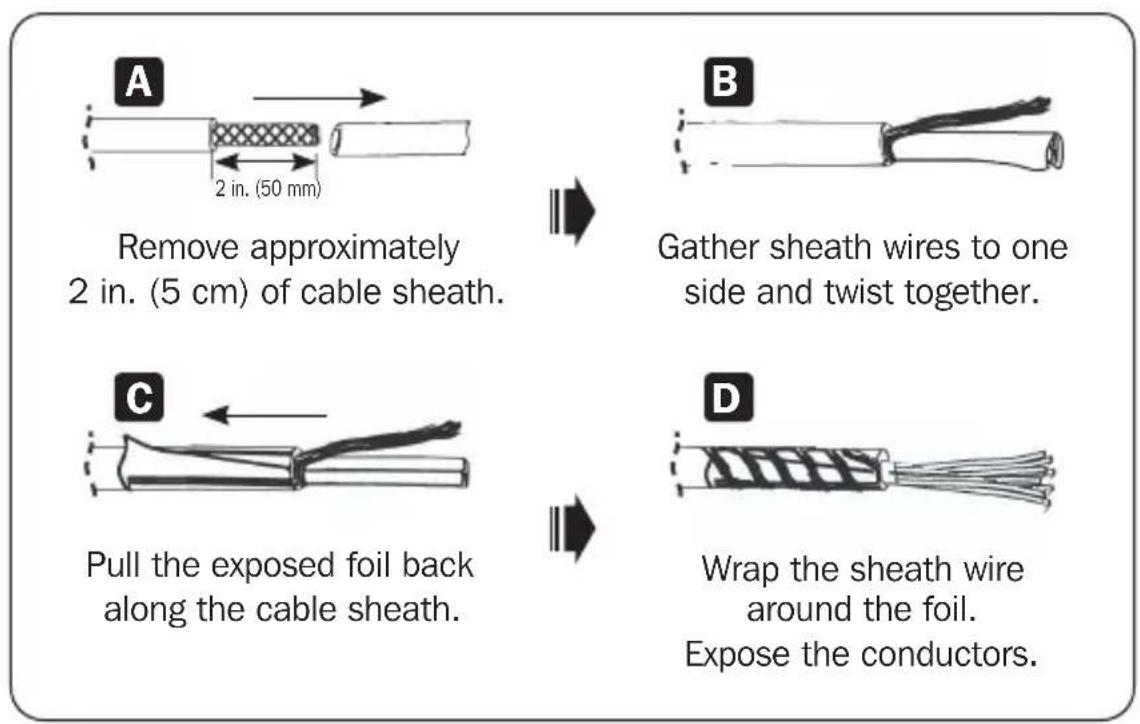

2 Prepare your FTP cable.
Installation

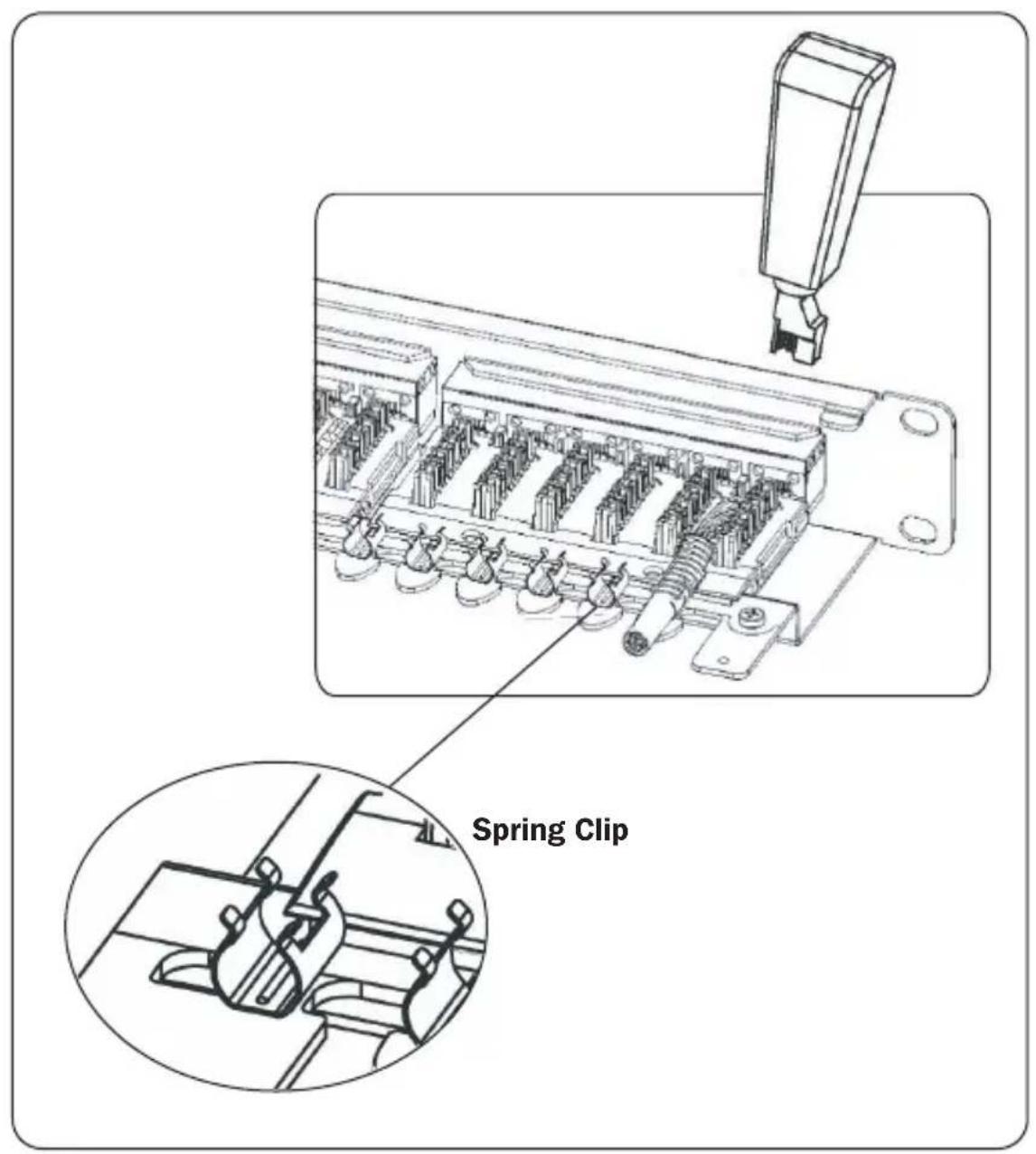

3 Secure the braid/foil with a rear clip.
Installation

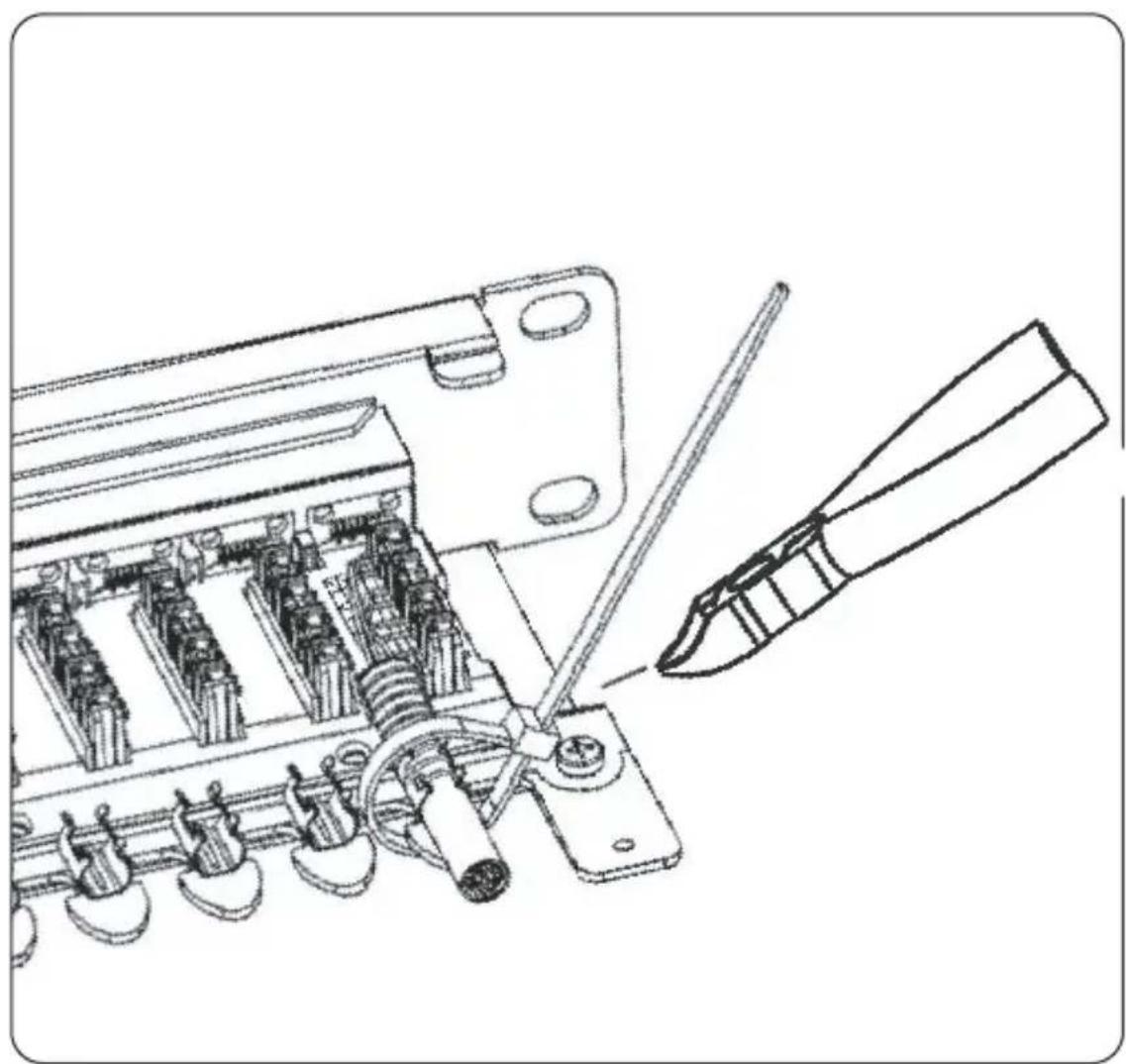

4 Use a cable tie to secure the rear clip.
Cut off all excess straps.
Note: Do not over-tighten the cables.
Installation

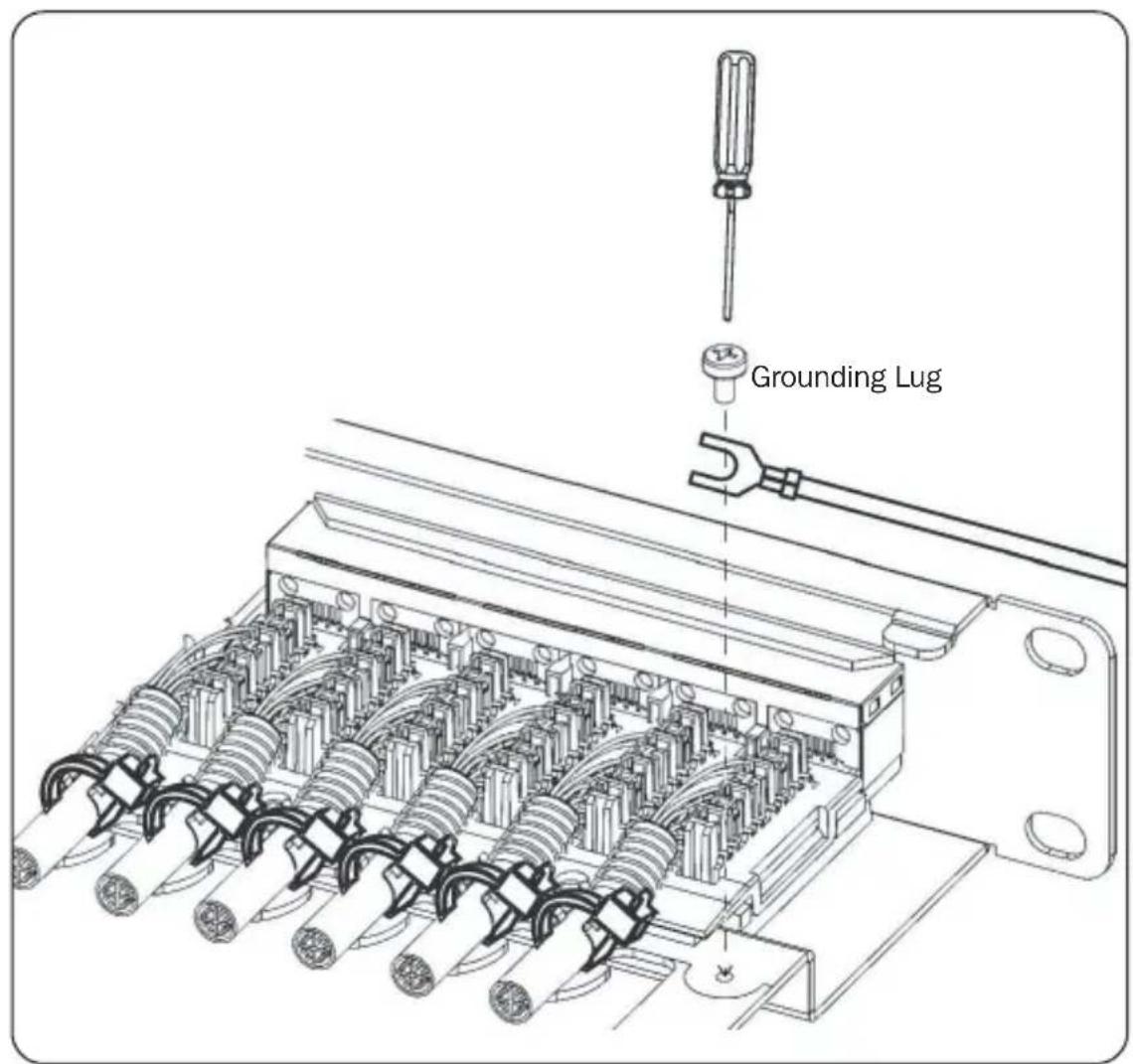

5 Tighten the grounding lug with a screw.
Installation

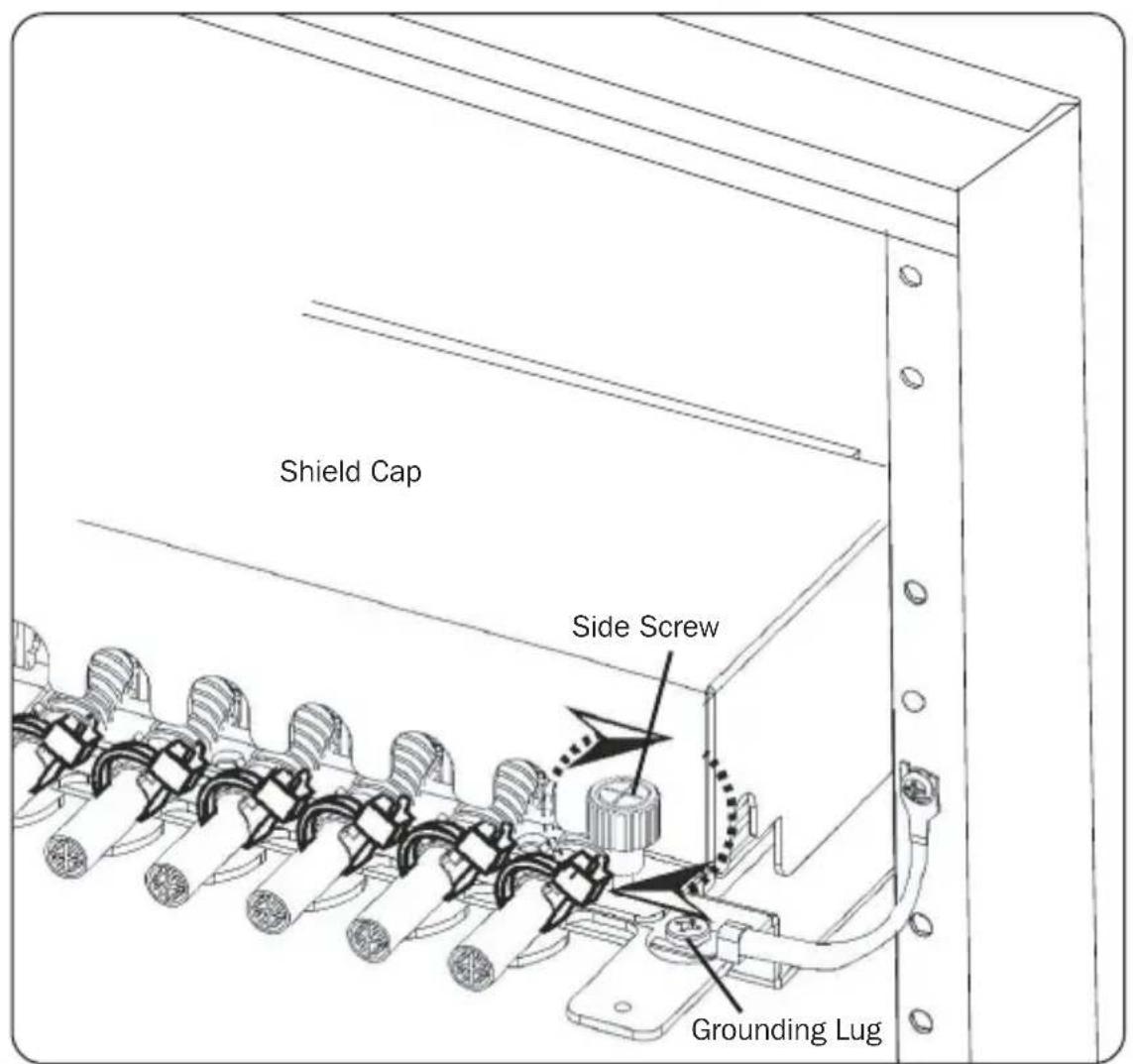

6 Tighten the shield cap with 2 side screws.
Warranty and Product Registration
Lifetime Limited Warranty
Tripp Lite warrants its products to be free from defects in materials and workmanship for life. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
- No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
Manufacturing Excellence.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-05-200 93-3F31_RevA
Guía de Instalación
1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-05-200 93-3F31_RevA
PyKOBODCTBO NO yCTaHOBKe
24-nopTOBaJ éKpaHnpOBaHHa KOMMyTaUOnHaJa NaHeIb Cat6a: STP, cHoxKeBbIMN KJIeMMamu Tnna 110, pa3mep 1U, pa3bem RJ45, cooTB. Tpe6. TAA
1111 W. 35th Street, Chicago, IL 60609 USA - triplite.com/support
OxpanaTcA BTOpCKM npaBOM © 2021 Tripp Lite. PepeneuAtka 3anpeuaetca.
yctahOBka

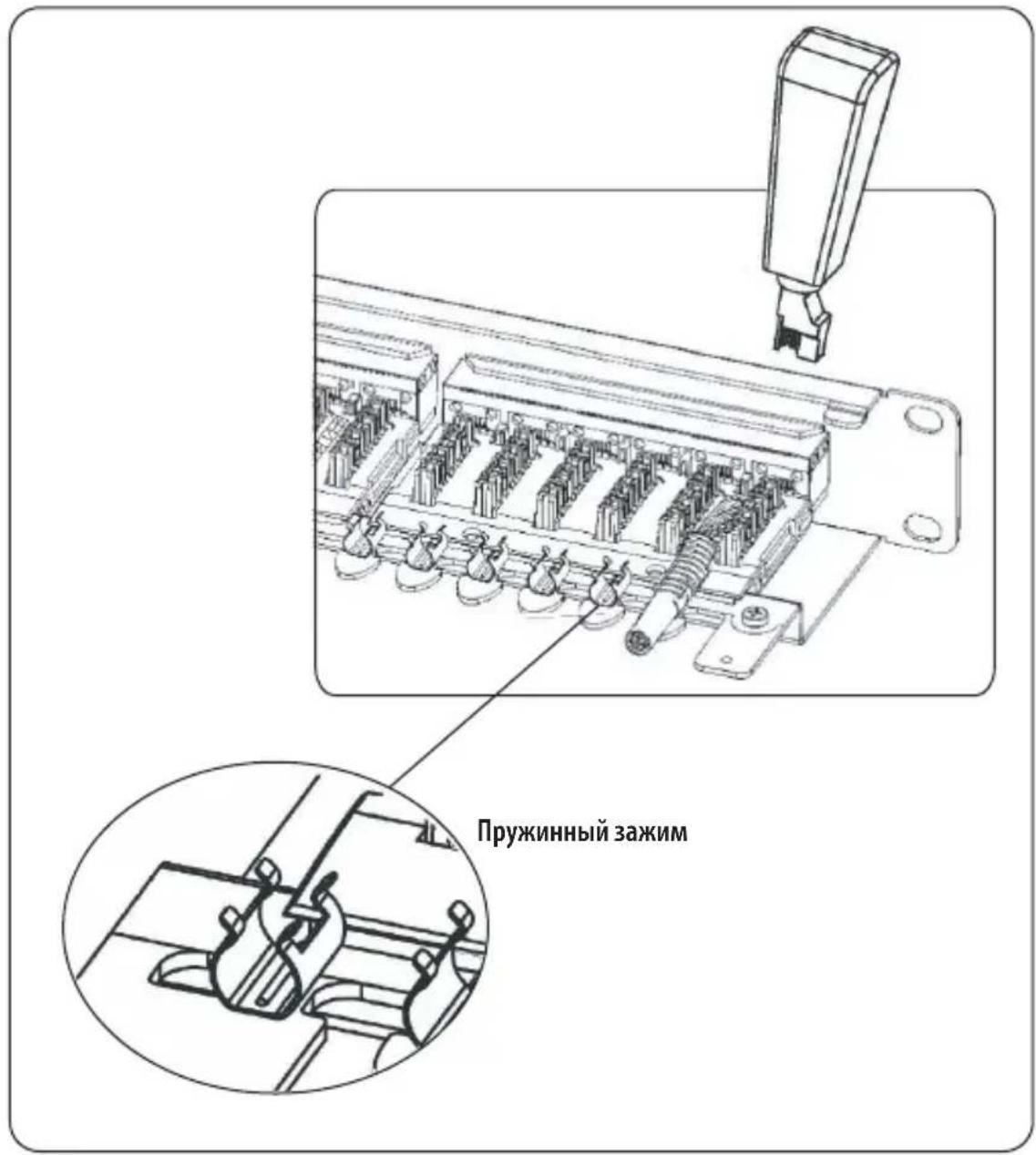

1 BbI6epnTe noDxoJaun yIapHbI nHCTpyMeNT.
3a6uBHOHMHCTpymENTTnna 110
LSA
2 NpOToTOBbTe cBoi FTP-Ka6eJb.
CHIMITE OKOIO 5cm oboJouK Ka6eJa.
Cobepnte npoBOna B oboJouKe c OndHcTOpOHy nCKpyTHe INX BMeCTe.
OTBepHnTe 3aunueHHbI ΦoIbIrpOBAHHbI 3KpaH Ha3aD BdoIb 06oJouKn Ka6eIa.
06MotaTe npoBvB 06OIOUKe BOKpyr fONbI. Oronite XnJIbl.
yctahOBka
3 3aKpenTe onIeTKy/0jbry c nOmoIbIO 3aXkMa, paCnOJoxEHHoro C TblbHoi CTOpOHbl.
yctahOBka
4 3aKpeHnTe 3aHn 3axm c nOoBIO Ka6eBHOI CTaXKn.
Otpexbte Bce liuHne qactn cTaeke. IpumueaHue. He nepemrauaime kaebu.
yctahOBka

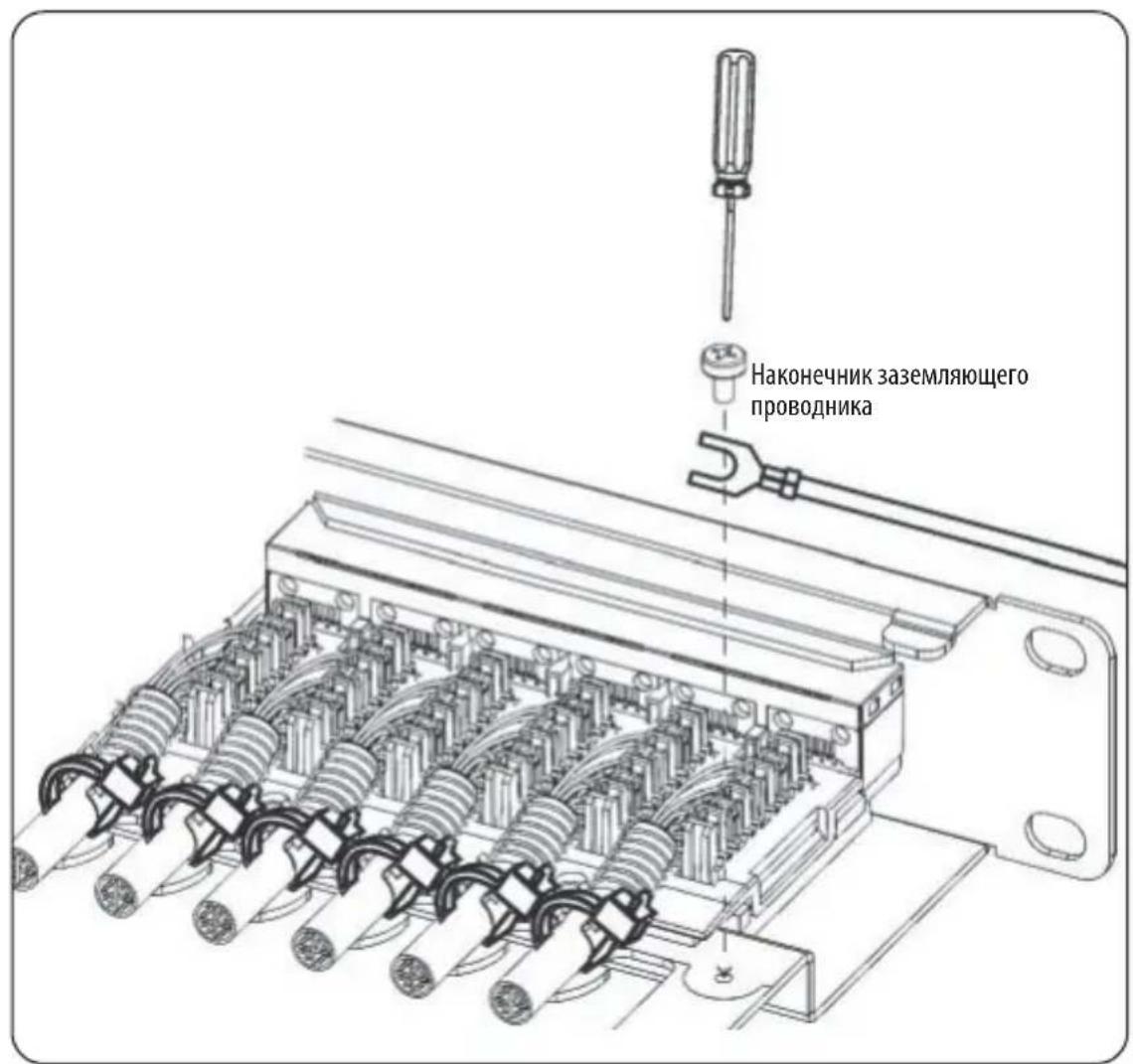

5 3aTaNHe 3a3eMIAUOuBbIBoD cNOMOuBnHTa.
yctahOBka

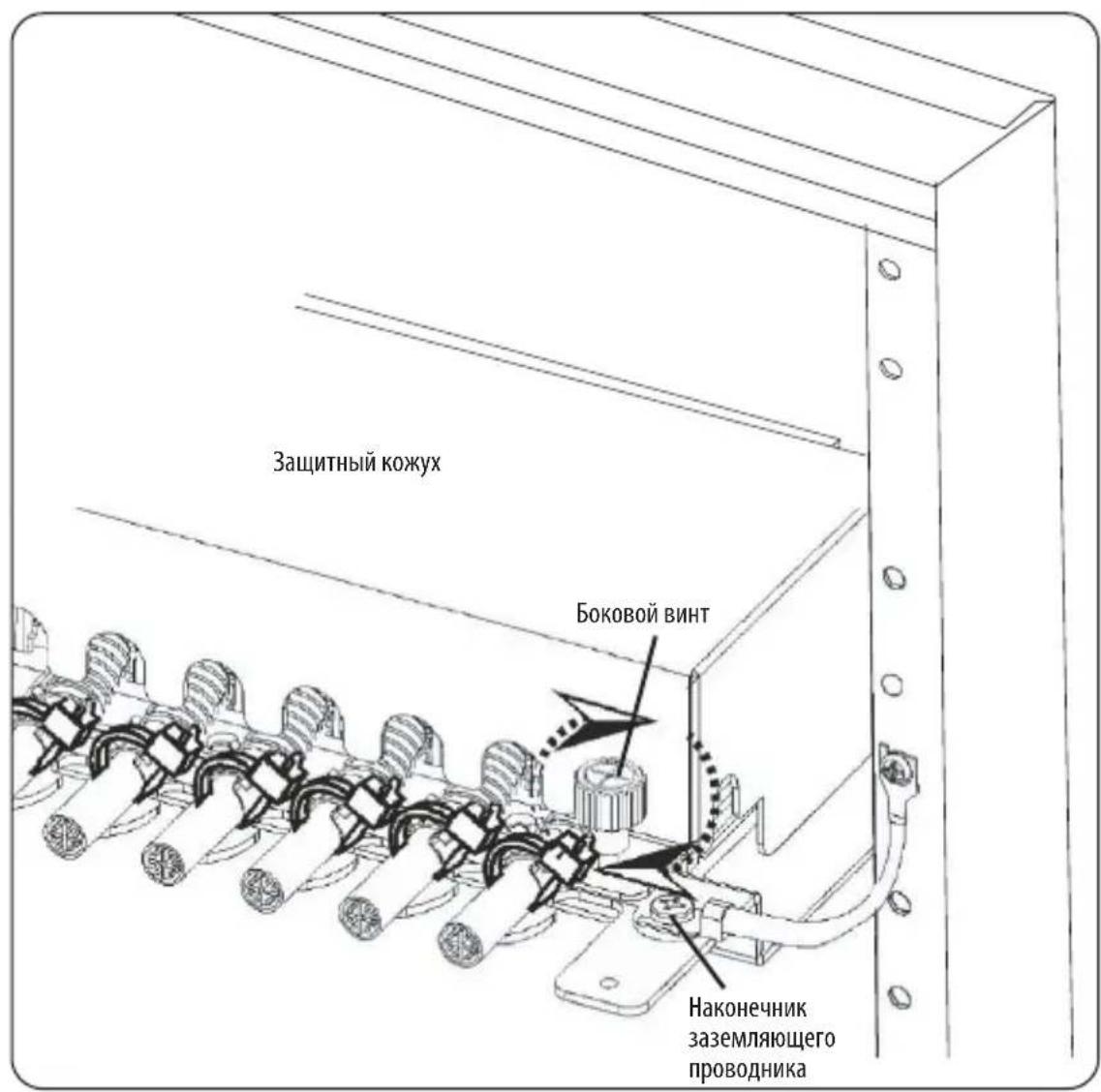

6 3aTaNHe 3aUHTbI KoxyX DByMa 6OKOBIMN BnHTaMn.
