USER MANUAL U336U03GB Tripp Lite

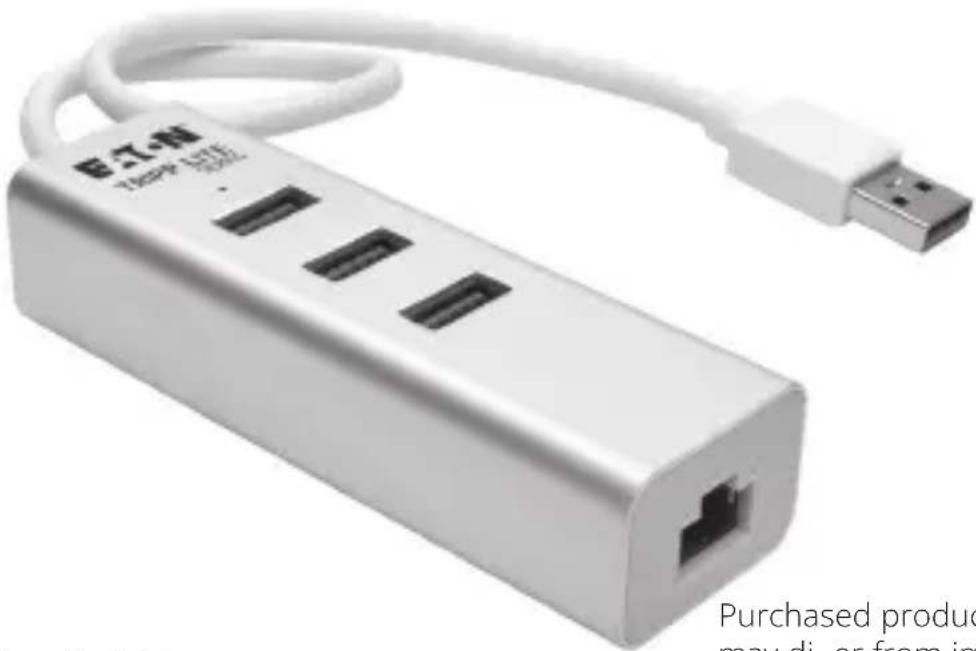

USB 3.2 SuperSpeed 3-Port Hub with Gigabit Ethernet

Model: U336-U03-GB

E-T-10 T400P 1500 Purchased produ may div, or from im

Español 10

Français 19

Deutsch 28

Italiano 37

Purchased product may differ from image.

EAT•N

Powering Business Worldwide

Product Features

• Combines a USB 3.2 SuperSpeed 3-port hub with a Gigabit Ethernet adapter
• Supports USB 3.2 data transfer rates up to 5 Gbps
- Backward compatible with USB 2.0 and 1.1 devices (at USB 2.0 and 1.1 speeds)
• Gigabit Ethernet port supports true 10/100/1000 Mbps network speeds
- IEEE 802.3, 802.3u, 802.3ab, and 802.3az (Energy Efficient Ethernet) compliant
• Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
• Supports both full-duplex operation with IEEE 802.3x flow control and half-duplex operation with back-pressure flow control
• Supports Wake-on-LAN, Jumbo Frames, VLAN Tagging, and Auto-MDIX
- Plug and play; no external power supply required

System Requirements

• An available USB port
• Windows® 2000 and later
• Mac OS® 9.X and later
• Linux® Kernel 2.6.14 and later

Package Includes

• U336-U03-GB
• Quick Start Guide

Optional Accessories

• N001-Series Cat5e 350 MHz Snagless Patch Cables
• N201-Series Cat6 Gigabit Snagless Patch Cables
• U322-Series USB 3.2 SuperSpeed A/B Device Cables
• U326-Series USB 3.2 SuperSpeed A/Micro B Device Cables

Installation

1. Insert the U336-U03-GB's USB connector into an available port on your computer. The LED on the top of the unit will illuminate white when connected.
2. Once the computer detects the unit, an automatic install of the USB drivers will occur. You may see an initial prompt showing No driver found for USB 10/100/1000 LAN. This should be followed by an AutoPlay prompt to install the driver. If you do not see the AutoPlay prompt, you can navigate to your My Computer screen and access it there, where it will appear as a CD Drive.

Driver Software Installation Device driver software was not successfully installed Please consult with your device manufacturer for assistance getting this device installed. USB 10/100/1000 LAN No driver found What can I do if my device did not install properly? Close

Installation

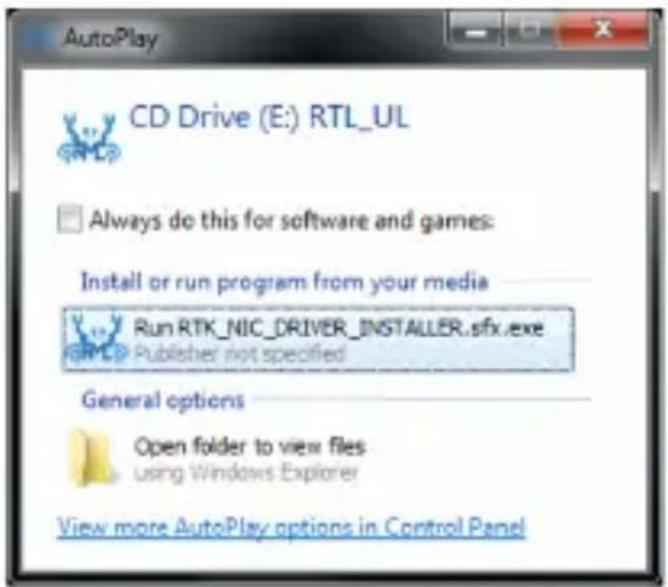

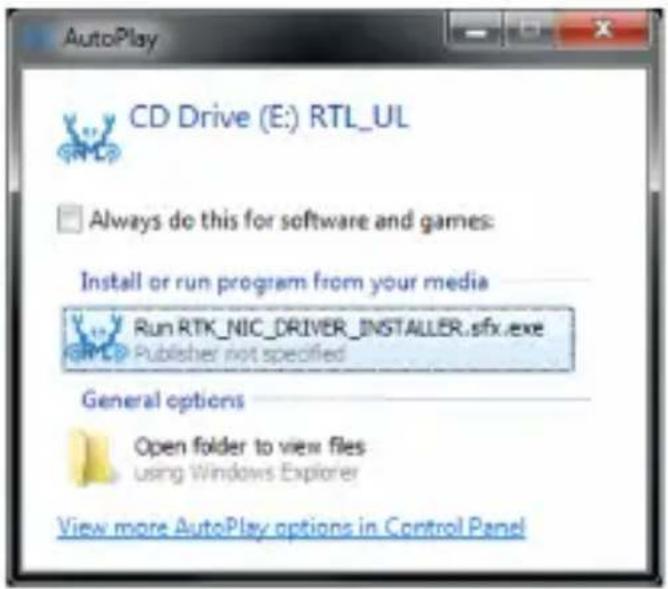

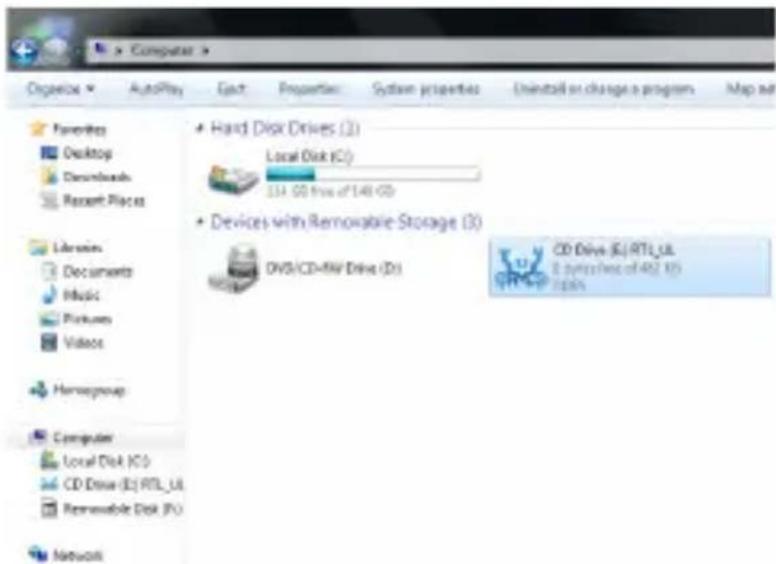

AutoPlay CD Drive (E:) RTL_UL Always do this for software and games: Install or run program from your media Run RTK_NIC_DRIVER_INSTALLER.sfx.exe Publisher not specified General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

Computer Organize AutoPlay Eact Properties System properties Install or change a program Map ad Favorites Desktop Downloads Recent Places Libraries Documents Music Pickups Videos Homegroup Computer Local Disk (CD) CD Drive (E) RTL_UL Renewable Disk (R) Networks Hard Disk Drives (1) Local Disk (C) 134.00 free of 148.00 Devices with Removable Storage (3) DVD/CD+MW Drive (D) CD Drive (E) RTL_UL 8 percent/sec of 452 KB 70%

Installation

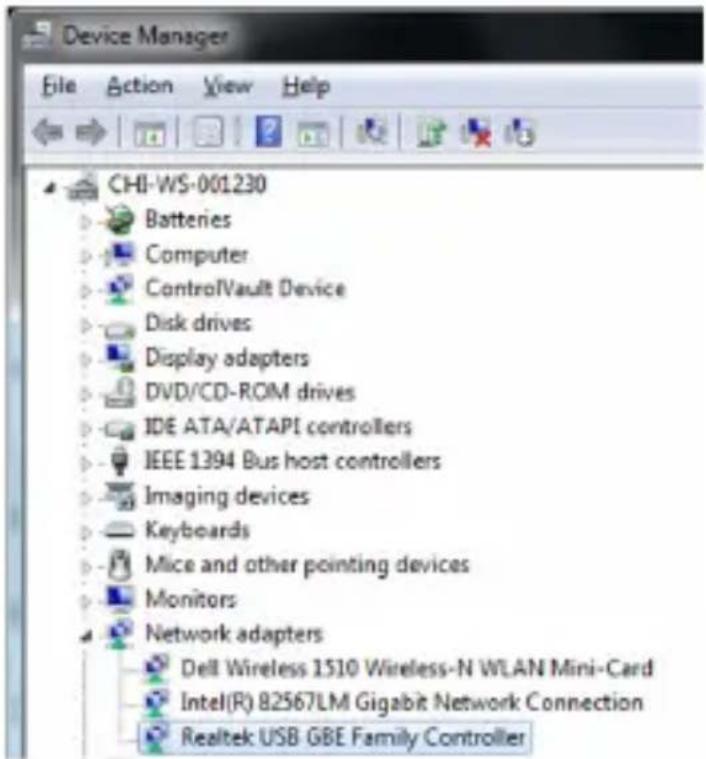

1. To confirm successful installation of the driver, navigate to your computer's Device Manager screen and confirm that Realtek USB GBE Family Controller appears as a Network Adapter.

Device Manager File Action View Help CHI-WS-001230 Batteries Computer ControlVault Device Disk drives Display adapters DVD/CD-ROM drives IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Imaging devices Keyboards Mice and other pointing devices Monitors Network adapters Dell Wireless 1510 Wireless-N WLAN Mini-Card Intel(R) 82567LM Gigabit Network Connection Realtek USB GBE Family Controller

1. Once installation is complete, you can connect the RJ45 network port on the U336-U03-GB to your network using Cat5e/6 patch cable. A green LED next to the RJ45 port will illuminate to indicate an Ethernet connection. An orange LED will flash to indicate network activity.

Installation

1. You can connect USB devices to the available ports on the U336-U03-GB using USB cabling.

Note: A USB 3.2 cable and a USB 3.2 device are required to achieve SuperSpeed data transfer rates up to 5 Gbps.

Warranty

1-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL EATON BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2023 Eaton

All Rights Reserved

Publication No.

23-06-460 /

93359A_RevB

July 2023

Eaton is a registered trademark.

All trademarks are property of their respective owners.

Hub de 3 puertos SuperSpeed USB 3.2 con Gigabit Ethernet

Modelo: U336-U03-GB

Powering Business Worldwide

Driver Software Installation Device driver software was not successfully installed Please consult with your device manufacturer for assistance getting this device installed. USB 10/100/1000 LAN No driver found What can I do if my device did not install properly? Close

Instalación

AutoPlay CD Drive (E:) RTL_UL Always do this for software and games: Install or run program from your media Run RTK_NIC_DRIVER_INSTALLER.sfx.exe Publisher not specified General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

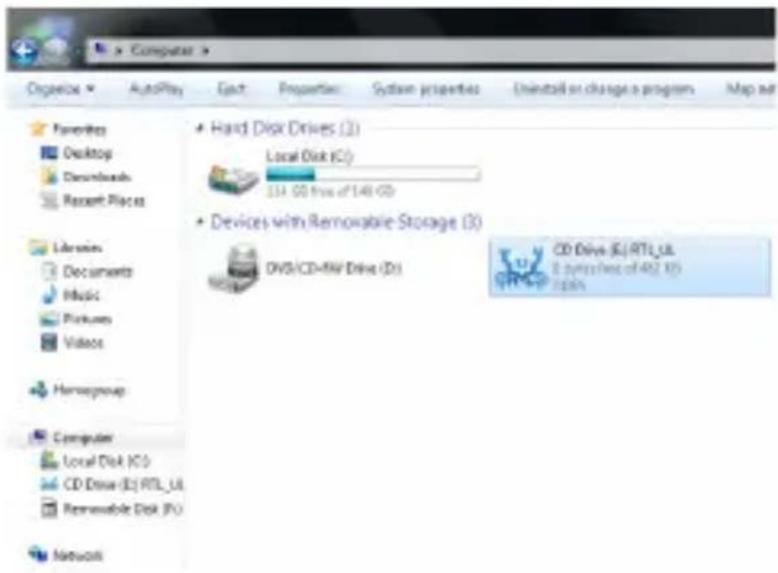

Computer Organize AutoPlay Eact Properties System properties Install or change a program Map ad Favorites Desktop Downloads Recent Places Libraries Documents Music Pickups Videos Homegroup Computer Local Disk (CD) CD Drive (E) RTL_UL Renewable Disk (R) Networks Hard Disk Drives (1) Local Disk (C) 134.00 free of 148.00 Devices with Removable Storage (3) DVD/CD+MW Drive (D) CD Drive (E) RTL_UL 8 percent/sec of 452 KB 70%

Instalación

Device Manager File Action View Help CHI-WS-001230 Batteries Computer ControlVault Device Disk drives Display adapters DVD/CD-ROM drives IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Imaging devices Keyboards Mice and other pointing devices Monitors Network adapters Dell Wireless 1510 Wireless-N WLAN Mini-Card Intel(R) 82567LM Gigabit Network Connection Realtek USB GBE Family Controller

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

Estados Unidos

Eaton.com

© 2023 Eaton

Todos los derechos

reservados

Publicación N°.

23-06-460 /

93359A_RevB

Julio de 2023

Powering Business Worldwide

Driver Software Installation Device driver software was not successfully installed Please consult with your device manufacturer for assistance getting this device installed. USB 10/100/1000 LAN No driver found What can I do if my device did not install properly? Close

Installation

AutoPlay CD Drive (E:) RTL_UL Always do this for software and games: Install or run program from your media Run RTK_NIC_DRIVER_INSTALLER.sfx.exe Publisher not specified General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

Computer Options AutoPlay Each Properties System properties Uninstall or change a program Map ad Favorites Desktop Downloads Recent Places Libraries Documents Music Pickups Videos Hemsgroup Computer Local Disk (C:) CD Drive (E:) RTL_UL Renewable Disk (P:) Networks Hard Disk Drives (I) Local Disk (C:) 134.00 free of 148.00 Devices with Removable Storage (X) DVD/CD=5W Drive (D:) CD Drive (E:) RTL_UL 8pt max/dec of 452 KB 7.00% SIR-CD

Installation

Device Manager File Action View Help CHI-WS-001230 Batteries Computer ControlVault Device Disk drives Display adapters DVD/CD-ROM drives IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Imaging devices Keyboards Mice and other pointing devices Monitors Network adapters Dell Wireless 1510 Wireless-N WLAN Mini-Card Intel(R) 82567LM Gigabit Network Connection Realtek USB GBE Family Controller

GARANTIE LIMITÉE D'UN AN

Powering Business Worldwide

Eaton

1000 Boulevard Eaton

Cleveland, OH 44122

États-Unis

Eaton.com

Powering Business Worldwide

Produktmerkmale

Driver Software Installation Device driver software was not successfully installed Please consult with your device manufacturer for assistance getting this device installed. USB 10/100/1000 LAN No driver found What can I do if my device did not install properly? Close

Installation

AutoPlay CD Drive (E:) RTL_UL Always do this for software and games: Install or run program from your media Run RTK_NIC_DRIVER_INSTALLER.sfx.exe Publisher not specified General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

Computer Options AutoPlay Each Properties System properties Drinstall or change a program Map ad Favorites Desktop Downloads Recent Places Libraries Documents Music Pickups Videos Homegroup Computer Local Disk (CD) CD Drive (E) RTL_UL Renewable Disk (R) Networks Hard Disk Drives (1) Local Disk (CD) 134.00 free of 148.00 Devices with Removable Storage (3) OBS/CD+FMV Drive (D) CD Drive (E) RTL_UL E switches of 462 KB SPGMP CD Drive (E) RTL_UL E switches of 462 KB SPGMP

Installation

Device Manager File Action View Help CHI-WS-001230 Batteries Computer ControlVault Device Disk drives Display adapters DVD/CD-ROM drives IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Imaging devices Keyboards Mice and other pointing devices Monitors Network adapters Dell Wireless 1510 Wireless-N WLAN Mini-Card Intel(R) 82567LM Gigabit Network Connection Realtek USB GBE Family Controller

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

Vereinigte Staaten

Eaton.com

© 2023 Eaton

Alle Rechte

vorbehalten.

Powering Business Worldwide

Driver Software Installation Device driver software was not successfully installed Please consult with your device manufacturer for assistance getting this device installed. USB 10/100/1000 LAN No driver found What can I do if my device did not install properly? Close

Installazione

AutoPlay CD Drive (E:) RTL_UL Always do this for software and games: Install or run program from your media Run RTK_NIC_DRIVER_INSTALLER.sfx.exe Publisher not specified General options Open folder to view files using Windows Explorer View more AutoPlay options in Control Panel

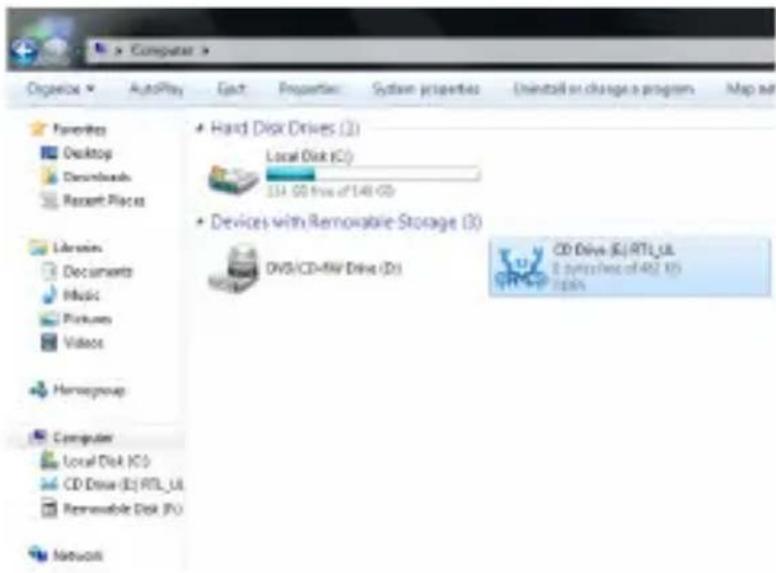

Computer Organize AutoPlay Eact Properties System properties Install or change a program Map ad Favorites Desktop Downloads Recent Places Libraries Documents Music Pickups Videos Homegroup Computer Local Disk (CD) CD Drive (E) RTL_UL Renewable Disk (R) Networks Hard Disk Drives (1) Local Disk (C) 134.00 free of 148.00 Devices with Removable Storage (3) DVD/CD+MW Drive (D) CD Drive (E) RTL_UL 8 percent/sec of 462 KB 70%
