U460-004-4C-G2C - USB Hub Tripp Lite - Free user manual and instructions

Product Type	USB-C Hub
Brand	Tripp Lite
Model	U460-004-4C-G2C
Number of Ports	4 USB-C Ports (Female)
Host Connector	Integrated USB-C (Male)
USB Standard	USB 3.2 Gen 2 (10 Gbps)
Backward Compatibility	USB 3.0 / 2.0 / 1.1
Downstream Charging (3 Ports)	Up to 5V 1.5A (7.5W) per port, total 12W
PD Charging Port	1 dedicated port: input up to 20V 5A (100W), hub output 15W, with Fast Role Swap
Power Required	Via host USB-C port or external PD charger
Installation	Plug-and-Play, no driver required
Portability	Compact design with integrated cable
Operating Temperature	-10 to 45 °C (14 to 113 °F)
Operating Humidity	10% to 85% RH, non-condensing
Storage Temperature	-10 to 80 °C (14 to 176 °F)
Storage Humidity	25% to 93% RH, non-condensing
Warranty	3-year limited warranty
Package Contents	USB-C Hub, user documentation
Care and Cleaning	Unplug before cleaning; use a dry, soft cloth. Do not use solvents.
Safety	Use only with compatible USB-C chargers and cables.
Spare Parts and Repairability	No user-serviceable parts. Contact Tripp Lite support.

Frequently Asked Questions - U460-004-4C-G2C Tripp Lite

Which devices are compatible with the U460-004-4C-G2C hub?

This hub is compatible with any device equipped with a USB-C port that supports host mode, such as laptops, tablets, and smartphones (Windows, Mac, Chrome OS, Android, etc.).

Can I charge my laptop through the hub?

Yes, the dedicated PD 3.0 port accepts input up to 100W (20V 5A) to charge the host device, with 15W reserved for hub operation.

What is the maximum data transfer rate of the USB-C ports?

Each USB-C port supports transfer rates up to 10 Gbps in USB 3.2 Gen 2, and remains backward compatible with previous generations.

Does the hub require drivers?

No, the hub is Plug-and-Play: it works immediately without additional driver installation on Windows, macOS, Linux, and other operating systems.

Can I connect USB-A devices to this hub?

Yes, using a USB-C to USB-A cable or adapter (sold separately). The hub will detect and use the device.

What is the maximum charging power on the three standard ports?

Each of the three USB-C ports can deliver up to 5V 1.5A (7.5W) to charge peripherals like smartphones, with a combined total of 12W.

Is the hub suitable for travel?

Yes, its portable design with an integrated cable makes it ideal for use on the go. It is lightweight and easy to store.

How do I clean the U460-004-4C-G2C hub?

Unplug the hub before cleaning. Use a soft, dry cloth. Never use solvents or abrasive products.

What to do if a device is not recognized?

Check that the device is properly connected. Try a different cable or port. Ensure the host device supports USB-C host mode. Restart the host if necessary.

Is the hub under warranty?

Yes, Tripp Lite offers a 3-year limited warranty against defects in materials and workmanship. Check the website for return procedures.

USER MANUAL U460-004-4C-G2C Tripp Lite

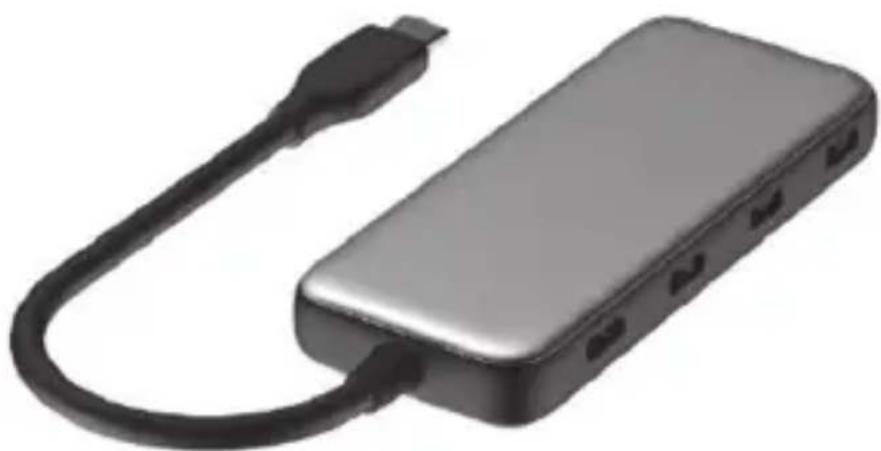

4-Port USB-C Hub, x4 USB-C

3.2 Gen2 (10 Gbps) and

100W PD Charging Port

Models:

U460-004-4C-G2C

Purchased product may differ from ima

Espanol 5

Français 9

Deutsch 13

Italiano 17

EAT-N

Powering Business Worldwide

PRODUCT REGISTRATION

Register your product today for a chance to win an ISOBAR® surge protector in our monthly drawing!

Triplite.Eaton.com/warranty

Package Contents

U460-004-4C-G2C
- User Documentation

Optional Accessories

• U420-XXX-G2 Series USB 3.2 Gen 2 USB-C Cables
• U428-XXX-G2 Series USB 3.2 Gen 2 USB-C to USB-A Cables
• U420-XXX-G2-5A Series USB 3.2 Gen 2 USB-C 5A Cables

Package Contents

• USB-C Hub ports support data transfer rates up to 10 Gbps; backwards compatible with previous USB Generations
• Three USB-C ports support downstream charging up to 5V 1.5A (7.5W) per port, with a total output of 12W
• Dedicated USB-C PD Charging 3.0 port supports 20V 5A (100W) power output with 15W dedicated to the functioning of the hub, as well as Fast Role Swap for charging the host device
• Portable design with built-in cable is perfect for travel
• Plug-and-Play - no software or drivers required

Installation

1. Connect the unit's USB-C connector to the USB-C port on your laptop, tablet or other device.
2. Connect up to four USB devices to the USB-C Hub ports on the unit.
3. Charge your device by connecting the USB-C charger to the USB-C port on the unit.

2

Specifications

Connectors
Input USB-C (Male)
Output USB-C (Female) x4
Environmental
Operating Temperature 14 to 113°F (-10 to 45°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage Temperature 14 to 176°F (-10 to 80°C)
Storage Humidity 25% to 93% RH, Non-Condensing
Power Requirements
USB-C Charging Port Supports up to 20V 5A (100W) Input

Warranty and Product Registration

3-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ASING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty and Product Registration

Product Registration

Visit Tripplite.Eaton.com/warranty today to register your new product. You'll be automatically entered into a drawing for a chance to win a FREE Eaton Tripp Lite series product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marking name or model number of the product.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

© 2024 Eaton

All Rights Reserved

Publication No.

23-10-273/

93-49A0_ReVA

January 2024

Eaton is a registered trademark.

All trademarks are property of their respective owners.

4
