Installation Over the Range Instructions Microwave Oven Read these instructions completely and carefully.

IMPORTANT – Save these instructions for local inspector’s use.

IMPORTANT – Observe all governing codes and ordinances. Note to Installer –Be sure to leave theseinstructions with the Consumer.

Mount the Microwave Oven ............11

Before You Use Your Microwave .......................... 24 .......................... 2Template Information................... Hood Exhaust .................................................... 14-15 EN-2 5This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies. CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury. CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound (28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113–135 pounds (51.3–61.2 kg). CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall. NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR

PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED TO AVOID SEVERE OR

FATAL SHOCK. The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance. You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded. Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician. DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

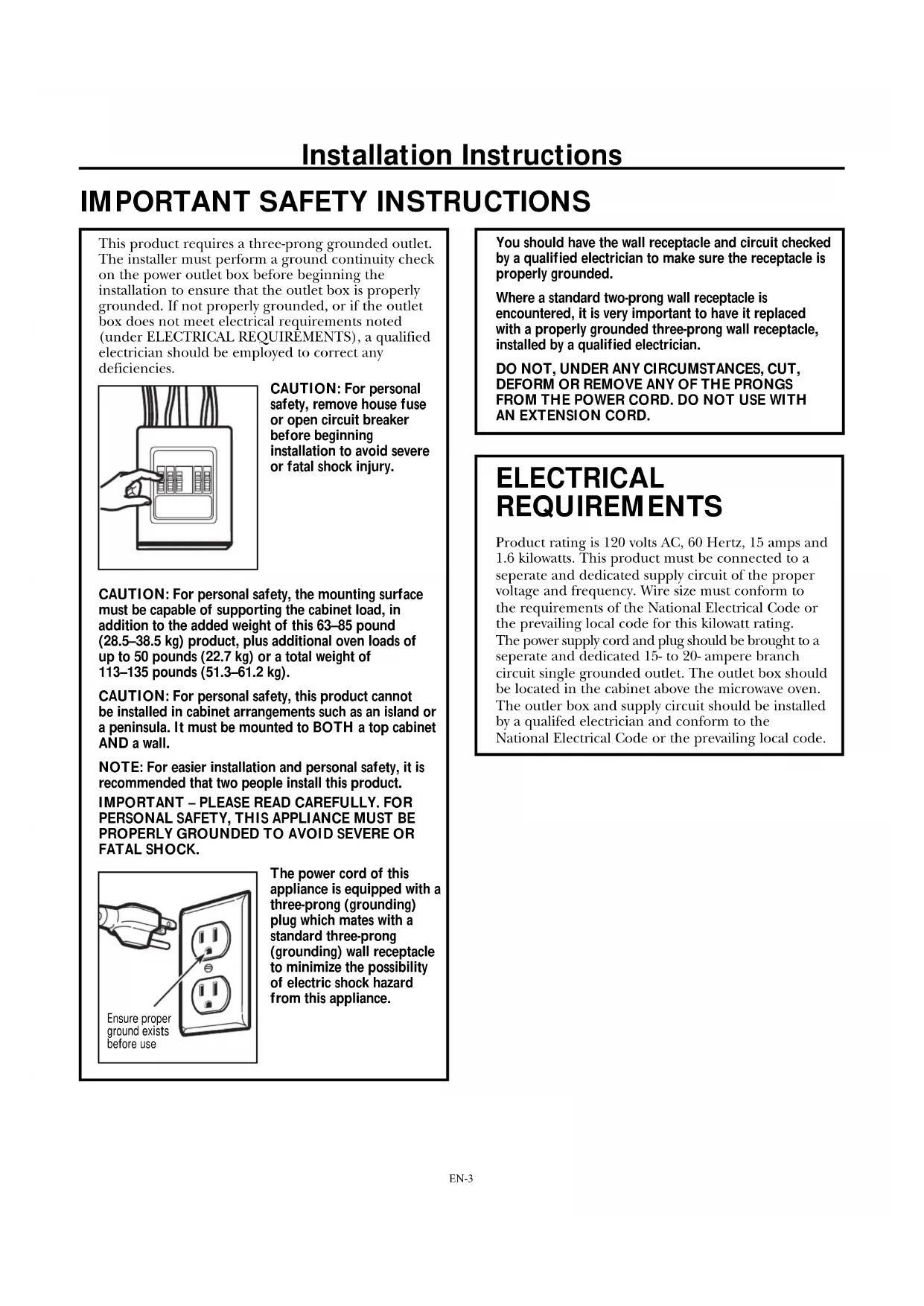

IMPORTANT SAFETY INSTRUCTIONS

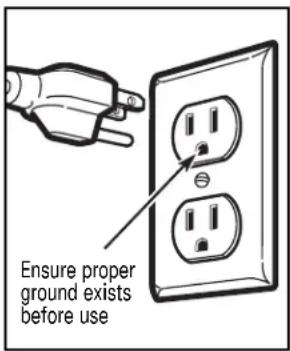

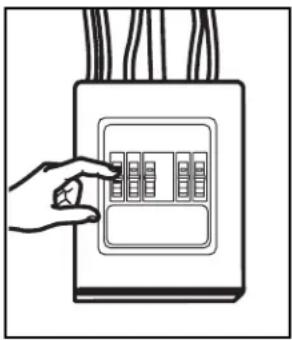

Ensure proper ground exists before use Installation Instructions ELECTRICAL REQUIREMENTS Product rating is 120 volts AC, 60 Hertz, 15 amps and

1.6 kilowatts. This product must be connected to a

The power supply cord and plug should be brought to a the prevailing local code for this kilowatt rating. the requirements of the National Electrical Code or voltage and frequency. Wire size must conform to seperate and dedicated supply circuit of the proper seperate and dedicated 15- to 20- ampere branch National Electrical Code or the prevailing local code. by a qualifed electrician and conform to the The outler box and supply circuit should be installed be located in the cabinet above the microwave oven. circuit single grounded outlet. The outlet box should

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.

• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.

• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer. DAMAGE—SHIPMENT/ INSTALLATION Installation Instructions PARTS INCLUDED You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts. NOTE: Some extra parts are included. HARDWARE PACKET PART QUANTITY Template

Instructions Separately

USE & CARE MANUAL Manual For some models Convection wire rack For some models EN-4Installation Instructions

• Duct and masking tape

• #1 Phillips screw driver

• 3/16”, 1/2”, 5/8” drill bit

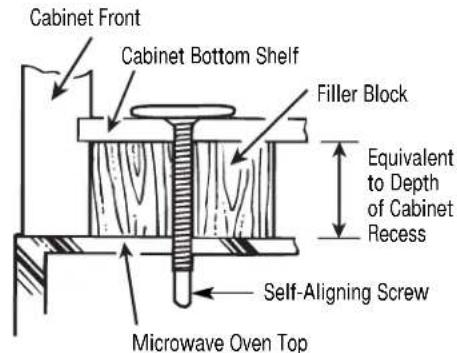

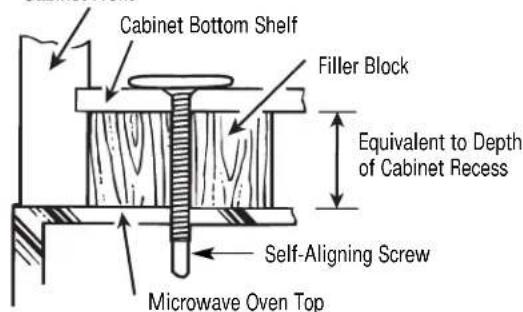

• Filler wood blocks for recessed bottom cabinets

• Tin snips Mounting Space Tools you will need:

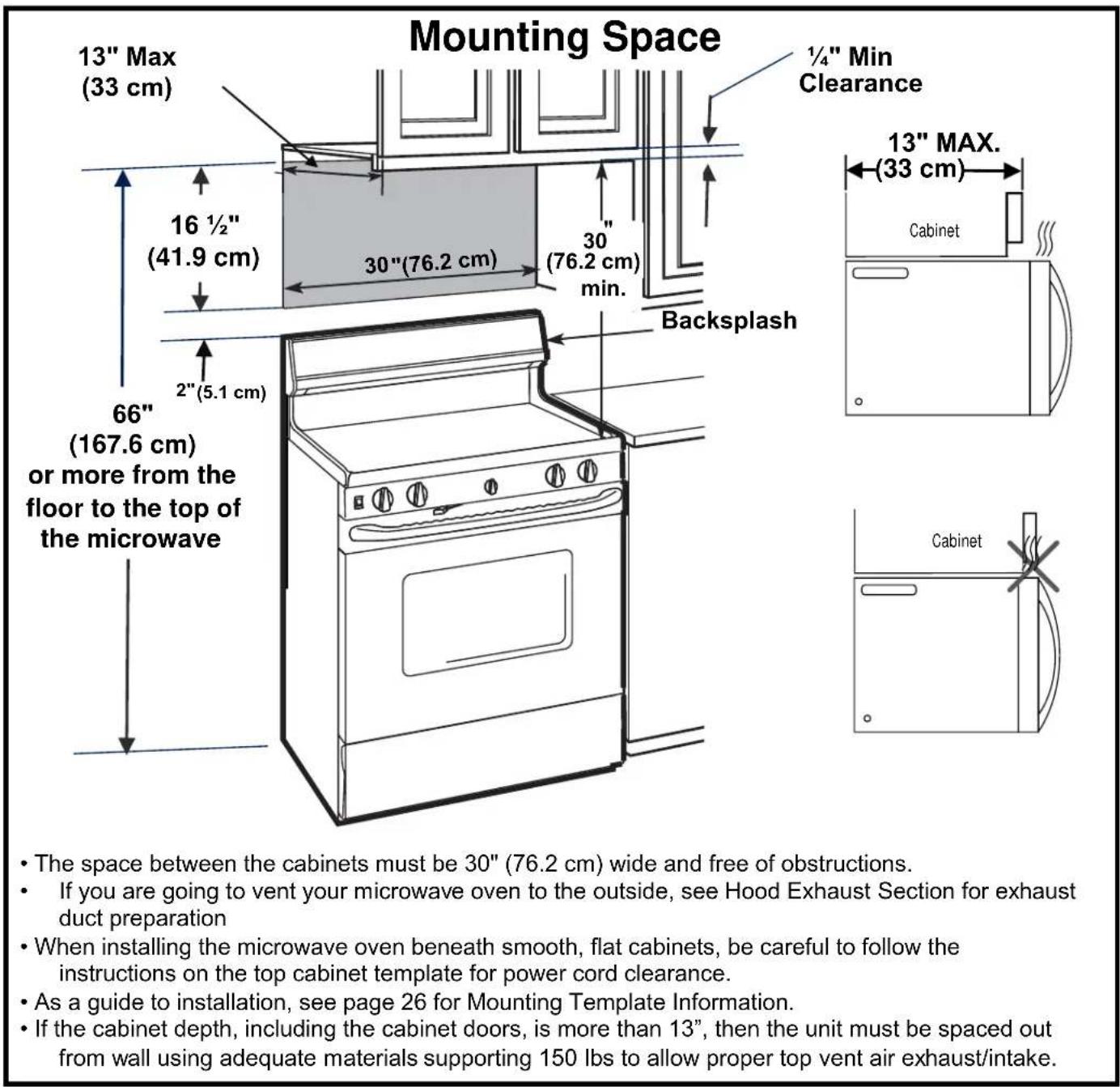

• The space between the cabinets must be 30" (76.2 cm) wide and free of obstructions.
• If you are going to vent your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation• When installing the microwave oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance.• As a guide to installation, see page 26 for Mounting Template Information.• If the cabinet depth, including the cabinet doors, is more than 13”, then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/intake. 66" (167.6 cm)or more from the floor to the top of the microwave¼" Min13" Max(33 cm)16 ½"(41.9 cm)Backsplash

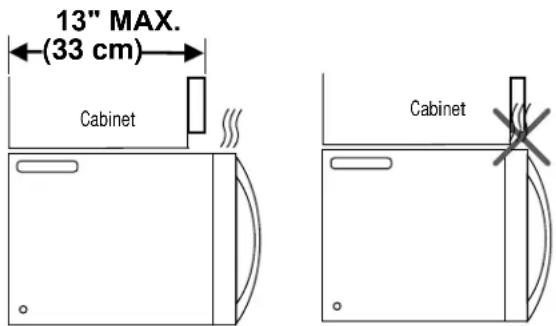

13" MAX.PLACEMENT OF THE MOUNTING PLATE

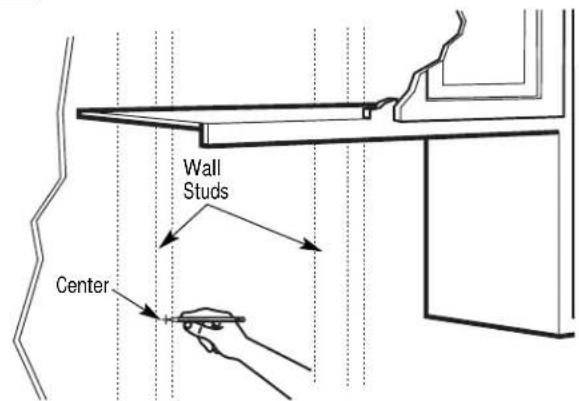

Installation Instructions Find the studs, using one of the followingmethods:A. Stud finder – a magnetic device whichlocates nails.B. Use a hammer to tap lightly across themounting surface to find a solid sound.This will indicate a stud location.After locating the stud(s), find the center byprobing the wall with a small nail to find the edgesof the stud. Then place a mark halfway betweenthe edges. The center of any adjacent studs shouldbe 16w (40.6 cm) or 24w (61 cm) from this mark.Draw a line down the center of the studs.THE MICROWAVE MUST BE CONNECTED TOAT LEAST ONE WALL STUD. Fold back all 4 carton flaps fully against cartonsides. Then carefully roll the oven and carton overonto the top side. The oven should be resting inthe Styrofoam.

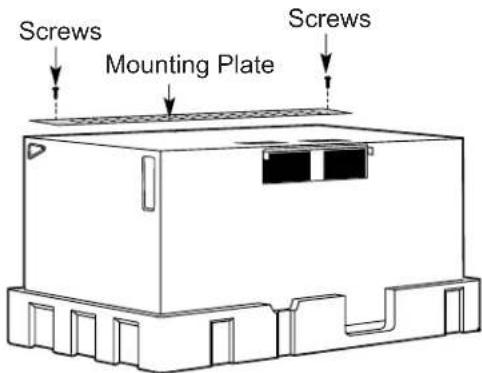

REMOVING THE MOUNTING

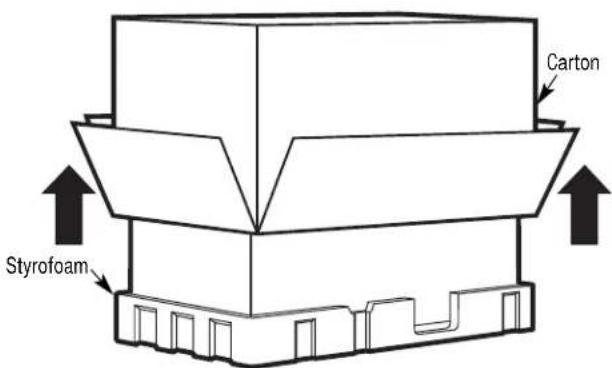

Cut t he middle of the outer protective plastic bag to emove the ounting late

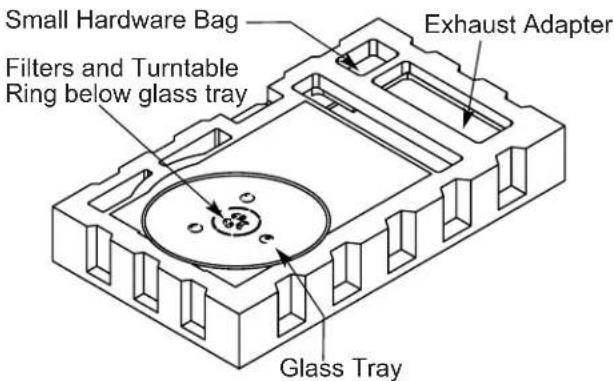

Remove the installation instructions,use and care, exhaust adapter, turntable ring, shelf, filters, glass Do not remove the Styrofoam protecting the front of the oven. Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template

and for mounting. Reinstall the screws into the holes where they were removed. tray and the small hardware

please note: Do Not Remove plastic plug EN-6 protective cover until just before hanging the unit. Filters and Turntable Ring below glass tray Exhaust Adapter Small Hardware Bag Glass TrayDETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

ATE AT LEAST ONE STUD ON EI

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level. THE MICROWAVE MUST BE LEVEL. Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level. Measure the inside depth of the front overhang. Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang. For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D. Draw a vertical line on the wall at the center of the 30 ″ wide space. Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet. to Cooktop Draw a vertical line on the wall at the center of the

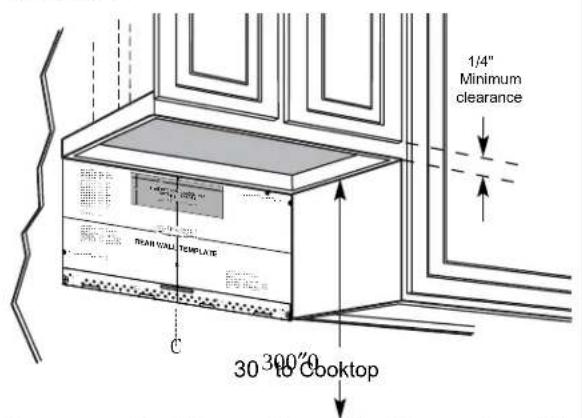

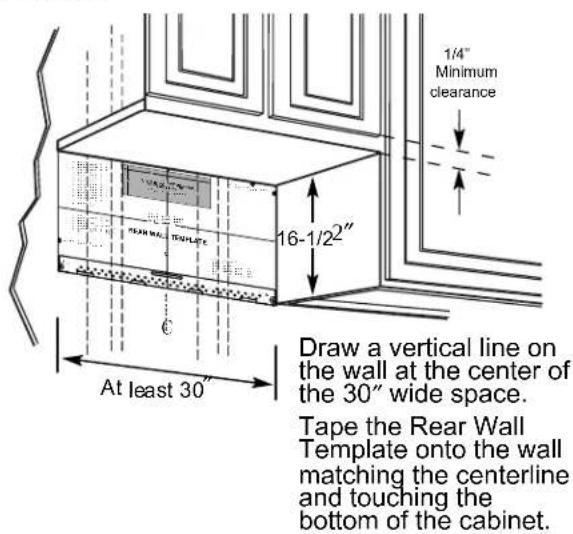

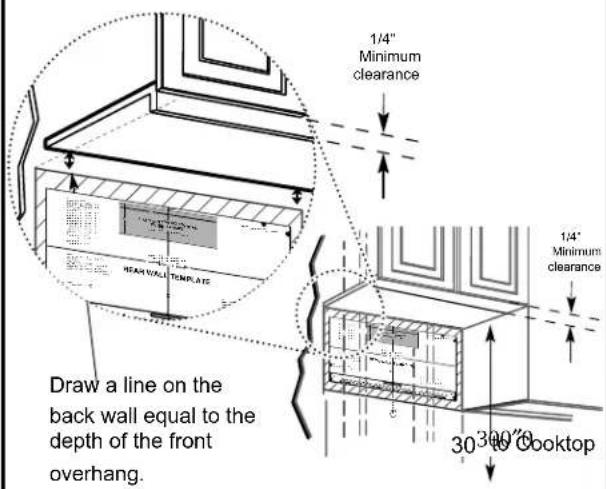

16-1/2 -beneath -beneath -beneath recessed cabinet 1/4"Minimum clearance1/4"Minimum clearance1/4"Minimum clearanceDraw a line on theback wall equal to the depth of the frontoverhang.1/4"Minimum clearance EN-7Installation Instructions

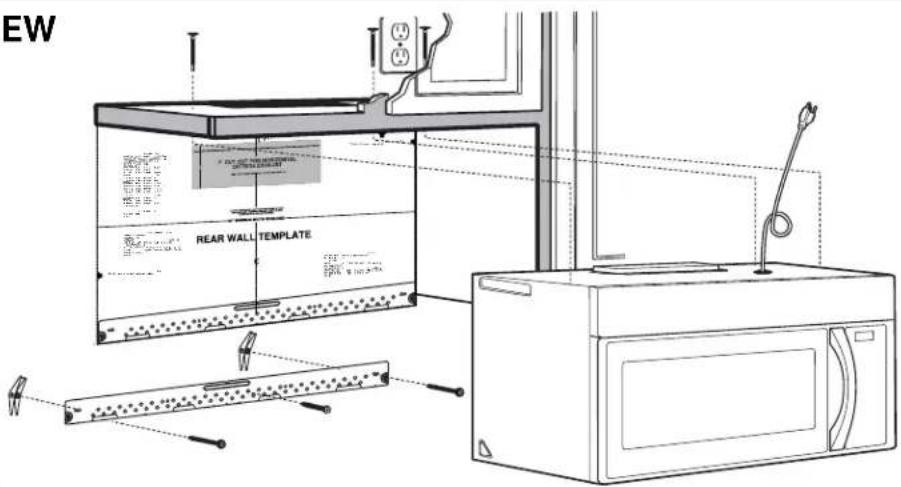

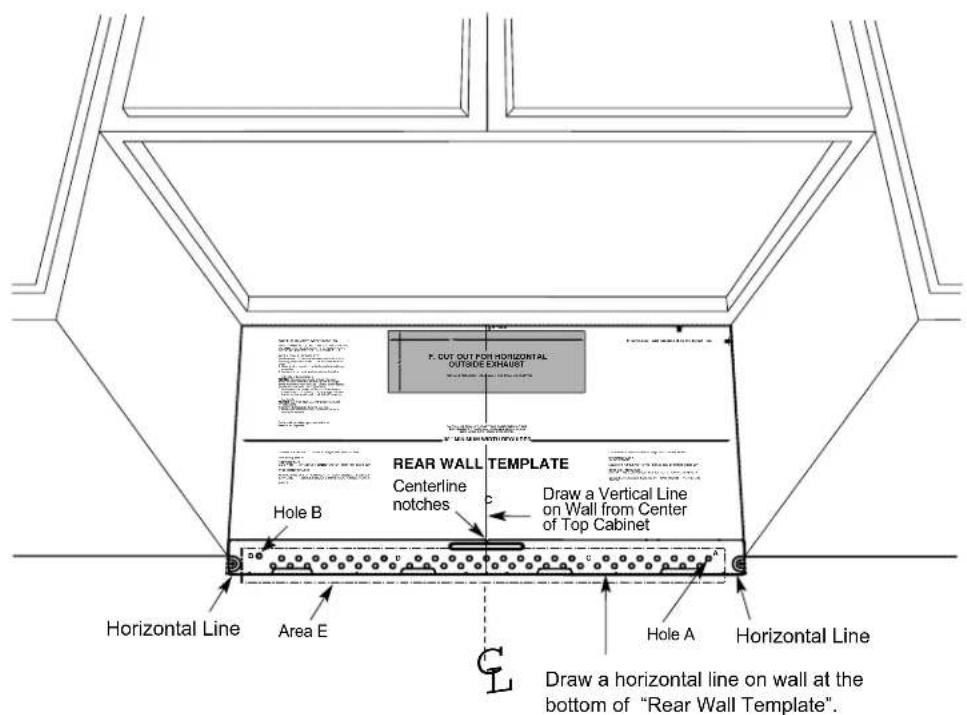

ALIGNING THE WALL PLATE

Area EHole AHole BCenterlinenotchesDraw a Vertical Lineon Wall from Centerof Top CabinetDraw a horizontal line on wall at thebottom of “Rear Wall Template”.Horizontal LineHorizontal Line

1. Use a level to check th

at the template is positioned accurately.

rk at least one stud on the left or right side of the centerlin

016' It is important to use at least one wood screw mounted firmly in a stud to s upport the weight of the microwave. Mark two add itional, evenly spaced locations for the supp lied toggle bolts.

3. Drill holes in the marked locatio

ns. Where there is a stud, drill a 3/16" hole for wood screws. For hole

that do not line up with a st ud, drill 5/8" holes for toggle bolts. 016'

DO NOT INSTALL THE M

OUNTING PLATE AT THIS TIME.

plate from the rear wall.

5. Review the Installation Instru

ction book for your installation situation. Locate and mark holes to align with holes in the mounting plat IMPORTANT:LOCATEAT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACEDTOGGLE BOLTS IN THE MOUNTING PLATEAREA.Locate and mark holes to align with holes in the mounting plat IMPORTANT:LOCATEAT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACEDTOGGLE BOLTS IN THE MOUNTING PLATEAREA.Trim the rear wall template along the dotted line.

Darle vuelta a la hoja para consultar la versión en Español. Draw a vertical line on the wall at the center of the 30" wide space. NOTE: DO NOT MOUNT THE PLATE AT THIS TIME. NOTE: Holes A and B are inside area E. If neither of important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

Draw a horizontal line on the wall at the bottom of “Rear Wall Template”. Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is

Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs. For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B)

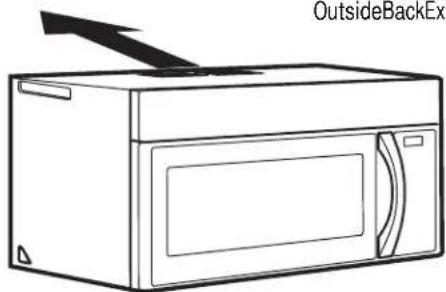

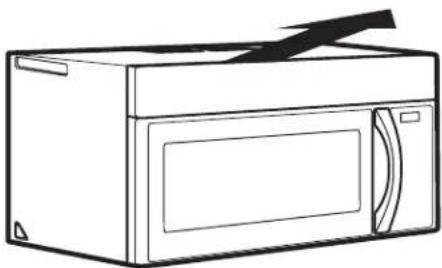

This microwave oven is designed for adaptation tothe following three types of ventilation:B.Outside Back Exhaust (Horizontal Duct)proceed to that section.

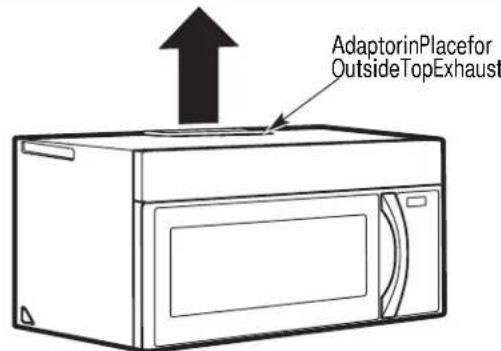

(HORIZONTAL DUCT) See page 20 Adaptor in Place for Outside Top Exhaust

Adaptor Must Be Moved to the Back for Outside Back Exhaust NOTE: This microwave is shipped assembled forRecirculating. Select thetype of ventilation required (Choose A, B or C) for your installation and Installation Instructions outside. If you plan to recirculate the air back into the room, proceed to page 10. A.Recirculating (Non-Vented Ductless)C. Outside Top Exhaust (Vertical Duct)

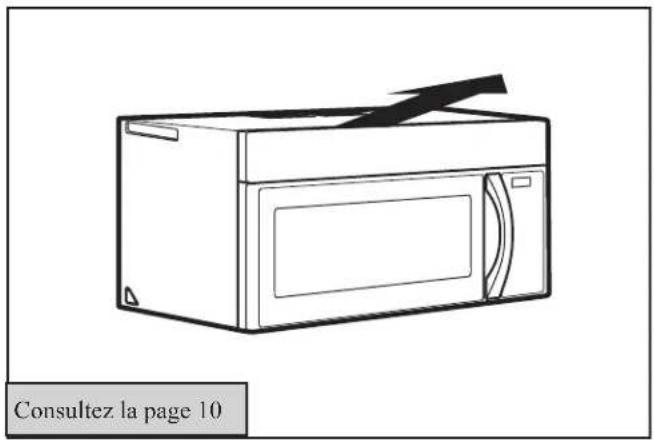

RECIRCULATING (NON-VENTED DUCTLESS) recirculating exhaust. disposable charcoal filter installed to help remove smoke and odors. See page 10 Models are shipped for Some models have a

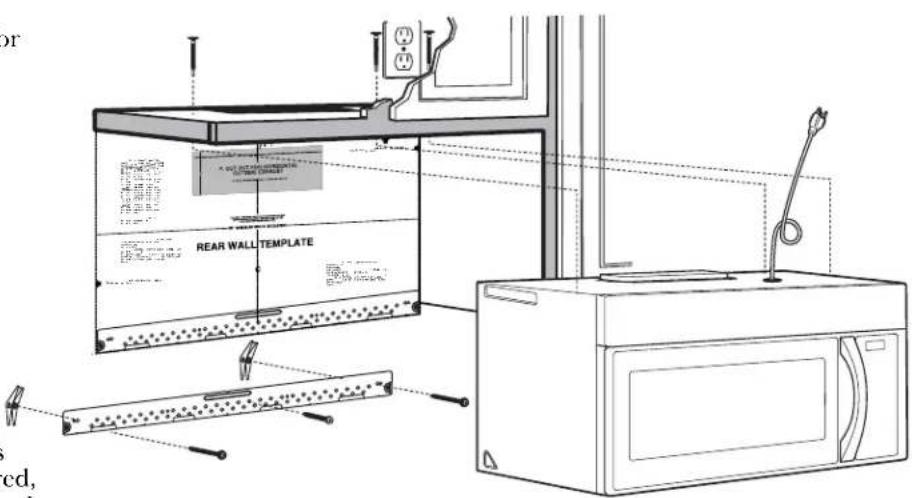

EN-9 NOTE: Read the pages 14-15 only if you plan to vent your exhaust to the See page 16INSTALLATION OVERVIEW Attach Mounting Plate to WallPrepare Top Cabinet Mount the Microwave OvenIMPORTANT NOTES:

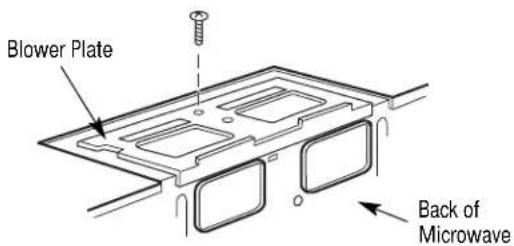

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled.This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched. Installation Instructions Place the mounting plate against the wall andinsert the toggle wings into the holes in the wall to mount the plate.NOTE: Before tightening toggle bolts and woodscrew, make sure the bott m of the mounting platetouch the bottom of the cabinet when pushed flushagainst the wall and that the plate is properlycentered under the cabinet.CAUTION: Be careful to avoid pinching fingersbetween the back of the mounting plate and the wall.Tighten all bolts. Pull the plate away from the wallto help tighten the bolts.

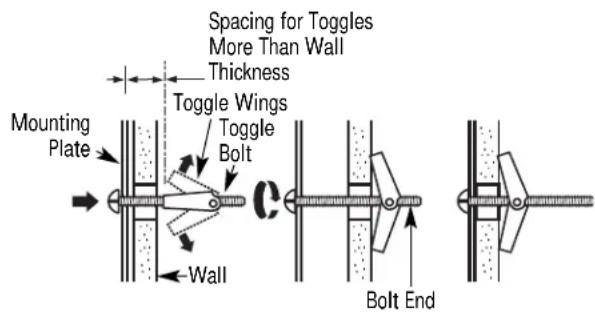

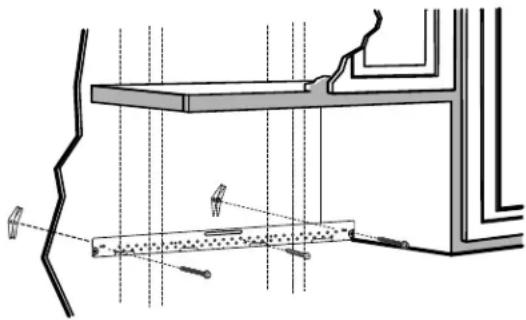

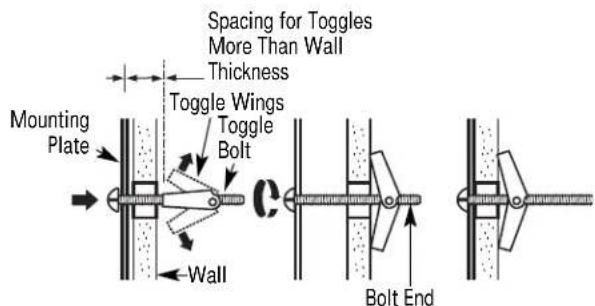

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.Remove the toggle wings from the bolts. Insert the bolts into the mounting plate throughthe holes designated to go into drywall andreattach the toggle wings to ⁄4″ (19 mm) ontoeach bolt.

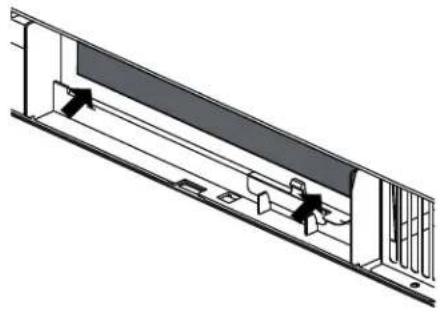

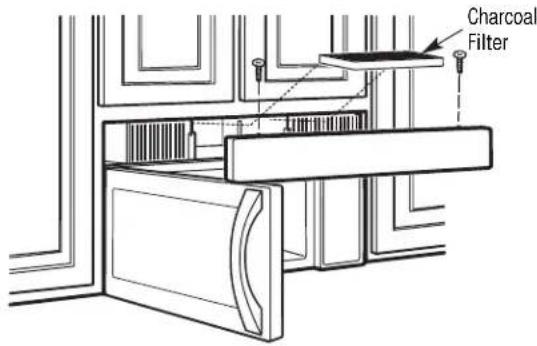

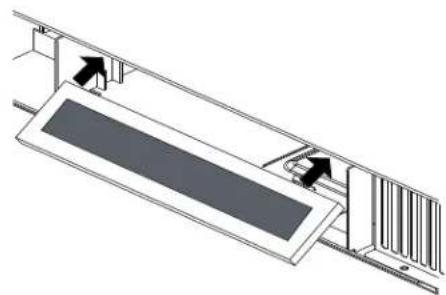

RECIRCULATING (Non-Vented Ductless) Install or change Charcoal FilterCheck Blower PlateNOTE: If the cabinet depth including the cabinet doors is more than 13""'' then the unit must be spaced

A1. A2. A3. A4. A5. A1. Cabinet Cabinet (33 cm) 13" MAX. out from wall using adequate materials supporting 150 Ibs to allow proper top vent air exhaust/intake.

EN-10Installation Instructions Attach the microwave oven to the top cabinet. Cabinet FrontCabinet Bottom ShelfFiller BlockMicrowave Oven TopEquivalent to Depthof Cabinet Recess

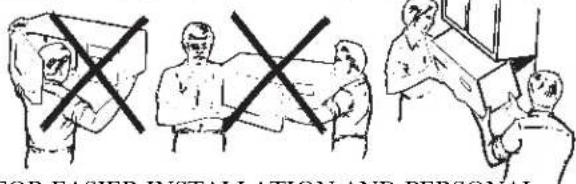

SAFETY, WE RECOMMEND THAT TWO PEOPLE

INSTALL THIS MICROWAVE OVEN. NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord. NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf. IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws. Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet. Self-Aligning Screw

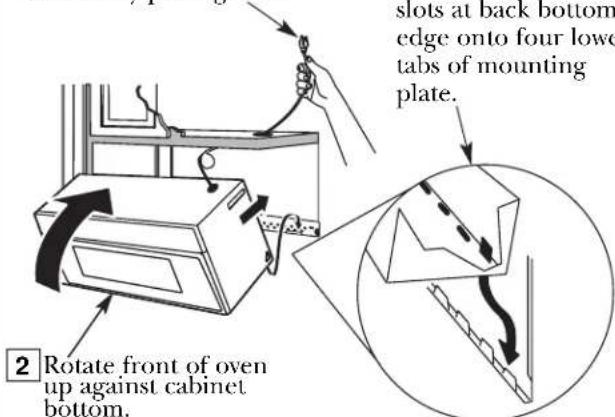

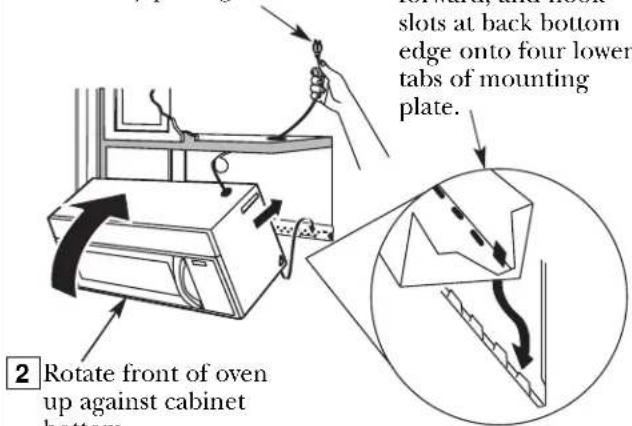

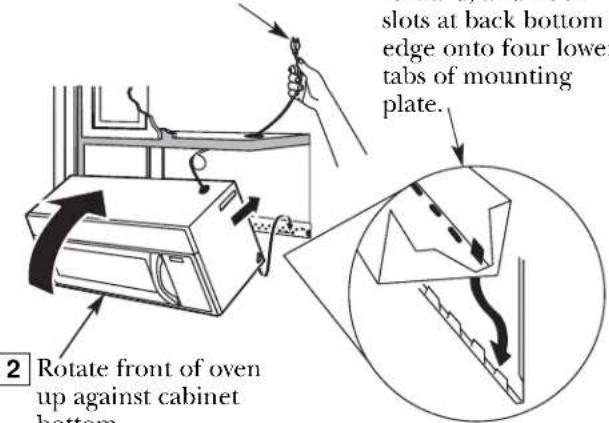

Rotate front of oven up against cabinet bottom. NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord. Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

• Place the microwave in its upright position, with the top of the unit facing up.

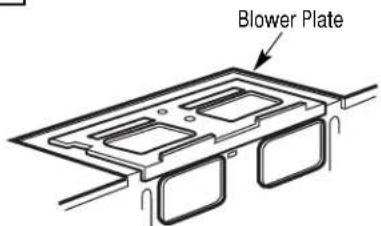

• Check to see that the blower plate is correctly installed on the unit.

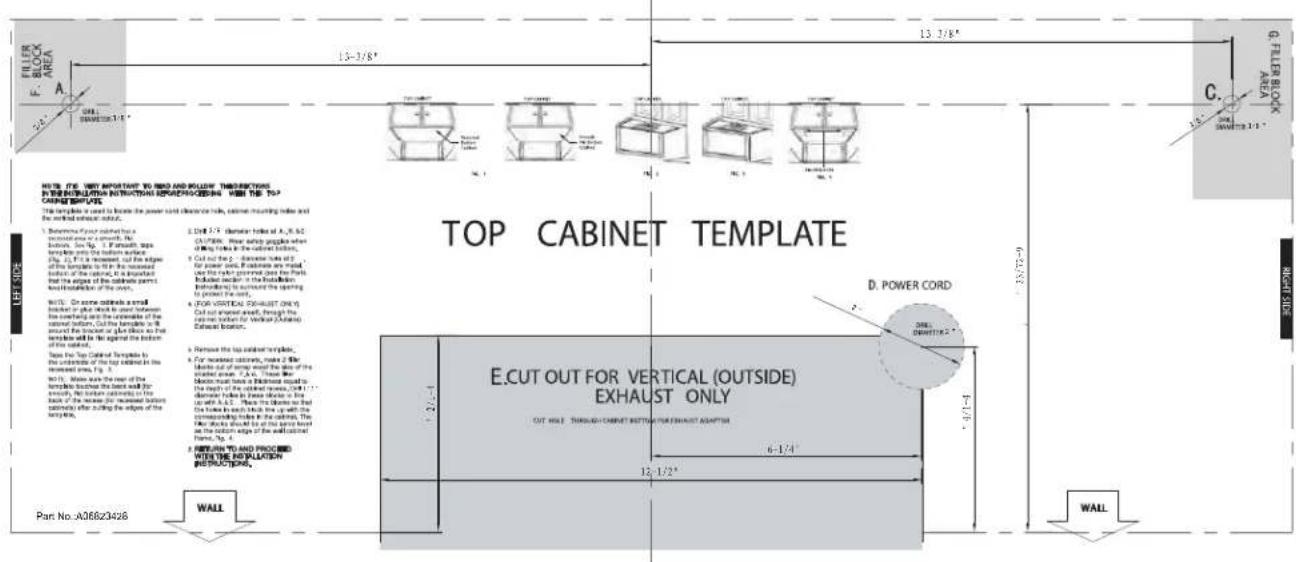

• Read the instructions on the TOP CABINET TEMPLATE.

• Tape it underneath the top cabinet.

• Drill the holes, following the instructions on the TOP CABINET TEMPLATE. CAUTION: Wear safety goggles when drilling holes in the cabinet bottom. You need to drill holes for the top support screws and a hole large enough for the power cord to fit through. Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more th n 13"""''. NOTE:

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door. A2. A3. A4. EN-11Installation Instructions

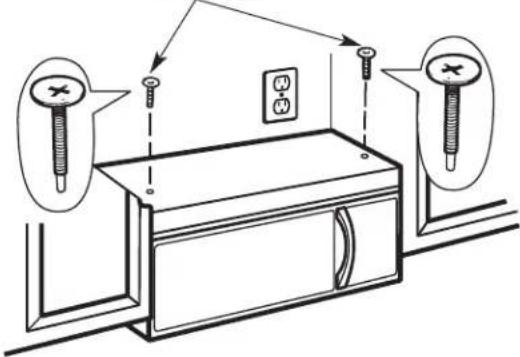

Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.) Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw. packed with the microwave. Install grease filters. See the Use &&&&and Care

(Some Models) Unplug microwave oven or disconnect power. NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information. For models without the recirculation filter access

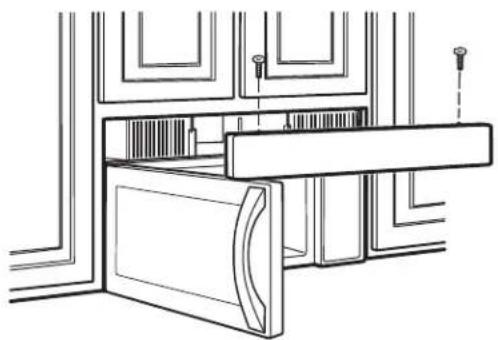

Open the microwave door and remove the two vent mounting screws ;located on top of the microwave using a #1 Phillips screwdriver. CharcoalFilter Remove the charcoal filter by pushing the top of the filter inwards,then pull it forward out from the unit. Slide the top of the new charcoal filter into the top of the filter cavity. door,follow these steps to replace or install a charcoal filter. A4. A5. A 5.1 A 5.2 A 5.3 A 5.4 EN-12Installation Instructions Close the microwave door. Plug in microwave oven or reconnect power. Reinstall the vent by sliding the bottom of the vent into place. Push the vent top into position and slide right into place. Replace the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver. Press the bottom of charcoal filter to place it into the correct position. A5.

⁄4“ x 10“ (8.2 x 25.4 cm Rectangular) Total Ductwork = Ft. or m Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.* IMPORTANT: If a rectangular-to-round transitionadaptor is used, the bottom corners of the damperwill have to be cut to fit, using the tin snips, in orderto allow free movement of the damper

NOTE: If you need to install ducts, note that the total duct length of 3

⁄4” x 10” (8.2 x 25.4 cm) rectangular or ” (15.2 cm) diameter round duct Outside ventilation requires an EXTERNAL EXHAUST NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts. Exhaust connection: The exhaust adaptor has been designed to mate with a standard 3

⁄4” x 10” (8.2 x 25.4 cm) rectangular duct. If a round duct is required, a rectangular-to-round Maximum duct length: For satisfactory air movement, the total duct length of

⁄4” x 10” (8.2 x 25.4 cm) rectangular or 6 ”(15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m). Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts. Installation Instructions

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

DUCT.Read the following carefully. (12.5” should not exceed 140 equivalent feet (42.7 m). diameter/ 6 (12.5” diameter/ 7 cm) 7 cm) transition adaptor must be used. diameter duct is acceptable to use.

DUCT PIECES LENGTH x USED = LENGTH Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m) 12 Ft. (3.6 m) Straight Duct 12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m) (6”/15.2 cm Round) Rectangular-to-Round 5 Ft. (1.5 m) x (1) = 5 Ft. (1.5 m) Transition Adaptor* Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length = 41 Ft. (12.5 m) The following chart describes an example of one possible ductwork installation. OUTSIDE TOP EXHAUST (EXAMPLE ONLY) NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

• IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper. The following chart describes an example of one possible ductwork installation. Installation Instructions OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

⁄4” x 10”/8.2 x 25.4 cm Rectangular) 90° Elbow 10 Ft. (3 m) x (2) = 20 Ft. (3 m) Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length = 63 Ft. (19.2 m)

EXTERNAL EXHAUST DUCTING

EN-15INSTALLATION OVERVIEW

B1. Prepare Rear Wall B3. Attach Mounting Plate to Wall B4. Prepare Top Cabinet B5. Adjust Blower B6. Mount the Microwave Oven IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

been properly routed and secured, and that the wires are not pinched. Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate. Back of Microwave Installation Instructions

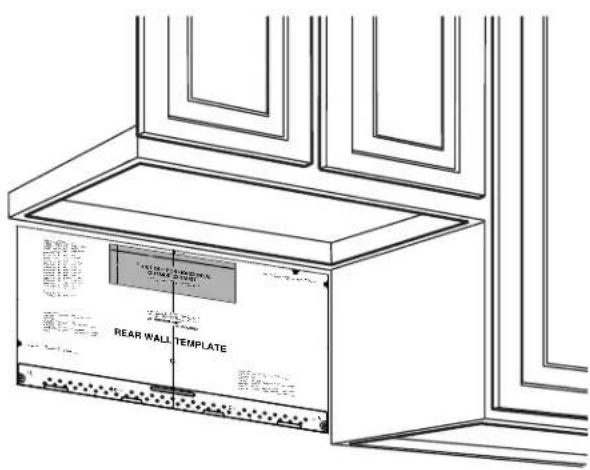

B1. You need to cut an opening in the rear wall for outside exhaust.

• Read the instructions on the REAR WALL TEMPLATE.

• Tape it to the rear wall.

• Cut the opening, following the instructions of the REAR WALL TEMPLATE. B2. OUTSIDE BACK EXHAUST (Horizontal Duct)

cate and mar k holes to

cate and mar k holes to

EN-16ATTACH THE MOUNTING

Read the instructions on the TOP CABINETTEMPLATE.

• Tape it underneath the top cabinet.

• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.CAUTION: Wear safety goggles when drilling holes in the cabinet bottom. Wall MountingPlateSpacing for Toggles MoreThan Wall ThicknessToggle Bolt Toggle Wings To use toggle bolts: Bolt End Installation Instructions Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.Remove the toggle wings from the bolts. Insert the bolts into the mounting plate throughthe holes designated to go into drywall and reattachthe toggle wings to ⁄4″ (19 mm) onto each bolt.

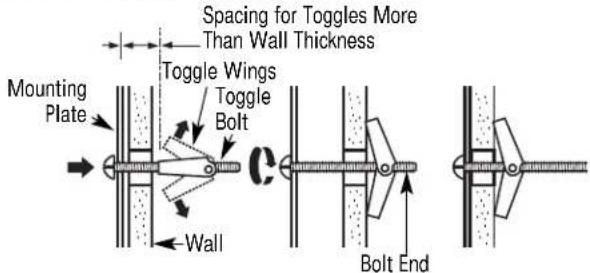

Place the mounting plate against the wall andinsert the toggle wings into the holes in the wall to mount the plate.NOTE: Before tightening toggle bolts and woodscrew, make sure the bottom of the mounting platetouch the bottom of the cabinet when pushed flushagainst the wall and that the plate is properlycentered under the cabinet.CAUTION: Be careful to avoid pinching fingersbetween the back of the mounting plate and the wall.Tighten all bolts. Pull the plate away from the wallto help tighten the bolts.

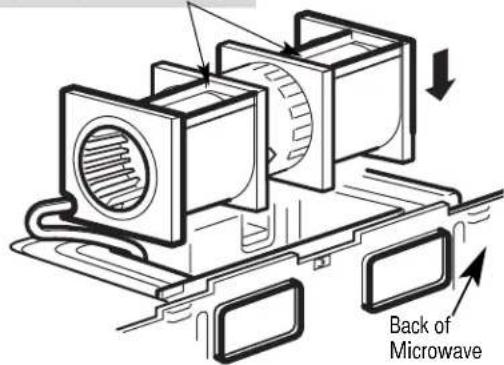

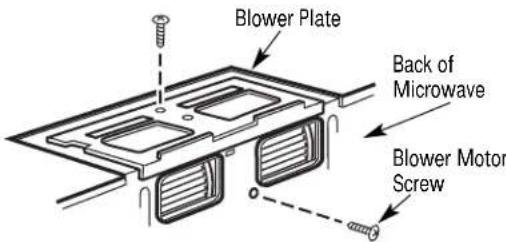

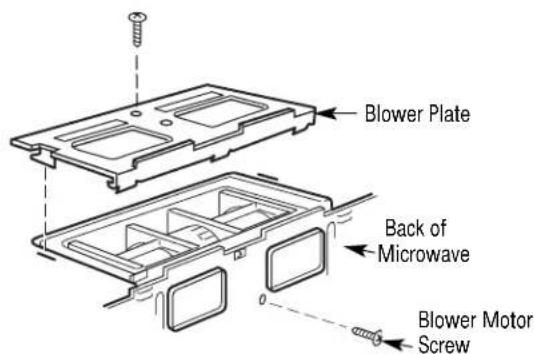

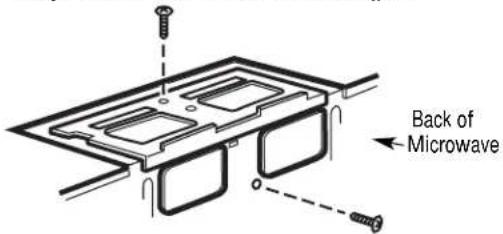

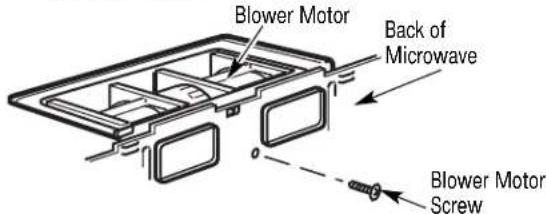

Remove and save screw that holds blower motorto microwave. ADAPTING MICROWAVE

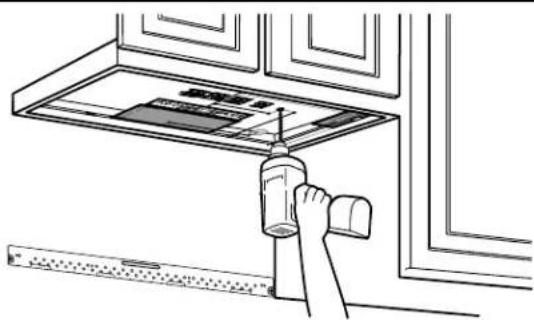

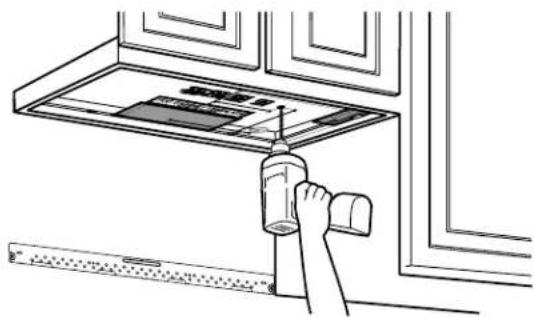

CABINET B4. You need to drill holes for the top support screws anda hole large enough for the power cord to fit through. Back of Microwave Roll the blower unit 90° Back of Microwave

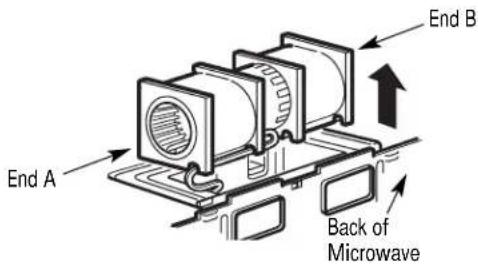

Before Rotation After Rotation EN-17Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven. AFTER: Fan Blade Openings Facing Back Place the blower unit back into the opening. Replace the blower plate in the same position as before with the screw. Make sure the screw is tight. Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave. ADAPTING MICROWAVE

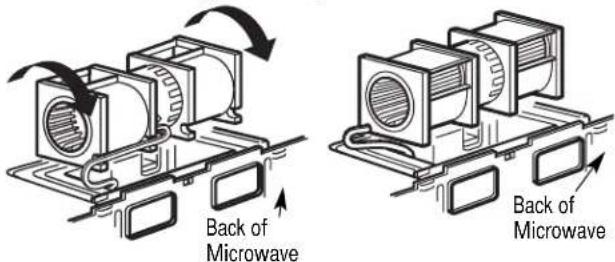

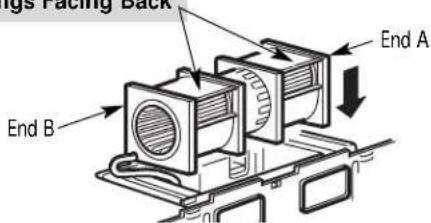

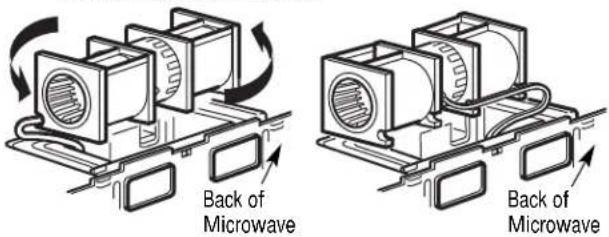

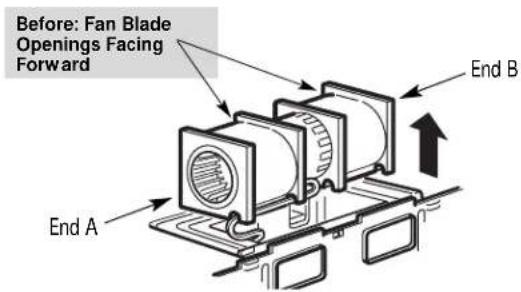

BACK EXHAUST (cont.) B5. Rotate blower unit counterclockwise 180°. Before Rotation After Rotation Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit. Before Rerouting After Rerouting Wires Routed Through Right Side Wires Routed Through Left Side Back of Microwave Back of Microwave Blower Plate Blower Motor Screw Secure the blower unit to the microwave with the original screw. Before Rolling After Rolling Back of Microwave End A End B Back of Microwave Back of Microwave CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured. NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven. Installation Instructions Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely. Guide Guide Adaptor Locking Tabs Back of Microwave

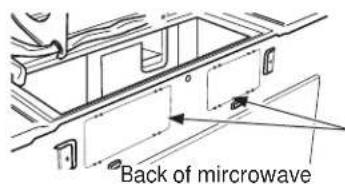

Back of mircrowave Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

with snips. (For some models) Remove the knockout plates in the back of the unit EN-18Attach the microwave oven to the top cabinet. Installation Instructions

SAFETY, WE RECOMMEND THAT TWO PEOPLE

INSTALL THIS MICROWAVE OVEN. NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord. NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf. IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws. Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet FrontCabinet Bottom Shelf Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.) Filler BlockMicrowave Oven TopEquivalent to Depth of CabinetRecess Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw. packed with the microwave. Self-Aligning Screw

Rotate front of oven up against cabinet bottom. NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord. Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

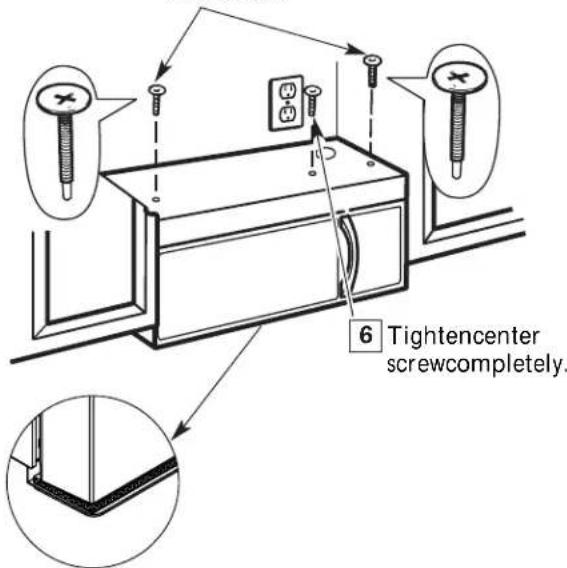

Tighten center screw completely. Install grease filters. See the Use &&&&and Care IMPORTANT: Remove the cardhoard spacers between heat shield and door. IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

EN-19Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate. NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet. CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall. Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud. Remove the toggle wings from the bolts. Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to

OUTSIDE TOP EXHAUST (Vertical Duct) IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched. . Connect Ductwork Check Damper Operation Adapting Microwave Blower for Outside Top Exhaust

REAR W LL TEM PLA TE.

e along he dotted lin

CABINET You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

• Read the instructions on the TOP CABINET TEMPLATE.

• Tape it underneath the top cabinet.

• Drill the holes, following the instructions on the TOP CABINET TEMPLATE. CAUTION: Wear safety goggles when drilling holes in the cabinet bottom. Installation Instructions Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave. Blower PlateBlower MotorScrewBack ofMicrowave End BEnd A Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

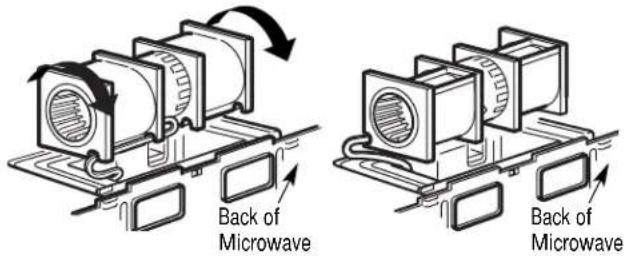

Back ofMicrowaveBefore Rotation After RotationBack ofMicrowaveBack ofMicrowave openings are facing out the top of the Back ofMicrowaveAFTER: Fan Blade Place the blower unit back into the opening. Openings Facing Top CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

with the top of the unit facing up. Place the microwave in its upright position, C2. C3. EN-213

SAFETY, WE RECOMMEND THAT TWO PEOPLE

INSTALL THIS MICROWAVE OVEN. NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord. NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf. IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws. Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Rotate front of oven up against cabinet bottom. NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord. Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.

• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed. ADAPTING MICROWAVE

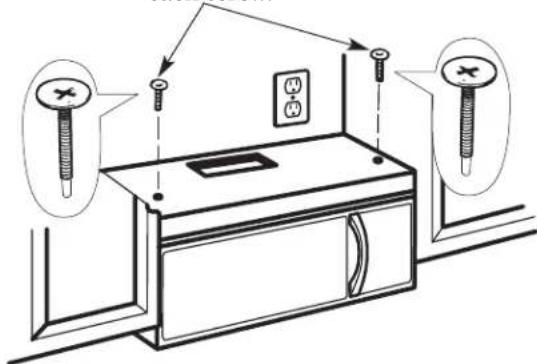

TOP EXHAUST Secure blower unit to microwave with the screw

removed in Step 1. Make sure the screw is tight. Replace blower plate with the screw removed in Step 1. Make sure the screw is tight. Back of Microwave

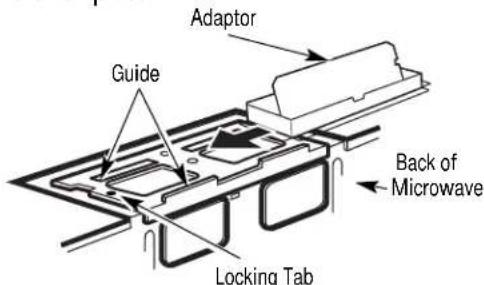

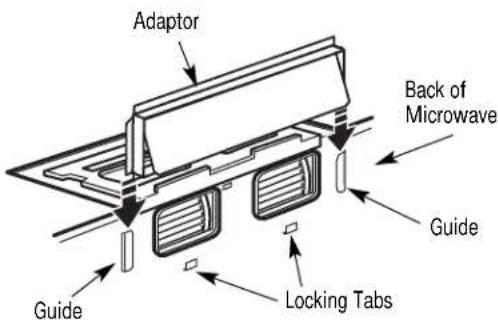

Back of Microwave Guide Adaptor Locking Tab damper swings freely. Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate. Push in securely until it is in the locking tabs. Take care to assure that the damper hinge

installed so that the

Installation Instructions IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door. C3.

Cabinet Front Cabinet Bottom Shelf Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.) Filler Block Microwave Oven Top Equivalent to Depth of Cabinet Recess Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw. Installation Instructions

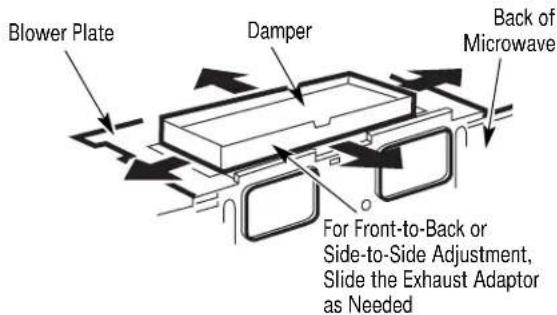

ADAPTOR Open the top cabinet and adjust the exhaust adaptor to connect to the house duct. Back of Microwave For Front-to-Back or Side-to-Side Adjustment, Slide the Exhaust Adaptor as Needed Blower Plate Damper Self-Aligning Screw

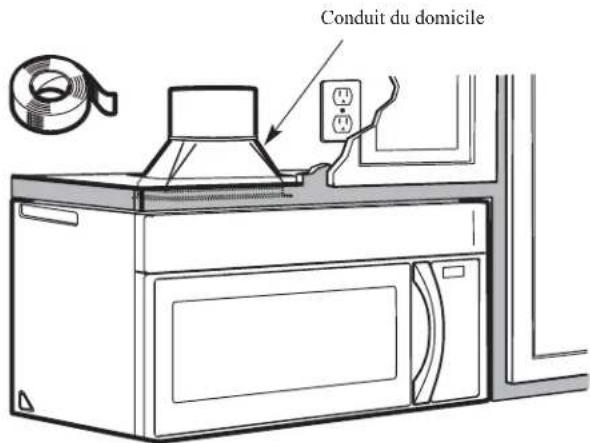

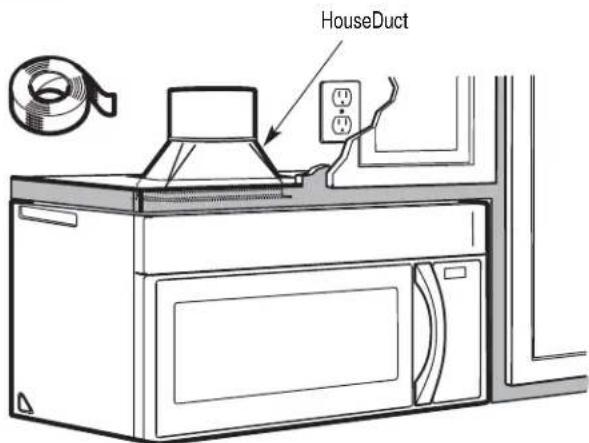

Extend the house duct down to connect to the exhaust adaptor. furnance Seal exhaust duct joints using duct tape for high temperature applications. House Duct C5. C6. C7. EN-23 Install grease filters. See the Use Care packed with the microwave. & andRemove all packing material from the microwave oven. Make sure the microwave oven has beeninstalled according to instructions.

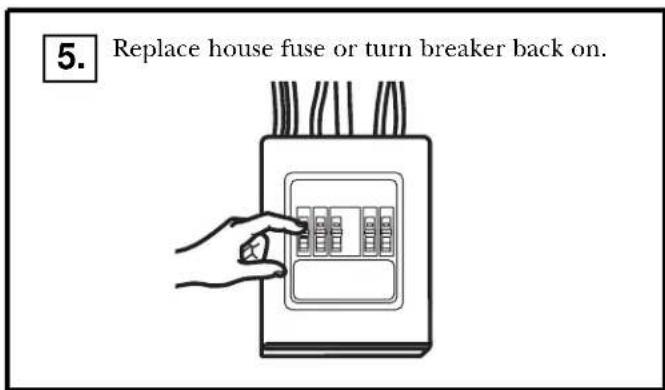

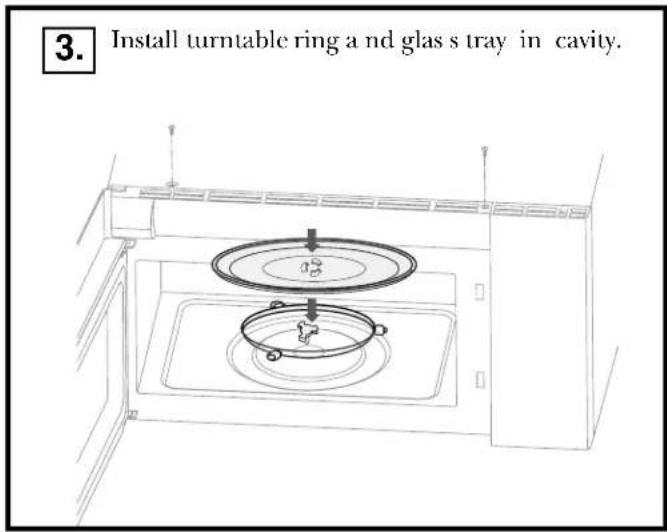

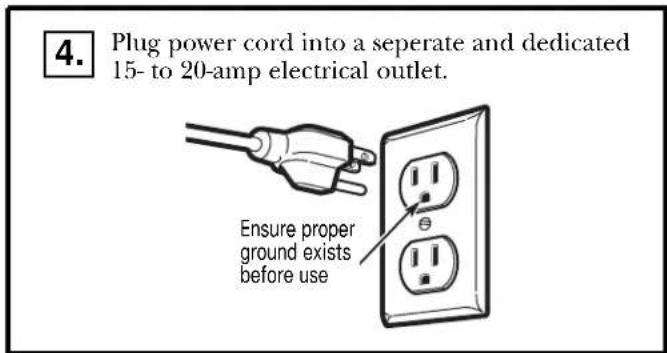

AN SEND IN. Plug power cord into a seperate and dedicated 15- to 20-amp electrical outlet. EN-24Printed in China ＂2/1-4 3/8＂ 3/8＂ 13-3/8＂

BEFORE PROCEEDING WITH THIS

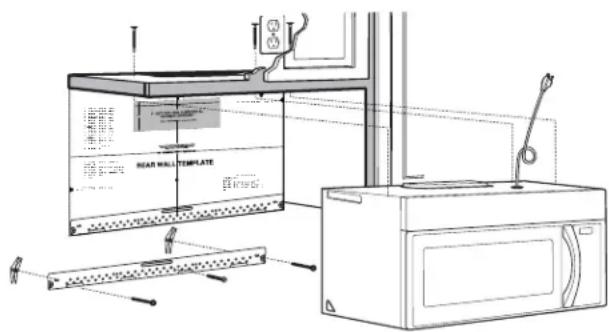

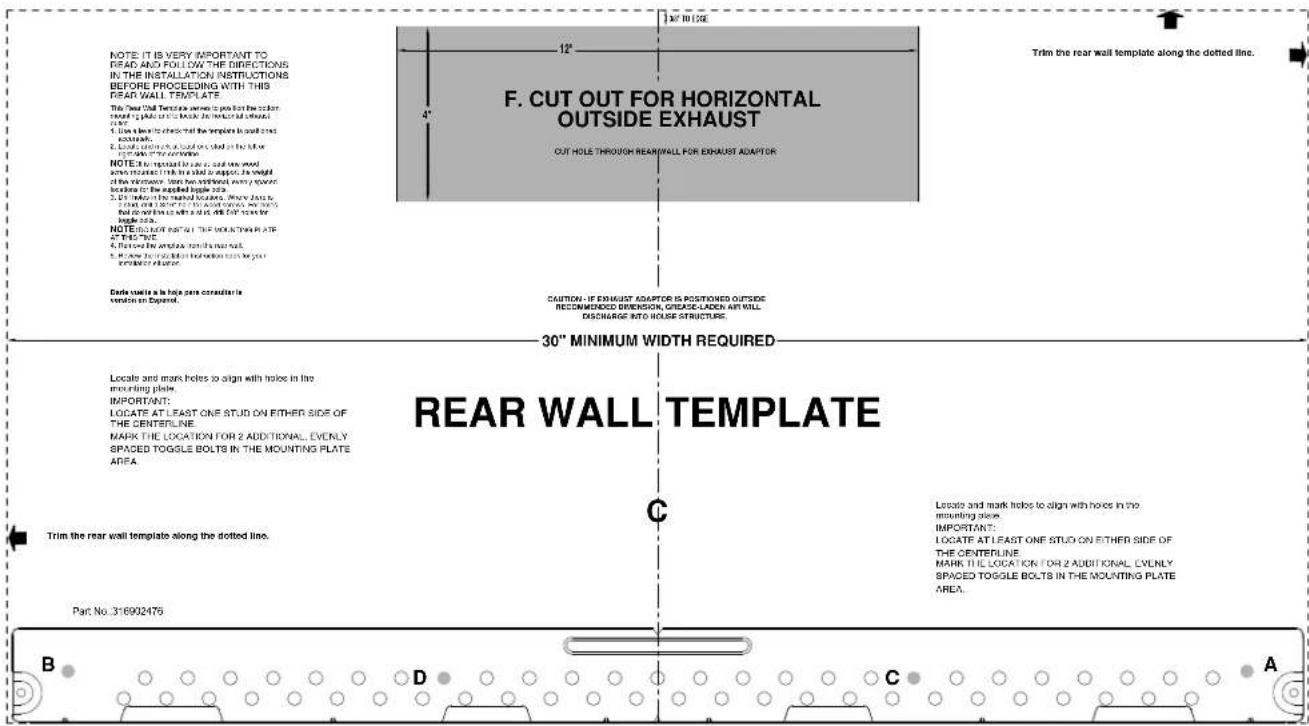

REAR WALL TEMPLATE. This Rear Wall Template serves to position the bottom mounting plate and to locate the horizontal exhaust outlet.

1. Use a level to check that the template is positioned

2. Locate and mark at least one stud on the left or

right side of the centerline. It is important to use at least one wood screw mounted firmly in a stud to support the weight of the microwave. Mark two additional, evenly spaced locations for the supplied toggle bolts.

3. Drill holes in the marked locations. Where there is

a stud, drill a 3/16" hole for wood screws. For holes that do not line up with a stud, drill 5/8" holes for toggle bolts.

4. Remove the template from the rear wall.

5. Review the Installation Instruction book for your

installation situation. Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.

MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY

SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA. Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE.

MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY

SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA. Trim the rear wall template along the dotted line. Trim the rear wall template along the dotted line.

ATE AT LEAST ONE STUD ON EI

rk holes to align with holes in the

cate and mar k holes to

cate and mar k holes to

REAR W LL TEM PLA TE.

e along he dotted lin

to al gn with holes in t

tted line Trim the rear

REAR W LL TEM PLA TE.

e along he dotted lin 12"4"
