USER MANUAL FMOS1846SS FRIGIDAIRE

Installation Over the Range Instructions Microwave Oven

Questions? Call 1-800-944-9044(US) or 1-800-265-8352(Canada)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

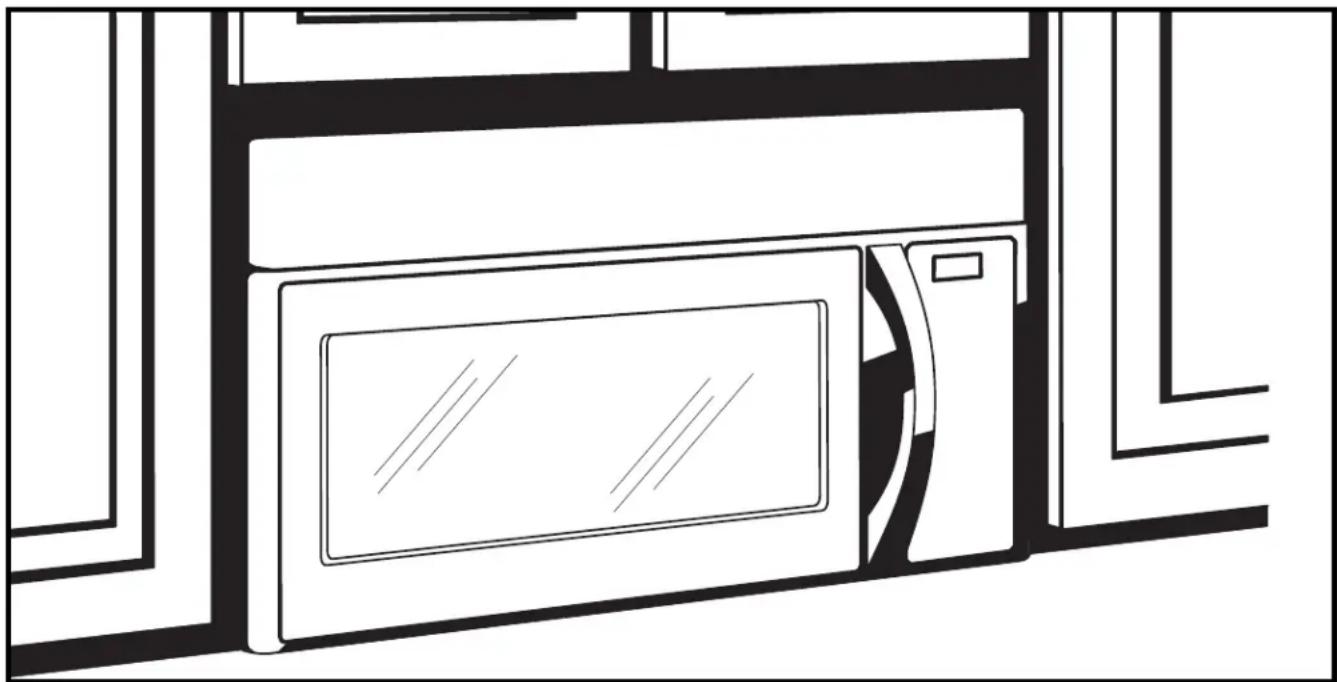

Line drawing of a microwave oven mounted on a shelf, no text or symbols present

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements .... 3

Damage – Shipment/ Installation.... 4

Parts Included.... 4

Tools You Will Need 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6-8

Removing the Mounting Plate 6

Finding the Wall Studs....6

Determining Wall Plate Location 7

Aligning the Wall Plate 8

Installation Types....9

A Recirculating 10-13

Attach Mounting Plate to Wall ....10

Preparation of Top Cabinet ......11

Check Blower Plate 11

Mount the Microwave Oven .....11-12

Installing or Change the

Charcoal Filter 12-13

Hood Exhaust 14-15

B Outside Back Exhaust.... 16–19

Preparing Rear Wall for

Outside Back Exhaust....16

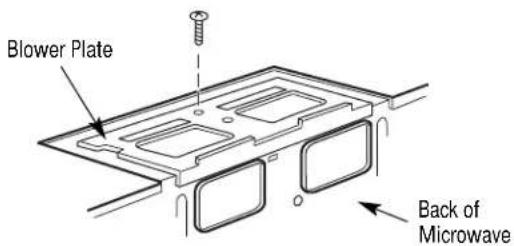

Remove Blower Plate 16..

Attach Mounting Plate to Wall .....17

Preparation of Top Cabinet ....17

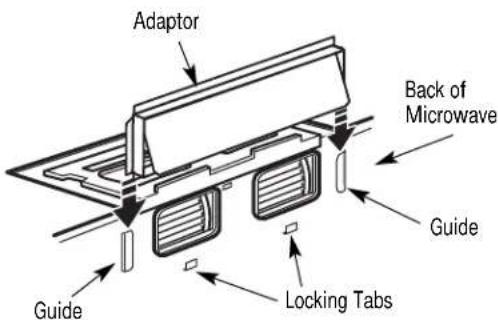

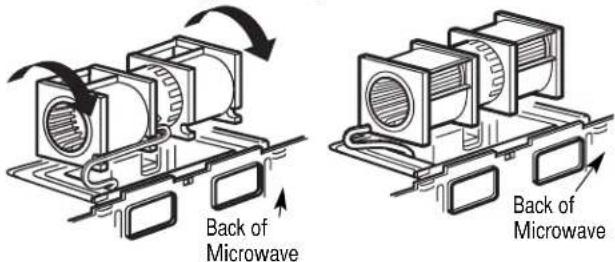

Adapting Microwave Blower

for Outside Back Exhaust......17-18

Mount the Microwave Oven ....19

C Outside Top Exhaust 20-23

Attach Mounting Plate to Wall......20

Preparation of Top Cabinet......21

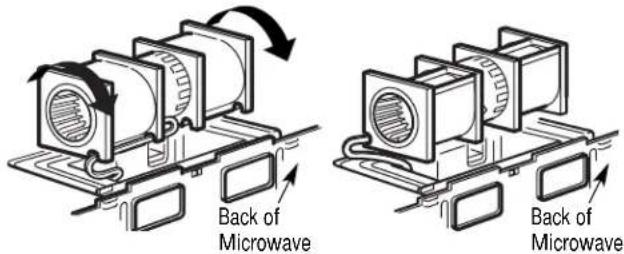

Adapting Microwave Blower for

Outside top Exhaust 21-22

Checking for Proper Damper

Operation....22

Mount the Microwave Oven .....22-23

Adjust the Exhaust Adaptor ....23

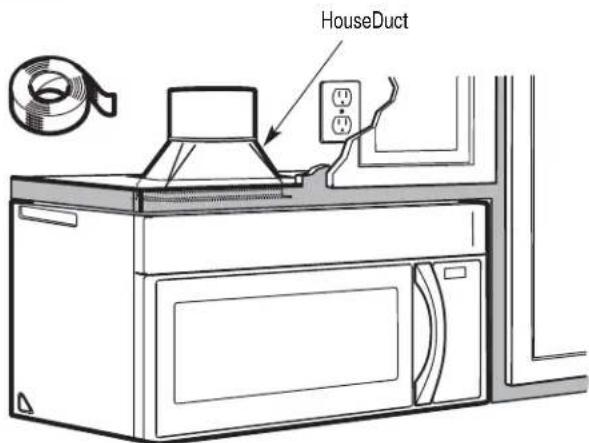

Connecting Ductwork....23

Before You Use Your Microwave 24

Template Information.... 25

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Illustration of a hand interacting with an electrical outlet panel (no text or symbols visible)

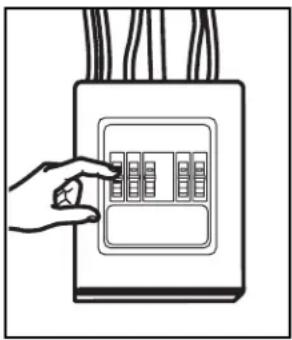

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound (28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113–135 pounds (51.3–61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

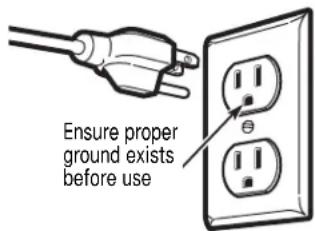

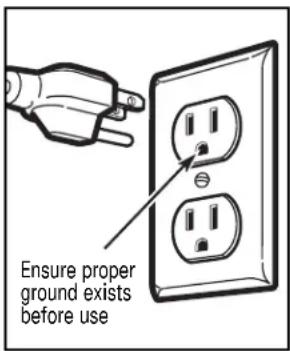

Ensure proper ground exists before use

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlier box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY
	Wood Screws 2 (1/4" × 2")
	Toggle Bolts (and wing nuts) (3^16" × 3")	2
	Self-Aligning Machine 3 Screws (1/4"-28 × 3^1/4")
	Nylon Grommet(for metal cabinets)	1

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.) ADDITIONAL PARTS

PART		QUANTITY
	CabinetTop Template	1
	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1
	Glass Tray	1
	Tru ntable Ring	1
For some models	Convection wire rack	1
For some models	Shelf	1
	Charcoal Filter	1

Installation Instructions

Tools you will need:

• Tape measure
• Hole saw
  • Stud finder or hammer
• Level
• Duct and masking tape
• Scissors

• #1 Phillips screw driver
- Electric drill
- 3/16", 1/2", 5/8" drill bit
- Filler wood blocks for recessed bottom cabinets
- Tin snips

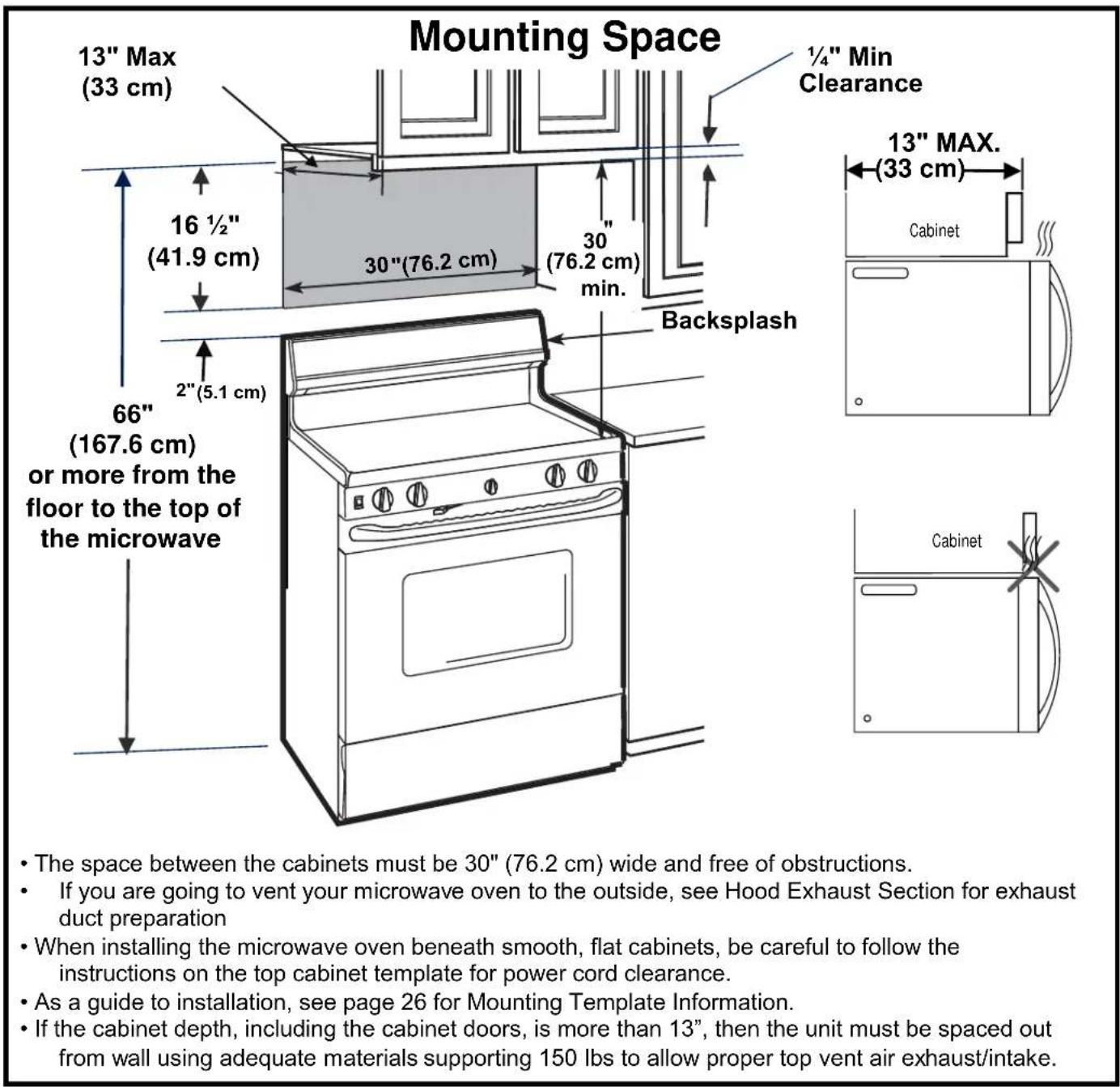

Mounting Space 13" Max (33 cm) 16 ½" (41.9 cm) 30"(76.2 cm) 30" (76.2 cm) min. 1/4" Min Clearance 13" MAX. (33 cm) Backsplash 66" (167.6 cm) or more from the floor to the top of the microwave • The space between the cabinets must be 30" (76.2 cm) wide and free of obstructions. • If you are going to vent your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation • When installing the microwave oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance. • As a guide to installation, see page 26 for Mounting Template Information. • If the cabinet depth, including the cabinet doors, is more than 13", then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/intake.

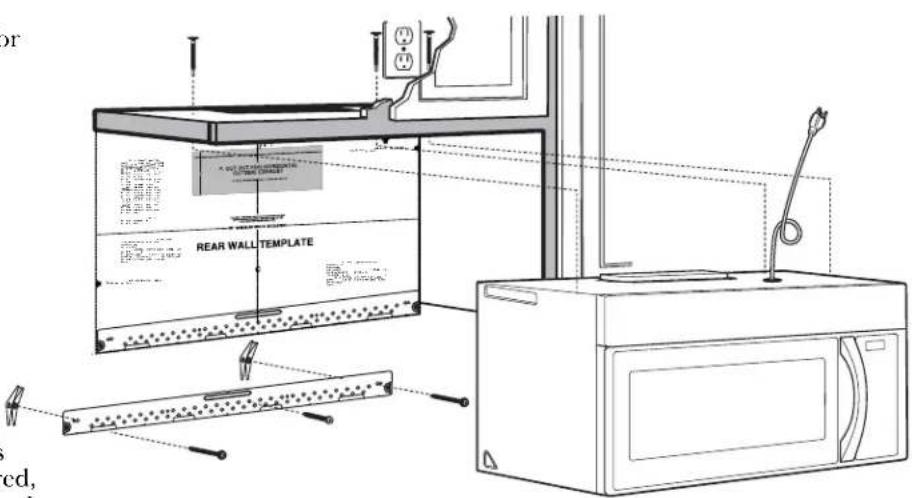

1 PLACEMENT OF THE MOUNTING PLATE

A. REMOVINGTHEMICROWAVE OVENFROMTHECARTON/REMOVINGTHEMOUNTING PLATE

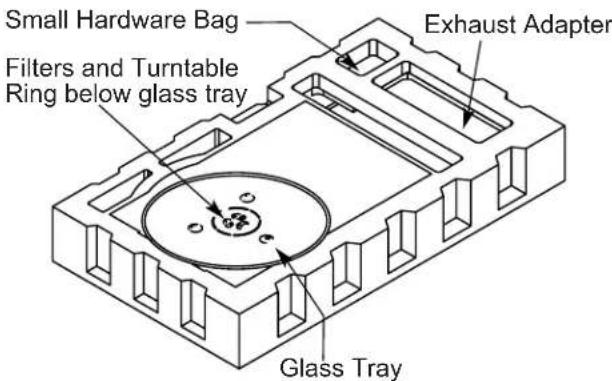

1 Remove the installation instructions, use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven. please note: Do Not Remove plastic plug protective cover until just before hanging the unit.

Small Hardware Bag Filters and Turntable Ring below glass tray Glass Tray Exhaust Adapter

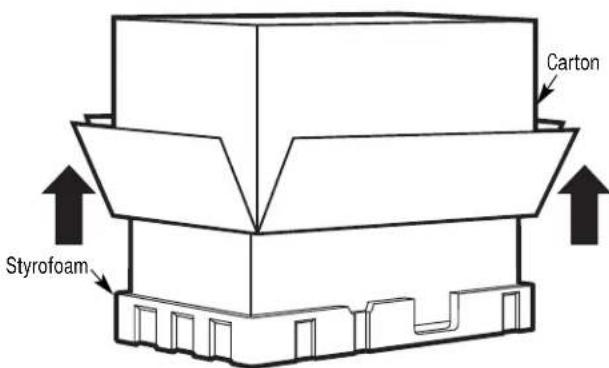

2 Foldbackall4cartonflapsfullyagainstcarton sides. Thencarefullyrolltheovenandcartonover ontothetopside. Theovenshouldberesting in theStyrofoam.

Carton Styrofoam

3 Pullthecartonupandofftheoven.

4 Cutthemiddleoftheouterprotectiveplasticbagto remove the mountinglate

Screws Mounting Plate Screws

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

B. FINDINGTHEWALLSTUDS

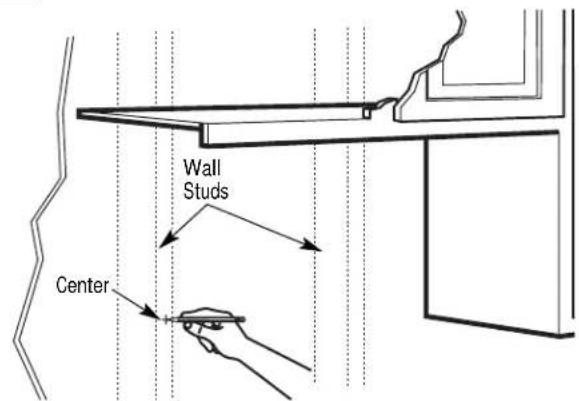

Wall Studs Center

1 Findthestuds, using one of the following methods:

A. Studfinder—amagnetic device which locatesnails.

B. Useahammertotaplightlyacrossthe mountingsurfacetofindasolidsound. Thiswillindicateastudlocation.

2 Afterlocatingthestud(s), find the center by probing the wall with small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent stud should be 16" (40.6cm) or 24" (61cm) from this mark.

3 Drawalinedownthecenterofthestuds. THEMICROWAVEMUSTBECONNECTEDTO ATLEASTONEWALLSTUD.

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

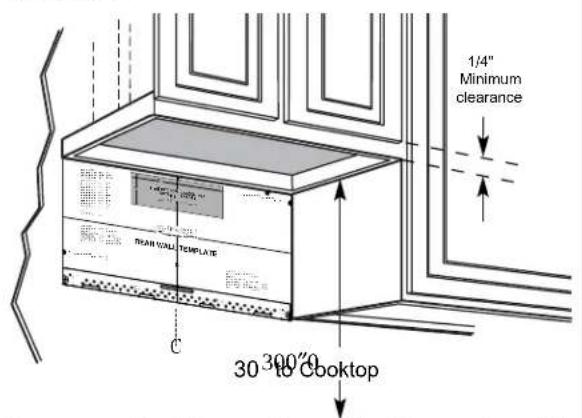

Plate position-beneath flat bottom cabinet

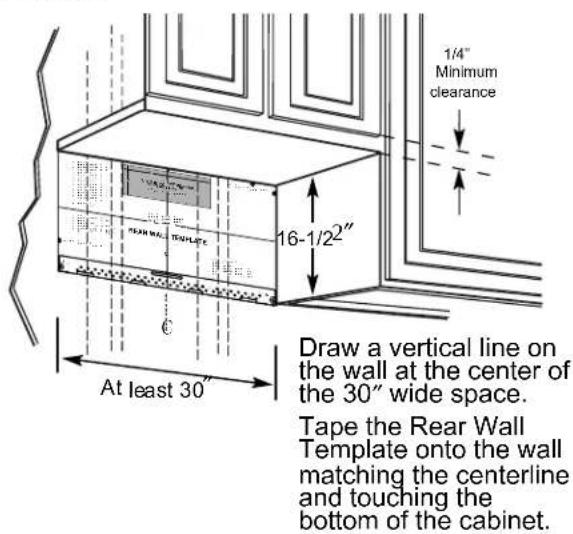

1/4" Minimum clearance 16-1/2" Draw a vertical line on the wall at the center of the 30" wide space. Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet. At least 30"

Plate position-beneath framed recessed cabinet bottom

1/4" Minimum clearance C 30 300"0 Cooktop

Draw a vertical line on the wall at the center of the 30" space.
Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

Plate position-beneath recessed bottomcabinetwith front overhang

1/4" Minimum clearance 1/4" Minimum clearance HEAD WALL TEMPLATE Draw a line on the back wall equal to the depth of the front overhang. 300" Cooktop

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

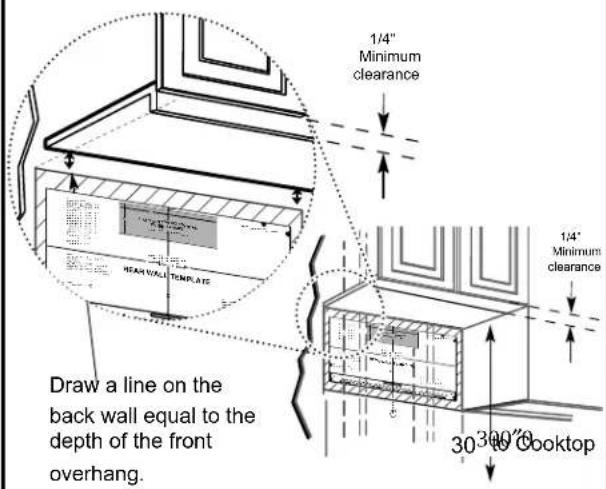

1 Measure the inside depth of the front overhang.
2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.

D. ALIGNING THE WALL PLATE

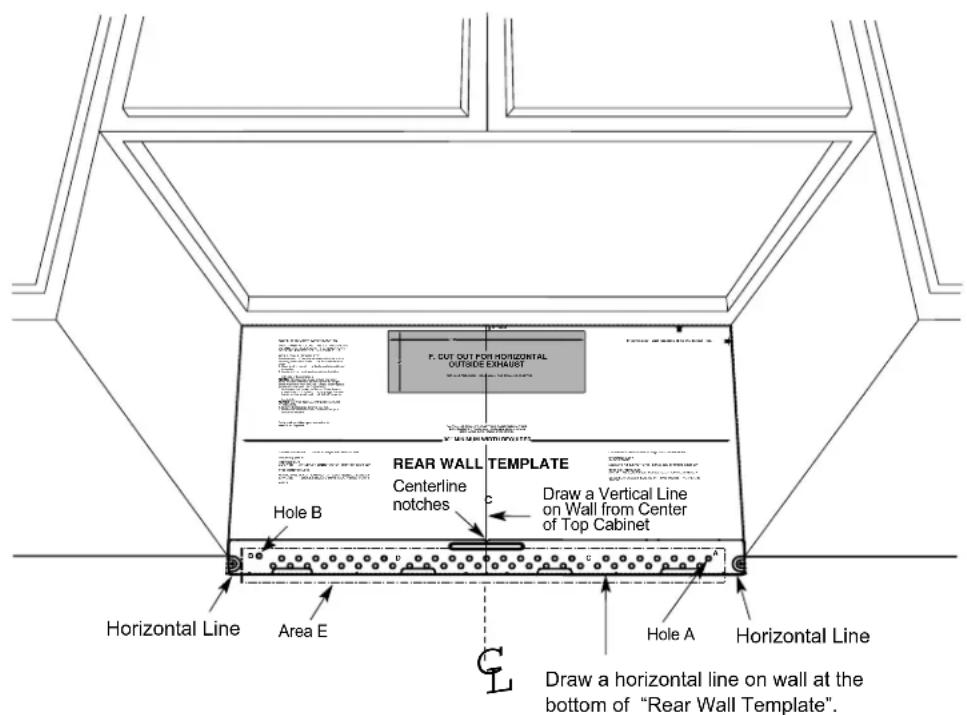

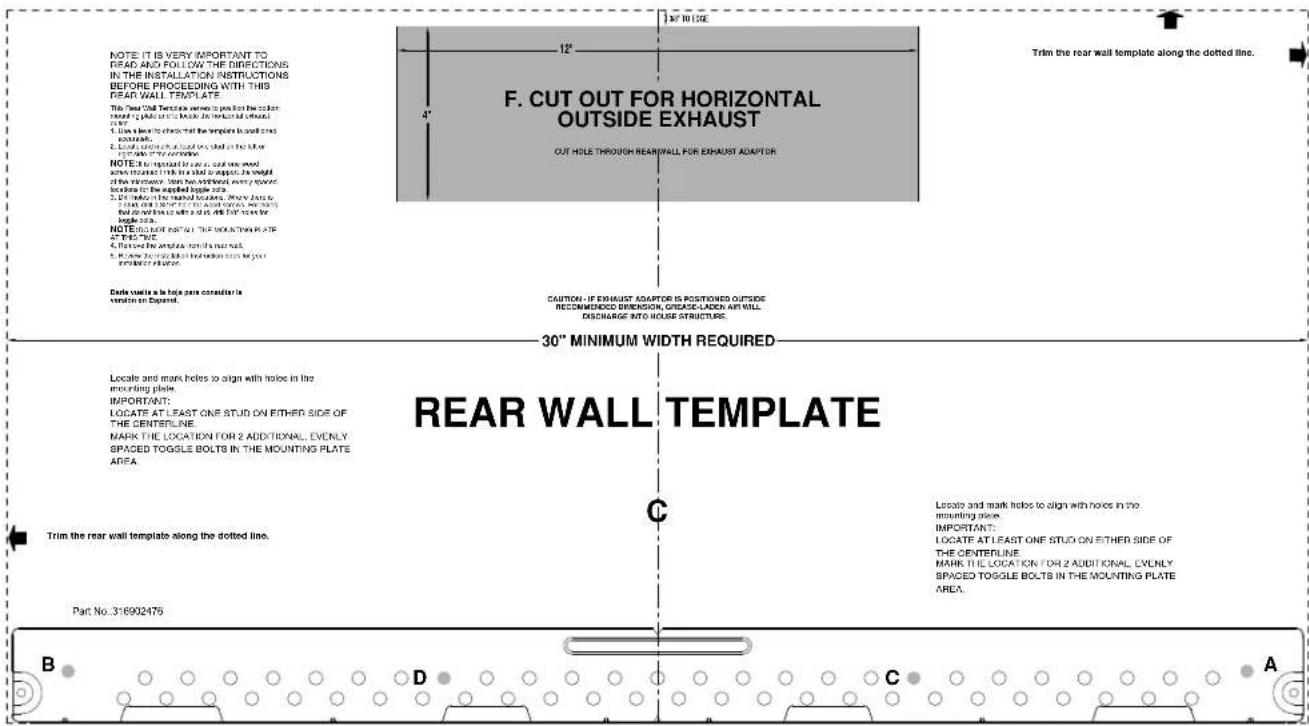

F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST REAR WALL TEMPLATE HOLE B Centerline notches Draw a Vertical Line on Wall from Center of Top Cabinet Horizontal Line Area E Hole A Horizontal Line Draw a horizontal line on wall at the bottom of "Rear Wall Template".

1 Draw a vertical line on the wall at the center of the 30" wide space.
2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3 Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs.
4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B) NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 | INSTALLATION TYPES (Choose A, B or C)

This microwaveoven is designed for adaptation to the following three types of ventilation:

A. Recirculating(Non-VentedDuctless)

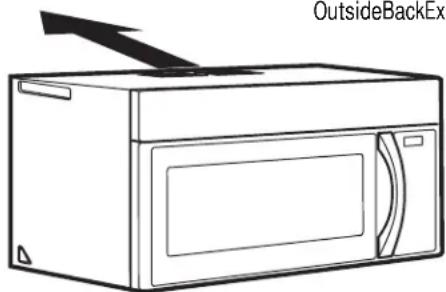

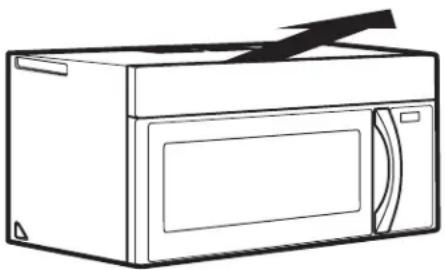

B.OutsideBackExhaust(HorizontalDuct)

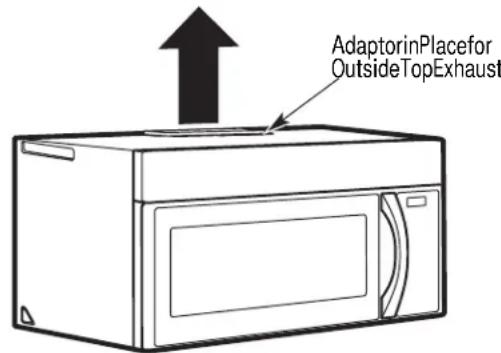

C. Outside Top Exhaust (Vertical Duct)

NOTE: This microwave is shipped assembled for Recirculating. Select the typeof ventilation required for your installation and proceed to that section.

A RECIRCULATING (NON-VENTED DUCTLESS)

Line drawing of a microwave oven with lid and front door (no text or symbols)

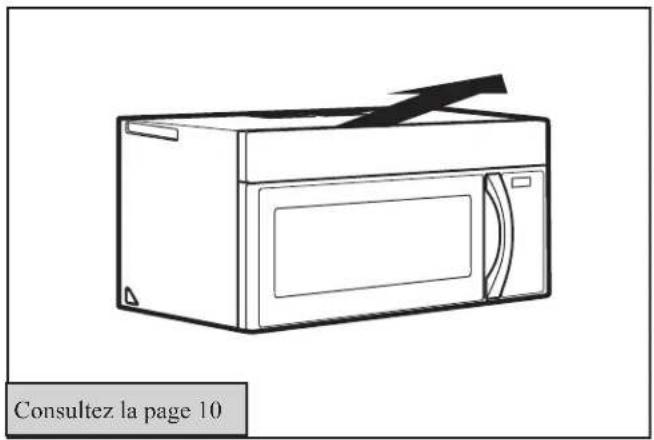

Seepage10

Modelsareshippedfor recirculatingexhaust. Somemodelshavea disposablecharcoalfilter installedtohelpremove smokeandodors.

B OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

Line drawing of a microwave oven with a handle and front panel (no text or symbols)

Seepage16

C OUTSIDE TOP EXHAUST (VERTICAL DUCT)

AdaptorinPlacefor OutsideTopExhaust

Seepage20

NOTE: Read the pages 14-15 only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 10.

A | RECIRCULATING (Non-Vented Ductless)

INSTALLATION OVERVIEW

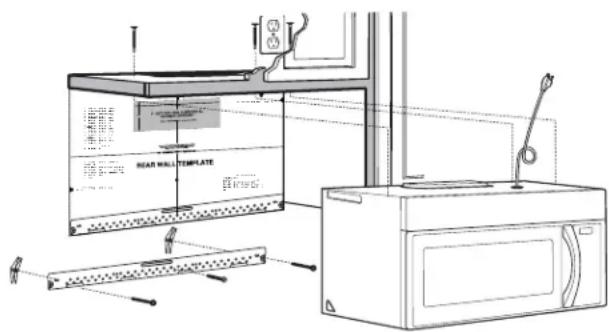

A1. Attach Mounting Plate to Wall

A2. Prepare Top Cabinet

A3. Check Blower Plate

A4. Mount the Microwave Oven

A5. Install or change Charcoal Filter

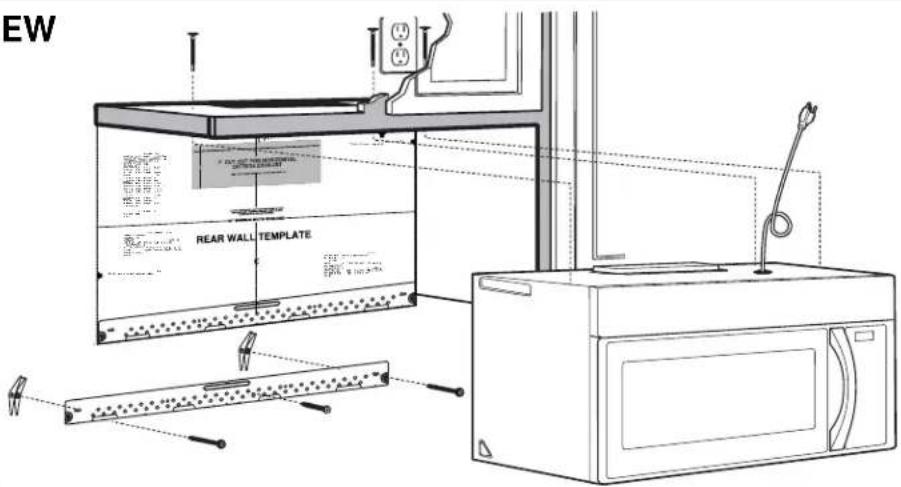

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

- Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

HEAT WALL TEMPLATE

A1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

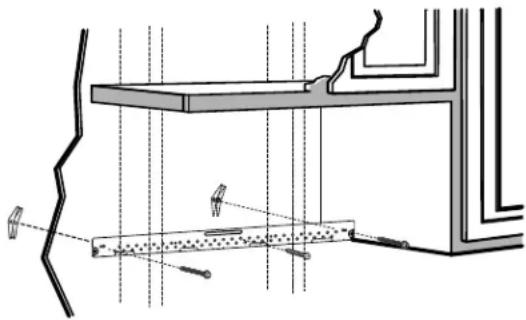

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

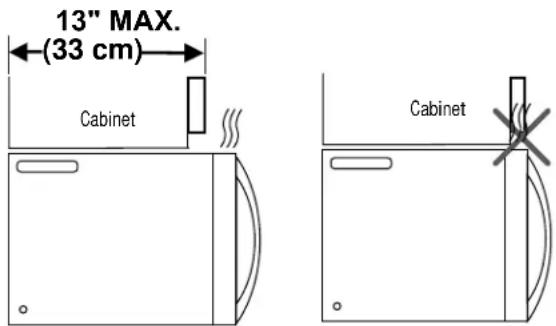

NOTE: If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/intake.

13" MAX. (33 cm) Cabinet Cabinet

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 14 " (19 mm) onto each bolt.

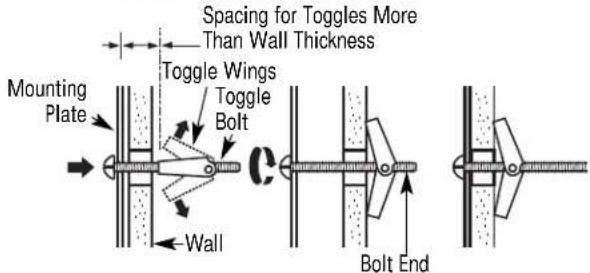

To use toggle bolts:

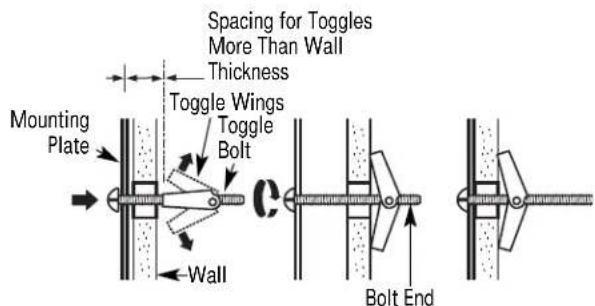

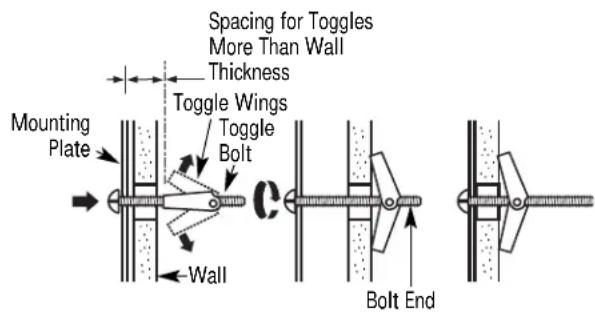

Spacing for Toggles More Than Wall Thickness Toggle Wings Toggle Bolt Mounting Plate Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

Installation Instructions

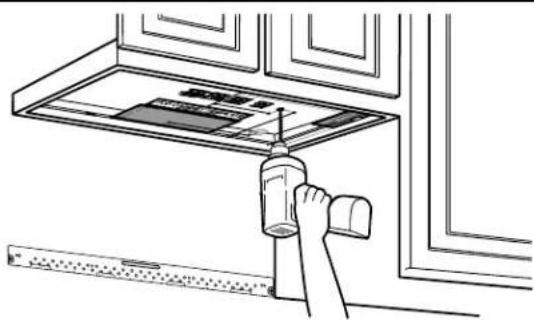

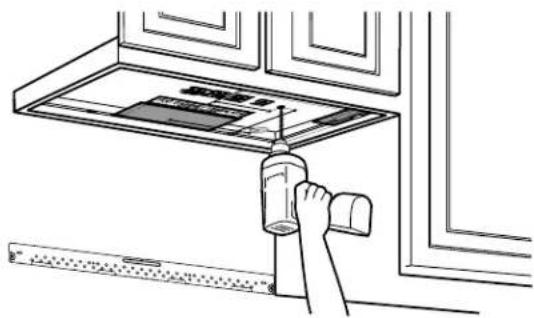

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

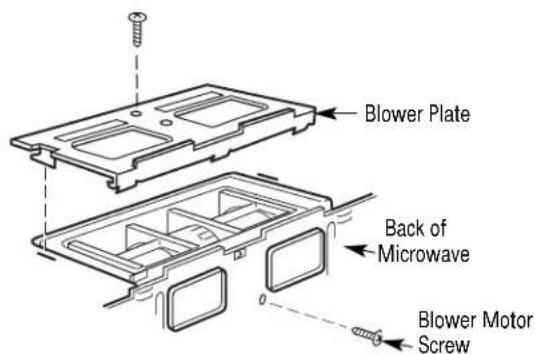

A3. CHECK BLOWER PLATE

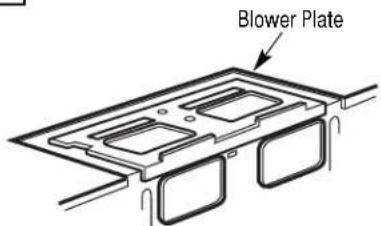

Blower Plate

• Place the microwave in its upright position, with the top of the unit facing up.
• Check to see that the blower plate is correctly installed on the unit.

A4. MOUNT THE MICROWAVE OVEN

FOR EASIER INSTALLATION AND PERSONAL

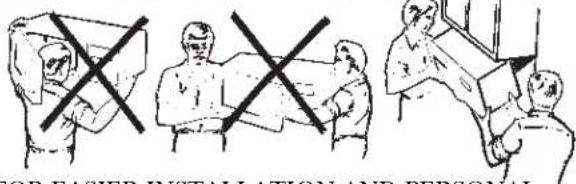

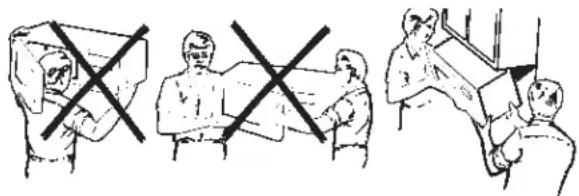

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1–3. Do not pinch cord or lift oven by pulling cord.

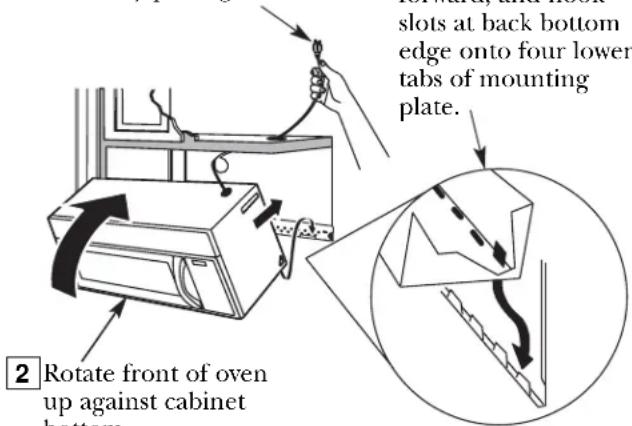

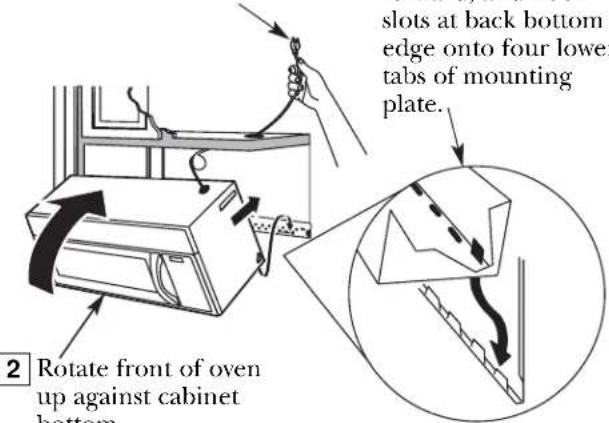

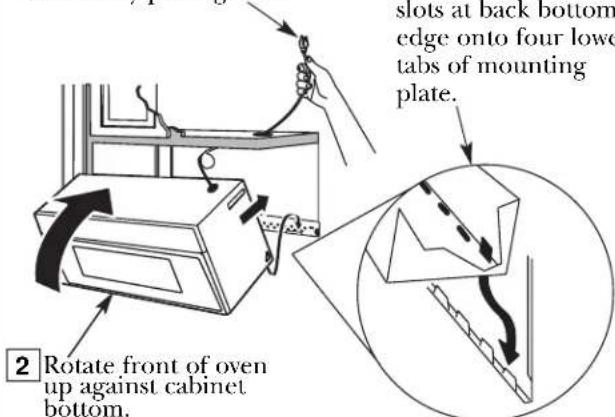

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

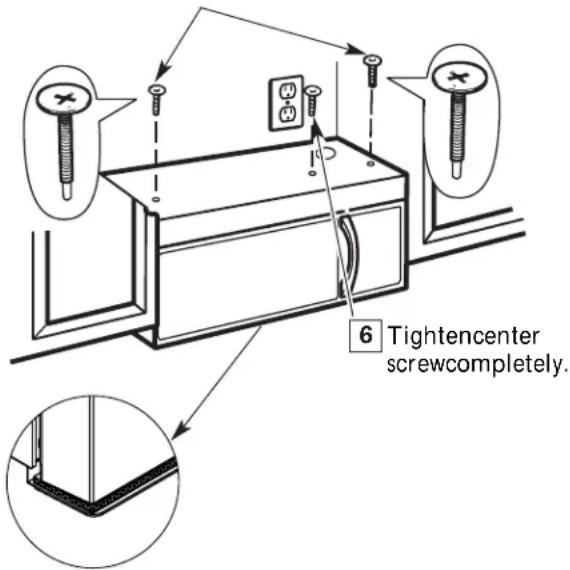

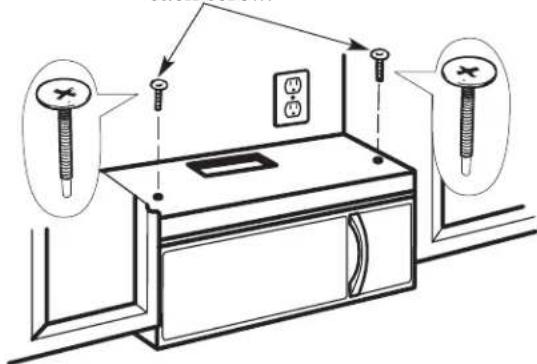

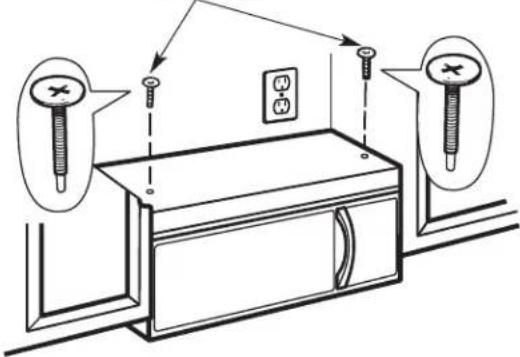

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet. Cabinet Front

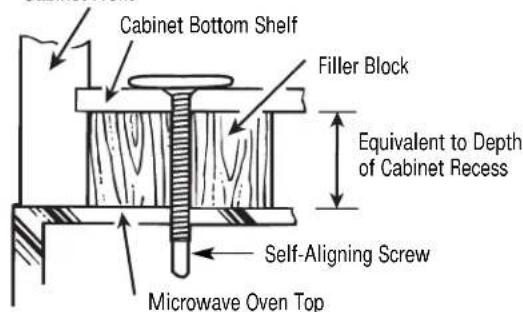

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert2self-aligningscrews throughoutertopcabinet holes. Turntwofullturnson eachscrew.

Diagram showing electrical switch installation with screw and power outlet, labeled with Chinese characters for components

7 Tightentheoutertwoscrewstothetopofthe microwaveoven.(Whiletighteningscrews,hold themicrowaveoveninplaceagainstthewalland thetopcabinet.)

Line drawing of a hand holding a textured rectangular object (no text or symbols)

8 Install grease filters. See the Use and Care packedwiththemicrowave.

A5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

A 5.1 Unplug microwave oven or disconnect power.

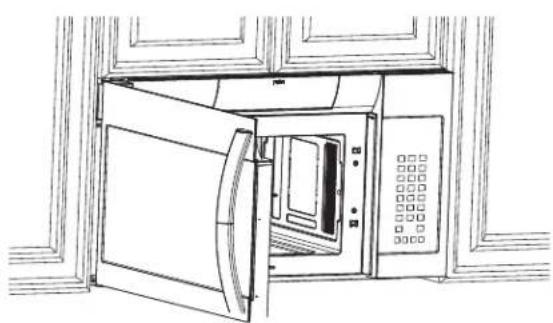

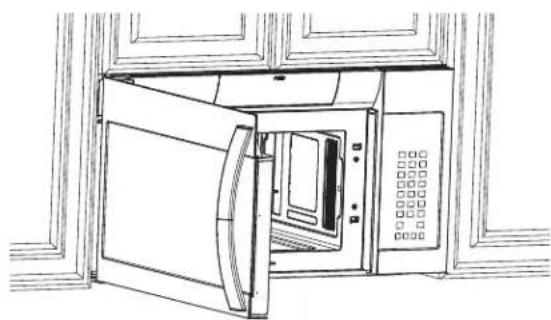

A 5.2 Open the microwave door and push the "PUSH" position on the Vent and then the cover open.

Line drawing of a microwave oven with open door and control panel (no text or symbols)

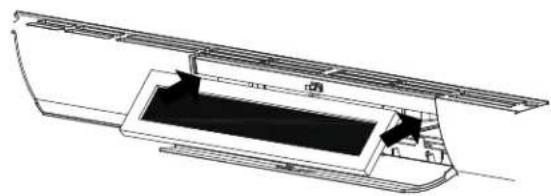

A 5.3 Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.

Diagram of a door with arrows indicating direction, no text or symbols present

Diagram of a door with an arrow pointing to the interior panel (no text or symbols)

A 5.4 Slide the top of the new charcoal filter into the top of the filter cavity.

Technical line drawing of a mechanical component with internal structure and mounting brackets (no text or symbols)

A5. INSTALLING OR CHANGE THE CHARCOAL FILTER(cont.)

A 5.5 Press the bottom of charcoal filter to place it into the correct position.

Diagram of a room interior with a large wall and directional arrows indicating movement or flow (no text or symbols)

A 5.6 Then close vent's cover.

Line drawing of a microwave oven with open door and control panel (no text or symbols)

A 5.7 Close the microwave door. Plug in microwave oven or reconnect power.

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 314 x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm)diameter/6" (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m).

Outside ventilation requires an EXTERNAL EXHAUST DUCT. Read the following carefully.

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a standard 314 " x 10" (8.2 x 25.4 cm) rectangular duct.

If a round duct is required, a rectangular-to-round transition adaptor must be used. A 5" (12.7cm)/ 6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m).

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Rectangular-to-Round 5 Ft. (1.5 m) x ( ) = Ft. or mTransition Adaptor*
	Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m
	90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	Roof Cap	24 Ft. (7.3 m) x ( ) = Ft. or m
[7STD]	Straight Duct 6" (15.2 cm)Round or 31⁄4" x 10"(8.2 x 25.4 cm Rectangular)	1 Ft. (0.3 m) x ( ) = Ft. or m
Total Ductwork =		Ft. or m

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)
	12 Ft. (3.6 m) Straight Duct (6"/15.2 cm Round)	12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
	Rectangular-to-Round 5 Ft. ( Transition Adaptor*	.5 m) x (1) = 5 Ft. (1.5 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES		EQUIVALENT LENGTH* NUMBER x USED = LENGTH	EQUIVALENT
	Wall Cap	40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)
[2xT4]	3 Ft. Straight Duct (3'/4" x 10"/8.2 x 25.4 cm Rectangular)	3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)
	90° Elbow	10 Ft. (3 m) x (2) = 20 Ft. (3 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

B | OUTSIDE BACK EXHAUST (Horizontal Duct)

INSTALLATION OVERVIEW

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

EW REAR WALL TEMPLATE

B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

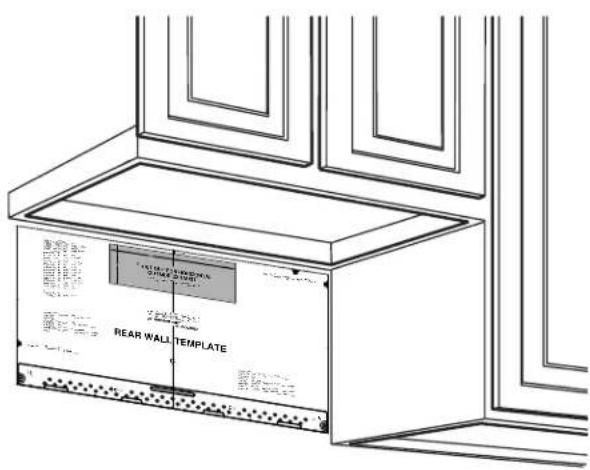

REAR WALL TEMPLATE

• Read the instructions on the REAR WALL TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the REAR WALL TEMPLATE.

B2. REMOVE BLOWER PLATE

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

Blower Plate Back of Microwave

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Mounting Plate Toggle Wings Toggle Bolt Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST

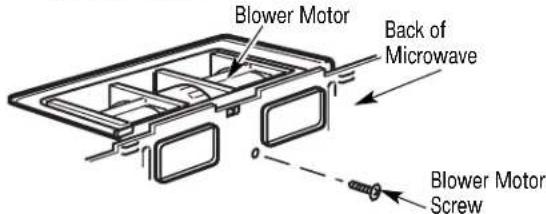

1 Remove and save screw that holds blower motor to microwave.

Blower Motor Back of Microwave Blower Motor Screw

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

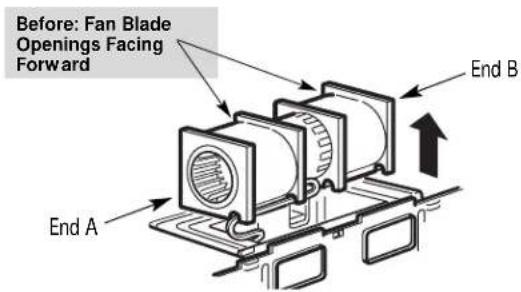

Before: Fan Blade Openings Facing Forward End A End B

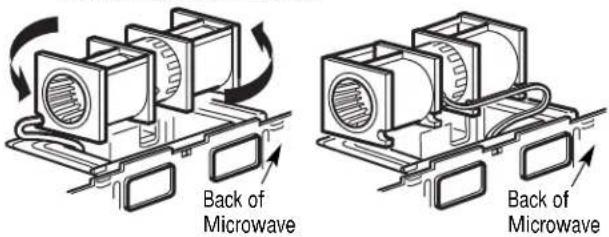

3 Roll the blower unit 90°

Before Rotation

Back of

Back of Microwave

After Rotation Back of

Back of Microwave

Before Rotation After Rotation

Back of Microwave Back of Microwave

5 Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.

Before Rerouting After Rerouting

Technical line drawing of two mechanical components with no visible text or symbols

Wires Routed Through Right Side

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Wires Routed Through Left Side

6 Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave.

Before Rolling After Rolling

Back of Microwave Back of Microwave

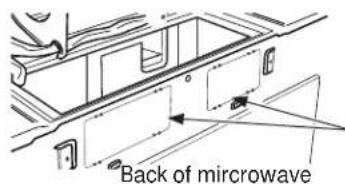

7 Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates:

Back of microwave

Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

8 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Back

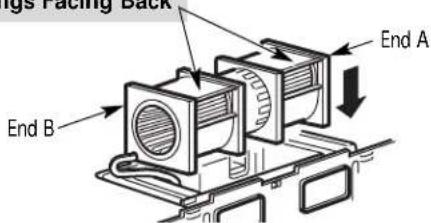

Rigs Facing Back End A End B

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven.

9 Secure the blower unit to the microwave with the original screw.

Blower Plate Back of Microwave Blower Motor Screw

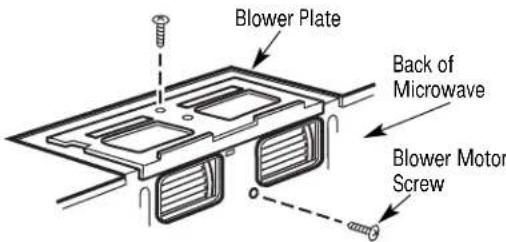

10 Replace the blower plate in the same position as before with the screw. Make sure the screw is tight.

11 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Adaptor Back of Microwave Guide Guide Locking Tabs

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

B6. MOUNT THE MICROWAVE OVEN

Three-panel line drawing showing a person in different positions (no text or symbols)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1–3. Do not pinch cord or lift oven by pulling cord.

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

2 Rotate front of oven up against cabinet bottom.
3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

6 Tightencenter screwcompletely.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand pressing down on a textured rectangular panel (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

C OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adapting Microwave Blower for Outside Top Exhaust
C4. Check Damper Operation
C5. Mount Microwave Oven
C6. Adjust Exhaust Adaptor
C7. Connect Ductwork

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

OR REAR WALL TEMPLATE fed,

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Architectural cross-section diagram of a building facade with structural elements and window lighting (no text or labels)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Toggle Wings Toggle Bolt Mounting Plate Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

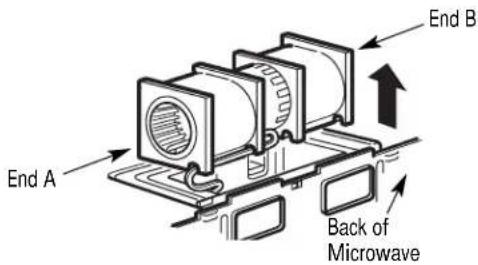

End A End B Back of Microwave

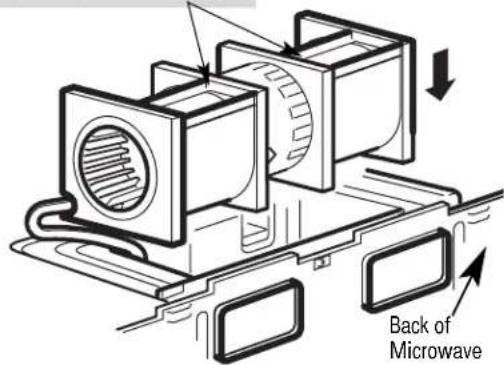

3 Roll the blower unit 90° so that fan blade openings are facing out the top of the microwave. Before Rotation After Rotation

Back of Microwave Back of Microwave

4 Place the blower unit back into the opening.

C3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

1 Place the microwave in its upright position, with the top of the unit facing up.

Blower Plate Back of Microwave Blower Motor Screw

Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.

AFTER: Fan Blade Openings Facing Top

Back of Microwave

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

5 Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight.

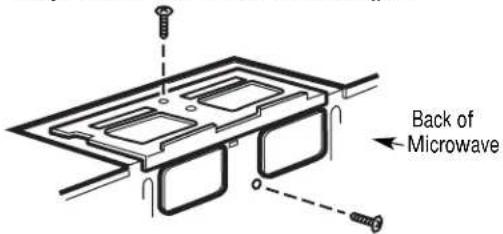

6 Replace blower plate with the screw removed in Step 1. Make sure the screw is tight.

Back of Microwave

7 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

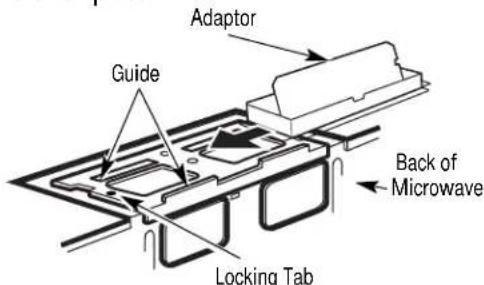

Adaptor Guide Back of Microwave Locking Tab

Push in securely until it is in the locking tabs. Take care to assure that the damper hinge is installed so that the damper swings freely.

Blower Plate Exhaust Adaptor Damper Back of Microwave

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.

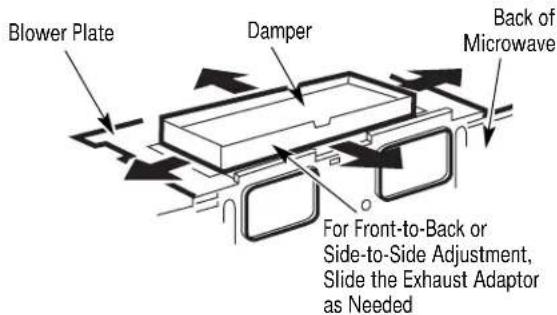

• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

Three hand-drawn illustrations showing people in different settings: one with a cross symbol, two with crossed-out lines, and a third with a magnifying glass (no text or symbols)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing installation of a washing machine with screw holes and electrical outlets, labeled in English.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device with a pen, no text or symbols present

8 Install grease filters. See the Use Care and packed with the microwave.

C6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

Blower Plate Damper Back of Microwave For Front-to-Back or Side-to-Side Adjustment, Slide the Exhaust Adaptor as Needed

C7. CONNECTING DUCTWORK

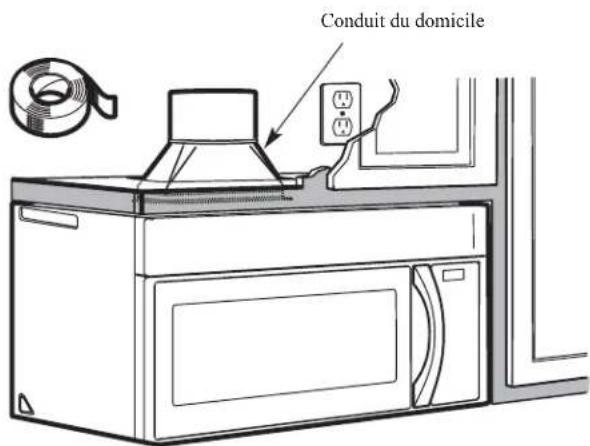

HouseDuct

1 Extend the house duct down to connect to the exhaust adaptor.

2 Seal exhaust duct joints using furicantape for high temperature applications.

1. Make sure the microwave oven has been installed according to instructions.

INSTALLATION INSTRUCTIONS

1. Replace house fuse or turn breaker back on.

Hand holding a terminal block with wires, no visible text or symbols

1. Remove all packing material from the microwave oven.

2. Read the MAN&ARE

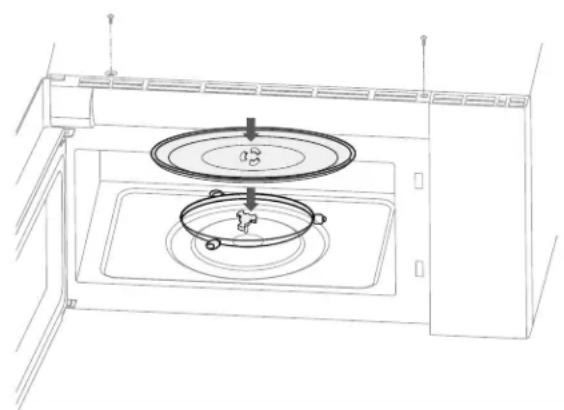

3. Install turntable ring and glass tray in cavity.

Line drawing of a microwave oven with a circular vent and lid, showing internal components (no text or symbols)

USE & CARE MANUAL

USE & CARE MANUAL

1. KEEP INSTALLATION INSTRUCTIONS FOR THE LOCAL INSPECTOR'S USE.

INSTALLATION INSTRUCTIONS

1. Plug power cord into a separate and dedicated 15- to 20-amp electrical outlet.

Ensure proper ground exists before use

1. FILL OUT PRODUCT REGISTRATION CARD AN SEND IN.

PRODUCT REGISTRATION CARD

DDDDDDD DDDDDDD

NOTE: IT IS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE. This Over Wall Template was required to join the next section and is built into this block. The horizontal and vertical position are: 1. Use a line to check that the template is small and outstand. 2. Locally, using a location tool in the bottom line in the top line of the bottom line. NOTE: It is important for any way, and any way are required. If it is fixed or offset, the weight of the expansion, then be additional, every greater locations for the applied logo 203. 3. Use the horizontal location, where the plate is a small or smaller cut off at the top level, and the right side of the page 204. NOTE: It is not required. This would have only one at this point. 4. Use the horizontal portion of the wall. 5. Use the horizontal part of the wall. Details include a high angle consideration's version on Export. F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST CUT HOLE THROUGH REAR/WALL FOR EXHAUST ADAPTER 30" MINIMUM WIDTH REQUIRED REAR WALL TEMPLATE C Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA. Trim the rear wall template along the dotted line. B D C A Locate and mark holes to align with holes in the mounting plate. IMPORTANT: LOCATE AT LEAST ONE STUD ON EITHER SIDE OF THE CENTERLINE MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY SPACED TOGGLE BOLTS IN THE MOUNTING PLATE AREA.

FILLER BLOCK AREA 13-3/8" 13 3/8" G. FILLER BLOCK AREA NOTE: C#. VIEY IMPORTANT TO RED AND FOLLOWING TRANSCRIPTIONS IN THE INSTALLATION INSTRUCTIONS REFERENCE PROCESSING WITH THE TOP CABINET TEMPLATE. The template is used to locate the power cord diameter table, current mounting holes and the installed outlet. 1. Remove Power cord at a vertical one or a cylindrical block. See Fig. 2. For each side tape tends pass the bottom outlet. Fig. 2. Fig. 3. It is removed, set the edge of the bottom to fit the increased bottle of the circular, if it is important that the edges of the circular parts and installation of the wall. FIG. 3. On some outlets are a small blocker or flat block to cut between the cornering and the umbrella of the canset portion. Cut the foundation is 0 around the bracket or flat block so that lateral will be in the against the bottom of the outlet. Note the Top Cabinet Template to the umbrella of the top section in the recessed area. Fig. 3. Fig. 4. See the rear of the bottom section of the canset box for the front wall for assembly. Not before construction in the back of the rear section of the second component after cutting the edge of the canset. Part No. A06823426 WALL TOP CABINET TEMPLATE D. POWER CORD ONE ORROWTH E.CUT OUT FOR VERTICAL (OUTSIDE) EXHAUST ONLY CUT HOLE: THROUGH CABINET BOTTOM FOR EXHAUST ADAPTUM 6-1/4" 12-1/2" WALL 6-2/3/2"

Line drawing of a microwave oven mounted on a cabinet (no text or symbols)

LEA CUIDADOSAMENTE.

CONSERVE ESTAS INSTRUCCIONES.

p/n A06823436

Puede 2022

CONTENIDO

Información general

Illustration of a hand holding a control panel with wires, no text or symbols present

Line drawing of a microwave oven with lid and front panel (no text or symbols)

Architectural cross-section diagram showing structural layers and floor connections (no text or labels)

Line drawing of a hand holding a spray bottle over a window with a tray (no text or symbols)

Illustration showing three scenes of people with crossed-out boxes, no text or symbols present

Diagram showing a cabinet with screwdrivers and electrical outlets, illustrating electrical system setup.

Line drawing of a hand holding a textured rectangular object, possibly a device or panel (no text or symbols)

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Simple line drawing of a room with a door and wall, showing arrows pointing to the interior (no text or symbols)

Diagram of a door with a black arrow pointing to the interior panel (no text or symbols)

Technical line drawing of a car air duct system with ventilation grilles and airflow arrows (no text or labels)

Diagram of a room interior with arrows indicating movement or force (no text or symbols)

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

Technical line drawing of a device with Chinese labels and control panel, showing internal components and status indicators.

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Three-panel line drawing showing a person carrying a box and another holding a patient's hand, with no visible text or symbols.

Line drawing of a hand holding a grid-patterned rectangular object (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Line drawing of a hand using a tool to clean or install a window (no text or symbols)

Three-panel illustration showing a person handling a box, another with a cross symbol, and a third with a person lifting a box (no text or symbols present)

Diagram showing installation of a washing machine with screw holes and electrical outlets, including close-ups of the top screw.

Illustration of a hand holding a rectangular device with a textured screen (no text or symbols visible)

Line drawing of a microwave oven with a chimney and power outlet, no text or symbols present

Hand placing a button into an electrical outlet box (no text or symbols visible)

Line drawing of a microwave oven with a central dish and control panel (no text or symbols)

Line drawing of a microwave oven mounted on a cabinet (no text or symbols)

VEUILLEZ LIRE ATTENTIVEMENT.

CONSERVEZ CES INSTRUCTIONS.

INDEX:

Pièces comprises ....4

Hand placing a button into an electrical outlet box (no text or symbols visible)

défaut.

Montants Centre

A RECYCLAGE D'AIR (ÉVACUATION SANS CONDUIT)

Line drawing of a microwave oven with a label pointing to it as page 10 (no other text or symbols)

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

Illustration of three scenes showing people handling boxes and a person in a wheelchair, with no visible text or symbols.

POUR VOTRE SÉCURITÉ ET POUR FACILITER

L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing installation of a cabinet with screwdrivers and electrical outlets, including a close-up view of the cabinet.

Line drawing of a hand holding a textured rectangular object (no text or symbols)

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Diagram of a device with arrows indicating direction, no text or symbols present

Diagram of a door opening with a black arrow pointing to the interior (no text or symbols)

Technical line drawing of a mechanical component with internal structure and arrows indicating motion (no text or symbols)

A5. INSTALLATION OU CHANGEMEUT DU FILTRE À CHARBON (suite)

Diagram of a door or vent with arrows indicating direction (no text or symbols)

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

ear REAR WALL TEMPLATE

B1. PRÉPARATION DU MUR ARRIÈRE POUR L'ÉVACUATION À L'EXTÉRIEUR PAR L'ARRIÈRE

Architectural cross-section diagram of a building facade with structural elements and lighting fixtures (no text or labels)

Line drawing of a hand using a tool to clean or store items on a cabinet (no text or symbols visible)

Illustration showing three scenes of people in a hospital setting with crossed-out boxes (no text or symbols)

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Simple line drawing of a hand holding a grid-patterned rectangular object on a flat surface (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to press or install a device on a wall, with no visible text or symbols.

Illustration showing three scenes of people crossed out of a table, with one figure holding a cross symbol and others reacting or falling.

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing installation of a washing machine with screw fasteners and electrical outlets, including a close-up view of the outlet.

Illustration of a hand pressing down on a textured rectangular panel (no text or symbols)

C7. CONNEXION AU CONDUIT

Illustration of a hand placing a button into an electrical outlet (no text or symbols)

2.

Line drawing of a microwave oven with a circular vent and lid (no text or symbols)

7.

CONSERVEZ LES INSTRUCTIONS D'INSTALLATION POUR VOTRE INSPECTEUR LOCAL.

INSTRUCTIONS D'INSTALLATION

4.
