USER MANUAL UMV1422SS FRIGIDAIRE

Installation Over the Range Instructions Microwave Oven

Questions? Call 1-800-944-9044(US) or 1-800-265-8352(Canada)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

Line drawing of a laptop with a blank screen, placed on a shelf (no text or symbols)

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

p/n A06823411

August 2018

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements .... 3

Damage – Shipment/ Installation.... 4

Parts Included.... 4

Tools You Will Need 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6-8

Removing the Mounting Plate 6

Finding the Wall Studs....6

Determining Wall Plate Location....7

Aligning the Wall Plate 8

Installation Types.... 9-22

Hood Exhaust 10-11

A Outside Top Exhaust 12–15

Attach Mounting Plate to Wall......12

Preparation of Top Cabinet......13

Adapting Microwave Blower for

Outside top Exhaust 13–14....

Checking for Proper Damper

Operation....14

Mount the Microwave Oven .....14-15

Adjust the Exhaust Adaptor ....15

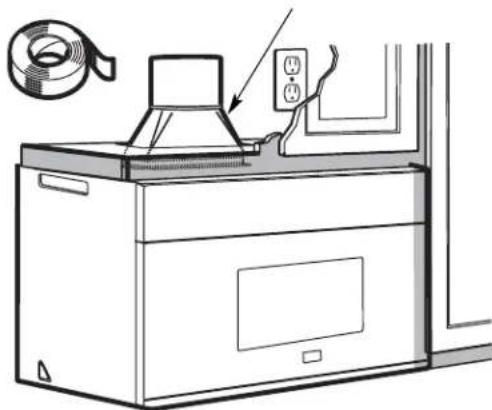

Connecting Ductwork....15

B Outside Back Exhaust.... 16–19

Preparing Rear Wall for

Outside Back Exhaust....16

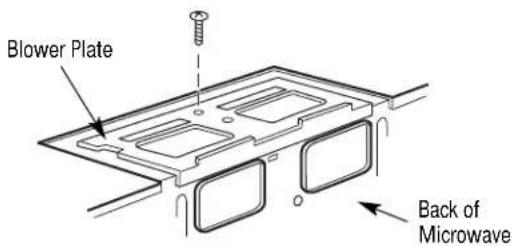

Remove Blower Plate 16.....

Attach Mounting Plate to Wall .....17

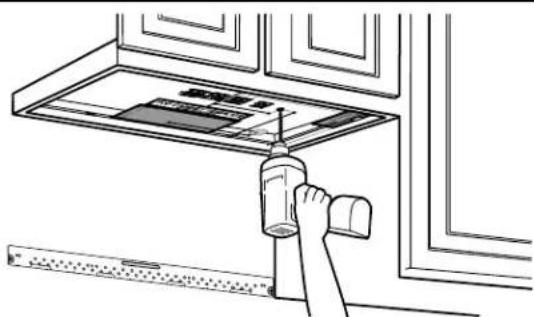

Preparation of Top Cabinet ......17

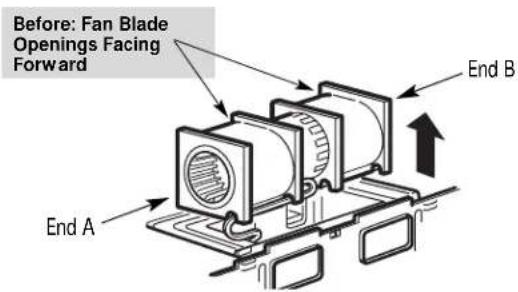

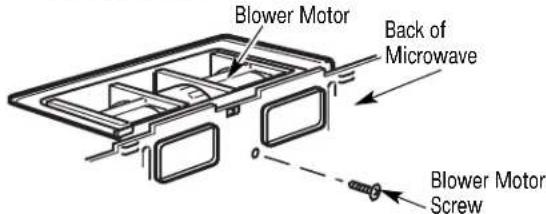

Adapting Microwave Blower

for Outside Back Exhaust....17–18

Mount the Microwave Oven ....19

C Recirculating 20–22

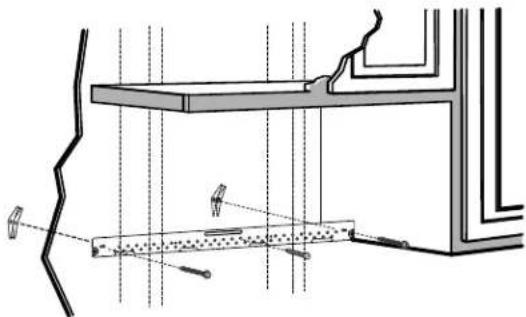

Attach Mounting Plate to Wall ......20

Preparation of Top Cabinet ......21

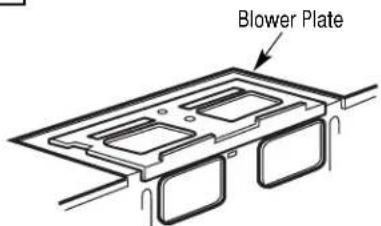

Check Blower Plate 21

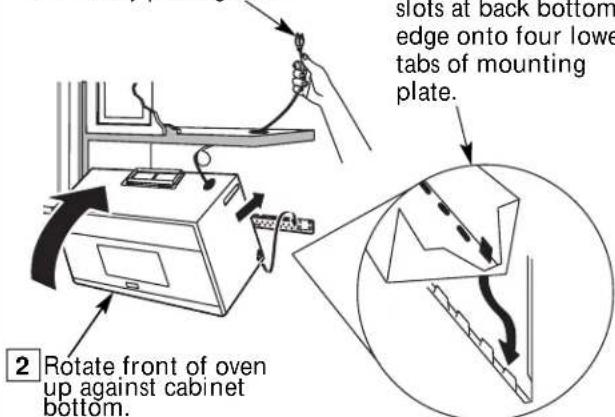

Mount the Microwave Oven .....21–22

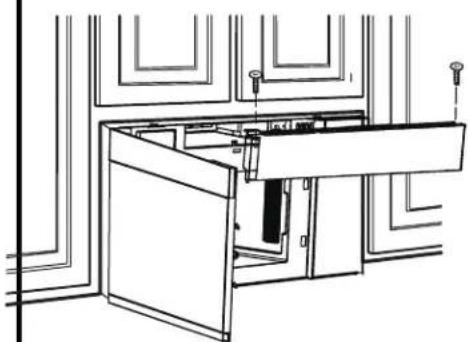

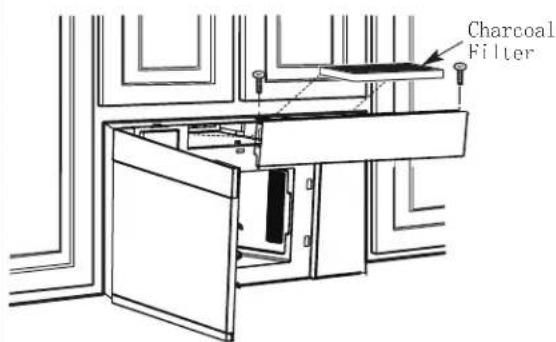

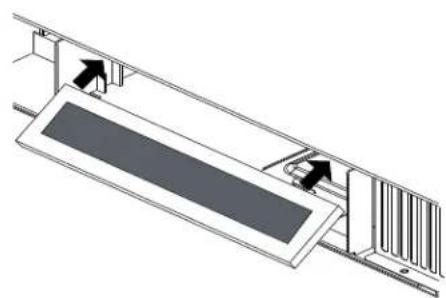

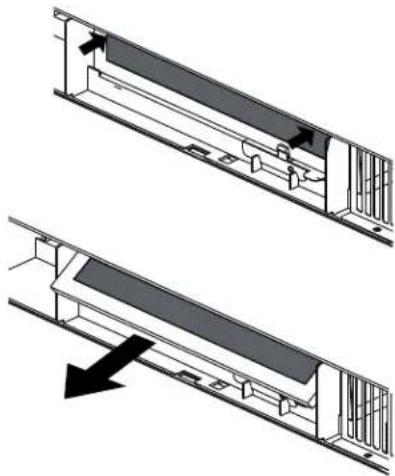

Installing or Change the

Charcoal Filter 22

Before You Use Your Microwave 25

Template Information.... 26

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Illustration of a hand interacting with an electrical outlet panel (no text or symbols visible)

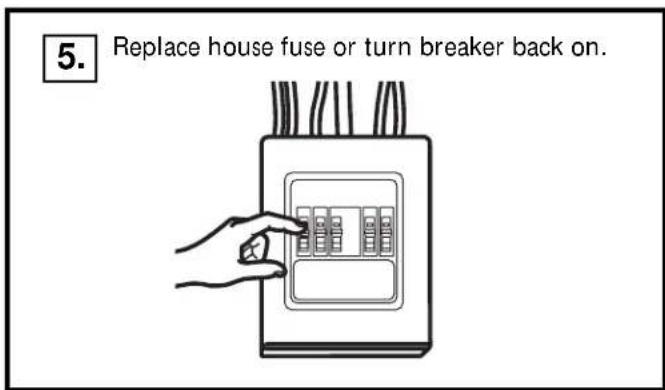

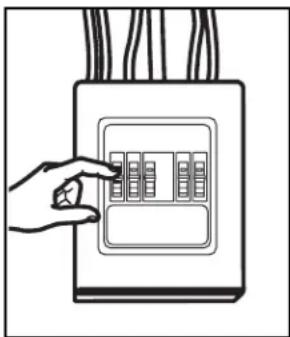

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound (28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113–135 pounds (51.3–61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

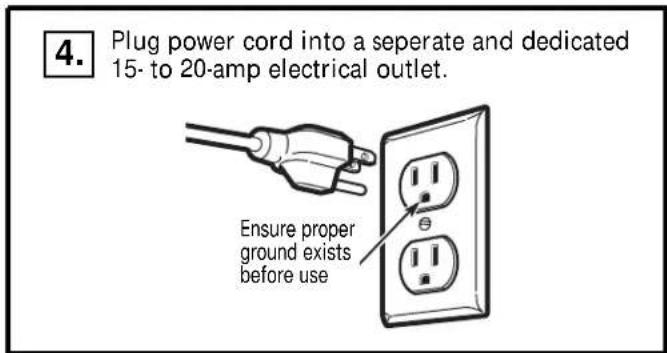

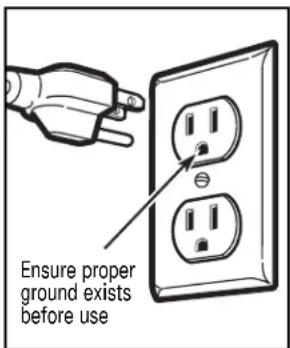

Ensure proper ground exists before use

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlier box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY
	Wood Screws 2 (1/4" × 2")
	Toggle Bolts (and wing nuts) (3^1/6" × 3")	2
[w68x]	Self-Aligning Machine 3 Screws (1/4"-28 × 3^1/4")
	Nylon Grommet(for metal cabinets)	1

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.) ADDITIONAL PARTS

PART		QUANTITY
	CabinetTop Template	1
	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1

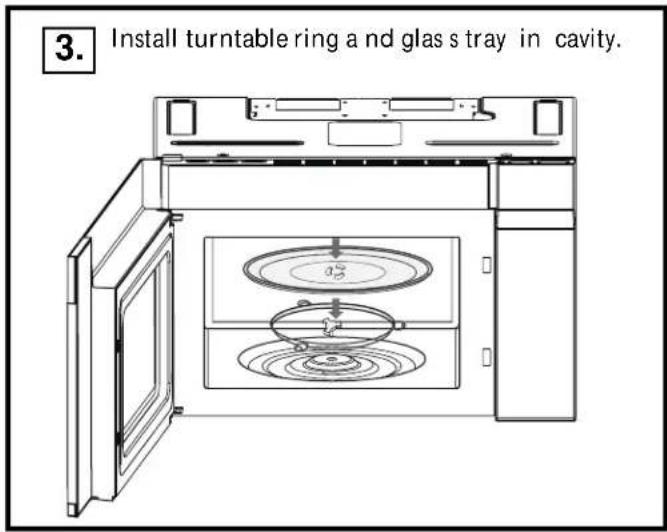

	Glass Tray	1
	Truntable Ring	1

TOOLS YOU WILL NEED

1 Phillips screwdriver

Pencil

Ruler or tape measure and straight edge

Carpenter square (optional)

Tin snips (for cutting damper, if required)

Scissors (to cut template, if necessary)

Electric drill with 316 ", 12 " and 58 " drill bits

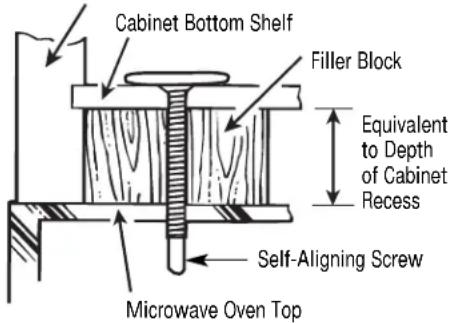

Filler blocks or scrap wood pieces, if needed for top cabinet spacing (used on recessed bottom cabinet installations only)

Gloves

Three technical line drawings of electrical components: a motor, a plug, and a hook (no text or symbols)

Saw (saber, hole or keyhole)

Stud finder

Hammer (optional)

Safety goggles

Level

Duct and masking tape

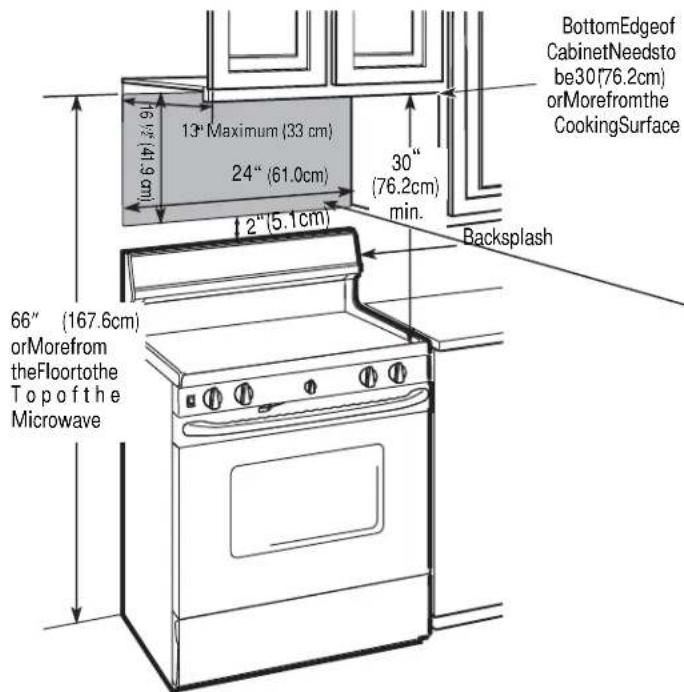

MOUNTING SPACE

BottomEdgeof CabinetNeedsto be30(76.2cm) orMorefromthe CookingSurface 13" Maximum (33 cm) 24" (61.0cm) 30" (76.2cm) min. 2" (5.1cm) Backsplash 66" (167.6cm) orMorefrom theFloortothe Topofthe Microwave

NOTES:

• Thespacebetweenthecabinetsmustbe 24" (61.0cm) wideandfreeofobstructions.
• If you are going to every your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation.
• Wheninstallingthemicrowaveovenbeneath smooth,flatcabinets,becarefultofollowthe instructionsonthetopcabinettemplate or powercordclearance.

• As a guide to installation, see page 24 for Mounting Template Information.

• If the cabinet depth including the cabinet doors is more than 13' then the unit must be spaced
  → out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

Simple line drawing of a door with a handle and a small circle at the bottom (no text or symbols)

CabinetCabinet

1 PLACEMENT OF THE MOUNTING PLATE

A. REMOVINGTHEMICROWAVE OVENFROM THECARTON/ REMOVINGTHEMOUNTING PLATE

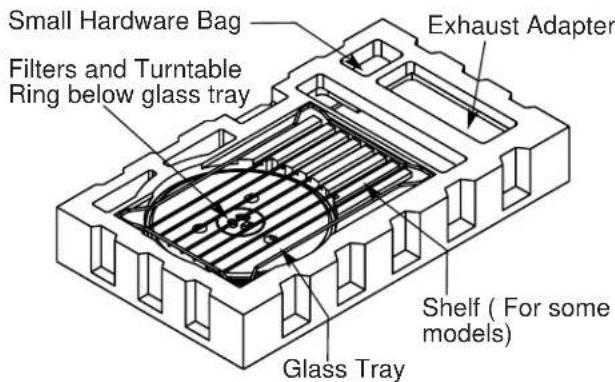

1 Remove the installation instructions, use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven.

Small Hardware Bag Filters and Turntable Ring below glass tray Exhaust Adapter Shelf ( For some models ) Glass Tray

2 Foldbackall4cartonflapsfullyagainstcarton sides. Thencarefullyrolltheovenandcartonover ontothetopside. Theovenshouldberesting in theStyrofoam.

Carton Styrofoam

3 Pullthecartonupandofftheoven.

4 Cutthemiddleoftheouterprotectiveplasticbagto remove the mountinglate

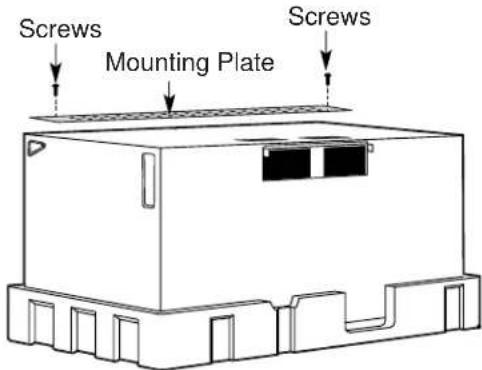

Screws Mounting Plate Screws

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

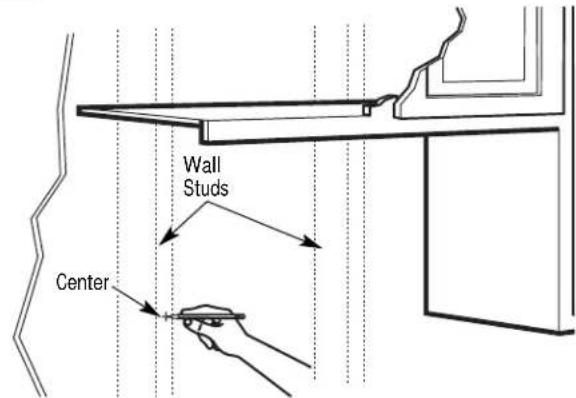

B. FINDINGTHEWALLSTUDS

Wall Studs Center

1 Findthestuds, using one of the following methods:

A. Studfinder—amagnetic device which locatesnails.

B. Useahammertotaplightlyacrossthe mountingsurfacetofindasolidsound. Thiswillindicateastudlocation.

2 Afterlocatingthestud(s), find the center by probing the wall with a small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent stud should be 16" (40.6cm) or 24" (61cm) from this mark.

3 Drawalinedownthecenterofthestuds. THEMICROWAVEMUSTBECONNECTEDTO ATLEASTONEWALLSTUD.

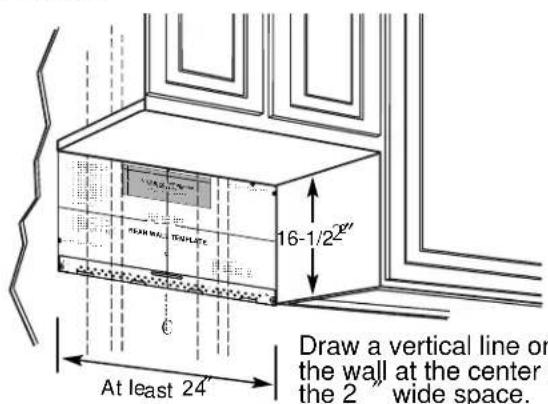

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position-beneath flat bottom cabinet

16-1/2" DRAW A WALL TENTILE At least 24" Draw a vertical line on the wall at the center the 2" wide space.

Draw a vertical line on the wall at the center of the 2 "wide space.

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet.

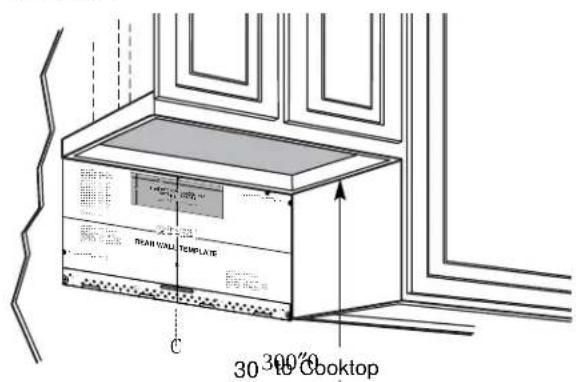

Plate position-beneath framed recessed cabinet bottom

RARE WALL TEMPLATE C 30 30"10 Cbooktop

Draw a vertical line on the wall at the center of the 24" space.

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

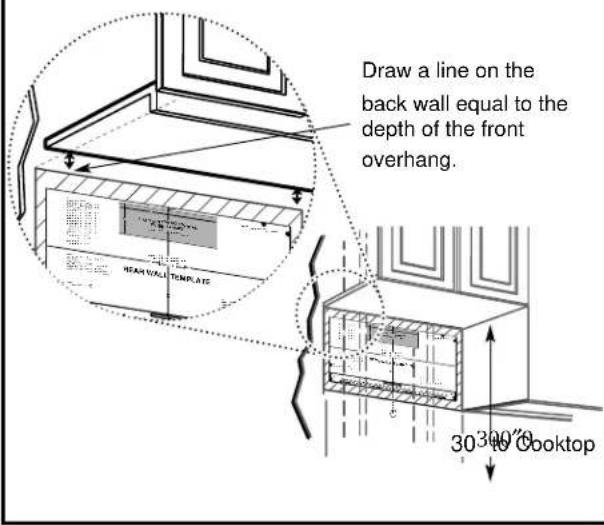

Plate position-beneath recessed bottomcabinetwith front overhang

Draw a line on the back wall equal to the depth of the front overhang. HEAD WALL TEMPLATE 30 300" 8" Cooktop

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

1 Measure the inside depth of the front overhang.
2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.

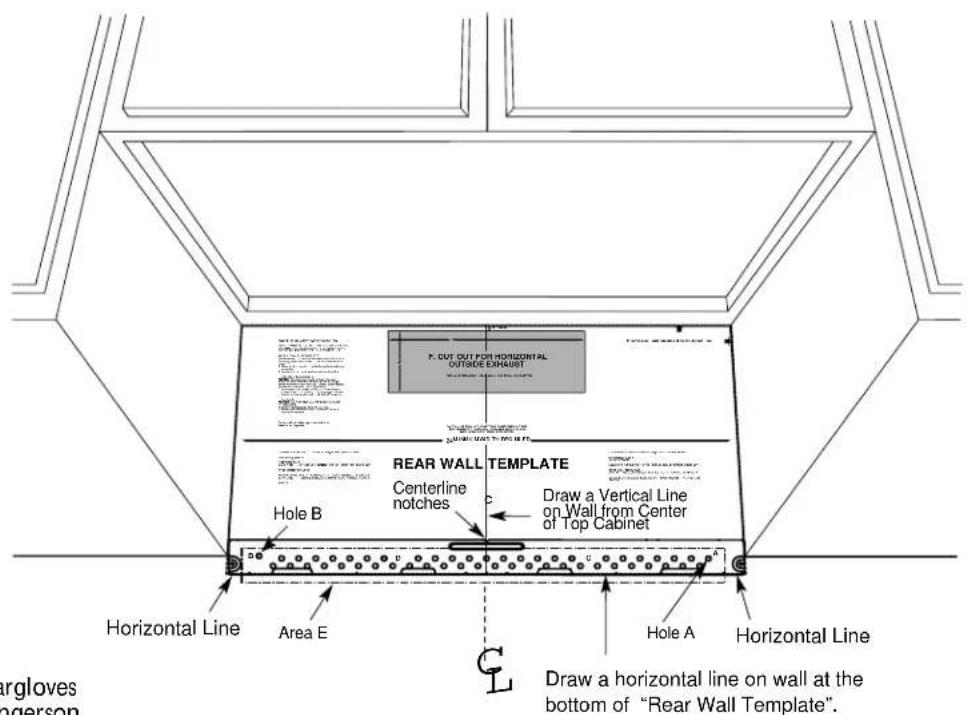

D. ALIGNING THE WALL PLATE

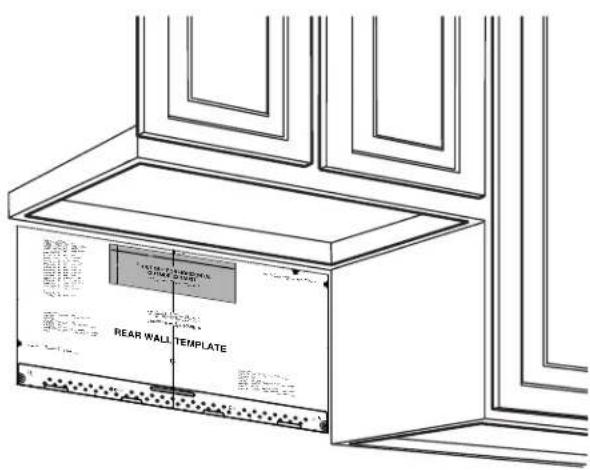

P. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST REAR WALL TEMPLATE Centerline notches Draw a Vertical Line on Wall from Center of Top Cabinet Hole B Horizontal Line Area E Hole A Horizontal Line Draw a horizontal line on wall at the bottom of "Rear Wall Template". orgloves ngerson

CAUTION: Weargloves to avoid cutting fingerson sharpedges.

1 Draw a vertical line on the wall at the center of the 24" wide space.
2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3 Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs.
4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B) NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 | INSTALLATION TYPES (Choose A, B or C)

This microwaveoven is designed for adaptation to the following three types of ventilation:

A. Outside Top Exhaust (Vertical Duct)

B.OutsideBackExhaust(HorizontalDuct)

C. Recirculating(Non-VentedDuctless)

NOTE: This microwave is shipped assembled for Recirculating. Select the typeof ventilation required for your installation and proceed to that section.

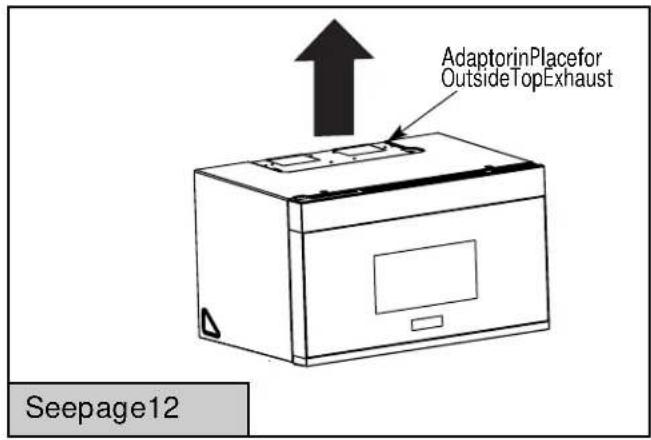

A OUTSIDE TOP EXHAUST (VERTICAL DUCT)

AdaptorinPlacefor OutsideTopExhaust Seepage12

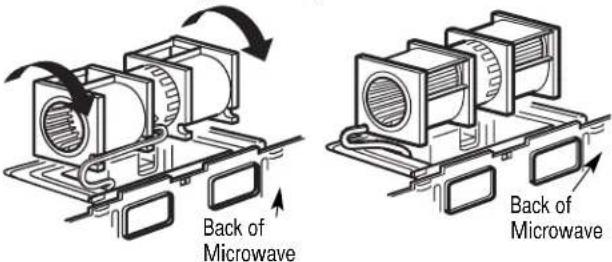

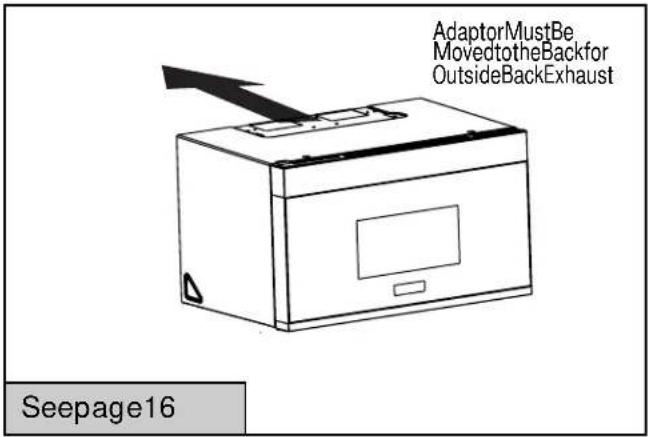

B OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

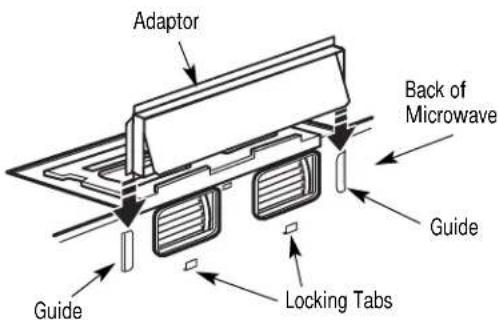

AdaptorMustBe MovedtotheBackfor OutsideBackExhaust Seepage16

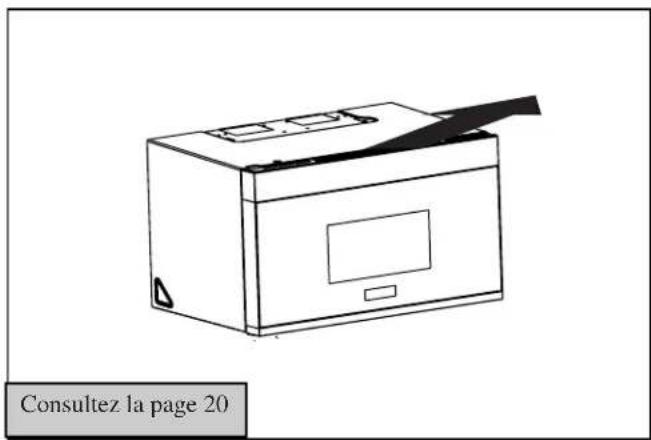

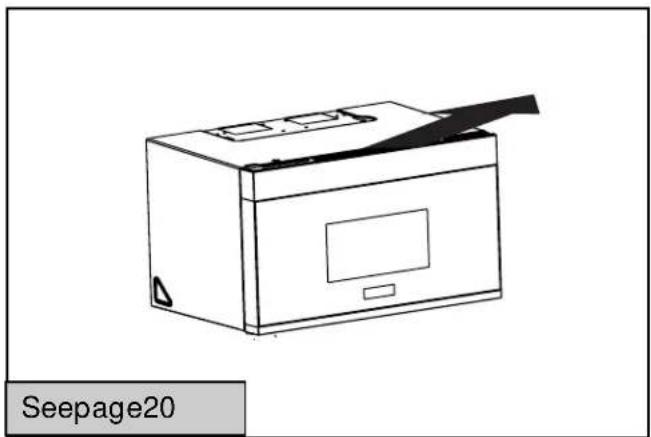

C RECIRCULATING (NON-VENTED DUCTLESS)

Line drawing of a Seepage 20 printer with a paper clip and cover (no text or symbols on the device itself)

Modelsareshippedfor recirculatingexhaust. Somemodelshavea disposablecharcoalfilter installedtohelpremove smokeandodors.

NOTE: Read the next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 20.

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT. Read the following carefully.

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a standard 314 " x 10" (8.2 x 25.4 cm) rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used. A 5" (12.7cm)/6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 3^1/4 x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m).

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Rectangular-to-Round 5 Ft. (1.5 m) x ( ) = Ft. or mTransition Adaptor*
	Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m
	90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	Roof Cap	24 Ft. (7.3 m) x ( ) = Ft. or m
[66CVI]	Straight Duct 6" (15.2 cm)Round or 31⁄4" x 10"(8.2 x 25.4 cm Rectangular)	1 Ft. (0.3 m) x ( ) = Ft. or m
Total Ductwork =			Ft. or m

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)
	12 Ft. (3.6 m) Straight Duct (6"/15.2 cm Round)	12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
	Rectangular-to-Round 5 Ft. ( Transition Adaptor*	.5 m) x (1) = 5 Ft. (1.5 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES		EQUIVALENT LENGTH* NUMBER x USED = LENGTH	EQUIVALENT
	Wall Cap	40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)
[CZKC]	3 Ft. Straight Duct (3'/4" x 10"/8.2 x 25.4 cm Rectangular)	3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)
	90° Elbow	10 Ft. (3 m) x (2) = 20 Ft. (3 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =			63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

A | OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall

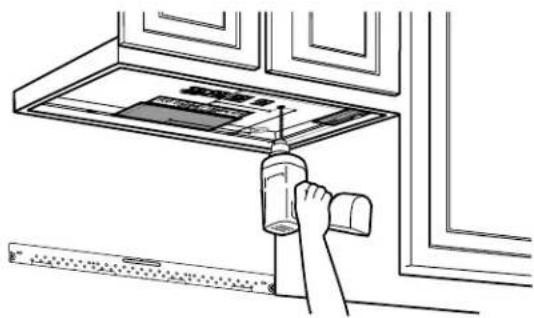

A2. Prepare Top Cabinet

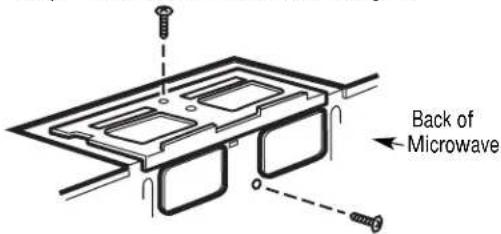

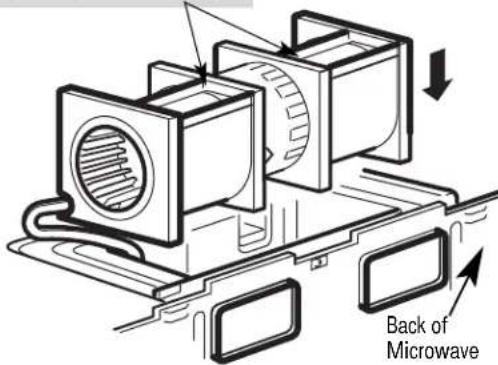

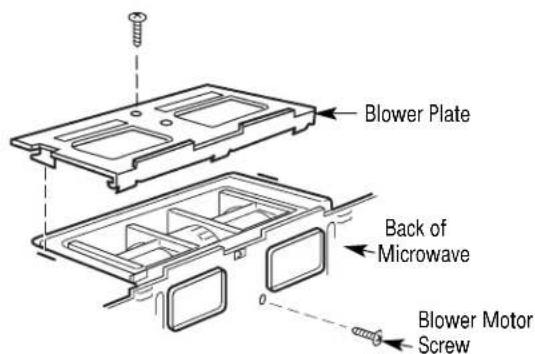

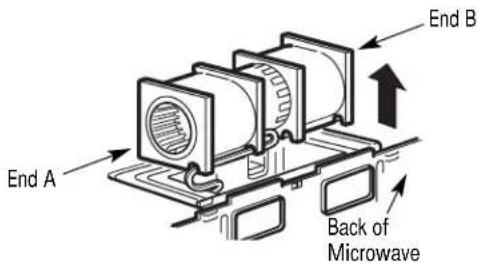

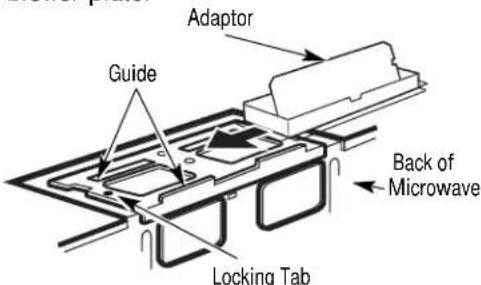

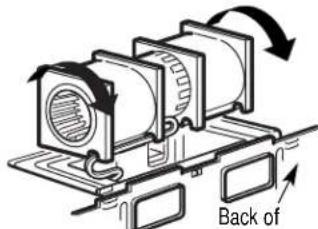

A3. Adapting Microwave Blower for Outside Top Exhaust
A4. Check Damper Operation

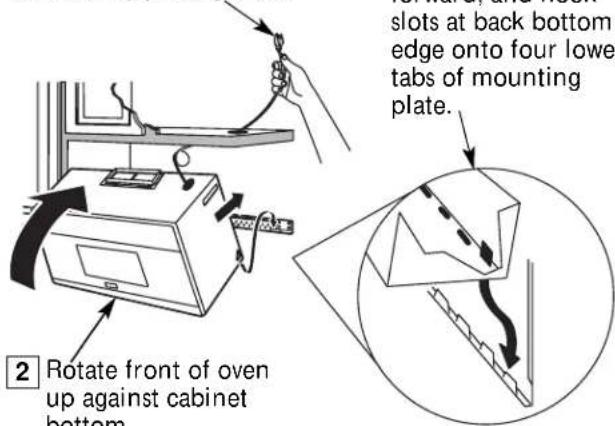

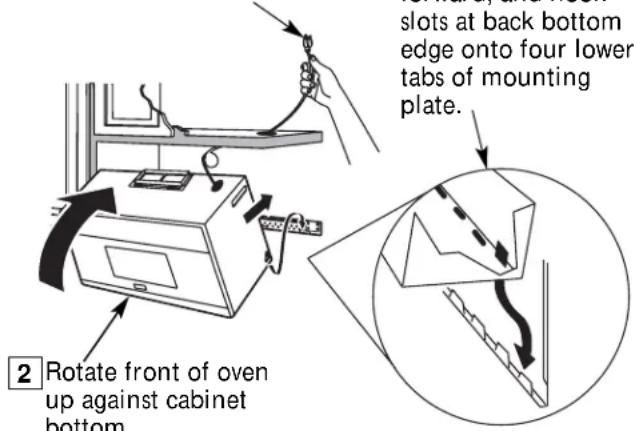

A5. Mount Microwave Oven

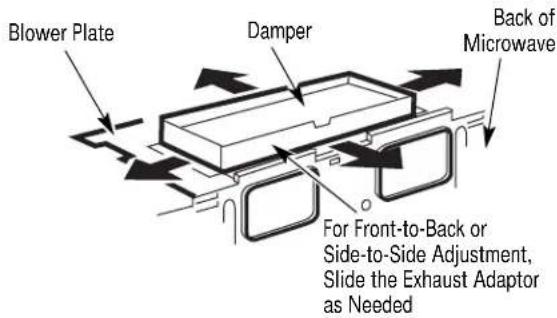

A6. Adjust Exhaust Adaptor

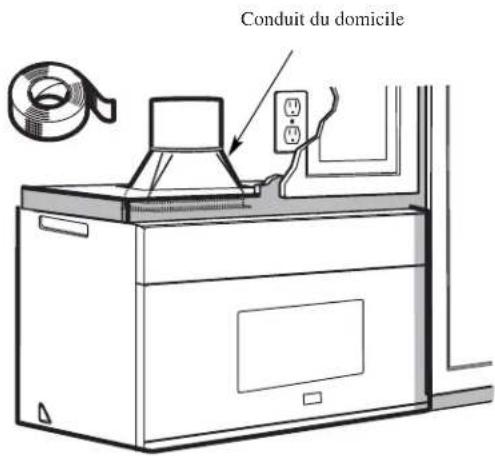

A7. Connect Ductwork

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

R REAR WALL TEMPLATE d,

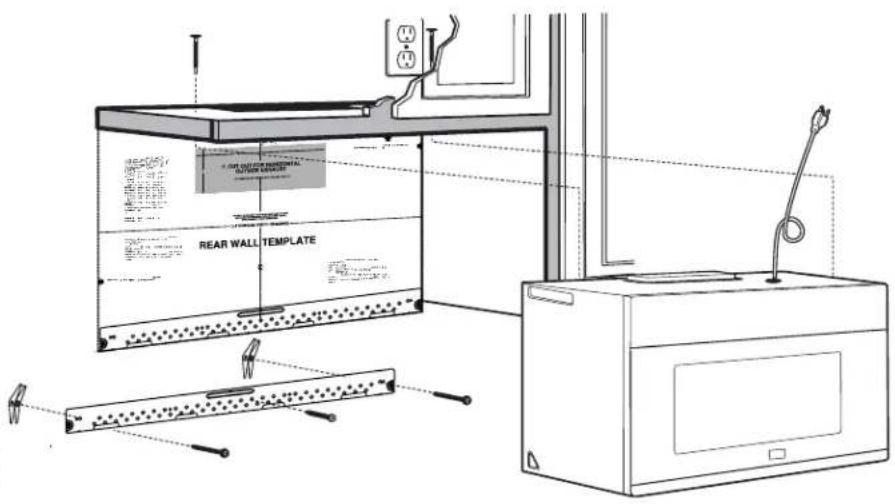

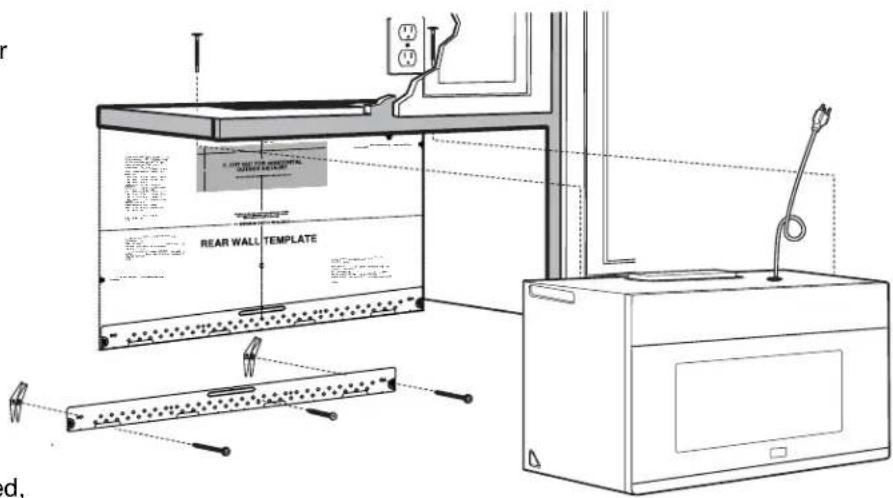

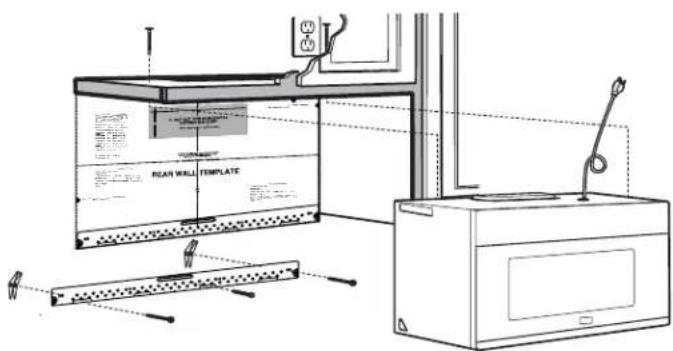

A1. ATTACH THE MOUNTING PLATE TO THE WALL

Architectural cross-section diagram of a building facade with structural elements and window grilles (no text or labels)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

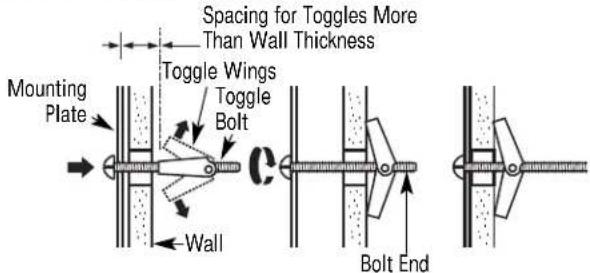

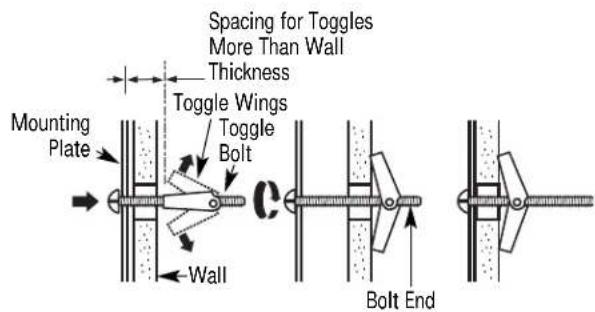

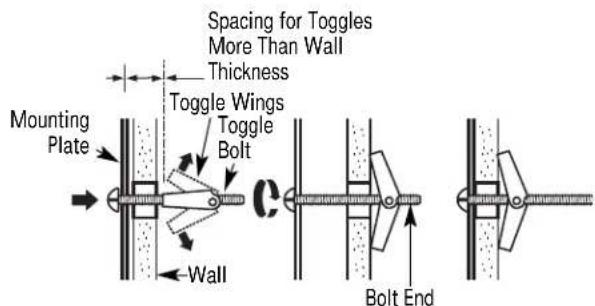

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Toggle Wings Toggle Bolt Mounting Plate Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

End A Back of Microwave End B

3 Roll the blower unit 90° so that fan blade openings are facing out the top of the microwave.

Before Rotation After Rotation

Back of

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

1 Place the microwave in its upright position, with the top of the unit facing up.

Blower Plate Back of Microwave Blower Motor Screw

Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.

4 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Top

Back of Microwave

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

5 Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight.
6 Replace blower plate with the screw removed in Step 1. Make sure the screw is tight.

Back of Microwave

7 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

Adaptor Guide Back of Microwave Locking Tab

Push in securely until it is in the locking tabs. Take care to assure that the damper hinge is installed so that the damper swings freely.

Blower Plate Exhaust Adaptor Damper Back of Microwave

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

Three-panel line drawing showing a person crossed out of a box, another with a cross symbol, and a third holding a box (no text or symbols present)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

slots at back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

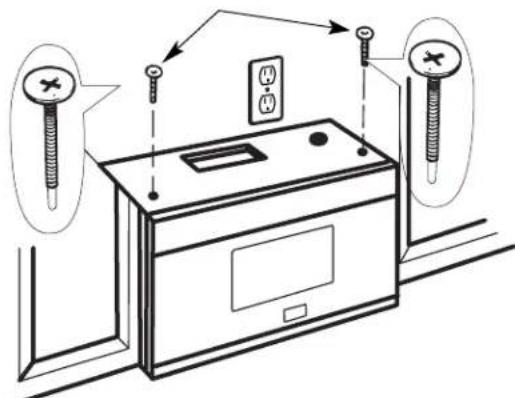

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns o each screw.

Diagram showing electrical connections between a device with screw holes and a power outlet, likely illustrating a circuit or measurement setup.

6 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand pressing a textured rectangular object on a flat surface (no text or symbols)

7 Install grease filters. See the Use and Care packed with the microwave.

A6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

Blower Plate Damper Back of Microwave For Front-to-Back or Side-to-Side Adjustment, Slide the Exhaust Adaptor as Needed

A7. CONNECTING DUCTWORK

HouseDuct

Line drawing of a kitchen appliance with a spool attached to the top panel (no text or symbols)

1 Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using foldable tape for high temperature applications.

B | OUTSIDE BACK EXHAUST (Horizontal Duct)

INSTALLATION OVERVIEW

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

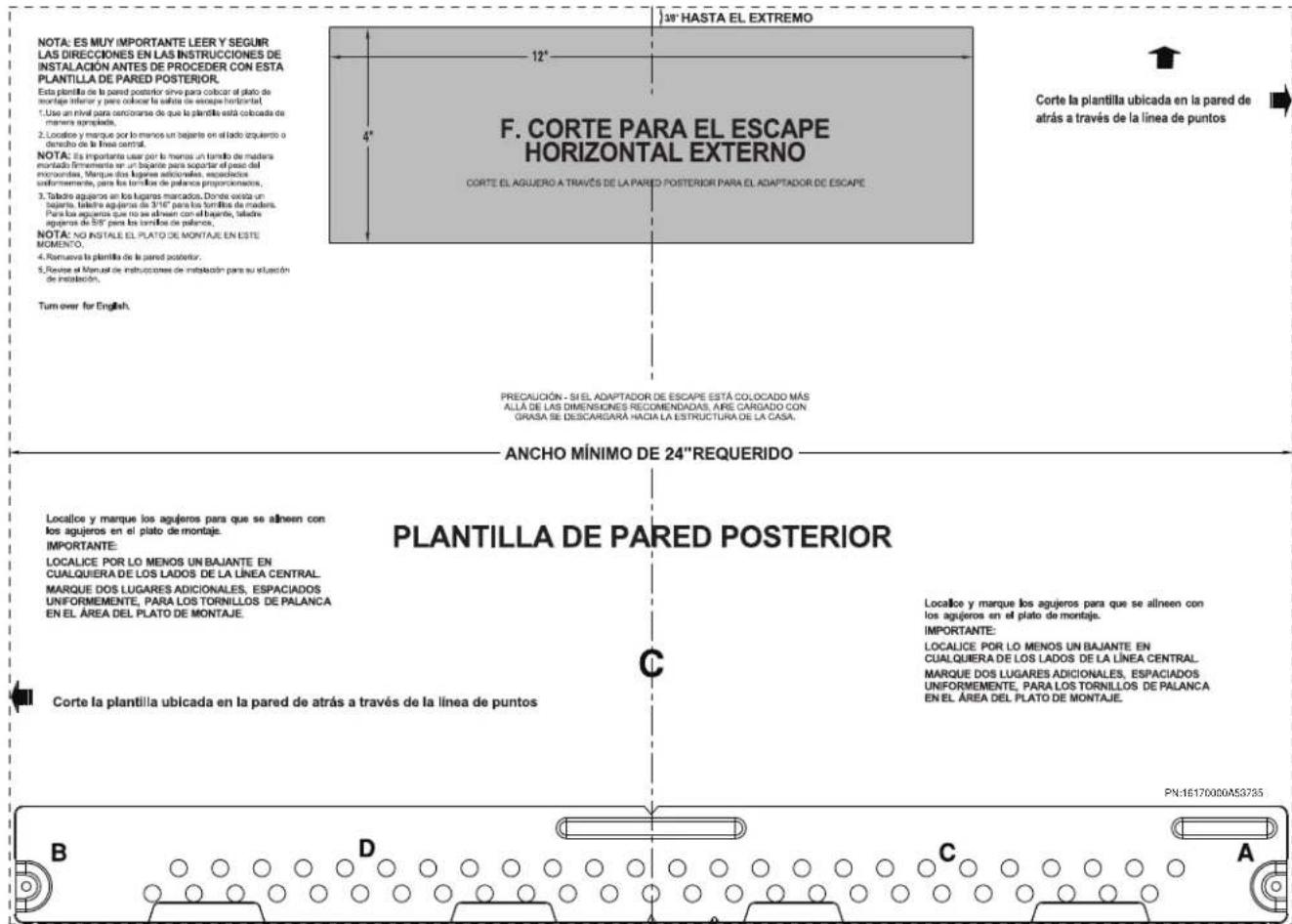

REAR WALL TEMPLATE

B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

REAR WALL TEMPLATE

• Read the instructions on the REAR WALL TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the REAR WALL TEMPLATE.

B2. REMOVE BLOWER PLATE

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

Blower Plate Back of Microwave

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Mounting Plate Toggle Wings Toggle Bolt Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.
NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to press or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST

1 Remove and save screw that holds blower motor to microwave.

Blower Motor Back of Microwave Blower Motor Screw

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

Before: Fan Blade Openings Facing Forward End A End B

3 Roll the blower unit 90°

Before Rotation

Back of

Back of Microwave

After Rotation

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Back of Microwave

Before Rotation After Rotation

Back of Microwave Back of Microwave

5 Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.

Before Rerouting After Rerouting

Technical line drawing of two mechanical components with no visible text or symbols

Wires Routed Through Right Side

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Wires Routed Through Left Side

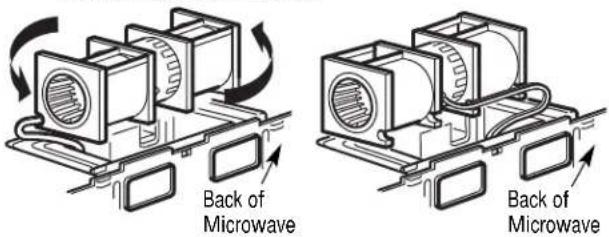

6 Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave.

Before Rolling After Rolling

Back of Microwave Back of Microwave

7 Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates:

Back of microwave

Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

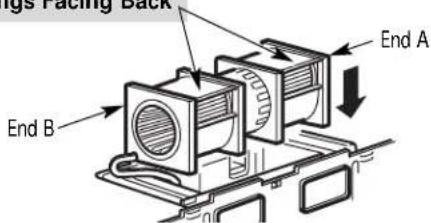

8 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Back

Rigs Facing Back End A End B

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven.

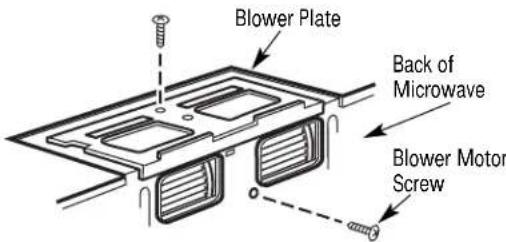

9 Secure the blower unit to the microwave with the original screw.

Blower Plate Back of Microwave Blower Motor Screw

10 Replace the blower plate in the same position as before with the screw. Make sure the screw is tight.

11 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Adaptor Back of Microwave Guide Guide Locking Tabs

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

B6. MOUNT THE MICROWAVE OVEN

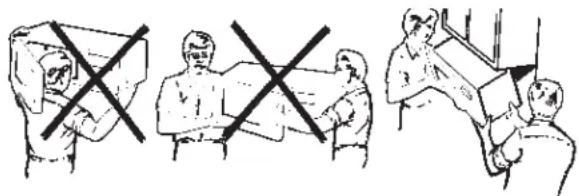

Three-panel illustration showing a person carrying a box and another holding a box, with no visible text or symbols.

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

2 Rotate front of oven up against cabinet bottom. slots at back bottom edge onto four lower tabs of mounting plate.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Front

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

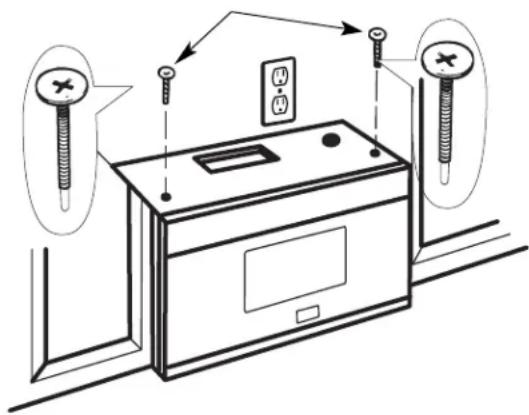

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing installation of a washing machine with screw holes and electrical outlets, illustrating electrical connections.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

C | RECIRCULATING (Non-Vented Ductless)

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven

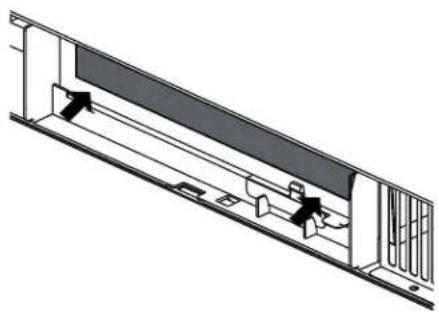

C5. Install or change Charcoal Filter

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

REAR WALL TEMPLATE

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Architectural cross-section diagram showing structural layers and floor connections (no text or labels)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

NOTE: If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

Cabinet

Cabinet

1 Remove the toggle wings from the bolts. 2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Toggle Wings Toggle Bolt Mounting Plate Wall Bolt End

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a window frame (no text or symbols)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

C3. CHECK BLOWER PLATE

Blower Plate

• Place the microwave in its upright position, with the top of the unit facing up.
• Check to see that the blower plate is correctly installed on the unit.

Illustration showing three scenes of medical or surgical procedures with crossed-out boxes, likely related to medical or surgical procedures.

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1-3. Do not pinch cord or lift oven by pulling cord.

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

slots at back bottom edge onto four lowe tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet. Cabinet Front

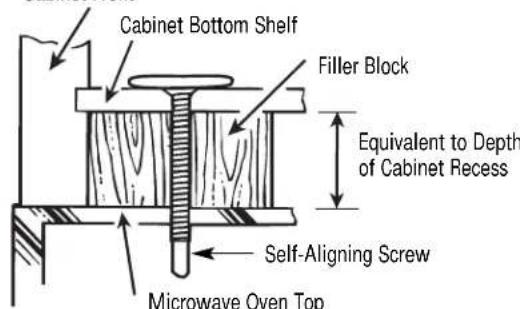

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

5 Insert2self-aligningscrews throughoutertopcabinet holes.Turntwofullturnson eachscrew.

7 Tightentheoutertwoscrewstothetopofthe microwaveoven.(Whiletighteningscrews,hold themicrowaveoveninplaceagainstthewalland thetopcabinet.)

Simple line drawing of a hand holding a textured rectangular object (no text or symbols)

8 Install grease filters. See the Use and Care packedwiththemicrowave.

C5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

1 Unplug microwave oven or disconnect power.

2 Open the microwave door and remove the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver.

Charcoal Filter

3 Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

4 Slide the top of the new charcoal filter into the top of the filter cavity.

Technical diagram of a mechanical assembly with directional arrows indicating motion or flow (no text or symbols present)

5 Press the bottom of charcoal filter to place it into the correct position.

Technical line drawing of a mechanical assembly with no visible text or symbols

6 Reinstall the vent by sliding the bottom of the vent into place. Push the vent top into position and slide right into place. Replace the two vent mounting screws located on top of the microwave using a #1 Phillips screwdriver.

Line drawing of a cabinet or wardrobe assembly with handle and door frame (no text or symbols)

7 Close the microwave door. Plug in microwave oven or reconnect power.

1. Make sure the microwave oven has been installed according to instructions. INSTALLATION INSTRUCTIONS

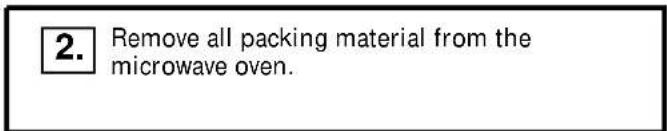

2. Remove all packing material from the microwave oven.

3. Install turntable ring and glass tray in cavity.

4. Plug power cord into a separate and dedicated 15- to 20-amp electrical outlet. Ensure proper ground exists before use

5. Replace house fuse or turn breaker back on.

6. Read the USE CARE + USE & CARE MANUAL

7. KEEP INSTALLATION INSTRUCTIONS FOR THE LOCAL INSPECTOR'S USE. INSTALLATION INSTRUCTIONS

8. FILL OUT PRODUCT REGISTRATION CARD AN SEND IN. PRODUCT REGISTRATION CARD DDDDDDD DDDDDDD D G D G

FILLER F. BLOCK AREA A. 3/8" DRILL DIMETER 3/8" 10-23/64" 10-23/64" 10-23/64" B. 3/8" DRILL DIMETER 3/8" G. FILLER BLOCK AREA NOTE: ITS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCESSING WITH THE TOP CABINET TEMPLATE This template is used to locate the power cord clearance hole, cabinet mounting holes and the vertical exhaust cubed. TOP CACINET TEMPLATE 1. Determine if your cabinet has a recessed area at a smooth, flat bottom. See Fig. 1. If smooth, tape template onto the bottom surface (Fig. 2). If it is recessed, cut the edges of the template to fill in the neccessed bottom of the cabinet. It is important that the edges of the cabinet permit level installation of the oven. NOTE: On some cabinets a small bracket or glue block is used between the overhang and the underside of the cabinet bottom. Cut the template to fill around the bracket or glue block so that template will be flat against the bottom of the cabinet. Tape the Top Cabinet Template to the underside of the top cabinet in the recessed area. Fig. 3. NOTE: Make sure the rear of the template touches the back wall (for smooth, flat bottom cabinetry) or the back of the excess (for recessed bottom cabinetry) after cutting the edges of the template. E.CUT OUT FOR VERTICAL (OUTSIDE) EXHAUST ONLY D. POWER CORD 9-27/32" DRILL DIMETER 2" 4-1/4" 12-1/2" 4-1/4" E.CUT OUT FOR VERTICAL (OUTSIDE) EXHAUST ONLY CUT HOLE: THROUGH CABINET BOTTOM FOR EXHAUST ADAPTOR 6-1/4" 12-1/2" WALL RIGHT SIDE 2. Drill 3/8 "diameter holes at A. B. CAUTION: Wear safety goggles when drilling holes in the cabinet bottom. 3. Cut out the 2" diameter hole at 9 for power cord. P cabinets are metal, use the nylea grument (see the Parts Included section in the Installation (bathodrals) to surround the opening to reduce the cone. 4. (FOR VERTICAL EXHAUST ONLY) Cut out shaded snail, through the cabinet bottom for Vertical (Outside) Exhaust location. 5. Remove the top cabinet template. 6. For recessed outlets, make 2 filter blocks out of screw wood the size of the shaded areas. F.A.G. These filter blocks must have a thickness equal to the depth of the cabinet recess. Drill 1/2" diameter holes in these blocks to line up with A.A.S. Please the blocks so that the holes in each block line up with the corresponding holes in the cabinet. The filter blocks should be at the same level as the bottom edge of the wall cabinet frame. Fig. 4. 7. RETURN TO AND PROCED WITH THE INSTALLATION INSTRUCTIONS. WALL

Line drawing of a laptop with a blank screen, placed on a shelf (no text or symbols)

LEA CUIDADOSAMENTE. CONSERVE ESTAS INSTRUCCIONES.

CONTENIDO

Información general

Illustration of a hand holding a control panel with wires, no text or symbols present

Three technical line drawings of electrical components: a motor, a plug, and a hook (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Line drawing of a hand using a tool to clean or install a window (no text or symbols present)

Three-panel line drawing showing a person carrying a box and another holding a document, with no visible text or symbols.

Diagram showing electrical connections to a washing machine with screw holes and power outlets, including labels for 'Power Supply' and 'Electrical Control'.

Line drawing of a hand holding a screen with a textured screen (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Three-panel line drawing showing a person carrying a box, another person in a bed, and a third person sitting at a table (no text or symbols)

Diagram showing electrical circuit connections with labeled components and switches, likely illustrating a power or measurement setup.

Line drawing of a hand holding a grid-patterned device with a pen, no text or symbols present

Architectural cross-section diagram showing structural layers and floor connections (no text or labels)

Line drawing of a hand using a tool to clean or install a window (no text or symbols)

Illustration showing three scenes of people with crossed-out boxes, no text or symbols present

Diagram showing electrical circuit connections with screwdrivers and a device, including labeled components like 'X' and 'P'.

Line drawing of a hand holding a grid-patterned rectangular object (no text or symbols)

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical or electrical component with directional arrows indicating movement or flow (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a cabinet or enclosure with doors and windows, no text or symbols present

Line drawing of a hand inserting a component into an electrical box (no text or symbols)

Line drawing of an open oven with internal circular components and a central fan (no text or symbols)

Line drawing of a laptop with a blank screen, placed on a shelf (no text or symbols)

VEUILLEZ LIRE ATTENTIVEMENT.

CONSERVEZ CES INSTRUCTIONS.

INDEX:

Pièces comprises ....4

Hand placing a button into an electrical outlet box (no text or symbols visible)

défaut.

Montants Centre

C RECYCLAGE D'AIR (ÉVACUATION SANS CONDUIT)

Line drawing of a portable electronic device with a label indicating 'Consultez la page 20' (no other text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or store items on a kitchen counter (no text or symbols)

Illustration showing three scenes of a person holding boxes, crossed out by a 'X' symbol, and interacting with another person holding a document.

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing electrical connections to a device with labeled components and switches, including a power outlet and screwdriver.

Line drawing of a hand holding a rectangular object with a textured fill (no text or symbols)

A7. CONNEXION AU CONDUIT

AR REAR WALL TEMPLATE

B1. PRÉPARATION DU MUR ARRIÈRE POUR L'ÉVACUATION À L'EXTÉRIEUR PAR L'ARRIÈRE

GASANT FOUR NOUR APPROS RUSTABLE GATCHESTER 100% COOKING 25% COOKING 30% COOKING 40% COOKING 50% COOKING 60% COOKING 70% COOKING 80% COOKING 90% COOKING 100% COOKING 110% COOKING 120% COOKING 130% COOKING 140% COOKING 150% COOKING 160% COOKING 170% COOKING 180% COOKING 190% COOKING 200% COOKING 210% COOKING 220% COOKING 230% COOKING 240% COOKING 250% COOKING 260% COOKING 270% COOKING 280% COOKING 290% COOKING 300% COOKING 310% COOKING 320% COOKING 330% COOKING 340% COOKING 350% COOKING 360% COOKING 370% COOKING 380% COOKING 390% COOKING 400% COOKING 410% COOKING 420% COOKING 430% COOKING 440% COOKING 450% COOKING 460% COOKING 470% COOKING 480% COOKING 490% COOKING 500% COOKING

Architectural cross-section diagram of a building facade with structural elements and lighting fixtures (no text or labels)

Line drawing of a hand using a tool to clean or install a window (no text or symbols)

Illustration showing three scenes of people in a hospital setting with crossed-out boxes (no text or symbols)

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing electrical connections to a device with screw holes and a power outlet, illustrating electrical system setup.

Simple line drawing of a hand holding a grid-patterned rectangular object on a flat surface (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Diagram showing a hand using a tool to clean or store items, with a label indicating 'No. 1' and a magnified inset showing the object.

Diagram showing electrical connections to a device with labeled components and switches, including a battery box and wall-mounted buttons.

Line drawing of a hand holding a grid-patterned rectangular object (no text or symbols)

Technical diagram showing two views of a mechanical or electrical component with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with internal components and mounting brackets (no text or symbols)

Line drawing of a cabinet or storage unit with doors and windows, no text or symbols present

Illustration of a hand placing an electrical outlet into a grid (no text or symbols)

2.

Technical line drawing of an open oven with internal circulation and ventilation system (no text or symbols)

7.

CONSERVEZ LES INSTRUCTIONS D'INSTALLATION POUR VOTRE INSPECTEUR LOCAL.

INSTRUCTIONS D'INSTALLATION

4.
