USER MANUAL Coliseum ASTRALPOOL

Abstract blue water splash pattern with glossy texture and soft gradients (no text or symbols)

Spa

for public use

1.2.1. Warnings for the use of the Spa 6
1.2.2. Avoid the risk of hyperthermia 6
1.2.3. Warnings for maintenance works 6

2. DESCRIPTION OF THE INSTALLATION PROCEDURE 7

2.1.GENERAL DIAGRAM 7

2.1.1 Spa with Overflow 7
2.1.2 Spas with Skimmer 8

2.2. RECIRCULATION CIRCUIT 9

2.2.1 Recirculation circuit in Spas with Overflows 9
2.2.2 Recirculation circuit in Spa with Skimmer 13

2.3. WATER MASSAGE CIRCUIT 14
2.4. AIR MASSAGE CIRCUIT 15

3. INSTALLATION - RULES TO FOLLOW 16

3.1. FITTING AND INSTALLING THE SPA 16
3.2. START UP 21

4. MAINTENANCE 22

4.1. MAINTENANCE OF THE ACRYLIC 22
4.2. MAINTENANCE IN PERIODS OF NO USE OR ABSENCE 22
4.3. MAINTENANCE OF THE WATER 23

4.3.1. Safety in the use of chemical products 24
4.3.2. Adjusting the pH 24
4.3.3. Disinfecting the water 24
4.3.4. Use of special products 25
4.3.5. Ozone Generator (Only for Spas with this feature) 25
4.3.6. Quick guide for chemical product application 26

5. PROBLEMS AND SOLUTIONS 27

6. RECYCLING AND THE ENVIRONMENT 28

7. EVIDENCE OF CONFORMITY 29

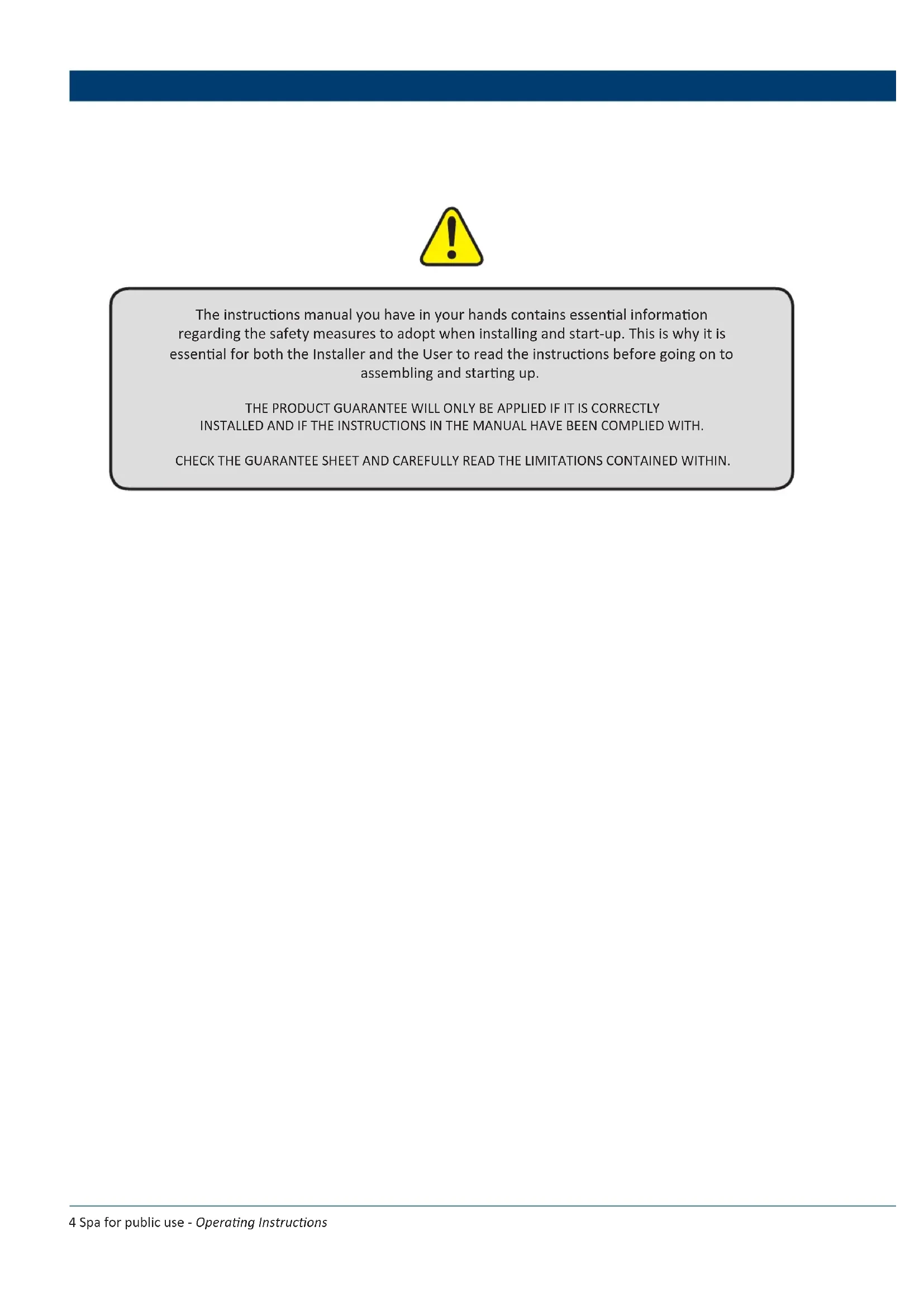

The instructions manual you have in your hands contains essential information regarding the safety measures to adopt when installing and start-up. This is why it is essential for both the Installer and the User to read the instructions before going on to assembling and starting up.

THE PRODUCT GUARANTEE WILL ONLY BE APPLIED IF IT IS CORRECTLY INSTALLED AND IF THE INSTRUCTIONS IN THE MANUAL HAVE BEEN COMPLIED WITH.

CHECK THE GUARANTEE SHEET AND CAREFULLY READ THE LIMITATIONS CONTAINED WITHIN.

1. INTRODUCTION

1.1. General information

This manual contains all the necessary information for fully enjoying your Spa. We suggest you take some time to go over the points below.

The Spa is an element designed especially for bathrooms, offering a bath/massage combination.

It consists of a closed water circuit powered by pumps which, combined with air, produce a relaxing massaging effect on your body.

For the massage bath to be effective, the water in the circuit must be at a temperature of between 34^ C and 37^ C, which is achieved by means of an electric heat exchanger.

If you have any questions or queries regarding the operation or maintenance of this product, contact the installer or your local distributor. They are specialised professionals and their knowledge will make things easier for you and will help you to enjoy this product.

IMPORTANT: The manufacturer reserves the right to change part of the designs or specifications without prior notice and without incurring in any obligations.

• This equipment cannot be connected to an ordinary plug.
• This equipment requires an appropriate electrical installation.
• It is essen al to earth the connec on.
• It is mandatory to comply with Electrical, Water Treatment, Hygiene and Safety Regulations in force in the country where the Spa and the Compact Kit are installed.
• Never access the electrical elements with wet feet.
• Do not connect the electric equipment (circuit breaker on the ON position) if the Spa is not lled with water.
• In case of faulty opera on or breakdown, contact the manufacturer's Technical Assistance Service, or the manufacturer's representative nearest to you.

1.2. Safety warnings

1.2.1. Warnings for the use of the Spa

• Take all precautions to avoid unauthorised access of children inside the Spa. In order to avoid accidents, ensure children are supervised by an adult at all times. Control entering and exiting the Spa in order to avoid slips due to wet surfaces.
- Do not allow anyone to play inside the Spa with metal or sharp objects that could damage the acrylic surface.
- Make sure that bathers cannot access any of the Spa's electrical components.
- Do not turn on the machine without there being water inside the Spa.
- Do not use electrical devices such as radios or dryers inside the Spa.
- Always keep the minimum water level indicated in the skimmer (in the case of private use Spas) or that indicated in the level probes of the surge tank in the case of public use Spas.

1.2.2. Avoid the risk of hyperthermia

• Prolonged direct contact with hot water can cause HYPERTHERMIA, which occurs when the internal temperature of our body reaches levels above the normal temperature of 36.5^ .
• Symptoms of hyperthermia include a sudden drop in blood pressure and in consequence a feeling of faintness with the possibility of fainting.
• The Spawater should never exceed 40^ .
• Water temperatures of between 37^ and 40^ are considered safe for adults who have no health problems. Lower temperatures are recommended for most people and for children.
• Remember that prolonged bathing in the Spa can cause hyperthermia.

1.2.3. Warnings for maintenance works

• Before proceeding to carry out any electrical or mechanical intervention, please ensure the machine is disconnected from the power supply network and that the start up devices are blocked.
• Do not handle the equipment with wet feet.

THE USE OF ALCOHOL, DRUGS OR MEDICATION MAY INCREASE RISK OF HYPERTHERMIA. IT IS UNADVISABLE FOR PREGNANT WOMEN TO USE THE SPA. CONSULT WITH YOUR PHYSICIAN.

2. DESCRIPTION OF THE INSTALLATION PROCEDURE

2.1. General diagram

2.1.1. Spa with Overflow

Spas with overflows can redirect the water displaced by users into a balance tank, always maintaining a stablewater level inside the Spa tub.

Below is a general diagram of the installation of this type of Spa.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

General diagram of Spa with Overflow

1 Spa 6 Ozonator
2 Balance tank 7 Massage pumps
3 Filter pump 8 Blower pump
4 Filter 9 Electric operation cabinet
5 Electric heating

2.1.2. Spa with Skimmer

Spas without overflows have a different setup. No balance tank is required; instead, the Spa water is suctioned directly via a skimmer. When users enter the Spa, thewater level rises; the tub may overflow if the number of users exceeds the indications for each Spa.

Below is the general diagram of the installation of Spas with skimmers.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

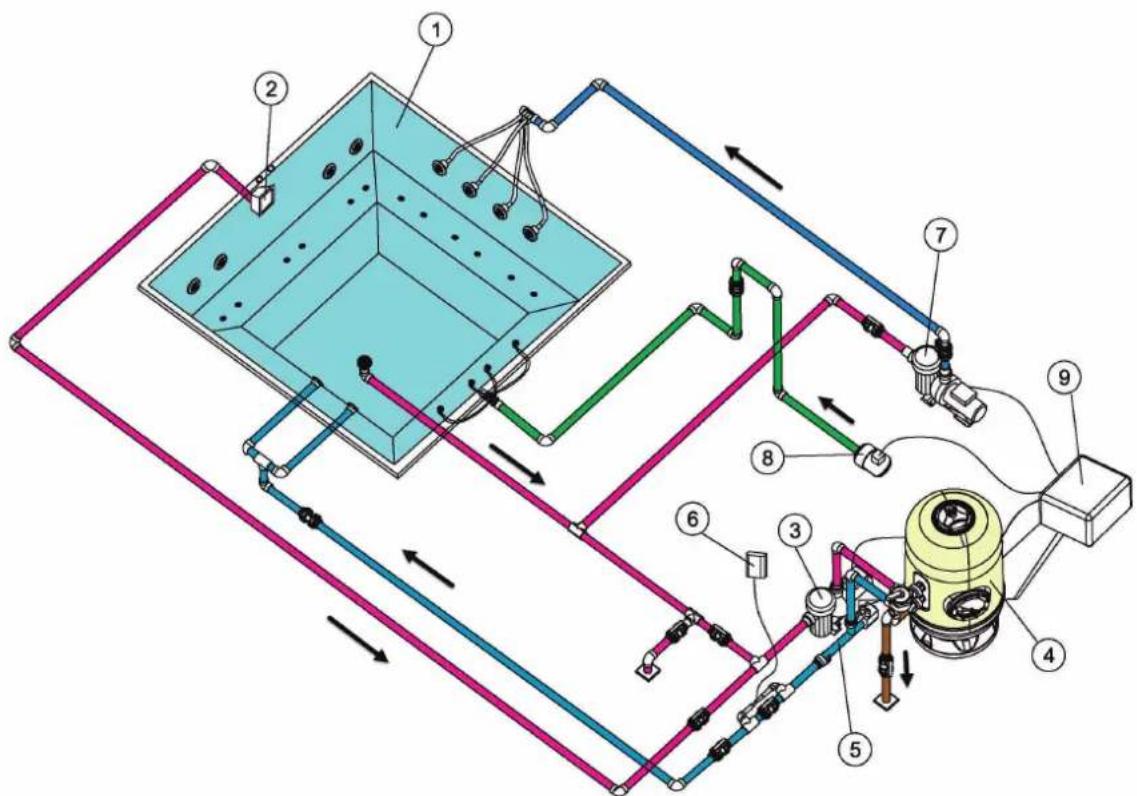

General diagram of Spa with Skimmer

1 Spa 6 Ozonator
2 Skimmer 7 Massage pump
3 Filter pump 8 Blower pump
4 Filter 9 Electric operation cabinet
5 Electric heating

The installation of both Spas with overflows and Spas with skimmers include the recirculation circuit, water massage, air massage and an electrical installation, all of which are detailed below.

2.2. Recirculation circuit

The function of this circuit is to maintain the quality of the Spa water. This is achieved by means of water recirculation through a purification filter, a heating system and a disinfection system.

Given that the Spa has an overflow, it is essential to maintain the water level constant and at maximum level. In order to achieve this, it is necessary to install a balance tank installed in series with the recirculation circuit. Doing so will compensate the fluctuations in level caused by variations in the number of bathers.

Although there are different ways of setting up the recirculation circuit, we proceed to detail the two most popular systems: “Floor suction” and “Floor return”. Check the regulations in force in each country in order to establish which system is best.

Option A: Spa floor suction

This option makes it possible to collect part of the recirculationwater from the Spa floor drain. The filtered water is absorbed both from the balance tank (mostly) and the Spa floor drain via the filter pump, and is directed towards the sand filter, the heating and the ozonator or disinfection system; to be directed towards the Spa via the return nozzles.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

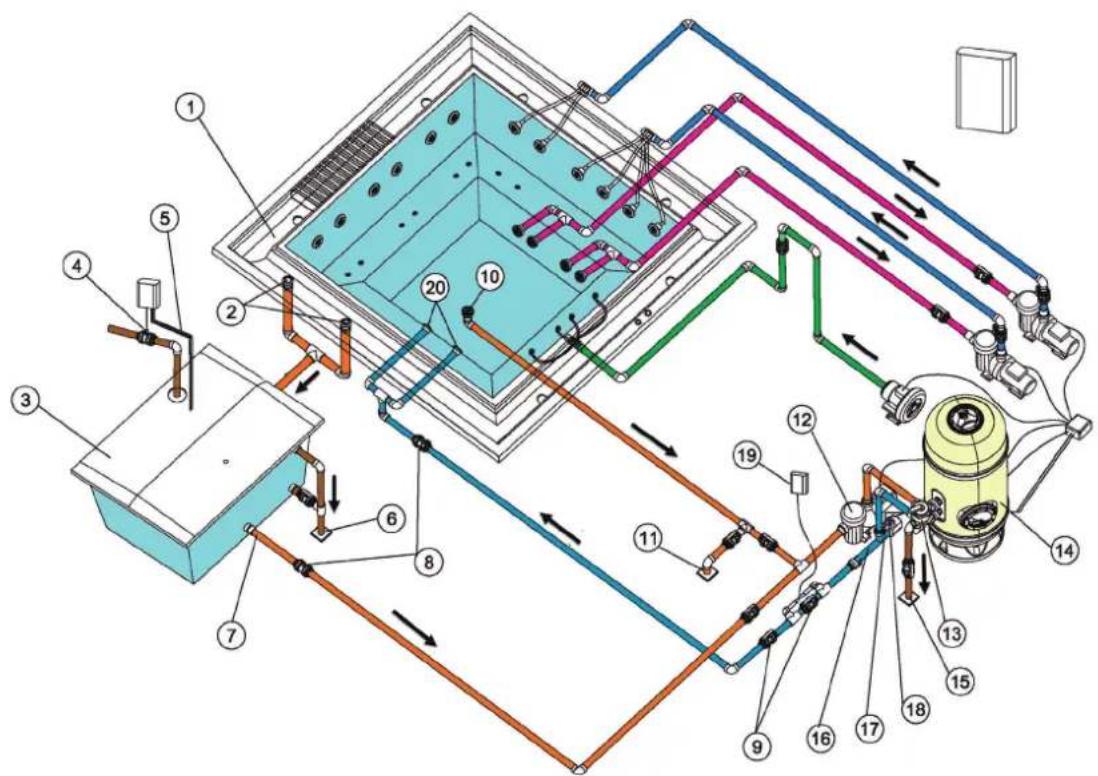

Recirculation diagram of Spa with overflow. Option A

1	Overflow 11 Spa drainpipe
2	Overflow drains 12 Filter pump
3	Balance tank 13 Selector valve
4	Filling solenoid valve 14 Filter
5	Level probes 15 Filter drainpipe
6	Balance tank drain 16 Electric Heating
7	Balance tank suction 17 Temperature Probe
8	Anti-return valve 18 Flow detector
9	By-pass valve 19 Ozonator
10	Drain 20 Spa return nozzles

Option B: Spa floor return

This option allows you to direct part of the already filtered and heated water both via the return nozzles and via the Spa floor drain.

The filtered water is only suctioned from the balance tank by the filter pump and is directed toward the sand filter, the heating and the ozoniser or disinfection system, to then be directed towards the Spa via the return nozzles and the Spa floor drain.

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

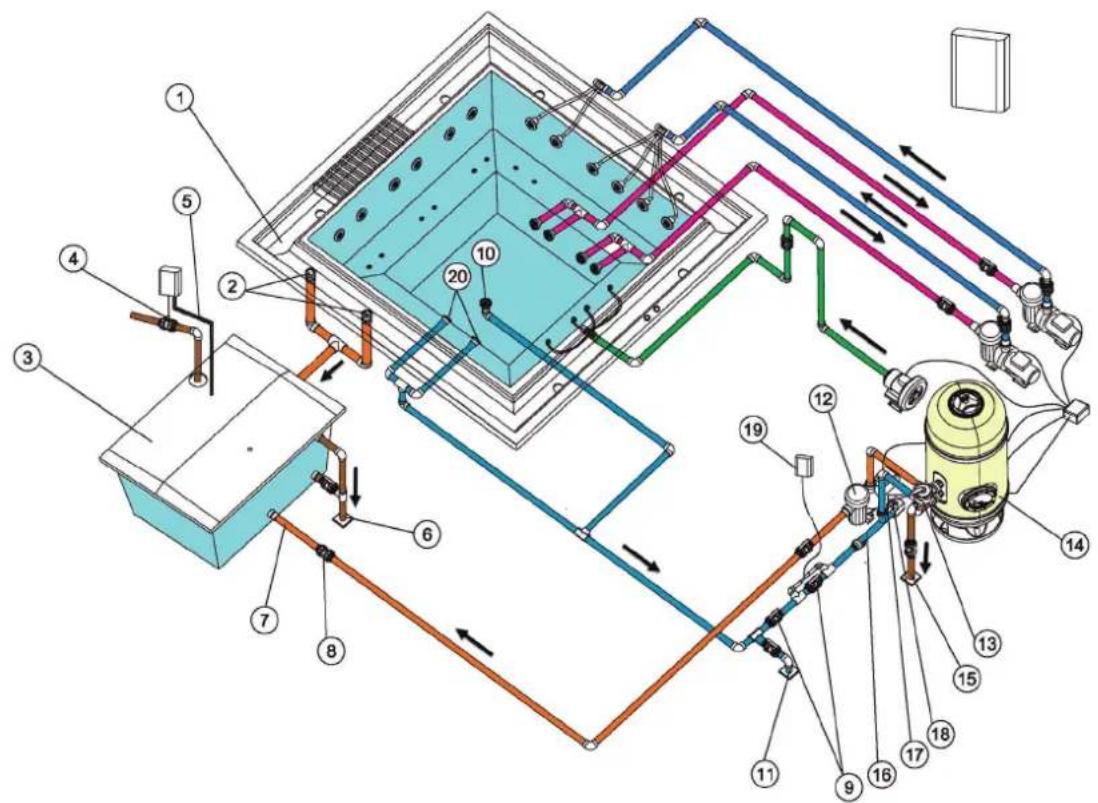

Recirculation diagram of Spa with overflow. Option B

1	Overflow 11 Spa drainpipe
2	Overflow pipes 12 Filter pump
3	Balance tank 13 Selector valve
4	Filling solenoid valve 14 Filter
5	Level probes 15 Filter drain
6	Balance tank drain 16 Electric heating
7	Balance tank suction 17 Temperature probe
8	Anti-return valve 18 Flow detector
9	By-pass valve 19 Ozonator
10	Drain	20 Spa return nozzles

2.2.2. Recirculation circuit in Spa with Skimmer

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

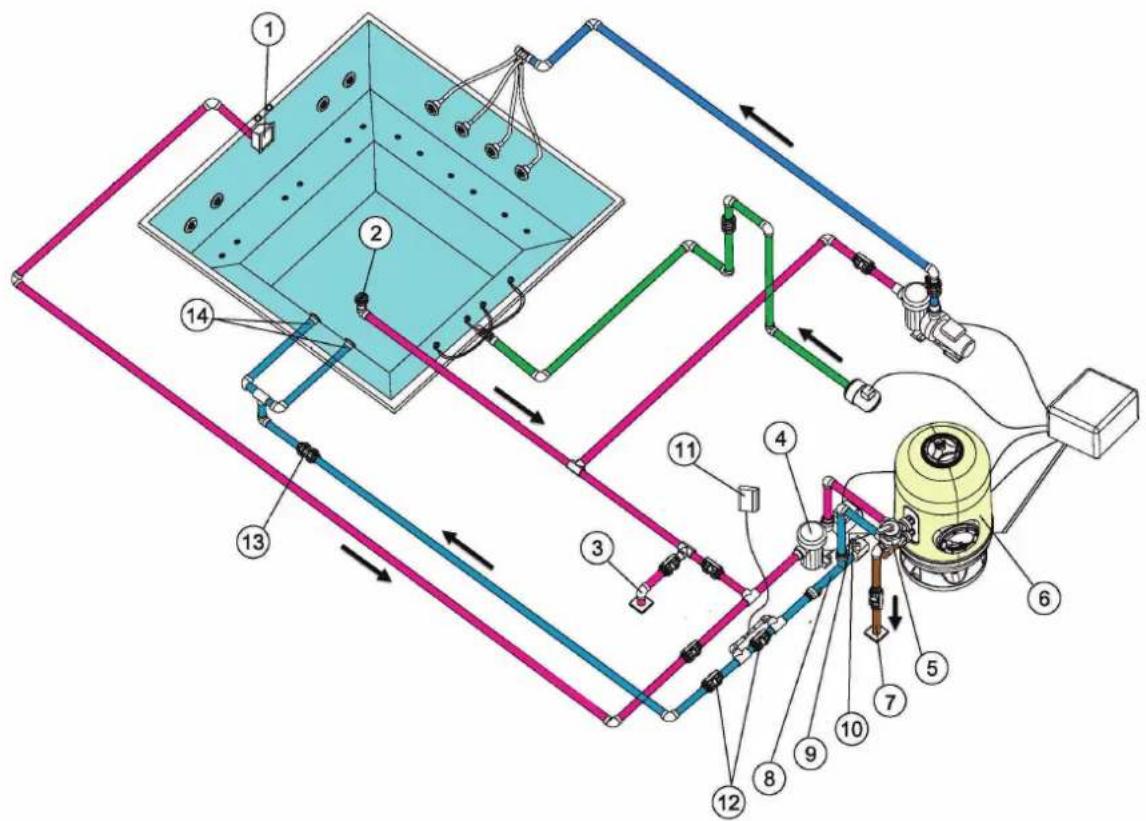

Recirculation diagram of Spa with Skimmer

1	Skimmer 8 Electric heating
2	Drain 9 Temperature probe
3	Spa drainpipe 10 Flow detector
4	Filter pump 11 Ozonator
5	Selector valve 12 By-pass valve
6	Filter 13 Check valve
7	Filter drainpipe 14 Spa return nozzles

The basic components present in all heating circuits are:

Filter pump.

Designed to carry out the filter and heating circuit, recycling the water of the Spa in approximately 6 to 20 minutes. Suctions from the Skimmer or Surge Tank, directing the water through the filter and electric heating, via the return nozzle.

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Electric heat exchanger.

This makes it possible to maintain the desired temperature. It must be placed in the filter circuit after the filter, so as to avoid air bubbles accumulating inside.

The heat exchanger incorporates a safety thermostat with manual reset. This avoids the heat exchanger from being damaged if the Spa is started up without any water circulating.

Mechanical device with cylindrical and mechanical components, no visible text or symbols

Filter.

Element which filters in order to ensure thewater is of an adequate quality.

The size of the filter is determined on the basis of:

• Volume of the Spa.
• Water recirculation time.
- Filtering speed.
- Filtering surface.

Flow detector.

Safety device designed to prevent the heat exchanger from operating if there is no water flow in the filtration circuit.

2.3. Water massage circuit

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

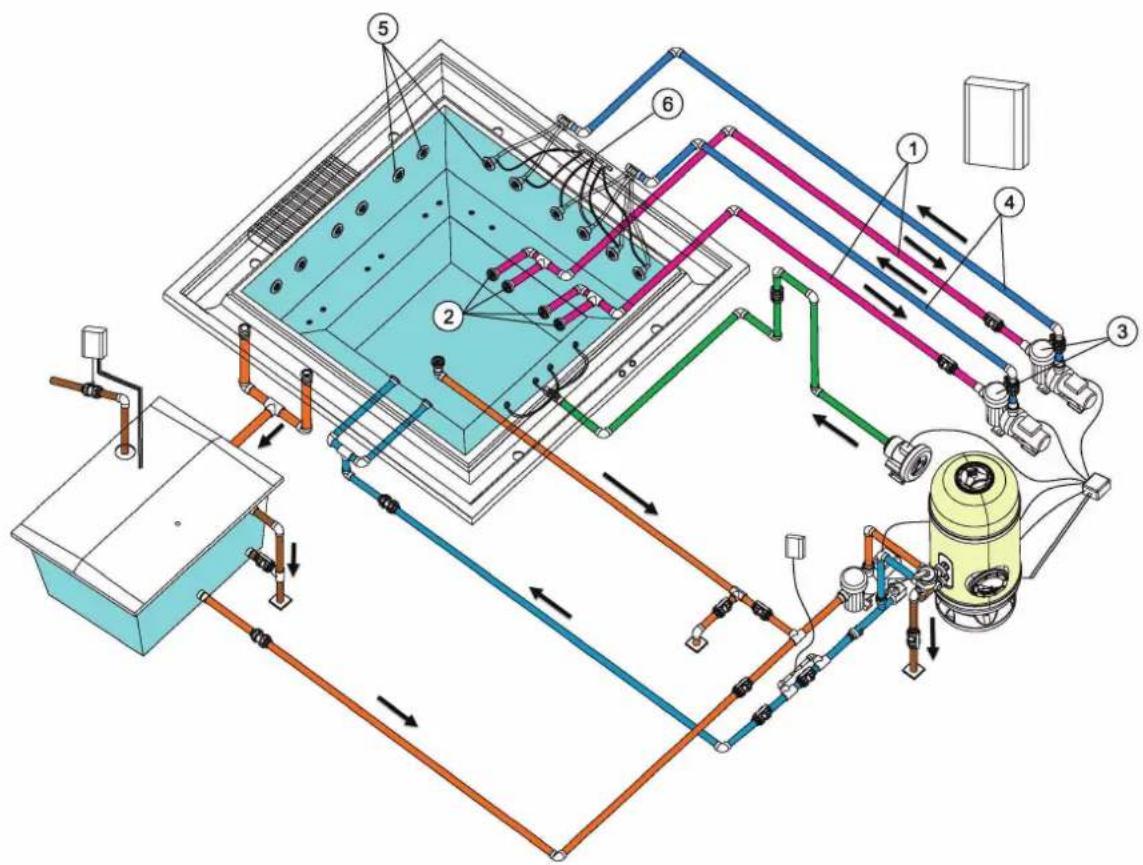

General diagram of water Spa Massage

1	Suction circuit 4 Water return circuit
2	Spa suction drainpipes 5 Massage jets
3	Massage Pump 6 Air suction circuit

The water is suctioned by the massage pump through the drainpipes and is returned to the Spa via high speed jets.

There can be several massage circuits in a single Spa, each activated by a massage pump. Depending on the Spa and the number of jets it has, there may be one, two or even three massage pumps.

In order to boost the water massage a connection is made with an ambient air intake. This way, when the water circulates through, thanks to the Venturi effect, the air is suctioned, creating the air-water mix and producing a more intense massage.

2.4. Air massage circuit


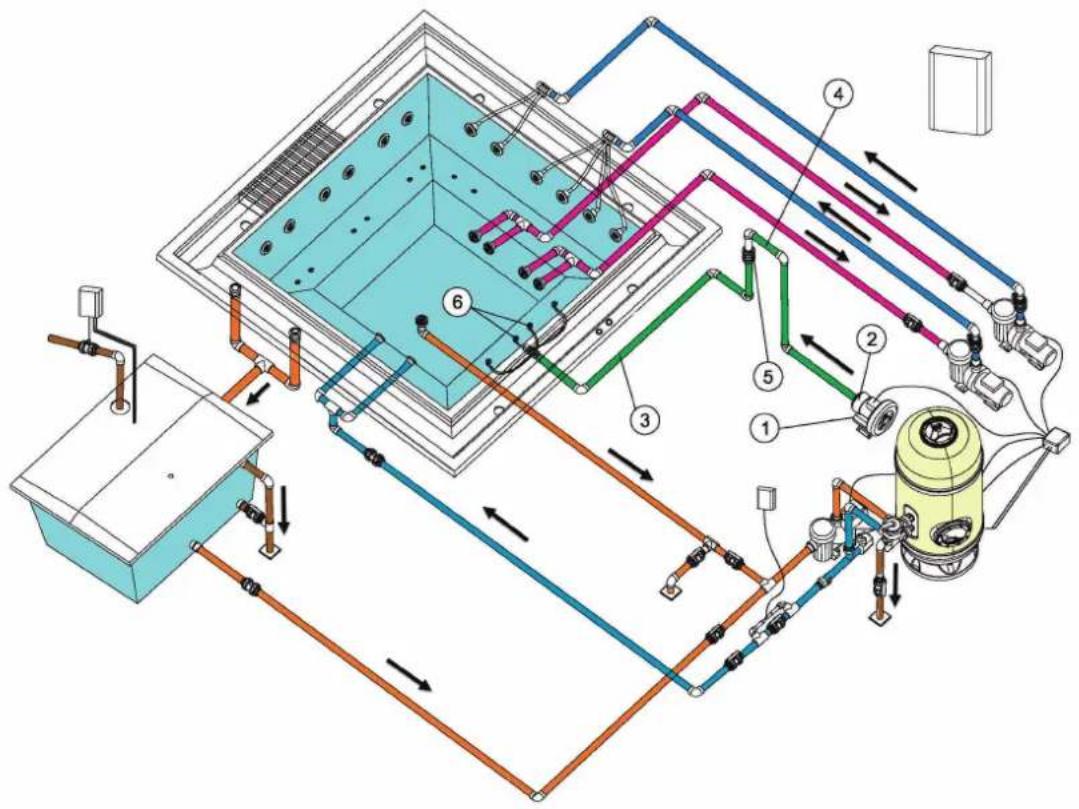

General diagram of Air Spa Massage

1 Air suction 4 Protection siphon
2 Blower pump 5 Check valve
3 Air return circuit 6 Air injection nozzles

Continued use blower pump for Compact Kit in public use installations. They operate with a 400 V AC III electrical supply as standard.

Air circuit.

The mission of the air circuit is to return air from the blower pump to the Spa. The air is distributed inside the Spa via a series of blowing nozzles located on the floor or on the seats of the Spa.

3. INSTALLATION - RULES TO FOLLOW

3.1. Fitting and installing the spa.

Handling of the Spamust be done very carefully and in a controlled manner by several persons. The Spa must never be held by the pipes.

The Spa should be installed following the criteria below.

No material should be used or located below the Spa and around it (in a minimum perimeter of one meter) unless it is completely resistant to humidity and water. The Spa warranty does not cover any damage to materials, decorative or ornamental objects that may deteriorate due to flooding or atmospheric humidity.

The Spamust be located in a duly adapted space which is adequate for withstanding significant damp and condensation. If this is not so, the warranty will not cover material or personal damages.

It is essential to have an adequately sized drain for draining out any water that could reach the area under the Spa.

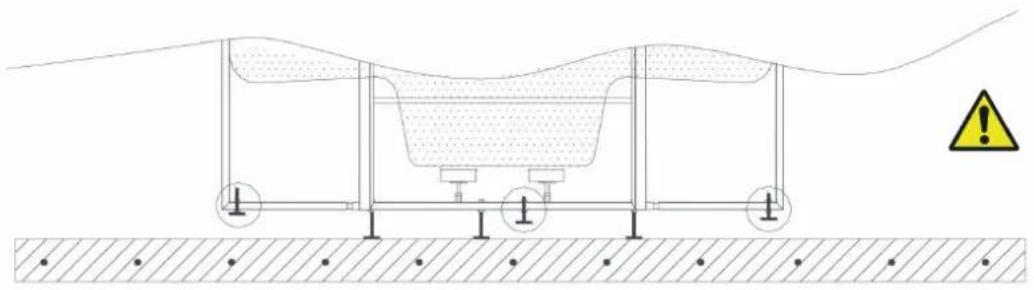

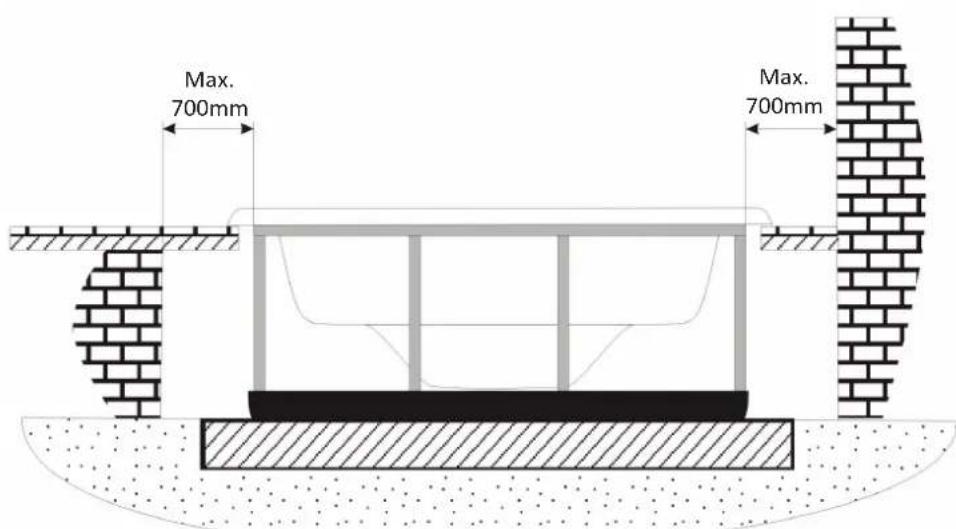

The base where the Spa will be installed should be large and strong enough to withstand the weight of the Spa, the water and the users. If this is not so, the warranty will not cover the damages caused. Check the building regulations in force.

Prior to the installation, if you believe that for any reason you may have to extract the Spa from its initial location, you should take this factor into account, and avoid having to break down masonry or structures and pipes should the Spa have to be unassembled. Thewarranty does not include repair of any damages caused in this instance.

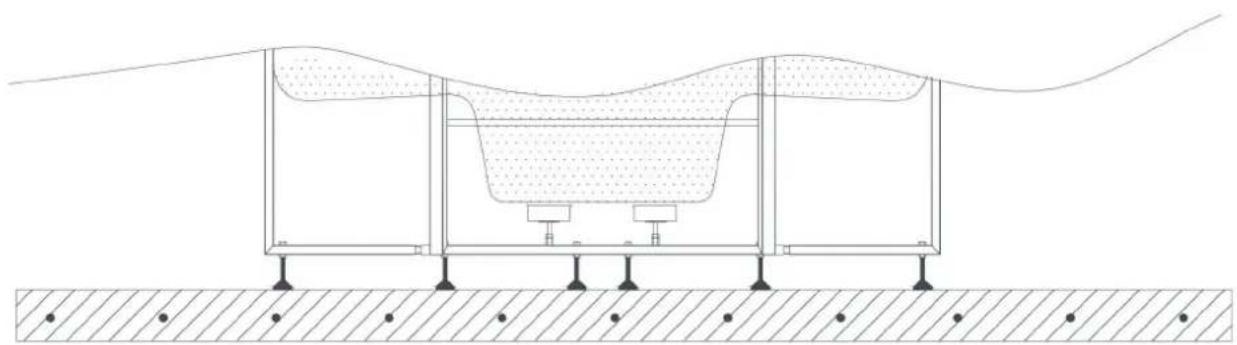

Below we provide some basic advice as to how to build foundations for the Spa. It is essential to comply with building regulations in force in all cases.


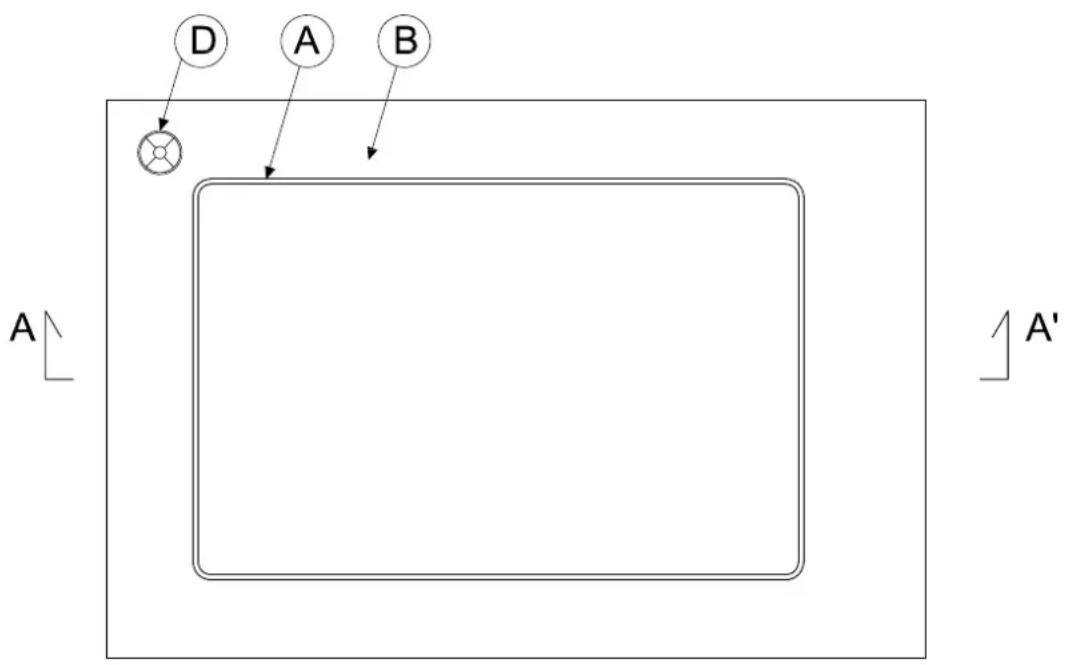

Foundations diagram

All measurements in mm.

A) Spa surroundings.
B) Reinforced concrete slab.
C) Equidistant reinforcement rods in both directions.
D) Cubicle drain.

Dimensiones en mm A C B 130 380

A: Concrete slab

B: Steel rod

C: Compacted sand

All measurements in mm.

Detail of foundations.

The Spa is supplied with a metal structure to make installation easier. This structure has several support points. Before filling up the Spa, these levelling points must be regulated so that all of them are in contact with the ground.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

RIGHT

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

WRONG
Fig.1 Diagram of Spa height regulation.

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

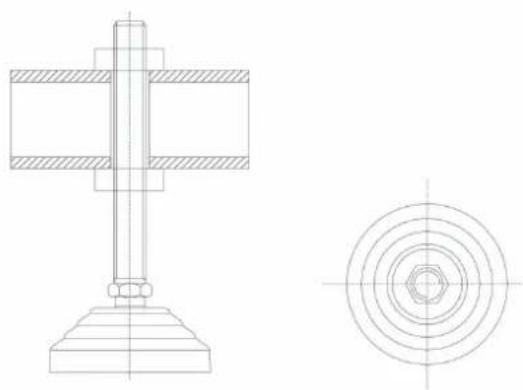

Detail of regulation support.

The Spamust be completely supported by the support structure, and must never be supported by its upper edge; otherwise the possible bending would cause the Spa shell to break.

Technical diagrams of a mechanical or structural assembly with cross-sectional views and a warning symbol (no text or labels present)

RIGHT WRONG
Spa support diagram

In order to seal the lip of the Spa to the foundations, use elastic silicone special forwater installations.

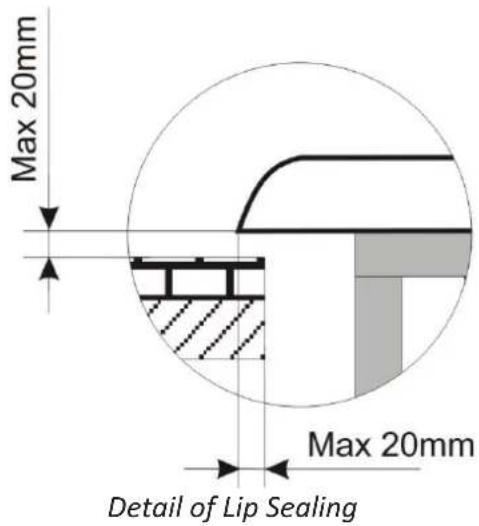

Max 20mm Max 20mm Detail of Lip Sealing

Once the Spa has been correctly fitted, finish the installation taking into account that you must leave a free passage of at least 400mm around the shell for possible maintenance works. Never place elements that may touch the body of the Spa, pipes or accessories in this area. Leave a trapdoor or accessway around the Spa for maintenance.

Max. 700mm Max. 700mm

Diagram of minimum distance around the Spa

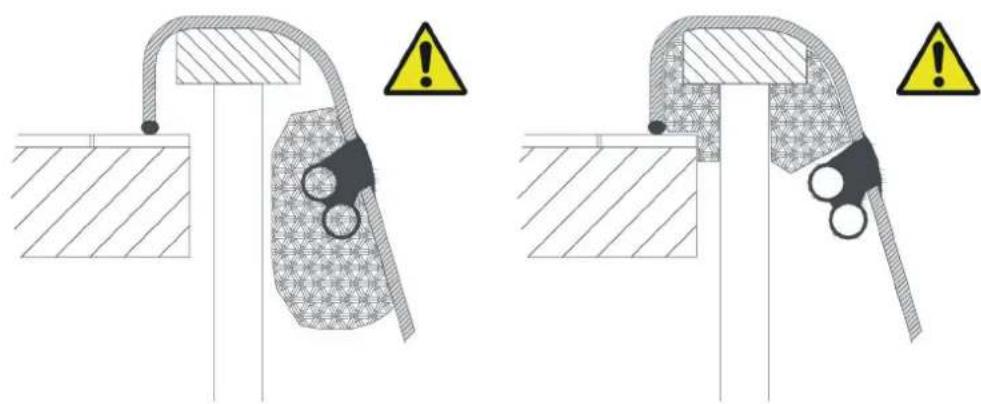

Never fill in the Spa's upper edge with cement or any other material that may have an expansion / contraction different to that of the Spa shell. The Spawould end up cracking.

Never fill in with concrete the Spa's pipes or accessories.

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

INCORRECT

Detail: Do not fill in.

3.2. Start up

With the main circuit breaker on the OFF position, clean the Spa shell to avoid particles of the works being absorbed and obstructing the components or circuits.

Open all the valves except the drainage.

a) Spas with Overflow and BalanceTank:

Open the Spa's filling valve and fill up the Spa until the water exceeds the SMAX level of the balance tank by 5 to 8 cm.

Important: When you start up the filtering equipment for the first time, the water level of the balance tank will decrease substantially. This is due to the fact that the piping between the balance tank and the Spa, filter and pump is practically full of air.

b) Spas with Skimmer:

Wait for 15 minutes and inspect all the connections to ensure there are no leaks. Provide electrical power to the cabinet by switching on its main circuit breaker (ONposition). Start up the filter pump, the massage pump and the air pump and check that there are no leaks in the pipes and connection elements after 30 minutes of operation.

Stop the filter pump and fill the water filter up to half, and then subsequently fill with sand (the type of sand to be used is specified in the Filter Manual annexed to the Compact Kit). Place the selector valve of the filter with the lever in the wash position. Manually activate the filter pump; carry out a wash in the filter lasting approximately 2 minutes, stop the pump and set the lever to the rinse position. Start up the pump again and rinse for approximately 15 seconds.

Stop the pump and change the lever to the filter position. Fill up the Spa once again. Program the thermostat to the desired temperature. Read the Compact Kit manual. (Reaching the desired temperature after filling up the Spa may take several hours). Program the filter clock. (Read the Compact Kit Manual).

In the main electrical cabinet, activate the massage and heating switches. Set the filtering switch to the desired position, and the Spa will start to function carrying out the filtering and heating cycle. Once these checks have been made, fill in the attached Warranty form and send it to the manufacturer.

Jets can also regulate the intensity of the flow by opening and closing the water flow. To do so, proceed as follows:

OPEN CLOSE

Spas are built to the highest standards with the most durable materials available. The right maintenance and care will be key factors to ensure your Spa and its components have a long life.

4. MAINTENANCE

4.1. Maintenance of the acrylic

Easy care for an elegant surface:

• Use common cleaners for general use. For normal care and cleaning, use a soft cloth or sponge with a little soap and water. Rinse it well, and dry with a clean, dry cloth. If you are using a household cleaner, please ensure it is recommended for acrylic surfaces by the manufacturer.
• Never use abrasive cleaners.
• Do not allow the acrylic surface to come into contact with ketones or esters such as acetone, acetates (such as nail varnish remover, nail varnish or dry cleaning substances) or any organic solvent with chlorine, varnishes, petrol, aromatic solvents, etc.
• Remove dust, smears and dry dirt with a soft, moist cloth.
• Clean off grease, oil, paint and ink stains with isopropyl alcohol and dry it with a clean, dry cloth.
• Avoid using razors or any other kind of sharp instrument that could scratch the surface. Small scratches can be removed by applying a fine layer of automotive varnish and lightly polishing it with a clean cloth.

Once aweek, clean the area of the Spa which is not underwater with a quality polish for Spas.

Remember to never leave the Spa uncovered, empty and exposed to the sun, as it could cause damages that the warranty does not cover.

4.2. Maintenance in periods of no use or absence

SHORT PERIODS (3-5DAYS)

• Adjust the pH and treat thewater (see section on water Maintenance).
• Cover the Spa.
• On your return, readjust the pH and treat the water again.

LONG PERIODS (5-14 DAYS)

• Program the temperature at its lowest level.
• Adjust the pH and treat the water (see section on water Maintenance).
• Cover the Spa.
• On your return, reset the temperature to the desired level, readjust the pH and treat the water again.

PREPARING FOR THE WINTER PERIOD

Should you not be using the Spa during the winter or during long periods, you must carry out the following operations:

• Disconnect the electrical equipment.
  • Empty the water from the Spa.
• Leave the drain valve open.
• Clean and dry the Spa.
• Cover the Spa.

You should not leave water in the Spa without an electrical connection outdoors in temperatures below o^ , given that the pipes could freeze and damage the Spa.

It is necessary to comply with Regulations in force in each country regarding Legionella. All responsibility for compliance with these falls on the owner of the Spa.

4.3. Maintenance of the water

Water maintenance is one of the areas where the user should provide greatest attention, given its importance. This maintenance will depend on the mineral content of the water used, of the Spa's frequency of use, and of the number of people using the Spa.

There are three main points to take into account inwater maintenance:

• WATER FILTRATION
• CHEMICAL ANALYSIS AND PH CONTROL
•DISINFECTION OF THE WATER

4.3.1. Safety in the use of chemical products

Before using any chemical product, carefully read the instructions for use on its product label.

IMPORTANT

• It is advisable that always the same person handles the chemical products. Keep these products away from children.
• Add the exact amounts to the water, as specified.
• Keep containers tightly closed in dry, well-ventilated places.
• Do not inhale chemical products, and take care not to let them come into contact with the eyes, nose or mouth. Wash hands after use.
• Follow the emergency instructions on the product label in the event of an accident or ingestion.
• Do not smoke while handling these products – they may be flammable.
• Do not store these products inside the Spa unit.
• Do not mix products. Add first one and then the other to the water, to avoid possible reactions.
• Do not add chemical products to the water if there is someone in the Spa.

4.3.2. Adjusting the pH

A pH index of between 7.2 and 7.6 is recommended.

The pH level measures the acidity and alkalinity: Values above 7 are alkali and below 7, are acid.

It is very important to maintain the correct pH level both for the disinfectant to work properly and to prevent corrosion or deposits on the Spa. Any damage caused by an inadequate pH level is not covered by your Spa guarantee.

If the level of pH is very low, the effects are as follows:

• The disinfectant will dissolve rapidly.
- The Spa kit may start to show corrosion.
- The water may start to produce irritation in bathers.

If the level of pH is very high, the effects are as follows:

• The disinfectant is less effective.
- The acrylic and the kit may start to showscaling.
• The water may turn cloudy.
- The filter cartridge pores may be obstructed.

Check the pH of the water with the pH analyser case on a daily basis.

If the pH is above these indexes, use pH MINOR SPA. Wait for two hours before doing the pH test.

When the pH index has been adjusted to the values indicated above, proceed to the next step.

4.3.3. Disinfecting thewater

Disinfecting the water is of utmost importance in order to destroy algae, bacteria and any other organisms that may grow in the water. However, excessive disinfection can cause irritations to the skin and eyes.

The appropriate disinfectant for your Spa water is BROMINE TABLETS. Place this product in the pre-filter for it to gradually dissolve.

Check the level of residual bromine using the Br analyser case on a daily basis.

Residual bromine levels of between 2.2 and 3.3 ppm are recommended.

Should you use Chlorine, in order for it to be effective, you must maintain a concentration of Free Residual Chlorine of between 0.5 and 1.5 ppm.

4.3.4. Use of special products

In addition to products for maintaining pH and disinfectant levels, there are others especially designed for use in Spas which will help you to maintain the water and the installations in perfect conditions.

• TIMESCALE REMOVER FOR SPAS: Avoids the formation of calcium salts (scaling), especially in hard water. This product is added weekly and every time the water is renewed.
- ALGAECIDE FOR SPAS: This algaecide prevents the growth of algae in the Spa water. The product is added weekly and every time the water is renewed.
- FOAM REMOVER FOR SPAS: Due to the agitation of the water and the grease present in it, foam often forms in Spas. When ever you notice a significant amount of foam in the water, you can eliminate it with this product.
- GREASE REMOVER FOR SPAS: For eliminating the rings of dirt and grease that form on the walls of the Spa. To use this product we advise emptying the water from the Spa, and applying the grease remover with a sponge on the areas to be cleaned. Then rinse immediately with abundantwater.

4.3.5. Ozone Generator (Only for Spas with this feature)

Ozone, O_3 , is an oxidising chemical component which is very effective in disinfecting water. Its main advantage is that it leaves no chemical residue and is odourless.

Its disinfectant properties are based on its oxidising potential, which leads to the elimination of any organic matter that there may be in the water.

In order to produce ozone, some Spas have an ozonator which, with electricity, can produce ions of ozone from atmospheric oxygen. This process occurs automatically, and the product generated is injected via the filtration return nozzles. Thus, it is not necessary for the user to activate any mechanism for its generation.

The water is collected by the overflow, the drains or the skimmer, due to the suction of the filter pump.

Then it passes through the heat exchanger and in its outlet it is injected with ozone. The water is distributed via the filtration return system.

Ozone treatment does not exclude the use of other chemical products such as Bromine or Chlorine.

The ozone is considered as a complementary process to the ones above, thus reducing the consumption of Bromine or Chlorine.

4.3.6. Quick guide for chemical product application

	Reason for use Amounts	per m3of water	Frequency of use
PH MINOR SPA	Add if the pH test comes out above recommended values (7.2-7.6 ppm).	Add according to recommendations of the chemical product manufacturer.	Analyse the pH daily with the pH Test.
PH MAJOR SPA	Add if the pH test is below recommended values (7.2-7.6 ppm).	Add according to recommendations of the chemical product manufacturer.	Analyse the pH daily with the pH Test.
BROMINE TABLETS	Add if the Br test is above recommended values (3-5 ppm).	Add according to recommendations of the chemical product manufacturer.	Analyse the Br daily with the Br. Test.
LIME SCALE REMOVER	Avoid the formation of calcium salts (scaling).	Add according to recommendations of the chemical product manufacturer.	Once per week, and each time the water is renewed.
ALGAECIDE FOR SPAS	Prevents the growth of algae in the water.	Add according to recommendations of the chemical product manufacturer.	Once per week, and each time the water is renewed.
GREASE REMOVER	Eliminate rings of dirt on the Spa walls.	Scrub with a sponge and immediately rinse with abundant water.	Whenever dirt is observed on the Spa walls.
FOAM REMOVER	Presence of foam in water.	Add according to recommendations of the chemical product manufacturer.	Whenever foam appear in the water.

1. PROBLEMS AND SOLUTIONS

Problem Reason Solution
No element is activated. Circuit breaker on OFF position. Switch circuit breaker to ON.
No pump or heating is activated.	Operating switch in OFF position. Change operating switch to ON.
FILTER
Low water flow during filtration.	Obstructed or dirty filter. Wash filter.
Filter pump is not activated.	Filter pump faulty.	Check pump / Change brushes.
	Faulty or poorly connected contactor.	Installer: Check connection wires. Change contactor.
	Poorly regulated thermal magnetic breaker.	Adjust thermal magnetic breaker according to motor consumption.
	Faulty thermal magnetic breaker. Change thermal magnetic breaker.
	Pump selector on stop. Change to manual or automatic.
WATER MASSAGE
Massage pump is not activated. Signal transmission cable disconnected. Conectar e tubito* / cable.

Problem Reason Solution
HEAT EXCHANGER
The thermostat does not indicate the correct temperature.	Poorly fitted temperature probe. Fit the probe properly into its housing.
	Faulty temperature probe. Change the probe.
	Temperature controller damaged. Change controller.
No hot water.	Heat exchanger badly wired / defective.	Check wiring resistance / Change Heat exchanger.
	Contactor damaged or bad connection. Installer: Check wiring connection. Replace contactor.
	Magneto - thermal damaged. Change magneto -thermal.
	Exchanger switch OFF. Turn switch to ON.
	Flow switch bad wired / damaged. Check wiring flow-switch / Change flow switch.
	Safety thermostat detect T>65°C.	Reset safety thermostat

* Only in the case of pneumatic push buttons.

6. RECYCLING AND THE ENVIRONMENT

Your Spa contains electrical and/or electronic material. When it reaches the end of its useful life, it must be treated as specialwaste.

Contact your local authorities to find out about the procedure for collecting and treating waste containing electrical and electronic material.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

7.EVIDENCE OF CONFORMITY

IBERSPA, S.L.

Av.Pla Urgell 2-8

25200-Cervera (LLEIDA)

SPAIN

E PRODUCTOS: NL PRODUKTEN:

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

ÍNDICE

1. INTRODUCCIÓN 33

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical device with numbered components and flow paths

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Mechanical device with cylindrical and linear components, no visible text or symbols

Filtro.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

CORRECTO

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

Detalle No rellenar.

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

INDEX

1. INTRODUCTION 61

1.1. GÉNÉRALITÉS 61
1.2. AVERTISSEMENTS DU SÉCURITÉ 62

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical device with numbered components and flow paths

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Mechanical device with cylindrical and rectangular components, no visible text or symbols

Filtre.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or fluid system with numbered components and directional flow indicators.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

CORRECT

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical diagrams of a mechanical or structural assembly with cross-sectional views and a warning symbol (no text or labels present)

CORRECT INCORRECT
Schéma portance Spa.

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

INCORRECT

OPEN CLOSE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

INHALTSVERZEICHNIS

1. EINLEITUNG 89

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow arrows indicating process flow.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical device with numbered components and flow paths

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Mechanical device with cylindrical shaft and mounting flange (no visible text or symbols)

Filter.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Schema Wassermassage Spa.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

RICHTIG

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical diagram showing two cross-sectional views of a mechanical or structural component with no visible text, numbers, or symbols.

Two identical diagrams showing a mechanical or structural component with hatched areas and warning symbols (no text or labels present)

OPEN CLOSE

4. INSTANDHALTUNG

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

7. KONFORMITÄTSNACHWEIS

IBERSPA, S.L.

Av.Pla Urgell 2-8

25200-Cervera (LLEIDA)

SPAIN

E PRODUCTOS: NL PRODUKTEN:

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄 PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

INDEX

1. INTRODUZIONE 117

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

Schema ricircolo Spa a Skimmer

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Mechanical device with cylindrical and rectangular components, no visible text or symbols

Filtro.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Schema basamento.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

CORRETTO

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical diagrams of a mechanical or structural assembly with cross-sectional views and a warning symbol (no text or labels present)

CORRETTO ERRONEO

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

ÍNDICE

1. INTRODUÇÃO 145

1.1. GENERALIDADES 145
1.2. ADVERTÊNCIAS DE SEGURANÇA 146

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow arrows indicating process flow.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Esquema geral Spa com Skimmer.

Technical schematic diagram of a mechanical or electrical device with numbered components and flow paths

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

3D rendering of a mechanical pump or motor assembly (no visible text or symbols)

Mechanical device with cylindrical and mechanical components, no visible text or symbols

Filtro.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Cross-sectional diagram of a structural support system with layered components and ground anchors (no text or labels)

CORRECTO

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Detail of regulation support.

Technical diagrams of a mechanical or structural assembly with cross-sectional views and a warning symbol (no text or labels present)

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

Detalhe Não encher.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄 PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.

INDEX

1. INLEIDING 173

1.1. ALGEMENE INFORMATIE 173
1.2. VEILIGHEIDSWAARSCHUWINGEN 174

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Schema recirculatie overloopspa. Optie A.

Technical schematic diagram of a mechanical or electrical device with numbered components and directional flow indicators.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional arrows indicating flow or movement.

Mechanical pump assembly with motor and cylindrical housing (no visible text or symbols)

3D rendering of a mechanical device with cylindrical components and mounting flanges (no visible text or symbols)

Filter.

Technical schematic diagram of a mechanical or electrical system with numbered components and directional flow indicators.

Schema Watermassage Spa.

Technical schematic diagram of a mechanical or fluid system with numbered components and directional flow indicators.

Cross-sectional diagram of a structural support system with layered components and ground floor (no text or labels)

CORRECT

Cross-sectional diagram of a water channel structure with warning symbol (no text labels)

Technical drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical diagrams of a mechanical or structural assembly with cross-sectional views and a warning symbol (no text or labels present)

CORRECT NIET CORRECT
Schema ondersteuning Spa.

Two diagrams showing a mechanical or structural assembly with warning symbols (no text or labels present)

NIET CORRECT

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

7. CONFORMITEITSVERKLARING

IBERSPA, S.L.

Av.Pla Urgell 2-8

25200-Cervera (LLEIDA)

SPAIN

E PRODUCTOS: NL PRODUKTEN:

GB PRODUCTS: S PRODUKTER:

D PRODUKTE: N PRODUKTER:

F PRODUITS: DK PRODUKTER:

I PRODOTTI: SF TOUTTEET:

P PRODUTOS: GR 📄PIONTA:

EVIDENCE OF CONFORMITY

The products listed above are in compliance with : Directive EN 263:2008.

DECLARATION CONFORMITÉ

Manager of Iberspa, S.L. by proxy

Gerente de Iberspa, S.L. P.P.
