Product type	Halogen spotlight with motion detector
Brand	Livarno Lux
Model	IAN 85950
Power supply	220-240 V ~, 50 Hz
Power consumption	120 W
Protection class	I
Protection rating	IP44
Bulb type	R7s / J78 / 120 W (max. 150 W)
Motion detector	Yes, detection angle max. 120°
Detection range	5 - 12 m (adjustable)
Brightness sensor	5 - 2000 Lux (adjustable)
Lighting duration	7 s - 12 min (adjustable)
Use	Indoor and covered outdoor
Safety distance	At least 1 m from the illuminated surface
Warranty	3 years
After-sales service (France)	0800 919270
After-sales service (Switzerland)	0842 665566
Cleaning	Damp cloth and mild detergent
Spare parts	R7s bulb, protective glass

Frequently Asked Questions - IAN 85950 Livarno Lux

How to install the Livarno Lux IAN 85950 halogen spotlight?

Installation must be carried out by a qualified electrician. First, disconnect the power circuit. Attach the mounting bracket to the wall or ceiling with dowels (spacing 52 mm, holes 6 mm). Connect the cable to the terminal block (brown/black = L, blue = N, green/yellow = earth). Close the housing and restore power.

How to adjust the motion detector?

Use the rotary controls under the detector: LUX sets the brightness threshold (5-2000 Lux), TIME sets the lighting duration (7 s - 12 min), SENS sets the range (5-12 m). Orientate the detector at 170° horizontally and 180° vertically, then lock with the screw.

What type of bulb to use and how to replace it?

Use an R7s / J78 bulb of max. 120 W (150 W permissible). To replace, cut off power, unscrew the front screw, fold down the glass, replace the bulb without touching it with your fingers (use a cloth), then close.

What does the IP44 protection rating mean?

The IP44 rating means the spotlight is protected against solid objects larger than 1 mm and against water splashes from all directions. It is therefore suitable for covered outdoor areas.

Why does the light stay on permanently?

First check the brightness sensor setting (LUX): if it is too high, the detector may be active even in daylight. Set it to a higher value (e.g. 2000 Lux) so it only turns on at night. Also check the duration (TIME): if set to maximum, the light will stay on long after a movement.

How to clean the spotlight?

Clean the housing with a damp cloth and mild detergent. Do not use aggressive or abrasive products. Avoid liquids getting inside. Always disconnect the device before cleaning.

What to do if the spotlight does not turn on?

First check that the power circuit is active. Check the bulb: if it's burned out, replace it (R7s 120W). Make sure the motion detector is correctly oriented and that the LUX/TIME/SENS settings are appropriate. If the problem persists, contact after-sales service.

Can the spotlight be used indoors?

Yes, it is designed for indoor and covered outdoor spaces. Keep a distance of at least 1 meter from illuminated surfaces due to the heat generated.

What is the warranty for the Livarno Lux IAN 85950?

The spotlight has a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not the bulb (consumable) or damage due to improper use.

How to dispose of the device at end of life?

Do not dispose of the device or bulb with household waste. They are subject to the WEEE directive (2002/96/EC). Take them to a recycling center or authorized collection point. Follow local regulations.

USER MANUAL IAN 85950 Livarno Lux

Operating instructions

FR CH

PROJECTEUR HALOGENE

Mode d'emploi

NL

HALOGEENSCHIJNWERPER

Gebruksaanwijzing

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Information for these operating instructions 50

Copyright. 50

Limited liability 50

Intended use 50

Warnings. 51

Safety. 52

Risks from electrical current 52

Basic Safety Instructions. 52

Items supplied 53

Appliance description 54

Assembly / Electrical connection 54

Selecting the installation location. 54

Assembly 55

Electrical connection 56

Adjustment of the motion detector 57

Changing the bulb 57

Cleaning 58

Disposal 58

Appendix 59

Technical data 59

Notes on the Declaration of Conformity 59

Warranty 60

Service. 60

Importer 60

Introduction

Information for these operating instructions

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limited liability

All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifi cations or for using unapproved replacement parts.

Intended use

This appliance is intended for use as a lighting system in indoor and covered outdoor areas.

This appliance is not intended for any other use or for uses beyond those mentioned. Claims of any kind for damage resulting from unintended use will not be accepted.

The operator alone bears liability.

Warnings

In the existing operation instructions the following warnings are used:

DANGER

A warning of this danger level indicates a threateningly dangerous situation

If the dangerous situation is not avoided, it could lead to death or serious physical injury.

Pay heed to the instructions in this warning to avoid the death of or serious physical injury to people.

WARNING

A warning of this danger level signifies a possible dangerous situation.

If the dangerous situation is not avoided it can lead to physical injuries.

Pay heed to the instructions in this warning to avoid personal injuries.

IMPORTANT

A warning of this danger level signifies possible property damage.

If the situation is not avoided it could lead to property damage.

Pay heed to the instructions in this warning to avoid property damage.

NOTICE

A notice signifies additional information that assists in the handling of the appliance.

Safety

In this chapter you will receive important safety information regarding the handling of the appliance. This appliance complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage.

Risks from electrical current

DANGER

Risk of potentially fatal electrical current!

Contact with wires or components that are under voltage could be potentially fatal!

Pay heed to the following safety instructions to avoid risks from electrical current:

The electrical installation may only be carried out by an accredited electrician.
The appropriate standards are to be applied during assembly.
Switch the electrical circuit off prior to assembly / installation.

Basic Safety Instructions

For safe handling of the appliance observe the following safety information:

Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged. There will be the risk of a fatal electrical shock.
A broken protective screen must be replaced before further use. There is a risk of personal injury.
Repairs should only be carried out by authorised specialist companies or by the Customer Service Department. Incompetent repairs can result in significant risks for the user. In addition, warranty claims become void.
To avoid possible risks, arrange for damaged cables or connectors to be exchanged by an authorised specialist or the Customer Service Department.
Maintain a sufficient distance from the illuminated area (at least 1m ), otherwise there is a risk of fire from the generated heat.
This appliance is suitable for mounting on ordinary flammable surfaces.

Defective components may only be replaced with original replacement parts. Only by using original replacement parts can it be guaranteed that the safety requirements are being complied with.
The electrical circuit must be switched off before the replacement of a bulb and before cleaning it. Otherwise, there will be the risk of a fatal electrical shock.
Only bulbs complying with the technical specifications may be used. Unsuitable bulbs may cause a short circuit and thereby damage the appliance permanently.
Replace defective bulbs immediately. Defective bulbs may cause a short circuit and thereby damage the appliance permanently.
NEVER use the light with a damaged cable. There will be the risk of a fatal electrical shock.
This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or defi ciences in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
Children should be supervised to ensure that they do not play with the appliance.

Items supplied

The appliance is delivered with the following components as standard:

• Halogen floodlight
  R7s/J78/120Wbulb
  Assembly material
  This operating manual

NOTICE

• Check the contents to ensure everything is available and for signs of visible damage.
  If the delivery is not complete or is damaged due to defective packaging or through transportation contact the Service Hotline (see chapter Service).
• The bulb is enclosed with the halogen floodlight in the as-delivered condition (separately packaged). For correct use of the bulb, please refer to the chapter entitled Changing the bulb.

Appliance description

Rotary switch LUX
2 Rotary switch TIME
3 Rotary switch SENS
4 Motion Detector
5 Bracket
6 Protective screen
Screw
Bulb
Cable entry
10 Locking screw

GB

Assembly / Electrical connection

Selecting the installation location

The appliance can be mounted indoors or in a covered outdoor area.

DANGER

• Maintain a sufficient distance from the illuminated area (at least 1m ), otherwise there is a risk of fire from the generated heat.

The motion detector 4 may be oriented at about 170^ horizontally and about 180^ vertically and has a detection range of max. 120^ .

The range is adjustable from about 5 - 12 m.

When selecting the installation location ensure there will be no adverse incidents registered in the coverage range, such as from roads or lights.

Assembly

DANGER

Risk of electrocution from electrical current!

The electrical installation may only be carried out by an accredited electrician.
The appropriate standards must be applied during fitting.
Switch the electrical circuit off prior to assembly / installation.

WARNING

• When drilling, take care not to damage any pipes/cables in the wall or ceiling.
• The supplied plugs are only suitable for a mounting on concrete or stone. Before starting the installation, please check your installation location carefully for its suitability for the plugs. If in doubt, call a professional.

NOTICE

For easier installation the bracket 5 can be unscrewed from the appliance.

Drill two holes with a diameter of 6mm and a depth of 30mm at a spacing of 52mm .
Insert a plug into each of the holes and screw the appliance with the bracket 5 to the ceiling or wall (see Fig Ceiling mounting/Wall mounting).

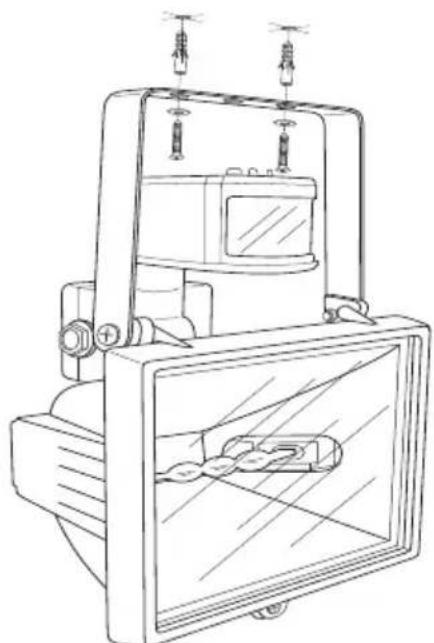

Fig. Ceiling assembly

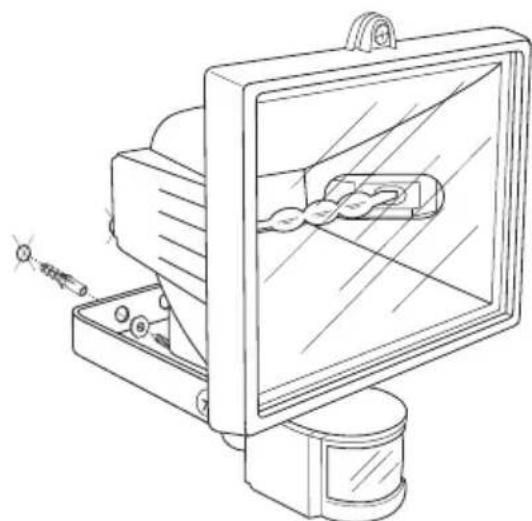

Fig. Wall assembly

Electrical connection

WARNING

This appliance falls under Protection Class I.

The earth wire (green/yellow wire) must be connected to the point marked
Switch the electrical circuit off and secure it against unintentional reactivation.
Unscrew the four screws at the rear of the connection box and remove the cover.
First, pull a cable through the cable entry into the connection box and secure it to the available cable strain relief.
Connect the cable to the terminals, as shown in the connection diagram.
Replace the cover of the connection box and screw it down firmly.
Now switch the power supply back on.

Brown or black wire (L)

Blue wire (N)

Green/yellow wire ()

X N L

Fig. Terminal diagram

Adjustment of the motion detector

The adjustment of the range, the twilight level, and the illumination time is made with the rotary switches on the motion detector 4.

Twilight level (LUX 1)

Adjustment of the brightness level below which the motion detector 4 will activate.

The brightness sensor is adjustable from 5 Lux to 2000 Lux

Illumination time (TIME 2)

Adjustment of the illumination time from 7 seconds to 12 minutes. If the appliance is switched on and it registers a new movement, the illumination time is extended by the set value.

NOTICE

We recommend setting the illumination time to the maximum, so as to achieve the longest service life for the bulb 8.

Range (SENS 3)

Setting the range of motion detector 4 to between 5 - 12m

Finally, set the motion detecto4 according to your requirement.
Fix the position of the motion detecto 4 with the locking screw 10.

Changing the bulb

The supplied bulb 8 is excluded from the warranty. Please use only bulbs 8 as specified in the Technical Data.

Switch the electrical circuit off and secure it against being inadvertently switched back on.
Loosen the screw on the front panel.
Fold the front panel with the protective scree to the front.
Change the bull. Do not touch the bulb with your bare hands, use a dust-free soft cloth.
Close the front panel, ensuring that the sealing gasket is properly seated and clean.
Firmly screw the front panel back down.
Switch the electrical circuit back on and check the functioning.

Cleaning

DANGER

Risk of potentially fatal electrical shock!

Replace the bulb only when the mains voltage is switched off.

TAKE NOTE

Possible damage to the appliance.

Ensure that moisture cannot permeate into the appliance during cleaning.
- Do not use aggressive or abrasive cleaning agents, as these can damage the upper surfaces.

Clean the housing exclusively with a soft damp cloth and a mild dishwashing liquid.

Disposal

DO NOT dispose of the appliance and/or the bulb in your normal domestic waste. This product is subject to the European Directive 2002/96/EC (Waste Electrical and Electronic Equipment).

Dispose of the appliance and/or the bulb via an approved waste disposal company or your communal waste disposal centre. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Appendix

Technical data

Halogen fl oodlight
Operating voltage 220 - 240 V ~, 50 Hz
Power consumption approx. 120 W
Protection class I
Protection type IP44
Bulb	R7s/J78/120 W (max. 150 W permitted)
Motion Detector
Coverage max. 120°
Range approx. 5-12 m
Brightness sensor approx. 5 - 2000 Lux
Illumination time approx. 7 s - 12 min

Notes on the Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC as well as the Directive for Low Voltage Devices 2006/95/EC.

The complete original declaration of conformity can be obtained from the importer.

Warranty

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, but not for transport damages, wearing parts or for damage to fragile components, e.g. bulbs or switches.

This product is for private use only and is not intended for commercial applications. In the event of misuse and improper handling, use of force and interference not carried out by our authorized service branch, the warranty will become void.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs effected under warranty. This applies also to replaced and repaired parts.

Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date.

Repairs carried out after lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 85950

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
