USER MANUAL SKM 600 C2 SILVERCREST

8.3 Switching the device on/off and selecting speed .................................... 30

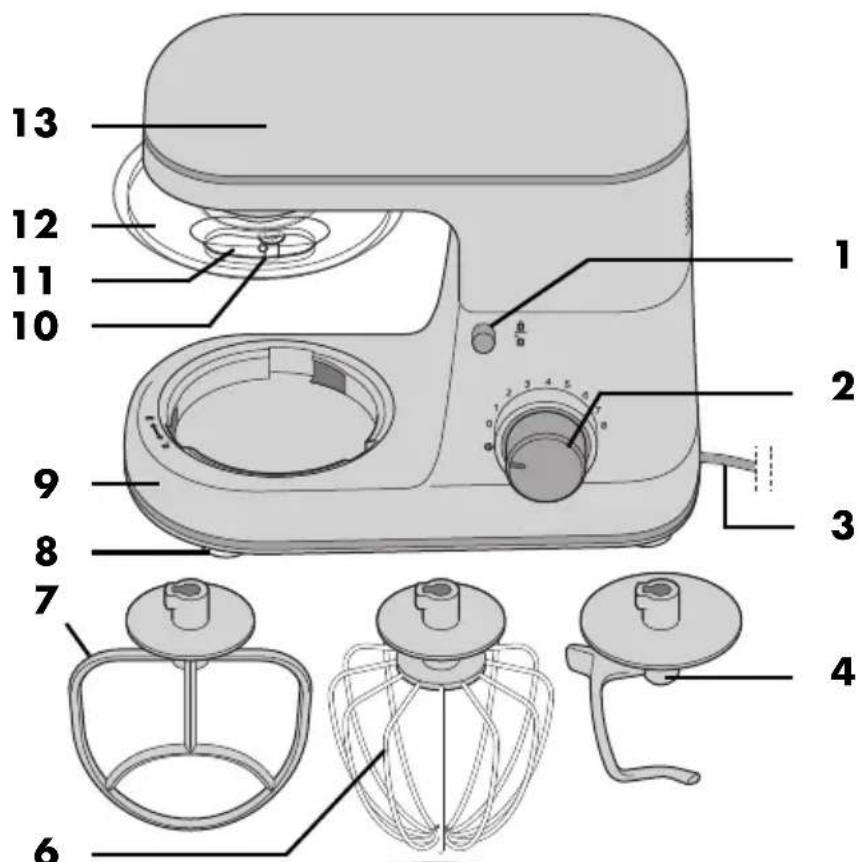

1 Unlock button (for the drive arm) 2 0 - 8 Speed control with on/off function 3 Power cable with mains plug 4 Dough hook 5 Mixing bowl 6 Whisk 7 Beater 8 Suction foot 9 Base unit 10 Axle for holding mixing tools 11 Filling opening 12 Splash guard 13 Drive arm 14 Cable spool

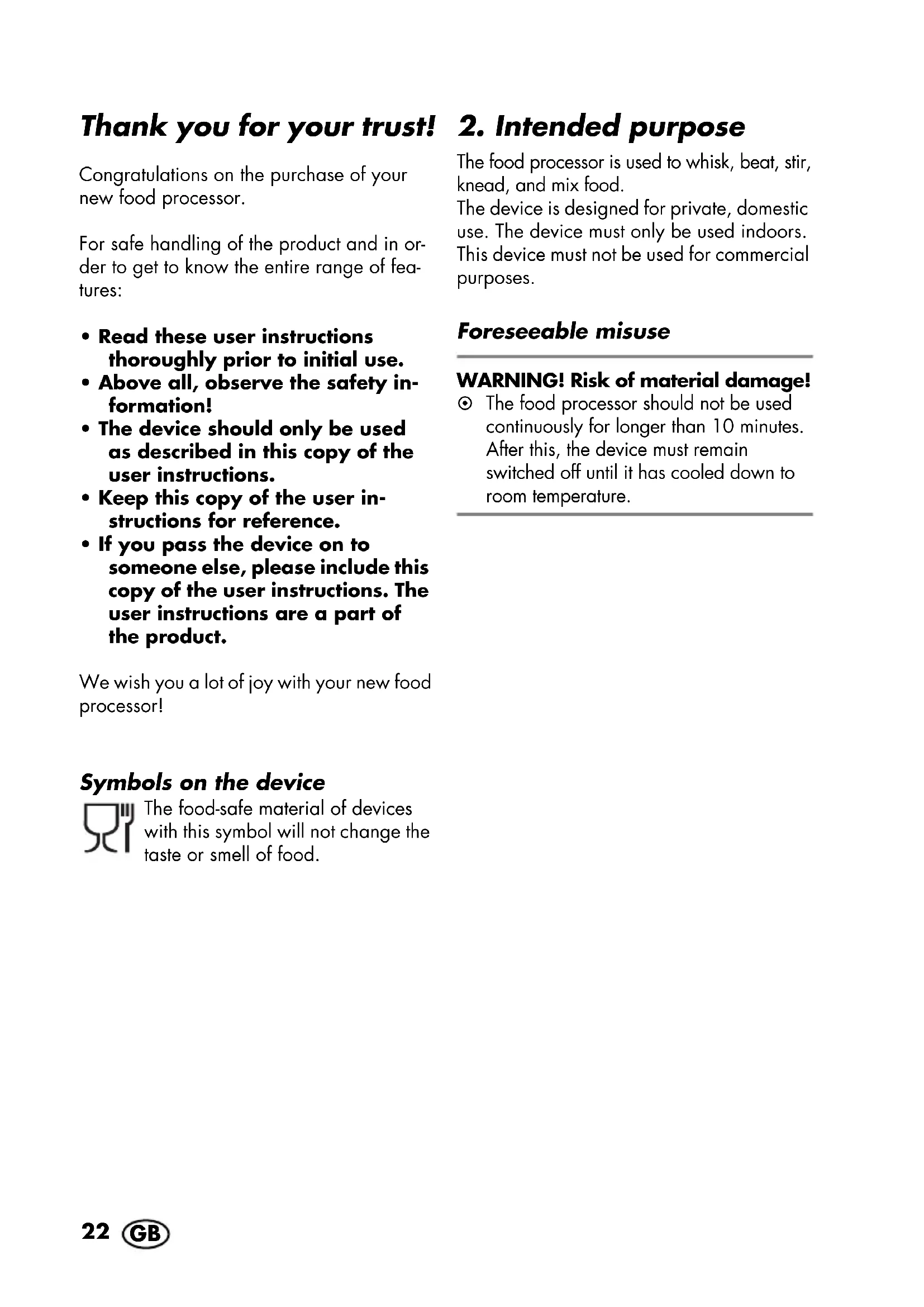

Thank you for your trust! Congratulations on the purchase of your new food processor. For safe handling of the product and in or- der to get to know the entire range of fea- tures:

• Read these user instructions thoroughly prior to initial use.

• Above all, observe the safety in- formation!

• The device should only be used as described in this copy of the user instructions.

• Keep this copy of the user in- structions for reference.

• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We wish you a lot of joy with your new food processor! Symbols on the device The food-safe material of devices with this symbol will not change the taste or smell of food.

The food processor is used to whisk, beat, stir, knead, and mix food. The device is designed for private, domestic use. The device must only be used indoors. This device must not be used for commercial purposes. Foreseeable misuse WARNING! Risk of material damage!

The food processor should not be used continuously for longer than 10 minutes. After this, the device must remain switched off until it has cooled down to room temperature. __379520_2110_B8.book Seite 22 Montag, 7. Februar 2022 2:36 1423

Warnings If necessary, the following warnings are used in this copy of the user instructions: DANGER! High risk: failure to observe this warning may result in injury to life and limb. WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or material damage. NOTE: circumstances and specifics that must be observed when handling the device. Instructions for safe operation

This device must not be used by children.

Children must not play with the device.

The device and the power cable must be kept away from children.

This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/ or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting hazards.

If the mains power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

The device must not be immersed in water.

Disconnect the mains plug from the wall socket … … when it is not supervised, … before you assemble or disassemble the device … before changing accessories or attachments, and … before cleaning.

This device is not intended to be operated using an external timer or a separate remote control system.

Depending on type of use, the device is intended for the following maximum operating times without interruption: - max. 10 minutes mixing/kneading with the mixing tools. After this, the device must remain switched off until it has cooled down to room temperature. __379520_2110_B8.book Seite 23 Montag, 7. Februar 2022 2:36 1424

Prior to the replacement of accessories or attachments which move when in operation, the device must be switched off and disconnect- ed from the mains power supply.

Please take note of the chapter on cleaning (see “Cleaning and ser- vicing the device” on page 31).

Misuse of the device may result in injury. DANGER for children! ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER to and from pets and livestock! ~ Electrical devices can represent a dan- ger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture! ~ The device must never be operated in the vicinity of a bathtub, a shower, a filled washbasin or similar items. ~ The base unit, the power cable and the mains plug must not be immersed in wa- ter or other liquids. ~ Protect the base unit against moisture, water drips and splashes. ~ If liquid should enter the base unit, pull out the mains plug immediately. Have the device checked before reusing. ~ Never touch the device with wet hands. ~ If the device falls into water, disconnect the mains plug immediately. Only then is it safe to remove the device. DANGER! Risk of electric shock! ~ Only plug the mains plug into the wall socket after the device has been com- pletely assembled. ~ Only connect the mains plug to a prop- erly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily ac- cessible after the device is plugged in. ~ Ensure that the power cable cannot be damaged by sharp edges or hot spots. Do not wrap the power cable around the device. ~ Even after it has been switched off, the device is not completely disconnected from the mains power supply. In order to fully disconnect it, pull out the mains plug. ~ Keep the power cable away from hot surfaces (e.g. hot plates). ~ When using the device, ensure that the power cable cannot be trapped or crushed. ~ When removing the mains plug from the wall socket, always pull on the plug and never the cable. ~ Disconnect the mains plug from the wall socket … …if there is a fault, … when you are not using the food pro- cessor, … prior to assembling or disassembling the food processor, … prior to cleaning the food processor and … during thunderstorms. __379520_2110_B8.book Seite 24 Montag, 7. Februar 2022 2:36 1425

~ Do not use the device if there is visible damage to the device, accessories or power cable. ~ To avoid any risk, do not make modifi- cations to the product. DANGER of hand injuries by crushing! ~ Never put your hands between the drive arm and the housing. There is a risk of injury from crushing when folding down. DANGER from rotating parts! ~ Do not touch rotating parts with spoons or similar utensils. Keep long hair and loose clothing away from the rotating parts. ~ Always ensure that the speed control is set to 0 before you plug the mains plug into the wall socket.

Switch the device off and pull out the mains plug from the wall socket before you exchange auxiliary equipment or ac- cessories that move while in operation. WARNING! Risk of material damage! ~ Place the device exclusively on a level, dry, non-slip and waterproof surface, so that it can neither fall nor slip off. ~ The mixing mechanism must not be op- erated continuously for longer than 10 minutes at a time. You must then al- low the device to cool down to room temperature. ~ The device must never be operated with- out the container. ~ Never place the device on a hot sur- face, e.g. a hot plate. ~ Do not change the position of the de- vice, as long as there is still food or dough in the device. ~ Never overfill the mixing bowl, since otherwise the contents could be ejected. Overflowing liquid would flow onto the surface. You should therefore place the device on a waterproof surface. ~ Do not operate the device when it is empty, as this causes the motor to over- heat and may result in it becoming dam- aged.

Only use the original accessories. ~ Do not use any astringent or abrasive cleaning agents. ~ The beater and dough hook have a non- stick coating. Do not damage them with sharp, pointed or scratching objects (e.g. knife, scourer). ~ The device is equipped with non-slip plastic suction feet. As furniture is coat- ed with a wide array of varnishes and plastics and is also treated with different care products, it cannot be fully ruled out that some of these materials contain components that could attack and soften the non-slip plastic suction feet. If neces- sary, place a non-slip mat under the de- vice. __379520_2110_B8.book Seite 25 Montag, 7. Februar 2022 2:36 1426

1 food processor, base unit9 1 splash guard12 1mixing bowl5 1 dough hook4 1whisk6 1 beater7 1 copy of the user instructions

2. Check to ensure that all parts are pres-

3. Disassemble the device (see “Disman-

tling the device” on page 30).

4. Clean the device prior to first

use! (see “Cleaning and servicing the device” on page 31).

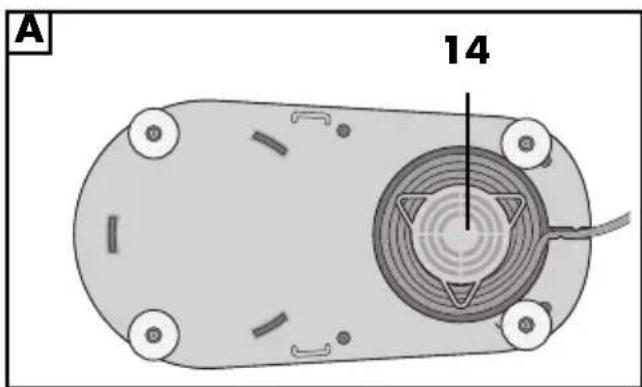

5. Figure A: wind the excess power

cable3 around the cable spool14 on the underside of the base unit9.

6. Place the base unit9 on a level, dry

and waterproof surface, so that the de- vice can neither fall nor slip off. Select a smooth, clean surface, so that the suction feet8 can stick firmly in place and ensure a secure grip. CAUTION: ~ Overflowing liquid would flow onto the surface. You should therefore place the device on a waterproof surface. __379520_2110_B8.book Seite 26 Montag, 7. Februar 2022 2:36 1427

*NOTE: the processing time varies depending on the quantity and properties of the ingre- dients. Working tool Speed Function Notes Dough hook4

- Kneading and mixing solid dough or relative- ly solid ingredients min. quantity: The working tool should be immersed at least 1 cm deep in the material to be mixed. max. quantity yeast dough: 1657 g Processing time pastry dough*: approx. 3 minutes max. operating time: 10 minutes

- Mixing thick batter - Mixing butter and flour - Mixing yeast dough min. quantity: The working tool should be immersed at least 1 cm deep in the material to be mixed. max. quantity batter: 1216 g Processing time batter*: approx. 5 minutes max. operating time: 10 minutes

-Cake mix - Beating together butter and sugar -Cookie dough

- Dough with dried fruit max. total weight: 950 g Fold in sensitive fruit at speed

tools Lifting up the drive arm

1. Press the unlock button1 and fold up

the drive arm13 until it engages and the unlock button1 pops out again. Inserting the mixing bowl

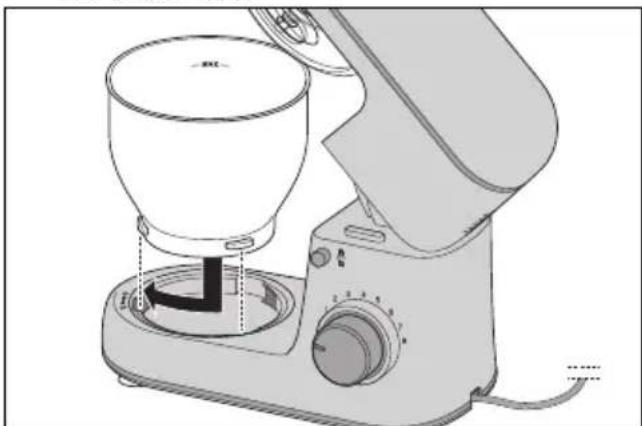

2. Place the mixing bowl5 into the base

unit9 in such a way that the metal pins on the lower edge fit into the recesses in the base unit.

3. Lock the mixing bowl5 by turning it to-

wards the closed lock symbol until it is firmly seated. Mounting the splash guard CAUTION: ~ Never use the mixing bowl5 without the splash guard12 attached. The ma- terial you are mixing could otherwise be ejected.

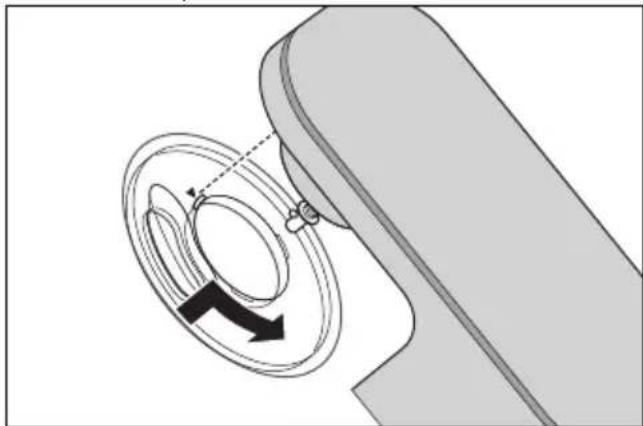

4. Place the splash guard12 onto the drive

arm13 from below. The arrow () on the splash guard12 and the arrow () next to the open lock symbol on the drive arm13 point to one another.

5. Rotate the splash guard12 in the direc-

tion of the closed lock symbol until it clicks into place. Inserting the mixing tool

6. Select the appropriate mixing tool:

- Dough hook4: for heavy doughs, e.g. bread dough -Whisk6: for whipping cream, egg white etc. - Beater7: for medium to light dough or batter, e.g. cake mix or pancake batter. For further information: see “Overview of functions” on page 27.

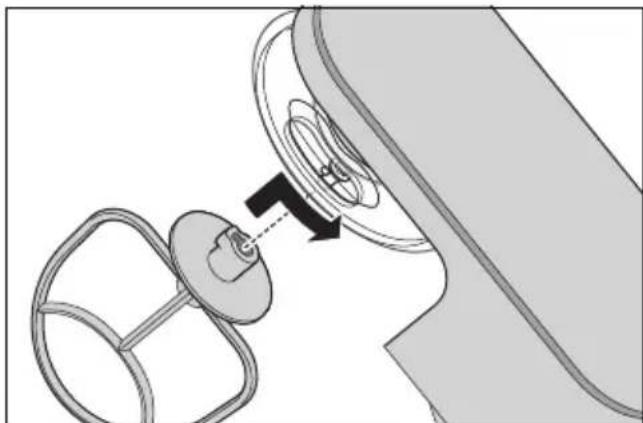

7. Place the mixing tool4/6/7 onto the

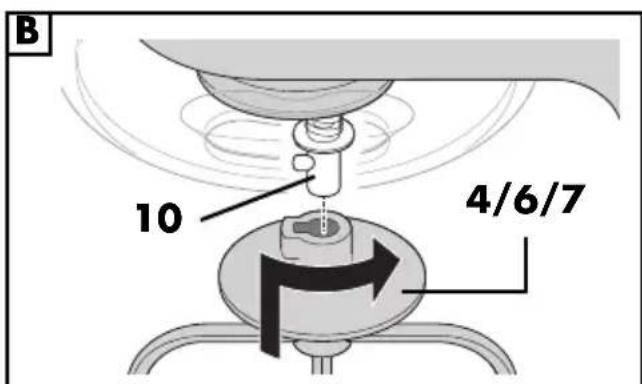

8. Figure B: press the mixing tool4/6/7

upwards slightly and rotate it in the di- rection of the arrow until it stops. Adding ingredients

• You can add ingredients into the mixing bowl5 while the drive arm13 is lifted up.

• During mixing, you can add ingredients through the filling opening11 in the splash guard12: - Reduce the speed to 1 - 2. - Add the ingredients. Lowering the drive arm DANGER of hand injuries by crushing! ~ Never put your hand between the drive arm13 and the housing. There is a risk of injury from crushing when folding down.

9. Press the unlock button1 and move the

drive arm13 all the way down. The un- lock button1 pops out again. The device is now fully assembled. On work- ing with the device: see “Basic operation” on page 29.

DANGER! Risk of electric shock! ~ Only connect the mains plug3 to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily ac- cessible after the device is plugged in. NOTE: when the device is used the first few times, some odour may be generated by the device due to the heating of the motor. This is harmless. Please ensure adequate ventila- tion.

1. Assemble the device for the desired

2. Check that the speed control2 is set to

3. Plug the mains plug3 into a suitable

wall socket. The wall socket must still be easily accessible after connection.

4. Pull out the mains plug3 before clean-

The device has several safety functions, which are described below. Functions only when the drive arm is lowered The device will only work if the drive arm13 is correctly engaged in the lower position and the unlock button1 has fully popped out. __379520_2110_B8.book Seite 29 Montag, 7. Februar 2022 2:36 1430

Overheating protection The device has an overheating protection system. If the motor becomes too hot, the de- vice automatically switches itself off:

1. Switch off the device.

2. Pull out the mains plug3.

3. Allow the device to cool down to room

temperature. When the device has cooled down suffi- ciently, it can be switched on again.

8.3 Switching the device on/

off and selecting speed WARNING! Risk of material damage! ~ The mixing mechanism must not be op- erated continuously for longer than 10 minutes at a time. You must then al- low the device to cool down to room temperature. NOTE: the device may move slightly while you are processing large quantities of dough.

1. Switch the device on by turning the

speed control2 clockwise.

2. Start at a slightly lower speed, and slowly

increase to the desired speed (see “Over- view of functions” on page 27).

3. Reduce the speed to speed 1 - 2 when

you are adding ingredients during oper- ation through the filling opening11.

4. Set the speed control2 to 0 to switch

the device off. NOTE: above all, the ideal speed depends on the consistency of the material being blended. The more liquid the contents, the faster you can blend them.

• By turning the speed control2 to the po- sition , you can briefly increase the speed to the highest setting (8).

device DANGER from rotating parts! ~ Turn off the device and unplug the mains plug3 from the wall socket be- fore disassembling the device. Lifting up the drive arm

1. Press the unlock button1 and fold up

the drive arm13 until it engages and the unlock button1 pops out again. Removing the mixing tool

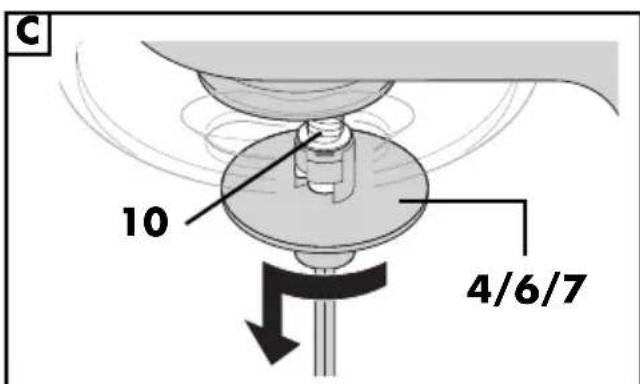

2. Figure C: turn the mixing tool4/6/7

in the direction of the arrow until it can be pulled downwards off the axle10. Removing the splash guard

3. Turn the splash guard12 towards the

open lock symbol until it can be re- moved. Removing the mixing bowl

4. Turn the mixing bowl5 towards the

open lock symbol until it can be re- moved. Lowering the drive arm

5. Press the unlock button1 and move the

drive arm13 all the way down. The un- lock button1 pops out again.

servicing the device DANGER! Risk of electric shock! ~ Disconnect the mains plug3 from the wall socket before each cleaning. ~ Never immerse the base unit9 in water. WARNING! Risk of material damage! ~ Never use any abrasive, corrosive or scouring cleaning agents. These might damage the device. NOTES:

• Certain foods or spices (e.g. curry, car- rots) can discolour the plastic parts (e.g. the splash guard12). This is not a de- vice error and is harmless to health.

• Please note that water drops may still be present on the accessories after drying. Allow all parts to air dry completely.

10.1 Cleaning the base unit

1. Clean the base unit9 with a damp

cloth. You can also use a little detergent.

2. Wipe with a clean cloth with clear wa-

until it has com- pletely dried.

10.2 Cleaning in the dish-

washer The following parts are dishwasher-safe: - Mixing bowl5 - Dough hook4 -Whisk6 - Beater7 - Splash guard12 The following parts must never be cleaned in a dishwasher: - Base unit9

10.3 Cleaning the accessories

1. Clean all accessories by hand in a sink

with dishwater or in the dishwasher.

2. When cleaning by hand, rinse all parts

3. Allow all parts to dry completely before

reassembling, putting them away or re- using them.

• Allow all parts to dry completely before placing them in storage.

• Store the device so that it is protected against dust and dirt and out of the reach of children.

NOTE: the numbers of the speed control2 are omitted in the recipes to improve reada- bility. Mascarpone cream Ingredients: 2 eggs 2 tbs fine sugar 1 tbs sweet wine (e.g. Madeira) 250 g mascarpone ½ untreated orange (juice and some grated orange peel) Preparation:

2. Add the egg white to the fat-free mixing

bowl5. Whip the egg whites using the whisk6. Increase the speed to level 8.

3. Pour the whipped egg whites into anoth-

er bowl and refrigerate.

4. In the mixing bowl5, whip the egg

yolks with sugar and sweet wine with a whisk6 at speed 6 until foamy.

5. Reduce the speed to speed 3 and alter-

nately add spoonfuls of mascarpone and orange juice.

6. Fold in the grated orange peel and the

whipped egg whites by hand.

7. For decoration, sprinkle a few thin strips

of orange peel onto the finished cream.

8. Place the cream in the refrigerator until

you are ready to enjoy it and consume within 24 hours. Tip: layer the mascarpone cream with fresh seasonal fruit or compote in dessert glasses. Pear tarte tatin Ingredients for the dough: 200 g wheat flour 1pinchsalt 100 g cold butter (in flakes) 3 tsp fine sugar 4 tbs cold water For blind baking: dried peas or rice Ingredients for the almond paste: 100 g soft butter 100 g sugar 2 eggs (room temperature) 100 g crushed almonds For garnish: approx. 3 ripe pears Preparation:

1. Pour all the ingredients for the dough

into the mixing bowl5 and work with a beater7 at speed 3 until larger lumps have formed. (If necessary, stop the ma- chine in between and use a dough scraper to push the ingredients down from the edge.)

2. Quickly knead the dough by hand into

a ball and roll it out with a little flour be- tween two sheets of baking paper.

3. Line a greased tart mould with the

dough, cut off the protruding edge and place in the refrigerator for at least 30minutes.

4. Prick the base of the dough several

times with a fork, place a piece of bak- ing paper on the dough and fill the mould with dried peas or rice to weigh down the dough.

5. Bake at 180 °C (convection oven) for

15 minutes, then remove baking paper and peas/rice and bake again for an- other 10 to 15 minutes.

6. For the almond paste, whip butter, sug-

7. Remove the whisk6 and insert the beat-

er7. Briefly stir in the almonds at speed4.

8. Pour the almond mixture onto the cooled

9. Peel the pears, remove the core, cut

them into slices and cover them with the almond paste. 10.Bake at 170 °C (convection oven) for approx. 35 minutes. Pizza dough Ingredients: 250 g wheat flour ¾ tsp salt ½fresh yeast cube 120 ml warm water ½ tsp brown sugar some flour for kneading and rolling Preparation:

1. Mix flour and salt in the mixing bowl5

and make a depression in the middle.

2. Mash the yeast and sugar in the water

with a fork and stir until everything is dissolved. Pour this mixture into the de- pression.

3. Work with the dough hook4 at

speed2 until large lumps of dough have formed.

4. Continue kneading by hand until the

dough becomes smooth.

5. Form a ball of dough and leave to rise

under a cover in a warm place until it has doubled in size.

6. Knead once more, roll out and cover as

12. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances. Fault Possible causes / Action No function

• Has the device been connected to the power supply?

• Check the connec- tion.

• Has the overheating protection switched off the device (see “Overheating protec- tion” on page 30)?

• Is the drive arm13 not completely fold- ed down? Whisk6, beat- er7 or dough hook4 will not turn or do so only with great diffi- culty.

This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires sep- arate refuse collection in the European Un- ion. This applies to the product and all accessories marked with this symbol. Prod- ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recy- cling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recy- cling. Recycling helps to re- duce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

Protection class: II Power rating: 600 watt Mixing bowl Volume: Max. filling volume (MAX marking): 5000 ml 3700 ml Maximum load for beater7 and dough hook4: Batter: max. 1216 g Yeast dough: max. 1657 g Max. continuous op- eration (KB): (indicates how long the device is permit- ted to run continu- ously) 10 minutes Speed (measured on the tool):

Symbols used Subject to technical modifications.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. Double insulation Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the Ger- man Product Safety Act (Produkt- sicherheitsgesetz - ProdSG). (Not for UK) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials are marked with the recycling symbol (3ar- rows). The material can be speci- fied by the recycling number in the centre (here:21) and/or an abbreviation (here: PAP). AC voltage The symbol identifies parts that can be cleaned in the dishwasher. It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply. With the UKCA marking, HOYERHandel GmbH declares that the product is in conformity with the UKCA requirements. The symbol identifies the product manufacturer. __379520_2110_B8.book Seite 35 Montag, 7. Februar 2022 2:36 1436

The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts man- ufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 379520_2110 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. At www.lidl-service.com you can download this and many other manuals, product vide- os and installation software. This QR code takes you directly to the Lidl Ser- vice website (www.lidl-service.com), where you can enter the article number (IAN) 379520_2110 to open your user instruc- tions. Service Centre Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] E-Mail: [e-mail] Service Malta Tel.: [phone] E-Mail: [e-mail] Service Cyprus Tel.: [phone] E-Mail: [e-mail] IAN: 379520_2110
