VCB08 - Electric cleaner GRE - Free user manual and instructions
Find the device manual for free VCB08 GRE in PDF.
| Product Type | Electric Cleaner for Pool and Spa |
| Brand | GRE |
| Model | VCB08 |
| Rated Power | 10 W |
| Power Supply | 8 AA 1.5V batteries (not included) |
| Filter Capacity | 0.65 L |
| Operating Depth | 35 cm to 120 cm |
| Maximum Telescopic Pole Length | 190 cm |
| Water Temperature | 4 °C to 35 °C |
| Usage | Above-ground pools, spas, whirlpool bathtubs |
| Main Functions | Underwater suction, cleaning of submerged surfaces |
| Safety | Do not immerse the part containing the switch; use only underwater; turn off before cleaning |
| Maintenance | Clean the filter regularly; store dry away from sunlight |
| Spare Parts Available | Suction head, filter, telescopic pole, battery holder, cover |
| Warranty | 2 years |
| Certifications | CE, RoHS, REACH |
| Weight | Approximately 1.2 kg (with batteries) |
| Dimensions | Length with pole: up to 190 cm; body: approximately 30 cm |
| Battery Type | AA (LR6) alkaline recommended |
| Battery Life | Varies depending on battery quality; use new batteries for best performance |
Frequently Asked Questions - VCB08 GRE
User questions about VCB08 GRE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric cleaner in PDF format for free! Find your manual VCB08 - GRE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VCB08 by GRE.
USER MANUAL VCB08 GRE
We reserve to change all of part of the articles or contents of this document, without prior notice.

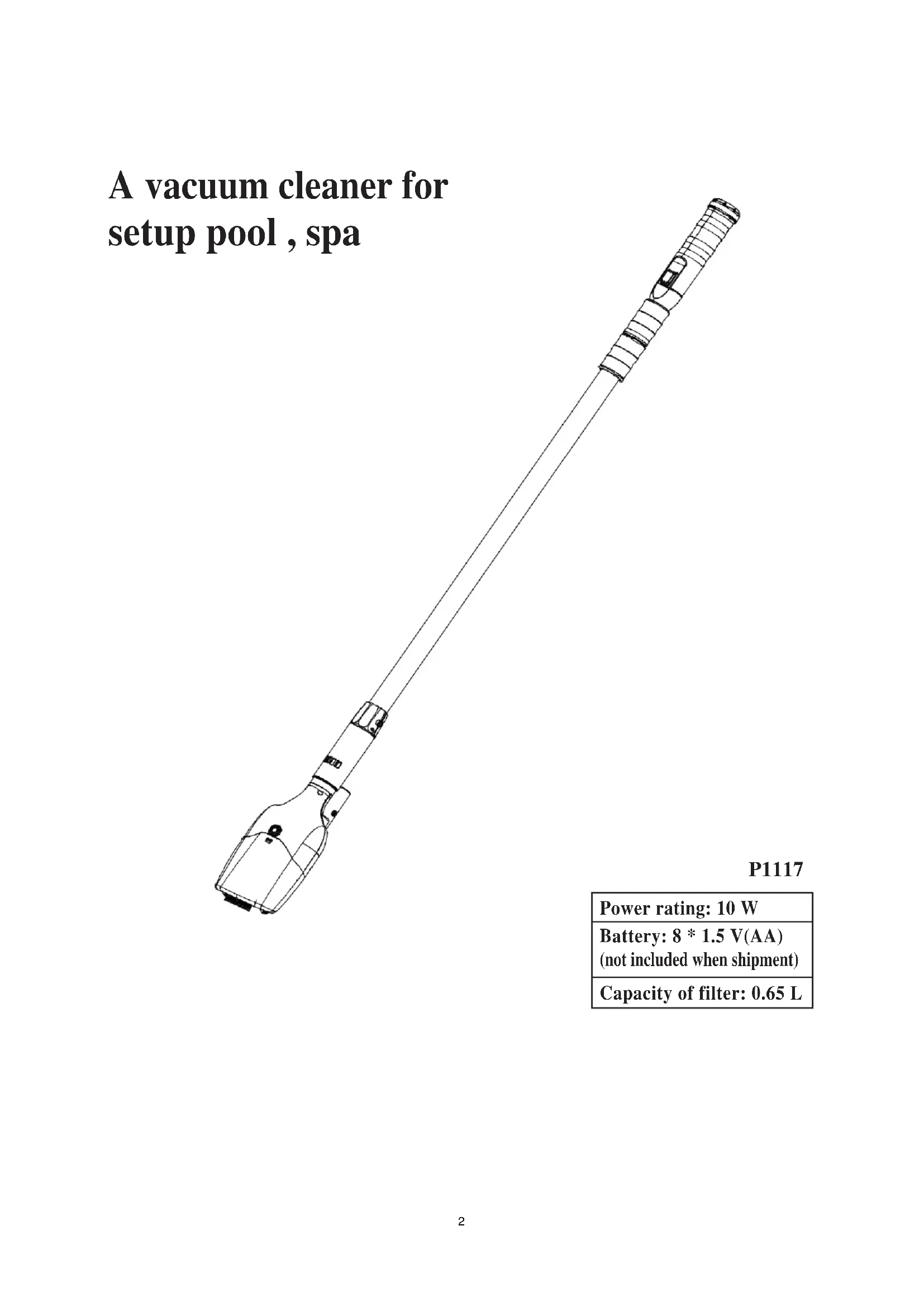

A vacuum cleaner forsetup pool , spa
P1117
| Power rating: 10 W |
| Battery: 8 * 1.5 V(AA) (not included when shipment) |
| Capacity of filter: 0.65 L |
Please read all instructions and safety guidelines contained in this manual to keep your STICK VAC working well.
WARNING!
To reduce the risk of fire,electrical shock,injury and damage to the cleaner, pleaseadheretothefollowing warnings:
Always keep the cleaner's battery cap firmly closed during operation to prevent water entering, water entering the chamber will ruin the components of your unit.
Never leave STICK VAC in the water when it is notrunning.
The cleaner is designed for underwater application ONLY and should be submerged during use. idling is forbidden, otherwise it may damage the cleaner.
Do not attempt to use the cleaner to clean anything other than above-ground spools hot tub or spa.
Thecleanercancreates suction underwaterandtherefore hair, loose clothing, fingers and other parts of the body should be kept away from the openings and moving parts.
Store the cleaner in a clean and dry place, out of direct sunlight and away from extreme temperatures.
Avoid picking up hard shar pobjets with the suction head, asitmay damage the filter inside.
Donotusetopickuptoxic, flammable or combustiblesubstances, or operateinthepresenceofexplosiveorflammableflumes.
Do not insert objects into the unit forcibly.
Make sure that cleaner is off before cleaning the unit. Makesure that the filter is installed correctly before using.
This appliance can be used by children aged from 12 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without supervision.
It is not a TOY. Children should besupervisedtoensurethattheydo not play with cleaner and its accessories. Never allow children to operate this product. Keep this cleaner and its accessories away from children.
DO NOT use this cleaner if any damage is found.
Itisnecessary to change parts or assemblies as quickly as possible if they become damaged. Only use parts certified by the distributor or manufacturer.
DO NOT operate the cleaner when people/pets are in the water.
Never attempt in any way to disassemble your cleaner on your own. Under no circumstances should you attempt to disassemble the cleaner and replace the impeller, motor by yourself.

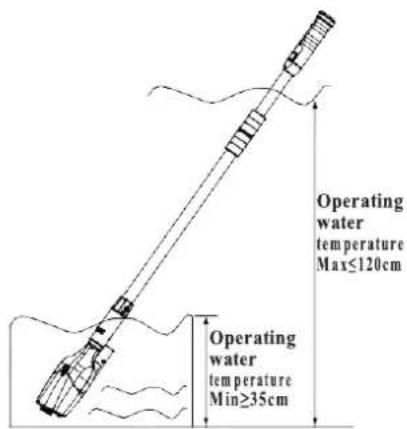

Suitable for pools and spa till water depth 120CM, minimum water depth is 35CM.
Switch handle mustn't be submerged in water, water entering The chamber will ruin the cleaner.
Please ensure that the filter bag is properly installed before using.
Operating water temperature:4 C(39.2 F)-35 C(95 F).
CAUTION!
Use original accessories delivered with this product.
It is not recommended to use this cleaner with another cleaner simultaneously.
If you do not use the suction head part, you should take it off the electric cleaner.
Above warning and cautions are not intended to incorporate all possible instances for risks and/or severe injury. Pool/spa owners should always exercise intensive caution and common sense when operating the cleaner.

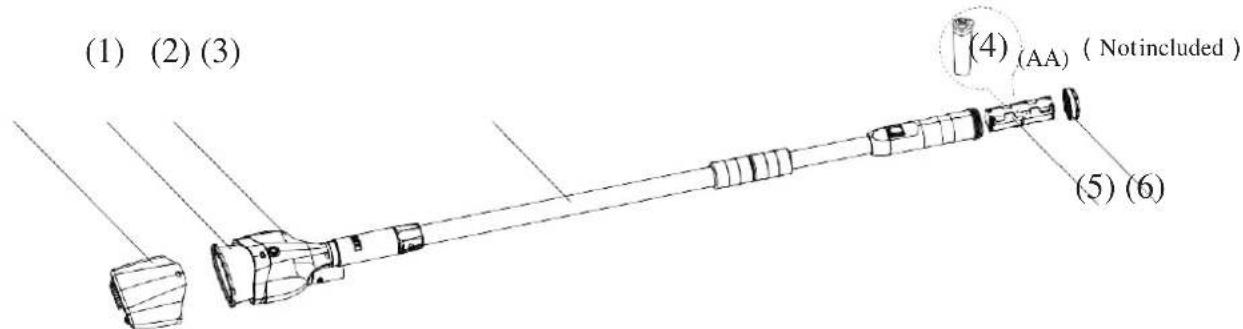

Product components
STICK VAC consists of six main parts:
(1)Suction head
(2)The filter bag
(3)The main body
(4)The telescopic poles (5)The battery holder
(6)The battery compartment cap
Basic Usage
The STICK VAC is not intended for use for inground swimming pools, it is only designed for cleaning for above-ground swimming pools, hot tubs and spa. Improper uses may result in damaging to the cleaner and willnotunder warranty.
WARNING!
(1) The cleaner is designed for underwater aapplication only, please submerged during use, otherwise it may damage the cleaner
(2) Suitable for pools and spatill water depth 120CM, minimum water depth this 35CM.
(3) Sw itch handle mustn't be submerged in water, water entering the chamber will ruin the cleaner.
(4) Please ensure that the filter bag is properly installed before using.
(5) Operating water temperature: 4C(39.2F) - 35^(95F)
- Pease screw the suction head into the bottom of the telescopic (fig.A)

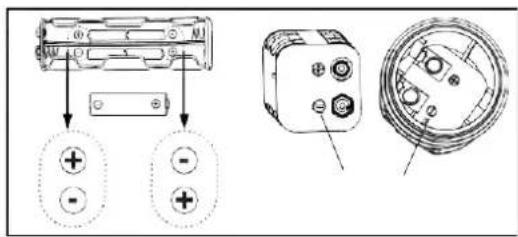

- Unscrew the battery cap(6) and take out the battery holder(5)[fig.B], insert 8 Alkaline batteries(not included) into the battery holder(5)[fig.C].
Note: The positive and negative terminals of the battery should be installed correctly, otherwise, the product will not function[fig.D].
- Press button "I" [fig.E], the unit will start working.

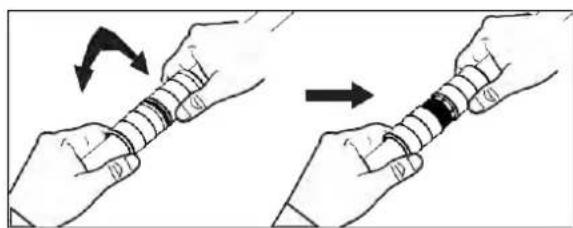

- If using the telescopic poles, simply unscrew the knob on the surface counterclockwise, adjust the length as required[fig. F], the total length can reach 190CM after extension[fig. G].
Note: should not stretch the telescopic pole forcibly, it may result in the pole coming off.
- How to clean the cleaner

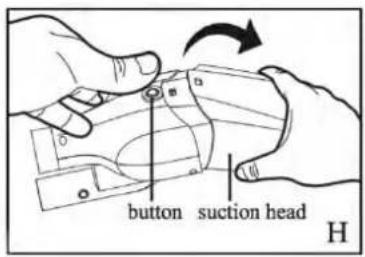

(1)Turn off the switch and press the button on the main body, take the suction head apart as indicted [fig.H].

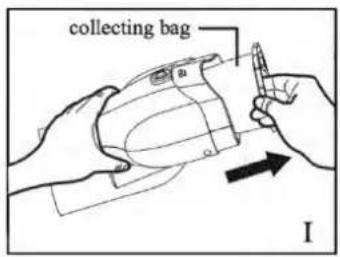

(2)Remove the filter and take out the rubbish, then clean the filter [fig.I].
(3)Reinstall the filter bag in the main bodies as indicted[fig.J].
6. Storage
The STICK VAC should be stored indoors at a clean dry location, sheltered from direct sunlight, extreme temperature and rain. Please remove the batteries and for safekeeping when storing the cleaner for extended periods of time.
Trouble shooting
| Problem | Possible Cause | Remedy |
| Cleaner doesn't work | Check battery capacity | Replace new battery |
| Please check if the batteries are installed correctly | Re-install battery correctly | |
| Small suction | Check battery capacity | Replace new battery |
| Too much rubbish in the filter | Clean the rubbish | |
| Abnormal sound | Please check the motor impeller | Unscrew the suction and clean the foreign matter on the impeller |
ES
1.1 In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee ("the Product") is in perfect condition at the time of delivery.
1.2 The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
1.3 In the event of any defect in the Product that is notified by the purchaser to the seller during the Guarantee Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable, unless this is impossible or unreasonable.
1.4 If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the sales contract.
1.5 The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
1.6 In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase and delivery of the Product.
1.7 If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product, the purchaser must provide proof of the origin and existence of the alleged defect.
1.8 This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.
2 INDIVIDUAL TERMS
2.1 This guarantee covers the products referred to in this manual.
2.2 This Guarantee Certificate will only be applicable in European Union countries.
2.3 For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range and model of the Product.
2.4 When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.
3 LIMITATIONS
3.1 This guarantee will only be applicable to sales made to consumers, understanding by "consumer", a person who purchases the Product for purposes not related to his professional activities.
3.2 The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product, will apply.
3.3 The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by nonauthorised people or (III) has been repaired or serviced not using original parts. In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility.
ES-CERTIFICADO DE GARANTÍA
1.1 In order to reduce the amount of waste of electric and electronic apparatus, to reduce the danger of components, to encourage the reuse of apparatus, to assess waste and to set up a suitable waste treatment system, with the aim of improving the efficiency of environmental protection, a set of rules has been established applicable to the manufacture of the product and other rules regarding the correct environmental treatment when these products become waste.
1.2 It is also intended to improve the environmental practices of all agents involved in electrical and electronic goods, including manufacturers, distributors, users and particularly those directly involved in the treatment of waste derived from these apparatus.
1.3 From 13th August 2005, there are two ways of disposing of this apparatus:
1.4 If you purchase a new equivalent apparatus or which has the same functions as the one you wish to dispose of, you can hand it over, free of charge, to the distributor when making your purchase, or
1.5 You can take it to local collection points.
1.6 We shall cover waste treatment costs.
1.7 The apparatus are labelled with a symbol of a "crossed-out waste container". This symbol means that the apparatus is subject to selected waste collection, different from general waste collection.
1.8 Our products are designed and manufactured with top-quality, environmental-friendly materials and components, which can be reused and recycled. In spite of this, several parts of this product are not biodegradable and therefore it should not be left in the environment. For the correct recycling of this product, please completely detach the electrical motor from the rest of the filtration equipment.
ES - CONTENEDOR DE BASURA CON RUEDAS TACHADO
- The products listed above are in compliance with the safety prescriptions:
2014/30/UE Electromagnetic compatibility Directive.
2011/65/EU European Directive (RoHS)
EU REACH regulation 1907/2006.
NINGBO, CHINA 100027
Name and position: GRACEY Commercial Director
Signature / Firma/ Unterschrift / Assinatura
| IF YOU HAVE ANY PROBLEM, CONTACT US! | www.service-gre.com | |
