Product type	Inductive sensor
Brand	IFM
Model	IG5716
Main function	Contactless detection of metals with switching signal
Nominal sensing range (Sn)	Indicated on the label (depending on flush or non-flush mounting)
Mounting	Flush (Sn = Xmm f) or non-flush (Sn = Xmm nf)
Supply voltage	According to label (typically 10–30 V DC)
Connection	Disconnect power before connection
Minimum output current	Observe the indicated values
Precautions for capacitive loads	Ensure that the output current at inrush is not exceeded
Precautions for inductive loads	Mount an RC circuit in parallel with the load
For 2-wire detectors	Mount a resistor in parallel if the load is too low
Series mounting	Take into account the voltage drop of each device
Parallel mounting (2-wire)	Avoid except in exceptional cases
Minimum distance between detectors	8 x Sn (see figures 3,4)
Clearance zone	Around the active face for mounting on metal frame
Cleaning	Soft dry cloth, disconnect before
Safety	Disconnect before any intervention

Frequently Asked Questions - IG5716 IFM

How to install the IG5716 sensor?

The sensor can be mounted flush (Sn = Xmm f) or non-flush (Sn = Xmm nf). Observe the minimum distances between detectors (8 x Sn) and the clearance zone around the active face (see figures 1-4).

What is the detection range?

The nominal sensing range Sn is indicated on the device label. It is measured with steel 37. For other metals, the range is less than Sn.

Can I use this sensor with inductive loads?

Yes, but an RC circuit must be mounted in parallel with the inductive load (see figure 7).

How to connect the sensor electrically?

Disconnect power before connection. Connect the load before switching on. Observe the current and supply voltage values indicated on the label.

What to do if the sensor does not work?

Check the power supply, connections, and load. For 2-wire detectors, a load that is too low may cause malfunction; mount a resistor in parallel. Also check series or parallel mounting.

What is the required supply voltage?

The supply voltage must match that indicated on the label. If it is not stabilized, a capacitor must be connected (e.g., 1000 μF at 24 V and 1 A).

Can I mount several sensors side by side?

Yes, but observe the minimum distances indicated (8 x Sn) to avoid interference (see figures 3,4).

How to clean the sensor?

Disconnect the device before cleaning. Use a soft dry cloth. Do not use abrasive products or solvents.

Is the sensor suitable for detecting all metals?

It detects ferrous and non-ferrous metals, but the range is optimal for steel 37. For other metals, the effective range may be less than Sn.

What is the difference between flush and non-flush mounting?

Flush mounting (Sn = Xmm f) allows embedding the sensor in a metal hole, while non-flush mounting (Sn = Xmm nf) requires free space around the active face. The nominal sensing ranges differ according to the type.

USER MANUAL IG5716 IFM

Installation Instructions

Inductive sensor

DC / unipolar

Notice de Montage

Détecteur inductif

DC / non polarisé

取扱説明書

高周波誘導式近接スイッチ

直流2線式／無極性型

efector100

人体の保護を目的とした安全回

路に組込むことを禁止します。

Function and features

This sensor detects metals without contact and indicates their presence by providing a switched signal. Nominal sensing range (Sn) see type label; (value based on standard measurement with mild steel; a shorter sensing range for other metals).

Installation

• Flush or non-flush installation (see type label: Sn = Xmm f or Xmm nf) (→ fig. 1)

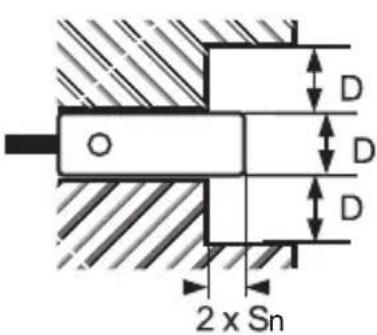

• Open space around the sensing face when mounted in metal (→ fig. 2).

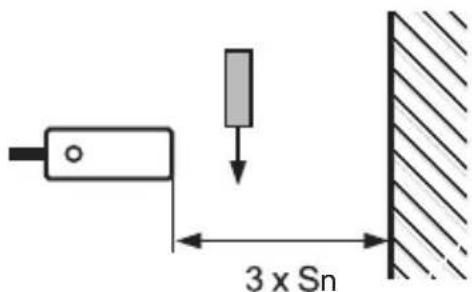

• Minimum distance when several sensors of the same type are mounted ( fig. 3, 4).

	Sn = x mm f Sn = x mm nf
1
2
3
4

Electrical connection

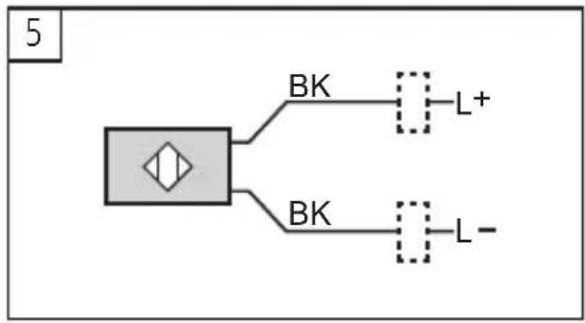

▶ Disconnect power before connecting the proximity switch; connection: → fig. 5).

• For cables longer than 30 ~m and wires greater than 0.5 ~mm^2 the cable should be laid separately from sources of interference (at a distance of about 50 ~cm ) or a screened cable should be used.
• Connect the load before applying the operating voltage.
• Observe the values for current rating and minimum load current.
• If capacitive loads are used, ensure that the peak current rating is not exceeded.

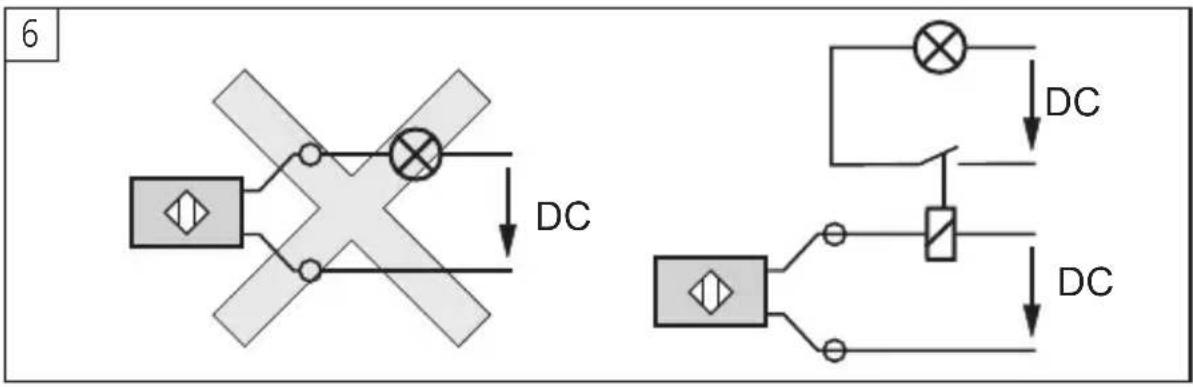

▶ Do not connect loads of low resistance (e.g. lamps) directly to the sensor. Switch these loads via a relay ( fig. 6):

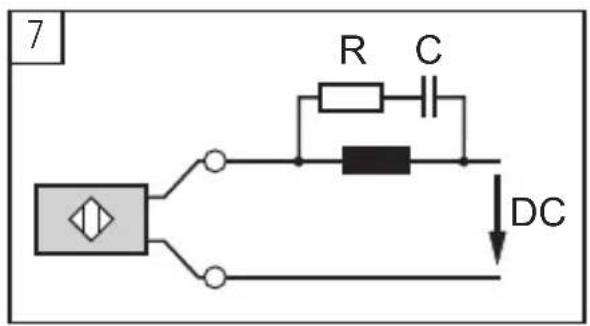

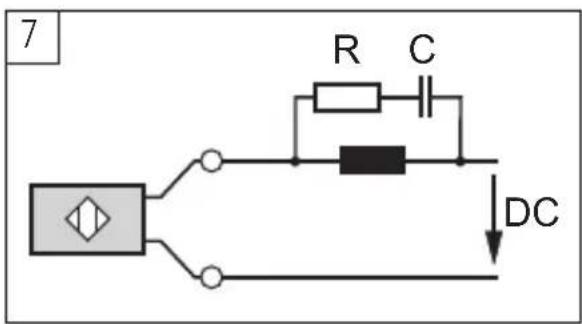

▶ For inductive loads a RC circuit should be connected in parallel to the load ( fig. 7).

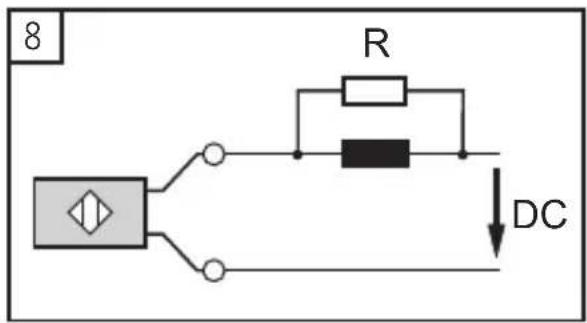

▶ A load which is too low for 2-wire sensors may lead to malfunction. In such a case a resistor should be connected in parallel to the load ( fig. 8).

- For series connection consider the voltage drop of each unit.

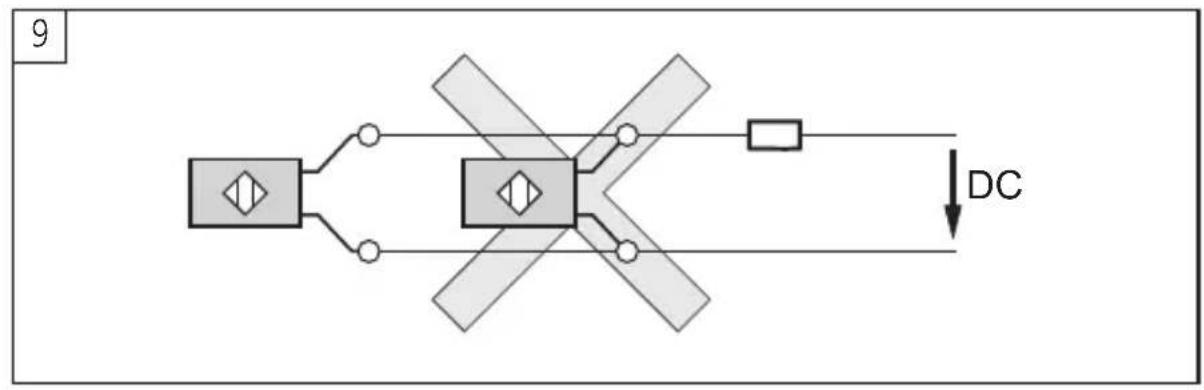

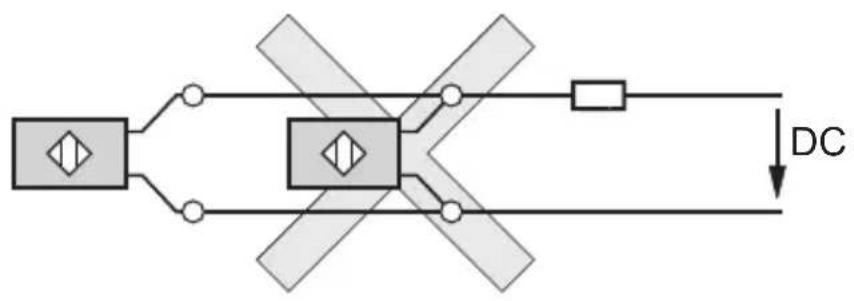

▶ As a rule avoid connecting 2-wire units in parallel (only in exceptional cases, check the safe function, → fig. 9):

9

UK

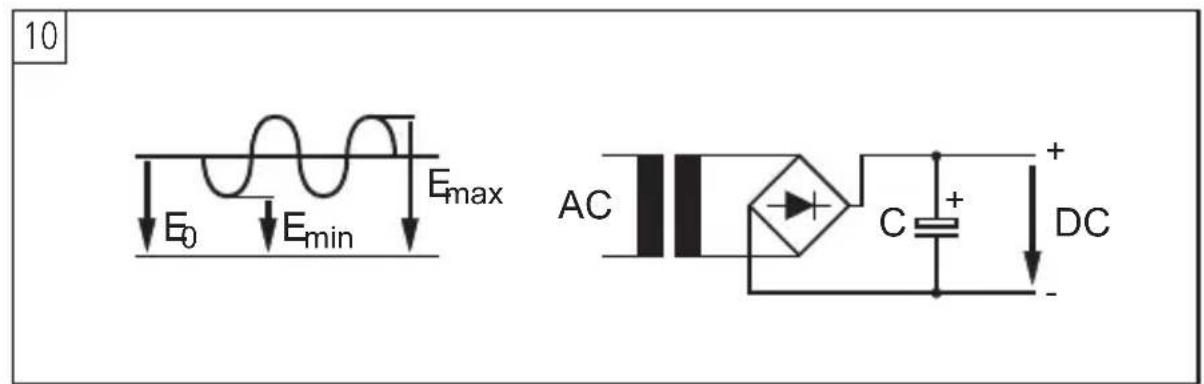

The supply voltage must correspond to the values indicated on the label. If it is not stabilised, a capacitor should be connected (at 24 V and 1 A for example a capacitor of 1000 μF, 50 WV → fig. 10):

10

