AC1376 - Industrial Automation IFM - Free user manual and instructions
Find the device manual for free AC1376 IFM in PDF.
| Brand | IFM |
| Model | AC1376 |
| Product Type | AS-i DP Gateway |
| Category | Industrial Automation |
| Supply Voltage | 24 V DC (20...30 V PELV) |
| AS-i power supply required | Yes (e.g. AC1216), with data decoupling |
| Profibus-DP interface | Yes, baud rate 9600 to 12 MBaud, galvanic isolation |
| RS232C interface | Not usable |
| Number of AS-i masters | 2 (AS-i 3.0 version) |
| Mounting type | 35 mm profile rail, protected location (electrical cabinet) |
| Protection rating | IP20 |
| Display | Screen with navigation buttons |
| Diagnostic LEDs | PWR/COM, PROJ, CONF/PF, Profibus DP |
| Contrast adjustment | Yes, via key combination |
| Available menus | Slave Lists, Address Slave, Quick Setup, System Setup, System Info, Master Setup, Slave Setup, Fieldbus Setup |
| Firmware update | Possible via specific programming software |
| System password | Yes, to change configuration |
| Menu languages | German and English (switchable) |
| Max number of parallel gateways | 31 |
| Electrical connection | Terminals +24 V, 0 V, FE; power off before work |
| Installation environment | No condensation, avoid dust, vibrations, shocks, frequency converters nearby |
Frequently Asked Questions - AC1376 IFM
User questions about AC1376 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Industrial Automation in PDF format for free! Find your manual AC1376 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AC1376 by IFM.
USER MANUAL AC1376 IFM
Function and features
- The AS-i DP gateway integrates 2 AS-i masters (AS-i version 3.0) and a Profibus DP interface
- It controls the exchange of data to the sensor/actuator level
- communicates with the higher control level (in the gateway mode)
Interface RS232C
The serial interface cannot be used.
Profibus-DP interface
- Baud rate 9600 to 12 MBaud
- Max. distance between gateway and host: depending on the baud rate
- Potential separation from the gateway power supply
- Up to 31 gateways connected in parallel
- Pin connection: pin 3: signal B, pin 8: signal A
Installation
Fix the AS-i DP gateway onto a 35 mm rail which has an electrically safe ground connection. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet).
Ensure a condensation-free environment. Avoid excessive dust, vibration and shock. The air circulation through the vents must not be impeded.
Avoid installation in direct vicinity of frequency inverters.
Electrical connection
Disconnect the installation from power. Connect the unit as indicated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection. Ensure an electrically save ground connection between AS-i DP gateway (terminal FE) and ground of the unit.
Supply the AS-i DP gateway with a 24 V DC voltage (20...30 V PELV), e.g. from the 24 V power supply DN2011 of ifm electronic. The connection is made to the terminals +24 V and 0 V.
Operating and indicating elements

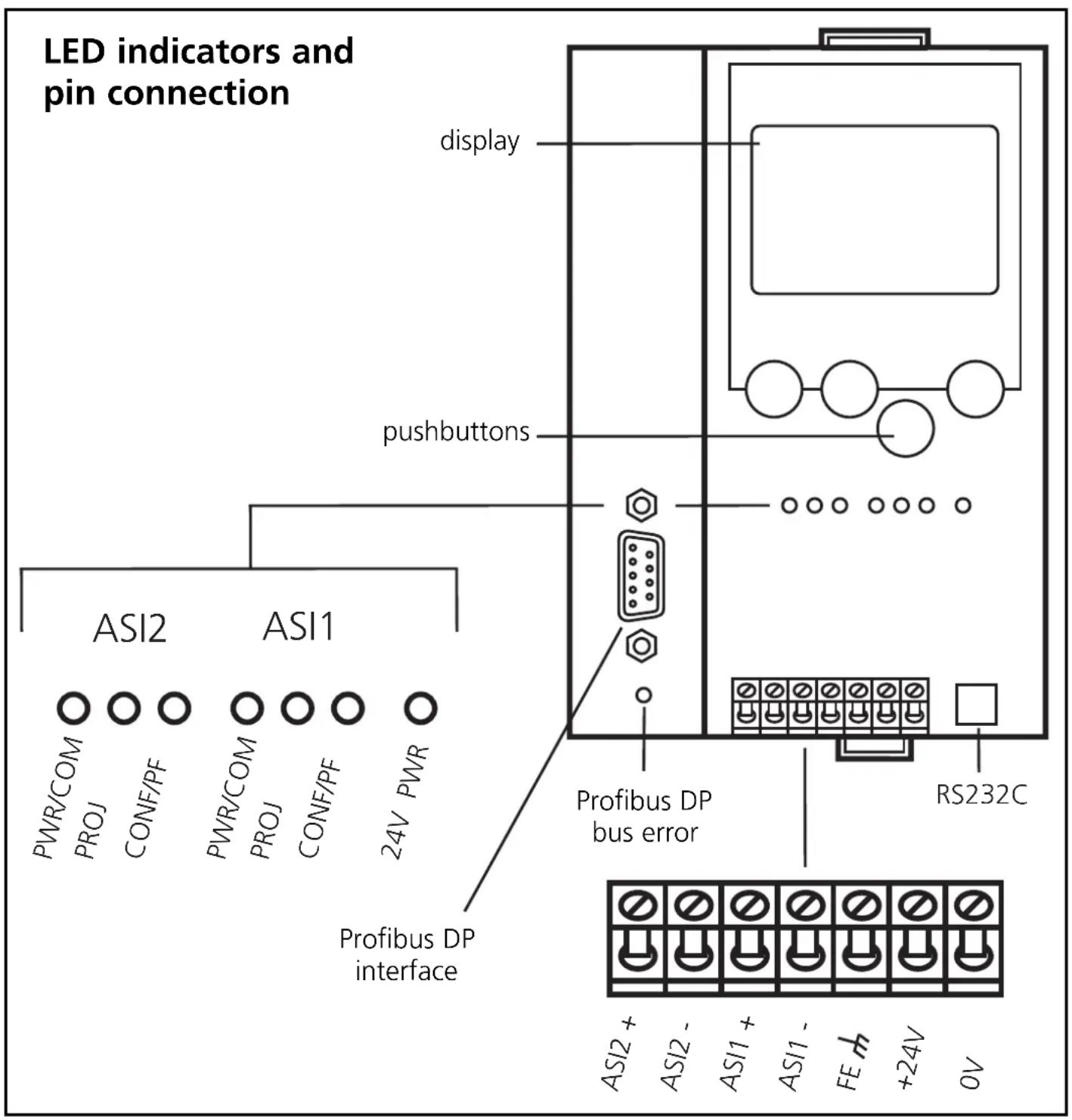

Information concerning the state of the masters and the connected system is given via three diagnostic LEDs on the AS-i DP gateway.
- LED PWR/COM lights: AS-i voltage present, at least one slave was detected
- LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly
- LED PROJ lights: Projection mode active, the configuration monitoring is deactivated
- LED PROJ flashes: Projection mode active, changeover to protected mode not possible as a slave with the address 0 is connected
- LED CONF/PF lights: Projected and current configuration do not match
- LED CONF/PF flashes: Periphery fault on at least one connected slave
- LED Profibus DP lights: Bus error Profibus DP

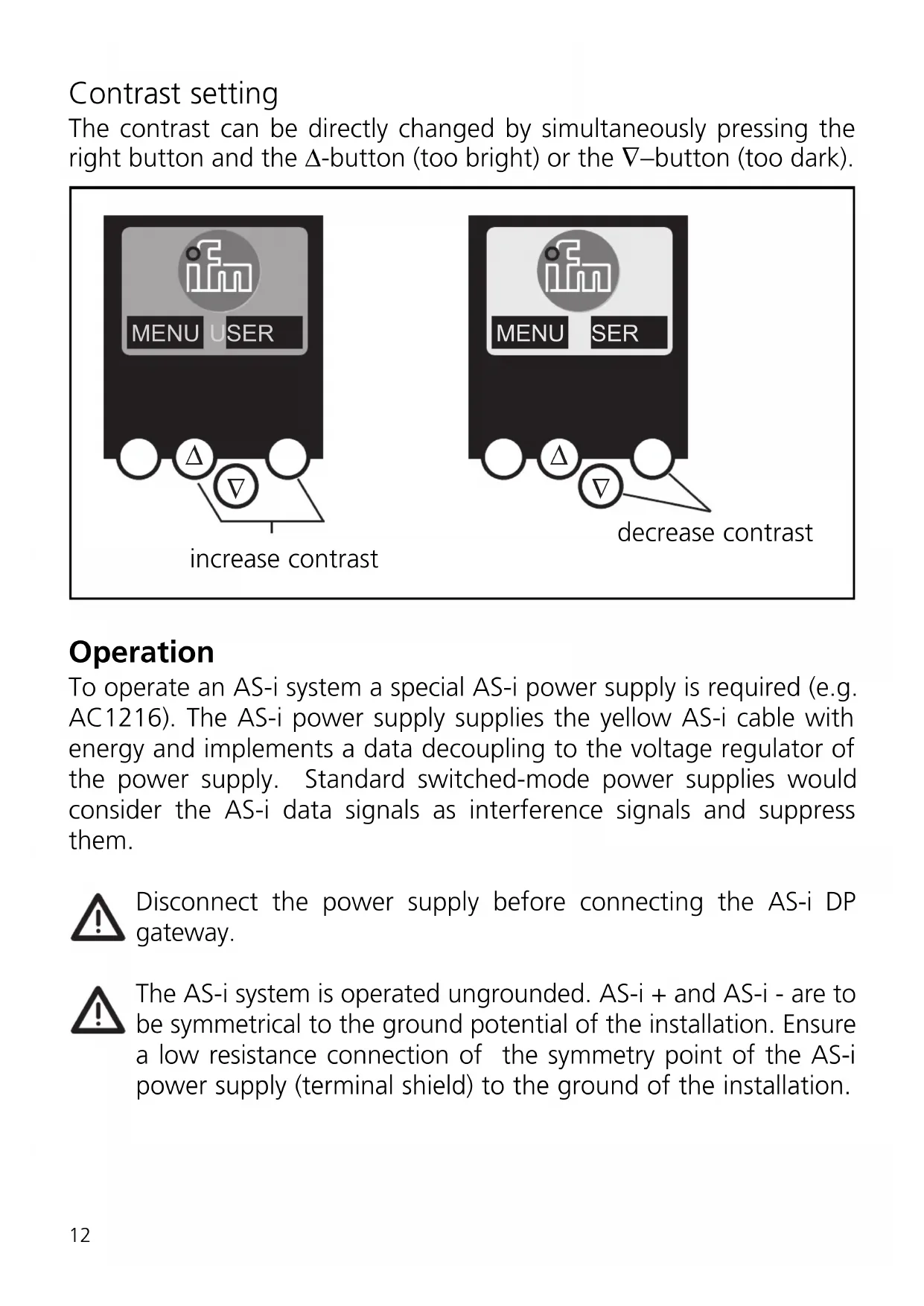

Contrast setting

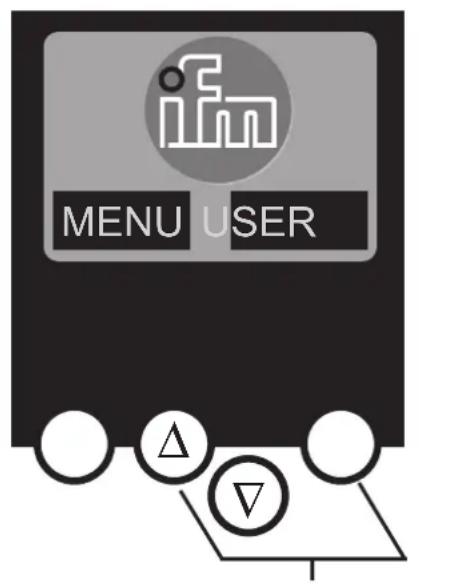

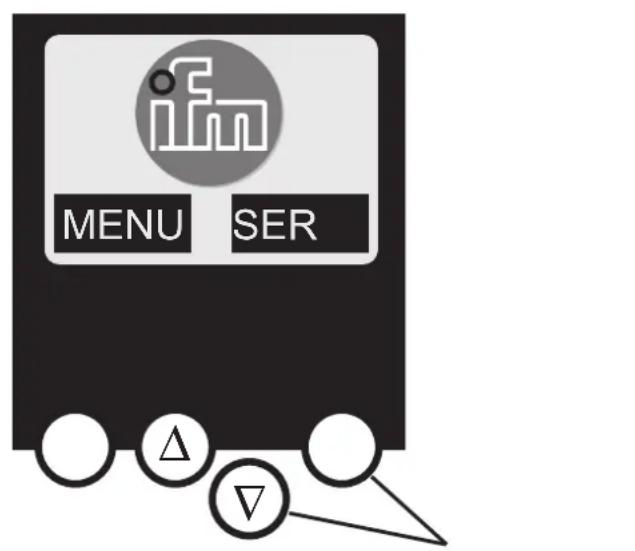

The contrast can be directly changed by simultaneously pressing the right button and the -button (too bright) or the -button (too dark).
increase contrast
decrease contrast
Operation
To operate an AS-i system a special AS-i power supply is required (e.g. AC1216). The AS-i power supply supplies the yellow AS-i cable with energy and implements a data decoupling to the voltage regulator of the power supply. Standard switched-mode power supplies would consider the AS-i data signals as interference signals and suppress them.
Disconnect the power supply before connecting the AS-i DP gateway.
The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation. Ensure a low resistance connection of the symmetry point of the AS-i power supply (terminal shield) to the ground of the installation.
Menu overview

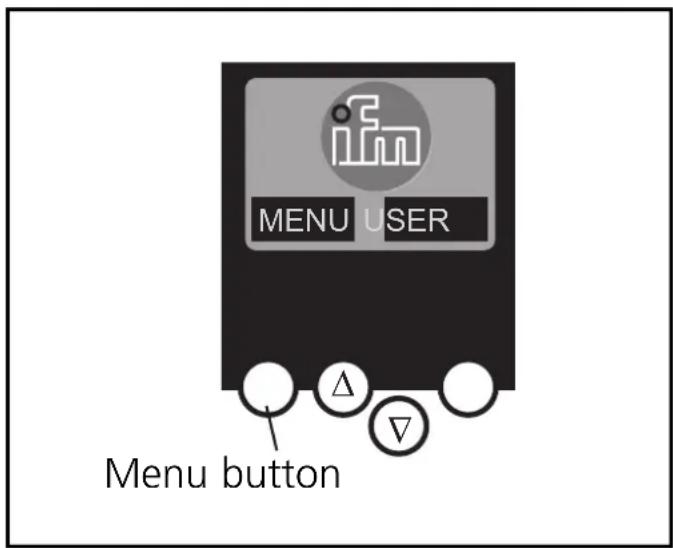

Open the main menu by pressing the left button "MENU" in the start display.

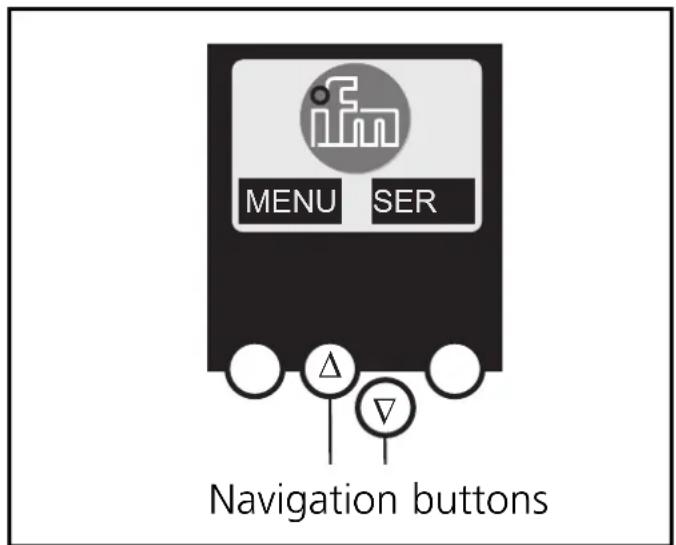

To navigate within a menu point press the button or .
Press the buttons simultaneously to switch between the German and English menu.
Menu navigation
O Slave lists (Checking of the addresses of the connected AS-i slaves)
List of the detected AS-i slaves (LDS)
List of the projected AS-i slaves (LPS)
List of the activated AS-i slaves (LAS)
List of the AS-i slaves with periphery fault (LPF)
O Address slave (Programming of the correct addresses in the connected AS-i slaves)
Readdressing of an AS-i slave connected to the gateway
Automatic addressing of new AS-i slaves to the next free address (easy startup)
O Quick setup (Summary of the menu points required for a basic configuration)
Reading of the current AS-i configuration (config all)
Setting of the fieldbus connection
O System setup (Setting of the gateway device)
Input of the password to enable changes in the system configuration
Update of the gateway firmware (special programming software required)
O System info (Device information)
Hardware and firmware version numbers of this gateway
Serial number of this gateway
Current / maximum PLC cycle time
O Master setup (AS-i master flags)
Reading of the current AS-i configuration (config all)
Changeover to the projection mode: configuration of the AS-i system
Changeover to the protected mode: standard mode (the master monitors the configuration)
Deactivation of the automatic AS-i slave addressing in the protected mode
Deactivation of the AS-i reset when exiting the projection mode
Display of the config error counter of the connected AS-i system
Reset of the config error counter
Display of the percentage fault rate of the connected AS-i system
O Slave setup (Details about the connected AS-i slaves)
Digital or analogue inputs/outputs of the connected AS-i slaves
Current and projected parameters of the connected AS-i slaves
Current and projected I/O and ID codes of the connected AS-i slaves
Message faults in the communication to the connected AS-i slaves
O Fieldbus setup(Setting of the fieldbus interface)
Input of the slave address of the gateway in the higher-level Profibus DP
Further inputs via the higher-level Profibus DP
Limited voltage / Current
The device shall be supplied from an isolating transformer having a secondary Listed fuse rated either
a) max 5 amps for voltages 0 20 Vrms (0 28.3Vp) or
b) 100Vp for voltages of 20~30 Vrms (28.3~42.4 Vp).
