Product type	AS-interface ClassicLine electronic module
Brand	IFM
Model	AC5295
AS-interface version	3.0 (compatible with version 2.0)
Number of inputs	4 inputs for sensors
Connection type	M12 connector
Protection degree	IP67
Supply voltage	30 V DC via AS-i flat cable (yellow)
LED display	LED PWR (green), LED FAULT (red), yellow LED per input/output
Addressing	Via AC1144 addressing unit and E70213 cable
Max. number of modules per master	62
AS-i profile	S-0.A.E (extended addressing mode possible)
Tightening torque of connectors	0.6 to 0.8 Nm
Maintenance and cleaning	Avoid dirt and dust deposits to ensure locking
Safety	Use protective caps (E73004) for unused connectors
Spare parts	Protective caps E73004, sealing ring E70413, addressing cable E70213
Accessories	AC1144 addressing unit, E70213 addressing cable
Compatibility with older master	Requires parameter P3 set to 1 and bit D3 set to 0 for extended mode
Available languages	French, German, English and others on request
Document format	Free PDF, 15 pages
Flat cable orientation	3 possible directions via base and top part adjustment

Frequently Asked Questions - AC5295 IFM

How to address the AC5295 module?

Use the addressing unit AC1144 and the addressing cable E70213. Connect the cable to the addressing socket on the front of the module and assign the desired address.

What does the red LED FAULT mean?

The red LED FAULT indicates an AS-i communication error: the slave does not participate in normal data exchange (e.g., address 0). Check the addressing and connection to the master.

What to do if the red LED FAULT blinks?

A blinking LED FAULT signals a peripheral fault: overload or short circuit on the sensor supply or output. Check the wiring and connected loads.

What is the maximum number of AC5295 modules on a master?

The maximum number of modules per AS-i master is 62.

What protection degree does the module offer?

The module offers protection degree IP67, provided that unused connectors are sealed with protective caps.

How to orient the AS-i flat cable?

The flat cable can be oriented in three directions. Set the position (1, 2 or 3) on the base and then on the top part by turning the arrow. Use a screwdriver or the cable guide.

What accessories are available for the module?

Recommended accessories: protective caps E73004, sealing ring E70413 for cable end, and addressing cable E70213.

Is the module compatible with an AS-i master version 2.0?

Yes, but in extended addressing mode, parameter P3 must be set to 1 and output bit D3 to 0. Additionally, the address must be between 1A and 31A.

How to clean the module?

Avoid dirt and dust deposits, especially on the base and top part, to ensure the locking mechanism. Use a dry cloth if necessary.

Where to download the complete manual?

The manual is available free of charge as a PDF on notice-facile.com or on the IFM website (www.ifm-electronic.com).

USER MANUAL AC5295 IFM

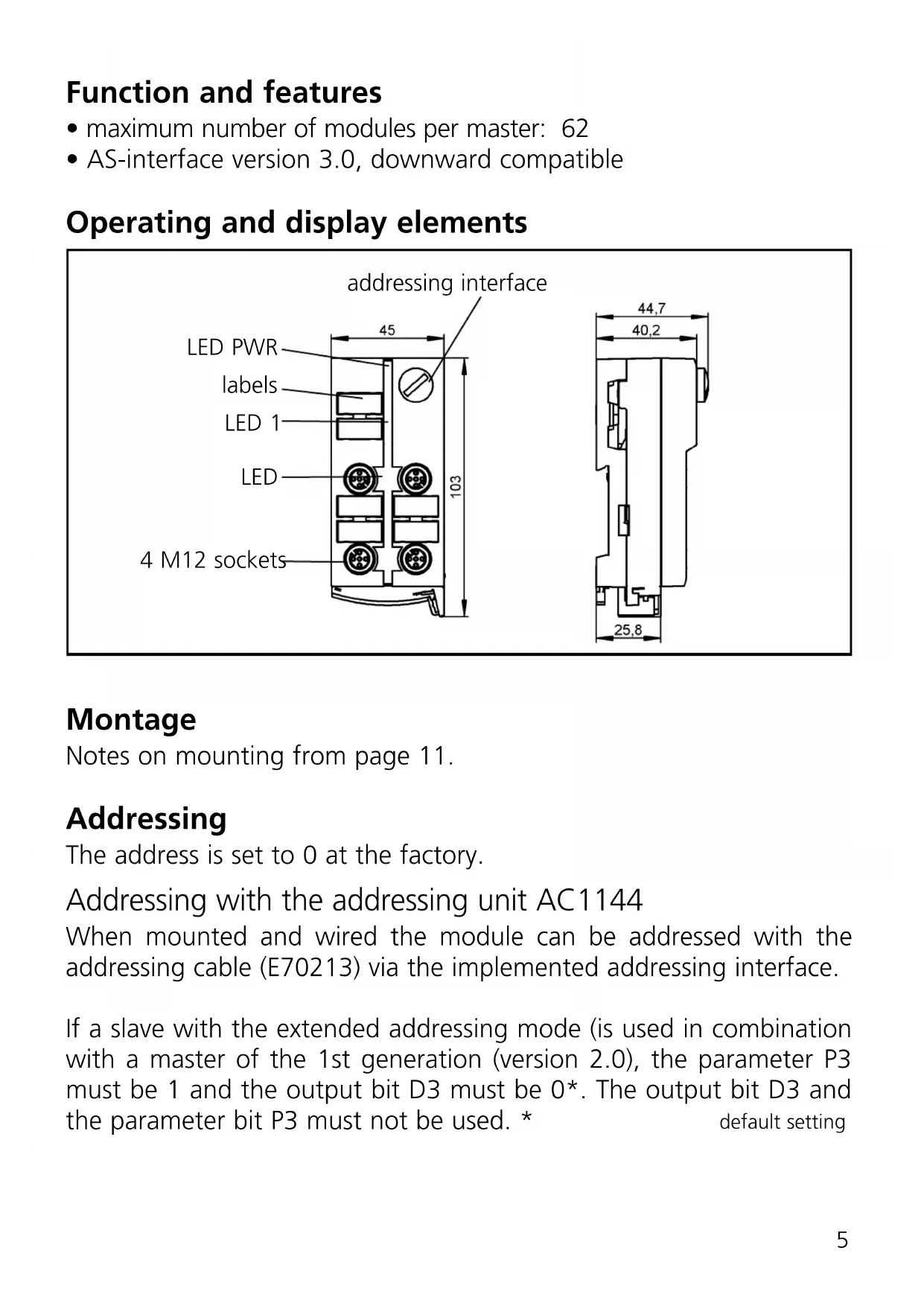

Function and features

maximum number of modules per master: 62
- AS-interface version 3.0, downward compatible

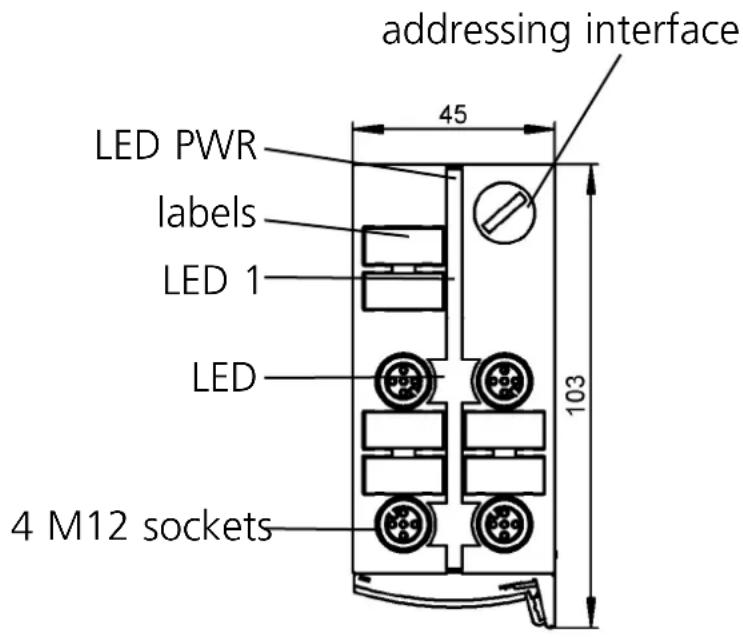

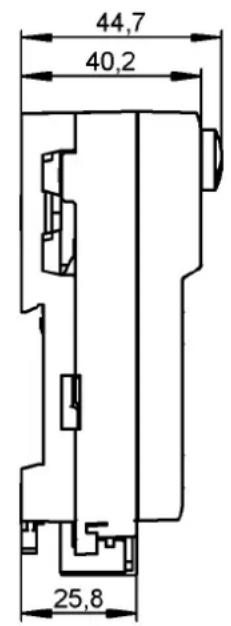

Operating and display elements

Montage

Notes on mounting from page 11.

Addressing

The address is set to 0 at the factory.

Addressing with the addressing unit AC1144

When mounted and wired the module can be addressed with the addressing cable (E70213) via the implemented addressing interface.

If a slave with the extended addressing mode (is used in combination with a master of the 1st generation (version 2.0), the parameter P3 must be 1 and the output bit D3 must be 0^ . The output bit D3 and the parameter bit P3 must not be used. * default setting

If a slave with the extended addressing mode is used in combination with a master of the first generation (version 2.0), an address between 1A and 31A must be assigned to this slave.

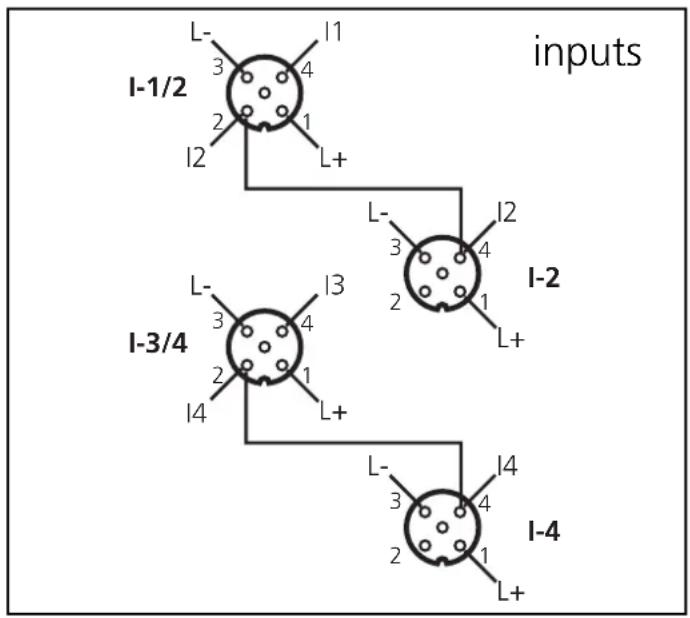

AC5295

4 inputs

AS-i profile S-0.A.E / extended addressing mode: yes

Data bit D0 D1	D2 D3
Input I1 I2 I3 I4
Socket I-1/2 I-1/2	I-2 I-3/4	I-3/4 I-4

Electrical connection

Connect the connectors of the sensors/actuators to the M12 sockets. To ensure the protection rating IP 67 you must

• cover the unused sockets with protective caps (E73004)*, tightening torque 0.6...0.8 Nm.
• use the flat cable end seal (E70413)* if the module is at the end of the cable line.
  *) to be ordered separately

Operation

Avoid build-up of dirt and dust on the upper and lower parts so that the locking mechanism is not affected.

Check the safe functioning of the unit. LED display:

• LED yellow: input /output switched
• LED PWR green: AS-i voltage supply o.k.
• LED FAULT red is lit: AS-i communication error, slave does not participate in the "normal" exchange of data, e.g. slave address 0
• LED FAULT red flashes: peripheral fault, e.g. sensor supply /output overloaded or shorted
• LED 1 yellow: logic state of the outputs

Overload and short circuit of the input supply and the outputs are signalled as peripheral fault to the AS-i master (version 2.1 or higher).

Technical data

You can download the data sheet from our website at www.ifm-electronic.com if required.

Orientation of the flat cable on delivery

Carefully place the yellow AS-i flat cable into the profile slot.

Mount the upper part.

With the supplied lower part the flat cable can be aligned in three directions.

For the requested direction place the flat cable guide (1) accordingly.

Settings at the lower part

Select the position 1, 2 or 3 depending on the requested flat cable alignment () .

A = Factory setting

Settings at the upper part

Then set the selected position at the upper part. To do so, turn the arrow to the corresponding number (figure D1 and D2).

Use a tool, e.g. a screwdriver (figure D1) or the yellow / black flat cable guide (figure D2).

Open the unit using a tool as shown (e.g. screwdriver).

Take care in laying the AS-i flat cable, the flat cable should be laid straight for about 15 cm.
