Product type	Marine radio with AM/FM receiver, NOAA weather, Bluetooth 5.0, USB and SiriusXM
Brand and model	Clarion CMM30
Dimensions (W x H x D)	151 x 99 x 75 mm
Supply voltage	10-16 V DC (12 V nominal)
Maximum consumption / Fuse	15 A / 15 A
Output power (RMS)	25 W x 4 (at 14.4 V, 4 Ω)
Preamp outputs	4 stereo RCA pairs (3.5 V RMS)
Auxiliary input	1 stereo RCA pair (sensitivity 1/2 V RMS)
Radio bands	FM: 87.5-108 MHz (depending on region); AM: 531-1710 kHz; Weather: 162.4-162.55 MHz
Presets	18 (all bands)
Bluetooth	Version 5.0, A2DP/AVRCP profiles, range up to 11 m
USB	USB 2.0 high speed, 2.1 A charging, MP3/WMA/FLAC/WAV formats
Apple compatibility	iPhone SE and later (depending on iOS version)
Audio zone system	4 zones with volume control, high-pass filter (80/100/120 Hz)
Equalizer	5 bands, adjustable from -10 to +10
SiriusXM parental control	4-digit code lock for adult channels
NMEA 2000 connectivity	Control via compatible MFDs (Simrad, Lowrance, Garmin)
Wired remote controls	Up to 3 remotes (max cumulative distance 23 m), models CMR-30/20/10
Operating temperature	-20 °C to +60 °C
Installation	12 V negative ground vehicles, professional installation recommended
Safety	Do not replace fuse with a different rating; securely mount the unit
Maintenance	Clean with a soft dry cloth; avoid immersion and high-pressure jets

Frequently Asked Questions - CMM30 CLARION

How to install the Clarion CMM30 in a boat?

Ensure the electrical system is 12 V negative ground. Mount the unit in a dry, well-ventilated area away from water splashes. Secure it firmly to avoid any movement during navigation. Professional installation is recommended.

How to connect my phone via Bluetooth?

From the Bluetooth menu, select 'Pair New Device'. Enable Bluetooth on your phone and select 'CMM30' from the list of devices. Confirm pairing on both devices. You can then stream your music via the A2DP protocol.

How to save a radio station as a preset?

Tune to the desired station, then press and hold the 'Favorites' (or 'FAV') button until the preset number flashes. Turn the knob to select a slot (1 to 18) and press to confirm. The station is now saved.

What to do if the radio does not receive the SiriusXM signal?

Check that the SiriusXM antenna is properly connected to the tuner and placed outdoors with a clear view. The 'No Signal' message may indicate an obstruction. Ensure that the cable is not damaged or kinked. Refer to the tuner's installation manual.

How to configure audio zones?

In the 'Settings' menu, go to 'Audio Zone Setup'. You can choose the volume control mode (Variable, Absolute, Sub for zone 4) and the high-pass filter (80, 100 or 120 Hz). Rename each zone according to its location (Bow, Bridge, etc.).

What types of files can I play via USB?

The USB port supports MP3, WMA, FLAC and WAV formats. Limits: up to 255 folders, 3,000 files per folder, and 9,999 files total. The port also provides 2.1 A charging for your devices.

How to reset the device to factory settings?

To reset only the SiriusXM part, go to 'My Account' then 'Reset SiriusXM'. For a general reset, there is no option in the menu; disconnect power for a few minutes or consult the manual. Note that this erases all your presets.

Can I use headphones with this model?

The CMM30 does not have a dedicated headphone output. You can connect headphones via the auxiliary output using an adapter, but the volume will be that of the corresponding audio zone. It is better to use the amplified outputs for speakers.

How to activate parental control on SiriusXM?

In the SiriusXM menu, select 'Parental Controls' then 'Lock Mature Channels'. Enter a 4-digit code (default 0000). Adult channels will then be locked. To change the code, go to 'Edit Lock Code'.

What does the 'Check Antenna' message mean?

This message indicates a problem with the SiriusXM antenna: disconnected or damaged cable. Check the cable connection to the tuner and the condition of the cable. If the problem persists, replace the antenna. SiriusXM products are available from authorized dealers.

USER MANUAL CMM30 CLARION

Exterior view of a Clarion device with visible cables and a logo (no text-heavy elements)

CMM-30BB

Hideaway Marine Source Unit

OWNER'S MANUAL

MANUEL D'UTILISATION

MANUAL DEL PROPIETARIO

BEDIENUNGSANLEITUNG

MANUALE DEL PROPRIETARIO

Bluetooth

((SiriusXm))

clarion

MARINE AUDIO

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

SAFETY CONSIDERATIONS

• Only use this product in vehicles with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft.
• Mount this product securely to prevent damage or injury in severe conditions.
• Do not replace the power wire fuse with one of a different value. Never bypass the fuse.
• Listen to your audio system at levels appropriate for operating conditions and hearing safety.

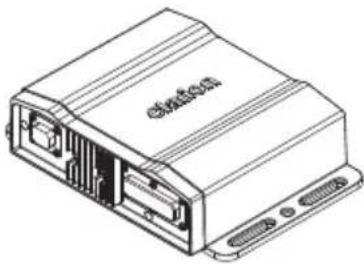

INSTALLATION CONSIDERATIONS

• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
- This product is water-resistant. Do not submerge or subject to high-pressure water spray.
- Before installation, turn off the audio system and disconnect the battery system from the audio system.
- Install in a dry, well-ventilated location that does not interfere with your factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.

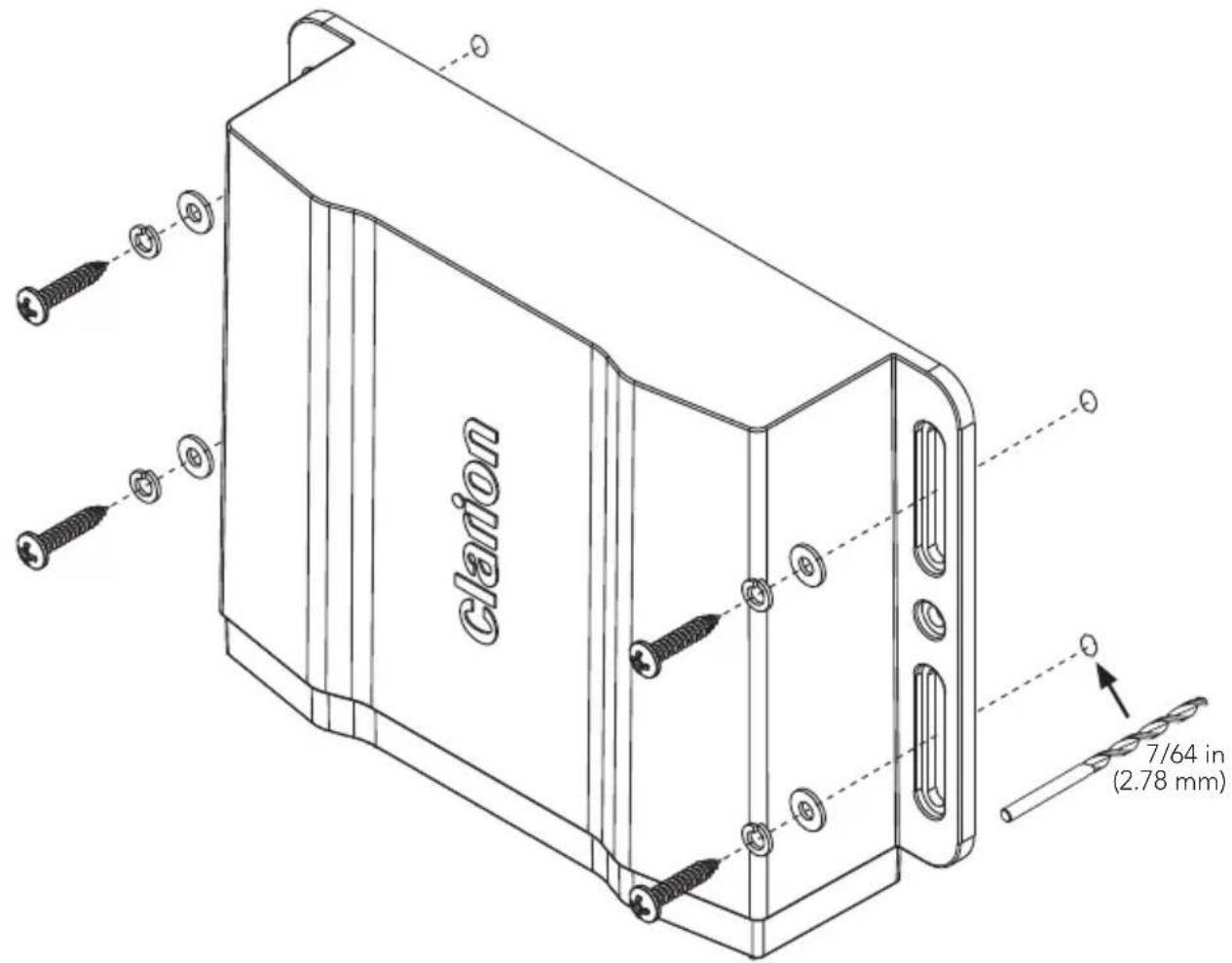

- Before cutting or drilling, check for potential obstacles behind mounting surfaces.
- Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges.

x1 x1 x1
[A/T02]x4 x4		#8 x 0.75 in (19 mm)(x4)

CMM-30BB CONTROL OPTIONS ^1

Two connection types are included to control the CMM-30BB.

Refer to the supplied Owner's Manual of each controller/type (sold separately) for specific user and installation instructions.

NMEA 2000® Connection

Control using your compatible NMEA 2000® multi-function display (MFD). Requires compatible NMEA 2000® entertainment protocols (PGN) and may require a software upgrade of connected MFD devices. Refer to your MFD's manufacturer for device compatibility info.

REMOTE Connection

Optional wired remote controllers using accessory controller cables and splitters (sold separately). Connect up to three controllers to a single source unit, at up to 75 ft (23m) away (cumulative cable length).

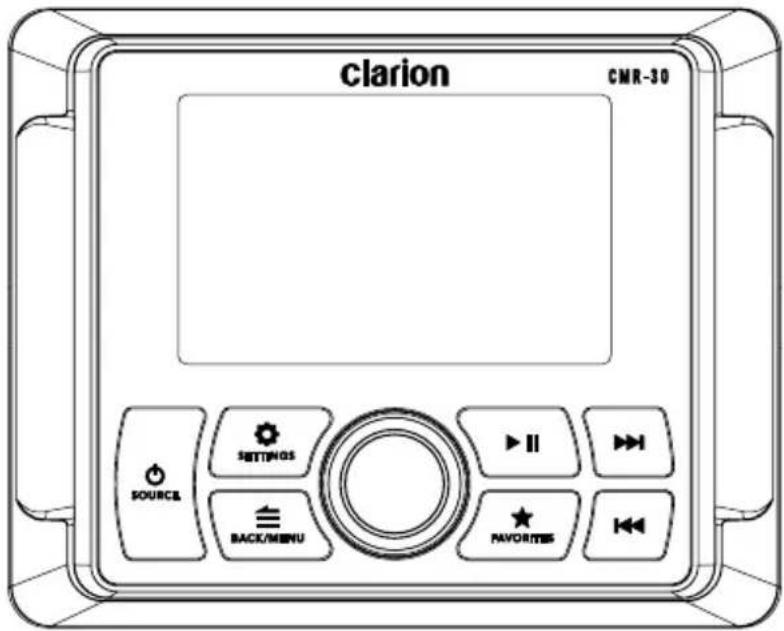

CMR-30: Full-Function, Wired Controller with full-color LCD Display

CMR-20: Full-Function, Wired Controller with LCD Display

CMR-10: Wired Controller

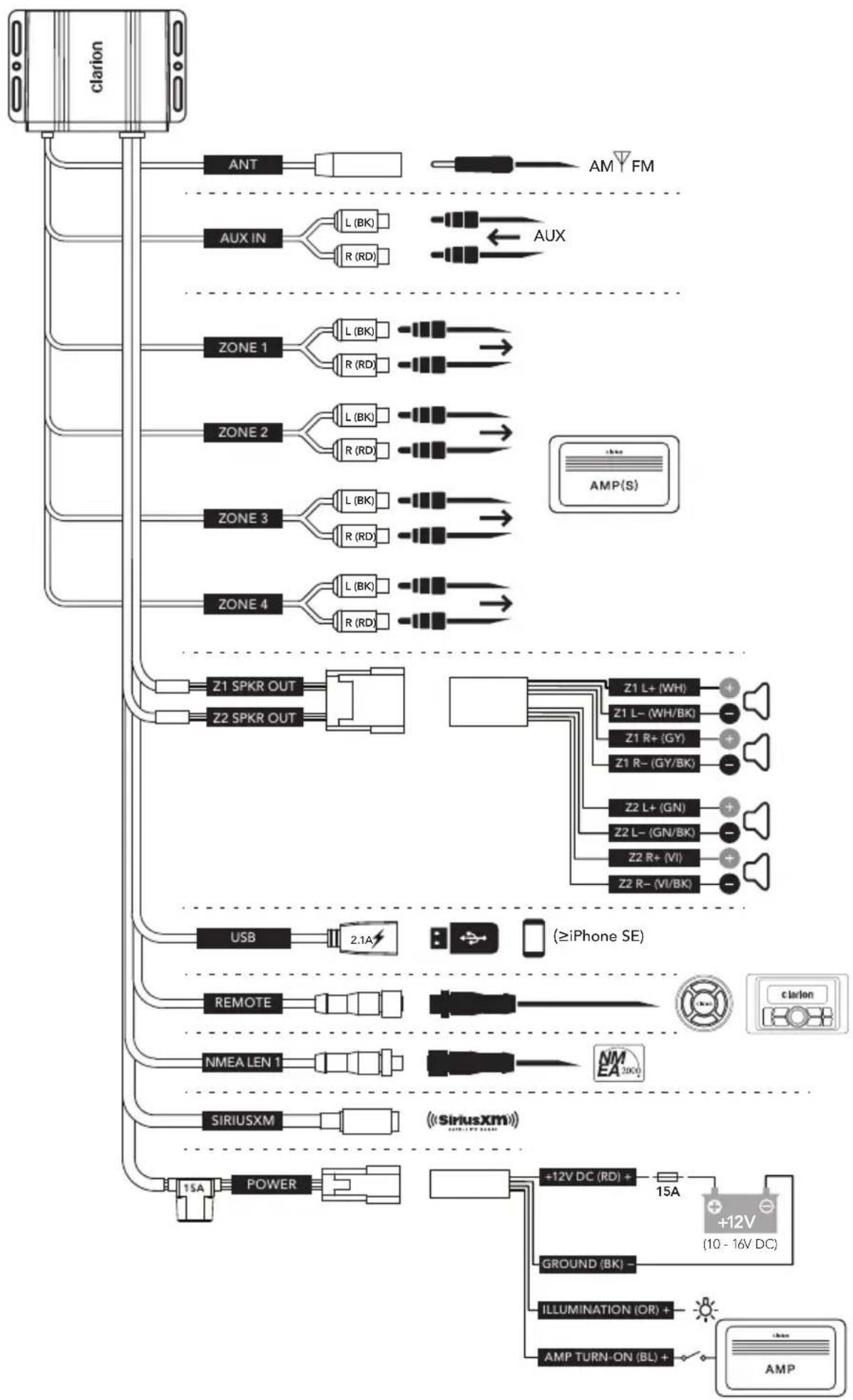


GENERAL CONTROL FUNCTIONS\*

*Using CMR-30

Control Function
SOURCE	Source/Power	Short press to turn ON; Long press to turn OFFWhen on, short press to display the Source: Select menu
	Volume/Select	Rotate to adjust volumeRotate/press for navigation and making selections
SETTINGS	Settings	Short press to access Tone, Balance & EQ settingsLong press to access Settings: Main Menu
BACK/MENU	Back/Menu	Short press to go back one step or access source specific menus
FAVORITES	Favorites	Short press to access stored presetsLong press to store a frequency as a preset (up to 18)
	Mute/Pause	Short press to mute/unmute audio (AM/FM/SiriusXM/WB/AUX) or pause/resume the current selection (USB/Bluetooth)
	Forward	Short press to:Manually adjust tuner forwards (AM/FM/SiriusXM/WB)Select the next track (USB/Bluetooth)Long press to:Seek to the next channel (AM/FM/WB)Initiate Rapid Channel Browsing forward (SiriusXM)Fast-forward (USB/Bluetooth)
	Backward	Short press to:Manually adjust tuner backwards (AM/FM/SiriusXM/WB)Restart track/select the previous track (USB/Bluetooth)Long press to:Seek to the previous channel (AM/FM/WB)Initiate Rapid Channel Browsing backward (SiriusXM)Fast-rewind (USB/Bluetooth)

SYSTEM MENU SETTINGS*
	• Long press to access the Settings: Main Menu
	• Rotate to navigate• Press to make selections
Setting Function
Audio Zone Setup	Configures each set of audio zone outputs
Aux Input Sensitivity	Configures AUX input sensitivity: 2V or 1V RMS (default)
Diagnostic Displays	hardware and software version info
Display Configures display and brightness settings
Scrolling text Enables continuous scrolling of available RDS/track text info
Tuner Region Configures AM/FM tuner range/scale for a specific region

FAVORITES MENU SETTINGS*
	• Short press to access settings/stored presets• Long press to store a frequency as a preset (up to 18)
	• Rotate to navigate• Press to make selections
Setting Function
Edit Select to	Move or Delete stored presets

TONE, BALANCE & EQ MENU SETTINGS*
SETTINGS	• Short press to access settings
	• Rotate to navigate• Press to make selections
Setting Function Note
Treble Treble	level control from -10 to +10	EQ must be set to Off
Mid Mid level	control from -10 to +10
Bass Bass level	control from -10 to +10
Balance Balance	control from full left (-10) to full right (+10)
EQ 5-band equalizer control from -10 to +10 per band

AUDIO ZONE MENU SETTINGS*
SETTINGS	• Long press to access settings
	• Rotate to navigate• Press to make selections
Zone Function Setting 1
Z1: Zone 1Z2: Zone 2Z3: Zone 3Z4: Zone 4	Level Control Mode	Variable (default)
		Absolute
		Sub (Zone 4 only)
		Off
	HP Xover	Off
		80 Hz
		100 Hz
		120 Hz
	Rename Zone	Bow, Bridge, Cabin, Cockpit, Galley, Helm, Stateroom 1, Stateroom 2, Tower, Transom
		Factory Default
	Volume Limit Max Volume	Limit
BLUETOOTH MENU SETTINGS*
BACK/MENU	• Short press to access settings
	• Rotate to navigate• Press to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Connect Paired Device	Display all paired devices for connection
Pair New Device Initiates Pairing Mode (current connected devices will be disconnected)
Set Primary Device Assign priority to a paired device for automatic connection
Delete a Paired Device	Select from paired devices for removal
Delete All Paired devices	Removes all paired devices from memory

USB MENU SETTINGS*
BACK/MENU	• Short press to access settings
	• Rotate to navigate• Press to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Random Random playback of all tracks
Repeat Repeats playback of the current track or all tracks
Play All Plays all tracks within all folders
Folder list Displays list of folders/tracks

! IMPORTANT

• Properly secure the connected device before driving to prevent damage from dropping or sudden acceleration/braking.
• Control, functionality and display may vary depending on the model and version of iPhone ^® connected.
• When connected via USB port, make sure to unpair or disable the Bluetooth connection to avoid possible playback conflicts.
• If you experience abnormal performance during operation, disconnect the iPhone® and check its condition. Restart your iPhone® if performance does not improve.
• "Made for iPhone" means that an electronic accessory has been designed to connect specifically to an iPhone ^® and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an iPhone ^® may affect wireless performance.
• iPhone ^® and all related marks and logos are trademarks of Apple Inc., registered in the U.S. and other countries.

SIRIUSXM® SATELLITE RADIO

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com. (SiriusXM service is only available in the continental US and Canada.)

Activating Your SiriusXM Subscription

After installing your SiriusXM Connect tuner and antenna, power on your CMM-30 and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.

Note: the SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener care:

• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activate
• Call SiriusXM Customer Care at 1-888-539-7474

As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: "Subscription Updated". Once subscribed, you can tune to channels in your subscription plan.

Note: The activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

Parental Controls

Some SiriusXM channels contain mature content. When the Parental Controls feature is enabled, channels with mature content are restricted and will require a 4-digit lock code to access.

Enabling Parental Controls

1. Press to access the BACK/MENU
   SiriusXM: Main Menu.
2. Turn to Pay/SEL Controls and press to enter.
3. Press to select lock Mature Channels. After, you must enter a 4-digit lock code to lock mature content channels. (Parental Control default passcode: 0000)
4. Use voltise the 4-digit lock code and select Save when finished.

Changing the Lock Code

1. Press to access the BACK/MENU
   SiriusXM: Main Menu.
2. Turn to Pay/SEL Controls and press to enter.
3. Turn to Edit/SEL lock Code and press enter.
4. Use to enter the current 4-digit lock code and select Enter when finished.
5. Use to enter the new lock code and select Enter to confirm. Make sure to save your 4-digit lock code for future reference.

SIRIUSXM MAIN MENU

This allows access to the SiriusXM operational menu options. Refer to the table below for available settings and functionality.

1. Press to access the BACK/MENU

SiriusXM: Main Menu.

1. Turn two light one of the menu settings listed in the table below and press to enter.

2. Use VOL/SELE selections.

Setting Function
Now Playing Return to the Now Playing Screen
Browse By Channel View list of available SiriusXM channels
Browse By Category View list of available SiriusXM channels by category
Direct Tune Allows entry for direct channel selection
My Account	View your SiriusXM account status, Radio ID and Reset SiriusXM command
Parental Controls	Settings for access to Lock and Unlock Mature SiriusXM channels

Resetting SiriusXM Settings

A reset will restore all presets and settings, including parental controls, back to their factory defaults.

1. Press to access the BACK/MENU

SiriusXM: Main Menu.

1. Turn to vOlySAccount

and press to enter.

1. Turn to Reset SiriusXM

Tuner and press to enter.

1. Use to select Confirm.

Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

SIRIUSXM TROUBLESHOOTING

Advisory messages may appear on the display when a SiriusXM-Connect Vehicle Tuner is connected to the CMM-30. Refer to the table below for an explanation and suggested corrective actions.

Advisory Message	Description
Check Antenna	The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged.Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.Inspect the antenna cable for damage and kinks. Replace the antenna if the cable is damaged.SiriusXM products are available at your local audio retailer or online atwww.shop.siriusxm.com.
Check Tuner	The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.
No Signal	The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.Verify that your vehicle/vessel is outdoors with a clear view of the sky.Verify that the SiriusXM antenna is mount on the exterior.Move the SiriusXM antenna away from any obstructions.Inspect the antenna cable for damage and kinks.Consult the SiriusXM Connect Vehicle tuner installation manual for more information on antenna installation. Replace the antenna if the cable is damaged.SiriusXM products are available at your local audio retailer or online atwww.shop.siriusxm.com.
Subscription Updated	The radio has detected a change in your SiriusXM subscription status.Press VOL/SEL to clear the message.In the U.S.A., visitwww.siriusxm.comor call 1-866-635-2349 if you have questions about your subscription.In Canada, visitwww.siriusxm.caor call 1-888-539-7474 if you have questions about your subscription.
Channel Unavailable	The channel that you have requested is not a valid SiriusXM channel or the channel you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Vehicle tuner.Visitwww.siriusxm.comfor more information about the SiriusXM channel lineup.
Channel Unsubscribed	The channel that you have requested is not included in your SiriusXM subscription package of the channel that you were listening to is no longer included in your SiriusXM subscription package.In the U.S.A., visitwww.siriusxm.comor call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel.In Canada, visitwww.siriusxm.caor call 1-877-438-9677.
Channel Locked	The channel that you have requested is Locked by the radio Parental Control feature. See Parental Controls, page 12 for more information on the Parental Control feature and how to access locked channels.

SPECIFICATIONS

Electrical
Operating Voltage	14.4V DC (10V - 16V)
Operating Temp Range	4°F to +140°F (-20°C to +60°C)
Current Draw / Fuse Value	15 A (max) / 33 mA (standby) / 15 A
NMEA 2000® LEN	(Micro-C connector)
Compatible MFDs	Simrad, Lowrance, Garmin(control functionality varies by MFD manufacturer)
Remote Turn-On Output	500 mA
Tuner
FM Tuner	USA: 87.9 MHz to 107.9 MHz (0.2 MHz step)EUR: 87.50 MHz to 108.00 MHz (0.05 MHz step)AUS: 87.50 MHz to 108.00 MHz (0.10 MHz step)OTHER: 87.50 MHz to 108.00 MHz (0.05 MHz step)
AM Tuner	USA: 530 kHz to 1710 kHz (10 kHz step)EUR: 531 kHz to 1602 kHz (9 kHz step)AUS: 531 kHz to 1629 kHz (9 kHz step)OTHER: 531 kHz to 1629 kHz (9 kHz step)
NOAA Weatherband	USA: 162.400 MHz - 162.550 MHz (0.025 MHz step)
Favorites	18 presets across all bands
Bluetooth®
Profile / Spec	5.0 / A2DP, AVRCP
Connection Range	Up to 35 ft / 11 m
USB
Interface / Charging Output	USB 2.0 High Speed / 2.1 A
Supported Audio Formats	MP3, WMA, FLAC, WAV
File Limits	Folders: 255Files in a single folder: 3,000Total Files: 9,999
Apple Compatibility	iPhone SE (2nd generation) or beyond(functionality contingent upon compatible iOS release)
Preamp Audio Outputs/Inputs
Output Channels	Four stereo pairs of RCA plugs (3.5V RMS)
Output Configuration	Variable, Absolute, Off (all zones) or Sub (Zone 4 only)
Auxiliary Input Channels	One stereo pair of RCA plugs (1V / 2V RMS Input Sensitivity)
Amplified Audio Outputs
Rated RMS Power @ 14.4V	25W x 4 @ 4 Ω
Audio Control Options
Tone	Treble, Mid, Bass, Balance or 5-band equalizer (all zones)
High-Pass Crossover	Off, 80 Hz, 100 Hz & 120 Hz (all zones)
Dimensions
Unit W x H x D	5.42 in. x 2.01 in. x 7.90 in. (138 mm x 51 mm x 201 mm)

CONSIDÉRATIONS RELATIVES À LA SÉCURITÉ
