Brand	Ninja
Model	Foodi Power Nutri 3in1 CB350EU
Product type	Multifunction blender
Supply voltage	220-240 V ~ 50-60 Hz
Power	1200 W
Pitcher capacity	2.1 L (1.8 L liquid max)
Nutri Power cup capacity	700 ml
Nutri Power bowl capacity	400 ml
Auto-iQ programs	Blend, Crush, Mix, Purée, Chop, PowerMix
Manual speeds	10 speeds + pulse
Blade sets included	Total Crushing stacked blades, dough blades, Hybrid Edge blades
Motorized stirrer	Yes (on Nutri Power bowl)
Container materials	BPA-free plastic, dishwasher safe
Cleaning	Dishwasher (top rack) or hand wash with included brush
Safety	Thermal protection, safety lock, container detection
Spare parts	Available at ninjakitchen.eu
Warranty	2 years (legal warranty + Ninja commercial warranty)
Motor reset	Unplug, let cool for 15 minutes
Included accessories	Pitcher, 700ml cup, 400ml bowl, lids, cleaning brush

Frequently Asked Questions - Foodi Power Nutri 3in1 CB350EU NINJA

How to use Auto-iQ programs?

Select the desired program on the dial (Blend, Crush, Mix, Purée, Chop or PowerMix) then press START/STOP. The program stops automatically.

Can I blend hot liquids?

No, never blend hot liquids as this can cause pressure buildup and burns.

How to clean the blender?

The containers, lids, and blade sets are dishwasher safe (top rack). You can also wash them in warm soapy water with the included brush. Wipe the motor base with a damp cloth.

What to do if the screen shows 'E1' or 'E2'?

Unplug the appliance, let it cool for 15 minutes, remove the blade set and check that no ingredient is blocking the blades. If the content is too thick, add liquid.

Why won't my appliance start?

Make sure the container and lid are properly locked. The screen shows '-' if the container is not correctly installed. Also check that the appliance is plugged in and turned on.

What is the maximum capacity of the pitcher?

The pitcher has a capacity of 2.1 L, but do not fill beyond the MAX LIQUID line (1.8 L for liquids). For dough, respect the DOUGH MAX and COOKIE MAX lines.

Can I use the Nutri Power cup with the Chop program?

No, the Chop program is only available with the pitcher. For the cup and bowl, use the Blend, Crush, Mix or PowerMix programs.

How to use the motorized stirrer on the Nutri Power bowl?

While blending, turn the motorized stirrer counterclockwise in a continuous motion to direct ingredients toward the blades.

Can I store food in the cup with the blades attached?

No, never store food with the blade set attached. Use only the pour spout lid or the storage lid.

Where to buy spare parts?

Genuine Ninja parts and accessories are available at ninjakitchen.eu.

USER MANUAL Foodi Power Nutri 3in1 CB350EU NINJA

Ninja blender with control panel and digital display (no readable text or symbols on the device itself)

TAK

akitchen.ou/rogistor-guarantoc

Bestilling of reservede. 2

Fejlfinding....22

Produktreglstrering....24

Line drawing of a blender with top and bottom views (no text or symbols)

BEMAERK: Hyorid Edge Blades Assembly er kke kompatiel med andre Ninja-produkter.

Illustration of a blender with a hand pressing down on top, showing the lid being cut (no text or symbols present)

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate diagram showing the same container (no text or symbols present)

Illustration of a hand using a blender to press or adjust a cup, showing the lid and side view (no text or symbols)

Illustration of a blender with a hand holding a knob, showing its lid and handle (no text or symbols present)

BEMAERK: Drej Power Paddle mod urel konstant, när råvarerne forberedes

Line drawing of a blender with a hand adjusting its lid (no text or symbols)

Line drawing of a blender with a conical top and a side view showing the lid (no text or symbols)

ninjakitchen.eu/register-guarantee

Line drawing of a blender with three labeled parts (A, B, C), showing internal structure and casing (no text or symbols on the device itself)

Illustration of a blender with a hand holding the top, showing its lid and side view of the lid being cut (no text or symbols present)

Illustration of a hand pouring liquid into a jar with a handle, alongside a separate view of a container filled with liquid (no text or symbols)

Illustration of a hand using a blender to press or adjust a cup, showing the lid and side view (no text or symbols)

Illustration of a blender with a hand holding a button, showing a close-up of its top panel and a magnified view of the lid (no text or symbols present)

Line drawing of a blender with a hand holding the button (no text or symbols)

Line drawing of a blender with a conical top and control panel (no text or symbols)

for purchasing the Ninja' Foodi' Power Nutri Blender 3-in-1

REGISTER YOUR PURCHASE

ninjakitchen.eu/register-guarantee

Scan QR code using mobile device

RECORD THIS INFORMATION

Mode Number:

Serial Number:

Date of Purchase:

(Keep receipt)

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 220-240 V-50-60 Hz

Power: 1200 Watts

PLEASE READ CAREFULLY AND

KEEP FOR FUTURE REFERENCE.

TIP: You can find the model and serial numbers on the QR code label on the back of the unit by the power cord.

CONTENTS

Important Safety Instructions....52

Parts....56

Before First Use....57

Getting to know the Power Nutri Bowl 57

Using the Control Panel 58

Using the Total Speed Control 58

Using the Auto-iQ® Programs 59

Using the Jug & Stacked Blade Assembly ....60

Using the Jug & Dough Blade Assembly 62

Using the Power Nutri Bowl....64

Using the Power Nutri Cup....66

Care & Maintenance 68

Cleaning Stuck-On Ingredients 68

Cleaning 69

Storing....69

Reselling the Motor 69

Ordering Replacement Parts 69

Troubleshooting Guide....70

Product Registration....72

This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your

used device, please use the return and collection systems or

contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

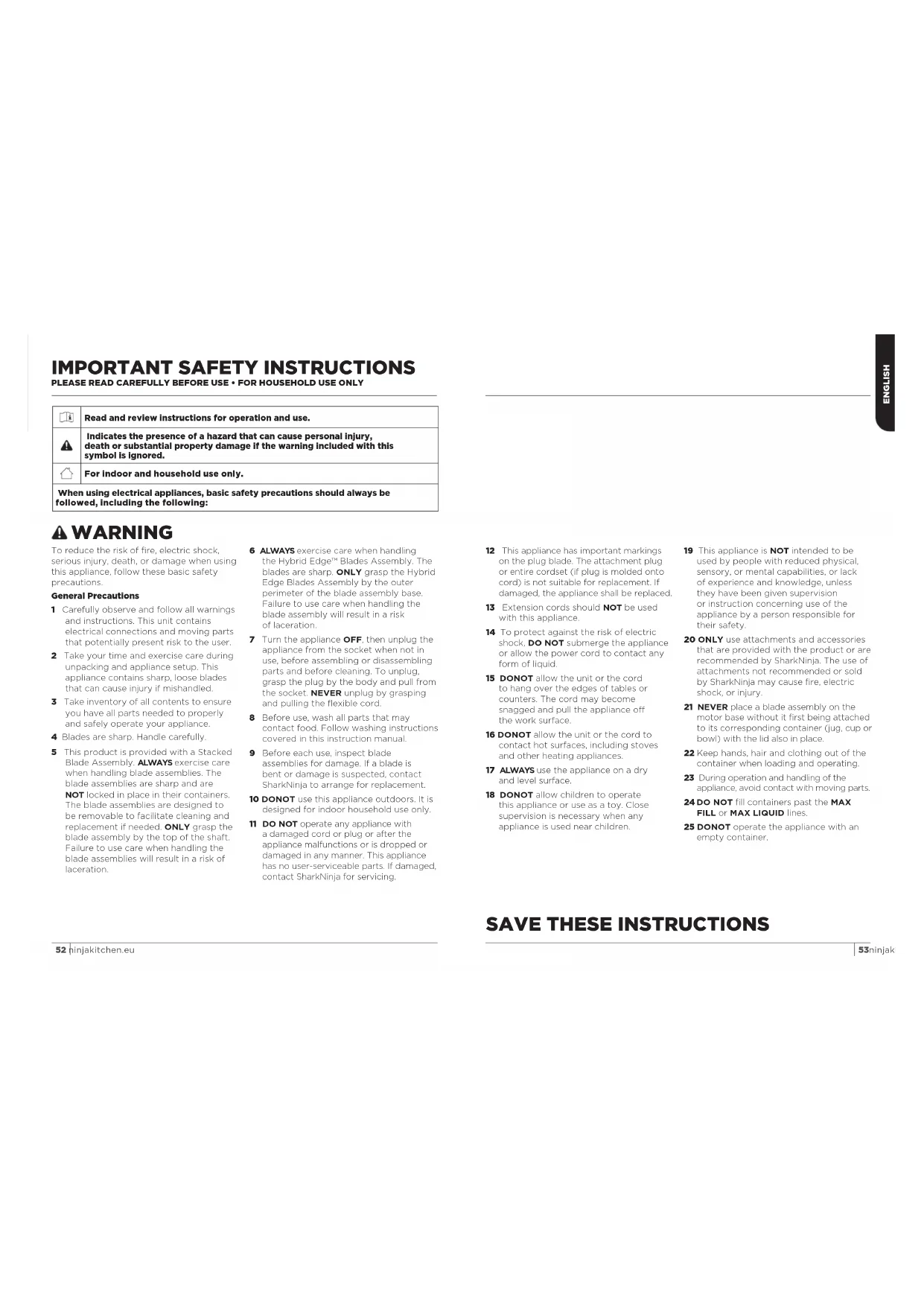

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

	Read and review instructions for operation and use.
	Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.
	For indoor and household use only.
When using electrical appliances, basic safety precautions should always be followed, including the following:

WARNING

To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

General Precautions

1 Carefully observe and follow all warnings and instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
2 Take your time and exercise care during unpacking and appliance setup. This appliance contains sharp, loose blades that can cause injury if mishandled.
3 Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.
4 Blades are sharp. Handle carefully.
5 This product is provided with a Stacked Blade Assembly. ALWAYS exercise care when handling blade assemblies. The blade assemblies are sharp and are NOT locked in place in their containers. The blade assemblies are designed to be removable to facilitate cleaning and replacement if needed. ONLY grasp the blade assembly by the top of the shaft. Failure to use care when handling the blade assemblies will result in a risk of laceration.

6 ALWAYS exercise care when handling the Hybrid Edge™ Blades Assembly. The blades are sharp. ONLY grasp the Hybrid Edge Blades Assembly by the outer perimeter of the blade assembly base. Failure to use care when handling the blade assembly will result in a risk of laceration.
7 Turn the appliance OFF, then unplug the appliance from the socket when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug by the body and pull from the socket. NEVER unplug by grasping and pulling the flexible cord
8 Before use, wash all parts that may contact food. Follow washing instructions covered in this instruction manual.
9 Before each use, inspect blade assemblies for damage. If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement.
10 DONOT use this appliance outdoors. It is designed for indoor household use only.
11 DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. This appliance has no user-serviceable parts. If damaged, contact SharkNinja for servicing.

12 This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance shall be replaced.
13 Extension cords should NOT be used with this appliance.
14 To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power core to contact any form of liquid.
15 DONOT allow the unit or the cord to hang over the edges of tables or counters. The cord may become snagged and pull the appliance off the work surface.
16 DONOT allow the unit or the cord to contact hot surfaces, including stoves and other heating appliances.
17 ALWAYS use the appliance on a dry and level surface.
18 DONOT allow children to operate this appliance or use as a toy. Close supervision is necessary when any appliance is used near children.

19 This appliance is NOT intended to be used by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
20 ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments not recommended or sold by SharkNinja may cause fire, electric shock, or injury.
21 NEVER place a blade assembly on the motor base without it first being attached to its corresponding container (jug, cup or bowl) with the lid also in place.
22 Keep hands, hair and clothing out of the container when loading and operating.
23 During operation and handling of the appliance, avoid contact with moving parts.
24 DO NOT fill containers past the MAX FILL or MAX LIQUID lines.
25 DONOT operate the appliance with an empty container.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE USE • FOR HOUSEHOLD USE ONLY

	Read and review instructions for operation and use.
	Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.
	For indoor and household use only.
When using electrical appliances, basic safety precautions should always be followed, including the following:

⚠ WARNING

26 DO NOT microwave any containers or accessories provided with the appliance.
27 NEVER leave the appliance unattended while in use.
28 DONOT blend hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.
29 DONOT process dry ingredients without adding liquid to the Power Nutri™ Cup, Power Nutri™ Bowl or Jug. They are not intended for dry blending.
30 DONOT use for grinding ingredients.
31 NEVER operate the appliance without lids and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure the container and lid are properly installed before operation.
32 Before operation, ensure all utensils are removed from containers. Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage.
33 Keep hands and utensils out of containers while chopping to reduce the risk of severe personal injury or damage to the blender/food chopper. A scraper may be used ONLY when the blender or processor is not running.

34 If you find unmixed ingredients sticking to the sides of the cup, stop the appliance, remove the blade assembly and use a scraper to dislodge ingredients.
35 DONOT open the jug's pour spout cap while blender is operating.
36 If you find unmixed ingredients sticking to the sides of the jug, stop the appliance, remove the lid and use a spatula to dislodge ingredients. NEVER insert your hands into the jug, as you may contact one of the blades and experience a laceration.
37 DONOT attempt to remove the container or lids from the motor base while the blade assembly is still spinning. Allow the appliance to come to a complete stop before removing lids and containers.
38 If the appliance overheats, a thermal switch will activate and temporarily disable the motor. To reset, unplug the appliance and allow it to cool for approximately 15 minutes before using again.
39 DONOT expose the containers and accessories to extreme temperature changes. They may experience damage.

SAVE THESE INSTRUCTIONS

40 Upon completion of processing, ensure the blade assembly is removed BEFORE emptying container's contents. Remove the blade assembly by carefully grasping the top of the shaft and lifting it from the container. Failure to remove the blade assembly before emptying the container results in a risk of laceration.
41 If using the jug's pour spout, hold the cover in place on the container or ensure lid lock is engaged when pouring to avoid risk of injury.
42 Remove the Hybrid Edge™ Blades Assembly from the Power Nutri™ Cup or Power Nutri™ Bowl upon completion of blending. DO NOT store ingredients before or after blending them in the cup or bowl with the blade assembly attached. Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only Spout Lid or Storage Lid to cover. For ingredient storage in the bowl, use only Spout Lid or Storage Lid.
43 The maximum wattage rating for this appliance is based on the configuration of the Hybrid Edge Blades Assembly and Power Nutri™ Cup. Other configurations may draw less power or current.

44 DONOT submerge the motor base or control panel in water or other liquids. DO NOT spray motor base or control panel with any liquid.
45 DONOT attempt to sharpen blades
46 Turn off the appliance and unplug the motor base before cleaning.

PARTS

There are a variety of accessories that are compatible with this blender series.

NOTE: The top flap of your box shows the select accessories that are included with your model.

To purchase more accessories, visit

ninjakitchen.eu

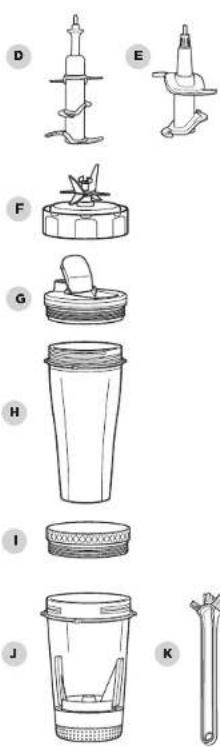

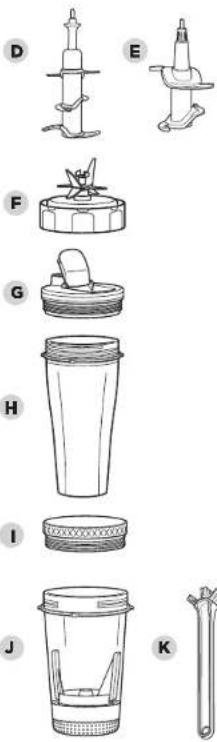

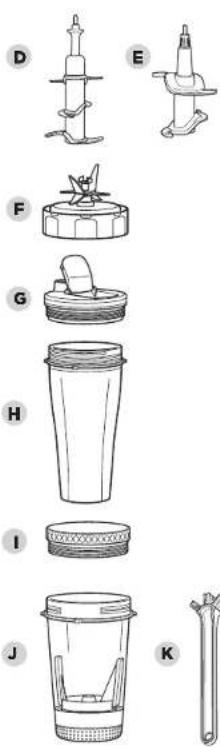

PARTS

A Jug Lid

B 2.1L* Power Nutri Jug

CMotorBase (attached power cord not shown)

D Total Crushing ^a & Chooping Blade Assembly (Stacked Blade Assembly)

E Dough Blade Assembly

F Hybrid Edge Blades Assembly

G Spout Ltd

H 700ml Power Nutri Cup

1 Storage Lid

J 400ml Power Nutri Bowl

KCleaningBrush

*1.8L max liquid capacity.

A
B
C

Line drawing of a blender with control panel and lid (no text or symbols)

NOTE: The Hybrid Edge Blades Assembly is not compatible with other Ninja products.

NOTE: Number of cups, bowls and lids vary by model.

BEFORE FIRST USE

IMPORTANT: Review all warnings on pages 52-55 before proceeding.

DID YOU KNOW?

- You can take your drinks on the go using the spout lid.

NOTE: Handle the Hybrid Edge Blades Assembly by grasping around the perimeter of the blade assembly base.

NOTE: All attachments are BPA free and dishwasher safe. It is recommended that the containers, lids and blade assembly be placed on the top rack of the dishwasher. Ensure blade assembly and lid are removed from the container before placing in the dishwasher. Exercise care when handling blade assembly.

1 Remove all packaging materials from the unit. Exercise care when unpacking blade assemblies, as the blades are sharp.

2 The Stacked Blade Assembly is NOT locked in place in the container. Handle the Stacked Blade Assembly and Dough Blade Assembly by grasping the top of the shaft

3 Wash containers, lids and blade assemblies in warm, soapy, water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the blades are sharp.

4 Thoroughly rinse and air-dry all parts.

NOTE: Place the motor base on a smooth, clean and level surface. Do not place motor base on a rough or unlevel surface as the suction cup feet will not adhere properly.

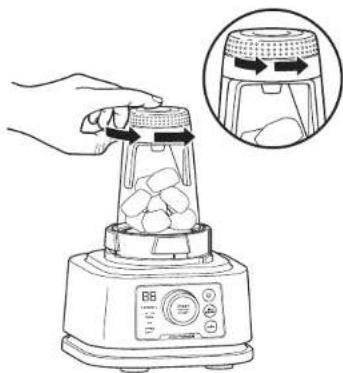

GETTING TO KNOW THE POWER NUTRI BOWL

Illustration of a blender being filled with ice cubes, showing the lid and side view (no text or symbols)

Powering through tough and frozen ingredients used to require a lot of stopping, scraping and recipe tinkering. But now, it's easier than ever to create thick and spoonable smoothie bowls, nut butters and more.

All you have to do is twist the Power Paddle while blending to push ingredients down towards the blade. It's like having a built-in tamper.

USING THE CONTROL PANEL

Use the Power button to turn the unit on or off.

SWITCHING BETWEEN AUTO-IQ' AND MANUAL MODE:

To toggle between Auto-IQ Mode and Manual Mode, press the IQ/MANUAL button.

NOTE: In Manual Mode, Auto-iQ programs will not illuminate on the control panel.

AUTO-IQ MODE

6 unique timed programs customised to take the guesswork out of making great drinks and meals.

00 POWERMIX BLEND CRUSH MIX PUREE CHOP START STOP iQ / manual pulse smartTORQUE

SELECT AND RUN AN AUTO-IQ PROGRAM

Use the dial to select the desired program then press START/STOP to begin. As the program runs, the timer will count down. When the countdown ends, blending will stop automatically.

MANUAL MODE

Choose from 10 different speeds for total control of your blending. Continuously runs up to 60 seconds. Press START/STOP at any time to end program sooner.

NOTE: Only speed 10 is available when using the Power Nutri Bowl or Cup.

0.1 START STOP iQ / manual pulse smartTORQUE

SELECT AND RUN A MANUAL PROGRAM

Turn the dial from speed 1 to speed 10. Press START/STOP to begin and end blending.

PULSE

Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

Always start at a low speed (1-3) to better incorporate ingredients and prevent them from sticking to the side of the vessel.

DIAL UP THE SPEED

Smoother blends call for higher speeds. Low speeds are great for choosing vegetables and mixing dough, but you'll need to ramp up for purees and dressings.

HIGH-SPEED BLENDING

Blend until you get your desired consistency. The longer you blend, the better the breakdown and smoother the outcome will be.

ninjakitchen.eu

USING THE AUTO-IQ® PROGRAMS

AUTO-IQ PROGRAMS

Intelligent preset programs combine unique blending and pausing patterns that do the work for you. Once a preset program is selected, it will start immediately and automatically stop when blending is complete. To stop blending before the end of the program, press the currently active button again.

NOTE: The unit can detect if the jug or the cup/bowl is installed on the motor base. Only the programs available for a particular container will illuminate on the control panel.

00 POWERMIX BLEND CRUSH MIX PUREE CHOP START STOP IQ / manual pulse smartTORQUE

AUTO-IQ PROGRAMS FOR THE POWER NUTRI JUG

BLEND

Combine your favourite fresh or frozen ingredients to make smoothies, milkshakes or protein shakes to share.

CRUSH

Designed to handle the toughest ingredients like nuts, seeds and even ice to make drinks to share, from super healthy smoothies to cocktails.

MIX

Make thick bases for smoothie bowls or creamy frozen yogurts.

PUREE

Blend anything that requires a smooth texture, from dressings to hournous to sauces.

CHOP

Timed pulses and pauses give you consistent chopping results. Run program once for a large chop, twice for a small chop and three times for a finer chop.

AUTO-IQ PROGRAMS FOR THE POWER NUTRI CUP AND POWER NUTRI BOWL

BLEND

Combine your favourite fresh or frozen ingredients to make smoothies, milkshakes or protein shakes.

CRUSH

Designed to handle the toughest ingredients like nuts, seeds and even ice to make drinks, from super healthy smoothies to cocktails.

NOTE: For best results when using the Power Nutri Cup, use the Auto-iQ Programs, BLEND & CRUSH.

POWERMIX

Create anything from spreadable peanut butter to the perfect houmous or even pâtés.

MIX

Make thick bases for smoothie bowls or creamy frozen yogurts.

NOTE: For best results when using the Power Nutri Bowl, use the Auto-iQ Programs, MIX & POWERMIX.

59ninjak

USING THE JUG & STACKED BLADE ASSEMBLY

IMPORTANT: Review all warnings on pages 52-55 before proceeding.

IMPORTANT: As a safety feature, when the unit is powered on, if the jug and lid are not properly installed, the timer will display "-" and the motor will be disabled. If this happens, repeat step 5 on the following page. When the jug and lid are properly installed and the unit is powered on, the program button LEDs will illuminate, indicating the appliance is ready to use.

NOTE: Auto-Q® programs have pauses and changes in speed throughout the cycle.

NOTE: DO NOT add ingredients before completing installation of the Stacked Blade Assembly.

NOTE: If the Stacked Blade Assembly is not fully seated, you will not be able to install and lock the lid.

NOTE: The jug lid handle will not fold down unless it is attached to the jug.

1 Plug in motor base and place on a clean, dry, smooth, level surface such as a worktop or table.

2 Lower the Jug onto the motor base. The handle should be aligned slightly to the right and the jug should be oriented so the LOCK symbols are visible on the motor base. Rotate the jug clockwise until it clicks into place.

3 Exercising care, grasp the Stacked Blade Assembly by the top of the shaft and place it onto the drive gear inside the jug. Note that the blade assembly will fit loosely onto the drive gear.

4 Add ingredients to the jug. DO NOT add ingredients past the MAX LIQUID line on the jug.

5 Place the lid on the jug. Press down on the handle until it clicks into place. Once the lid is locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

6a If using an Auto-iQ® program, use the dial to select the program that best suits your desired output, then press START/STOP. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press START/STOP.

6b For Manual mode, press IQ/MANUAL. Use the dial to select your desired speed, ranging from 1 to 10 and press START/STOP. Once the ingredients have reached your desired consistency, press START/STOP and wait for the unit to come to a complete stop.

7 Remove the jug from the motor base by turning it anti-clockwise and then lifting up.

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate diagram showing the same container (no text or symbols present)

8b For thicker mixtures that cannot be emptied through the pour scout, remove the lid and Stacked Blade Assembly before pouring. To remove the lid, press the RELEASE button and lift the handle. To remove the blade assembly, carefully grasp it by the top of the shaft and pull straight up. The jug can then be emptied.

9 Turn the unit off by pressing the Power button. Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

NOTE: If the motor base is difficult to remove from the worktop or table, slide it across the surface, then lift. It shouldn't be forced as the suction cups will grip more lightly to the surface.

IMPORTANT: Review all warnings on pages 52-55 before proceeding.

IMPORTANT: As a safety feature, when the unit is powered on, if the jug and lid are not properly installed, the timer will display "-" and the motor will be disabled. If this happens, repeat step 5 on the following page. When the jug and lid are properly installed and the unit is powered on, the program button LEDs will illuminate, indicating the appliance is ready to use.

NOTE: Auto-Q* programs have pauses and changes in speed throughout the cycle.

NOTE: DO NOT add ingredients before completing installation of the Dough Blade Assembly.

NOTE: If the Dough Blade Assembly is not fully seated, you will not be able to install and lock the lid.

NOTE: The jug lid handle will not fold down unless it is attached to the jug.

1 Plug in motor base and place on a clean, dry, smooth, level surface such as a worktop or table.

2 Lower the Jug onto the motor base. The handle should be aligned slightly to the right and the jug should be oriented so the LOCK symbols are visible on the motor base. Rotate the jug clockwise until it clicks into place.

3 Exercising care, grasp the Dough Blade Assembly by the top of the shaft and place it onto the drive gear inside the jug. Note that the blade assembly will fit loosely onto the drive gear.

4 Add ingredients to the jug. DO NOT add ingredients past the DOUGH MAX or COOKIE MAX line on the jug.

5 Place the lid on the jug. Press down on the handle until it clicks into place. Once the lid is locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

6 Press IQ/Manual. Use the dial to select speeds 1 or 2, then press START/STOP. Once the ingredients have reached your desired consistency, press START/STOP and wait for the unit to come to a complete stop.

IMPORTANT: Only use speeds 1 or 2 when using the Dough Blade Assembly.

7 Remove the jug from the motor base by turning it anti-clockwise and then lifting up.

Illustration of a hand using a tool to lift a container, showing the process (no text or symbols)

8 Remove the lid and Dough Blade Assembly before removing contents. To remove the lid, press the RELEASE button and lift the handle. To remove the blade assembly, carefully grasp it by the top of the shaft and pull straight up. The jug can then be emptied.

9 Turn the unit off by pressing the Power button. Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

NOTE: If the motor base is difficult to remove from the worktop or table, slide it across the surface, then lift. It shouldn't be forced as the suction cups will grip more tightly to the surface.

IMPORTANT: Review all warnings on pages 52-55 before proceeding.

NOTE: If the unit is plugged in and powered on, but the bowl and blade assembly is not properly installed, the timer will display - - and the motor will be disabled.

NOTE: Auto-Q® programs have pauses and charges in speed throughout the cycle.

1 Plug in motor base and place on a clean, dry, smooth, level surface such as a worktop or table.

2 Add ingredients to the Power Nutri Bowl DO NOT add liquid past the LIQUID FILL line or ingredients past the MAX FILL line.

3 Place the Hybrid Edge Blades Assembly on the top of the bowl and turn clockwise to scal.

4 Turn the bowl upside down and install on motor base by aligning the tabs on the bowl with the slots on the base. Then, rotate bowl clockwise until it clicks. Once locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

Line drawing of a blender with a hand holding a button, showing food being opened (no text or symbols)

NOTE: While processing, twist the Power Paddle anti-clockwise continuously.

5a If using an Auto-iQ program, use the dial select the program that best suits your desired output, then press START/STOP. During the blending process, ensure to twist the Power Paddle anti-clockwise continuously. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press START/STOP.

5b For Manual mode, press IQ/MANUAL. With speed '0' on the display, press START/STOP. During the blending process, twist the Power Paddle anti-clockwise continuously. Once the ingredients have reached your desired consistency, press START/STOP and wait for the unit to come to a complete stop.

NOTE: Only speed 10 is available when using the Power Nutri Bowl.

6 Remove the bowl from the motor case by turning it anti-clockwise and then lifting up.

7 Remove the blade assembly by twisting anti-clockwise. DO NOT store blended contents with the blade assembly attached. Only use the Spout Lid or Storage Lid to cover. Exercise care when handling the blade assembly, as the blades are sharp.

8 To enjoy on the go, place the Spout Lid or Storage Lid onto the bowl and twist clockwise until firmly sealed.

9 Turn the unit off by pressing the Power button. Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

NOTE: If the motor base is difficult to remove from the worktop or table, slide it across the surface, then lift. It shouldn't be forced as the suction cups will grip more tightly to the surface.

USING THE POWER NUTRI CUP

IMPORTANT: Review all warnings on pages 52-55 before proceeding.

NOTE: If the unit is plugged in and powered on, but the cup and blade assembly is not properly installed, the timer will display "-" and the motor will be disabled.

NOTE: Auto-Q® programs have pauses and changes in speed throughout the cycle.

1 Plug in motor base and place on a clean, dry, smooth, level surface such as a worktop or table.

2 Add liquid then ingredients to the Powe Nutri Cup. DO NOT add ingredients past the MAX LIQUID line.

3Place the Hybrid Edge Blades Assembly on the top of the cup and turn clockwise to seal.

4 Turn the cup upside down and install on the motor base by aligning the tab on the cup with the slots on the base. Then, rotate cup clockwise until it clicks. Once locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

Line drawing of a blender with a hand holding a small object, no text or symbols present

5a If using an Auto-iQ program, use the dial to select the program that best suits your desired output, then press START/STOP. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press START/STOP.

5b For Manual mode, press IQ/MANUAL. With speed 10 on the display, press START/STOP. Once the ingredients have reached your desired consistency, press START/STOP and wait for the unit to come to a complete stop.

NOTE: Only speed 10 is available when using the Power Nutri Cup.

Line drawing of a blender with a conical top and a digital display (no text or symbols)

6 Remove the cup from the motor base by turning it anti-clockwise and then lifting up.

7 Remove the blade assembly by twisting anti-clockwise. DO NOT store blended contents with the blade assembly attached. Only use the Spout Lid or Storage Lid to cover. Exercise care when handling the blade assembly, as the blades are sharp.

8 To enjoy on the go, place the Spout Lid or Storage Lid onto the cup and twist clockwise until firmly sealed.

9 Turn the unit off by pressing the Power button. Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

NOTE: If the motor base is difficult, to remove from the worktop or table, slide it across the surface, then lift. It shouldn't be forced as the suction cups will grip more tightly to the surface.

CARE & MAINTENANCE

CLEANING STUCK-ON INGREDIENTS

1 After processing, immediately clean the container and blade assembly under warm, soapy water.
2 Depending on the container, fill with washing-up liquid and water according to the following instructions:

Jug:

1 OR 2 SMALL DROPS OF WASHING- UP LIQUID FILL WATER TO DOUGH MAX LINE

With the dough or stacked blade assembly installed, fill with warm water up to DOUGH MAX line and add 1 or 2 small drops washing-up liquid. Secure jug lid and ensure the pour spout is securely closed.

Power Nutri Bowl:

1 OR 2 SMALL DROPS OF WASHING- UP LIQUID FILL WATER TO TOP OF POWER PADDLE

Fill with warm water up to top of Power Paddle and add 1 or 2 small drops washing-up liquid. Install blade assembly

Power Nutri Cup:

I SMALL DROP OF WASHING- UP LIQUID FILL WATER HALFWAY

Fill halfway with warm water and add 1 small drop washing-up liquid. Install blade assembly.

3 Install the container on the motor base. Select MIX, then press START/STOP.

NOTE: If using the Power Nutri Bowl, twist the Power Padole anti-clockwise continuously while cleaning.

4 Once program is complete, thoroughly rinse container and blade assembly under warm, soapy water. Use the included cleaning brush to remove any remaining residue.

CLEANING

Hand-Washing

Wash containers, lids and blade assemblies in warm, soapy water. Use a dishwashing utensil with handle to avoid direct contact with the blades. Use the included cleaning brush to remove excess residue, such as when dealing with stuck-on ingredients, like doughs and batters. Exercise care when handling the blade assembly as the blades are sharp. Thoroughly rinse and air-dry all parts.

NOTE: The Power Paddle in the Power Nutr Bowl is not removable.

Dishwasher

Containers, lids and blade assembly are dishwasher safe. Ensure the blade assembly and lid are removed from the container before placing in the dishwasher.

NOTE: For best results, use a dishwasher to remove stuck-on ingredients.

Motor Base

Unplug the motor base before cleaning. Wipe motor base with a clean, damp cloth. DO NOT use abrasive cloths, pads or brushes to clean the base.

STORING

For cord storage, wrap cord with hook-and-loop fastener near the back of the motor base. DO NOT wrap the cord around the bottom of the base for storage.

DO NOT store blended or unblended ingredients in the cup or bowl with the blade assembly attached. Use only the spout lid or storage lid when storing blended or unblended ingredients in the containers.

DO NOT stack items on top of the containers. Store any remaining attachments alongside the unit or in a cabinet where they will not be damaged or create a hazard.

RESETTING THE MOTOR

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload it. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, follow the reset procedure below.

1 Unplug the unit from the electrical socket.

2 Allow the unit to cool for approximately 15 minutes.

3 Remove the container's lid and blade assembly. Empty the container and ensure no ingredients are jamming the blade assembly.

IMPORTANT: Ensure that maximum capacities are not exceeded. This is the most typical cause of appliance overload.

ORDERING REPLACEMENT PARTS

To order additional parts and attachments, visit ninjakitchen.eu

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before troubleshooting.

Display reads "- -".

- If the display reads "-" install a container and the available program buttons will illuminate, indicating the unit is ready for use. Ensure the lid is fully engaged and the container has been rotated clockwise and clicked to lock into place.

Display reads "E1".

- If the display reads "E1", unplug the unit from the electrical socket and allow it to cool for 15 minutes. Remove the blade assembly and empty the contents to ensure no ingredients are jamming the blade assembly.

Display reads "E2".

- If the display reads "E2" unplug the unit from the electrical socket and allow it to cool for 5 minutes. Remove the blade assembly and empty the contents to ensure no ingredients are jamming the blade assembly. If output is too thick and ingredients are not processing properly, add more liquids.

Blade speed sometimes changes when blending thinner ingredients.

- When using speed 9 or 10 with the Jug, you may notice a change in the blade speed when blending thinner ingredients. This is due to the smart technology in the blender and is part of the unit's normal operation.

Unit doesn't mix well; ingredients get stuck.

• Using the Auto-iQ® programs is the easiest way to achieve great results. The pulses and pauses allow the ingredients to settle toward the blade assembly. If ingredients are routinely getting stuck, adding some liquid will usually help.
• When filling the cup, start with fresh fruit or vegetables, then leafy greens or herbs. Next add liquids or yogurt, then seeds, powders or nut butters. Finally, add ice or frozen ingredients.
• If using the Power Nutri Bowl, during the blending process twist the Power Paddle anti-clockwise continuously to circulate ingredients.

Unit moves on worktop while blending.

- Ensure the suction cup feet are clean and dry. Place the motor base on a smooth, clean and level surface. Do not place motor base on a rough or unlevel surface as the suction cup feet will not adhere properly.

Preset program will not work.

- The unit can detect which container is on the motor base. You may be trying to use a program that is not designed for the container you have installed. The programs will light up, indicating which programs are available for each container.

Food is not evenly chopped.

- For best results when chopping, cut pieces of ingredients in a uniform size and don't overfill the Jug. Refer to the Quick Start Guide or Inspiration Guide for food prep instructions.

Can't remove the Power Paddle from the Power Nutri Bowl.

- The Power Paddle in the Power Nutri Bowl is not removable. For cleaning instructions, refer to the Care & Maintenance section.

Can only select speed 10 in Manual Mode when using the Power Nutri Bowl or Cup.

- Only speed 10 is available when using the Power Nutri Bowl or Cup. All 10 speeds ranges are available when using the Jug and Stacked Blade Assembly. IMPORTANT: Only use speeds 1 or 2 when using the Dough Blade Assembly.

70 |hinjakitchen.eu

NOTES

TWO (2) YEAR LIMITED GUARANTEE

When you buy a product in Europe as a consumer, you get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these statutory rights against your retailer. However, at Ninja we are so confident about the quality of our products (the "Products") that we give you a manufacturer's guarantee of two years. This guarantee only applies to the Product if it is bought in new and unused condition. These terms and conditions relate to our guarantees only - your statutory rights as a buyer are unaffected. Please note that the 2 year guarantee is available in all EU countries.

The conditions below describe the prerequisites and scope of our guarantees which are issued by SharkNinja Germany GmbH, c/o Regus Management GmbH, Excellent Business Center 10. +1/ Stock, Westhafenplatz 1, 60327 Frankfurt am Main (Germany) ("us", "our" or "we"). They do not affect your statutory rights or the obligations of your retailer and your contract with them. The same applies if you have purchased the product directly from Ninja.

Ninja® Guarantees

A household kitchen appliance constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

You'll find online support at www.ninjakitchen.eu.

How do I register my guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

• Model no.
• Serial Number (only if available)
  • Date of purchase of the Product (receipt or delivery note)

To register online, please visit www.ninjakitchen.eu

IMPORTANT

• The guarantee covers your Product for 2 years starting on the date of purchase.
- Please keep the receipt at all times. Should you need to use your guarantee we will need the receipt to verify the information supplied to us is correct. The inability to produce a valid receipt will invalidate your guarantee.

What are the benefits of registering my guarantee?

When you register your guarantee, you can choose to receive our newsletter containing tips, advice and competitions. Hear the latest news about new Ninja technology and launches. If you register your guarantee online, you'll get instant confirmation that we've received your details.

For details of our privacy policy please visit www.ninjakitchen.eu

How long are our Products guaranteed for?

Our confidence in our design and quality control means that your Product is guaranteed for two years.

PRODUCT REGISTRATIONPRODUCT REGISTRATIO

What Is covered by the guarantee?

Repair or replacement (at Ninja's discretion) of your Product, including all parts and labour in case of any defect in design, materials and workmanship (including transport and shipping costs). Our guarantee is in addition to your legal rights as a consumer.

What is not covered by the guarantee?

• Normal wear and tear.

• Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the kitchen appliance which is not in accordance with the Ninja Instruction Manual supplied with your machine.
• Use of the kitchen appliance for anything other than normal domestic household purposes
• Use of parts not assembled or installed in accordance with the operating instructions.
• Use of parts and accessories which are not Ninja * Genuine Components.
• Faulty installation (except where installed by Ninja *).
• Repairs or alterations carried out by parties other than Ninja or its agents, unless you can show that the repairs or alterations carried out by others are not related to the defect for which you exercise the guarantee.

What happens when my guarantee runs out?

Ninja does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their kitchen appliance after the guarantee has elapsed. You'll find more support at ninjakitchen.eu.

Where can I buy genuine Ninja spares and accessories?

Ninja spares and accessories are developed by the same engineers who developed your Ninja kitchen appliance. You'll find a full range of Ninja spares, replacement parts and accessories for all Ninja machines at www.ninjakitchen.eu

Please remember that using non-Ninja spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

GRACIAS

akitchen.ou/rogistor-guarantoc

Line drawing of a blender with control panel and lid (no text or symbols)

Illustration of a blender being filled with ice cubes, showing the lid and side view (no text or symbols)

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate hand holding a cloth (no text or symbols present)

Illustration of a hand using a blender to press or adjust a water mixture, showing the process with no text or symbols.

Illustration of a blender with a hand holding a button, showing its interior and side view (no text or symbols)

Line drawing of a blender with a hand holding the button (no text or symbols)

Line drawing of a blender with a conical top and a digital display (no text or symbols)

Bol Power Nutri Bowl:

1.0.2 GOTITAS DE LIQUIDO LAVAVAJILLAS

LLENE CON AGUA HASTA LA PARTE SUPERIOR DE LA POWER PADDLE

akitchen.eu/register-guarantee

Line drawing of a blender with control panel and lid (no text or symbols)

Illustration of a blender being placed on top, showing the lid and side view of the lid (no text or symbols)

Line drawings of a hand pouring liquid into a container and pouring another container (no text or symbols)

Illustration of a hand using a brush to press or lift a small container, showing motion (no text or symbols)

Illustration of a hand using a blender to press food items, with an inset showing the lid being turned (no text or symbols)

Line drawing of a blender with a hand adjusting its lid (no text or symbols)

Line drawing of a blender with a conical top and a digital display (no text or symbols)

RETRAIT DES INGRÉDIENTS COINCÉS

akitchen.ou/rogistor-guarantoc

Illustration of a blender with a hand pressing down on top, showing the lid being cut off (no text or symbols present)

Line drawing showing a hand pouring liquid into a blender with a handle, and another hand lifting a container (no text or symbols)

Illustration of a hand using a tool to lift a container with liquid, showing the process (no text or symbols)

Illustration of a blender with a hand operating the button and a magnified inset showing the blade being cut (no text or symbols)

Line drawing of a blender with a hand pressing a button (no text or symbols)

Line drawing of a blender with a conical top and digital display (no text or symbols)

akitchen.eu/register-guarantee/

Line drawing of a blender with control panel and lid (no text or symbols)

Line drawing of a blender with a hand pressing the top and a close-up inset showing the lid being cut (no text or symbols)

MET BEHULP VAN TOTALE SNELHEIDSREGELING & DE KAN

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate diagram showing the same container (no text or symbols present)

Illustration of a hand using a brush to press or lift a small container (no text or symbols visible)

Illustration of a blender with a hand holding a control knob, showing a close-up of its lid and handle (no text or symbols present)

Line drawing of a blender with a hand adjusting its lid (no text or symbols)

Line drawing of a blender with a conical top and digital display (no text or symbols)

for at du kjøpte Ninja® Multi-Blender

REGISTRER KJ∅PET DITT

akitchen.eu/register-guarantee

Line drawing of a blender with lid and control panel (no text or symbols)

Illustration of a hand placing food into a blender with a close-up inset showing the lid being turned (no text or symbols)

VELG OG KJ∅R ET MANUELT PROGRAM

MED TOTAL HASTIGHETSKONTROLL OG KRUKKEN

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate diagram showing the same container (no text or symbols present)

Illustration of a hand using a tool to press or install a small container, showing motion (no text or symbols)

Illustration of a blender with a hand holding a control knob, showing a close-up of its lid and handle (no text or symbols present)

Line drawing of a blender with a hand adjusting its lid (no text or symbols)

Line drawing of a blender with a conical top and a digital display (no text or symbols)

STELL OG VEDLIKEHOLD

RENGJ∅RING AV FASTE INGREDIENSER

akitchen.eu/register-guarantee

Line drawing of a blender with three labeled parts (A, B, C), showing internal structure and control panel (no text or symbols on the device itself)

Line drawing of a blender with a hand placing a lid, showing the process and a close-up inset (no text or symbols)

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate empty container (no text or symbols)

Illustration of a hand using a blender to press or adjust a cup, showing the lid and side view (no text or symbols)

Illustration of a blender with a hand holding a control panel, showing a close-up of its lid and handle (no text or symbols present)

Line drawing of a blender with a hand holding a small object (no text or symbols)

Line drawing of a blender with a conical top and a digital display (no text or symbols)

Line drawing of a blender with a hand pressing a lid, showing the blade being cut (no text or symbols present)

Illustration of a hand pouring liquid into a blender with a handle, alongside a separate diagram showing the same container (no text or symbols present)

Illustration of a hand using a blender to press or adjust a cup, showing the lid and side view (no text or symbols)

Illustration of a blender with a hand pressing a button, showing the lid and side view of its lid (no text or symbols present)

Line drawing of a blender with a hand holding a small object (no text or symbols)

Diagram of a blender with a conical top and a base, showing internal components and an upward arrow (no text or symbols)

akitchen.eu/register-guarantee

Illustration of a blender with a hand pressing it, showing the lid and side view of the lid being cut (no text or symbols present)

VÄLJ OCH KÖR ETT MANUELLT PROGRAM

Illustration of a hand pouring liquid into a blender with a handle, alongside a close-up of the lid (no text or symbols)

Illustration of a hand using a blender to press or adjust a container, showing the lid and side view (no text or symbols)

Line drawing of a blender with a hand holding a button, showing a close-up of the lid and handle (no text or symbols)

OBS! Vrid under Lilredningen spatein Power Paddle moturs kontinuerigt

Line drawing of a blender with a hand adjusting its lid (no text or symbols)

Line drawing of a blender with a conical top and a digital display (no text or symbols)

© 2022 SharkNinja Operating LLC. TRYKT I KINA

DEUTSCH

© 2022 SharkNinja Operating LLC. GEDRUCKT IN CHINA

ENGLISH

Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.

AUTO-IQ, FOODI and NINJA are registered trademarks of SharkNinja Operating LLC.

© 2022 SharkNinja Operating LLC. PRINTED IN CHINA

ESPAÑOL

© 2022 SharkNinja Operating LLC. IMPRESO EN CHINA

FRANÇAIS

© 2022 SharkNinja Operating LLC. IMPRIMÉ EN CHINE

ITALIANO

© 2022 SharkNinja Operating LLC. STAMPATO IN CINA

NEDERLANDS

© 2022 SharkNinja Operating LLC.

GEDRUKT IN CHINA

NORSK

© 2022 SharkNinja Operating LLC. TRYKKET I KINA

PORTUGUÊS

© 2022 SharkNinja Operating LLC. IMPRESSO NA CHINA

SUOMI

© 2022 SharkNinja Operating LLC. PAINETTU KIINASSA

SVENSKA

© 2022 SharkNinja Operating LLC. TRYCKT I KINA

SharkNinja Germany GmbH, c/o Regus Management GmbH, Excellent Business Center 10. +11. Stock, Westhafenplatz 1, 60327 Frankfurt am Main, Germany

ninjakitchen.eu

SharkNinja Europe Limited, 3150 Century Way, Thorpe Park, Leeds, LS15 8ZB, UK

ninjakitchen.eu
