USER MANUAL 01535200225 Cleanmaxx

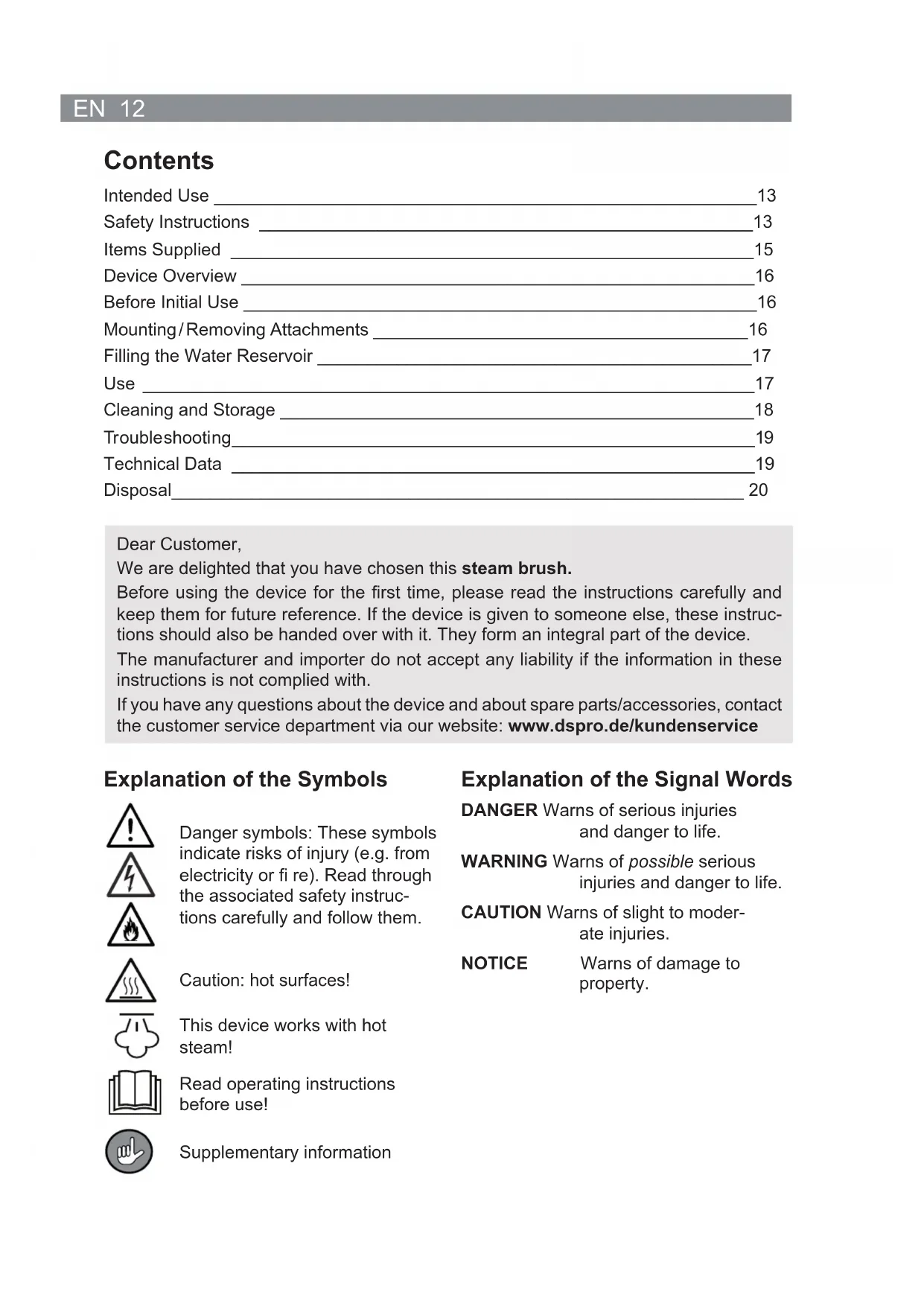

Instruction manual starting on page 12

Safety Instructions 13

Items Supplied 15

Device Overview 16

Before Initial Use 16

Mounting/Removing Attachments 16

Filling the Water Reservoir 17

Use 17

Cleaning and Storage 18

Troubleshooting 19

Technical Data 19

Disposal 20

Dear Customer,

We are delighted that you have chosen this steam brush.

Before using the device for the first time, please read the instructions carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it. They form an integral part of the device.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety instructions carefully and follow them.

Caution: hot surfaces!

This device works with hot steam!

Read operating instructions before use!

Supplementary information

Explanation of the Signal Words

DANGER Warns of serious injuries and danger to life.

WARNING Warns of possible serious injuries and danger to life.

CAUTION Warns of slight to moderate injuries.

NOTICE Warns of damage to property.

Intended Use

• This device smoothes fabrics using steam. In addition, it is suitable for removing fluff and unpleasant odours from clothing, upholstery, cushions, curtains, etc.
• The device is not suitable for removing marks or stains.
• The device is for private domestic use only and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.
• The warranty does not cover faults caused by incorrect handling, damage, calcification or repair attempts. This also applies to normal wear and tear.

Safety Instructions

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervise have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  Children must not play with the device.
• Cleaning and user maintenance may not be carried out by children without supervision.

Warning of hot steam! This device works with hot steam! Operate the device with caution.

• The device must always be switched off and disconnected from the mains power when it is not being used and before assembling, disassembling, filling or emptying the water reservoir or cleaning the device.
  The device must not be used if it has been dropped, if it has visible signs of damage or leaks.
  If the mains cable of this device is damaged, it must be replaced by the manufacturer or customer service department or a similarly qualified person in order to avoid any hazards.

DANGER - Danger of Electric Shock

Use the device only in closed rooms.
Do not use the device in rooms with high humidity.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.

Should the device fall into water or should liquid get into it (apart from the water reservoir), switch off the power supply immediately. Never attempt to pull the device out of the water while it is still connected to the mains power! Have the device checked in a specialist workshop before using it again.
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
- Never exceed the maximum fill level to prevent overflowing (note the max marking on the water reservoir!).
- Never direct the steam directly at mains cables or parts containing electrical components (such as inside ovens, fridges, at switches and lights, microwave ovens).

WARNING - Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
  Do not operate the device in the vicinity of combustible material.
  Always place the device upright on its base even during short pauses. Pull out the mains plug during lengthy breaks.
• Immediately after smoothing, place the still hot device down a minimum distance of 15 cm away from walls, furniture and other objects.

WARNING - Danger of Injury

Danger of suffocation from plastic films and bags! Keep children and animals away from the packaging material.

CAUTION: hot surfaces! The steam bottom of the device and the attachment used may become hot during use. You should therefore only hold the device by the handle when you are operating it. Do not touch the steam bottom or the attachment used during or shortly after use.

Danger of scalding from heat, hot steam and condensation!

Never attempt to smooth clothes while somebody is wearing them.
Never aim the steam directly at people, animals or plants.

The water reservoir cap must not be opened during use.
The device must be placed down on a stable surface. Do not turn the hot device upside down or place it on its side. Hot water could escape.
- Allow the device to cool down completely before the water reservoir is emptied and / or the device is cleaned and stored away.

Danger of strangulation!Make sure that the mains cable is always kept out of thereach of small children and animals.
Danger of tripping! The connected mains cable must not present a trip hazard.
- Do not leave the mains cable unattended while hanging down from the ironing board, table or other surface if there are children or animals in its vicinity. Otherwise they might use the cable to pull the device down on themselves.

NOTICE - Risk of Damage to Material and Property

The device should only be connected to a properly installed socket with safety contacts. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.
Do not use the device with an extension cable.
Do not iron over zips, studs, clips etc. to prevent any scratching of the steam bottom.
Never use in front of surfaces made from glass or plastic.
Never cover up the steam nozzles and do not insert any objects into them.
- Only activate the steam release button when the water reservoir is filled with water as otherwise the water pump may be damaged and the useful service life of the device may be shortened.
- Protect the device from heat, naked flames, extreme temperatures, persistent moisture, wet conditions and collisions.
Always test the device first on a small, inconspicuous spot on the clothing.
Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
Never wind the mains cable around the device.
- Never pull or carry the device by the mains cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
Use only original spare parts from the manufacturer.

Items Supplied

• Steam brush
  Brush attachment
• Crease attachment
  Storage bag
• Measuring cup
  Instruction manual

Check the items supplied for completeness and any transport damage. If you find any damage to the components, do not (!) use them, but contact our customer service department.

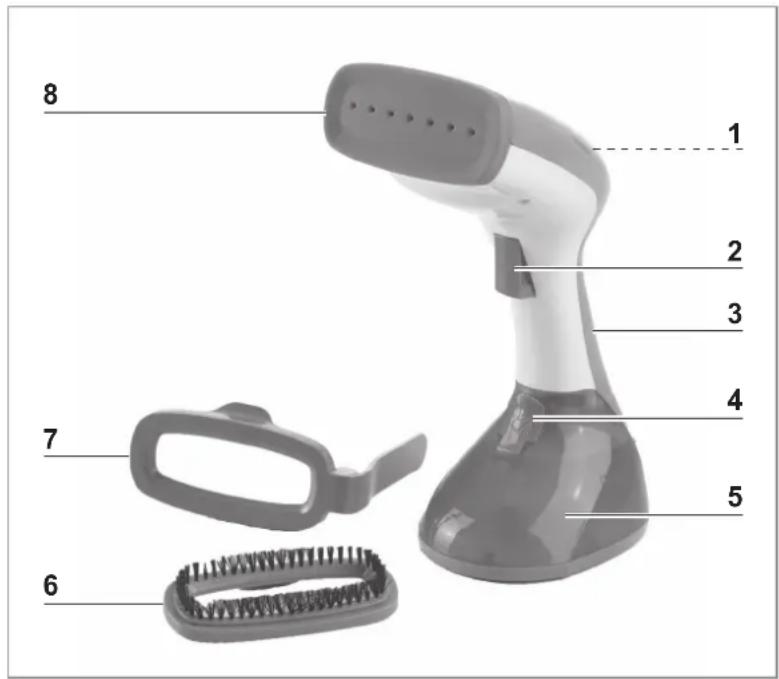

Device Overview

1 Control lamp lights up as device heats up
2 Steam release button
3 Handle
4 Water reservoir cap
5 Water reservoir
6 Brush attachment
7 Crease attachment
8 Steam bottom

• The brush attachment (6) is suitable for freshening up home textiles such as upholstery, curtains etc.
• With the crease attachment (7) you can iron creases (e.g. into trousers and skirts). Also it is suitable for smoothing clothing (e.g. made from linen, cotton, polyester and silk).

Before Initial Use

Remove any films or stickers that may be present from the device and accessories. Never remove the rating plate and any possible warnings!

Note: Water residues in the reservoir can be attributed to quality checks performed prior to delivery.

Mounting/Removing Attachments

NOTE!

• Shortly after use, the attachment used may still be very hot. Wait until the device and the attachment used have cooled down completely before removing them.

• Attaching: Place the attachment with the locking lug at the top on the steam bottom and press it down firmly. The attachment must be heard to engage in place.
• Removing: Pull the tab on the bottom of the attachment forwards and remove the attachment.

Filling the Water Reservoir

NOTE!

After use, the device may still be hot. Wait until the water reservoir has cooled completely before filling/emptying it.
Pour no more than 250ml (note the max marking) of water into the water reservoir.

The device can be operated with both tap water and distilled water. However, if you use tap water, the device will need to be regularly descaled (see the "Cleaning and Storage" chapter, "Descaling" section). If you use distilled water, there is no need to descale the device.

1. Fill the measuring cup up to the MAX marking with water.
2. Pull the water reservoir cap (4) out of the water reservoir (5) Please note that it cannot be completely detached from the device.
3. Pour the water from the measuring cup into the water reservoir. Here too you should only pour up to the max marking.
4. Close the water reservoir cap again. Make sure that the water reservoir is properly closed.

Use

NOTE!

Never use the device without water to prevent damage to the device!
There must be plenty of space around the item of clothing which is to be smoothed. You may only perform vertical smoothing if the item of clothing is hanging on a hanger and cannot come into contact with other garments, objects, people or animals.
CAUTION - Danger of scalding! Only use the device once the control lamp has gone out. Operating temperature has then been reached. If the device is used before the control lamp has gone out, hot water may escape.
Before using the device, read the care instructions for the fabric which is to be smoothed. Some fabrics, leather and suede as well as fabrics with flounces, sequins and appliqués must not be steamed!

1. Mount the attachment you want (see the "Mounting / Removing Attachments" chapter).
2. Pour water into the water reservoir (5) (see the "Filling the Water Reservoir" chapter).
3. Insert the mains plug into a properly installed plug socket that is easily accessible. The control lamp (1) lights up and the device starts to heat up. When the control lamp goes out, the device is ready for use.

1. Move the device without attachment in strokes over the fabric and press the steam release button (2) at regular intervals as you do so. However, do not keep the steam release button held down constantly! It is important for the steam bottom (8) to touch the fabric so that it is freshened up.

1. Move the brush attachment (6) in strokes over the fabric and press the steam release button at regular intervals as you do so. However, do not keep the steam release button held down constantly! It is important for the brush attachment to touch the fabric so that it is freshened up.
2. Open the clip of the crease attachment (7) by pressing the lever slightly towards the device. Clamp the fabric of the item of clothing to be smoothed in the crease attachment and let go of the lever again. Slowly pull down the item of clothing and press the steam release button at regular intervals as you do so. However, do not keep the steam release button held down constantly!

If the control lamp lights up during use, the device is reheating. Do not press the steam release button during the heating process in order not to slow this down and to prevent a danger of scalding from hot water which may escape. Wait until the control lamp goes out again.

1. If steam stops being produced, the water reservoir is empty. Allow the device to cool down for a few minutes and then top up the water reservoir again (see the "Filling the Water Reservoir" chapter). Never use the device without water to prevent damage to the device!

Tips on Use

• Delicate items of clothing should be steamed inside out.
• Trousers are easier to smooth if they are hung up by the trouser legs.
• Do not hold down the steam release button (2) continuously during use. This reduces the steam pressure.

Cleaning and Storage

NOTE!

• Do not use any corrosive or abrasive cleaning agents or any metal objects to clean the device. These can damage the surface.

• Make sure that the device is switched off and the mains plug has been removed from the plug socket.

• Place the device on a water-resistant and heat-resistant surface.
• Allow the device to cool down completely.
• Empty the water reservoir (5): To do this, pull the water reservoir cap (4) out of the water reservoir, hold the device over a sink or similar outlet and turn it upside down. Allow all of the water to run out of the water reservoir.

• Operate the device again for a short time and press the steam release button (2) in order to allow any remaining amounts of water to evaporate.

• If necessary, brush fluff and other contamination off the attachments. The attachments can also be rinsed with water. Then dry them thoroughly.

• If necessary, wipe down the outside of the device with a soft, slightly damp cloth and then dry it with a soft cloth.
• Store the device in a clean, dry place that is protected from sunlight and is not accessible to children and animals.

Dscaling

Descale the device regularly if distilled water is not being used to fill the water reservoir (5).

Use a standard commercial descaling agent to descale the device. Make sure that the descaling agent is suitable for steam devices. Note the instructions for use of the descaling agent for details about the mixing ratio of water and descaling agent and about the length of use.

Troubleshooting

If the device does not work properly, first check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a electrical device yourself!

Problem Possible cause / solution

The device does not work. The control lamp (1) does not light up.

Water emerges from the steam bottom (8).

No steam is produced.

Technical Data

Article number: 00483 (mint-white); 01535 (turquoise-white)

Model number: YF-418-12

Voltage supply: 220 - 240V 50 / 60Hz

Power: 1200W

Protection class:

Capacity of water reservoir: approx. 250 ml

ID instruction manual: Z 00483_01535 M DS V3 0219

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of the device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1, 19258 Gallin, Germany

Tel.: [phone]*

*) Calls to German landlines are subject to your provider's charges.

All rights reserved.
