Product Type	Cordless Wet/Dry Vacuum
Brand	Porter-Cable
Model	PCC795
Tank Capacity	2.0 gallons (7.6 liters)
Power Supply	20V Max* Lithium-Ion Battery Pack (sold separately)
Rated Voltage	18V (initial max voltage 20V)
Filtration Type	Long-life, washable wet/dry filter
Main Functions	Pick up wet and dry debris, built-in blower
Included Components	Motor head, tank, suction hose, nozzle, wide nozzle, hose clamp

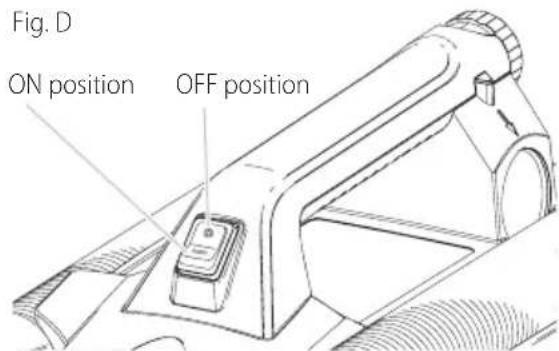

Switch	On/Off Button (I/O)
Locking System	Tank latches and filter lock
Approximate Weight	Approximately 3.2 kg (7 lbs) with battery
Dimensions (L x W x H)	Approximately 35 x 25 x 30 cm
Intended Use	Home use, pick up dry debris and non-flammable liquids
Maintenance and Cleaning	Clean filter with clean water (no brush), empty tank after each use
Safety	Remove battery pack before maintenance; do not expose to rain; wear eye protection
Spare Parts and Repairability	Replacement filter available; motor and battery not user-serviceable
Warranty	3 years tool, 2 years battery (limited)
General Information	Made for PORTER-CABLE; complies with FCC and ICES-003

Frequently Asked Questions - PCC795 Porter-Cable

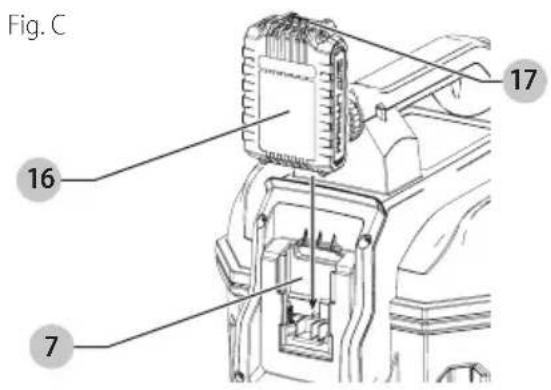

How to install the battery pack on the PCC795?

Align the battery pack with the rails on the motor head housing, then push firmly until it clicks. Make sure it is locked. To remove, press the release button and pull.

Can I use the vacuum to pick up flammable liquids?

No, never use the vacuum to pick up flammable or combustible liquids like gasoline, or in areas containing such liquids. Risk of fire or explosion.

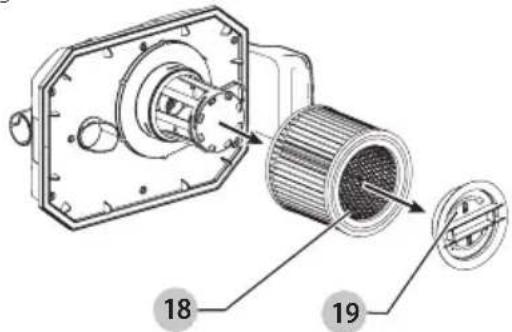

How to clean or change the vacuum filter?

Turn off the appliance and remove the battery pack. Unlock the tank and remove the motor head. Turn the filter lock to the left, remove the filter. Shake off excess dust or rinse with clean water. Do not use a brush. Reinstall the filter and lock by turning to the right.

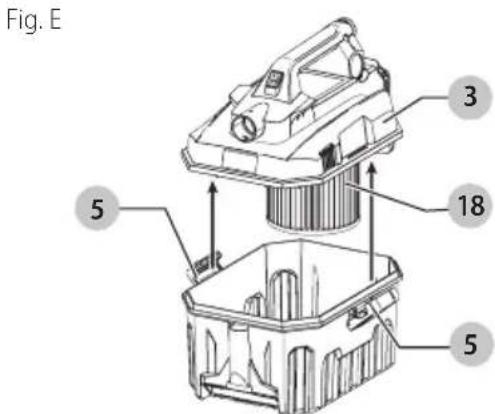

How to empty the tank when it is full?

When the motor sound changes and suction decreases, stop the vacuum, remove the battery pack. Unlock the tank latches, remove the motor head and empty the contents into a suitable container. Clean or change the filter if necessary.

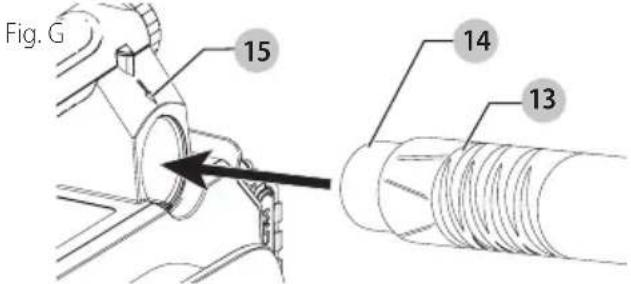

Can I use the vacuum as a blower?

Yes. First empty the tank. Remove the hose from the intake port and connect it to the side exhaust port, aligning the marks and turning to the right. Then use to blow debris.

Which battery is compatible with the PCC795?

Use only PORTER-CABLE 20V Max* lithium-ion battery packs of models PCC680L, PCC681L, PCC682, PCC682L, or PCC685L. The corresponding charger must be a model PCC690L, PCC691L, PCC692, PCC692L, or PCC695L.

What to do if the vacuum does not start?

Check that the battery pack is properly installed and charged. If the tool is hot, let it cool down. If the problem persists, contact a PORTER-CABLE authorized service center.

How to store the vacuum and its accessories?

After use, remove the battery pack. Wrap the hose around the appliance under the battery pack interface and secure it with the hose clamp. Accessories (nozzle, wide nozzle) can be stored on the vacuum. Store in a dry place out of reach of children.

What is the charging time of the battery?

Charging times vary by battery model: 40 to 80 minutes for PCC690L, PCC692/PCC692L, 70-140 minutes for PCC691L, and 180-360 minutes for PCC695L. Use a compatible charger.

How to clean the motor head and tank after picking up liquids?

After emptying the tank, thoroughly dry the inside of the motor head and tank with a clean cloth. Make sure the battery terminals are dry before reinstalling the battery pack. Do not immerse the appliance in water.

USER MANUAL PCC795 Porter-Cable

20V Max* 2.0 Gallon Wet/Dry Vacuum

Thank you for choosing PORTER-CABLE! To register your new product, go to:

www.portercable.com/ServiceAndSupport/ProductRegistration.aspx

Merci d'avoir besoino PORTER-CABLE! Consulter le site Web www.portercable.com/ServiceAndSupport/

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

without word) Indicates a safety related message.

MOTICE: indicates a practice not related to personal injury which, if not avoided, may result in property damage.

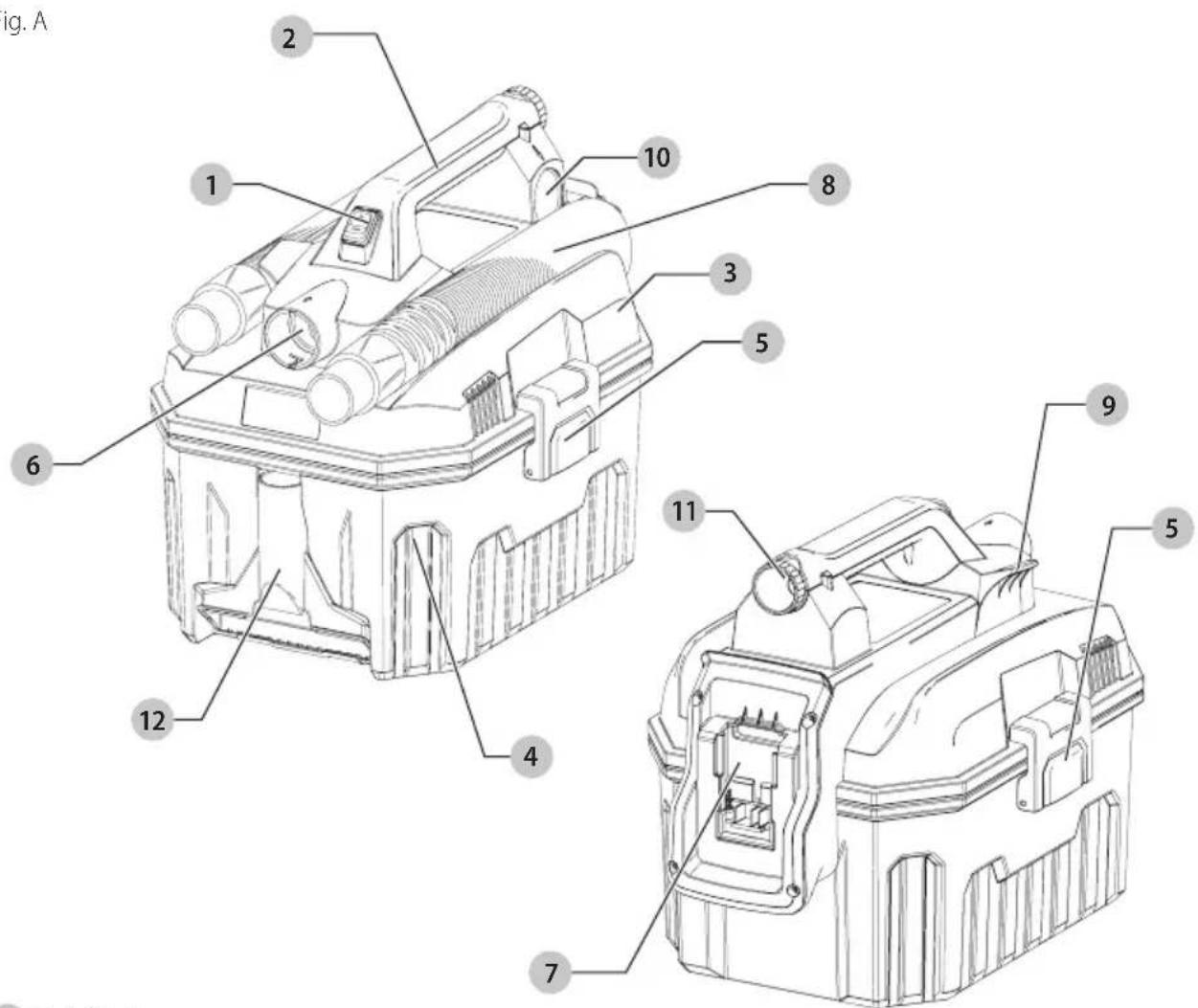

Fig. A

1 On/off button
2 Main handle
3 Power head
4 Tank
5 Tank latch
6 Intake port
7 Battery port
8Vacuum hose
9 Hose clip
10 Side exhaust port
11 Crevice tool
12 Wide nozzle tool

WARNING! Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any PORTER-CABLE tool, call us toll free at: [phone].

English

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

When using electric

appliances, always follow basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following:

To Reduce Risk of Injury

• Before any use, be sure everyone using this vacuum reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently prior to use and in instructing others.
• Instructions for compatible batteries and chargers are included for reference in this manual. Read all instruction manuals included with your battery or charger. Read all cautionary markings on the charger and battery. Consult the chart at the end of this manual for compatibility of chargers and battery packs.

When using this vacuum, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS BEFORE USING VACUUM

WARNING:

To reduce the risk of electric

shock. Do not expose to rain. Store indoors.

CAUTION:

Do not tilt vacuum when in use.

If vacuum has liquid in the tank it may spill out from the exhaust port.

• Do not leave vacuum when connected to power source. Remove battery when not in use and before servicing.
• Do not allow vacuum to be used as a toy. Close attention is necessary when used by or near children.
• Use this appliance ONLY as described in the manual. Use only PORTER-CABLE recommended attachments.
• Do not use this appliance if the appliance is not working correctly, has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.
• Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce air flow.
• Keep hair, loose clothing, fingers, and all body parts away from the openings and moving parts.
• Do not place outlet of vacuum near eyes or ears when operating.
• The blower operation can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles when using blower feature.

• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

• Use extra care when cleaning on stairs.

• Do not use without filter in place, except during wet applications.
• Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids are present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use in areas where explosive vapors may be present.
• Do not use to pick up explosive dust, or in areas where air contains explosive dust such as coal, grain, or other combustible material.
• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console or installed humidifier.
• To avoid spontaneous combustion, empty canister after each use.
• Store idle tools. When not in use, the vacuum should be stored in a dry, high or locked up place - out of the reach of children.
• Disconnect battery pack from vacuum before making any adjustments, changing accessories, servicing, moving or storing the vacuum. Such preventative safety measures reduce the risk of starting the appliance accidentally.
• Avoid accidental starting. Be sure the switch is in the off position before inserting the battery pack.
• Never leave vacuum running unattended. Turn power off.
• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
• Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
• Avoid tipping over the vacuum when full of liquid. Liquids may spill from the side exhaust port.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the vacuum in unexpected situations.
• Do not use appliance if switch does not turn it on or off. Any appliance that cannot be controlled with the switch is dangerous and must be repaired.
• Turn off all controls before removing the battery.

SAVE THESE INSTRUCTIONS

ADDITIONAL SAFETY RULES

WARNING:ALWAYS use safety

glasses. Everyday eyeglasses are NOT safety glasses.

Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts sfpm.....surface feet per
Hz.....hertz minute
min.....minutes SPM...strokes per minute

or DC....direct current

Class I Construction (grounded)

.../min..per minute

BPM... .beats per minute

IPM............impacts per minute

RPM... revolutionsperr minute

sfpm surface feet per minute SPM. strokes per minute

A. .amperes W. .watts

or AC......alternating current

or AC/DC....alternatingor direct current

Classll Construction (double insulated)

n_0 . no load speed n..rated speed
..earthing terminal
4 .safety alert symbol
visible radiation
wearrespiratory protection

weareye protectio
...wearhearing protection
......readall documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage. Your tool uses a PORTER-CABLE charger. Be sure to read all safety instructions before using your charger. Consult the chart at the end of this manual for compatibility of chargers and battery packs.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings and all instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.
• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.
• Charge the battery packs only in designated PORTER-CABLE chargers.
  DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ (40^) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If

English

battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Transportation

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

The RBRC Seal

The RBRC (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries

(or battery packs) at the end of their useful life have already been paid by PORTER-CABLE. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with PORTER-CABLE and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or

lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized PORTER-CABLE service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc.

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings and all instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging PORTER-CABLE rechargeable

batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose the charger to rain or snow.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0.6	18 16 14
6	10 18 16 14 12
10	12 16 16 14 12
12	16 14 12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of

electric shock. Removing the battery pack will not reduce this risk.

NEVER attempt to connect 2 chargers together.
- The charger is designed to operate on standard 120V 60Hz household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.

WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only PORTER-CABLE rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

MOTICE: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

Charging a Battery

PORTER-CABLE chargers are designed to charge PORTER-CABLE battery packs. Charge times are: PCC690L in 40-80 mins., PCC691L in 70-140 mins., PCC692/PCC692L in 40-80 mins., and PCC695L in 180-360 mins. depending on the pack being charged.

1. Plug the charger into an appropriate outlet before inserting the battery pack.
2. Insert the battery pack into the charger.

1. The LED will flash indicating that the battery is being charged.

1. The completion of charge is indicated by the LED remaining on continuously. The pack is fully charged and may be used at this time or left on

the charger.

1. Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. For longest battery life, do not discharge batteries fully. It is recommended that the batteries be recharged after each use.

English

Charger Diagnostics

This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns.

Bad Battery

The charger can detect a weak or damaged battery. The LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service center or a collection site for recycling.

Hot/Cold Pack Delay

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has normalized. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The light flashes in the pattern indicated on the label.

Leaving the Battery in the Charger

The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged. This charger features an automatic tune-up mode which equals or balances the individual cells in the battery pack to allow it to function at peak capacity. Battery packs should be tuned up weekly or whenever the battery no longer delivers the same amount of work. To use the automatic tune-up mode, place the battery pack in the charger and leave it for at least 8 hours.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ and 75^ (18^ - 24^) . DO NOT charge the battery pack in an air temperature below +40^ (+4.5^) , or above +105^ (+40.5^) . This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check current at receptacle by plugging in a lamp or other appliance
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
c. Move charger and battery pack to a location where the surrounding air temperature is approximately 65^ - 75^ (18^ - 24^)
d. d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ and 75^ (18^ - 24^) . DO NOT charge the battery pack in an air temperature below +40^ (+4.5^) , or above +104^ (+40^) . This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.
3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65^ - 75^(18^ - 24^)
d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
2. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
3. Do not freeze or immerse the charger in water or any other liquid.

Storage Recommendations

1. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING:

WANING. Never modify the power tool

or any part of it. Damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

INTENDED USE

The vacuum is designed to operate only on a PORTER-CABLE 20V Max* Li-Ion battery pack. Battery pack and charger are sold separately.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

The vacuum is designed to perform as a wet/dry unit with no component changes required when changing from wet to dry, or dry to wet pick up. This vacuum is for household use only.

It is recommended that the tank be emptied of any dry contents prior to being used for wet pick up to facilitate tank cleaning.

THIS PRODUCT USES THE BATTERY AND CHARGER LISTED IN THE CHART BELOW.

Description Catalog Number
20V Max* Lithium-Ion Battery:	-PCC680L
	-PCC681L
	-PCC682
	-PCC682L
	-PCC685L
20V Max* Lithium-Ion Battery Charger:	-PCC690L
	-PCC691L
	-PCC692
	-PCC692L
	-PCC695L

ASSEMBLY AND ADJUSTMENTS

WARNING:

To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments

or removing/installing attachments or

accessories. An accidental start-up can cause injury.

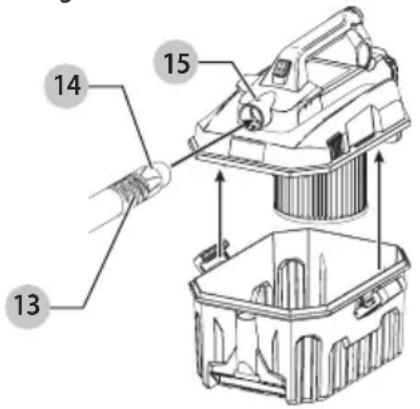

Attaching vacuum hose (Fig. B)

The vacuum hose 8 will need to be attached to the vacuum before using the appliance.

1. Place the vacuum on a flat, firm surface.

2. Unlatch tank latches 5 and remove power head from the tank. Remove the hose 8 from the tank.

3. Align the hose end 13 with the intake port 6 on the front of the appliance, ensuring the hose alignment lock 14 is aligned with the arrow 15 on the intake port.

4. Insert the hose end into the intake port and twist clockwise to lock in place.
5. Replace power head onto the tank and secure latches.

NOTE: The power head will only fit onto the tank when the intake port on the front of the power head and the storage area for the wide nozzle tool on the tank are aligned as shown in figure B.

Fig.B

OPERATION

WARNING: To reduce the risk of

serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or

accessories. An accidental start-up can cause injury.

Installing and Removing the Battery Pack (Fig. C)

NOTE: For best results, make sure your battery pack is fully charged.

CAUTION: Ensure battery port and

terminals are dry and clean before installing battery pack.

To install the battery pack 16 into the power head, align the battery pack with the rails inside the tool's battery port

7 until the battery pack is firmly seated in the tool and ensure that it does not disengage.

ENGLISH

To remove the battery pack from the tool, press the release button 17 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

Proper Hand Position

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle 2 .

Using the Vacuum

On/OffSwitch(Fig.D)

1. Attach the appropriate accessory to the hose 8 .
2. Insert battery pack.
3. To turn vacuum on, press the I/O (on/off) button 1.

Dry Vacuum Cleaning

To empty tank (FIG. E)

The sound of the motor changes and suction is reduced when the tank is full.

1. Turn vacuum off. Remove the battery pack.
2. Unlatch tank latches 5 and remove power head from the tank.
3. Empty contents of tank into suitable container.
4. Clean or change filter 18. See Filter section of this manual.
5. Inspect vacuum for damage by foreign objects. Contact the nearest PORTER-CABLE authorized service center for replacement of damaged or missing parts.
6. Replace power head 3 onto the tank 5 and latch securely.

Wet Vacuum Cleaning

WARNING: To reduce the risk of electric shock. Do not expose to rain. Store indoors.

CAUTION: Do not tilt vacuum when in use. If vacuum has liquid in the tank it may spill out from the exhaust port.

CAUTION: Ensure battery port and terminals are dry and clean before installing battery pack.

The filter must be removed before using the vacuum to clean liquids. See Filter section of this manual.

To empty tank

The sound of the motor changes and suction is reduced when the tank is full.

1. Turn vacuum off. Remove the battery pack.
2. Unlatch tank latches 5 and remove power head from the tank.
3. Empty contents of tank.
4. Inspect vacuum for damage by foreign objects. Contact the nearest PORTER-CABLE authorized service center for replacement of damaged or missing parts.
5. Dry inside of power head and tank with a clean cloth.
6. Replace power head 3 onto the tank 5 and latch securely.

Filter

Filter care

The wet/dry filter 18 included with this vacuum is a long life filter. To be effective in minimizing dust recirculation the filters MUST be installed correctly and in good condition.

NOTE: A clean filter is the most important factor in the operation and efficiency of any vacuum. If the filter becomes clogged beyond cleaning, damaged, or fails to operate properly, replace only with a recommended replacement filter.

TO CLEAN OR CHANGE THE FILTER (Fig. F)

1. Turn vacuum off. Remove the battery pack.

2. Unlatch the tank latches 5 and remove the power head from the tank as shown in figure E. Unlock the filter lock 19 by twisting it counter clockwise. Pull the filter 18 out to remove it from the power head.

3. Clean the filter by shaking off excess dust, tapping into a waste receptacle, then rinsing under running water. Depending on the condition of the filter, a water wash is not always required. Do not use a brush to clean filter.

4. Reinstall filter and secure the filter lock onto power head. Twist the filter lock clockwise and ensure the filter is locked in place.
5. Replace power head onto the tank and secure latches. NOTE: Please contact your local service center or go to https://servicenet.portercable.com to purchase a filter.

Fig. F

Blower

The blower function can be used to remove debris from behind small spaces, to dry a damp floor, to blow grass clippings or leaves from an outside walk, patio, etc.

TO USE AS A BLOWER (Fig. G)

1. Empty the tank following the instructions under the Vacuum Cleaning section of this manual.
2. Twist the vacuum hose 2 counter clockwise to remove from the intake port.
3. Align the hose end 13 with the side exhaust port 10, ensuring the hose alignment lock 14 is aligned with the arrow 15 above the side exhaust port.
4. Insert the hose end into the side exhaust port and twist clockwise to lock in place.

Hose and Accessory Storage

When the vacuum is not in use, remove the battery pack. The vacuum hose can be wrapped around appliance, underneath the battery interface, and secured with the hose clip 7 also located at the back of the vacuum. The two accessories (crevice tool and wide nozzle) can be stored on board the vacuum as well.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove

the battery pack before making any adjustments or removing/installing attachments or

accessories. An accidental start-up can cause injury.

Lubrication

Never lubricate the vacuum motor. The motor bearings are permanently sealed. This vacuum is intended for indoor use and for wet or dry pick up, but it is not intended to be exposed to rain.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by PORTER-CABLE, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only PORTER-CABLE recommended accessories should be used with this product.

A complete line of accessories is available from your PORTER-CABLE Factory Service Center or a PORTER-CABLE Authorized Warranty Service Center. Please visit our Web Site www.portercable.com for a catalog or for the name of your nearest supplier.

Repairs

The charger and battery pack are not serviceable.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a PORTER-CABLE factory service center or a PORTER-CABLE authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
  CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.

English

Troubleshooting Guide

BE sURE TO FOLLOW SAFETY RULEs AnD instTRUCTIONs

For assistance with your product, visit our website at www.portercable.com for a list of service centers, or call the PORTERCABLE Customer Care Center at [phone].

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
- Unit will not start.	- Battery pack not installed properly - Battery pack not charged. - Internal components too hot. - Brushes worn out.	- Check battery pack installation - Check battery pack charging requirements. - Allow tool to cool down. - Have motor replaced by an authorized PORTER-CABLE service center.
- Battery pack will not charge.	- Battery pack not inserted into charger. - Charger not plugged in. - Surrounding air temperature too hot or too cold.	- Insert battery pack into charger until LED illuminates. - Plug charger into a working outlet. Refer to "Important charging notes" for more details. - Move charger and battery pack to a surrounding air temperature of above 40 degrees F (4,5℃) or below 105 degrees F (+40,5℃).
- Unit shuts off abruptly.	- Battery pack has reached its maximum thermal limit. - Out of charge. (To maximize the life of the battery pack it is designed to shut off abruptly when the charge is depleted.)	- Allow battery pack to cool down. - Place on charger and allow to charge.
- Unit has reduced suction.	- Tank is full. - Filter is dirty or clogged.	- Empty tank. - Clean or replace filter.

FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act. Register online at www.portercable.com/register.

THREE YEAR LIMITED WARRANTY

PORTER-CABLE will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase for tools (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.portercable.com or call [phone]. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

In addition to the warranty, PORTER-CABLE tools are covered by our:

1 YEAR FREE SERVICE: PORTER-CABLE will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.

90 DAY MONEY BACK GUARANTEE: If you are not completely satisfied with the performance of your PORTER-CABLE Power Tool for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

To register your tool for warranty service visit our website at www.portercable.com.

WARning IABEL REPIACEMEnT

If your warning labels become illegible or are missing, call [phone] for a free replacement.

PORTER CABLE.

4825 Highway 45 North

Jackson, Tennessee 38305

[phone]

www.portercable.com

4825 Highway 45 North Jackson, Tennessee 3830

888 848-5175

www.portcable.com

GUIDE DE DÉPANNAGE

*Maximum initial battery pack voltage (measured without a workload) is 20 volts. Measured under a workload, nominal voltage is 18.

April 2017 Printed in China
