USER MANUAL LC 320 ZIBRO

1 Children should be supervised to ensure that they do not play with the appliance. 2 DO NOT move the heater when it is burning or still hot. DO NOT refill nor service the heater when it is burning or still hot. 3 Position the front of the heater at a distance of minimum

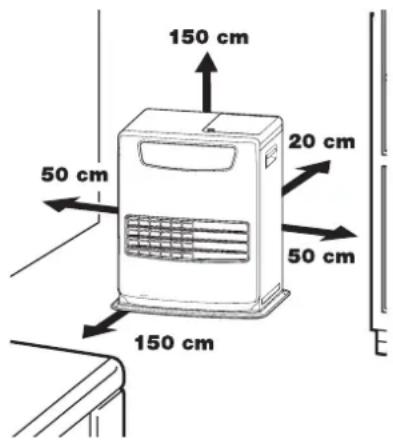

1.5 metres from walls, curtains, furniture, spray can and gas

cylinder. DO NOT store the fuel tank near the heater. 4 DO NOT use the heater in dusty rooms. You will not have optimum burning in such rooms. DO NOT use the heater in the immediate surrounding of a bath, a shower or a swimmingpool. 5 Switch off the heater, before you leave or go sleeping. Unplug the heater as well, when you go away for a longer period of time (e.g. holidays). 6 Store and move fuel only in suitable tanks and jerrycans. 7 Make sure that the fuel is not exposed to heat or extreme temperature changes. ALWAYS store the fuel in a cool, dry and dark place (sunlight will affect the quality). 8 NEVER use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes). 9 Beware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire. 10 ALWAYS make sure that there is sufficient ventilation. 11 The heater must not be located immediately below a socket-outlet. 12 Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. 13 Children shall not play with the appliance. 14 Cleaning and user maintenance shall not be made by children without supervision. 15 DO NOT stay near the heater for a long time. Defective electrical devices and batteries must be kept separate from household waste. Ensure that there is effective recycling where possible. Ask you local council or dealer for expert advice on recycling.

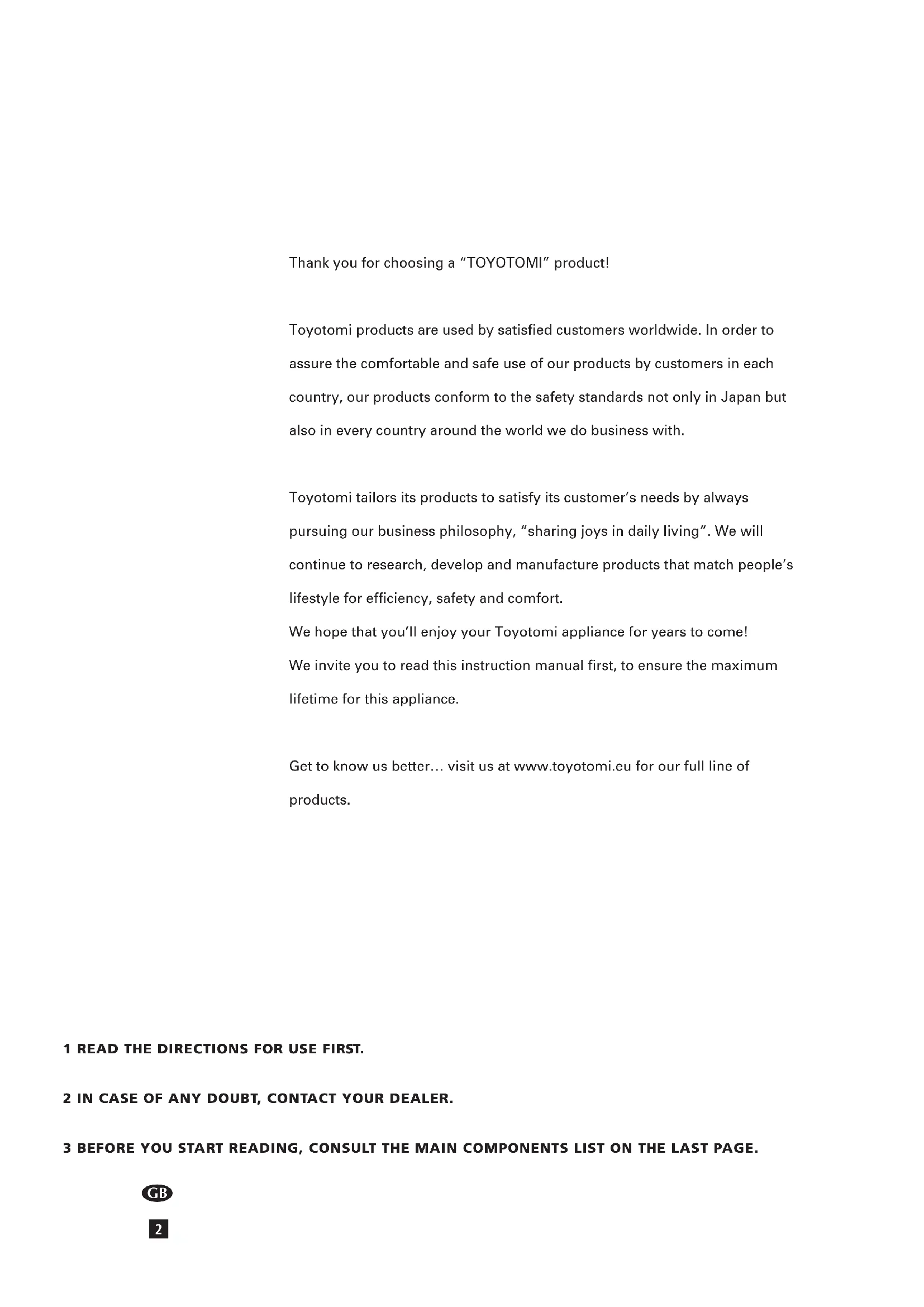

Thank you for choosing a “TOYOTOMI” product! Toyotomi products are used by satisfied customers worldwide. In order to assure the comfortable and safe use of our products by customers in each country, our products conform to the safety standards not only in Japan but also in every country around the world we do business with. Toyotomi tailors its products to satisfy its customer’s needs by always pursuing our business philosophy, “sharing joys in daily living”. We will continue to research, develop and manufacture products that match people’s lifestyle for efficiency, safety and comfort. We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better… visit us at www.toyotomi.eu for our full line of products. 1 READ THE DIRECTIONS FOR USE FIRST. 2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER. 3 POUR LIRE, DÉPLIEZ LA DERNIÈRE PAGE. 3 BEFORE YOU START READING, CONSULT THE MAIN COMPONENTS LIST ON THE LAST PAGE.4

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL.

• As a fire precaution, the tank must be filled either hen the heater has been switched off or in another room than the room where the heater is installed.

• Alays ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see Section B).

• The first time the heater is ignited it ill smell like “ne” for a short time.

• Store all fuel containers ith their original caps and seals in a cool and dark place.

• uel ages. Use ne fuel at the start of every heating season.

• Only use high uality and ater-free pure paraffin in accordance ith local legislation (TOYOTOMI fuel).

• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater. Remove all packaging materials (refer to Section A, Fig. A). ill the removable tank (refer to Section B, Fig. C). Insert the plug into the all-socket. Ignite the heater using the key (refer to Section E). If reuired, change the temperature using the adjustment keys (refer to Section F). Sitch off the heater by pressing the key .

This transportation cap is packed separately in the box. Only this cap ensures trouble-free transportation of the heater after use. Store it well! WHAT YOU NEED TO KNOW IN ADVANCE VENTILATE SUFFICIENTLY Read this user manual carefully before using the appliance and keep it for future reference. Install this device only hen it complies ith local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage. This heater is euipped ith an air uality control system K . When there is insufficient ventilation in the room or when the heater is being used in a room which is too small, the heater will shut off automatically. or comfortable and safe heating ensure that there is sufficient ventilation. NOTE: To avoid unexpected shut off, we recommend to put a door or window ajar when the heater is operating. Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation (refer to Section P). If the room is smaller than reuired, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50

We also recommend doing this in highly insulated or draught-free rooms and/or at high altitude. Do not use your heater in cellars or other underground areas. No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt. ESPECIALLY FOR FRANCE: Your heater was designed to operate exclusively on fuel for liuid fuel-operated mobile heaters in accordance ith the Decrees of 18-0-2002 and 2-06-2010. The use of other fuels is forbidden. Ask your dealer or check our ebsite for the addresses of our retailers. The liuid fuel-operated mobile heater is intended as an etra heater, and not as a continuous source of heat. ESPECIALLY FOR UNITED KINGDOM: Only use Class C1 paraffin fuel in accordance ith BS2869 Part 2, or euivalent. The user must comply with the following instructions for proper use: DO NOT - use petrol. - use the liuid fuel-operated mobile heater in caravans, boats, and vehicle cabins. - use the liuid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1900 metres. - modify the heater safety features. The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

Your heater has been designed for use ith high-uality ater-free pure paraffin oil (TOYOTOMI fuel). Only fuels of this kind will ensure clean and proper burning. Loer uality fuel may result in: increased possibility of malfunctioning incomplete combustion reduced heater lifetime smoke and/or fumes deposits on the grid or mantle Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater. Damage and/or malfunctions of the heater due to the use of other than high- uality ater-free pure paraffin oil is not covered by the warranty. Alays refer to (.toyotomi.eu) for the right fuel for your heater. Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.!

Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have: a manual fuel pump a transportation cap these directions for use Keep the bo and the packaging materials (ig. A) for storage and/or transportation.

Open the lid of the removable tank and remove the piece of cardboard.

ill the removable tank as indicated in Section B.

The floor should be firm and completely level. Reposition the heater, when it is not level. Do not try to correct the situation by placing books or other goods under the heater.

Insert the plug into the all-socket (230 Volts - AC / 0 H) and set the correct time using the adjustment keys (refer to Section C). Your heater is now ready for use.SET ALTITUDE If the heater is used at a height of 800 m to 1300 m, use the altitude mode 1. Push the altitude button with thin rod like a clip and plug into the outlet simultaneously. Then “1 ” will be shown on the display.

If the heater is used at a height of 1300 m to 1900 m, use the altitude mode

2. After setting the altitude mode 1, push the altitude button with thin rod

and plug into the outlet simultaneouosly again. Then “2 ” will be shown on the display.

Sitch off the altitude mode by pressing the altitude button and into the outlet simultaneously after setting altitude mode 2. Then “0” will be shown on the display and “” will be disappeared.NOTE: When the altitude mode 1 is set, the altitude mark “” is lit on the display. When the altitude mode 2 is set, the altitude mark “” is blinking during operation.NOTE: In the event of power failure or disconnection of heater, the altitude setting will remain.Do not use the heater at a height of over 1900 meters.SWITCH THE VOLUMEThis heater can be sitched the buer sound volume. The initial setting is in High level. Push the SAVE key and holding it don for more than 3 seconds, then the buer sound volume is sitched from High to Lo.

Push the SAVE key and holding it don for more than 3 seconds again, then the buer sound volume is sitched from Lo to High.NOTE: The volume level is Lo and High only, but the alarm by safety device sounds in High level.NOTE: When the heater has been unplugged or after a power failure, the volume ill be the initial setting High.

F: When the 4-digit stops blinking, the set-ting has been locked to the indicated value.

ill the removable tank in a suitable place since there can alays be some spillage. ollo the procedure belo:

Make sure that the heater is switched off.

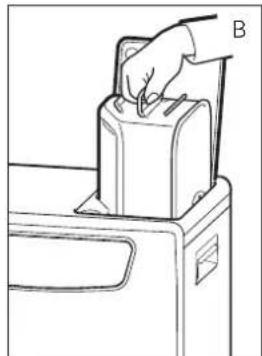

Open the upper lid and lift the removable tank out of the heater (ig. B). Put don the removable tank (cap pointing upards, handle on floor) and scre off the fuel cap (ig. C). NOTE: Some drops may leak from the tank.

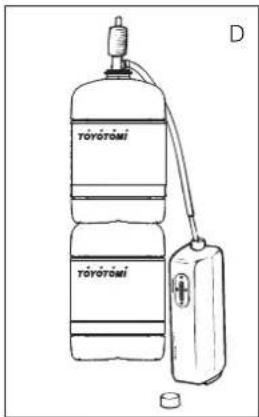

ill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (ig. D). Insert the ribbed hose into the opening of the removable tank.

Check the removable tank fuel gauge hile filling the tank (ig. E). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).

Let the remaining fuel in the pump flow back into the jerrycan and carefully remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.

Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

It is only possible to set the correct time, when the heater is connected to the mains and not burning. Use the adjustment keys to set the time. irst press either of the to keys to sitch on the function (the -digit will start blinking). Next, set the hours using the key on the left (hour) and the minutes using the key on the right (min.). Press once to increase the value by one step. When you hold down the key, the value will continue going up, until you release the key again. After approimately 10 seconds the -digit ill stop blinking and the set- ting ill be locked (ig. ). minutes after sitching off the heater, the informa- tion on the display will disappear and the heater will automatically switch into the stand-by position. When the heater has been unplugged for more than 30 minutes (or after a power failure), the time and the day need to be set again.

Here is an eample on ho the eekly timer can be programmed:

• Maimum of 3 programs per day can be set.

• Every day of the eek can be programmed separately.

• Minimum sitching interval, 1 hour.

• Minimum activation time, 1 hour.

• Choice beteen manual and timer.

• Settings are saved in the memory and remain saved ithout poer supply.

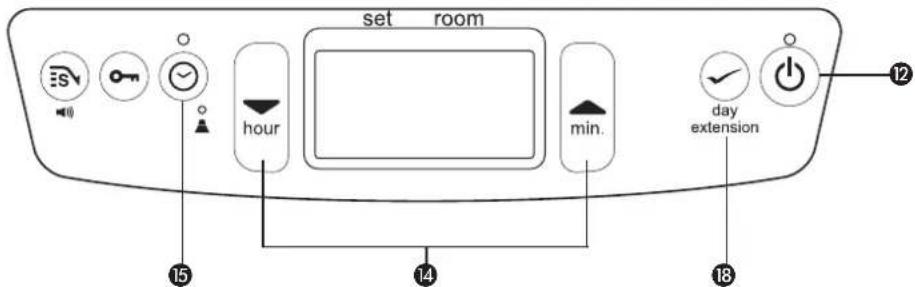

Make sure the heater is connected to the mains and not burning. Press the timer- key . Also make sure the time and day are set correctly. Choose the day you would like to program by pressing the adjustment keys . Press the adjustment key to increase the day by one step and press the key to decrease the day. Press etension/day/set to select the desired day. The display shows: With the adjustment keys and you can choose beteen the programs P1, P2 and P3. You can also choose the option Copy to copying the setting from one day to another. Press etension/day/set to select the displayed program. Use the adjustment keys to set the hour at hich the heater must ignite. Press the adjusment key to increase the hour and the key to decrease the hour. Press etension/day/set to select the right hour. Then, use the adjustment keys to set the minute. Press the adjustment key to increase the minute and the key to decrease the minute. Press etension/ day/set to select the right minute. Use the adjustment keys to set the hour at which the heater must shutt off. Press the adjusment key to increase the hour and the key to decrease the hour. Press etension/day/set to select the right hour. Then, use the adjustment keys to set the minute. Press the adjustment key to increase the minute and the key to decrease the minute. Press etension/ day/set to select the right minute. The settings for program 1 for Monday are programmed and the display shows SET for 3 seconds. After 3 seconds choose another day or end the setting mode by pressing timer. Press the “timer” key to exit the weekly timer setting mode and return to the time and a day of the week display. Timer lamp turns off.

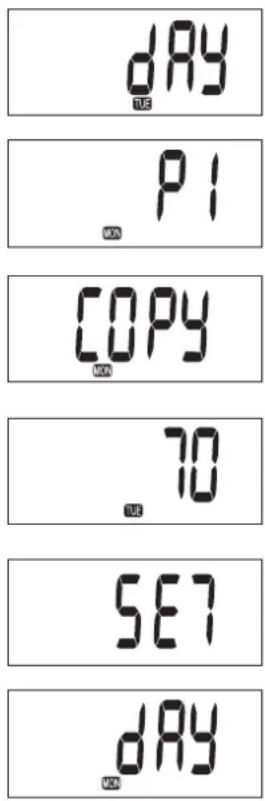

COPYING THE SETTING FROM ONE DAY TO ANOTHER Use the copy function if there are multiple days during one eek hich should have the same setting times. Make sure that the heater is not burning. Press the timer key . Use the adjustment keys until the day of its source is displayed in the display. Press etension/day/set to select. The display shows: Use the adjustment keys or to choose copy. Press etension/day/set to select the copy function. Use the adjustment keys or to select the day to which the settings should be copied. Press etension/day/set to choose the selected day. The settings for program for Tuesday are programmed and the display shows SET for 3 seconds. After 3 seconds choose another day to copy or end the setting mode by pressing timer.

OPERATING THE WEEKLY TIMER

Sitch on the heater by pressing the POWER button . And then press the timer-key immediately after that. The Timer light will light up and the heater shuts off. The On / Off indicators on the display shos hether the appliance is switched on or off. When the appliance is switched off by the timer, the off indicator is visible. The display shos the -actual time. When the appliance is switched on by the timer, the on indicator is visible. The display shows the desired (set) and actual (room) temperature.

E IGNITING THE HEATER

When used for the first time, a new heater may give out a smell for a short while. You should therefore provide extra ventilation. Alays ignite the heater ith the button . Never use matches or a cigarette lighter. Just press the button to ignite the heater. The POWER lamp ill start blinking, indicating that the ignition procedure has started. This will take a short while. Once the heater is burning, the POWER lamp ill remain lit (red). The information display will show two numbers. The light next to them indicates that these numbers refer to the temperatures (ig. ). The actual room temperature is indicated belo ROOM, hile the temperature setting is indicated belo SET. The latter can be changed with the adjustment keys (refer to Section F). Prior to igniting the heater, alays check for sufficient fuel in the removable tank. G: The required tempe- rature on the left, the measured temperature on the right.4

The temperature setting can only be adjusted, hen the heater is burning. Use the adjustment keys to adjust the temperature. irst press either of the to keys to switch on the function (the °C mark will start blinking). Next, adjust the temperature using the key on the right (min.) to set the temperature to a higher setting and the key on the left ( hour) to loer the temperature. Press once to increase the value one step. After approimately 10 seconds the C mark ill stop blinking and the setting ill be locked (ig. ). The available temperature settings range from 6C minimum to 28C maimum. When the heater has been unplugged (or after a power failure), the temperature will reset to the factory setting of 20°C.

G SWITCHING OFF THE HEATER

There are two ways to switch off the heater.

Press the button . The information display will show the CLOCK signal. Within approximately one minute the flame will have extinguished.

Press the TIMER key , when you want to switch off the heater and ignite it again with the timer the next time. This not only switches off the heater, but it also activates the timer function.

H THE INFORMATION DISPLAY

The information display not only serves as an indicator of the (set) time and temperature (Sections C, D, and F), it also indicates any malfunctioning of the heater. The code on the information display tells you what is the matter:

CODE INFORMATION WHAT TO DO

e - 0 Temperature ithin the heater too high. Cool-don and re-ignite. f - 0 Poer interrupted. Re-ignite the heater. e - 1 aulty thermostat. Contact your dealer. f - 1 aulty burner thermistor. Contact your dealer. e - 2 Starting problems. Contact your dealer. e - 23 Re-ignite the heater immediately after extinguishing. Wait for appro. 30 sec. and re-ignite after inserting the plug again. e - 5 Tipping-over protection. Re-ignite the heater. e - 6 Poor burning. Contact your dealer. e - 7 Room temperature If necessary, above 32C. re-ignite the heater. e - 8 Defective booster. Contact your dealer. e - 8 1 Abnormal freuency. Insert the plug into the all-socket again. Contact your dealer. e - 9 Air filter dirty or Clean filter. uel pump dirty. Contact your dealer. The heater has been in operation continuously for a period of 6 hours and has turned itself off automatically. Sitch the heater back on.

Out of fuel. Refill removable tank.

Too little ventilation. Ventilate better. e - 1 1

Too little ventilation. Ventilate better. Alays contact your dealer for any malfunctioning not listed above and/or hen the error keeps occuring after taking the corrective measure as described above. In case of any malfunctioning the information display will tell you what is the matter.!

AUTOMATIC DEACTIVATION This heater is fitted with a safety system that ensures that it switches off automatically after 6 hours continuous operation. The folloing ill then appear in the display: . If desired, you can switch the heater on again by pressing the button

When the heater has been burning continuously for two hours at its highest setting, the burner will automatically start an autoclean procedure. The display will show the autocleaningcode cl:05 running back to cl:01. The procedure takes 5 minutes, during which the heater will burn at its lowest setting, while the burner autocleans. When the burner is clean again, the heater will automatically switch back to the highest setting again.

I CHILDPROOF LOCK / PARENTAL CONTROL

The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater. Activate the childproof lock by pressing the appropriate key and holding it don for more than 3 seconds. The KEY-LOCK indicator will appear on the information display (ig. I), indicating that the childproof lock has been activated. Sitch off the childproof lock by pressing the key and holding it down for more than 3 seconds once again.

J THE CORRECT USE OF ‘SAVE’

The SAVE function allos you to limit the temperature. When this function is activated, the heater will automatically switch off, when the room temperature exceeds the set temperature by 3C. Subseuently, hen the room temperature has dropped again to the set temperature, the heater will automatically switch on again. Activate the SAVE setting by pressing the appropriate key. The SAVE indicator light ill light up (ig. J). Sitch off the function by pressing the SAVE key once again. Without the SAVE setting your heater ill maintain the set temperature by approimation as ell, by adjusting its heating capacity. SAVE is an economy setting, which you can use when, for instance, you are not present in the room or to keep it frost-free.

K THE ‘FUEL’ INDICATOR

When the UEL indicator appears, it means that there is only fuel left for 10 more minutes. The count-don of the remaining heating time can be seen in the information display (ig. K). No you have to options: you remove the fuel tank and refill it outside the living room (Section B) or you push the button extension . By pushing this button, the remaining heating time ill etend to 60 minutes. The heater will automatically switch back to its lowest position. In the display the number 60 ill appear, hich ill decline to 10. At the arrival of 10, you will hear an alarm signal every two minutes, warning you to refill the removable tank. If you do not react, the heater will extinguish by itself. The heater will also sound a warning signal, when it switches off. The fuel indicator ill blink, hile four lines (--:--) are blinking in the information display. You can stop this by pressing the button once more. Once the heater has used up all its fuel and extinguished, it will take some time, after the refill, before the heater is completely ready for use again.

L THE ‘VENT’ INDICATOR

When there is insufficient ventilation in the room, the heater shuts off automatically. When this occurs, e -1 1 is displayed and the VENT indicator

blinking (fig. L). After improving the ventilation of the room (e.g. by opening a door or window a little more), the heater can be ignited by pushing the button again. Fuel filterL: A blinking VENT indicator is a sign that you need extra ventilation.K: When the FUEL indicator has appeard, the information display will show the number of minutes of fuel left in the tank.J: When the SAVE light lights up, the heater will automatically switch on or off in order to remain within a specified tem-perature range.I: When the mark appears, the childproof lock has been activated.!

M MAINTENANCE Sitch off the heater and let it cool don, before you start any maintenance ork. Also disconnect the plug from the mains. Your heater needs hardly any maintenance. It is, however, important that you clean the vent filter with a vacuum cleaner and the grid with a damp cloth, both on a weekly basis. Regularly inspect the fuel filter as well:

Remove the removable tank from the heater and remove the fuel filter (ig. M). Some drops may leak from the filter keep a cloth at hand.

Remove the dirt by tapping the fuel filter upside-don against a hard surface. (Never clean it with water!)

Reinstall the fuel filter into the heater. We recommend that you remove dust and stains from time to time with a damp cloth, because otherwise these may cause stains that are hard to remove. Do not remove any heater components yourself. Alays contact your dealer for repairs. When the power cord is damaged, it may only be replaced by an authorised fitter. Use a ne cord of the type H0 VV-. N STORAGE (END OF THE HEATING SEASON) At the end of the heating season, you must store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used in the net heating season. We therefore recommend that you burn up all fuel. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Alays start the ne heating season ith fresh fuel. When you start re-using the heater follow the instructions again (starting from Section A and as specified). O TRANSPORTATION Take the following measures to avoid fuel leakage during the transportation of the heater:

Let the heater cool down.

Remove the removable tank from the heater and remove the fuel filter (refer to Section M, Fig. M). Some drops may leak from the filter keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.

Place the transportation cap into the position of the fuel filter (ig. N). Press it tight. The transportation cap ill, as much as possible, prevent oil leakage from the heater during transport.

Alays move the heater in an upright position.

Make the fixed tank empty with a fuel pump before transportation or in case of rong or dirty fuel. irst remove the fuel filter and then insert the fuel pump into the empty fied tank. ollo the same procedure if the fuel tank contains water. Transportation cap

8-120 - transportation cap uel consumption (l/hr)

-- AC / 0 H uel consumption (g/hr)

Electrical consumption

igniter 320 W Capacity removable tank (litres) . - continuous 13 W Weight (kg) 8.0 use rating 20V, A Monitoring of the uality of ventilation (air reneal): Direct measurement of the CO

Your heater comes ith a 8-month arranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

We epressly dismiss all other claims for damages, including conseuential damages.

Any repairs or replacements of components ithin the term of arranty ill not result in an extension of the term of warranty.

The warranty shall no longer apply, when the heater has been modified, non-original parts have been used, or hen it is repaired by third parties.

The warranty shall not apply to parts that are subject to normal wear, such as the burner mat, any kind of gasket and the manual fuel pump.

The warranty shall only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.

The warranty shall not apply to damages caused by actions not in compliance ith the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous.

Transportation costs and the risks involved during the transportation of the heater or heater components shall always be at the expense of the purchaser. In order to avoid unnecessary costs, we recommend that you always read the Directions for Use carefully first. In case they offer no solution, please take the heater to your dealer for repair. Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should thishappen, never try to move the heater, but always switch off the heater immediately. In case of emergency you may use a fire etinguisher, but only a type B etinguisher: a carbon dioide or poder etinguisher.4

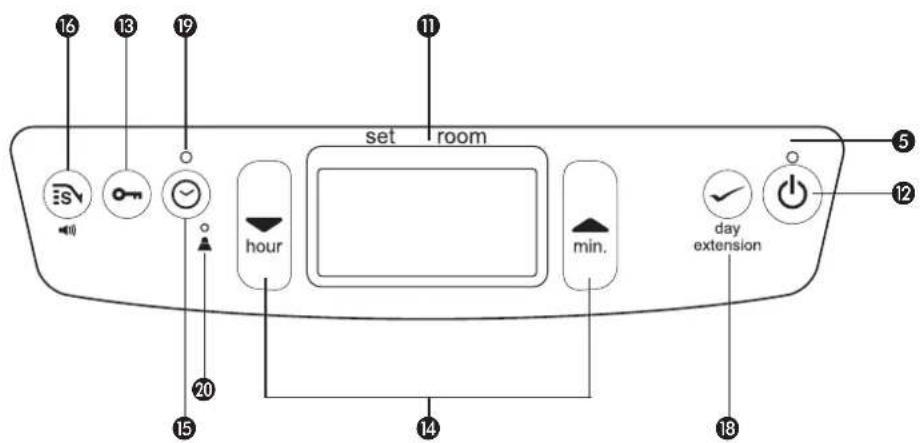

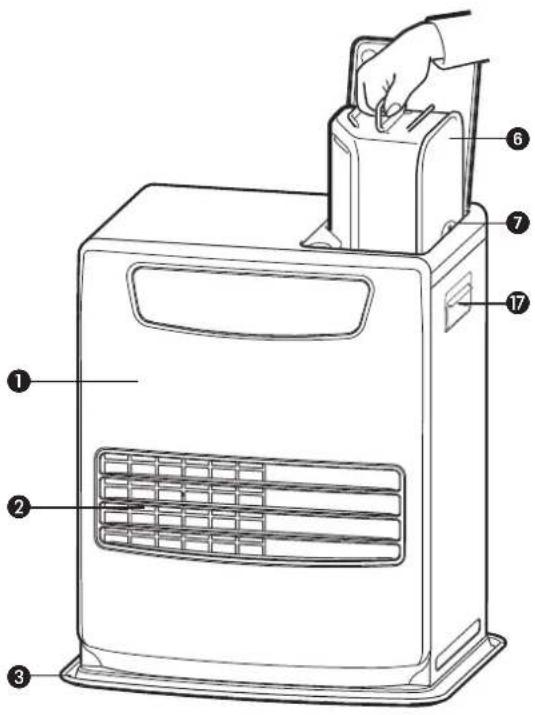

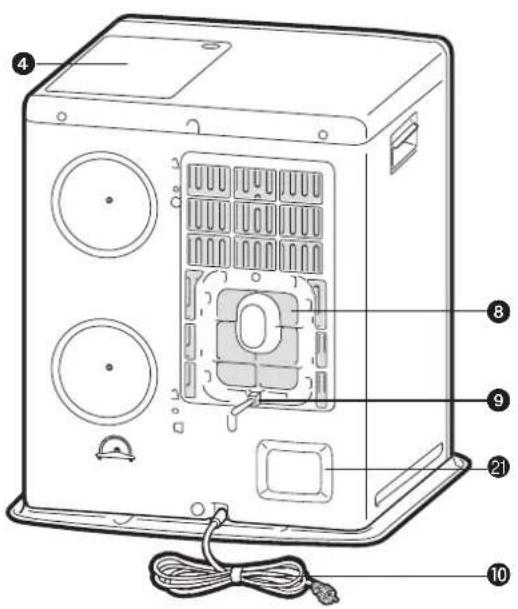

Front plate Grid Base plate Lid for removable tank Operation panel Removable tank Fuel gauge removable tank Vent filter Thermostat Plug + cord Information display key Childproof lock Adjustment keys (time and temperature) Timer SAVE key Handle Extension / day /set (weekly timer) Timer lamp Altitude setting button Air quality control system

(a) Suppliers name/Trademark TOYOTOMI Europe Sales B.V. (b) Model LC-320 (c) EEC A (d) Direct heat output 3.1kW (e) Indirect heat output N/A (f) EEI 96.0% (g) Useful energy ef ciency 100% (h) Speci c precaution or assembly, installation or main- tenance instructions, please refer to the operating manual.
