Product type	Petrol grass trimmer and brush cutter
Brand	Texas
Model	BCU43
Engine (displacement)	43 cm³
Fuel type	Unleaded E5 petrol mixed with 2-stroke oil (40:1)
Tank capacity	1.1 L
Maximum rotation speed	7200 rpm
Cutting width (line)	430 mm
Cutting width (blade)	255 mm
Line diameter	2.4 mm
Blade thickness	1.4 mm
Net weight	7.8 kg
Noise level (Lwa)	114 dB
Vibrations (Ah, hand-arm)	6.72 m/s²
Ignition type	Electronic
Starting	Recoil (starter)
Clutch	Automatic centrifugal
Gear lubrication	MULTIFAK EP-0 grease every 30 hours
Air filter maintenance	Clean every 5 hours
Spark plug gap	0.6 mm
Spare parts	Available at www.texas.dk and dealers

Frequently Asked Questions - BCU43 Texas

What fuel/oil mixture to use for the engine?

Use unleaded E5 petrol mixed with 2-stroke oil for air-cooled engines, in a ratio of 40:1 (2.5% oil). Never use car engine oil.

How to start the engine cold?

Place the machine on a flat surface. Set the switch to I. Press the primer bulb 8 to 10 times. Set the choke to start position. Hold the safety handle and press the throttle, then lock it. Pull the starter until the engine runs, then push the choke back.

How to replace the trimmer line?

Press the sides of the housing to remove the cover. Remove the spool. Take a 2.4 mm nylon line, double it and wind it into the grooves following the arrow direction. Replace the spring and housing, then cut off excess line.

Why does the engine not start?

Possible causes: no spark (check spark plug), lack of fuel (pump primer), or flooded engine (remove spark plug, pull starter 10-15 times with choke on RUN).

How to switch from trimmer mode to brush cutter mode?

Insert the hex key into the gear hole to lock it. Unscrew the trimmer head, then mount the blade with washers and nut, tightening counter-clockwise.

What grease to use for the gear?

Use MULTIFAK EP-0 grease and lubricate the gear every 30 hours of service using a grease gun (not included).

How to clean the air filter?

Wash the filter with warm soapy water, dry it, then soak it with a little 2-stroke oil. Squeeze out excess. Replace it. Clean every 5 hours or more often in dusty conditions.

What to do if the line does not feed out?

Check if the line has melted, is too short or tangled. If necessary, feed more line by tapping the head on the ground at full speed. If the engine runs too slow, increase throttle.

What are the essential safety instructions?

Always wear eye and hearing protection, gloves, long trousers and sturdy shoes. Keep a distance of 15 meters from other people. Never start indoors. Turn off the engine before any adjustments.

Where to find spare parts?

Spare parts are available on www.texas.dk (exploded diagrams) and at authorized dealers. Use only original parts for safety and warranty.

USER MANUAL BCU43 Texas

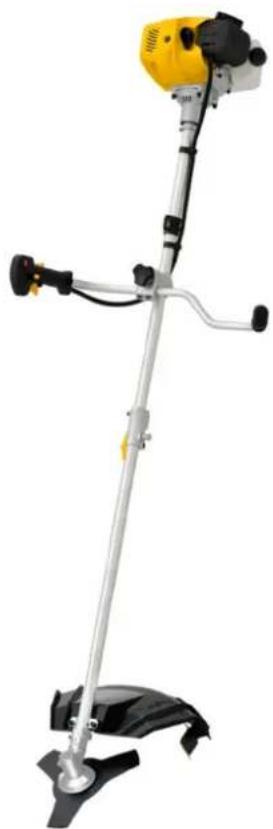

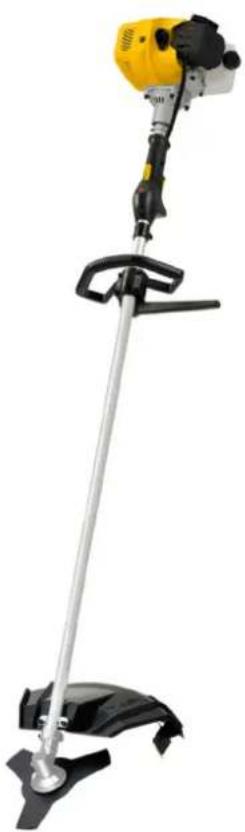

BCU33S - BCU43S - BCU43D - BCU43

VIGTIGT!
Gearet skal smores med
MULTIFAK EP-0
for haver 30 time

IMPORTANT! The gearbox must be lubricated with MULTIFAK EP-0 for every 30-hour

Warning! This product can be dangerous and in some cases fatal if not handled correct.

Read the user manual before operating this machine.

Use earprotection, safety glasses and safety helmet.

Brug sikkerhedshandsker. Wear safety gloves.

Brug sikkerhedsfodtj. Wear safety shoes/boots.

Rotationsretning.

Rotation

direction.

Risk for flying objects.
Keep distance to animals and humans.

Hold afstand til personer og dyr. Minimum 15M (50FT)

Keep bystanders away. Minimum 15M (50FT)

Hot area.
Keep fingers and cloth away from the area.

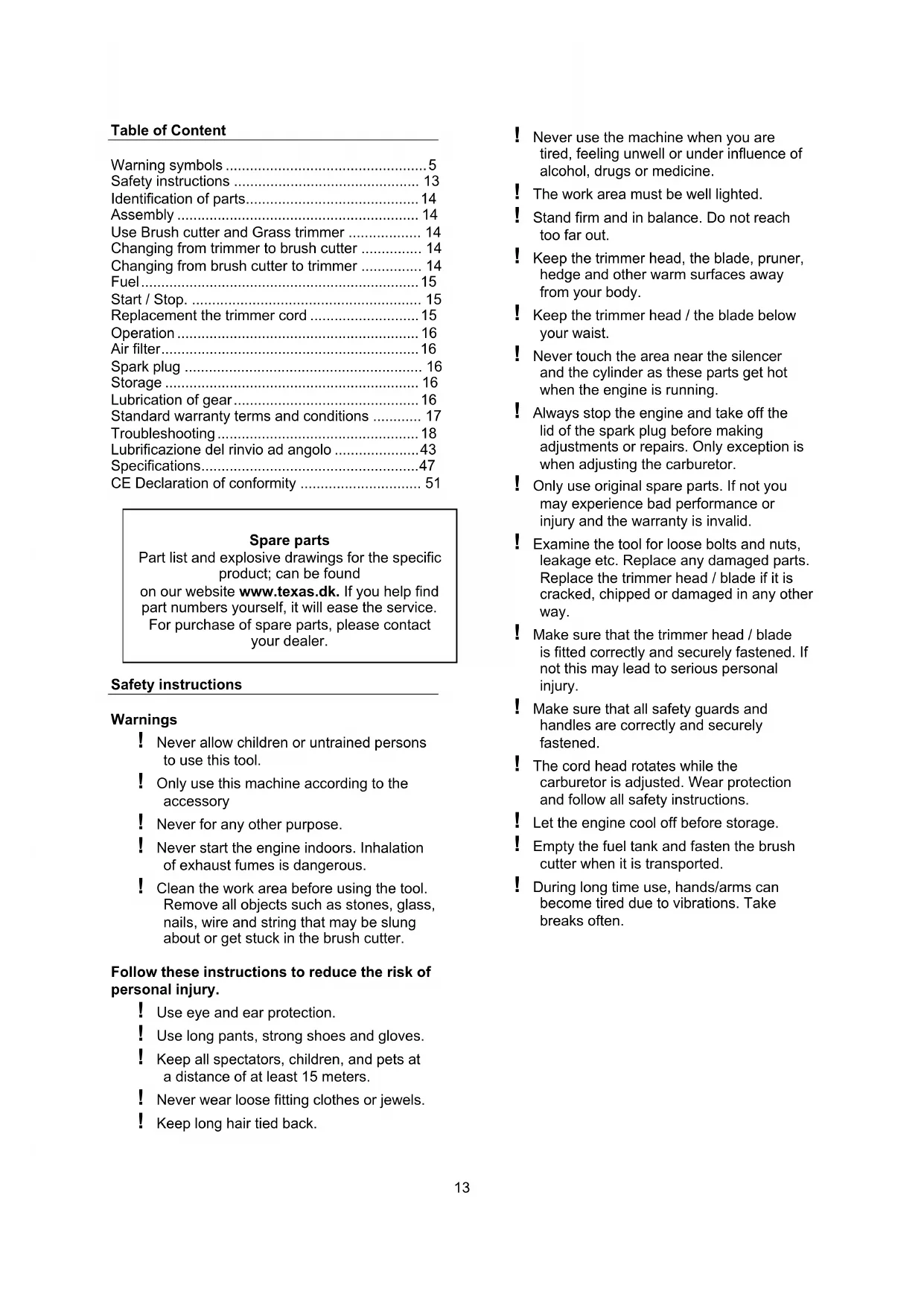

Identification of dele
