Product Type	Cyclone bagless vacuum cleaner
Brand	Solac
Model	Apollo Cyclonic AS3244
Power Supply	Mains, 220-240 V ~ 50/60 Hz
Filter Type	HEPA filter, motor filter, exhaust filter
Noise Level	77 dB
Annual Energy Consumption	27.3 kWh/year (based on 50 cleaning sessions)
Power Cord	With automatic rewinder
Power Control	Electronic, adjustable
Parking Position	Yes, for horizontal storage
Included Accessories	Floor nozzle, telescopic extension tubes, flexible hose, parquet floor nozzle, tube + multi-purpose brush
Container Capacity	Not specified
Container Full Indicator	Yes, red light
Filter Maintenance	Clean/replace every 50 hours of use
Usage	Household, for hard floors and carpets
Weight	Not specified

Frequently Asked Questions - Apollo Cyclonic AS3244 SOLAC

How to empty the dust container?

Press the button on the upper part of the vacuum cleaner and pull the container upwards. Open the lid to empty the contents into a bin. Close and replace the container.

How to replace the filters?

For the container filter, remove the container then the filter. For the motor filter, remove the container then the filter. For the exhaust filter, open the air outlet grille. Replace all filters every 50 hours of use.

Can I use the vacuum cleaner to vacuum liquids?

No, the appliance is designed only for dry vacuuming. Never vacuum water or other liquids.

How to use the parking position?

To store the vacuum cleaner, hook the nozzle's hook onto the hook underneath the appliance to hold it in the horizontal parking position (Fig.3 of the manual).

What to do if suction decreases?

Check the condition of the filters and clean or replace them if necessary. Make sure the container is not full (red indicator). Also check that hoses and accessories are not blocked.

How to clean the vacuum cleaner?

Unplug the appliance and allow it to cool. Clean with a damp cloth soaked in a few drops of detergent. Do not use solvents or abrasive products. Do not immerse in water.

Where to buy spare accessories?

Contact authorised distributors and establishments. Always use original accessories specifically designed for your model.

What is the annual energy consumption?

The indicative annual consumption is 27.3 kWh/year, calculated based on 50 cleaning sessions.

How to rewind the cord after use?

Press the cord rewind button (F) and guide the cord towards the appliance. The system automatically rewinds it.

What types of floors can I clean with the nozzle?

The nozzle is suitable for hard floors (tile, parquet) and carpets. Use the retractable brush: outward for hard floors, inward for carpets. A special parquet nozzle is also provided.

USER MANUAL Apollo Cyclonic AS3244 SOLAC

Black and white photo of a SOLAC vacuum cleaner with coiled hose and control panel (no visible text or symbols)

ASPIRADOR

INSTRUCCIONES DE USO

VACUUM CLEANER

INSTRUCTIONS FOR USE

ASPIRATEUR

MODE D'EMPLOI

STAUBSAUGER

GEBRAUCHSANLEITUNG

ASPIRADOR

INSTRUÇÕES DE USO

ASPIRAPOLVERE

ISTRUZIONI PER L'USO

STOFZUIGER

GEBRUIKSAANWIJZING

VYSAVAČ

NÁVOD K POUZITÍ

ODKURZACZ

INSTRUKCJA OBSŁUGI

VYSÁVAČ

NÁVOD NA POUŽITIE

PORSZÍVÓ

HASZNÁLATI UTASÍTÁS

ПРАХОСМУКАЧКА

Line drawing of a hand holding a vacuum cleaner with a textured sleeve (no text or symbols)

Line drawing of a hand holding a vacuum cleaner (no text or symbols present)

Line drawing of a vacuum cleaner with labeled parts (no text or symbols beyond branding)

Fig. 4Fig. 3

Line drawing of hands installing or adjusting a mechanical component with a lid (no text or symbols)

Fig. 6Fig. 5

HERA FITER

Fig. 8Fig. 7 HER FILTER

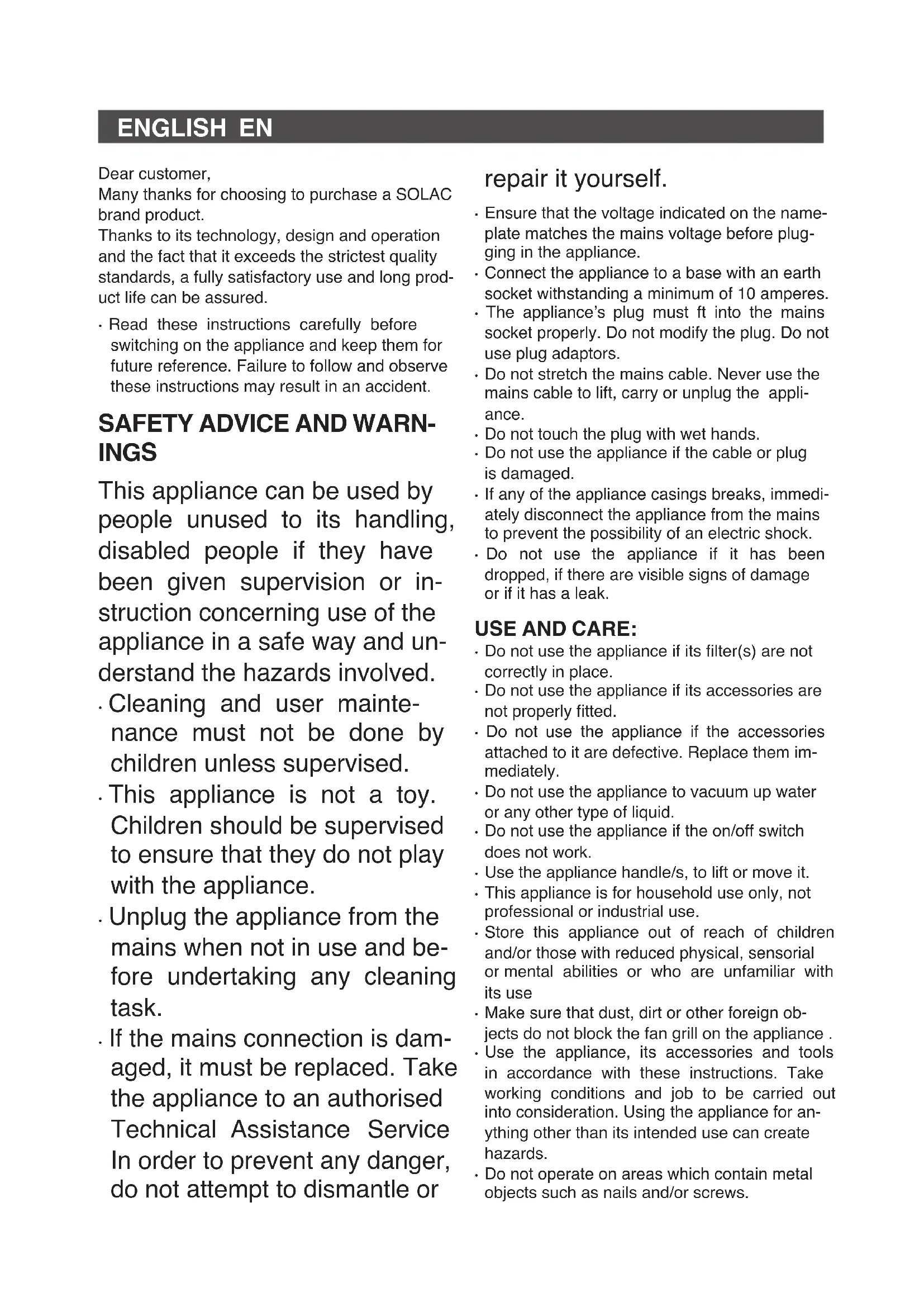

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WARNINGS

This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Cleaning and user maintenance must not be done by children unless supervised.
- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
- Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or

repair it yourself.

• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not modify the plug. Do not use plug adaptors.
• Do not stretch the mains cable. Never use the mains cable to lift, carry or unplug the appliance.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has been dropped, if there are visible signs of damage or if it has a leak.

USE AND CARE:

• Do not use the appliance if its filter(s) are not correctly in place.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance to vacuum up water or any other type of liquid.
• Do not use the appliance if the on/off switch does not work.
• Use the appliance handle/s, to lift or move it.
• This appliance is for household use only, not professional or industrial use.
• Store this appliance out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.
• Do not operate on areas which contain metal objects such as nails and/or screws.

ENGLISH EN

• Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).
• Use the appliance only for dry working tasks.

SERVICE:

- Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.

DESCRIPTION

· A Vacuum cleaner base
· B Extendible tube
· C Hose set
· D Manual air regulator
· E Hose head
- F Automatic cord rewind
· G On/off switch
· H Transportation handle
- I Deposit
· J Power regulator
· K Opening button for deposit
· L Wheels
· M Plug housing
· N Vacuum cleaner base for parquet
· O Lance + Multi-use brush
- P Grill outlet filter
· Q Outlet filter
· R Motor filter
- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging has been removed.

VACUUMING FUNCTION:

• Fit the hose unit to the vacuum cleaner's air intake.
• To take off the vacuum hose, turn the hose to the left and pull outwards. (Fig.1).

INSERTION OF ACCESSORIES INTO THE APPLIANCE'S GRIP:

- The appliance's grip is designed in such a way that it allows the insertion of the following accessories: (use the combination that best meets your requirements).

- Extendible extension tube: Designed to provide access to surfaces which are out of reach and make floor cleaning comfortable,

its length can be adjusted by using the adjustment control.

• Vacuum cleaner base: Specially designed for cleaning floors (both rugs, carpets and hard floors), its base has a retractable brush that can be adjusted to two heights for greater efficiency on these floors. It is advisable to have the brush out for hard floors and the brush in for rugs and carpets.
• Vacuum cleaner base for delicate floors: Specially designed for delicate floors, such as parquet wooden flooring.
• Lance: Specially designed for getting into cracks and difficult corners.
• Upholstery brush: Especially suitable for cleaning textile surfaces.

USE:

• Take the length of cable required out of the housing.
• Connect the appliance to the mains.
• Turn the appliance on using the on/off switch.

ELECTRONIC POWER CONTROL:

- The power of the appliance can be regulated by using the power regulator control (J). This function is very useful, as it makes it possible to adapt the power of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE AP- PLIANCE:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance to the mains.
• The cable housing allows the cable to be stored as well as to extract the length of cable necessary to operate the device, avoiding the risk of accidents.
• Retract the cable by pressing the roller cable button and guide the cable into the appliance.
• Retract the cable by giving it a gentle tug and then allowing the cable roller device to automatically spool the cable in.
• Clean the appliance

CARRY HANDLE/S:

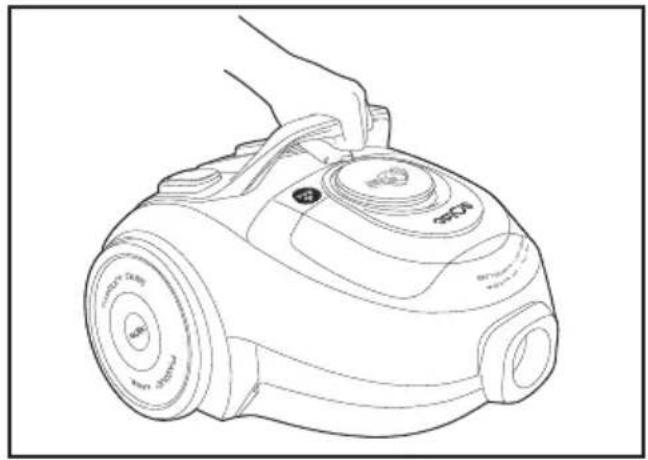

- The device has a handle on the upper part so it can be transported easily and comfortably (Fig.2).

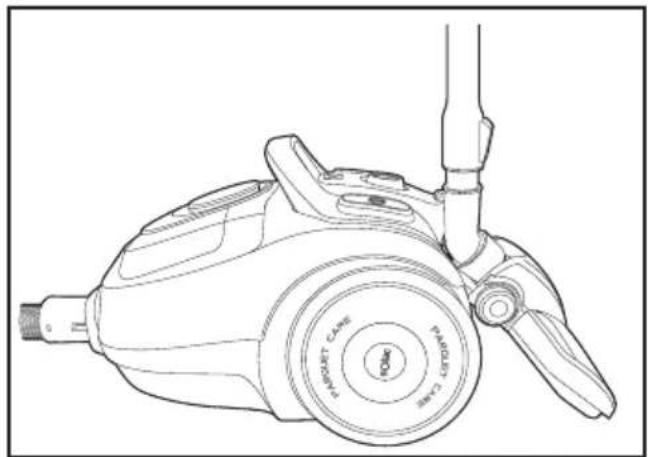

PARKING POSITION:

• This appliance has one parking position for comfortable and straightforward storage.
• To use the horizontal parking position, fix the break pad hook to the hook situated on the rear side of the appliance (Fig.3).

EN

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, to clean the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the deposit when the deposit full indicator shows completely red.

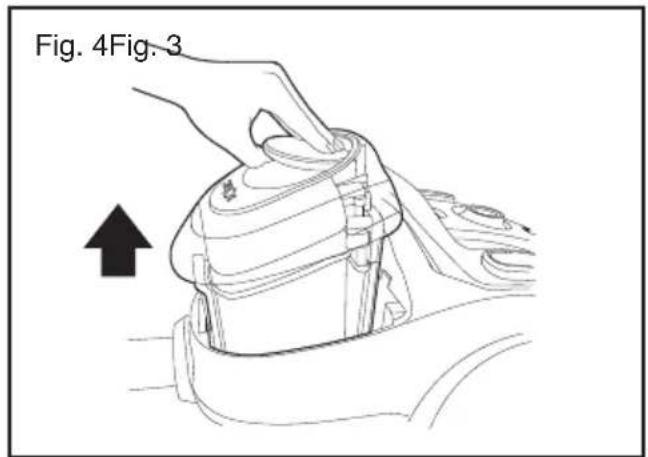

• Detach the dust box by pressing the PUSH button on the top of the vacuum cleaner and then lifting the box upward. (Fig.4).
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle.
• Check the condition of the motor filter.
• Close the lid of the dust box.
• Attach the dust box to the appliance.

CHANGING THE FILTERS:

• Dust box filter, it is advisable to periodically check the state of the filter, which should be cleaned/replaced after every 50 hours of use.
• Motor filter, it is advisable to periodically check the state of the filter, which should be cleaned/replaced after every 50 hours of use.
• HEPA type air outlet filter (high efficiency air filter which effectively removes spores, ash, dust mites, pollen ...), it is advisable to periodically check the condition of the filter, it should be cleaned/replaced after every 50 hours of use, or if a significant drop in suction power is noticed.

TO REMOVE FILTERS:

• Dust box filter:
• Detach the dust box by pressing the PUSH button on the top of the vacuum cleaner and then lifting the box upward. (Fig.4).

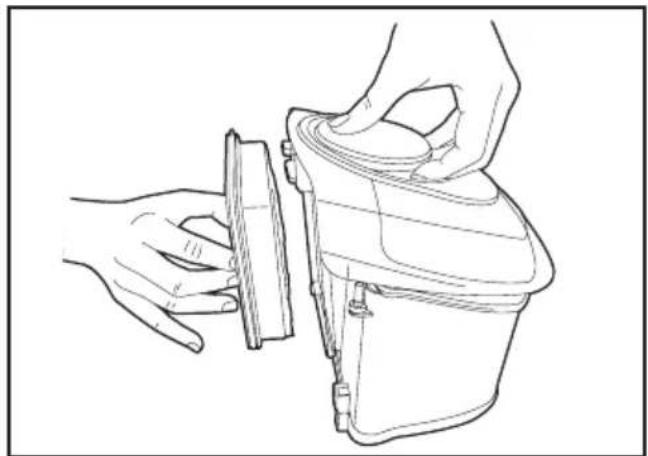

• Remove the filter from its housing (Fig.5).
• Motor filter:
• Detach the dust box by pressing the PUSH button on the top of the vacuum cleaner and then lifting the box upward. (Fig.4).

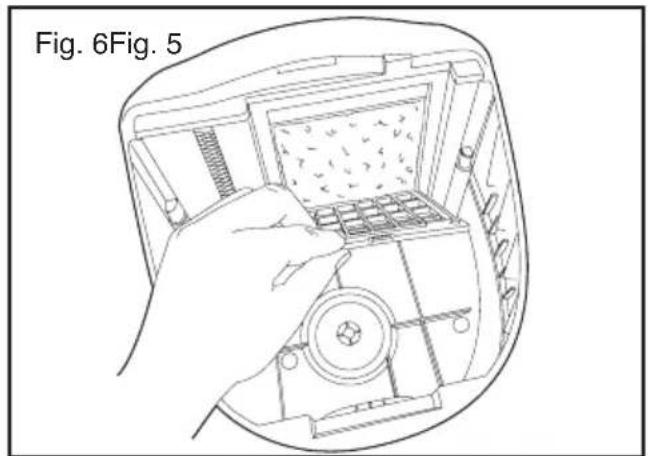

• Remove the filter from its housing (Fig.6).
• Outlet filter:

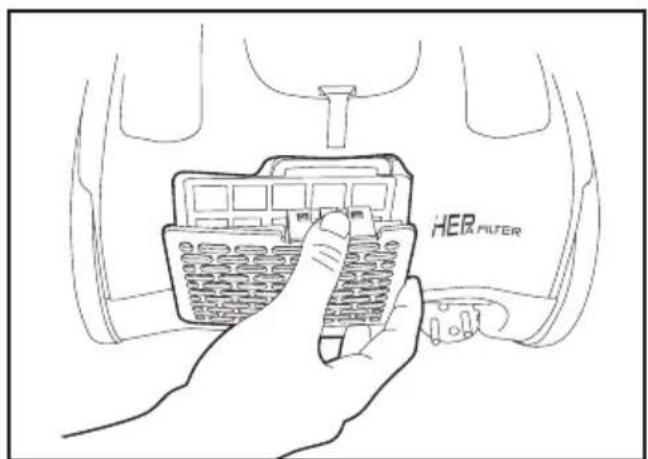

• Open the air outlet grate, To access the filter (Fig.7).

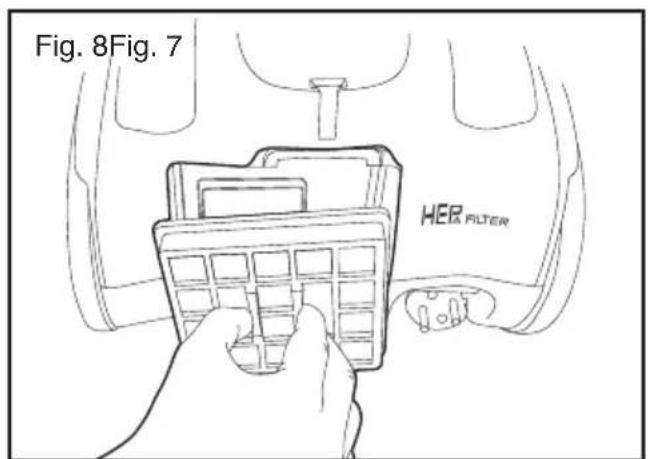

• Remove the filter from its housing (Fig.8).

- To reassemble the filter, proceed with the above instructions, in reverse order.

SUPPLIES

• Supplies can be acquired from distributors and authorized establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.
• These supplies are available in specialist shops.

FAULTS AND REPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material. - The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective col-tion of waste electrical and electronic equip-nt (WEEE)

EN

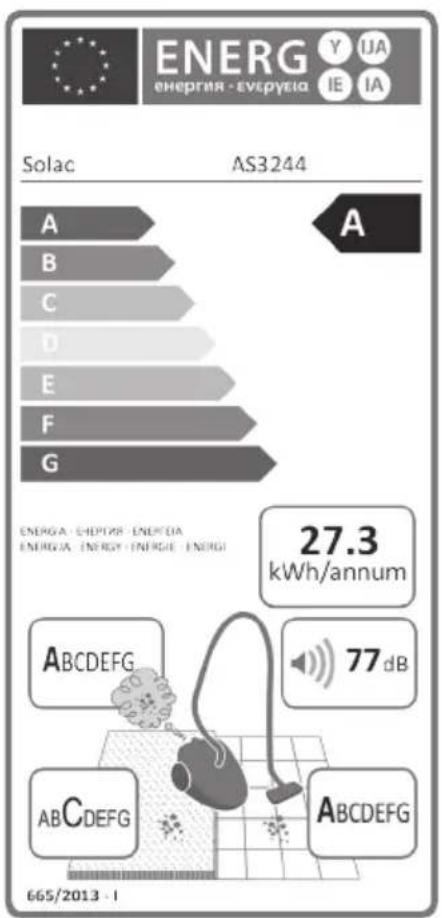

The following information concerns the energy labelling and the ecological design:

ENERG Y IJA ENERGIE - Evergia IE IA Solac AS3244 A B C D E F G ENERGIA - ECHTR - ENERGIA ENERGIA - ENERGIE - ENERGIE 27.3 kWh/annum ABCDEFG 77 dB ABCDEFG ABCDEFG 665/2013 - I

Target annual energy consumption (kWh per year) calculated based on 50 cleaning sessions The real annual energy consumption will depend on how the appliance is used.

• To determine compliance with ecological design requirements and to calculate the energy labelling parameters, the appliance is considered as a vacuum cleaner for general use and based on European Standards EN 60312-1, EN 60704-2-1 and EN 60335-2-2.
• This appliance complies with Directive 2014/35/EC on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.
