Product Type	Conference video camera
Brand	Yealink
Model	UVC84BYOD
Category	Camera
Power supply	AC adapter 48V/0.7A
Connectivity	USB, Video Out, Line Out (3.5 mm), VCH
Light indicators	LED: off (no power), solid green (active), solid red (standby), flashing yellow (firmware update), flashing red (recovery mode)
Mounting options	Flat surface (tilt <5°), top of screen (0-70mm or 46-146mm), wall (height 1.55-1.85m), ceiling, TV Mount2 bracket (optional)
Remote control included	Yes, model VCR20
Remote control batteries	2 AAA batteries
USB cable supplied	7 meters
Accessories supplied	Velcro, cable ties (x5), mounting bracket, AC adapter
Operating temperature	-10 to 50°C
Operating humidity	5% to 90% non-condensing
Storage temperature	-30 to 70°C
Cleaning	Soft, dry, anti-static cloth; unplug before cleaning
Safety	Keep clean and dry, do not expose to water, do not open, minimum distance of 10 cm for heat dissipation
Repairability	Contact an authorized service center; do not disassemble
Compliance	IC, RoHS
Warranty	Limited to the device under normal use

Frequently Asked Questions - UVC84BYOD Yealink

How to mount the UVC84 camera on a screen?

Two methods depending on screen thickness: 0-70mm: use the bracket with velcro and 1/4"-20 UNC screw in normal orientation; 46-146mm: reverse the bracket. Secure with provided screws and velcro.

How to connect the camera to a PC?

Use the supplied USB cable (7m) to connect the Video Out port of the camera to a USB port on your PC. The camera will be recognized as a video device.

What to do if the camera does not turn on?

Check the connection of the 48V/0.7A AC adapter and the wall outlet. Clean the plug with a dry cloth. Ensure the ambient temperature is between -10 and 50°C.

How to use the VCR20 remote control?

Insert the two supplied AAA batteries into the remote. Point it at the camera and use the buttons to control functions.

What are the LED indicators and their meanings?

Off: no power. Solid green: active. Solid red: standby. Flashing yellow: firmware update. Flashing red: recovery mode.

Can I mount the camera on the ceiling?

Yes, the camera can be mounted on the ceiling using the supplied bracket. Follow the mounting instructions, ensuring a recommended height of 1.55-1.85 m for a wall (adaptable for ceiling).

How to update the camera firmware?

The update is done via a specific process. When the LED flashes yellow, it indicates an update in progress. Follow the manufacturer's instructions available on the Yealink website.

What cables and accessories are included in the pack?

The UVC84BYOD pack includes: 48V/0.7A AC adapter, VCR20 remote with AAA batteries, 7m USB cable, velcro, cable ties (x5), and mounting bracket.

Is the camera compatible with video conferencing systems?

Yes, it can be connected to a video conferencing system via the VCH port for audio (e.g., with the VCM34 microphone) and the Video Out port for video.

How to clean the UVC84 camera?

Before cleaning, unplug the camera. Use a soft, dry, anti-static cloth. Do not spill any liquid and do not use abrasive products.

USER MANUAL UVC84BYOD Yealink

Line drawing of a Yealink device with a circular lens and base (no text or symbols on the device itself)

English | 简体中文 | Deutsch | Français | Español

Quick Start Guide(V1.2)

CONTENT

English....1

简体中文 6

Deutsch....11

Français....16

Español....21

Package Contents

Line drawing of a device with a circular component and a base labeled 'Yeastlink' (no other text or symbols)

UVC84

7m USB Cable

Pure electrical circuit lines without any symbols

7.5m Ethernet Cable

Power Adapter 48V/0.7A

VCR20 Remote Control

AAA Battery×2

Velcro (on the bracket)

Cable Tiex 5

Mounting Bracket and Accessories

UVC84 Quick Start Guide

1. The USB cable is 7m in the UVC84 package, and 2.5m in the MVC room system package.
2. We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in poor performance.

UVC84 Installation

- Put on a Flat Surface

You can put the UVC84 on the conference table, and make sure that the angle of inclination of the UVC84 is not more than 5 degrees to ensure proper operation.

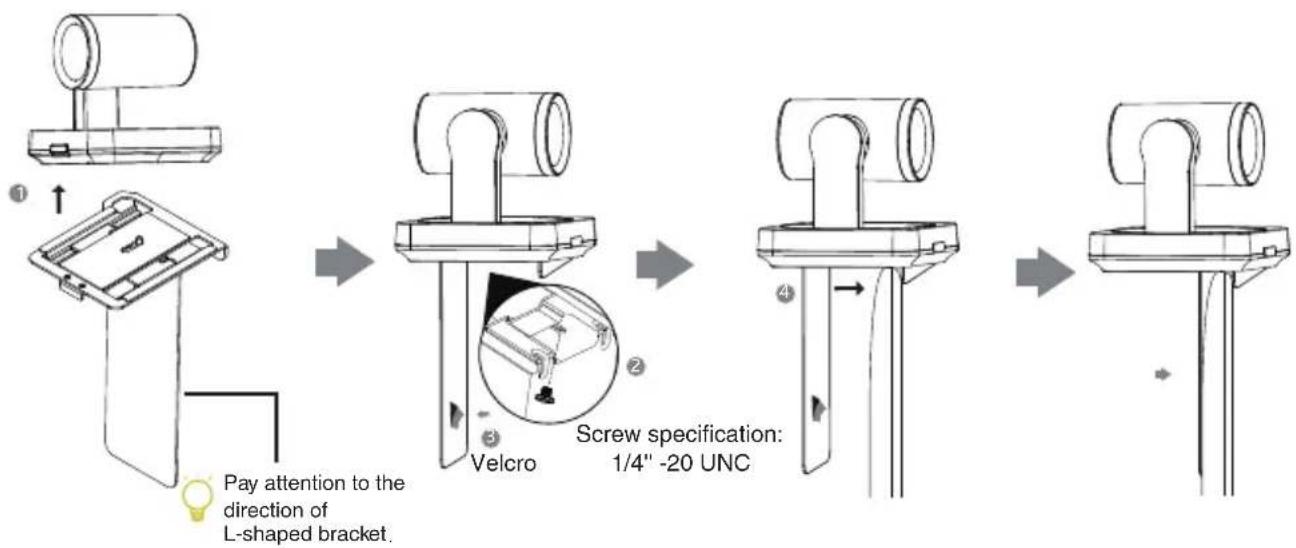

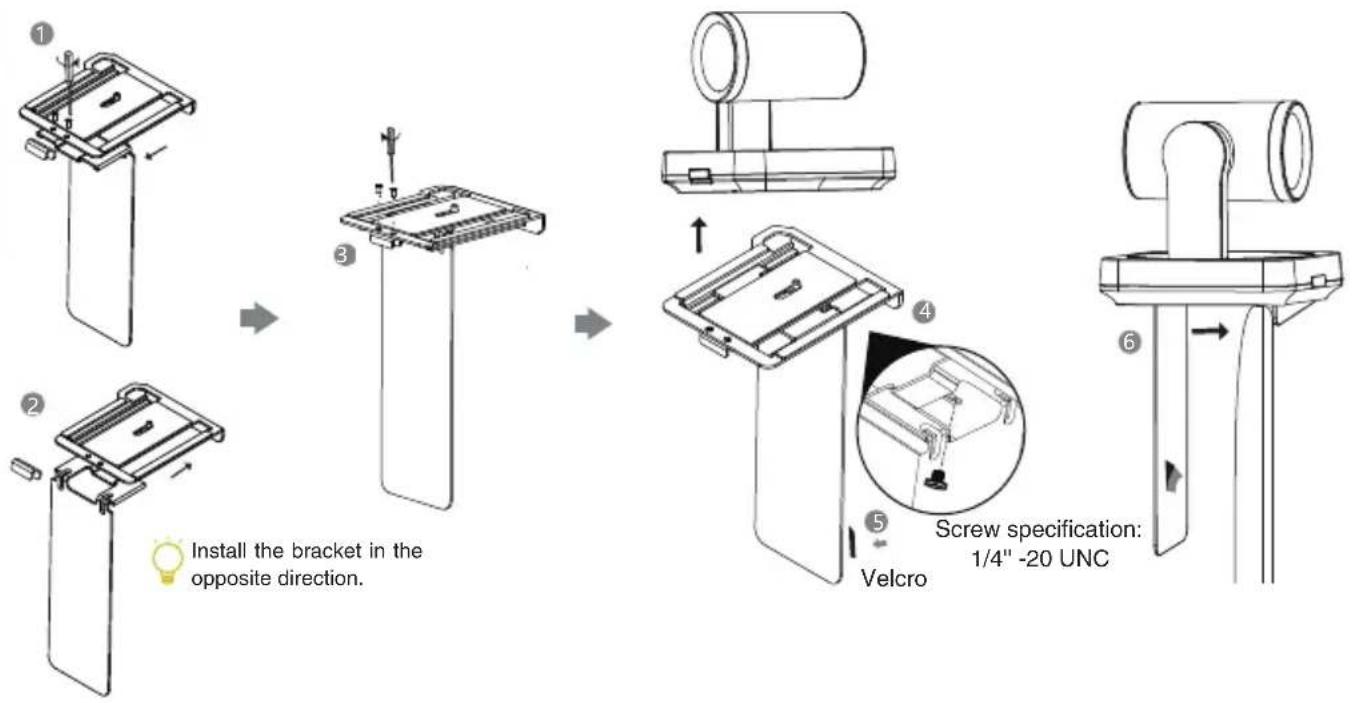

- Mount on top of a display

Choose the following installation method when the thickness of the TV is between 0 mm and 70 mm.

Choose the following installation method when the thickness of the TV is between 46 mm and 146 mm.

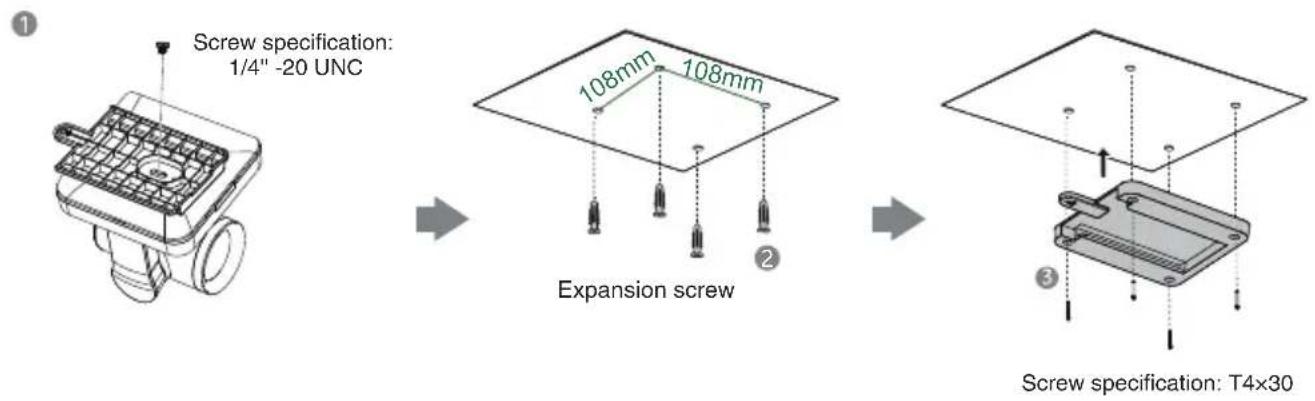

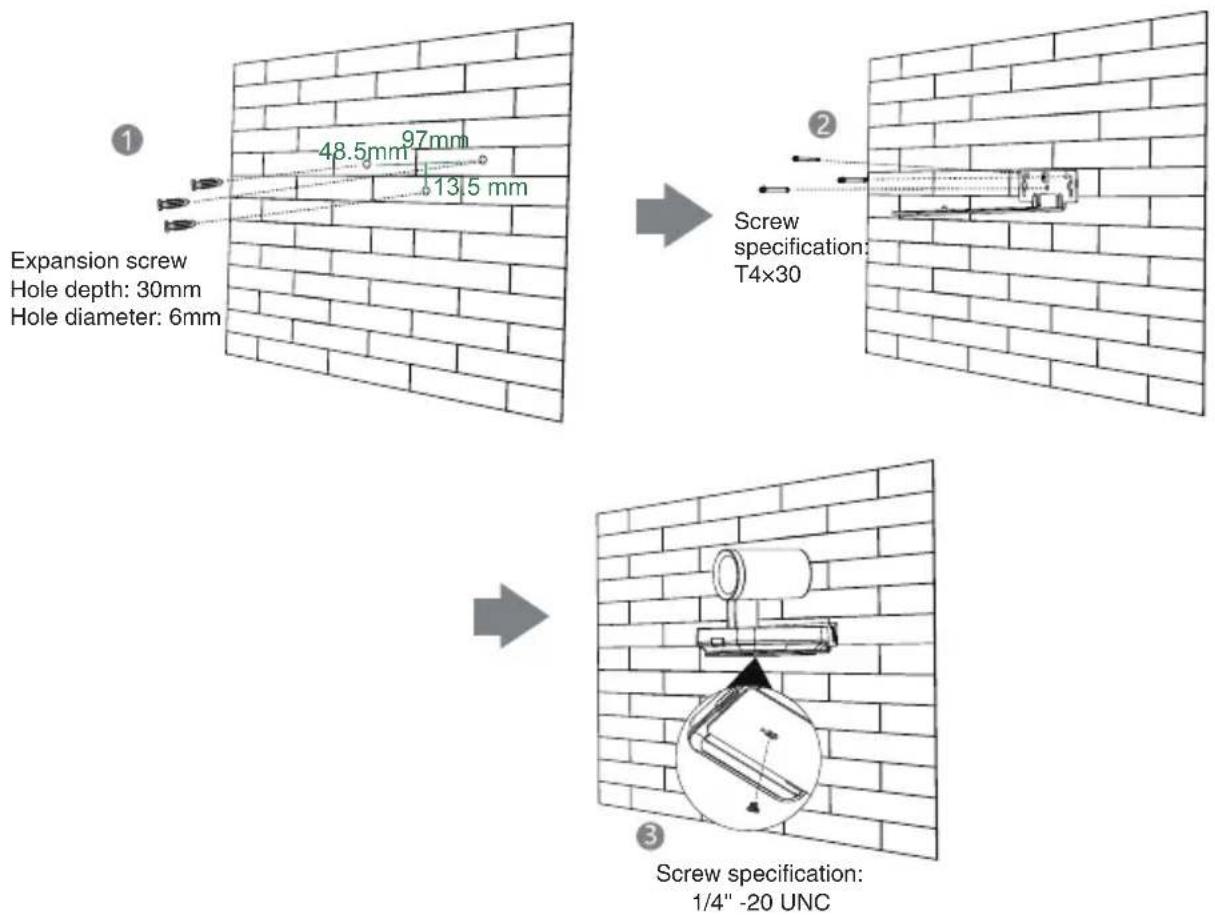

- Mount on the Wall

The recommended height is 1.55 m-1.85 m above the ground.

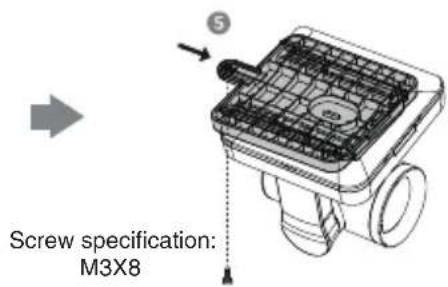

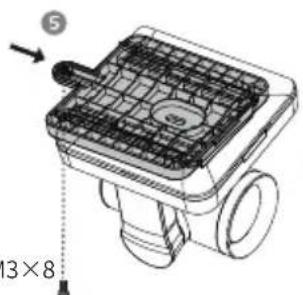

• Mount on the Ceiling


Technical diagram of a vehicle chassis with structural grid and directional arrow (no text or symbols)

Please tighten the screws with a screwdriver to prevent the camera from falling off.

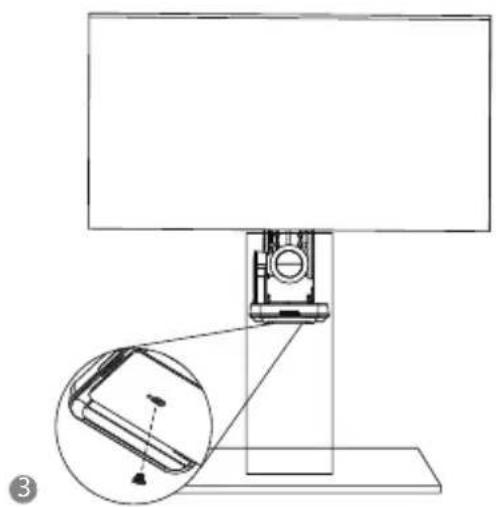

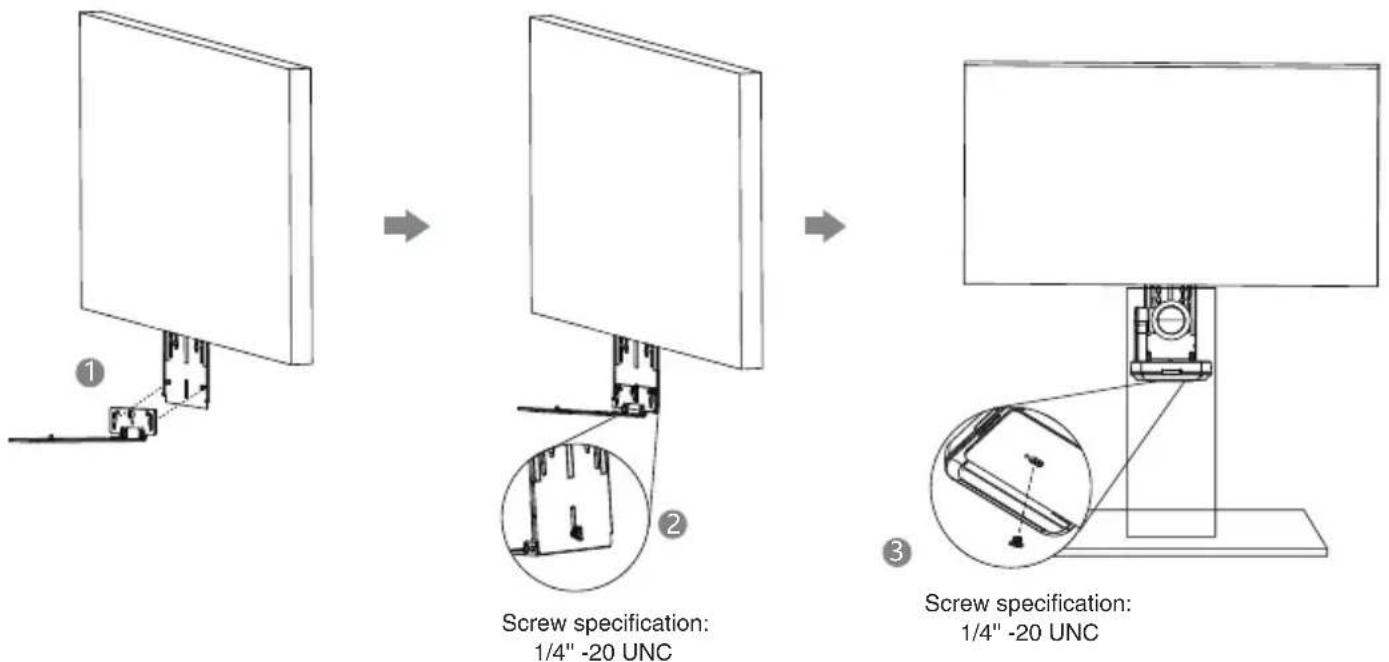

- Mount onto a TV Mount2

You need to purchase a TV Mount2 separately.

Hardware Interface Instructions

1 DC48V: connect to the power adapter.
② In MVC system, connect to audio device (for example: VCM34). In video conference system, connect to the endpoint (for example: MeetingEye 800).
3 Video Out: connect to a PC as video output.
4 USB Port: insert DD10 to connect to CPW90.
5 Line Out: connect to an audio output device using an audio cable (3.5mm).
6 Security slot: connect a universal security cable to the UVC84 so that you can lock the UVC84 down.

UVC84 Connection

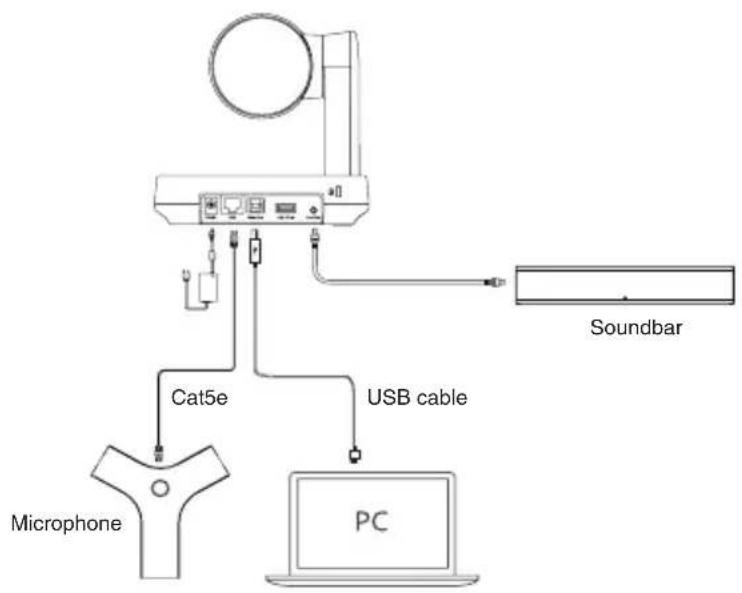

- Connect to PC:


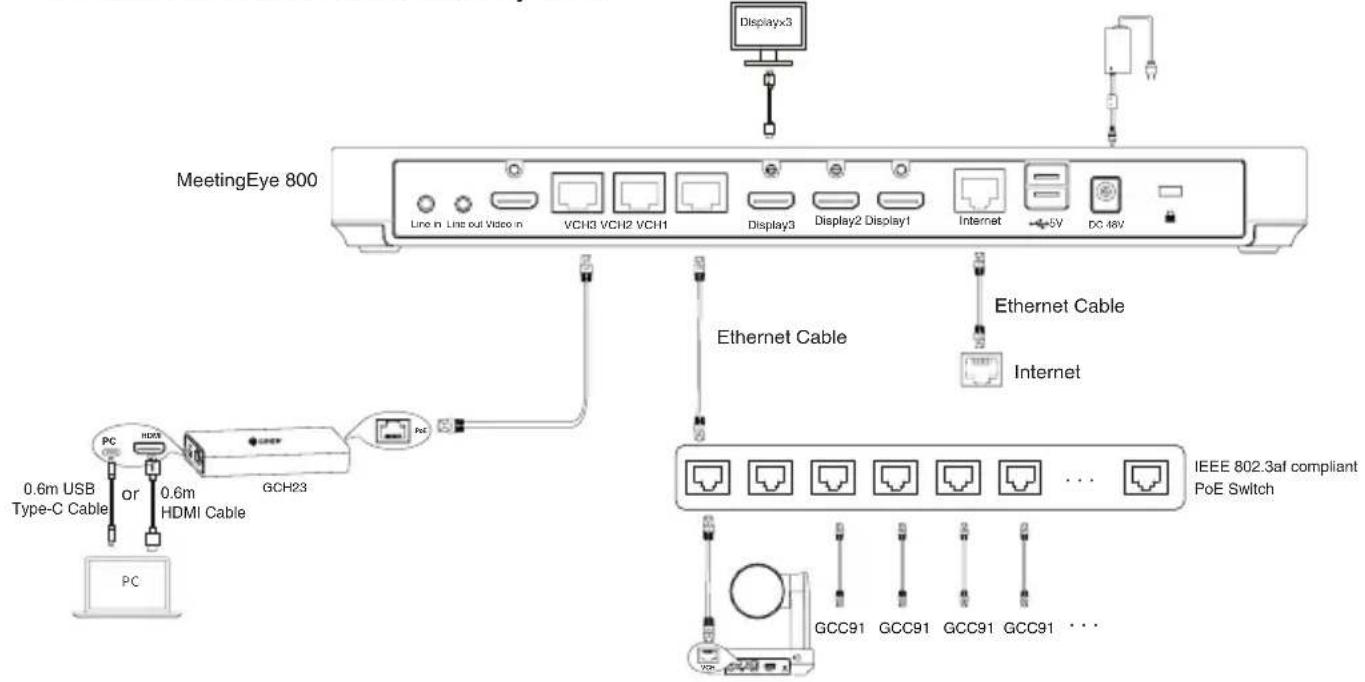

- Connect to the video conference system:

LED Indicator Instructions

LED indicators on the UVC84:

LED Status Description
Off The UVC84 is powered off.
Solid green The UVC84 is active.
Solid red The UVC84 is in sleep mode.
Flashing yellow The UVC84 is upgrading firmware.
Flashing red The UVC84 is in recovery mode.

包装清单

Line drawing of a device with a circular component and a base labeled 'Yeslink' (no other text or symbols)

UVC84

7米 USB线

Diagram of two coaxial cable connectors with metallic connectors and connecting wires (no text or symbols)

7.5米以太网线

电源适配器 (48V/0.7A)

VCR20 遥控器

7号电池×2

魔术贴 (已粘在挂架上)

束线带 × 5

支架配件

UVC84 快速入门指南

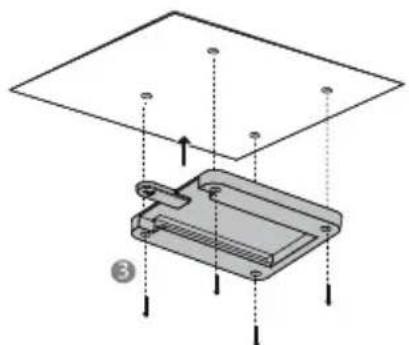

- 吊装

1

Technical diagram of a mechanical assembly with mounting holes and a housing (no text or symbols)

螺丝规格：T4×30

Technical diagram of a mechanical component with internal grid structure and directional arrow (no text or symbols)

Diagram of a computer monitor with a cable inserted, showing no text or symbols

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

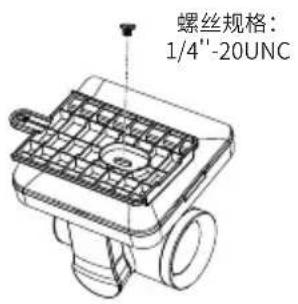

螺丝规格：
1/4"-20UNC

Technical diagram of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

螺丝规格：
1/4"-20UNC

硬件接口介绍

Line drawing of a mechanical device with a circular component and a base labeled 'Yeastlink' (no other text or symbols)

UVC84

7m USB-Kabel

Pure electrical circuit lines without any symbols

7,5m Ethernet-Kabel

Technical line drawing of a mechanical device with an open lid and internal components, showing assembly and mounting (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical joint or bracket with directional arrows indicating movement (no text or symbols)

Line drawing of a Yostink device with a circular component and base (no text or symbols)

UVC84

Câble USB 7m

Pure electrical circuit lines without any symbols

Câble Ethernet 7,5m

Line drawing of a device with a circular component and a base labeled 'Yeastlink' (no other text or symbols)

UVC84

Cable USB de 7m

Two identical electrical connectors with metal contacts and curved wires, no text or symbols visible

Cable Ethernet de 7.5m

Adaptador de corriente (48V/0,7A)

3D mechanical component diagram showing internal structure with no visible text or symbols

Technical line drawing of a mechanical component with internal grid structure and directional arrows (no text or symbols)

Tornillos: 1/4"-20 UNC
Tornillos: 1/4"-20 UNC

Declaration of Conformity

We,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China

Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China

DATE: 08 ^th /April/2021

declare that the product

Type: Video Conferencing Camera

Model:UVC84

meets the essential requirements and other relevant provisions according to the following EC directive

Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU

Conformity

The product complies with the following standards:

Safety: IEC 62368-1:2018, EN IEC 62368-1:2020+ A11:2020

EMC:: EN 55032:2015+A11:2020, EN 55035:2017

EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019

Radio:ETSI EN 301 489-1 V2.2.3,

ETSI EN 301 489-17 V3.2.4,

ETSI EN 300 328 V2.2.2;

ETSI EN 301 893 V2.1.1

EN 300 440 V2.2.1

Health : EN 50663:2017, EN 62479:2010, EN 50665:2017, EN 62311:2008

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4.July.2012 on Waste electrical and electronic equipment(WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December.2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huahu Wang

DATE:

TITLE: Manager

Huanhu Wang Jul-18-2022.

Regulatory Notices

Operating Ambient Temperatures

- Operating temperature: +32 to 104^ (0 to 40^ )

• Relative humidity: 5% to 90%, noncondensing

• Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

Explanation of the symbols

- DC symbol

is the DC voltage symbol.

• WEEE Warning symbol

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic

equipment, end users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of

WEEE as unsorted municipal waste and have to collect such WEEE separately.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use!

General Requirements

• Before you install and use the device, read the safety instructions carefully and observe the situation during operation.
• During the process of storage, transportation, and operation, please always keep the device dry and clean, avoid collision and crash.
• Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed maintenance center for repair.
• Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.

Environmental Requirements

• Place the device at a well-ventilated place. Do not expose the device under direct sunlight.
• Keep the device dry and free of dusts.
• Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Keep the device away from any heat source or bare fire, such as a candle or an electric heater.

operating Requirements

• Do not let a child operate the device without guidance.
• Do not let a child play with the device or any accessory in case of accidental swallowing.
• Please use the accessories provided or authorized by the manufacturer only.
• The power supply of the device shall meet the requirements of the input voltage of the device. Please use the provided surge protection power socket only.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.
• Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub, washbowl, kitchen sink, wet basement or near a swimming pool.
• During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike.

• If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.

• When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply, and unplug the power plug immediately.

• Contact the specified maintenance center for repair.
• Do not insert any object into equipment slots that is not part of the product or auxiliary product.
• Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you disconnect all other cables.

△ Cleaning Requirements

- Before cleaning the device, disconnect it from the power supply.

- Use a piece of soft, dry and anti-static cloth to clean the device.

- Keep the power plug clean and dry.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth

2. Connect it to another wall outlet.

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IC Statement

1. This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions:

(1) this device may not cause interference; and

(2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)

1. This device meets CS03 Part V.

No.666 Hu'an Rd,Huli District Xiamen City, Fujian, P.R. C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Sir Winston Churchilln 299 k, 2288DC Rijswijk

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

Sicherheitshinweise

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

No.666 Hu'an Rd, Huli District Xiamen City, Fujian, P.R. C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Sir Winston Churchilln 299 k, 2288DC Rijswijk

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

No.666 Hu'an Rd,Huli District Xiamen City, Fujian, P.R. C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Sir Winston Churchilln 299 k, 2288DC Rijswijk

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

No.666 Hu'an Rd, Huli District Xiamen City, Fujian, P.R. C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Sir Winston Churchilln 299 k, 2288DC Rijswijk

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

About Yealink

Yealink (Stock Code: 300628) is a global-leading provider of Unified Communication & Collaboration Solutions specialized in video conferencing, voice communications, and collaboration, dedicated to helping every person and organization embrace the power of "Easy Collaboration, High Productivity".

With best-in-class quality, innovative technology, and user-friendly experiences, Yealink is one of the best providers in more than 140 countries and regions, ranks No.1 in the global market share of IP Phone, and is the Top 5 leader in the video conferencing market (Frost & Sullivan, 2021). For more information about Yealink, click https://www.yealink.com/en

Technical Support

Visit Yealink WIKI (http://support.yealink.com/) for firmware downloads, product documents, FAQ, and more. For better service, we sincerely recommend you to use Yealink Ticketing system (https://ticket.yealink.com) to submit all your technical issues.

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD.

Web: www.yealink.com

Addr: No.666 Hu'an Rd, Huli District Xiamen City, Fujian, P.R. C

Copyright©2023 Yealink Inc. All rights reserved.
