USER MANUAL PS 63 CC OLYMPIA

Black Olympus 8 PS301C laboratory brush unit with no visible text or symbols on the body

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen

Germany

www.go-europe.com

Einleitung....6

Troubleshooting....16

Disposal....18

Technical Data....18

Security level....19

Declaration of Conformity 19

GS tested safety mark....19

More symbols 19

Manufacturer....19

Warranty 19

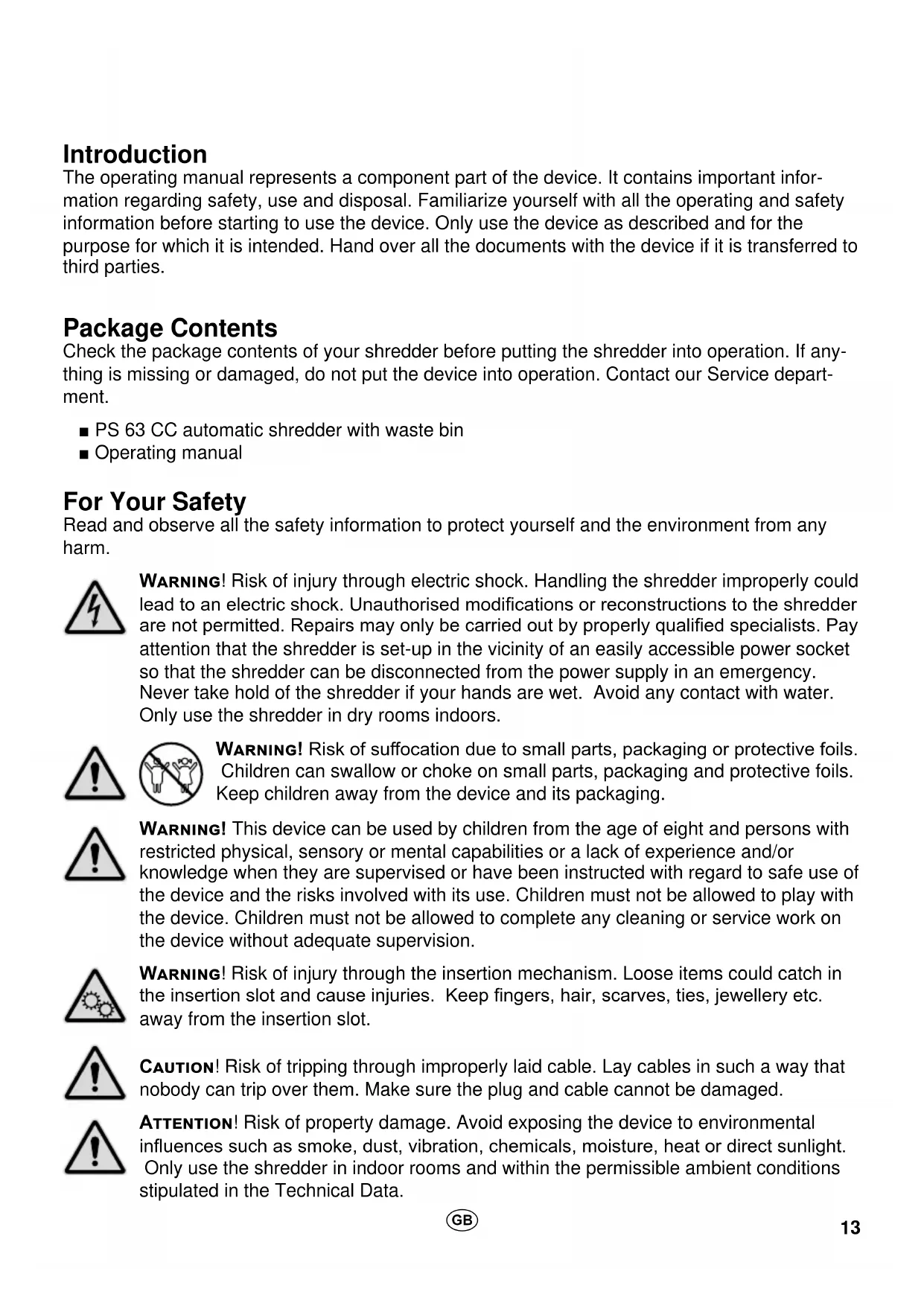

Introduction 20

Six circular icons with crossed-out symbols, including a hand holding a checkmark and a document labeled '6' (likely indicating a page number or item).

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties.

Package Contents

Check the package contents of your shredder before putting the shredder into operation. If anything is missing or damaged, do not put the device into operation. Contact our Service department.

■ PS 63 CC automatic shredder with waste bin
■ Operating manual

For Your Safety

Read and observe all the safety information to protect yourself and the environment from any harm.

WARNING! Risk of injury through electric shock. Handling the shredder improperly could lead to an electric shock. Unauthorised modifications or reconstructions to the shredder are not permitted. Repairs may only be carried out by properly qualified specialists. Pay attention that the shredder is set-up in the vicinity of an easily accessible power socket so that the shredder can be disconnected from the power supply in an emergency. Never take hold of the shredder if your hands are wet. Avoid any contact with water. Only use the shredder in dry rooms indoors.

WARNING! Risk of suffocation due to small parts, packaging or protective foils. Children can swallow or choke on small parts, packaging and protective foils. Keep children away from the device and its packaging.

WARNING! This device can be used by children from the age of eight and persons with restricted physical, sensory or mental capabilities or a lack of experience and/or knowledge when they are supervised or have been instructed with regard to safe use of the device and the risks involved with its use. Children must not be allowed to play with the device. Children must not be allowed to complete any cleaning or service work on the device without adequate supervision.

WARNING! Risk of injury through the insertion mechanism. Loose items could catch in the insertion slot and cause injuries. Keep fingers, hair, scarves, ties, jewellery etc. away from the insertion slot.

CAUTION! Risk of tripping through improperly laid cable. Lay cables in such a way that nobody can trip over them. Make sure the plug and cable cannot be damaged.

ATTENTION! Risk of property damage. Avoid exposing the device to environmental influences such as smoke, dust, vibration, chemicals, moisture, heat or direct sunlight. Only use the shredder in indoor rooms and within the permissible ambient conditions stipulated in the Technical Data.

General View

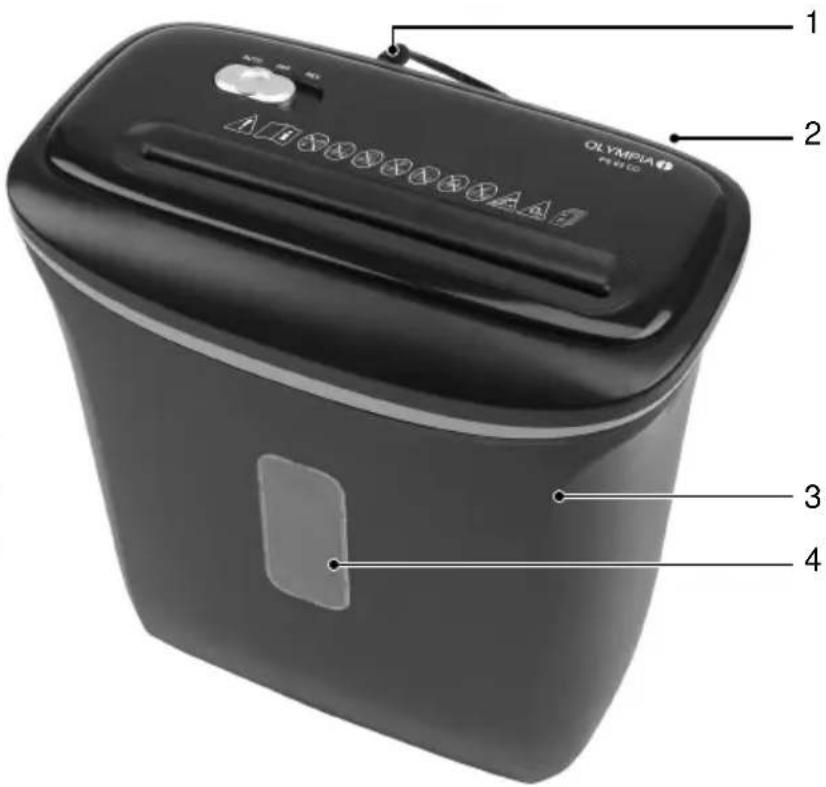

The following figure illustrates the shredder in detail.

1 Power cable (not illustrated here)

2 Shredder attachment
3 Waste bin
4 Window to waste bin

1 2 3 4 OLYMPA PIR10

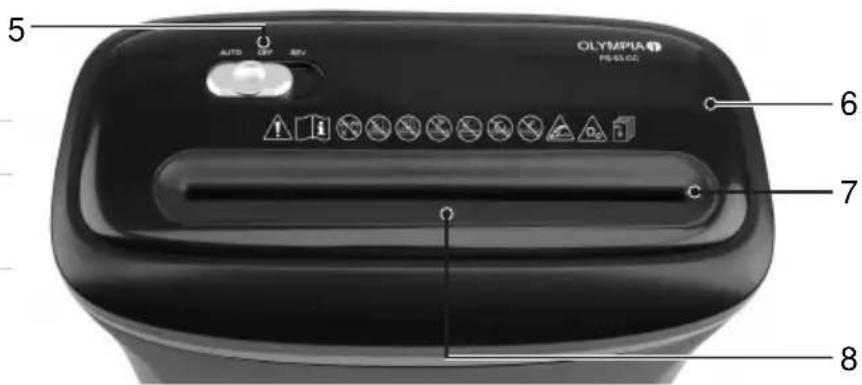

5 Operating mode switch
6 Shredder attachment
7 Insertion slot with cutting mechanism
8 Sensor

5 AUTO OFF REV OLYMPIA PH-65.00 6 7 8

Intended Use

The automatic shredder can be used to shred paper and credit cards by inserting them in the insertion slot. The material to be shredded must comply with the requirements stipulated in Technical Data.

The automatic shredder is not intended for shredding material which does not comply with the requirements stipulated in the Technical Data (cardboard, for example). Any other use is considered unintended use.

Before You Start

Read this operating manual through carefully, observing all the information contained regarding handling and using the shredder. Keep the operating manual in a safe place for future reference.

The following information should help to ensure that the shredder always functions as you expect it to.

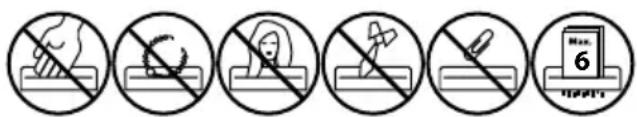

Six circular icons with crossed-out symbols, including a hand holding a cigarette and a document labeled '6'

Never reach into the insertion slot. Before starting to shred material, remove any staples, paper clips, rubber bands or other foreign bodies from the material concerned. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the device. Insert a maximum of 6 sheets into the shredder at one time.

Setting Up the Shredder Safely

The shredder only operates when the waste bin supplied is fitted.

CAUTION! Risk of injury through sharp edge of cutting mechanism. The underside of the cutting mechanism has sharp edges and corners. Do not take hold of the shredder attachment on the underside.

1 Mount the shredder attachment on the waste bin. The shredder attachment latches audibly in place.
2 Set the shredder down on a stable, level, horizontal surface and in the vicinity of an easily accessible power socket.
3 Pay attention that the switch is set to its OFF position and then connect the power adapter plug to an easily accessible power socket.

Operating the Shredder

The shredder works using an automatic shredding mechanism. The sensor for automatic insertion of material is positioned in the centre of the slot.

CAUTION! Risk of injury through sharp edge of cutting mechanism. NEVER take hold of the shredder attachment by the underside when the shredder is in operation.

1 Set the switch to its Auto position. The shredder is now ready to operate.

WARNING! Risk of injury through automatic insertion. Infeed starts automatically when material is inserted. Keep all loose pieces of clothing, jewellery, long hair or other loose items away from the shredder's insertion slot.

ATTENTION! Risk of property damage through material jam! Observe the maximum cutting capacity of the insertion slot.

2 Feed the material to be shredded in the centre of the insertion slot. The material is drawn into the insertion slot, stops about 2 - 4 seconds after shredding has been completed and no further material is fed in.
3 If you want to shred a credit card, insert the credit card in the centre of the slot with a short edge to the front.

Switching the Shredder Off

Switch the shredder off when you no longer need to use it. This prevents third parties inadvertently injuring themselves with the shredder.

1 Set the switch to its OFF position.
2 Disconnect the power plug from the power socket.

Troubleshooting

The following information should provide help if something is not working as would be expected.

Overheating Protection

The motor switches off automatically in the event of overheating or overloading.

When the cool down phase has elapsed, the shredder is ready to operate again. Pay attention to the permissible operating cycle (refer to Technical Data on page 18).

Oiling the Cutting Mechanism

If you want to increase the working life of the shredder, you should oil the shredder's cutting mechanism at regular intervals. GO Europe GmbH offers a special oil for shredders. For more information, please contact our hotline:

ATTENTION! Risk of property damage through using the wrong oil! Do not use spray oils. Only use a special oil intended for shredders.

1 Apply the special oil for shredders in several lines horizontally across a sheet of paper.
2 Set the switch to its Auto position.
3 Insert the oiled sheet of paper in the insertion slot. The paper with oil applied is inserted and oils the cutting mechanism.

Emptying the Waste Bin

Empty the waste bin regularly. This prevents shredded material jamming and causing malfunctions as a result.

1 Set the switch to its OFF position.
2 Disconnect the power plug from the power socket.
3 Remove the shredder attachment from the waste bin.
4 Empty the waste bin.

5 Mount the shredder attachment on the waste bin again. The shredder attachment latches audibly in place.

Clearing Residual Material

If the shredder no longer shreds material as you expect, remove any residual material from the cutting mechanism.

1 Set the switch to its REV position. The cutting mechanism runs in reverse and releases any material remaining in the cutting mechanism.
2 Set the switch to its OFF position.
3 Disconnect the power plug from the power socket.
4 Remove any residual material carefully from the cutting mechanism using an appropriate pointed object.

Regular Cleaning

Clean the shredder at regular intervals.

1 Disconnect the power plug from the power socket.
2 Use a slightly damp, lint-free cloth to clean the surface of the shredder housing. Do not use any solvents or cleaning agents.

Disposal

Find out about the possibilities of taking back used appliances free of charge from your dealer.

Packaging materials must be disposed of according to local regulations.

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.

The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy.

Technical Data

Subject to change without prior notice.

Cutting capacity Max. 6 sheets of A4 (80 g/m2), 1 credit card

Cutting method Particle-cut (4 x 30 mm)

Shredding speed 2.25 m/min.

Security level P4 compliant with DIN 66399

Operating cycle 2 min. on / 60 min.off

Noise level Max. 70 dB

Operating modes Automatic mode (Start-Stop function)

Reverse running

Overheating protection

Waste bin 12 liter volume, with window

Power supply 220 - 240 V, 50 / 60 Hz, 1.4 A

Power consumption 336 W

Dimensions 325 x 170 x 322 [mm]

Weight 2.9 kg

Security level

We declare that this device, with regard to its task of the destruction of documents, fulfils the conditions defined for Security Level P-4 in accordance with DIN 66399.

P-4: Recommended for data media containing particularly sensitive and confidential data.

Material particle area ≤ 160 mm ^2 and for consistent particles: strip width ≤ 6 mm (e.g. particles 4 x 40 mm).

Declaration of Conformity

The CE Mark on the device confirms conformity.

The Declaration of Conformity can be read online at www.go-europe.com.

GS tested safety mark

The «Geprüfte Sicherheit» mark (GS tested safety mark) certifies that the product satisfies the requirements defined by the German Product Safety Act (ProdSG). The GS tested safety mark indicates that when implemented for its intended use and in the event of foreseeable misuse the identified product

will not endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.

More symbols

Only use the product indoors.

The symbol indicates that the design of the product complies with Protection Class II (double insulation).

A safety connection to the electrical earthing (ground) is not necessary.

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

D-45527 Hattingen

Germany

Warranty

Dear customer,

we are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Introduction

Six circular icons with crossed-out symbols, including a hand holding a pen and a document labeled '6' (likely indicating a notice or form number)

Six circular icons with prohibition symbols and a numbered label '6' in the bottom right corner.

Six circular icons with crossed-out symbols, including a hand holding a cigarette and a document labeled '6' (no text or numbers present)

Six circular icons with prohibition symbols and a numbered label '6' in the bottom right corner.

Six circular icons with crossed-out symbols, including a hand holding a cigarette and a document labeled '6' (no text or numbers present)

Operating Manual for

Automatic Shredder PS 63 CC

2716 (black) / 2022.03
