USER MANUAL KM0650G Krüger&Matz

• SPL (Sound pressure level): 110 ± 3 dB

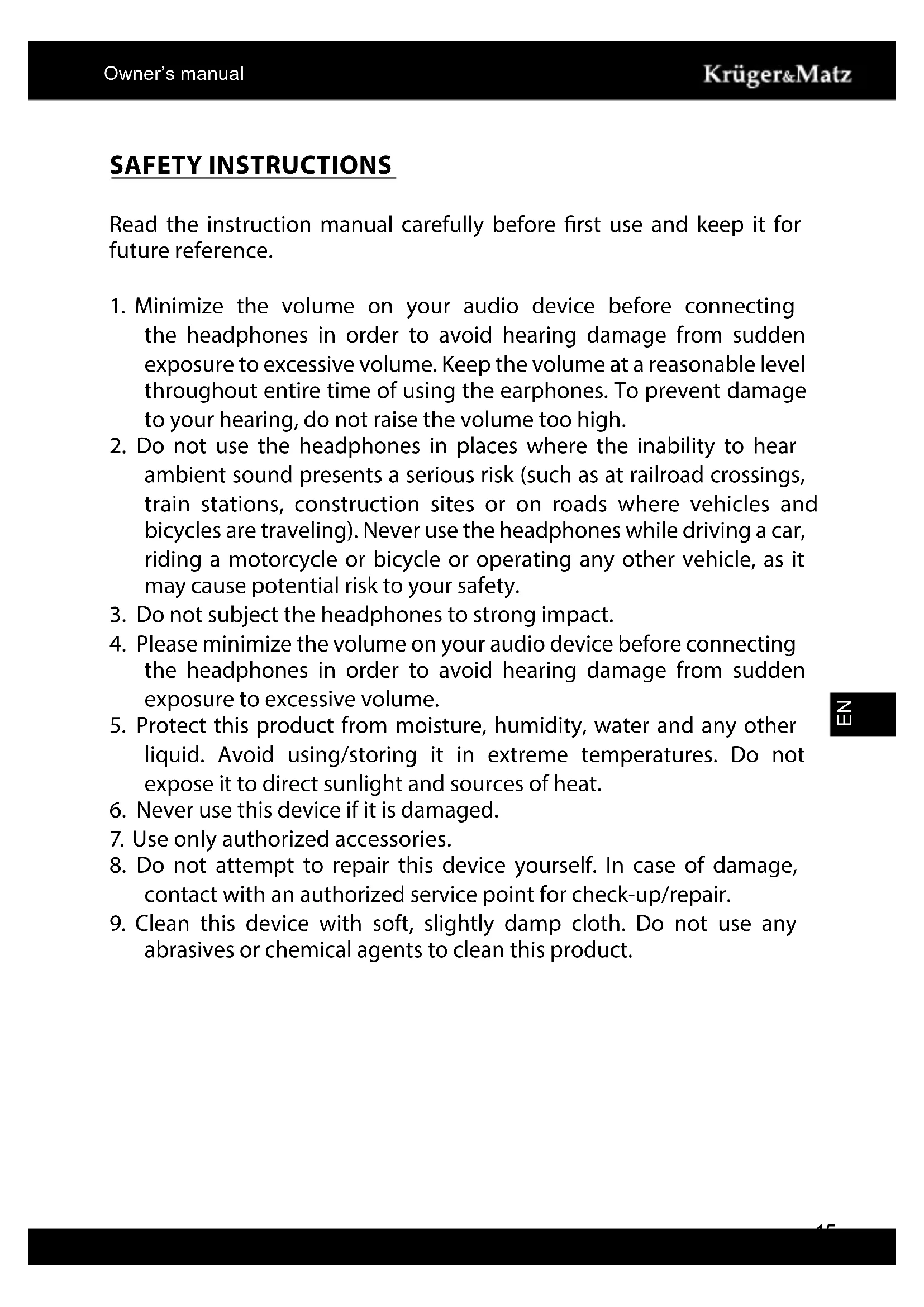

SAFETY INSTRUCTIONS Read the instruction manual carefully before rst use and keep it for future reference.

1. Minimize the volume on your audio device before connecting

the headphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.

2. Do not use the headphones in places where the inability to hear

ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.

3. Do not subject the headphones to strong impact.

4. Please minimize the volume on your audio device before connecting

the headphones in order to avoid hearing damage from sudden exposure to excessive volume.

5. Protect this product from moisture, humidity, water and any other

liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.

6. Never use this device if it is damaged.

7. Use only authorized accessories.

8. Do not attempt to repair this device yourself. In case of damage,

contact with an authorized service point for check-up/repair.

9. Clean this device with soft, slightly damp cloth. Do not use any

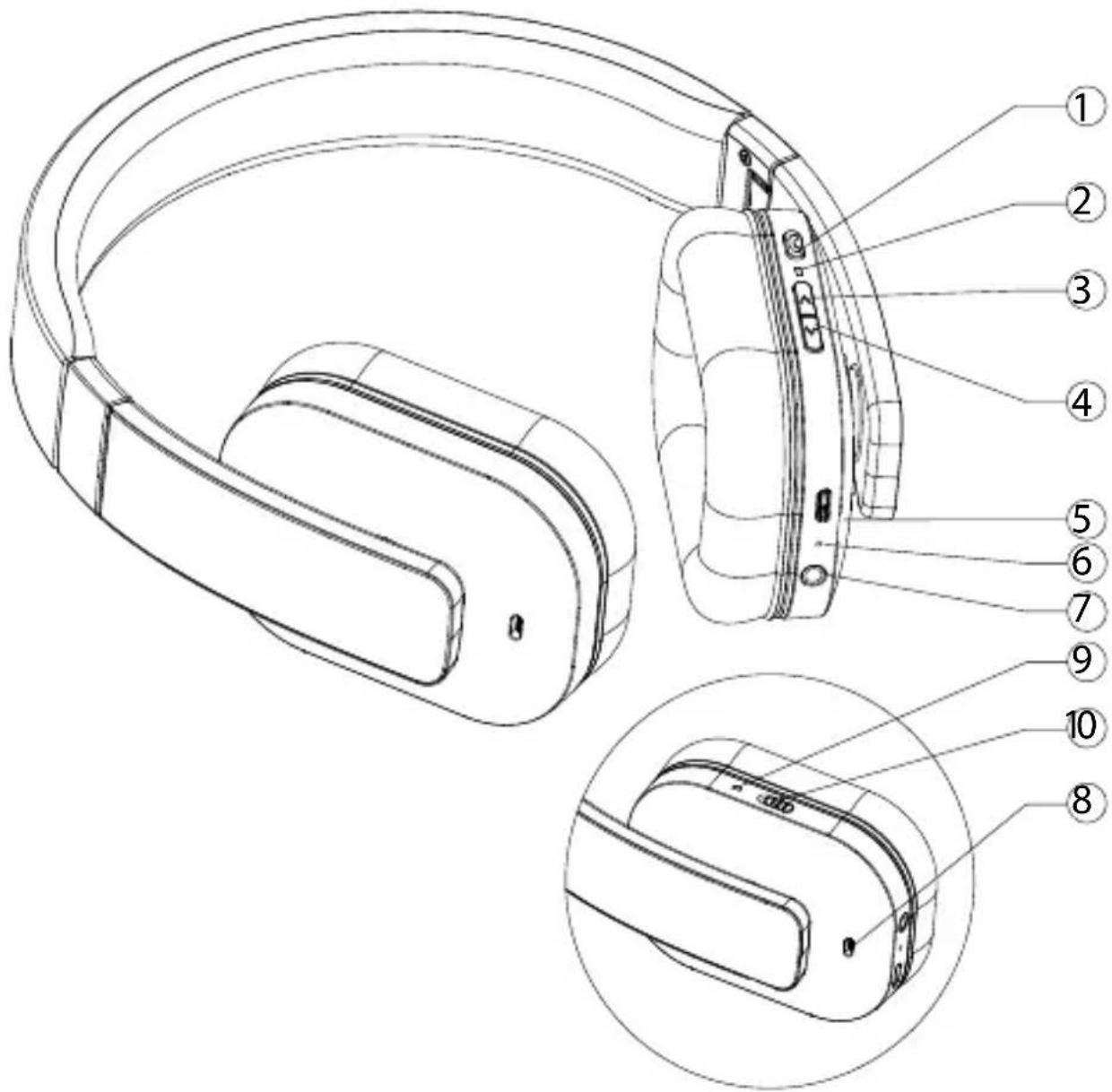

1. Multifunctional button MF (Turn on/Pairing mode/Play/Pause/Turn

3. Volume up/Next/Reject call/Switch call (headphones/phone)

4. Volume down/Previous

1. Make sure the headphones are powered o.

2. To enter into the pairing mode, press and hold the multifunctional

button for 5 seconds until red LED & blue LED ash alternately.

3. Activate your phone (or device) Bluetooth function and search

for external devices. You’ll see a list of available devices; nd and connect with the headphones.

This headphones support 2 devices multi-connection. It can pair with two mobile phones simultaneously, and take the call from any of them.

1. After completing pairing with the rst phone, turn o the headphones.

2. Then re-do the paring procedure with another phone.

3. Once the pairing is nished, restart the headphones. The headphones will

automatically connect to the phone (or device) that was connected before disconnecting.

4. Short press the and keys simultaneously, it will enable the

multipoint connect function. From the list of found devices on another mobile phone, select the headphone to connect it. Now, the headphones are connected with two devices simultaneously.

• Power on: press and hold multifunction button for 2 seconds. Blue LED ashes 2 times. Headphones turn on.

• Power o: press and hold multifunction button for 3 seconds. Red LED ashes 2 times, then the headphones turn o.

• Volume adjust: press ‚Volume up’ or ‚ Volume down’ button to change volume level.

• Play/Pause: press multifunction button to pause music playback. Press it again to resume playback.18 Owner’s manual

• Previous: press and hold for 2 seconds ‚Volume down’ button to go to previous track.

• Next: press and hold for 2 seconds ‚Volume up’ to go to next track.

• Answer call: press multifunction button to answer the incoming call.

• Transfer call: during a phone call, press and hold ‚Volume up’ button, call switches to mobile phone. Press and hold ‚Volume up’ button again, call switches back to headphones.

• Last number redial: in standby status, press headphone multifunction button twice to redial the last number. In case of multipoint connection with two phones, the redial will be performed from the phone which was connected rst.

• Battery Capacity status: when headphone is connected to iOS devices, iOS devices shows the headphone battery power status in the upper right corner. Operation LED Status Power on Blue LED ashes 2 times Power o Red LED ashes 2 times Pairing Red LED & Blue LED ashes alternately Standby Blue LED ashes 3 times every 5 seconds Incoming call Blue LED blinks Low battery Red LED ashes 2 times every 2 seconds Charging Red LED keep lighting during charging Blue LED keep lighting charging nished Active noise reduction function (ANC) When there is too much noise in surroundings, switch the ANC key to “ON“ (the ANC LED will be on). Note: phone call function cannot be used in this mode. Sound quality with apt-X® code Featuring the apt-X code, the headsets can connect wirelessly to19 Owner’s manual

any apt-X® enabled devices, vastly improves the quality of Bluetooth streaming, delivering CD-quality sound. Charging Connect the headphones to AC charger or a computer USB port. Red LED keeps lighting during charging. Once the charging is completed, the blue LED is on. Note:

• use only original accessories to charge the headphone.

• charge the headphone if it has not been used for more than 12 months.

• SPL (Sound pressure level): 110 ± 3 dB

• ANC (active noise canceling) function

• Over -15 dB noise reduction

• Wireless range: up to 10 m

• Supports connection with 2 devices

• Headphone battery power status (iOS only)

• Foldable compact design

• Playback/Talk time: up to 14 h

• Stand-by time: up to 540 h

Specications are subject to change without prior notice. “The Lechpol company declares that product KM0650 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu” English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin.21 Mode d’emploi
