Product type	Warming drawer and cabinet
Brand	Progress
Model	DPGS14M
Temperature range	30 to 80 °C
Maximum drawer capacity	15 kg
Dimensions (W x D x H)	Not specified
Weight	Not specified
Power supply	Electrical connection with mandatory earth grounding
Power	Not specified
Heating type	Electric resistance with hot air circulation by fan
Functions	Defrosting, dough rising, yogurt fermentation (30°C), warming glasses/cups (45°C), warming dishes and food (60°C), keep warm (70°C), food warming (80°C)
Front material	Stainless steel or aluminum depending on model
Interior coating	Removable non-slip coating
Control	Rotary thermostat and On/Off switch with indicator light
Installation	Built-in, combinable with certain appliances
Cleaning	Damp cloth, mild detergent, no steam cleaner, no abrasive products
Child safety	Use by children over 8 years under adult supervision, locking not mentioned
Environmental protection	Recycling, do not dispose of with household waste
Warranty	Warranty repairs by approved technicians
Electrical data	See rating plate inside

Frequently Asked Questions - DPGS14M PROGRESS

What is the maximum temperature of the Progress DPGS14M warming drawer?

The maximum temperature is 80 °C, selectable via the rotary thermostat.

Can I use the warming drawer to defrost food?

Yes, at 30 °C, the defrost function is suitable, as well as for rising dough or fermenting yogurt.

What is the maximum weight the drawer can support?

The drawer can support a maximum load of 15 kg. Do not exceed to avoid damaging the telescopic rails.

How to clean the interior non-slip coating?

The non-slip coating is removable and can be hand washed with hot water and a little dish soap. Dry thoroughly before putting it back.

Can I use a steam cleaner to clean the appliance?

No, use of a steam cleaner is prohibited because steam can reach electrical components and cause a short circuit.

What to do if the dishes do not heat enough?

Check that the appliance is plugged in and turned on, that the selected temperature is adequate, that the air vents are not obstructed, and that the heating time is sufficient (depends on load and material).

Does the appliance need to be built-in to operate?

Yes, the appliance should only be operated after proper installation, as this ensures restricted access to electrical components and safety.

How to install the warming drawer with another appliance?

It can be combined with certain compatible appliances using a fixed intermediate shelf. The combined appliance should be placed directly on the warming drawer. Refer to the provided installation instructions.

What to do if the switch indicator light does not come on?

This may indicate that the indicator light has burned out. Contact customer service for replacement.

Can children use this appliance?

Yes, children over 8 years can use it under adult supervision. Children under 3 years should not approach it without supervision. Cleaning and maintenance should not be carried out by children.

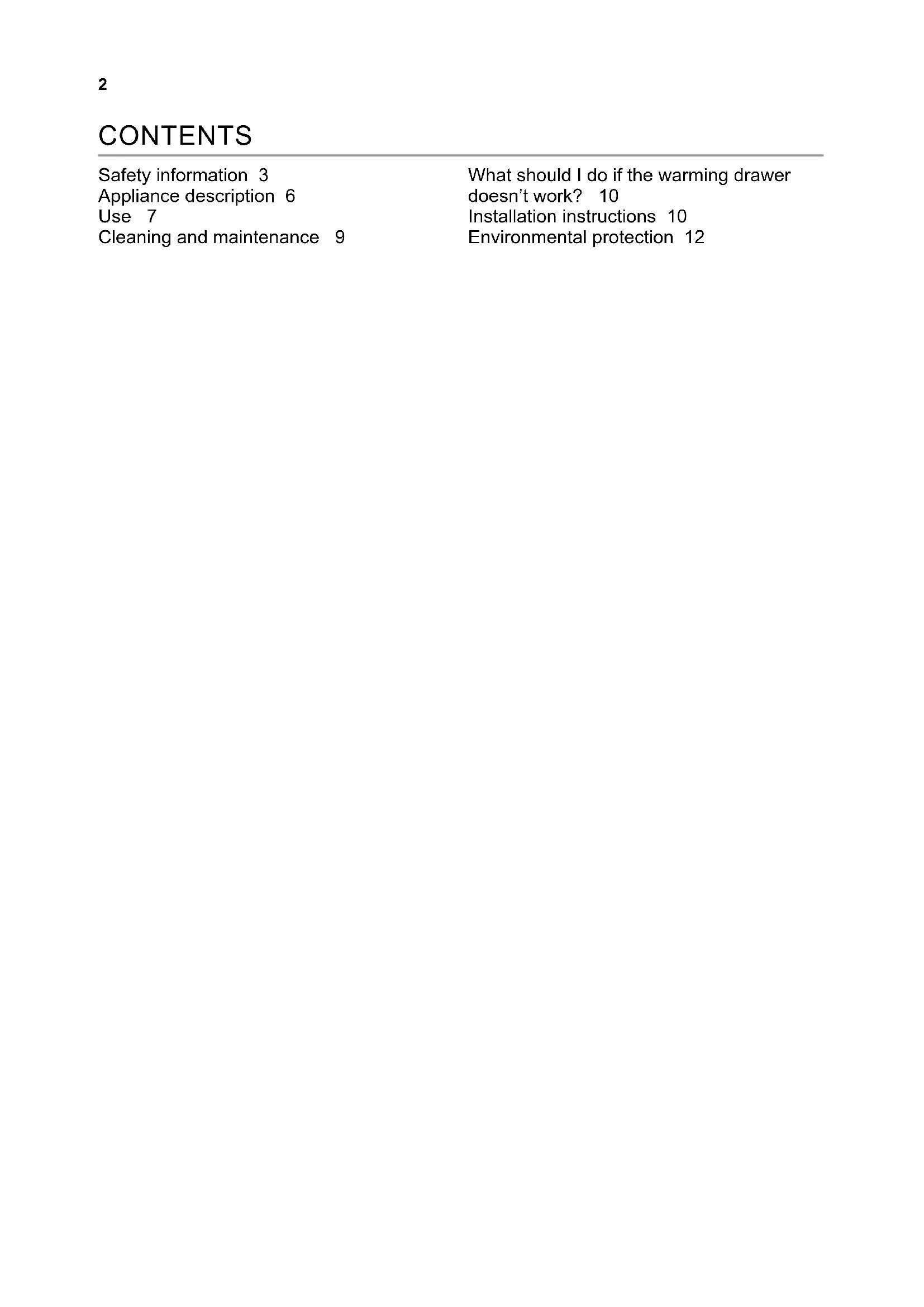

USER MANUAL DPGS14M PROGRESS

Cleaning and maintenance 9

What should I do if the warming drawer doesn't work? 10

Installation instructions 10

Environmental protection 12

SAFETY INFORMATION

Carefully read the instructions before installing and using the equipment. The manufacturer is not liable for property damage or personal injury resulting from improper installation and use of the equipment. Always keep the instructions at hand, so they can be easily referred to during use. This appliance complies with applicable safety standards. Improper use of the appliance may put users, bystanders and property at risk.

Safety of children and vulnerable adults

WARNING! Risk of suffocation, injury or permanent disability.

• This appliance may be used by children aged 8 years and over and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge as long as they are given supervision or instructions concerning how to use the appliance in a safe way and understand the hazards involved.
• Children should not play with the appliance. Keep children under the age of three away from the appliance.
• Keep packaging materials out of reach of children.
• Keep children and pets away from the appliance during operation or cooling. The accessible parts are red hot.
• Cleaning and maintenance should not be performed by unsupervised children.
• Keep the appliance and its cable out of reach of children under the age of eight.

General safety warnings

During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the device.

Always use oven gloves to insert or remove accessories or oven-proof cookware.

- Depending on temperature selected and the operating time, the temperature inside the appliance may reach 80°C. When taking crockery out of the crockery warmer, protect

your hands using oven gloves or a tea towel.

• Do not sit or hang on the drawer – the telescopic runners would be damaged. The maximum load capacity of the drawer is 15 kg.
• Do not store synthetic containers or flammable objects inside the crockery warmer. When you switch on the appliance such containers and objects may melt or catch fire. Fire hazard!
• Do not use the appliance as a space heater. The high temperatures reached could cause flammable objects close to the appliance to catch fire.
• When you stop using the appliance at the end of its working life, disconnect it from the power supply and render the electrical cable unusable so that it is not a hazard to children, for example.

Installation

• Refer to the installation instructions supplied separately.
- The installation must ensure protection against direct contact with live parts.
- The electric system must be equipped with an isolation switch providing all-pole contact separation which provides for full disconnection under overvoltage category III.
- A plug must be used for the electrical connection; this must remain accessible after installation.

WARNING! Before connecting the appliance, compare the power supply data (voltage and frequency) indicated on the data plate with those of the mains supply. If these data do not match there may be problems. In case of doubt, contact an electrician.

WARNING! If the appliance is to be connected without using a plug (hard-wired), the appliance must be installed and connected by a technician. Contact a qualified electrician who will perform the

work in accordance with electrical code and comply with all provisions of this manual. The manufacturer cannot be held responsible for damage resulting from installation or connection errors.

WARNING! The electrical safety of the appliance can only be guaranteed if it is properly earthed. The manufacturer cannot be held responsible for damage resulting from the absence of or defects in the installation's protective earthing system (e.g. electrical shock).

WARNING! Only use the appliance once it has been fully installed. Only full and final installation within the kitchen unit carcase can ensure that there is no risk of contact with live parts.

WARNING! Never open the appliance's structure. Potential contact with live parts or any modifications to the electrical and mechanical structure can lead to hazardous situations for users and compromise correct operation of the appliance.

Cleaning

• Do not use harsh abrasive cleaners or metal scrapers/scourers to clean the device since they can scratch the surface.
• Do not use steam cleaners to clean the appliance.
• Do not use high pressure or steam jet cleaning devices. The steam may affect electrical components and cause a short circuit. The steam pressure may also cause damage to the appliance's surface and components in the long time.

Repairs

- If the appliance's power supply cable is damaged, it must be replaced by the manufacturer, by an authorised technician or by a qualified electrician in order to negate any potential hazards.

WARNING! The appliance must be isolated from the electricity supply when installation and repair work is being performed. To disconnect the appliance from the current, one of the following conditions must be met:

• The relevant fuses / circuit breakers at the switchboard must be disconnected.
• The plug should be removed from the socket. To remove the plug from the socket do not pull on the electric cable but rather pull out the plug itself directly.

WARNING! Repairs and maintenance, especially of live components, must only be performed by technicians authorised by the manufacturer. The manufacturer and retailer do not accept responsibility for any injury to people or animals or damage to personal property as a result of repairs and maintenance carried out by non-authorised personnel.

WARNING! Repairs undertaken during the warranty period must only be performed by technicians authorised by the manufacturer. If this is not the case then any damage resulting from the repair in question shall be excluded from the guarantee

Main components

1 2 3 4

1 On/Off switch and light
2 Thermostat
3 Non-slip base
4 Front panel with push-push mechanism or handle

How the warming drawer works

This appliance is equipped with a warm air circulation system. A fan distributes the heat generated by an electrical heating element throughout the interior of the appliance.

The thermostat allows the user to set and control the temperature for the crockery.

The circulating hot air that is generated heats up the crockery quickly and evenly. A protective grille prevents accidental contact with the heating element and fan. The base of the drawer is covered with non-slip material to stop dishes from moving when the drawer is opened or closed.

Before First Use

Before using the appliance for the first time you should clean the interior and the exterior, following the cleaning instructions given in the section “Cleaning and maintenance”.

Remove the non-slip base.

Then heat the warming drawer for at least 2 hours. To do this, turn the temperature control to the maximum position (see section "Selecting temperature").

Make sure the kitchen is well-ventilated when you are doing this.

The appliance's parts are treated with a special product. This may cause an unpleasant odour to be released during this initial heating. Both the odour and any fumes that may form will disappear after a short time and neither signifies that there is anything wrong with the connection or the appliance.

Control panel

① 0

The control panel has a selector and an on/off switch. The control panel is only visible when the drawer is open.

Using the warming drawer

• To use the warming drawer, proceed as follows:
• Place the crockery in the drawer.
• Do not arrange plates vertically in front of the ventilation slots.
• The warm air would not be able to fully escape from the slots. This would lead to uneven heating of crockery.
• Select the desired function by turning the thermostat knob to the corresponding position.
• Switch on the appliance by pressing the switch; the corresponding light will come on.
• Close the drawer.
• Be careful not to use too much force when closing the drawer since it may open up again. Before taking out the warm crockery you must switch off the warming drawer by pressing the switch again.

Function Selection

The thermostat knob allows you to select temperatures between 30 and 80°C.

Do not force the thermostat knob to the left beyond the "0" position, or to the right beyond the maximum temperature, as this could damage it.

As soon as the selected temperature is reached, the heating element will turn off. When the temperature drops back below the selected value, the heating element will turn on again.

The temperature scale is marked with absolute temperatures in ^ C and also has symbols which correspond to the optimum temperatures for groups of crockery:

Symbol °C (*) Function Warnings
	30°C	Defrosting.Dough proving.Yoghurt fermentation.	-Cover the dough.Cover the tub.
[G2XX]	45°C Warming cups and glasses. -
	60°C	Warming dinner plates.Reheating delicate foodstuffs.	-Preheat the dish.
	70°C Keeping foodstuffs warm.		Preheat the dish and cover the food.
[XT08]	80°C Reheating foodstuffs. Preheat the dish.

* The temperatures refer to the drawer when empty and closed.

Heating time

Various factors affect heating times:

• The material and thickness of the crockery
• Load size
  • How the crockery is arranged
  • Temperature setting
  • Repeated opening and closing of the drawer
• It is therefore not possible to give precise heating times.
• As you use the warming drawer regularly, you will learn the best settings for your crockery.

Suggestions for the “keep warm” and “reheat” function:

Preheat the warming drawer for 15 minutes to ensure it is at the required internal temperature.

Cleaning is the only maintenance activity that is generally required.

WARNING! The warming drawer must be disconnected from the power supply before cleaning. Unplug the device from the socket or isolate its power supply circuit. Do not use harsh or abrasive cleaning products, scouring pads/sponges or sharp objects, since this could cause stains or scratches.

Never use high pressure or steam jet cleaning appliances.

Appliance front and control panel

The warming drawer can be cleaned using just a damp cloth. If it is very dirty, add few drops of washing-up liquid to the water.

Wipe the surfaces dry using a dry cloth.

For stainless-steel fronted warming drawers, special products for stainless-steel surfaces can be used.

These products prevent the build-up of dirt on such surfaces. Apply a thin layer of this product on the surface using a soft cloth.

On aluminium fronted warming drawers, use a delicate glass cleaning product and a soft, lint-free cloth. Wipe horizontally without applying.

Interior of the warming drawer

Clean the interior of the warming drawer regularly using a damp cloth. If it is very dirty, add few drops of washing-up liquid to the water

Wipe the surfaces dry using a dry cloth.

Avoid water entering the air circulation opening.

Only use the warming drawer again when it is completely dry.

Non-slip base

The non-slip surface mat can be removed to facilitate cleaning of the drawer.

The mat can be cleaned by hand using hot water with a few drops of washing-up liquid. Dry thoroughly.

The non-slip mat should only be replaced when it is completely dry.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

WHAT SHOULD I DO IF THE WARMING DRAWER DOESN'T WORK?

WARNING! Any repairs must only be performed by a specialised technician. Any repair performed by a person not authorised by the manufacturer is potentially dangerous.

However, the following faults can be resolved by the user without calling Technical Assistance.

Before contacting Technical Assistance, check on the following:

The crockery does not warm up sufficiently. Check whether:

• The appliance is on
  – The appropriate temperature has been selected
  – The air circulation orifices are blocked by the crockery
  – The crockery was left to warm up for sufficient time

• Heating time depends on several factors, such as, for example:

– The material and thickness of the crockery
- Load size
– How the crockery is arranged

- The crockery does not heat up at all. Check whether:

• You can hear the noise of the fan If the fan is running, this means that the heating element is defective. If the fan is not running, this means that it is faulty
  – The fuse has blown or the circuit breaker has tripped

• The crockery is too hot:

- The temperature selector is not working

- The on/off switch does not light up:

– The switch indicator light has blown

INSTALLATION INSTRUCTIONS

Before installation

Check that the supply voltage indicated on the data plate is the same as that provided by the power socket you plan to use.

Open the drawer, take out all the accessories and remove the packaging material

WARNING! The front surface of the warming drawer may be covered in a protective film.

Carefully remove this film before using the warming drawer for the first time.

Ensure that the warming drawer is not damaged in any way. Check that the drawer opens and closes correctly. If damage is encountered, inform Technical Assistance.

WARNING! The power socket should be easily accessible after the warming drawer has been installed.

The warming drawer should only be installed in combination with the appliances specified by the manufacturer. If it is fitted in combination with other appliances, the guarantee will be void since it is impossible to guarantee that the warming drawer will work correctly.

Installation

WARNING! Refer to the installation instructions supplied separately.

Installing the warming drawer in combination with another appliance requires be a fixed intermediate shelf in the carcase to support the weight of both appliances.

The appliance to be installed in combination with the warming drawer will be installed directly on top of it.

Follow the instructions given in the corresponding instruction and installation booklet for installation of the combined appliance.

Electrical connection

Electrical installation must be performed by a qualified electrician.

Before connecting the warming drawer to the mains electricity supply, check that the voltage and frequency of the mains supply matches that shown on the data plate inside the appliance.

The electrical connection should be made via an omnipolar switch rated for the current capacity with minimum 3 mm contact separation, in order to provide isolation in emergencies or when cleaning the warming drawer.

The connection must be suitably earthed.

WARNING! The warming drawer must be earthed.

If the appliance flex requires replacement, contact Technical Assistance or an authorised service centre, as specialised tools are required.

The manufacturer and retailer do not accept responsibility for any injury to people or animals or damage to personal property as a result of failure to follow the supplied installation instructions.

Recycle materials with the following pol.

Place the packaging in the corresponding containers for recycling.

Help protect the environment and human health and to recycle waste from electrical and electronic appliances.

Do not dispose of appliances marked the following symbol with general sehold waste. Take the product to your recycling facility or contact your local oncil

INHALTSVERZEICHNIS

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

QUE FAIRE EN CAS DE MAUVAIS FONCTIONNEMENT ?

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

COSA FARE SE IL CASSETTO RISCALDANTE NON FUNZIONA?

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

HVAD G∅R JEG, HVIS SERVICEVARMEREN IKKE FUNGERER?

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

HVA GJ∅R JEG HVIS VARMESKUFFEN IKKE VIRKER?
