USER MANUAL BC 17 Kärcher

Technical line drawing of a mechanical component with mounting holes and internal slots (no text or symbols)

Deutsch 3

English 6

Français 9

Italiano 12

Nederlands 15

Español 18

Português 21

Dansk 25

Norsk 28

Svenska 31

Suomi 34

Ελληνικά 37

Türkçe 41

Русский 44

Magyar 48

Čeština 51

Slovenščina 54

Polski 57

Românește 60

Slovenčina 63

Hrvatski 66

Srpski 69

Български 72

Eesti 76

Latviešu 79

Lietuviškai 82

Українська 85

Register and win! www.kaercher.com/register-and-win

59672250 05/17

1 EU: 6.654-354.0 GB: 6.654-355.0 1 AU: 6.654-356.0 2 3 4

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Environmental protection

The packaging material can be recycled. Please do not place the pack-into the ordinary refuse for disposal, range for the proper recycling.

Old appliances contain valuable materials that can be recycled; these should be sent for recycling. Batter-

ies and accumulators contain substances that must not enter the environment.

Please dispose off old devices, batteries and rechargeable batteries through suitable waste collection systems.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Danger or hazard levels

⚠️DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Proper use

The charger is suitable for charging the following battery packs with nominal voltage of 18 V to 36 V:

Battery pack BP		250/18	BP 500/18	BP 750/36
Voltage V	18 18	36
Battery type	-- Li-Ion Li-Ion		Li-Ion
Nominal capacity	Ah 2,5 6,2 7,5
Charging time, approx.	m	i	n	4 0
Order number	-- 6.6	54-364.0	6.654-387.0	4.654-016.0

△CAUTION

Risk of injury, risk of damage on account of exploding battery! Only charge the indicated battery types with this charger.

Only use batteries that are free of damage.

- This appliance is suitable for commercial use.

- Modifications and changes that are not authorised by the manufacturer are prohibited for safety reasons.

Any other use is prohibited. The user is liable for any hazards arising from improper use.

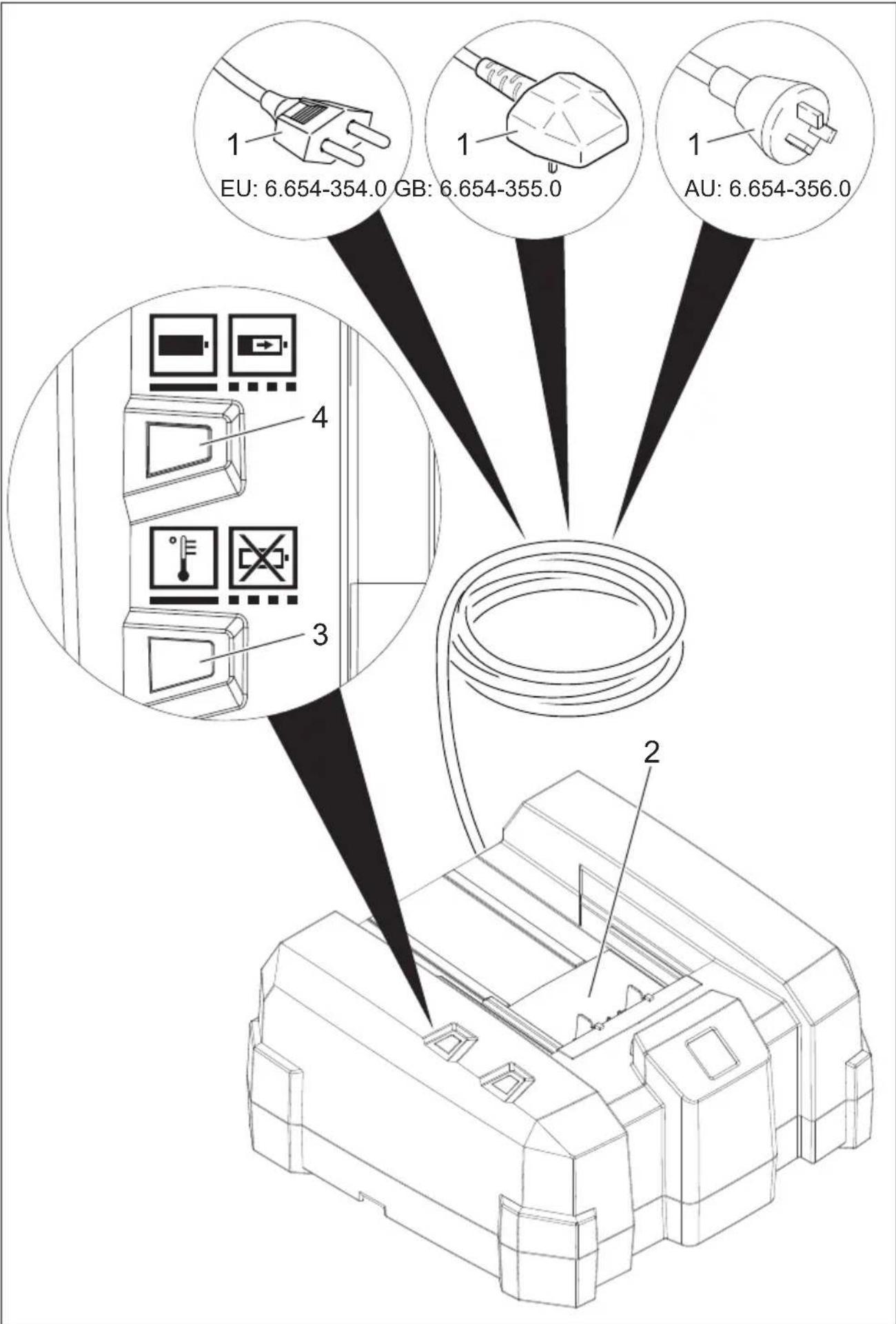

Device elements

1 M a i n s p l u g

2 Battery holder

3 LED red, function

• glows: Temperature too high/ low
• blinks: Contact problems; battery pack defective

4 LED green, battery is charging

• glows: Battery pack full
• blinks: Battery pack is being charged

Both LEDS are blinking: Battery pack is defective

Symbols on the machine

Protect the charger against moisture and store it dry. The device is only suitable for use in rooms; do not expose the device to rain.

Safety instructions

⚠️DANGER

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to prevent them from playing with the appliance.
• Check charger, mains cable and battery pack for damages before every use. Do not use damaged devices and get the damaged parts repaired only by experts. Check extension wires regularly and replace them if damaged.
• Do not use the charger if dirty or wet.
• The mains voltage must match the voltage mentioned on the type plate of the charger.
• Do not operate the charger in explosive environment.
• Do not carry the charger by holding the mains cable.
• Protect the mains cable against heat, sharp edges, oil and moving parts of the machine.
• Avoid using extension wires with multiple sockets and simultaneous operation of multiple devices.
• Do not pull the plug from the socket by pulling the mains cable.

• Do not cover the charger and keep the air vents of the charger open.

• No metal parts should come in contact with battery holders; risk of short circuit.

• Do not open the charger. Get repairs done only by authorised experts.
• Use the charger only to charge approved battery packs; refer "Use as intended".
• Move only clean and dry battery packs on to the battery holder of the charger.
• Do not charge battery (primary cells); risk of explosion.
• Do not charge damaged battery packs. Replace damaged battery packs.
• Do not store battery packs along with metal objects; risk of short circuit.
• Do not dispose off battery packs by throwing them into fire or through household waste.
• Avoid contact with fluids oozing out of defective battery packs. Rinse with water in case of accidental contact with fluid. Consult a doctor if fluid comes into contact with eyes.

Operation

Note: The performance of the battery pack reduces when temperature falls below -10 °C.

Note: Storage for a long time at temperatures above 40 °C can reduce the capacity of a battery pack.

→ Insert the mains plug into the socket.
- The device conducts a self-test. Both the LEDs glow for 1 second. The device then goes into the stand-by mode: both LEDs get switched off.
→ Slide the batter pack on the battery holder of the charger.
- The battery pack will be charged automatically; the green LED blinks.
- If the battery pack is too hot or too cold, the red LED glows. The charging process starts when the battery pack has reached the correct charging temperature (5 °C...45 °C).
- When the battery pack is fully charged, the green LED glows. The charger automatically switches to retention charging.

→ Remove the battery pack and insert it in the device.

Note: The charged battery pack can remain on the charger till it is to be used. There is no risk of over-charging.

Note: In order to avoid unnecessary energy consumption, however, the charger should be unplugged as soon as the battery pack is fully charged.

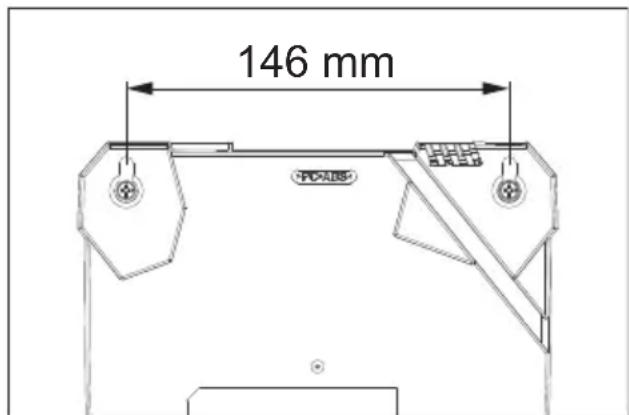

Wall mount

146 mm PDAIS

→ Remove the two rubber feet with a screwdriver.
→ Check the wall for load-bearing capacity prior to installation. Weight of the device including the battery pack, see "Technical data".

- The mains plug must always remain freely accessible.

Troubleshooting

- Red LED glows:

The battery pack is too hot or too cold. The charging process starts when the battery pack has reached the correct charging temperature.

- Red LED blinks:

Battery pack has not been placed correctly on the battery holder.

Battery pack is defective.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase.

Technical specifications

BC 1/7
Voltage range of rechargeable battery	V 14,4...36
Charging current A 6,5
Battery type -- Li-Ion
Mains voltage V 220...240
Frequency Hz 50-60
Max. input W 290
Typical operating weight	kg 1,1
Dimensions (l x b x h) mm	183 x 176 x 92

Battery pack		BP 250/18	BP 500/18	BP 750/36
Typical operating weight	kg	0,5	0,8	1,8

www.kaercher.com/REACH

Niveaux de danger

⚠️DANGER

146 mm PCDASS

www.kaercher.com/REACH

Livelli di pericolo

⚠PERICOLO

www.kaercher.com/REACH

Gevarenniveaus

⚠ GEVAAR

www.kaercher.com/REACH

Niveles de peligro

⚠️ PELIGRO

www.kaercher.com/REACH

Níveis de perigo

⚠PERIGO

www.kaercher.com/REACH

Faregrader

⚠️FARE

www.kaercher.com/REACH

Risikotrinn

⚠️FARE

Anvisning om en umiddelbar truende fare som kan føre til store personskader eller til død.

ADVARSEL

www.kaercher.com/REACH

Risknivåer

⚠️FARA

www.kaercher.com/REACH

Vaarallisuusasteet

⚠ VAARA

www.kaercher.com/REACH

Διαβάθμιση κινδύνων

⚠️KINDYNOΣ

www.kaercher.com/REACH

Tehlike kademeleri

TEHLIKE

www.kaercher.com/REACH

Степень опасности

⚠️ ОПАСНОСТЬ

www.kaercher.com/REACH

Veszély fokozatok

⚠ VESZÉLY

www.kaercher.com/REACH

Stupně nebezpečí

⚠ NEBEZPEČÍ

www.kaercher.com/REACH

Stopnje nevarnosti

⚠️ NEVARNOST

www.kaercher.com/REACH

Stopnie zagrożenia

⚠ NIEBEZPIECZEŃSTWO

www.kaercher.com/REACH

Trepte de pericol

⚠PERICOL

www.kaercher.com/REACH

Stupne nebezpečenstva

⚠ NEBEZPEČENSTVO

146 mm PDAIIS

www.kaercher.com/REACH

Stupnjevi opasnosti

⚠ OPASNOST

www.kaercher.com/REACH

Stepeni opasnosti

⚠ OPASNOST

Napomena koja ukazuje na neposredno preteću opasnost koja dovodi do teških telesnih povreda ili smrti.

⚠UPOZORENJE

Napomena koja ukazuje na eventualno opasnu situaciju koja može dovesti do teških telesnih povreda ili smrti.

△OPREZ

Napomena koja ukazuje na eventualno opasnu situaciju, koja može izazvati lakše telesne povrede.

PAŽNJA

Napomena koja ukazuje na eventualno opasnu situaciju koja može izazvati materijalne štete.

Namensko korišćenje

Punjač služi za punjenje sledećih akumulatorskih pakovanja sa nominalnim naponom od 18 V do 36 V:

Komplet baterija		BP 250/18	BP 500/18	BP 750/36
Napon V 18	18 36
Tip baterija	-- Li-Ion Li-Ion		Li-Ion
Nominalni kapacitet	Ah 2,5	6,2 7,5
Trajanje punjenja oko	m	i	n 4	0
Kataloški broj	-- 6.6	54-364.0	6.654-387.0	4.654-016.0

△OPREZ

Opasnost od povreda, opasnost od oštećenja u slučaju da baterija eksplodira!

Ovim punjačem punite samo navedene tipove baterija.

Punite samo neoštećene baterije.

www.kaercher.com/REACH

Степени на опасност

⚠️ ОПАСНОСТ

www.kaercher.com/REACH

Ohuastmed

⚠️OHT

www.kaercher.com/REACH

Riska pakāpes

⚠️BĪSTAMI

– Deg sarkanā diode:

- Mirgo sarkanā diode:

www.kaercher.com/REACH

Rizikos lygiai

⚠PAVOJUS

www.kaercher.com/REACH

Ступінь небезпеки

⚠️НЕБЕЗПЕКА
