Product Type	Portable compact refrigerator with compressor
Brand	Unold
Model	Mobil 48986
Capacity	17 liters
Dimensions (W x D x H)	Approx. 40.0 x 38.5 x 40.5 cm (height with telescopic handle: 92 cm)
Weight	Approx. 12.2 kg
Power supply	100-240 V~ (AC) via included power adapter / 12 V DC (cigarette lighter cable) / 24 V DC
Temperature range	+20 °C to -18 °C (adjustable)
Climate class	N / SN
Energy efficiency class	A+
Energy consumption	84 kWh/year (indicative value depending on use)
Refrigerant	R600a (isobutane, 20 g)
Noise level	47 dB
Main functions	Rapid cooling (HH), ECO mode, battery protection (3 levels: H1/H2/H3), digital display, telescopic handle
Maintenance and cleaning	Clean with a damp cloth; do not immerse; regular manual defrosting recommended
Safety	Automatic shut-off in case of undervoltage (battery protection); indicator lights and error codes; use by children under 8 years without supervision prohibited
Spare parts and repairability	After-sales service via Unold; 24-month warranty (domestic use); repairs by authorized third parties recommended
Included accessories	12 V DC cable (approx. 288 cm), AC cable (approx. 170 cm), power adapter, user manual
Intended use	Domestic, camping, car travel, office kitchenette

Frequently Asked Questions - Mobil 48986 UNOLD

How to use the Mobil 48986 refrigerator in a car?

Connect the supplied 12 V DC cable to the vehicle's cigarette lighter socket and to the device's female socket. Turn on the device with the ON/OFF button. Adjust the temperature between +20 °C and -18 °C using the + and - buttons. The battery protection mode (H2 default) prevents excessive discharge of the vehicle's battery.

What operating modes are available?

The device offers a rapid cooling (HH) mode for accelerated cooling and an ECO mode to save energy. Switch between them by briefly pressing the SET button.

How to adjust the battery protection?

Press the SET button for 3 seconds to access advanced settings. Use the + or - buttons to select the protection level: H3 (high), H2 (medium), or H1 (low). H2 is recommended for vehicle use.

What to do if the screen displays an error code (F1, F2, etc.)?

First check that the device is properly connected to a suitable power source. Wait 3 minutes then restart the device. If the error persists, contact Unold customer service. The codes F1 (voltage), F2 (ventilation), F3 (compressor), F4 (compressor speed), F5 (thermal sensor), E0 (sensor), and E1 (sensor short circuit) are explained in the manual.

How to clean the interior and exterior of the refrigerator?

Turn off the device and unplug it. Use a damp cloth (no abrasive sponge or harsh detergent). Wipe the interior and exterior, then dry thoroughly. Never immerse the device in water.

How to defrost the device?

Turn off the device and unplug it. Open the lid, remove food and wait for the frost to melt. Remove water with a clean cloth. Do not use sharp objects to scrape off frost.

What is the procedure before first use?

Remove all packaging and transport protections. Let the device stand for at least 6 hours at the final use location before operating. Clean the interior with a damp cloth.

Can I build the refrigerator into furniture?

No, the device is not designed for built-in installation. Place it on a stable surface with at least 5 cm free space on the sides and 10 cm at the rear for ventilation.

What to do if the device is noisy?

Check that the device is placed on a flat surface. Normal compressor noise is acceptable. In case of strong metallic cracking or whistling, the device may have been tilted too much: let it rest for 24 hours on a flat surface then restart. If the problem persists, contact customer service.

What types of food can I store in this device?

You can store perishable foods and beverages requiring a temperature between +20 °C and -18 °C. Avoid explosive substances (aerosols with flammable gas). Do not use for sensitive medications as the temperature is not constant.

USER MANUAL Mobil 48986 UNOLD

Open storage box with open lid and scattered items inside, no visible text or symbols

KÜHL-/GEFRIERBOX Mobil

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 48986

INHALTSVERZEICHNIS

Instructions for use Model 48986

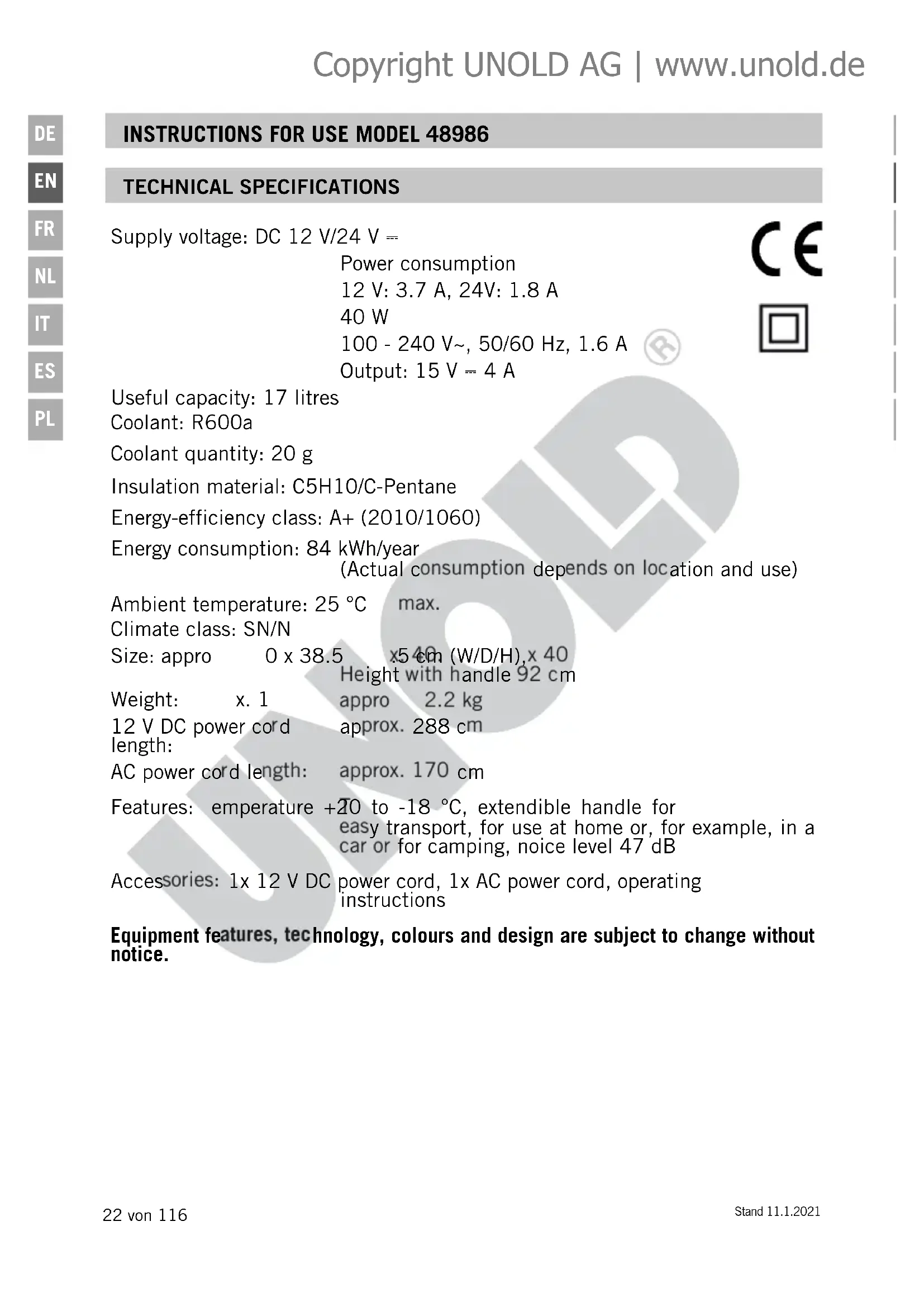

Technical Specifications....22

Explanation of symbols....23

For your safety....23

The ideal location 27

Save energy....28

Instructions for proper cooling 28

Before using the appliance for the first time....28

Telescopic handle 29

Explanation of the control panel....30

Fault codes....31

Operation....31

Cleaning and care....33

Defrosting 33

Solving problems 34

Guarantee Conditions....36

Waste Disposal/Environmental Protection ...36

Service 112

1 Lid
2 Telescopic rod
3 Socket
	12 V DC power cord (direct current, for on the road or in the vehicle)
4
	Power Supply (alternating current, 100 - 240 V~, for indoor use)
5

FR Page 37

Output: 15 ~V = 4 ~A

Exterior view of a modern kitchen appliance with a long handle and ventilation slots (no text or symbols visible)

1 + ON OFF Power SET Error 4 5 6 7

Supply voltage: DC 12 V/24 V =

Power consumption

12 V: 3.7 A, 24V: 1.8 A

40 W

100 - 240 V\~, 50/60 Hz, 1.6 A

Output: 15 V = 4 A

Useful capacity: 17 litres

Coolant: R600a

Coolant quantity: 20 g

Insulation material: C5H10/C-Pentane

Energy-efficiency class: A+ (2010/1060)

Energy consumption: 84 kWh/year

(Actual consumption depends on location and use)

Ambient temperature: 25 °C max.

Climate class: SN/N

Size: appro 0 x 38.5 x5 cm (W/D/H), x 40

Height with handle 92 cm

Weight: x. 1 appro 2.2 kg

12 V DC power cord approx. 288 cm

length:

AC power cord length: approx. 170 cm

Features: emperature +20 to -18 °C, extendible handle for easy transport, for use at home or, for example, in a car or for camping, noise level 47 dB

Accessories: 1x 12 V DC power cord, 1x AC power cord, operating instructions

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

Caution: risk of fire. This symbol indicates a possible fire hazard.

FOR YOUR SAFETY

Please read the following instructions and keep them on hand for later reference.

General safety instructions

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.
2. Children must not play with the appliance.
3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.
4. Keep the appliance and the power cord out of the reach of children under 8 years of age.
5. Never operate the appliance with accessories of other appliances.
6. The power cord must not hang down over the edge of the work surface.
7. Always lay out the power cord in such a manner that nobody can trip over it.

8. Ensure that the appliance is always carried by two persons, to avoid injury.

9. When operating the appliance, maintain an adequate distance to walls, other objects, etc. There must be a distance of at least 5 cm on both sides and a distance of at least 10 cm at the rear. All ventilation slots must remain free and must not be covered.

10. Always keep the lid of the appliance closed when you place it in service. This ensures fast cooling.

11. Never allow children or animals to climb into the appliance. The appliance is not a toy! Therefore, always keep the appliance closed.

12. Never store explosive substances in the appliance.

13. In the appliance, only store food in containers that are suitable for the selected temperature.

14. Never turn the appliance 180^ (with the lid facing down) or on its side. To avoid damage to the compressor, do not tilt the appliance more than 30^ .

15. Only use the appliance when it is standing upright on a level, stable surface.

16. Never touch metal parts of the power outlet of the vehicle's electrical system, when the power outlet is in use. The metal parts can become very hot – danger of burn injuries!

17. The appliance is intended for household use only, or for similar areas of use, such as,

■ kitchenettes in businesses, offices or other workplaces,
■ in agricultural enterprises,
■ for use by guests in hotels, motels or other lodgings,
■ in private guest houses or holiday homes.

Electrical safety

1. Ensure that you use the appropriate power cord for the selected energy supply.

2. Check the charge status of the vehicle battery when using the appliance in vehicles whose engine is switched off.

3. This appliance must not be operated with an external timer or a remote control system.

4. After use, before cleaning, or if there are faults during operation, always unplug the plug.
5. Never immerse the appliance in water or other liquids, protect the power cord from moisture.
6. Never fill liquids directly into the appliance.
7. Carefully and completely unwind the power cord before use.
8. To avoid electrical damage avoid kinks in the power cord.
9. Ensure that the permissible voltage is not exceeded.
10. Never pull on the power cord, when you want to disconnect it from the electrical outlet. Always unplug the power cord pulling directly on the plug.
11. Never carry the appliance by the power cord. Use the handles to lift or transport the appliance.
12. For safety reasons, never place the power cord on, or operate the appliance on or near hot surfaces.
13. Never use the appliance on an unearthed electrical outlet, with a defective power cord or with other electrical defects.
14. Always ensure that the appliance is stable before placing it in service.
15. Do not touch the appliance with wet hands or when standing on a wet/damp surface – danger of electric shock!
16. Only operate and store the appliance in dry areas – keep it away from moisture, rain, snow or other weather conditions.
17. If there is sudden smoke development on the appliance, pull the plug out of the electrical outlet immediately. Contact our customer service organization.
18. Check the power plug and the power cord regularly for wear or damage. If the power cord or other parts are damaged, send the appliance to our customer service organisation for inspection

and repair. Unauthorised repairs can result in hazards for the user and void the guarantee.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

When unpacking and removing the packaging, ensure that the appliance is not tilted by more than 30^ , otherwise the compressor can be damaged.

After unpacking or transportation, please leave the appliance at its final location for at least 6 hours before placing it in service. The coolant in the appliance must first be lowered, otherwise the compressor can be damaged.

Do not, under any circumstances, open the housing of the appliance. There is danger of electric shock.

Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Warning: Do not damage the refrigerant circuit. Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

The refrigerant (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. If the refrigerant circuit should be damaged:

■ Avoid opening flames and sources of ignition.

■ Thoroughly ventilate the room in which the appliance is situated.

THE IDEAL LOCATION

1. The appliance is operated with a maintenance-free compressor and therefore requires sufficient space.
2. When operating the device, maintain an adequate distance to walls, other objects, etc. There must be a distance of at least 5 cm on both sides and a distance of at least 10 cm at the rear.
3. Wait at least 10 minutes after transporting the appliance before placing it in service (6 hours after the first transport).
4. Only place the appliance in service, when it is standing on a stable surface and the respective electrical socket is easily accessible.
5. The appliance can be used in vehicles or in camping areas. Nevertheless, it must be protected from moisture, wetness and weather effects.
6. The appliance is not a built-in appliance and must not be installed in cabinets or other fixtures.
7. If the appliance must be carried, always carry it by both handles, keeping it as horizontal as possible, so that the compressor is not damaged. Due to its weight, we recommend that two persons always carry the appliance to avoid any injuries or appliance damage. Otherwise please use the telescopic handle. Otherwise, please use the telescopic handle to pull the device.

SAVE ENERGY

1. Comply with all instructions specified for the ideal location.
2. Switch on ECO mode if the appliance is not completely filled.
3. Open the appliance only when necessary and then close it as soon as possible.
4. Do not set the temperature lower than required.
5. Allow warm foods to cool before placing them in the appliance.
6. Only fill the appliance with pre-cooled drinks and food .

INSTRUCTIONS FOR PROPER COOLING

1. Bear in mind that liquids expand when they freeze. Glass containers can burst – risk of injury!
2. Ensure that you only put food items in the appliance that require approximately the same degree of cooling.
3. Check whether the cooling capacity is sufficient for the items to be cooled.
4. Due to the cooling in dependence of the ambient temperature the appliance is not recommended for cooling of sensible products, e. g. medicine.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children – danger of suffocation!
2. Clean all parts with a damp cloth, as described in the section „Cleaning and care“.
3. Please do not remove any warning or instruction stickers from the appliance. These warnings and instructions are very important for users who are not familiar with the appliance.
4. Check to ensure that the appliance is stable.

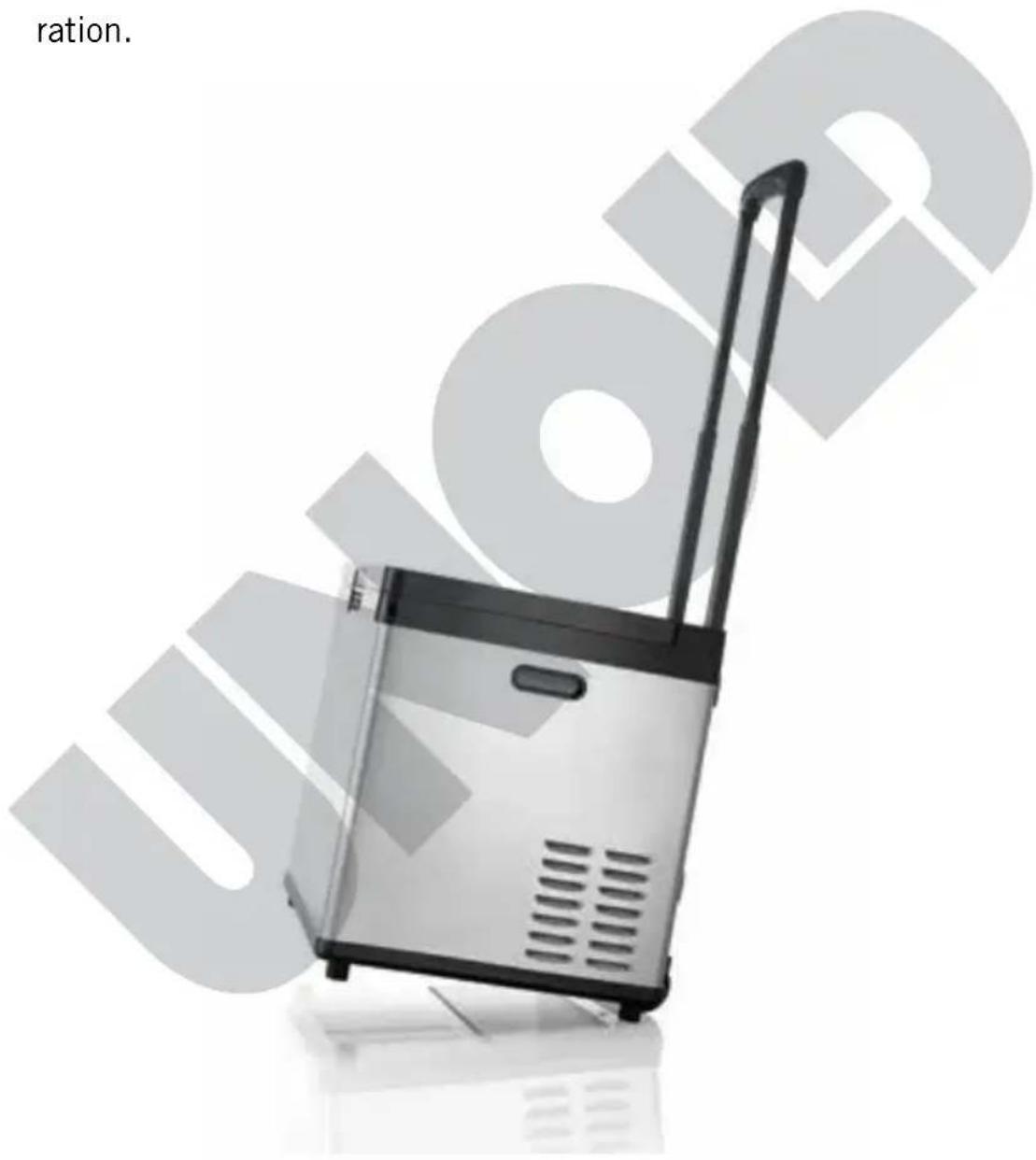

TELESCOPIC HANDLE

1. The telescopic handle allows you to easily pull the appliance to the desired location.
2. To pull out the telescopic handle, press the button at the top of the handle and adjust the handle to the desired length. Attention: To ensure safe transport, the handle must audibly lock in place.
3. Attention: Never pull the appliance by the handle when the device is in operation.

ration.

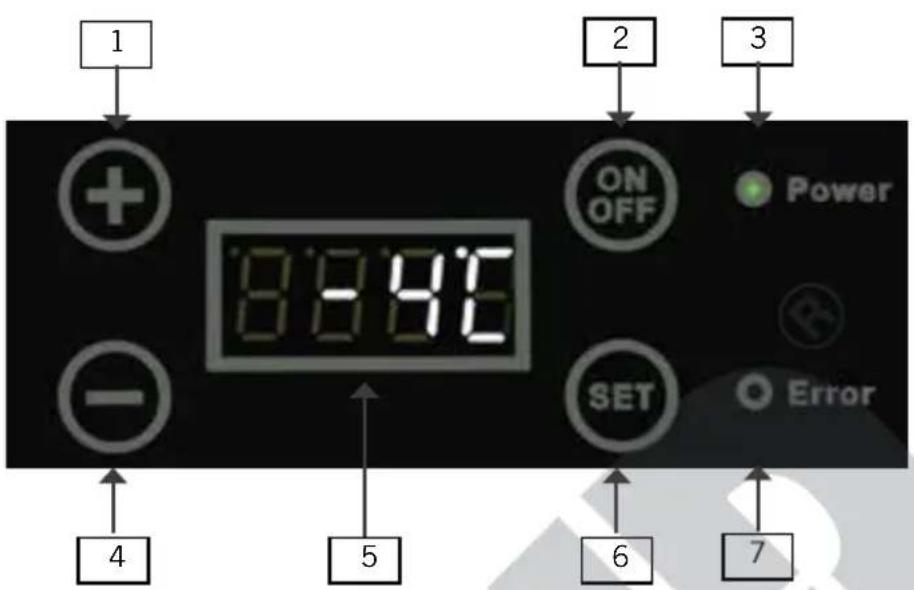

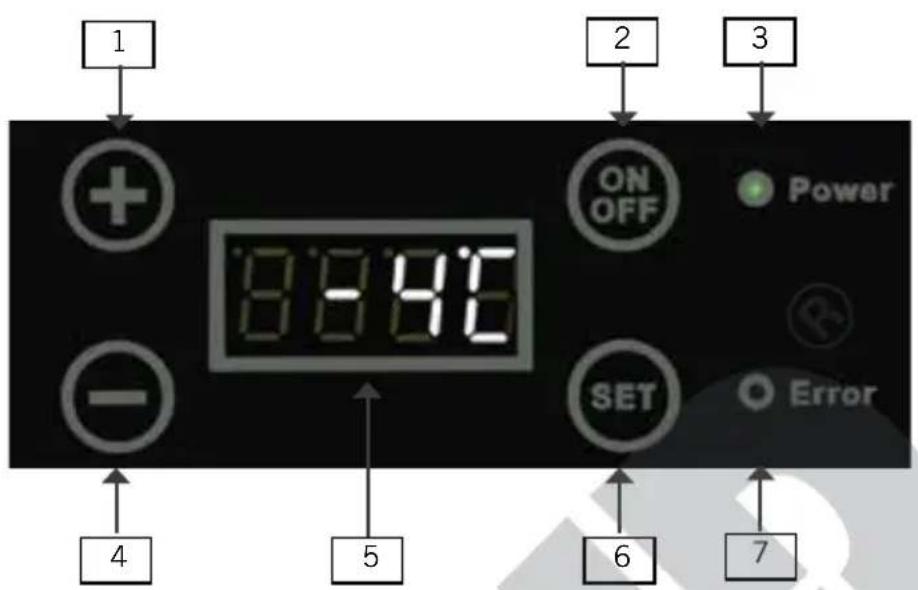

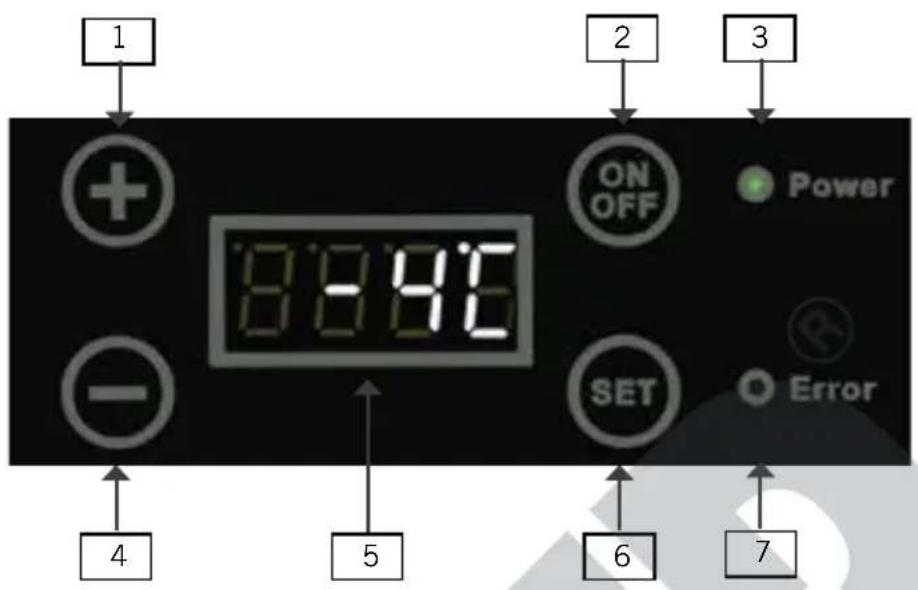

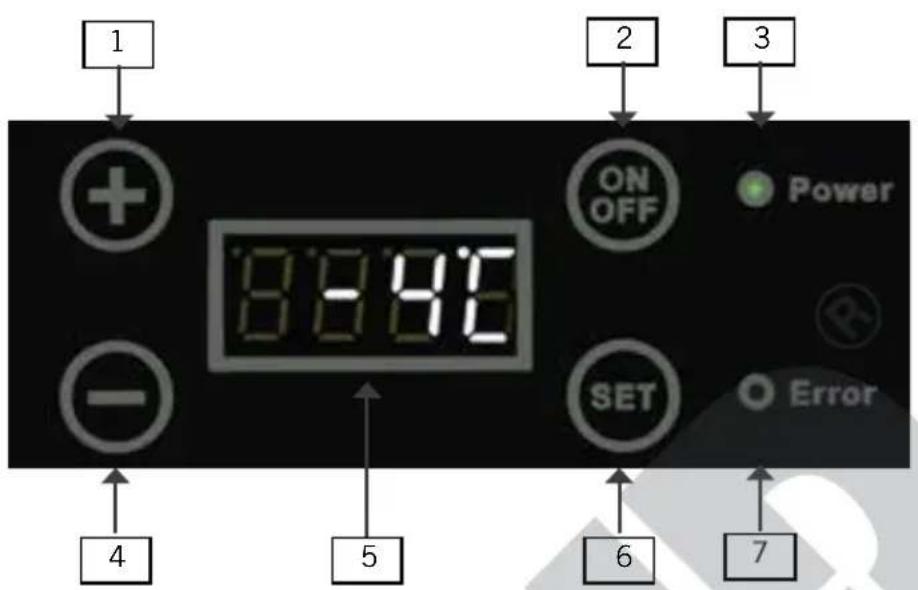

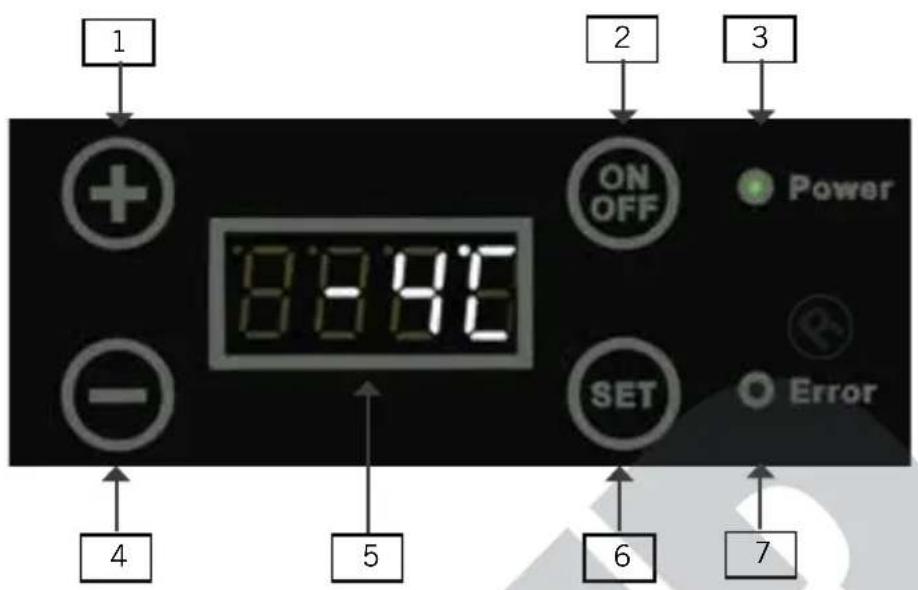

EXPLANATION OF THE CONTROL PANEL

1 + 3 2 ON OFF Power SET Error 4 5 6 7

1	Button +Increases the temperature or the input value in the advanced settings.
2	Button - ON/OFFFor switching the appliance on and off
3	Power indicator lightLights up red when the compressor is operating. Goes out when the compressor is off.Flashes red as long as the appliance is connected to the mains supply.Lights up green when the appliance is operating in ECO mode.
4	Button -Decreases the temperature or the input value in the advanced settings.
5	DisplayDisplays temperature and other information.Displays the fault codes if there are malfunctions.
6	Button - SETSetting the voltage protectionSelect between ECO or rapid cooling functionSetting Fahrenheit or Celsius
7	Error indicator lightLights up blue if there is a fault on the appliance.In addition, in the event of malfunctions, a continuous signal tone is emitted.The display shows a fault code.

FAULT CODES

F1 Voltage fault

F2 Ventilation fault

F3 Compressor does not start

F4 Compressor speed fault

F5 Temperature sensor fault

E0 Sensor defective

E1 Short circuit on the sensor

Note: If there are faults, first always check whether the appliance is connected to a suitable battery. Then wait 3 minutes before switching the appliance back on. If the fault still occurs, contact our customer service organisation.

OPERATION

1. You can operate the appliance with the AC power cord at 100 - 240 V\~/50 - 60 Hz or alternatively with the 12 V DC power cord at 12 V\~ DC/24 V.
2. When connected to a 12 V outlet, the appliance will not operate at voltages below 9.6 V.
3. When connected to a 24 V power outlet, the appliance will not operate if the voltage is less than 21.3 V.
4. Plug one end of the power cord into the socket on the appliance and the other end into the electrical outlet. Make sure that you are using the correct power cord.
5. Switch on the appliance via the ON/OFF button.
6. After the appliance is switched on, you can select the temperature from -18 °C to +20 °C. The temperature can be selected from -18 °C to +20 °C. Press the + and - buttons until the desired temperature appears on the display.

7. The display shows the current internal temperature of the appliance until the selected temperature is reached. The compressor switches on and off alternately.

8. Open the lid and place the food or drink to be cooled in the box.

9. If you no longer need the appliance, switch it off via the ON/OFF button and unplug the connection cable from the electrical outlet.

Battery protection mode

1. The appliance has three battery protection functions that protect the appliance itself and the vehicle battery. If the appliance is operated in the vehicle with the ignition switched off, the appliance switches off as soon as the voltage drops below the set value. When the voltage is reached again by charging the battery, the appliance switches on again. This prevents the vehicle battery from depth discharging.
2. Press the SET button for 3 seconds to access the advanced settings.
3. The three protection functions are H3 (high), H2 (medium) and H1 (low). Briefly press the + or - button to select the function. The appliance is set to H2 in the factory. This is the correct setting when the appliance is operated with alternating current.
4. Voltage parameters as follows:

■ H3 (high): 10.9 V (Stop) - 12.2 V (Start) / 23.8 V (Stop) - 25.2 V (Start)
■ H2 (medium): 9.7 V (Stop) - 11.0 V (Start) / 21.5 V (Stop) - 22.9 V (Start)
■ H1 (low): 9.6 V (Stop) - 10.9 V (Start) / 21.3 V (Stop) - 2.7 V (Start)

1. Note: If you use the appliance in a vehicle, we recommend setting it on H2. If the appliance is connected to an external power supply or a backup battery, set H2 or H1.
2. Vehicle batteries have different output voltages. If there is a voltage fault (F1 is shown in the display), a low function (H2 or H1) should be set.
3. If the performance of the vehicle battery decreases, set H1 to prevent the vehicle battery from being completely discharged during operation of the appliance.

ECO or rapid cooling function

1. Press the SET button again briefly to select between ECO mode (energy saving) or HH mode (rapid cooling function). Use the + and - buttons to switch between the two settings. The quick cooling function is set at the factory.

1. If you press the SET button again, you can switch between the temperature display in Fahrenheit or Celsius. Use the + and - buttons to switch between the two settings.
2. Note: After 10 seconds without button input, the appliance exits the advanced settings. If you want to make additional settings, press the SET button again for at least 3 seconds. The settings made are also saved when the appliance is switched off.

CLEANING AND CARE

Before cleaning, always turn off the appliance and unplug it from the electrical outlet.

1. Never immerse the appliance in water or other liquids.
2. Do not use scratching sponges, abrasive cleaners, steel wool, metallic objects, hot detergents or disinfectants, as these items can cause damage.
3. Wipe-off the inside and outside of the appliance with a damp cloth. Dry thoroughly afterwards.

DEFROSTING

Before defrosting, always switch off the appliance and remove the plug from the electrical outlet.

1. Regular defrosting helps to save energy, since evaporated water freezes on the inside walls of the appliance and thus reduces the cooling capacity.
2. Switch off the appliance and disconnect it from the mains supply.
3. Open the lid and remove the refrigerated and frozen items (place in another refrigerator or freezer if necessary).

4. Wait until the ice has melted and then remove it with a clean cloth.

5. Note: Do not use sharp or pointed objects such as knives to remove ice faster. The inner walls of the appliance can be damaged if sharp or pointed objects are used to remove ice.

6. When the appliance is completely dry, you can use it again as usual.

SOLVING PROBLEMS

Problem Possible cause	Solution
The appliance does not work, indicator lights are off	No power supplyInsufficient power supplyAC power cord12 V DC power cord	Check all connections and power cord connections.Connect the appliance to another electrical outlet.Check the earth leakage circuit breaker.Connect another suitable power cord.Connect another suitable power cord or connect the appliance to another 12 V connection.
Noise development The	ance is not standing on a level surface	Note: A certain amount of noise is normal. If the appliance is at an angle, place it on a flat surface.
Loud, metallic knocking or beeping	Device has been excessively tilted	Switch off and leave on a level surface for 24 hours, then switch it on.
	Compressor is defective	Contact customer service.
Appliance runs for a short time and then trips the earth leakage circuit breaker	The power outlet does not provide the required voltage	Have the electrical outlet checked by a specialist.
Indicator lights flash alternately	The control panel may be defective	Switch the appliance off and then switch it back on. If the problem still exists, contact customer service.
Display shows HH The	ambient temperature is above 40 °C	Switch the appliance off and then switch it back on. If the problem still exists, contact customer service.
Display shows OC Thermostat fault Switch the appliance off and then switch it back on. If the problem still exists, contact customer service.
Display shows SC Short-circuit in thermostat	Switch the appliance off and then switch it back on. If the problem still exists, contact customer service.
Appliance can be switched on, compressor does not start	Ambient temperature too low Electrical fault	Install the appliance in a warmer location. Contact customer service.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. The insulation of the appliance contains a coolant and must therefore be disposed of properly and in an environmentally-sound manner. If in doubt, ask your disposal company.

The instruction booklet is also available for download: www.unold.de

Refrigerant: R600a

NOTICE D'UTILISATION MODÈLE 48986

SPÉCIFICATION TECHNIQUE

Tension de raccordement : DC 12V/24V =

Exterior view of a modern office building (no signage)

EXPLICATION DES BOUTONS DE COMMANDE

1 + 8:3:8:6 ON OFF Power - SET Error 4 5 6 7

CONDITIONS DE GARANTIE

Illustration of a laptop with a scroll wheel, standing on a surface with abstract geometric shapes in the background (no text or symbols)

VERKLARING VAN HET BEDIENINGSPANEEL

1 + 8:34:5 ON OFF Power SET Error 4 5 6 7

Volume utile: 17 litri

Refrigerante: R600a

Illustration of a white electronic device with a black handle, partially overlapping a large gray 'UNION' logo (no text on device or background)

SPIEGAZIONE DEL PANELLO COMANDI

1 + 3 2 ON OFF Power SET Error 4 5 6 7

Exterior view of a modern office building (no signage)

WYJAŚNIENIE PANELU STEROWANIA

1 + ON OFF 2 3 Power SET Error 4 5 6 7
