HP Photosmart M440/M540/

M630 series

Legal and notice information

Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Windows® is a U.S. registered trademark of Microsoft Corporation.

SD Logo is a trademark of its proprietor.

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.

Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For future reference, enter the following information:

Model number:
Serial number:
Purchase date:

Contents

1 Getting started

Viewing the electronic User Guide 4

Camera top and back 6

Camera front, side, and bottom 7

2 Setting up your camera

Install the batteries 8

Turn on the camera 9

Choose the language 9

Set the region 9

Set the date and time 9

Install and format an optional memory card 10

Install the software 11

Windows 11

Macintosh 12

3 Taking pictures and recording video clips

Take a picture 13

Record a video clip 13

4 Reviewing and deleting images and video clips

Review images and video clips 15

Delete an image 15

5 Transferring and printing images

Transfer images 16

Print images from the camera 16

6 Camera quick reference 18

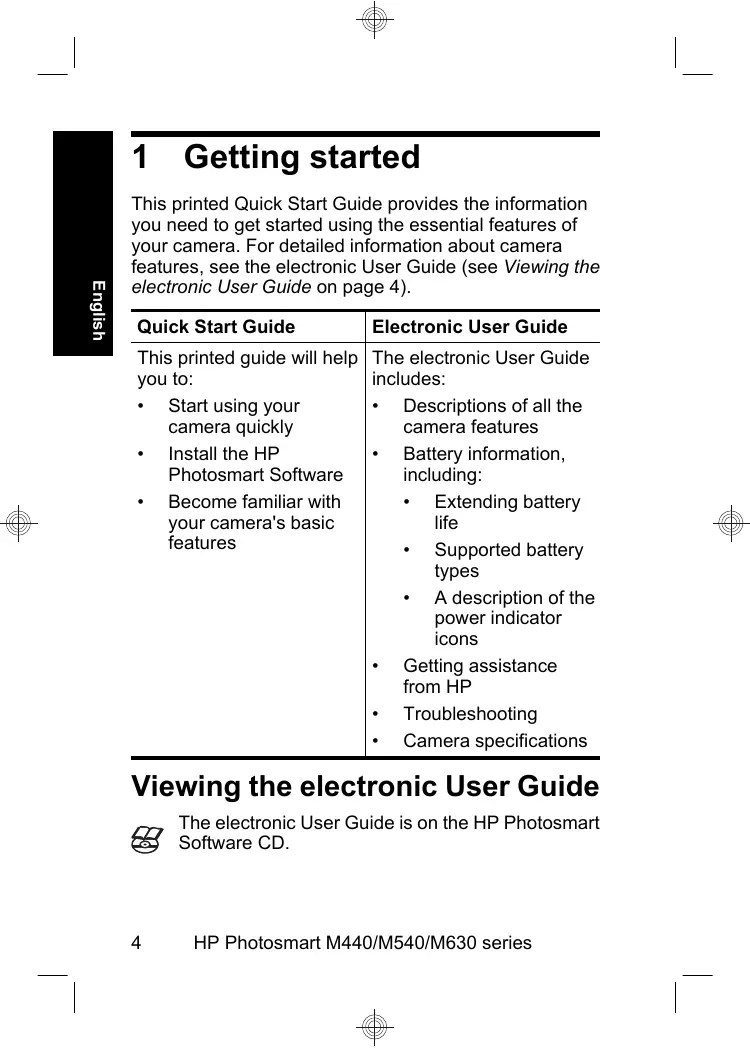

1 Getting started

This printed Quick Start Guide provides the information you need to get started using the essential features of your camera. For detailed information about camera features, see the electronic User Guide (see Viewing the electronic User Guide on page 4).

Quick Start Guide	Electronic User Guide
This printed guide will help you to: • Start using your camera quickly • Install the HP Photosmart Software • Become familiar with your camera's basic features	The electronic User Guide includes: • Descriptions of all the camera features • Battery information, including: • Extending battery life • Supported battery types • A description of the power indicator icons • Getting assistance from HP • Troubleshooting • Camera specifications

Viewing the electronic User Guide

The electronic User Guide is on the HP Photosmart Software CD.

To view the User Guide:

1. Insert the HP Photosmart Software CD into the CD drive of your computer.
2. Click View User Guide on the main page of the installation screen.

The electronic User Guide is also copied to your computer when you install the HP Photosmart Software. To view the User Guide after it has been installed on your computer:

• On Windows: Open the HP Solution Center and click help.
• On Macintosh: Open the HP Device Manager and select Camera User Guide from the Information and Settings pop-up menu.

Getting assistance

• For tips and tools to help you use your camera more effectively, visit www.hp.com. From here, click on Learn About: Digital Photography (English only).
  For product support, including firmware, software, and driver updates, visit www.hp.com/support.
• For help with the HP Photosmart Software, see the software's online help.

Camera top and back

1	Power light.
2	ON/OFF button.
3	Shutter button.
4	Delete button—Accesses the Delete function while in Playback.
5	Flash button—Accesses the flash settings while in Picture Capture. Settings are Auto, Red-Eye, Flash On, Flash Off.
6	selector—Switches between Picture Capture, Video Record, and Playback (see Picture Capture, Video Record, and Playback on page 18).

6 HP Photosmart M440/M540/M630 series

7	Zoom lever (Digital and Optical)—Accesses ↑/↓ Zoom while in □ Picture Capture or □ Video Record; accesses □ Thumbs and Magnify while in □ Playback
8	▲▼ and ◆ buttons—Scroll through menus and images.
9	Menu OK button—Displays camera menus, selects options, and confirms actions.
10	Back button—Returns you to a previous menu or view. Press and hold to back out of all menus.
11	Image Display.

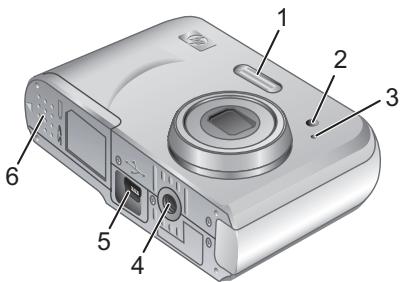

Camera front, side, and bottom

1	Flash.
2	Self-Timer light.
3	Microphone.
4	Tripod mount.
5	Dock/USB connector.
6	Battery/Memory Card door.

2 Setting up your camera Install the batteries

1. Open the Battery/Memory Card door by sliding the door latch as indicated on the Battery/Memory Card door.
2. Insert the two AA batteries.
3. Close the Battery/Memory Card door.

NOTE: If using rechargeable NiMH batteries, fully charge the batteries before using them the first time. Turn off the camera before removing the batteries.

The batteries shipped with your camera are AA alkaline. These have a short life and are intended to let you begin using your camera immediately. When the camera warns that the battery charge is low, HP recommends replacing them with Photo Lithium or rechargeable NiMH batteries for longer battery life.

This graph shows the approximate average number of pictures you can take using Photo Lithium, NiMH, and Alkaline batteries. Actual performance may vary based on usage, battery type, and battery manufacturer. Many additional factors affect the actual number of pictures you can take (see Extending battery life on page 21).

Turn on the camera

To turn on the camera, press the ON/OFF button.

Choose the language

Use ▲▼ □ to choose the language you want, then press Menu OK.

Set the region

Along with the language setting, the region setting determines the default date format.

Use ▲ to choose the region you want, then press Menu OK.

Set the date and time

Accurately setting the date and time will help you locate images once you have transferred them to your computer, and will ensure that images are accurately marked if you use the date and time imprint feature.

1. Use to adjust the highlighted value.
2. Use to move to the other selections and repeat Step 1 until the date and time are set correctly.
3. Press when the date,

time, and format settings are correct, then press Menu OK again to confirm.

Install and format an optional memory card

This camera supports standard, high speed, and high capacity Secure Digital (SD and SDHC) memory cards, 32MB to 8GB.

1. Turn off the camera and open the Battery/Memory Card door.
2. Insert the optional memory card in the smaller slot as shown. Make sure the memory card snaps into place.
3. Close the Battery/Memory Card door and turn on the camera.

NOTE: When you turn on your camera with a memory card installed, the camera indicates the number of images you can store on the memory card at the current Image Quality setting. This camera supports storing a maximum of 2000 images on a memory card.

Always format new memory cards before first use. Formatting removes all images from the memory card, so make sure to transfer existing images before formatting.

1. With the camera turned on, slide to
2. Press
3. Use to select Format Card from the Delete menu, then press Menu OK
4. Use to select Yes, then press Menu OK to format the card.

10

HP Photosmart M440/M540/M630 series

Once you install a memory card, all new images and video clips are stored on the card, rather than in internal memory.

To use internal memory and view images stored there, turn off the camera then remove the memory card.

Install the software

The HP Photosmart Software provides features for transferring images and video clips to your computer, as well as features for modifying stored images (remove red eyes, rotate, crop, resize, and more).

To install the HP Photosmart Software, your computer must meet the system requirements as stated on the camera packaging. To learn about Windows Vista support for your camera, see www.hp.com/go/windowsvista (English only).

If you have trouble installing or using the HP Photosmart Software, see the Hewlett-Packard Technical Support website for more information: www.hp.com/support.

Windows

1. Close all programs and temporarily disable any virus protection software.
2. Insert the HP Photosmart Software CD into the CD drive and follow the on-screen instructions. If the installation window does not appear, click Start, click Run, type D:\Setup.exe, where D is the letter of your CD drive, then click OK.
3. When the software has finished installing, re-enable virus protection software.

Macintosh

1. Insert the HP Photosmart Software CD into the CD drive.
2. Double-click the CD icon on the computer desktop.
3. Double-click the installer icon, then follow the on-screen instructions.

Once installation is complete and you have restarted your computer, System Preferences automatically opens to the HP Photosmart Camera settings. You may change settings so the HP Photosmart Software starts automatically when you connect your camera to your Macintosh (for more information, click the help button on the HP Photosmart Camera settings dialog).

3 Taking pictures and recording video clips

Slide to either to take pictures or to record video clips.

Take a picture

You can take a picture when you are in

Picture Capture.

1. Slide to
2. Frame the subject in the Image Display.
3. Press the Shutter button halfway down to measure and lock the focus and exposure. The focus brackets in the Image Display turn solid green when focus is locked.
4. Press the Shutter button all the way down to take the picture.

After you have taken a picture, the camera displays it briefly in the Image Display.

Record a video clip

You can record a video when you are in

Video Record.

1. Slide to
2. Frame the subject in the Image Display.
3. Press the Shutter button halfway down to measure and lock the focus. The focus brackets in the Image Display turn solid green when focus is locked.

1. Press the Shutter button all the way down to start recording.
2. To stop recording video, press and release the Shutter button again.

After you have recorded a video clip, the camera displays it briefly in the Image Display.

4 Reviewing and deleting images and video clips

Review images and video clips

You can review images and video clips in Playback.

1. Slide to
2. Use to scroll through your images and video clips. To play a video clip, press once the first screen of the clip appears on the Image Display.

NOTE: To hear audio associated with video clips, transfer them to your computer.

Delete an image

You can delete individual images during Playback:

1. Slide to
2. Use to select an image or video clip.
3. Press
4. Use to select This Image from the Delete menu, then press Menu OK.

5 Transferring and printing images

Transfer images

Use this procedure to transfer images and video clips to your computer.

NOTE: Transferring a large number of high-resolution images from a memory card to your computer may take up to two hours. When transferring a large number of images, be sure your camera batteries are fully charged or use an optional HP Photosmart dock or memory card reader.

1. Turn off the camera.
2. Connect the camera and computer using the USB cable that came with your camera.
3. Turn on the camera. When the Image Display indicates that the camera is connected to the computer, follow the instructions on the computer screen to

transfer the images. If you have installed the HP Photosmart Software and need more information, see the Help feature in the HP Photosmart Software.

Print images from the camera

You can connect the camera to any PictBridge-certified printer to print images.

1. Check that the printer is turned on, there is paper in the printer, and there are no printer error messages.

PictBridge

1. Turn off the camera, connect the camera and printer using the USB cable that came with your camera, then turn on the camera.
2. When the camera is connected to the printer, the Image Display shows

an image. Use to select the image you want to print.

1. Press Menu OK.

2. In the Print Options menu, select Print This Image Now and press Menu OK to begin printing.

3. displays on the selected image in the Image Display to indicate that the image is being printed.

4. After the printer has printed the image, disconnect the camera from the printer.

To learn about other printing options, see either the electronic User Guide or ? Camera Help located in any menu.

6 Camera quick reference

Use this chapter as a quick reference to camera features. To learn more about these camera features, refer to the electronic User Guide or on-camera Help.

Picture Capture, Video Record, and Playback

• Picture Capture allows you to frame pictures in the Image Display and take pictures. To activate Picture Capture, slide to.
  Video Record allows you to frame videos in the Image Display and record videos. To activate Video Record, slide to
• Playback allows you review and delete images and video clips. To activate Playback, slide to.

Camera Menu

• Menu allows you to adjust camera settings, work with images, and access camera Help.

• Within a menu, use to move to specific selections.
  To exit the menu, press at any time.

Picture Capture Menu—Allows you to adjust camera settings that affect the characteristics of future images you capture with your camera. To access this menu, slide

to, then press Menu OK. You can select from the following options:

• Shooting Mode (Auto, Close-up, Steady Photo, Theatre, Landscape, Portrait, Action, Night Portrait, Sunset)
  Self-Timer

Image Quality
- Burst
Color (M440 series)
- Date & Time Imprint
- Camera Setup
Camera Help

Video Record Menu—Allows you to adjust camera settings that affect the characteristics of future video clips you record with your camera. To access this menu, slide

to, then press Menu OK. You can select from the following options:

Self-Timer
Camera Setup
Camera Help

▶ Playback Menu—Allows you to work with images. To access this menu, slide to, then press OK. You can select from the following options:

• Remove Red Eyes
• Rotate (M440 series)
  Crop (M440 series)
• Design Gallery (Modify Color, Add Borders, Rotate, Crop) (M540/M630 series)
  Photosmart Express (Print, Share, Buy Prints Online)
• Favorites
  View Slideshow
• Move Images to Card
• Camera Setup
  Camera Help

Camera Setup Menu—Allows you to change the camera's behavior. To access this menu, press Menu OK from , , or , then select Camera Setup. You can select from the following options:

Display Brightness
Camera Sounds
Date & Time
USB Configuration
Language

? Camera Help Menu—Provides descriptions of camera features and picture-taking tips. To access this menu, press from , , or , then select ? Camera Help. You can select from the following options:

Top Ten Tips
Camera Accessories
Camera Buttons
Using Shooting Modes
Using Design Gallery (M540/M630 series)
Using Photosmart Express
- Printing Images
Recording Video Clips
Reviewing Pictures and Video
- Tagging Favorites
- Deleting Images
Transferring Images
Managing Batteries
Getting Assistance
Tour Camera Features
Camera Shortcuts

About

Extending battery life

To conserve battery power, the Image Display turns off after a period of inactivity. Pressing any button wakes up the camera. After five minutes of inactivity, the camera turns off.

To further extend battery life:

• Set Display Brightness to Low (see the electronic User Guide for details).
• Set your camera to ^A Auto Flash (see the electronic User Guide for details).
  Use optical zoom, video recording, and Image Display sparingly.
• If you are turning on the camera only to view images, slide to, then turn on the camera to start in Playback without extending the lens.
• When transferring or printing images, place your camera in an optional HP Photosmart dock connected to AC power.

For more information about batteries, go to www.hp.com/ support and search on the code AA-400 or see Appendix A in the electronic User Guide.

HP Photosmart séries M440/

M540/M630

Copyright 2007 Hewlett-Packard Development Company, L.P.

Copyright 2007 Hewlett-Packard Development Company, L.P.

6 HP Photosmart M440/M540/M630 series

16 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

6 HP Photosmart M440/M540/M630 series

8 HP Photosmart M440/M540/M630 series

10 HP Photosmart M440/M540/M630 series

HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

12 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

12 HP Photosmart M440/M540/M630 series

22 HP Photosmart M440/M540/M630 series

Copyright 2007 Hewlett-Packard Development Company, L.P.

As informaçõesquirycontidasestousejitasamudançassemaviso prévio.AsúnicasgarantiasparaprodukoseserviciosHPsao estabeleocidasnasdeclarçoesdegarantiaexpressaqueacompanham taisprodukosevios.Nadaquimentionadodevesercomprehendido comoconstuiindouma garantiaadicondional.AHPnaoresponsabilizadoraporerros Tecnicosoueditoriaisoumissoesaquinclusos.

Instalar as baterias 9

Ligar a camera 10

8 HP Photosmart M440/M540/M630 series

2 Configurar a-camera

Instalar as bacterias

12 HP Photosmart M440/M540/M630 series

(Transferring Images

(ηνησιού ηευ) Managing Batteries

(ηοῦ) Getting Assistance

(nnnnnn) Tour Camera Features

(nnnnn nn nnnn nnnn) Camera Shortcuts

(NITIN) About

•

•

.

.

.

.

n

77777777777777777 77777777777777777 777777777777777 77777777777777

nnon nnnnnnnn

) Display Brightness (nwnnn nn nnnn nn nnnn nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

.

n) Auto Flash A4 nwnynnnn nn n nn (wnnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

JININN INIININININININININININININININININININININININININININININININININININININININININININININININININININININININ

oon, nnnn nn nn nn nn nn nn nn

n nn n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

nnn nn n nn ,no9n nn nn nn nn nn nn nn HP Photosmart w nnnnAC

www.hp.com/ nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn

(nnnn) Camera Setup

(nnnn nn) Camera Help

Camaer Setup Menu Camer -n n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn n nn nnnn

:

(Annn) Display Brightness

(nnnn) Camera Sounds

(nw) Date & Time

(USB nnn) USB Configuration

(ng) Language

pnon - (nynnn nny nynn) Camera Help Menu ?

n 77777777777777777777777777

Dn nn, IN, 8nn (niN/0n) Mnu OK ny

nna nna (nnnnn nn) Camera Help ? nn

JINXIN JINWEN JINN

(Top Ten Tips

(nnnn nn) Camera Accessories

(nnnn n) Camera Buttons

(Anynwnwn) Using Shooting Modes

(20) (21) Using Design Gallery

(M630-I M540

Photosmart-wnwn) Using Photosmart Express

Express

7 won - (NTT NT T'v) Video Capture Menu

(No) Remove Red Eyes

(M440 nTo) 1

(M440 nto) nn

(1) Modify Color ] (1) Design Gallery ,(1) Crop ,(1) Add Borders ,(1) M540/M630 [ (1) Rotate

,(n)Share,(noTn)Print]Photosmart Express [ (i)ni nio nio nio Buy Prints Online

(NTy)Favorites

View Slideshow

(ownnn) Move Images to Card

nynnnnnnn 20

nynnnny 6

y

nTTIN nTNI INI NIO,nnN T

Close-,(Univ Auto] (Un) Shooting Mode, (Un) Steady Photo, (Un) up, (Un) Portrait, (Un) Landscape, (Un) Theatre, (Un) Night Portrait, (Un) Action [Un) Sunset

n, nnnn nn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

(1)

Nn (n09n nyn) Print Options 09n (nyirnnn 09n) Print This Image Now

(1) (2) (3) (4)

"nnnnnnnnnnnnnnnnnnn nn

.097n nnnnn

.09nn nn nn n nn no 09n nn

TnIy, niooN no9tn NnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNn

n nn (nnnn

.2

.3

.4

.5

.6

ninn no9nn 5

ninn nnyn

yannn nn nnnnnnnnnnnnnnnnnnn

wnnn nn nnnn nn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nn

yynn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

ynnnnpn HP Photosmart Software nnnnXPHP Photosmart (ny) Help .Software

.3

nynnn ninn no9tn

ATLL

onnn n7 by ny, nnnn nn nynn .5

.

.(HP Photosmart Camera

HP Photosmart, mTo M440/M540/M630

11111111111111111111111 1111111111111111111

.1

17 yyn 2

Format Card 17

on nn, (nn) Delete o nn (o nn)

(1) y n

pn nnn (p) Yes nnynn nn 4

.00nnn7 (W/0) n) 0k

ynnn n nn ynnnnn nn nn nn

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nnnnn nn nnnn nn nnnnnn nn nn nnnnnn nn nnnnnn nn nnnnnn nn

.

ninn nnn

nnpnnnnpn HP Photosmart Software nnn

NININ NININ ININN ININN ININN ININN ININN ININN ININN ININN

wnn n ,HP Photosmart Software nnn nn nnn nnn nnn nnn nnn nnn nnn nnn nnn

to select, then press OK.

nna 1-1 △-2wnwn

yynpnnnn nn

(71w/079)Menu OK

TIN/INN

Region

North America

South America

Europe

Asia

Australia

Africa

ose area. to start over.

n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

n nn nnnnnnn

1

/nnn nn 7 ▲-wnnn

y n nn nn nn

(71w/v/79)Menu OK

nannnn 10

nynnn 2 nioon

-1 1

AA-n nio y no oon .2
.

yN NIMH yN nn nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

Jnnn nn n .HP Photosmart Software ninn

unnnnnn nn nnnn

HP Solution Center:Windows

.（ny）helpyyn

HP Device Manager:Macintosh

Camera User wnn nn (HP w nn)

yipnn nn (nynnnwnnnn) Guide

(NT) Information and Settings

yio n

y 1

Learn by yn7,nt qy. www.hp.com

(Anj) About: Digital Photography

nnnnnnnnnnnnnnnnnnnnnnnnnnn

. www .hp . com / support

HP Photosmart Software

.

nTiayn nn 1

7 7777777777777777777777777777777777777777

Copyright 2007 Hewlett-Packard Development Company, L.P.
