USER MANUAL Cyke 18F Puky

Congratulations on the purchase of this PUKY play bicycle. You have acquired a quality product, which is certain to bring great joy. This User Manual contains information regarding the assembly, safe operation and maintenance of this new bicycle. Should you have any questions or problems, please contact your dealer or contact us via our website: www.puky.de.

2. Parental responsibility

Risks during play are, for the most part, excluded when used in accordance with the intended purpose. However, please take into consideration that unforeseen situations and hazards may occur as a result of the natural need for movement and the temperament of young children and adolescents for which the manufacturer cannot be held liable. For this reason, instruct children and adolescents in the correct bicycle conduct whilst supervising them. At the same time, also draw their attention to potential dangers.

The play bicycle is not suitable for sporting activities (e.g. jumps). The bicycle may only be used on paved paths and roads without obstacles. The bicycle is not suitable for jumps, tricks or cross-country use. When children are using the bicycle, it may not be ridden in the vicinity of stairs, slopes, steep terrain, swimming pools or other bodies of water. Stairs in the vicinity must be secured in such a way to prevent children from riding up or down them on their bicycle. The play bicycle may only be used in suitable areas and away from public roads. The bicycle does not comply with the requirements of German Road Trac Regulations (StVZO) and may not be used on public roads. The relevant applicable national legal requirements are to be observed. The permissible total weight for this bike (bike + rider + baggage) is 60 kg. The load that may be placed on the luggage rack will depend on the version of the rack (see the embossing on the rack). For road safety reasons, we do not recommend using the rack of a play vehicle for carrying loads. Only the serial installed racks may be used. It is necessary to wear suitable clothing and closed shoes. PUKY recommends wearing a safety helmet (see PUKY Accessories). The bicycle is not suitable for mounting a child seat. Pay attention to potential trap hazards when using and maintaining. Play bicycle Mount supporting wheels in a secure and form-fitting manner to the rear when required as a learning aid (to maintain balance). The use of support wheels is only permitted during the course of a brief learning period, since with increased practice the support wheels may apply uncontrolled forces to the frame. Please pay attention to the reduced eect of the brakes on the front wheel when it is wet. Sudden, forceful braking with the rim brake should be avoided since the behaviour of the vehicle may suddenly change as a result which may end in a fall. On long slopes, long periods of braking with the back pedal brake are to be avoided (excess heat to the back pedal brake nave). The valve caps must be firmly tightened and kept out of reach of children (risk of choking). Subsequent additions or modifications to the bicycle (especially the braking systems) will change the behaviour of the vehicle and may pose a risk.

4. Unpacking and scope of delivery

Do not use any sharp objects when opening the packaging and removing protective material. If you were to do so, you may damage the paint or parts of the bike. Keep all packaging material out of reach of children.

• Remove all parts from the packaging.

• Remove the protective material.

• Examine the package for completeness and proper condition. If anything is missing, please contact your dealer before you continue to assemble the bike.

5. Assembly and first use

Prepare for use by adjusting to the height of the child. The saddle is to be set so that at least the toes, preferably the ball of the foot, reach the ground in order to ensure balance can be achieved when at a standstill. In doing so, the marking showing the minimum insertion depth on the saddle post into the frame tube must be observed. For more information, see below. The handlebar, hand brake lever and bell must be easy for the child to reach from the set saddle position. In doing so, the marking showing the minimum insertion depth of the handlebar shaft must be observed. After adjusting the handlebar, tighten the clamping screws firmly. Use the following safety checklist to check the bicycle before using. When mounting the pedals, observe the right and left threads (labelled on the pedal axis with an R or L in the vicinity of the thread). The images for the assembly instructions can be found on the last pages of this manual. After assembly, please conduct a safety check in accordance with the safety check- list! During assembly, please note that some parts, such as pedal thread and clamping cone are lubricated. Assembly must be carried out with great caution and by an adult, to avoid any po- tential subsequent accidents or injuries. Please take your time when assembling the bike. In some cases, it is necessary to tighten screws with a prescribed torque. The torque value is stated in Newton metres (e.g. 2 Nm). If the torque with which a screw is tightened is too low, the connection may still be too loose and therefore unsafe. If the torque is too high, screws and other parts may be damaged or destroyed. Please contact your dealer or a workshop if you have any questions. First remove the plastic protective caps from the cap nuts of the front and rear axle as well as from the cantilever brakes at the front. Also remove the plastic foil which has been used to protect the cranks. Remove the handlebar padding from the handlebar and unscrew (with just a few rotations) the underlying screw at the stem with the aid of a 6 mm Allen key (YOUKE models) or a 13 mm spanner (STEEL/ STEEL-CLASSIC models). Now you can remove the plastic cover that protects the clamping cone at the lower end of the stem shaft.

6. Maintenance and care

If the handbrake lever can be pulled more than half-way to the handlebar before the braking eect takes place, the brake must be adjusted. The braking surfaces must be clean, grease-free and the brake pads must be parallel to one another. Worn pads must be replaced immediately! When replacing, make sure you use original pads or ensure that they match the material of the rim at least (e.g. see the label: "Alloy / Alu" for aluminium rims). Caution in the event of rim wear Regularly check the state of the rims and pay special attention to the wear groove which surrounds the rim. Consult your specialist workshop in good time (when the groove is almost worn away). Breakage and accident risks! Pay special attention to ensure that the handlebar and saddle do not rotate! Check the chain tension and adjust as necessary (if required, by loosening the rear wheel, aligning and tightening again). 43836_kinderfahrrad_148x210.indd 1243836_kinderfahrrad_148x210.indd 12 09.06.2020 07:50:2609.06.2020 07:50:2613

Pay attention to the correct air pressure (the prescribed pressure is indicated on the sides of the tyres). Do not repair damaged or deformed parts. Damaged or deformed parts must be replaced. Original replacement parts can be obtained from your PUKY dealer. Spare parts: Tyres (including tubes), rims, brake cable, brake pads, chain, chain rings, handle covers. All maintenance work requires specialist knowledge and you should consult your dealer for advice. Interested children may 'supervise' but should not do the work themselves. In case of a tire change, please visit us on our homepage at www.puky.de. There you will find the appropriate video instructions for a tyre change (YOUKE/ STEEL/ STEEL CLASSIC models with chain guard and LS-PRO 16 and LS-PRO18 models with Chainlooper chain guard). Cleanliness and corrosion protection All painted and metallic surfaces can be cleaned and protected using ordinary car care products. Only use environmentally friendly products and never use any ag- gressive detergents. Regularly oil the chain (chain or universal oil) and clean when necessary. The flanks of the rims (braking surfaces) must be grease-free! The vehicle is to be protected from winter salt and long periods of storage in damp spaces (e.g. garage) are to be avoided. If you do store the bicycle in a damp environ- ment, protect the surfaces of unpainted metal parts (screws, nuts etc.) with a suitable surface seal (e.g. spray wax). Hub and ball bearing should be checked from time to time by a specialist, adjusted and lubricated as required. The vehicle is to be protected from winter salt and long periods of storage in damp spaces (e.g. garage) are to be avoided. Do not use a pressure washer/power washer to clean the vehicle.

7. Statutory warranty

Statutory warranty covers defects. Damage resulting from improper use, use of force, lack of maintenance, or normal wear and tear, is excluded from such a statutory defect warranty. Enjoy your travels! Safety checklist Saddle Firmly secured and cannot be rotated (5-8 Nm)*

Minimum insertion depth marking observed Balls of feet reach the ground Handlebar Minimum insertion depth observed

Handlebar shaft tube secured and cannot be rotated (15 Nm)*

Handlebar cannot be rotated easy to reach, upright seating position Handles cannot be rotated Handbrakes Brake lever secure (2 Nm), easily accessible

Functions perfectly Brake pad clean, grease-free, positioned correctly Back pedal brake Function checked

Chain Chain tension is OK (play approximately 1.5 cm)

Sucient lubrication Chain guard is complete Tyres Sucient profile

Sucient air pressure (air pressure to be maintained is on the tyre) Wheels Aligned

Spokes evenly tightened Axle nuts firmly tightened (VR 12 Nm, HR 10 Nm or 15 Nm)*

Pedals Rotate easily

Firmly fitted without excess play Bell Clear ring, easily reached

Visual check Components without fault and all attached parts, such as protective guards and luggage rack, suciently well secured.

The tools are not part of the scope of delivery.

2. Handlebar preassembled

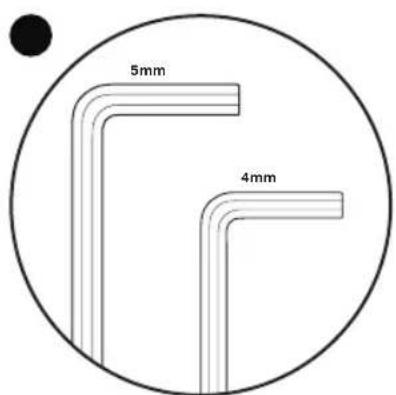

2. 4 mm and 5 mm Allen key (YOUKE, STEEL,

STEEL CLASSIC models, CYKE 16, CYKE 18, CYKE 18-3, LS-PRO 16 and LS-PRO 18 models)

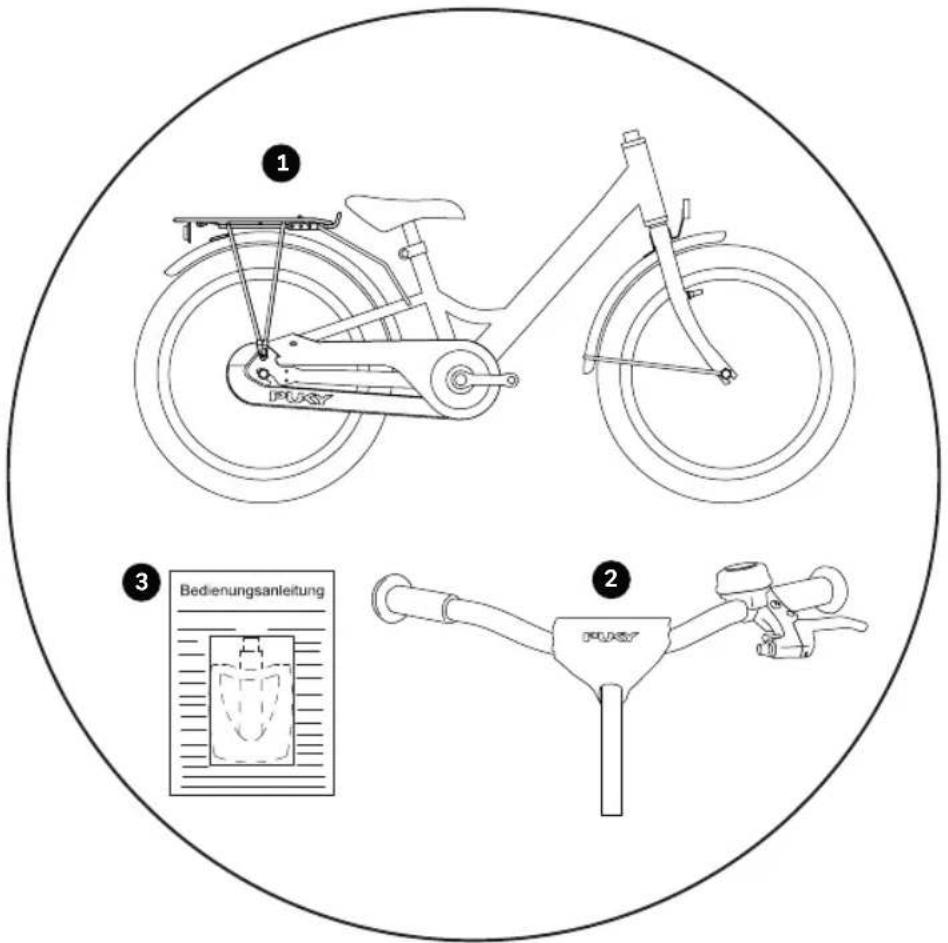

3. Pedals and User Manual in a plastic bag, for

3-gear models: Additional gear stick

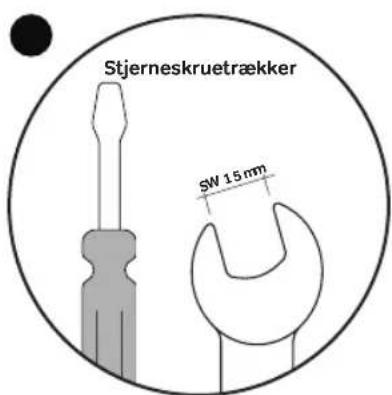

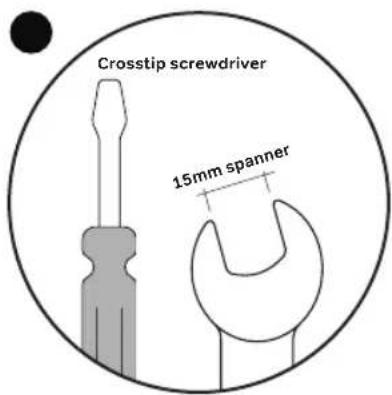

3. 15 mm spanner and Crosstip screwdriver

1. Bike preassembled

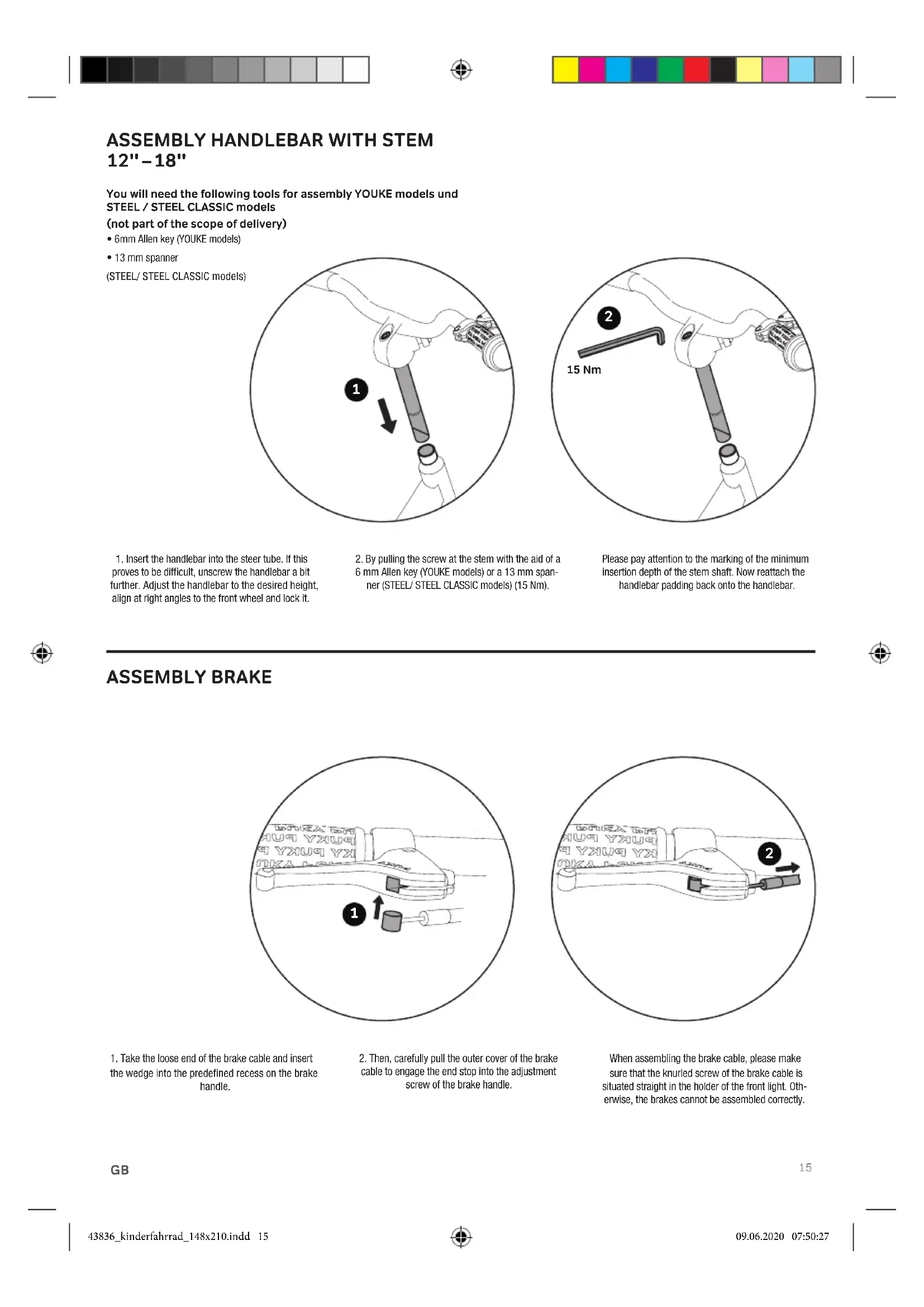

ASSEMBLY HANDLEBAR WITH STEM

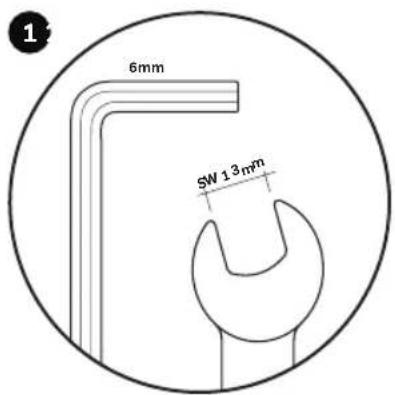

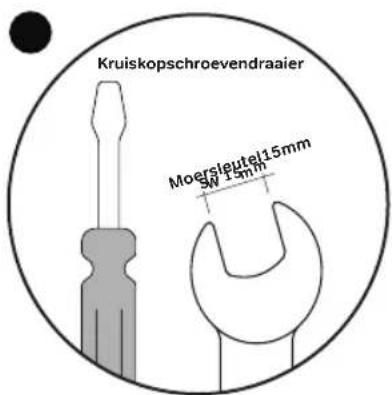

18'' You will need the following tools for assembly YOUKE models und STEEL / STEEL CLASSIC models (not part of the scope of delivery)

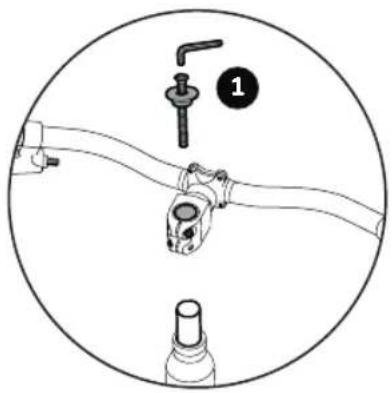

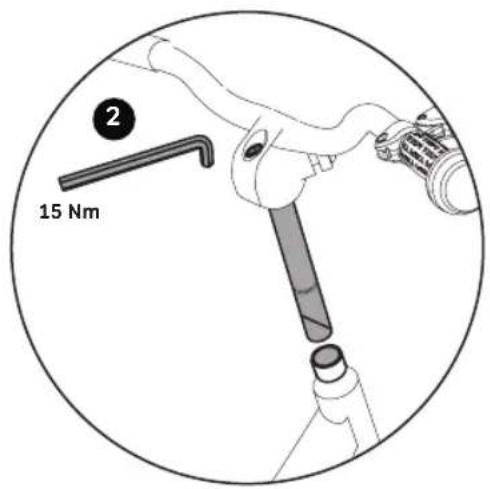

2. By pulling the screw at the stem with the aid of a

6 mm Allen key (YOUKE models) or a 13 mm span- ner (STEEL/ STEEL CLASSIC models) (15 Nm).

2. Then, carefully pull the outer cover of the brake

cable to engage the end stop into the adjustment screw of the brake handle. Please pay attention to the marking of the minimum insertion depth of the stem shaft. Now reattach the handlebar padding back onto the handlebar. When assembling the brake cable, please make sure that the knurled screw of the brake cable is situated straight in the holder of the front light. Oth- erwise, the brakes cannot be assembled correctly.

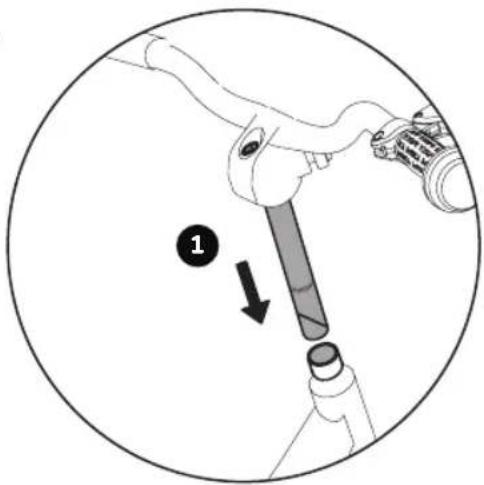

1. Insert the handlebar into the steer tube. If this

proves to be dicult, unscrew the handlebar a bit further. Adjust the handlebar to the desired height, align at right angles to the front wheel and lock it.

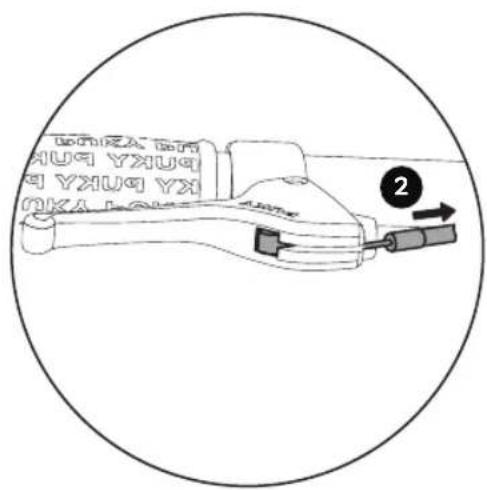

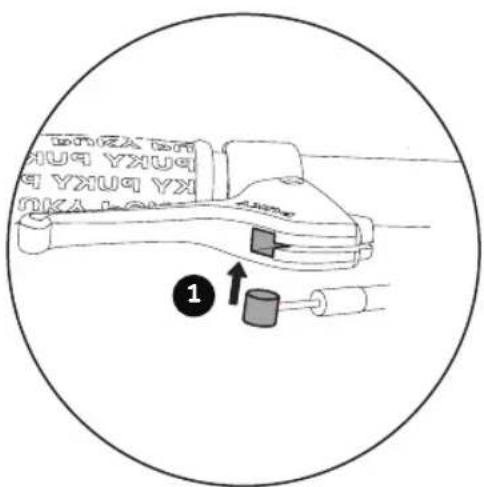

1. Take the loose end of the brake cable and insert

18'' The handlebar has been set at the factory to the highest position, thus, all spacers are located under the stem. If required, remove the stem and adjust the spacers to lower the handlebar height. For adjusting the handlebar height for models with ahead stem you will need the following tools. (The tools are not part of the scope of delivery.)

18'' To assemble the ahead stem you will need the following tools. (The tools are not part of the scope of delivery.)

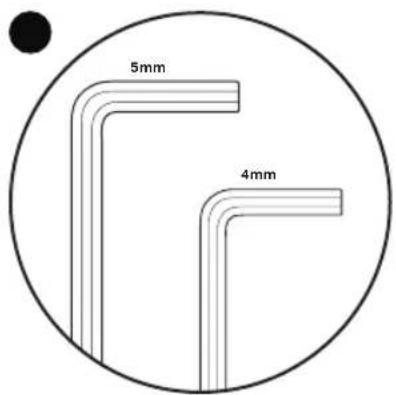

• 5 mm and 4 mm Allen key (CYKE und LS-PRO models) tube. Now set the handlebar height according to requirement. Possible positions are:

• All spacers located under the stem (highest handle- bar position, set at the factory)

• Spacers over the stem and under Correct setting: The handlebars must be easy to turn without play in the control bearing. (medium handlebar position)

• All spacers above the stem (lowest handlebar position) No spacers may be removed!

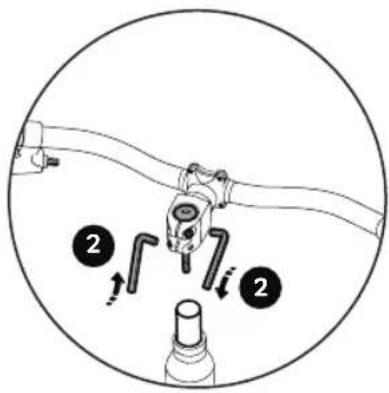

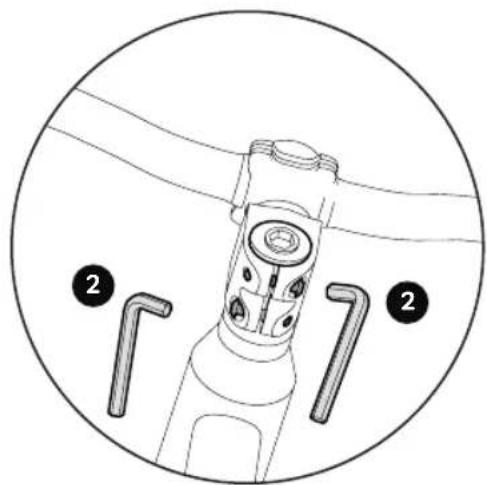

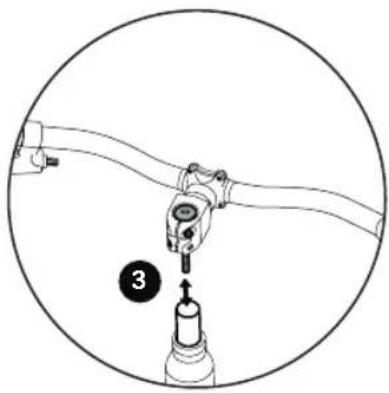

2. Now tighten up the steerer tube clamping screws

of the stem with the correct torque. The torque for the clamping of the stem on the steerer tube shaft: 5-6 Nm. Make sure that the stem is firmly mounted to the steerer tube and cannot rotate.

1. First undo and remove the ahead cap (5mm

2. Then undo the two steerer tube clamping screws

3. Now the stem can be removed from the steerer

1. After rearranging the spacers, fit the ahead cap

BRAKE) The bicycle has two calliper brakes. The left brake lever operates the brake on the front wheel, the right brake lever operates the brake on the rear wheel. Depending on the model, the bicycle may also have a back pedal brake for the rear wheel. To set the brake you will need the following tools. (The tools are not part of the scope of delivery.)

• Crosstip screwdriver

18'' To set the brake lever and tension you will need the follow- ing tools. (The tools are not part of the scope of delivery.)

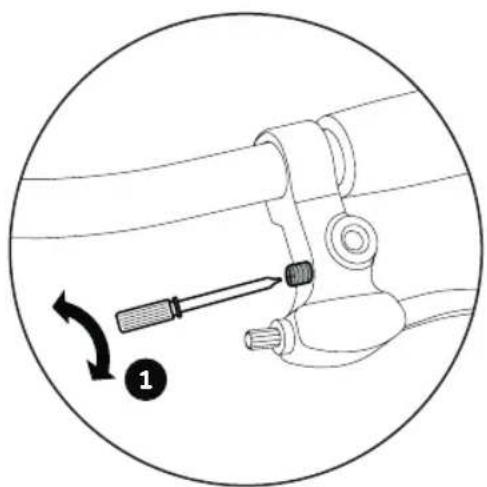

• Crosstip screwdriver You will need a cross-headed screwdriver. By turning the screw in, you move the appropriate brake arm away from the rim, turning the screw out moves the screw towards the rim.

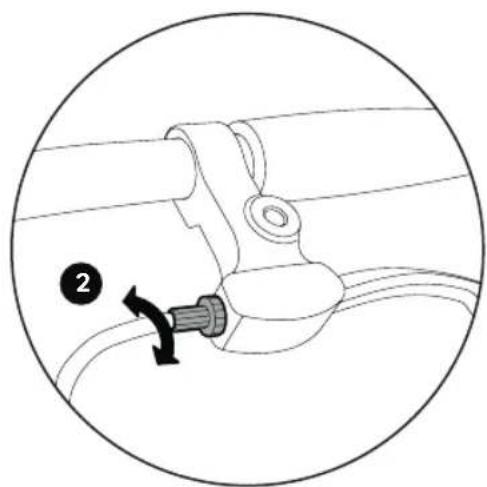

2. The tension can be set on the brake handle using

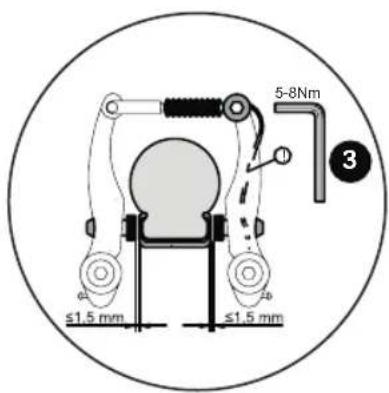

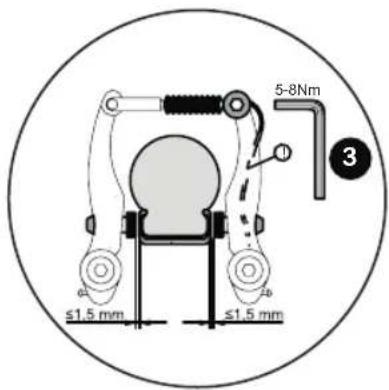

the knurled screw. The brake is set correctly if the brake pads are all approximately 1.5 mm from the rims. It is important that the brake levers are actuated several times so that the tension of the brake arms is evenly distributed to both sides and the settings take eect.

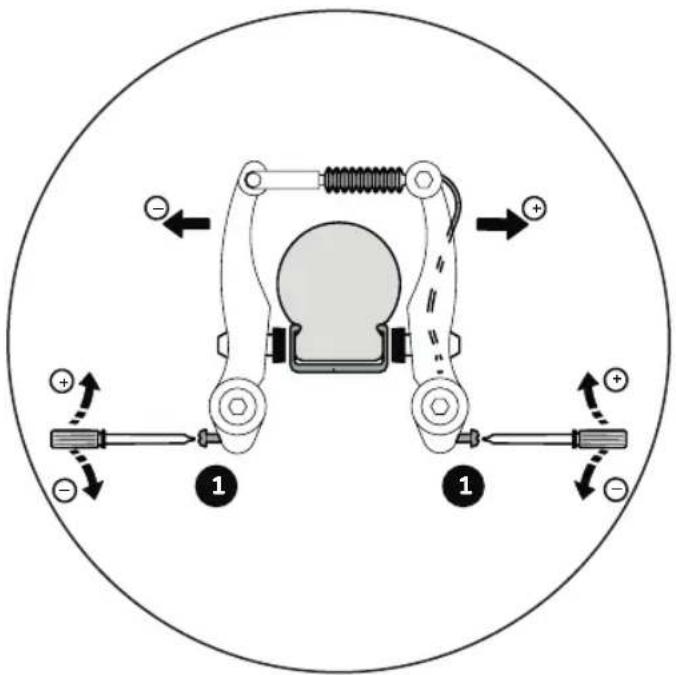

1. Centre the brake arms by turning the adjusting

screw. The gap between the brake pad <-> rim should be identical on both right and left and the contact between brake pad/rim should be applied simultane- ously on both sides when you brake.

1. The handle distance (distance of brake lever to

handlebar) can be adjusted individually using an cross-headed screwdriver on the brake handle. Please remember that braking must taken eect before the brake lever reaches the handlebar!

For replacing the brake pads you will need the following tools. (The tools are not part of the scope of delivery.)

• 5 mm Allen key ASSEMBLY PEDALS Please note that one pedal is equipped with a right-handed thread (for the right-handed driving direction) and the other pedal with a left-handed thread (for the left-handed direction). To assemble the pedals you will need the following tools. (The tools are not part of the scope of delivery.)

• 15 mm spanner below the top edge of the rim . If these settings are not correct, loosen the fastening nut of the brake pad with a 5 mm Allen key and align as described above. To do so, pull the brake lever and re-tighten the fastening nut (5-8 Nm).

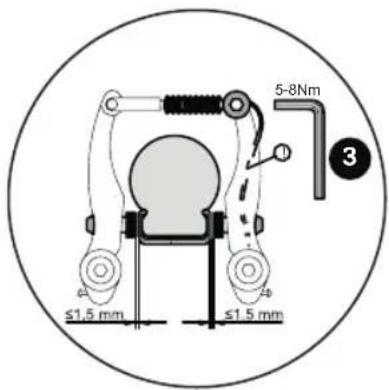

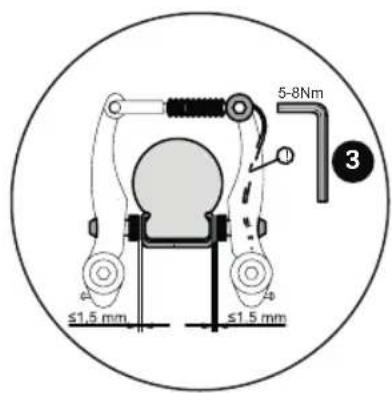

3. The tension is to be set so that the brake pads are

Screw the pedals with the aid of a 15 mm spanner to the cranks (20 Nm) – to do so, turn the Allen key on both sides in the direction of the front wheel. all approximately 1.5 mm from the rims. If subse- quent adjustment is necessary, undo the tensioning screw and adjust the tension (tighten the tensioning screw back up using 6-8 Nm!) or carry out the step described in brake lever and tension step 2.

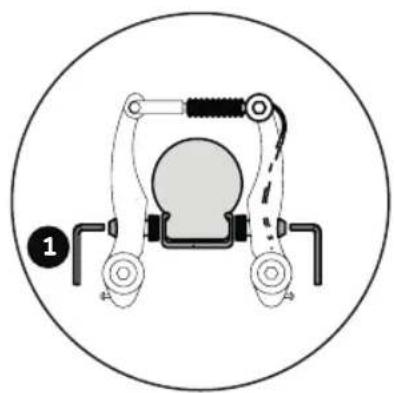

1. Undo the fastening nut of the brake pad using an

Allen key sized 5 mm (1) and replace the brake pads.

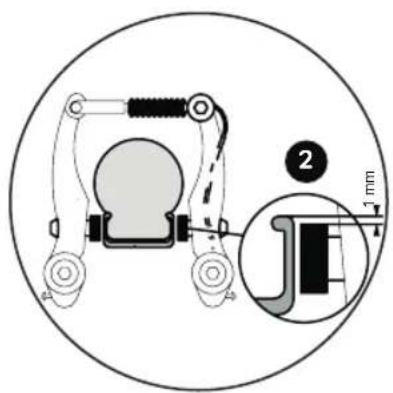

2. This means that the brake pads should rest 1 mm

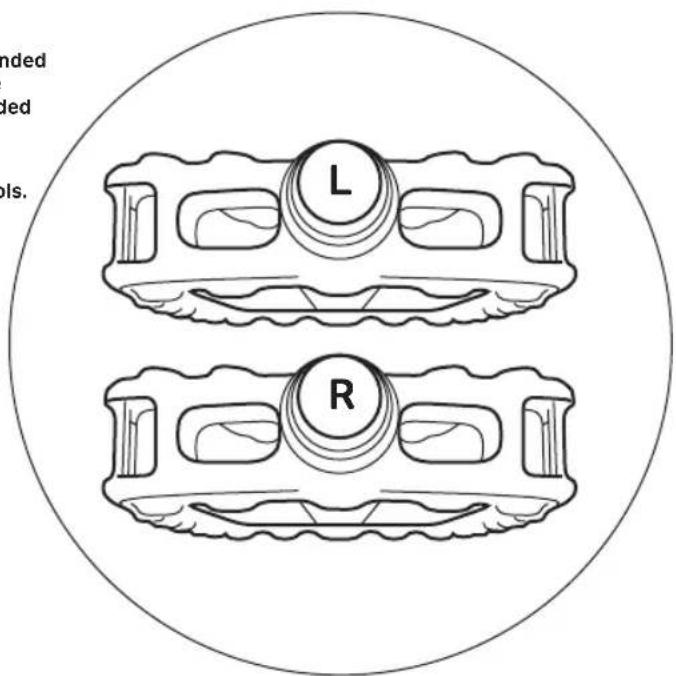

The pedals are labelled accordingly on the front face of the threaded axle with an "R" and an "L". 1 mm5-8Nm

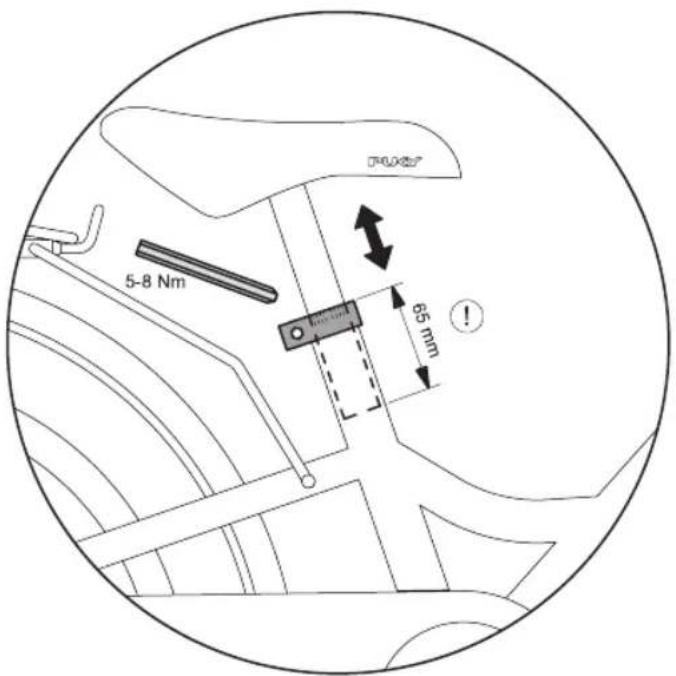

Adjust the seating position so that the child is seated upright and a good overview is ensured. The handle- bar, hand brake lever and bell must be easy for the child to reach. To set the seat position you will need the following tools. (The tools are not part of the scope of delivery.)

• 5 mm Allen key Please observe the following principles: STEEL/-CLASSIC / YOUKE 12: 45 cm STEEL/-CLASSIC / YOUKE 16: 49cm, CYKE 16: 48 cm / LS-PRO 16: 45 cm STEEL/-CLASSIC / YOUKE 18: 53cm, CYKE 18: 51 cm / LS-PRO 18: 50 cm Maximum height of the saddle: The minimum insertion depth of the saddle post is 65 mm. There is an appropriate marking on the saddle post. Then retighten the saddle clamp (torque 5-8 Nm). Setting the height of the saddle: The saddle can be pulled out after releasing the saddle clamp with the aid of a 5mm Allen key. Set the saddle so that at least the toes, preferably the ball of the foot, reach the ground in order to ensure balance can be achieved when at a standstill. 43836_kinderfahrrad_148x210.indd 1943836_kinderfahrrad_148x210.indd 19 09.06.2020 07:50:2709.06.2020 07:50:2720

SETTING THE CHAIN TENSION

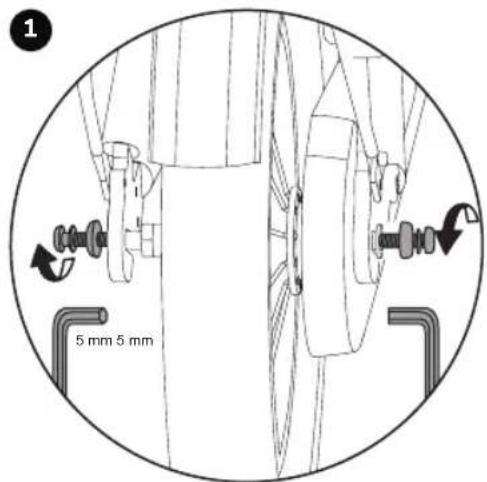

PRO 18 WITH CHAINLOOPER For setting the chain tension you will need the following tools. (The tools are not part of the scope of delivery.)

SETTING THE CHAIN TENSION

YOUKE, STEEL UND STEEL CLASSIC

For setting the chain tension you will need the following tools. (The tools are not part of the scope of delivery.)

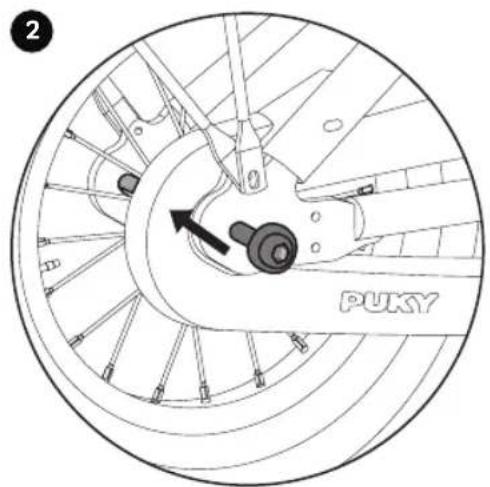

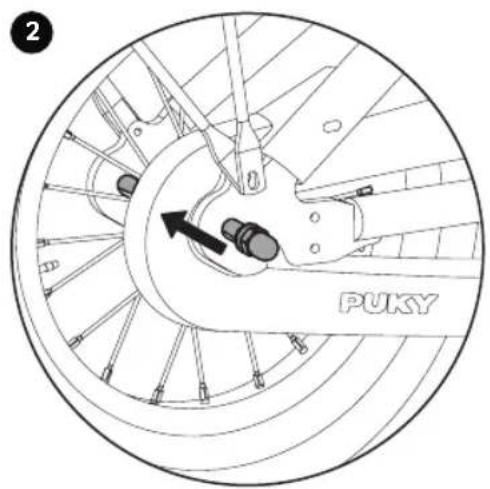

2. Adjust the chain tension by sliding the rear wheel

at the dropout. Then tighten the wheel nuts again (torque 15 Nm) Tire change at www.puky.de

2. Adjust the chain tension by sliding the rear wheel

at the dropout. Then tighten the allen screws again (torque 10 Nm) Tire change at www.puky.de The chain should have a vertical play of approximate- ly 1.5 cm. The setting of the chain tension is carried out as follows:

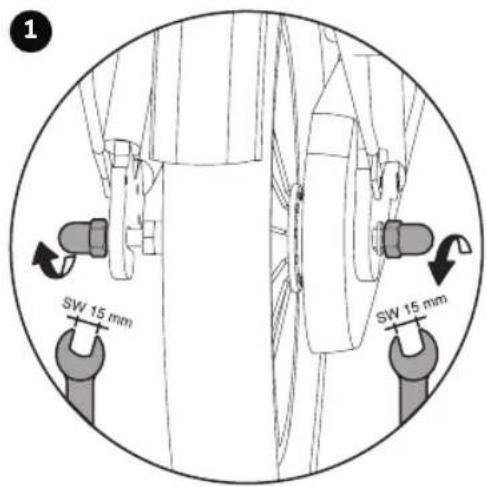

1. Undo both wheel nuts of the rear wheel.

The chain should have a vertical play of approximate- ly 1.5 cm. The setting of the chain tension is carried out as follows:

1. Undo both allen screws of the rear wheel

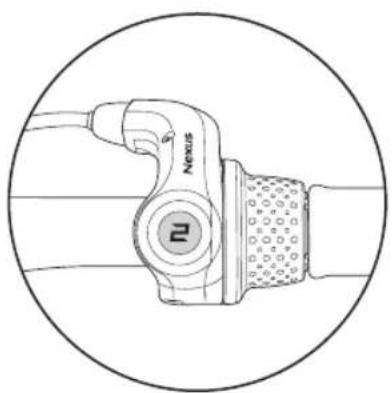

During the setting process, check both yellow lines from above using the window. Rotate the crank and switch the REVOSHIFT lever from 3 to 1 and then back to 3. Repeat this process two or three times and check to make sure that the gears are changed. Switch the REVOSHIFT lever from 1 to 2 again and make sure that the red line on the push rod at the end of the hub axis is aligned. If this is not the case, you must carry out the setting process again. After setting switch unit IV secure the tension adjust- ing screw using the tension adjusting nut (G). If renewed adjustment must be made during the course of product use, proceed as follows: Switch the REVOSHIFT lever to 2. Then rotate the tension adjusting screw (A) in order to align the red line (D) on the push rod at the end (C) of the hub axis.

(only for 3-gear models) To assemble the gear hub you will need the following tools. (The tools are not part of the scope of delivery.)

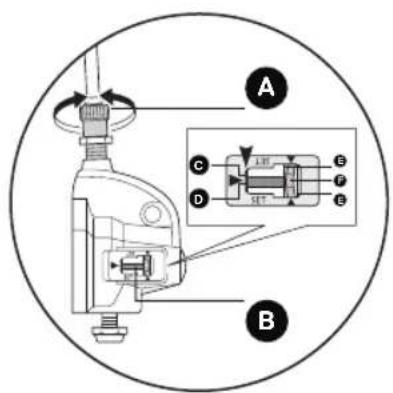

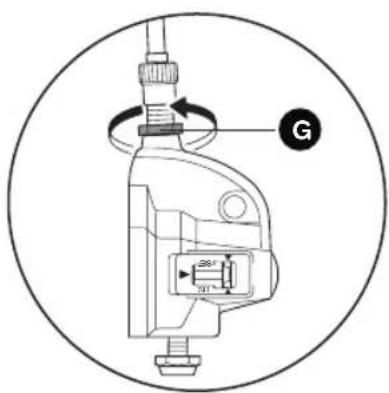

(only for 3-gear models) To set the gear hub you will need the following tools. (The tools are not part of the scope of delivery.)

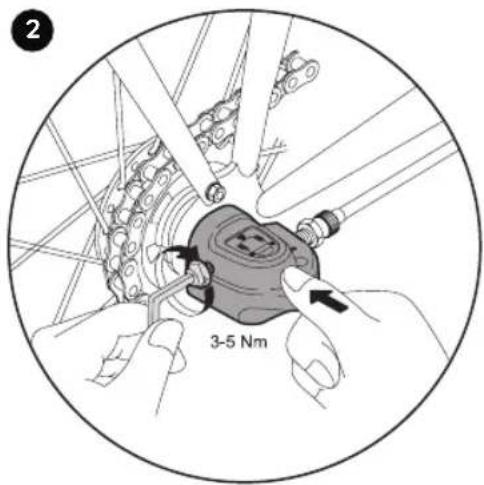

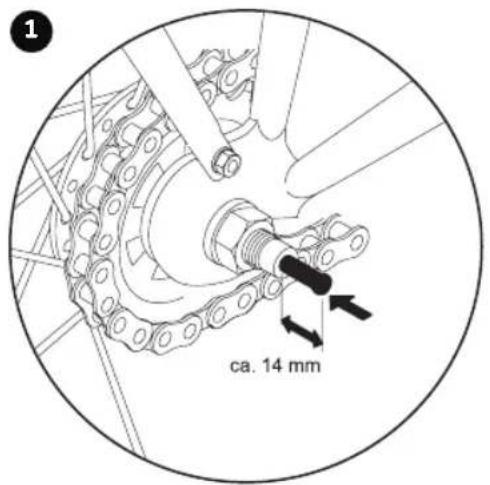

2. Then you can mount the gearbox onto the rear axle

and tighten it with a 5 mm Allen key (3-5 Nm.) No further settings need to be made to the gearbox.

1. Take the gear stick out of the plastic bag and insert

it as far as it will go, along with the black spring, into the right side of the rear axle (in driving direction). Tension adjusting screw Red line on push rod Tension adjusting nut Torque: 1.5 - 2.5 Nm Push rod Yellow lines End of hub axis Yellow section of link SET SET
