USER MANUAL Cool & Clean AAC14000WF BESTRON

White portable air purifier with perforated grille and digital display (no visible text or symbols)

FREE APP AVAILABLE AT:

AMOUNT APPROVAL

Google play

Download on the

App Store

AAC14000WF

INSTRUCTION MANUAL

DE

Bedienungsanleitung

EN

Instruction manual

SE

Instruktionsmanual

FR

Mode d'emploi

IT

Warning sign depicting a flame inside a triangle (no text or symbols)

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

QUALITY CONTROL

Labeled diagram of an air conditioner unit with numbered parts for identification

12 13 14

1

1. Bedienfeld:

Line drawing of a portable air conditioner unit with airflow direction arrows (no text or symbols)

Download on the App Store

ANDROID APP ON Google play

Line drawing of an air conditioning unit with fan, vent, and cooling fins (no text or symbols)

Line drawing of an air conditioner unit with cooling fan and pipe, no text or symbols present

SCREW 7

FEHLERBESEITIGUNG

Warning symbol of a flame inside a triangle (no text or numbers)

Attention, risque d'incendie!

R290

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

Contrôle qualité

TENSION SECTEUR 220-240 V
CONSOMMATION D'ÉNERGIE 1610 W
QUANTITÉ DE RÉFRIGÉRANT CA. 280 G
TYPE DE RÉFRIGÉRANT R 290
DISJONCTEUR DIFFÉRENTIEL RECOMMANDÉ 30 MA
PROTECTION SUR SITE 16 A

Labeled diagram of an air conditioner unit with numbered parts for identification

12 13 14

1

J. Bouton synchronisation "WIFI"

Line drawing of a portable air conditioner unit with airflow direction arrows (no text or symbols)

UTILISATION - MISE EN MARCHE ET ARRÊT

Download on the App Store

ANDROID APP ON Google play

Line drawing of an air conditioner unit with cooling fan and pipe, no text or symbols present

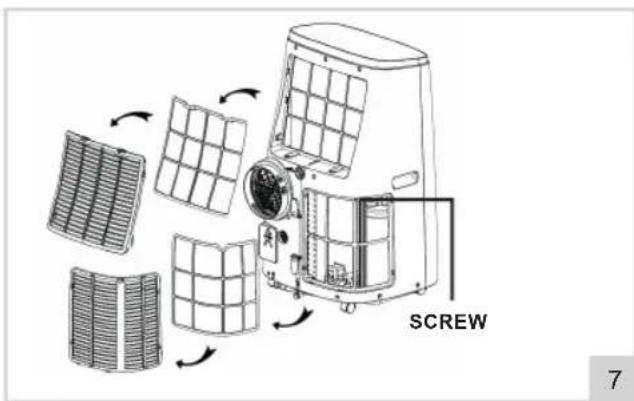

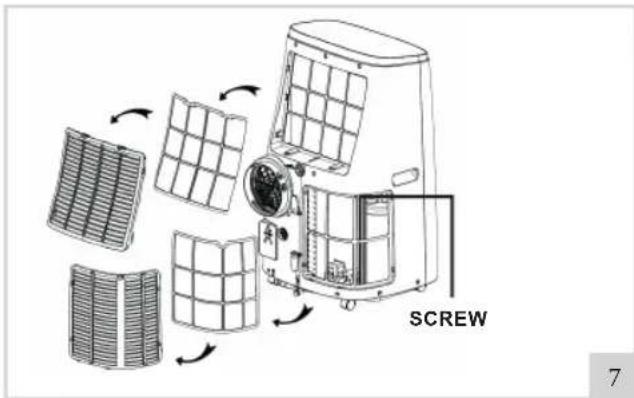

NETTOYAGE ET ENTRETIEN - NETTOYER LE FILTRE

S SCREW 7

ATTENTION :

WAT U MOET WETEN OVER DIT APPARAAT

Warning symbol of a flame inside a triangle (no text or numbers)

Let op, brandgevaar! R290

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Quality control

NETSPANNING 220-240 V
ENERGIEVERBRUIK 1610 W
HOEVEELHEID KOELMIDDEL CA. 280 G
TYPE KOELMIDDEL R 290
AANBEVOLEN AARDLEKSCHAKELAAR 30 MA
BESCHERMING TER PLAATSE 16 A

WERKING - Algemeen

Labeled diagram of an air conditioner unit with numbered parts for identification

12 13 14

1. Bedieningspaneel:

A. LED-displays

Download on the App Store

ANDROID APP ON Google play

Technical line drawing of an air conditioner unit with fan, vent, and cooling fins (no text or symbols)

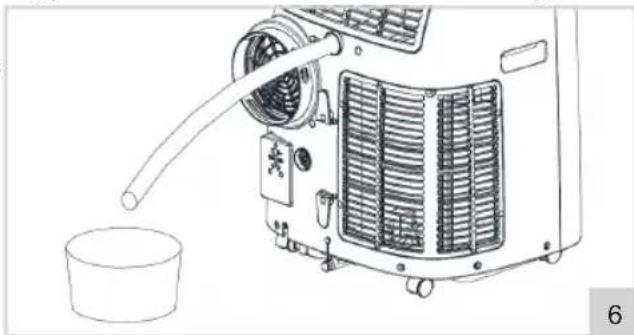

Continu-afvoer

Line drawing of an air conditioner unit with cooling pipes and a cylindrical container (no text or symbols)

REINIGING EN ONDERHOUD - Filter reinigen

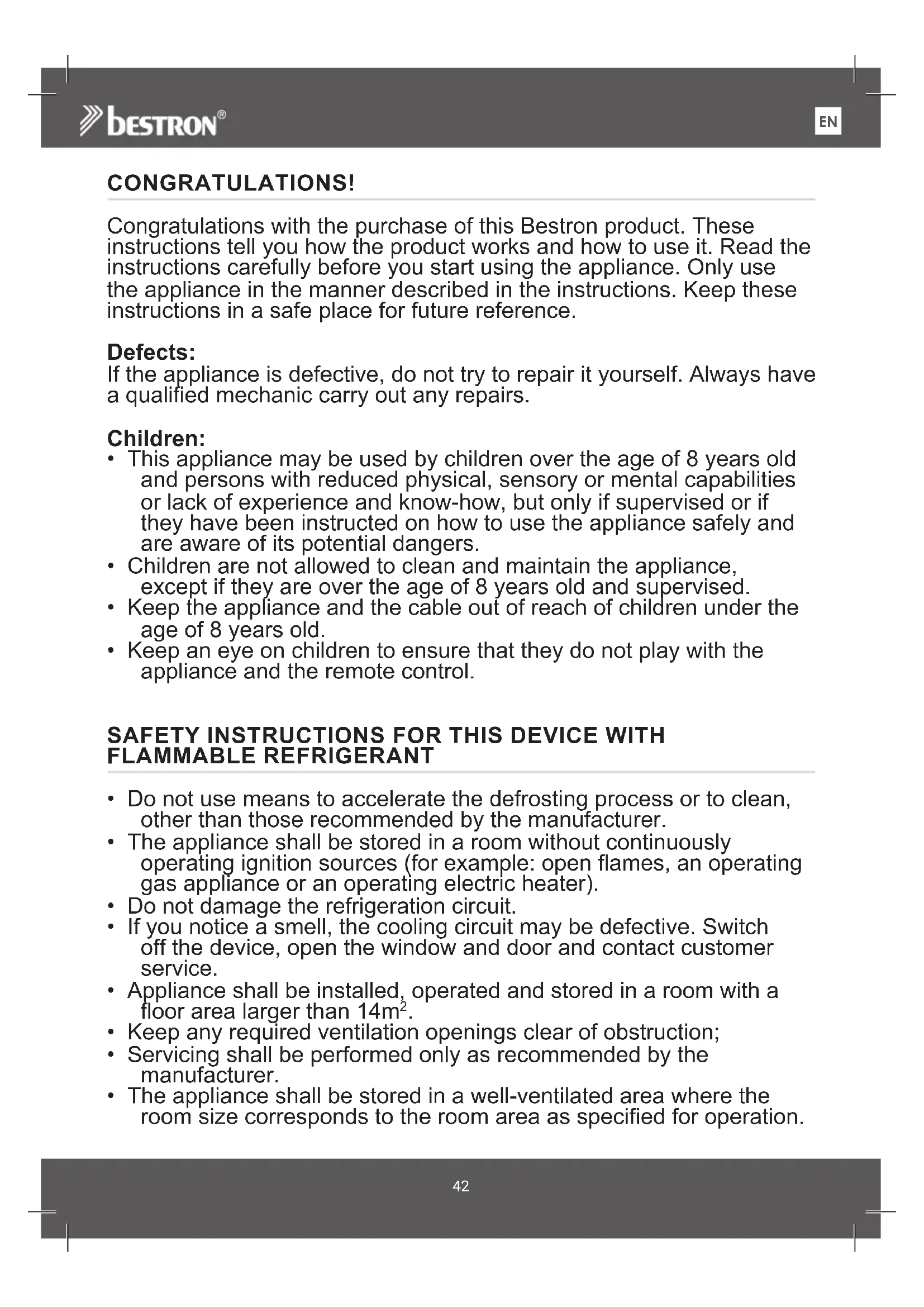

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  • Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance and the remote control.

SAFETY INSTRUCTIONS FOR THIS DEVICE WITH FLAMMABLE REFRIGERANT

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not damage the refrigeration circuit.
• If you notice a smell, the cooling circuit may be defective. Switch off the device, open the window and door and contact customer service.
• Appliance shall be installed, operated and stored in a room with a floor area larger than 14m^2 .
• Keep any required ventilation openings clear of obstruction:
  • Servicing shall be performed only as recommended by the manufacturer.

• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

• Servicing shall only be performed as recommended by the equipment manufacturer.
• If you pass this device on to someone else, you must include these operating instructions with the device.
• Do not switch the device on and off in quick succession. After switching off, wait a short time before switching the device on again.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

Notes:

- The air conditioning is only suitable for indoor use and is not suitable for other applications.

- Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it.

- Place the machine in a flat and dry place and keep a distance of above 30cm between the machine and the surrounding objects or walls.

• After the air conditioning is installed, ensure that the power plug is intact and firmly plugged into the power outlet, and place the power cord orderly to prevent someone from being tripped or pulling out the plug.

- Do not put any object into the air inlet and outlet of the air conditioning. Keep the air inlet and outlet free from obstructions.

- Do not use force to adjust the upper and lower air ducts to avoid damage.

- While adjusting the upper and lower wind-guide strips of the air outlet, pluck it with hands gently to avoid damaging wind-guide strips.

- When moving the machine, make sure that it is in an upright position.

- The machine should stay away from gasoline, flammable gas, stoves and other heat sources.

- Don't disassemble, overhaul and modify the machine arbitrarily, otherwise it will cause a

Warning symbol of a flame inside a triangle (no text or numbers)

Caution, risk of fire! R290

machine malfunction or even bring harm to persons and properties.

To avoid danger, if a machine failure occurs, ask the manufacturer or professionals to repair it.

- Do not install and use the air conditioning in the bathroom or other humid environments.

• Always switch off the device before removing the power plug. Do not pull on the power cord when doing this

- Do not place cups or other objects on the body to prevent water or other liquids from spilling into the air conditioning.

- Do not use insecticide sprays or other flammable substances near the air conditioning.

- Do not wipe or wash the air conditioning with chemical solvents such as gasoline and alcohol. When you need to clean the air conditioning, you must disconnect the power supply, and clean it with a half-wet soft cloth. If the machine is really dirty, scrub with a mild detergent.

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance shall be installed in accordance with national wiring regulations.

- Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

- The installation of pipe-work shall be kept to a minimum x 14m ^2

- Spaces where refrigerant pipes shall be compliance with national gas regulations. Transport of equipment containing flammable refrigerants.

- When disposing of the device, observe the national regulations for the disposal of devices with flammable refrigerants. Ask your responsible waste disposal company.

- When the device is not in use, only store it in dry and frost-free rooms. The device must not be damaged during storage.

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

- Dispose of the batteries of the remote control only at the designated collection points.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman Quality control

MAINS VOLTAGE 220-240 V
POWER CONSUMPTION 1610 W
AMOUNT OF REFRIGERANT CA. 280 G
TYPE OF REFRIGERANT R 290
RECOMMENDED RESIDUAL CURRENT CIRCUIT BREAKER 30 MA
PROTECTION ON SITE 16 A

OPERATION - General

The appliance is only intended for household use, not for professional use.

1. Control panel:

A.LED-displays

B. Button swing function "SWING"

C. Button timer function "TIMER"

D. Button ventilator function "SPEED"

E. Button temperature up "UP"

F. Button temperature down "DOWN"

G. Button set mode "MODE"

H. Button on/off "SLEEP"

I. Button on/off "POWER"

J. Button synchronise "WIFI"

1. Air outlet

2. Blinds/shutters

3. Handles

4. Castors

5. Warm air outlet

6. Cord with plug

7. Drain collection tray for condensation water

8. Grids with removable washable filter

9. Continuous discharge of condensation water

10. Rubber cap

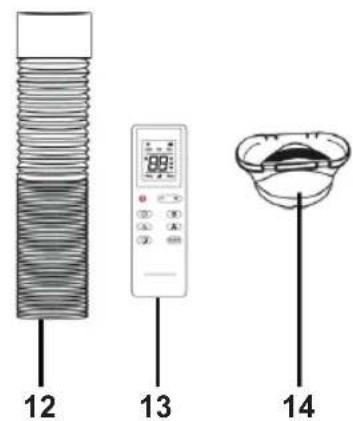

11. Drain hose

12. Remote control

(2 x AAA battery, not included)

1. Adapter

INSTALLATION

This air conditioner must be connected to an electrical circuit with a 16 A circuit breaker. It must be kept away from easily flammable materials with a free space of 30 cm around the device. In addition, a 30 mA residual current device is recommended. Only use an approved extension cable with a capacity of 16 A. The air conditioner must be placed on a level surface with sufficient load capacity.

INSTALLATION - Install heat dissipation

1. Choose a location near a window and an electrical outlet to place the device.
2. Screw the adapter (figure 1-14) onto the drain hose (figure 1-12), see also figure 2.

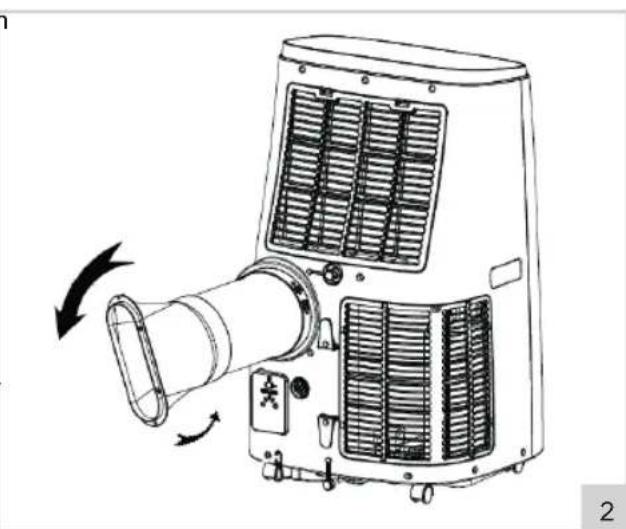

3. Mount the exhaust hose on the warm air outlet (figure 1-6) at the back of the appliance, see also figure 2.

ATTENTION:

• To avoid damage, the drain hose should not be deformed or twisted excessively.
- The maximum length of the drain hose is 150 cm. Do not use extensions or other drain hoses as this can cause serious malfunctions.
• To prevent overheating, do not block the air outlet of the device.
- If you have a tilt window instead of a sliding window, purchase a window sealing set to seal your entire window airtight.

Line drawing of an air conditioner unit with airflow direction arrows (no text or symbols)

USE - Power on and off

1. Insert the plug in the wall socket. The appliance will beep, this is normal. The displays (Figure 1-A) indicate the current room temperature.
2. Press the "POWER" button (Figure 1-I). The device will start operating in the last mode used. When you turn on the device for the first time, it is in cooling mode. The appropriate indicator light above the button "MODE" comes on.
3. Set the preferred air flow direction. Direct the air flow straight up or slightly forward by setting the horizontal blinds/shutters (figure 1-3) with the "SWING" button (see figure 1-B), using the supplied remote control or via the app. Easily rotate or move the unit thanks to the sturdy castors to direct the airflow into the room.
4. Press the button again "POWER" to switch off the appliance.
5. Remove the plug from the wall socket after use.

USE - Set Mode

The device is equipped with three working modes, with which you can ventilate, dehumidify and cool the room.

Ventilate

1. Press the "MODE" button (Figure 1-G) once or multiple times, until the indicator light "SPEED" Lights up. The device will operate as a ventilator.
2. Press the "SPEED" button (Figure 1-D) to switch between low or high speed for the discharged air.

Dehumidify

1. Press the "MODE" button (Figure 1-G) one or more times, until the indicator "DEHUMIDIFY" lights up. The device switches to the lowest speed and will now extract moisture from the air.

Cooling

1. Press the "MODE" button (Figure 1-G) once or more times, until the indicator light "COOL" lights up. The device will now function as an air cooler and will cool the air by means of a cooling element.

2. Use the "UP" (Figure 1-E) "DOWN" (Figure 1-F) buttons to set the cooling temperature between 16^ and 31^ .

3. Press on the button "SPEED" (Figure 1-D) to switch between low or high speed for discharged air.

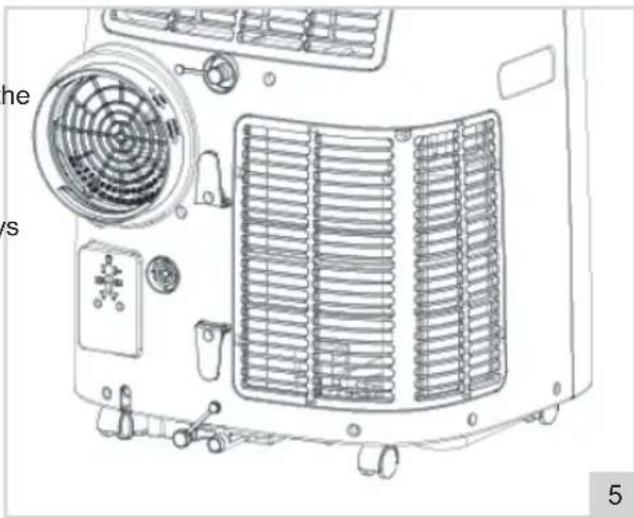

ATTENTION:

- When the internal water collector is full, the appliance stops operating and the indicator light on the control panel lights up "FULL". You must empty the water collector before you can use the appliance again (see 'CLEANING AND MAINTENANCE - Water drainage')

- If you frequently use the appliance to dehumidify or cool air, you can also use the continuous discharge (see 'CLEANING AND MAINTENANCE - Water drainage').

USE - Sleep mode

The device is equipped with a sleep function. Enabling this function will allow the appliance to operate at its quietest and most energy efficient setting

ATTENTION:

The sleep mode only works in the "COOL" mode.

1. Press the "SLEEP" button (Figure 1-H) to enable the sleep function. The device switches to the lowest and most energy-efficient setting.

2. Press the "SLEEP" button again to disable the sleep function.

ATTENTION:

After switching off the sleep function, the device will remain in "COOL" mode.

USE - Timer mode

The device is equipped with a timer that allows you to switch the device on or off automatically.

Automatic power-on

When the appliance is switched off:

1. Press the "TIMER" button (Figure 1-C). The display starts to flash.

2. Use the button UP/DOWN to set the switch-on time between 1 and 24 hours.

3. Wait for the displays to stop flashing. The switch-on timer is set.

4. Press the button again "TIMER" to adjust the switch-on time if necessary.

5. When the displays flash, press the button "TIMER" to turn off the timer.

Automatic power-off

When the appliance is switched on:

1. Press the "TIMER" button (figure 1-C). The display starts to flash.

2. Use the UP/DOWN button to set the power-off time between 1 and 24 hours.

3. Wait for the displays to stop flashing. The power-off timer is set.

4. Press the "TIMER" button again to adjust the power-off time if necessary.

5. When the displays flash, press the "TIMER" button to turn off the timer.

USE - Remote control

The device can also be operated using the remote control included (figure 3). The remote control works on two AAA batteries (not included). Open the battery compartment on the bottom, insert the batteries and close the lid. The buttons on the remote control function the same as the buttons on the control panel.

For optimal use:

• Make sure the distance between the device and the remote control does not exceed 6 metres.

- Point the remote control at the device and ensure the direction angle is less than 30 degrees.

1. Explanation remote control:

A. Button on/off "POWER"

B. Timer function button "TIMER"

C. Adjust slat position button "SWING"

Press 1x = continued swing

Press 2x = set new position

D. Set sleep mode button

E. Set temperature/time button

F. Set mode button "MODE"

G. Set ventilator speed button

H. Set temperature unit button:

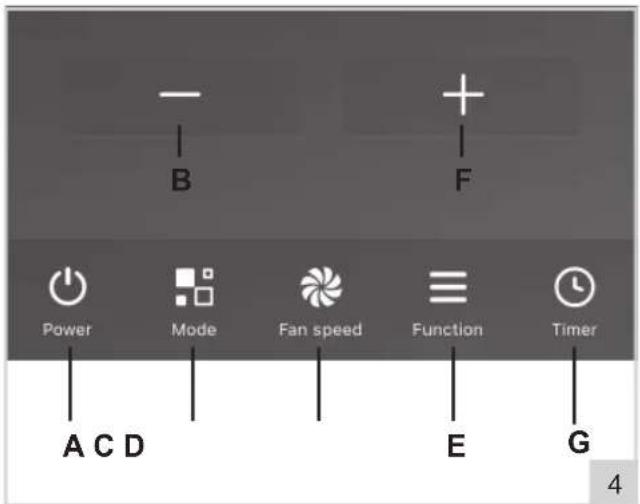

This device can also be operated via the 'Smart Life - Smart Living' app. This app can be downloaded from the App Store and Google Play. You can also scan the QR code below.

(System-requirements: iOS 8.0 or higher/Android 4.1 or higher).

After downloading, follow the instructions to install the app. You can then choose from the following options:

- Login with an existing account

Use this option if you have previously created an account in this app.

- New account

Preferably use this option. You can then later share the app and its functionalities with your family members.

- Try now

This allows you to use the app without an account.

Download on the App Store

ANDROID APP ON Google play

Once installed, follow the steps below to pair the device with the app.

Make sure that the screen on your phone does not turn off too quickly.

Make sure you are logged into your WiFi network and have the password to hand.

1. Open the app and press the plus sign in the top right (+) to add a device.

2. Scroll down and press 'Air conditioning partner (WiFi)', check the network entered and the corresponding password. If the password is not entered, you must enter it yourself. Now press 'Next' and check 'Confirm indicator rapidly blink'.

ATTENTION: Do not yet press 'Next'.

1. First plug in the air conditioner.

ATTENTION: Do not yet press 'POWER'.

1. Now press the 'WiFi' button (figure 1-J) and hold the button until the unit beeps. Shortly afterwards, the light above it will flash quickly.

2. Now press 'Next' in the app within 10 seconds. The app will now search for the device. This takes a maximum of 2 minutes. When the device is found, the app will display "BESTRON PORTABLE AIR CONDITIONER AAC14000WF".

3. Click on 'Continue'. The device has been added to the main screen.

If the device is not found, close the app and unplug the device. Then repeat steps 1 to 4.

1. Now select the device in the app, the buttons at the bottom of the app work the same as the buttons on the control panel:

A. On/off button (Power)
B. Temperature/Time down button (-)
C. Mode button (Mode)
D. Ventilator speed button (Ventilator speed)

E. Function button (Function) For 'Swing' mode and 'Sleep' mode

F. Temperature/Time up button (+)

G. Timer function button (Timer)

- B + F Power Mode Fan speed Function Timer A C D E G 4

Add your family members to the app

In the app it is possible to create ‘families’ and then add ‘members’ to that family. This allows multiple users to operate your device with the same app. This function can only be used if you have created an account in the app.

1. Tap on 'Profile' at the bottom right of the app.
2. Then press 'Home management'.
3. Here the family "My house" is ready to be edited. Press it and enter the requested information.
4. Press 'Save' in the top right and then 'Continue'. The family has now been created.
5. Go back to the home screen and press 'Add members'. You can now invite other members of your family to control the device via the app.

Families and members can be removed via Home management by selecting them and pressing 'Delete'.

Removing the device from the app

To remove the device from the 'Smart Life - Smart Living' app, press the device on the home screen "My Family" for 2 seconds. Then click on 'Remove Device' and on 'Confirm'. The device has been removed from the family.

Comment:

The 'Smart Life - Smart Living' app is not a Bestron product and Bestron therefore does not provide any service or support for this app. Bestron is not responsible for how the app functions.

More information: www.tuya.com

CLEANING AND MAINTENANCE - General

Over time, dust can accumulate in the grids and between the fins in the appliance.

1. Switch off the appliance and unplug it.
2. Remove the dust from the grids and louvers with a hand brush and/or vacuum cleaner.
3. Clean the housing with a soft, damp cloth. Then dry it thoroughly with a dry cloth. Never immerse the appliance in water! Make sure that no moisture gets into the electrical connections.

CLEANING AND MAINTENANCE - Water drainage

The device is equipped with an internal water collector. When it is full, the appliance stops working and the indicator light on the control panel lights up to "FULL".

1. Switch off the appliance and unplug it.

2. Place the appliance on a platform and place a bucket or other type of container under the drainage hole of the water collector.

3. Unscrew the rubber cap from the drainage hole (figure 1-8), see also figure 5. The water flows from the water collector into the bucket.

4. When the water collector is empty, put the rubber cap back into the drain hole and make sure it is tightly closed.

ATTENTION:

- Move the appliance carefully and always vertically to prevent water from leaking over the edge of the internal water collector. When emptying, you can tilt the appliance slightly to get the last water out of the water collector.

- If the bucket or other type of container cannot collect all the water at once, replace the rubber cap of the drainage hole in the meantime. Empty the bucket and repeat the steps.

he vs 5

Continuous drainage

If you frequently use the device to dehumidify or cool air, you can also use the continuous discharge.

1. Switch off the appliance and unplug it.

2. Unscrew the rubber cap from the continuous drain hole (figure 1-10), see also figure 6.

3. Connect a drain hose (not included) to the drain hole (16 mm, figure 6) and make sure the end of the hose ends in a drain, bucket or other type of receptacle.

4. Use the device as indicated in this manual.

Line drawing of an air conditioner unit with cooling fan and pipe, no text or symbols present

Cleaning and maintenance – Clean the filter

For optimal results, you should clean the 2 filters every two weeks and replace them at least once a year, or more often if the filter is visibly closed. Also, clean the filter before storing the appliance for extended periods of non-use or when returning it to use after a longer period of time.

1. Switch off the appliance and unplug it.

2. Remove the filters at the top and bottom rear of the appliance (Figure 7).

3. Rinse the filters with lukewarm water or soak in warm soapy water.

4. Let the filters dry thoroughly.

5. Place the cleaned (or new) filters back into the device.

SCREW 7

ATTENTION:

• If the filters are not properly dried, water can get into the device. This can cause (electrical) damage.

PROBLEM SOLVING

Problem Possible	cause Advised solution
The air-conditioning is not functioning	There is no electricityThe room temperature is lower than the set cooling temperatureIn the cooling mode: the room temperature is too low or too highIn the dehumidifying mode: the room temperature is too lowThe device is standing in sunlight	Check whether the socket the device is connected to, has electricityChange the set cooling temperatureThe device optimally functions at a room temperature between 7°C and 35°CThe device optimally functions at a room temperature of 17°C and higherMove the device into the shade
Cooling is not functioning properly	Doors or windows are openCentral heating or other sources of heatThe filter is dirty or cloggedThe inlets or outlets are blocked	Close open doors and windowsTurn off the heatingClean the filterRemove obstructions
The device makes a lot of noise	The device is not placed on a stable and flat surface	Place the device on a stable and flat surface
Compressor does not function	The device is overheated Wait	a couple of minutes until the temperature has lowered and restart the device
Remote control does not work	The batteries are emptyThe distance between device and remote control is too bigThe remote control is not aimed at the device	Replace the batteriesStand closer to the deviceAim the remote control at the device
Display indicates ‘E1’	The outlet temperature sensor does not function properly	Have the outlet temperature sensor checked by a professional
Display indicates ‘E2’	The room temperature sensor does not function properly	Have the room temperature sensor and switches checked by a professional

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear

- Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
  • Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

• Cords

• Lamps

- Glass parts

• Filters

• Batteries

• The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.

• Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department: www.bestron.com/service

COMPLIMENTI!

Warning symbol of a flame inside a triangle (no text or numbers)

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

Controllo qualità

TENSIONE DI RETE 220-240 V
CONSUMO DI ENERGIA 1610 W
QUANTITÀ DI REFRIGERANTE CA. 280 G
TIPO DI REFRIGERANTE R 290
INTERRUTTORE DIFFERENZIALE CONSIGLIATO 30 MA
PROTEZIONE IN LOCO 16 A

Line drawing of a portable air conditioner unit with airflow direction arrows (no text or symbols)

Download on the App Store

• Utilizzare subito

Technical line drawing of an air conditioning unit with fan, vent, and control panel (no text or symbols)

Drenaggio continuo

Line drawing of an air conditioner unit with cooling pipes and a cylindrical container (no text or symbols)

Warning sign depicting a flame inside a triangle (no text or symbols)

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

Control de calidad

Line drawing of a portable air conditioner unit with airflow direction arrows (no text or symbols)

Download on the App Store

ANDROID APP ON Google play

Technical line drawing of an air conditioning unit with fan, vent, and cooling pipes (no text or symbols)

Drenaje continuo

Line drawing of an air conditioner unit with cooling pipes and a bucket (no text or symbols)

Warning sign depicting a flame inside a triangle (no text or symbols)

Let op, brandgevaar! R290

Kommentarer:

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Kvalitetskontroll

STRÖM 220-240 V
ENERGIFÖRBRUKNING 1610 W
MÄNGD KÖLDMEDIUM CA. 280 G
TYP AV KÖLDMEDIUM R 290
REKOMMENDERAD JORDFELSBRYTARE (RCD-BRYTARE) 30 MA
SKYDD PÅ PLATS 16 A

Technical diagram of an air conditioner unit with numbered parts labeled for identification.

12 13 14

1

1. Kontrollpanel:

A. LED-displayer

Line drawing of a portable air conditioner unit with airflow direction arrows (no text or symbols)

Download on the App Store

ANDROID APP ON Google play

Technical line drawing of an air conditioning unit with fan, vent, and control panel (no text or symbols)

Kontinuerlig dränering

Line drawing of an air conditioner unit with cooling fan and cylindrical container (no text or symbols)

• Felaktig installation

QR code image containing encoded data, no visible human-readable text

NEED HELP? CHAT WITH US! WHATSAPP CUSTOMER SERVICE

BESTRON.COM/WHATSAPP
