USER MANUAL WILD Samba NGS
NORSK I SUOMI I SVENSKA I DANSK I LIETUVIU
www.ngs.eu
USER'S MANUAL

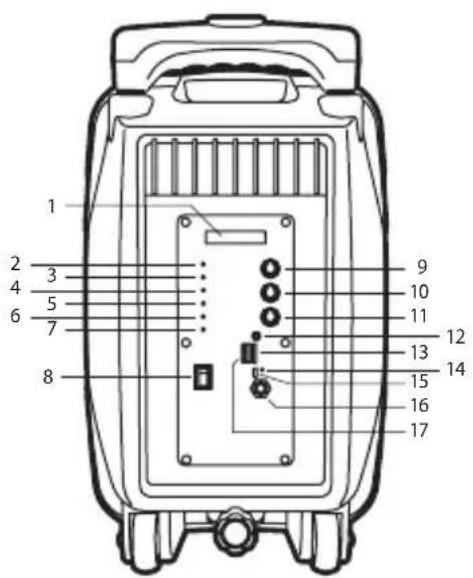

CONTROL BUTTONS
1 LED display
2 Mode / (Long press) LED lights ON/OFF
3 Rec
4 Repeat (one/all) / (Long press) Mic priority ON/OFF
5 Backward
6 Play/Pause
7 Forward
8 Power ON/OFF
9 Volume
10 Microphone volume control
11 Echo microphone control
12 Audio input
13 Micro SD input (32GB max)
14 LED light (blinking red: charging / steady red: charged)
15 Charging input
16 Microphone input
17 USB audio input (32GB max)

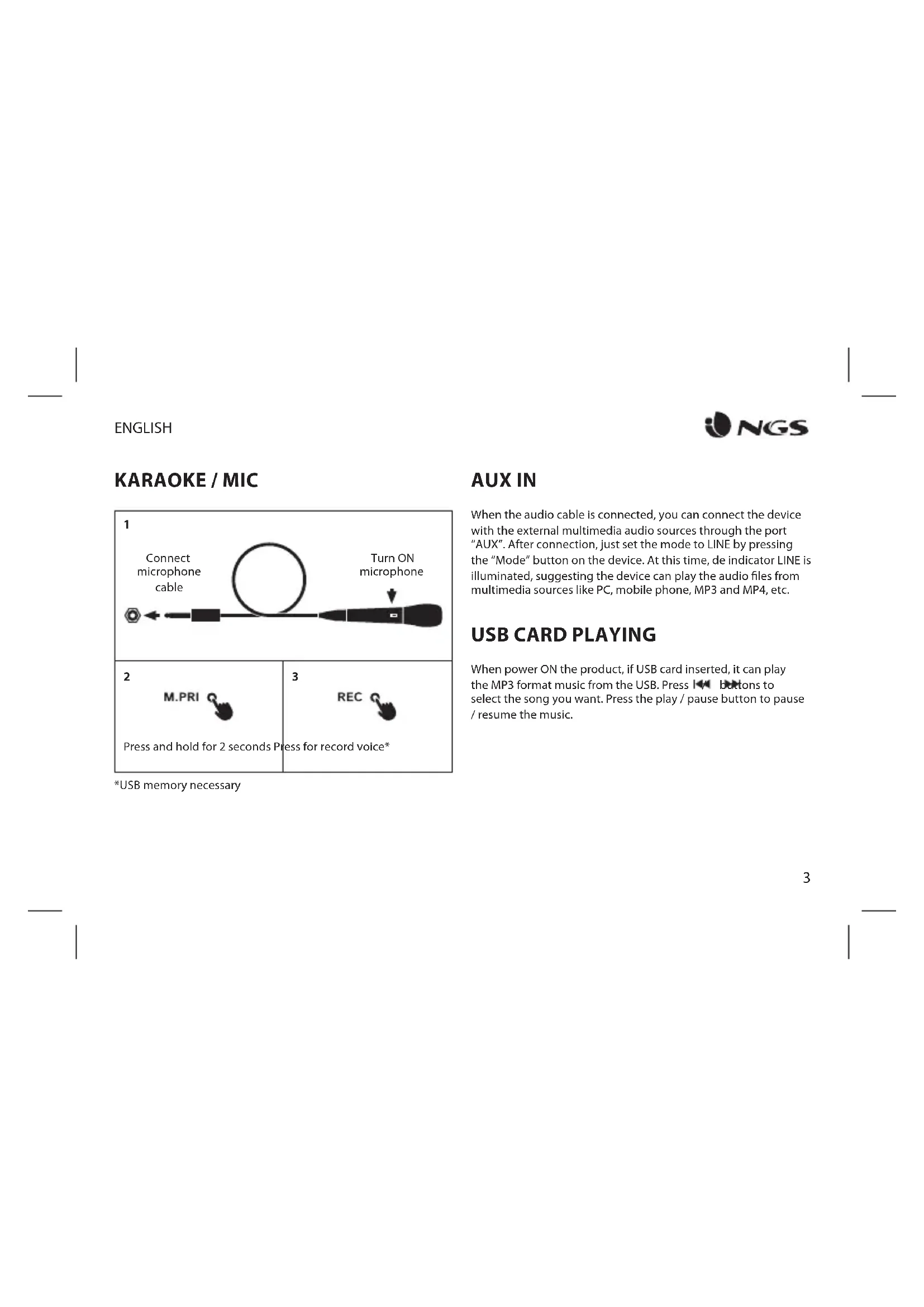

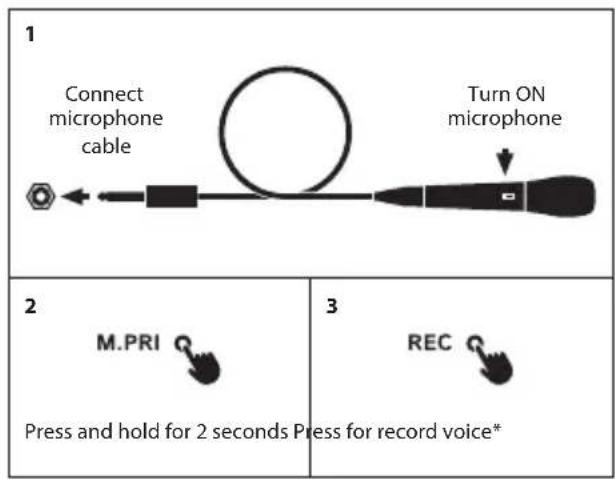

KARAOKE/MIC
AUX IN
When the audio cable is connected, you can connect the device with the external multimedia audio sources through the port "AUX". After connection, just set the mode to LINE by pressing the "Mode" button on the device. At this time, de indicator LINE is illuminated, suggesting the device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.
USB CARD PLAYING
When power ON the product, if USB card inserted, it can play the MP3 format music from the USB. Press buttons to select the song you want. Press the play / pause button to pause / resume the music.
*USB memory necessary
USER'S MANUAL
MICRO SD CARD PLAYING
When the device is turned on it can play music in MP3 format from a Micro SD card.
Press the Next / Previous button to select the song you want. Press the play / pause button to pause / resume the music.
Note: In the USB / Micro SD modes you can choose to repeat one or all songs by pressing the REPEAT button.
BLUETOOTH MODE
A. Press the MODE button until the screen displays the word BLUE. In Bluetooth mode the device goes into searching / sparing / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS WILDSAMBA" and select it to pair (for first time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (Depend on the of mobile phone's type and configuration, manual reconnection may require on some devices).
HOW TO CHARGE?
Connect the USB charging cable to USB charger (PC/Laptop/ Power bank/etc). The charging LED blinks red while charging and remains steady once the battery reaches 100% .
Charging time would be 3 hours.
LED LIGHTS
To change the lights mode, press and hold MODE button for 2 seconds.
ENGLISH
NGS
TECHNICAL SPECIFICATIONS
Output peak power: 30W
Battery: 2400mAh/3.7V
Compatible with bluetooth
Working range: 10m
Frequency response: 90Hz 20kHz
USB port
Aux input
Micro input
Micro SD card reader
RMS:8W
LED screen
LED lights
Battery warranty
The battery is a consumer product, and as such it is under warranty for 12 months.
If at any time in the future you should need to dispose of this product please note that:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)
MANUEL DE L'UTILISATEUR
BOUTONS DE COMMANDE
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:
HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARDE EUROPEAS ARMONIZADAS:
EN60065:2014/AC:2016 EN50581:2012
EN62479:2010 IEC62321-4:2013
ETS1EN301489-1V2.2.0(2017-03) IEC62321-5:2013
ETSIEN301489-17V3.2.0(2017-03) IEC62321-6:2015
ETSIEN300328V2.1.1:2016-11 IEC62321-7-1:2015
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
Y,PORLOTANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:
RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
DIRECTVA DE EQUIPOS DE RADIO 2014/53/EU
DIRECTIVA ROHS 2011/65/EU & (EU) 2015/863
AUTHORIZED REPRESENTATIVE: LURBE GRUP S.A
REPRESENTANTEAUTORIZADO: PORTUETXE27
20018 SAN SEBASTIAN (GUIPUZCOA)
SPAIN
SAN SEBASTIAN, OCTOBER 15TH, 2019
SAN SEBASTIAN, 15 DE OCTUBRE DE 2019
SIGNED
FIRMADO
RAUL MARTIN
PRODUCT MANAGER
LURBE GRUP S.A. SAN SEBASTIÁN, ESPAGNE, SOUS SA RESPONSABIITE EXCLUSIVE, CERTIFIE LA CONFORMITE DU PRODUIT:
LURBE GRUP S.A, SAN SEBASTIAN, ESPAÑA, DECLARA SOB A SUA EXCLUSIVA RESPONSABILIDADE A CONFORMIDADE DO PRODUTO:
NGS:HAUT-PARLEUR BLUETOOTH NGS / MODELE: WILDSAMBA
NGS:ALTO-FALANTE BLUETOOTH NGS / MODELO:WILDSAMBA
A ETÉ TESTÉ CONFORMÉMÉN T AUX NORMES STANDARD EUROPEÉNNES HARMONISEES SUIVANTES:
FOI TESTADO EM CONFORMIDADE COM AS SEGUIENTES NORMAS STANDARD EUROPEIAS HARMONIZADAS:
EN60065:2014/AC:2016 EN 50581:2012
EN62479:2010 IEC62321-4:2013
ETSIEN301489-1V2.2.0(2017-03) IEC62321-5:2013
ETSIEN301489-17V3.2.0(2017-03) IEC62321-6:2015
ETSIEN300328V2.1.1:2016-11 IEC62321-7-1:2015
ET RESPECTE DONC LES EXIGENCES ET LES DISPOSITIONS DES DIRECTIVES SUVANTES DU PARLEMENT EUROPEEN:
E,POR CONSEGUINTE, CUMPRE COM OS REQUISITOS E PROVISOES DAS SEGUIENTES DIRECTIVAS DO PARLAMENTO EUROPEU:
DIRECTIVE SUR LES ÉQUIPÉMENTS RADIO 2014/53/EU
DIRECTIVE ROHS 2011/65/EU & (EU) 2015/863
technical support: www.ngs.eu/support www.ngs.eu
