USER MANUAL Roller Furia 3 NGS

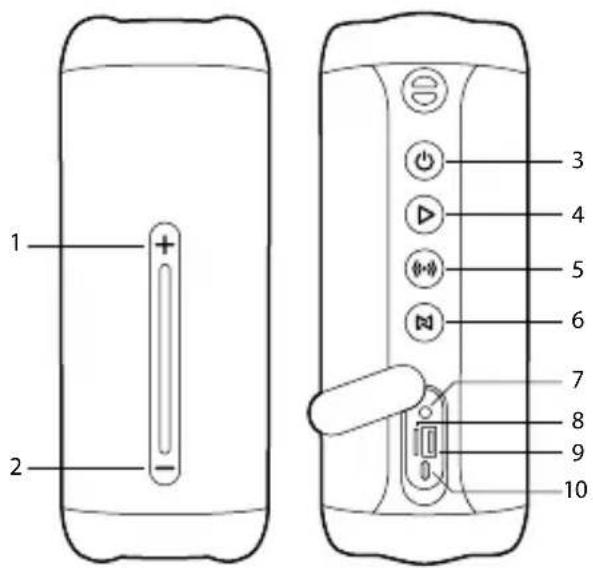

1 Volume + / Next track Long press: Next track Short press: Volume +
2 Volume – / Previous track Long press: Previous track Short press: Volume –
3 On /Off Long press: Power on/off Short press: Mode switching
4 Play / Pause Short press: play/pause Short press twice: Switch the passive radiator and beam's music playing light mode Long press in FM mode: Search and save channels
5 Wireless Short press: Enter Bluetooth mode Short press: Pick up the phone call / Hang up the call Short press twice: Reject the phone call Long press: Disconnect the current Bluetooth paring
6 TWS Short press: Enter/Exit TWS mode Short press twice: Clear the TWS pairing memory

7 AUX IN audio input 8 TF audio input 9 USB audio input 10 USB-C charging port

1 2 3 4 5 6 7 8 9 10

BLUETOOTH MODE HOW TO CHARGE?

1Press and hold the button for 3 seconds to switch on the speaker	2The LED will flash because the speaker is in search mode
3Search for NGS Roller Furia in the Bluetooth options of the mobile device	4Fixed LED: connected


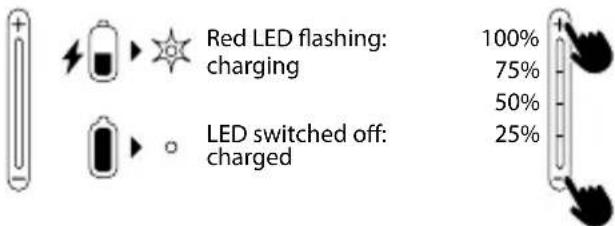

Red LED flashing: charging LED switched off: charged

Note: Press and hold the +/- buttons simultaneously for 1.5 seconds to check the battery level

USER'S MANUAL

TWS

	1
1			3s
Press and hold for 3 seconds to switch on the speakers
2			3s 3s
Press and hold for 3 seconds the button on both speakers to unpair them and place them in search mode

"TWS paired" "TWS paired"

You will hear "TWS paired" on both speakers

The LED on the first speaker will remain fixed in red (slave), and the other one in blue (master).

RADIO MODE

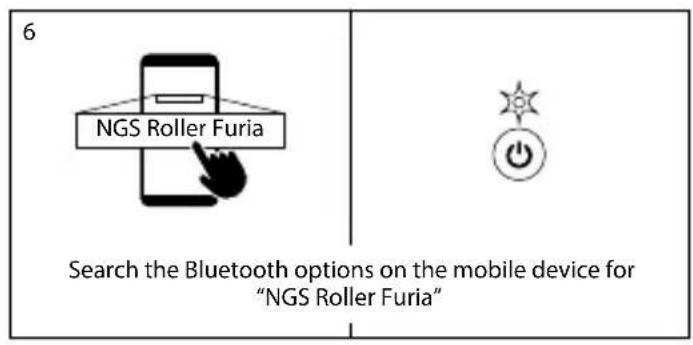

6 NGS Roller Furia Search the Bluetooth options on the mobile device for "NGS Roller Furia"

1 2 Press the TWS button again to exit TWS mode

1

2

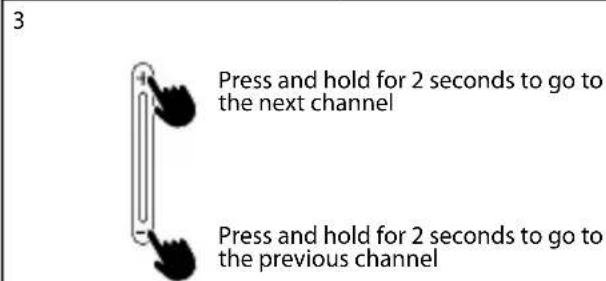

3 Press and hold for 2 seconds to go to the next channel Press and hold for 2 seconds to go to the previous channel

USER'S MANUAL

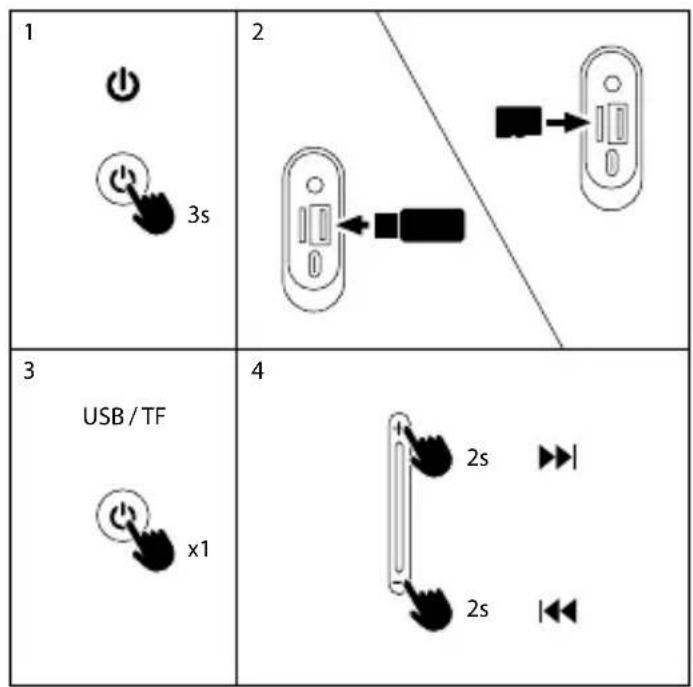

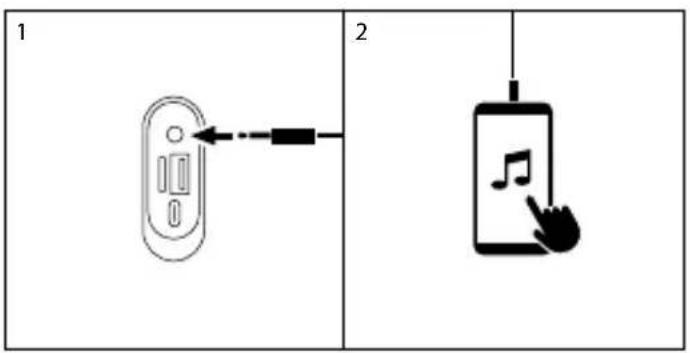

AUX IN MODEUSB/TF MODE

1 3s 2 3 USB / TF x1 4 2s 2s

1 2

TECHNICAL SPECIFICATIONS

Compatible with bluetooth 5.3 5.3

TWS (get double power connecting

2 speakers at the same time without

cables) Yes Yes

Output power 30W 60W

RMS power 15W 30W

AUX audio input Yes Yes

USB audio input up to 32GB Yes Yes

TF audio input up to 32GB Yes Yes

Volume control Yes Yes

Battery Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

Battery life 6 hours* 6 hours*

Waterproof IPX7 IPX7

Operation frequency 2402-2480MHz 2402-2480MHz

Max. RF output power -2.45dBm -2.41dBm

Powerbank No Yes

Audio formats MP3/WAV/WMA MP3/WAV/WMA

Battery warranty

The battery is a consumer product, and as such it is under warranty for 12 months.

* with lights

8 hours at 50% volume

5 hours at 70% volume

4 hours at 100% volume

without lights

9 hours at 50% volume

6 hours at 70% volume

5 hours at 100% volume

USER'S MANUAL

SECURITY

IMPORTANT SAFETY INSTRUCTIONS

For all products:

1. Read and follow the instructions.
2. Keep the instructions in a safe place.
3. Observe the warnings.
4. Do not block the ventilation openings. Install according to the instructions.
5. Do not install near any heat sources such as radiators, heating vents, stoves, or other appliances (including amplifiers) that generate heat.
6. Avoid stepping on or pinching the power cord, especially at plugs, outlets, and the point where it exits the product.
7. Use only the accessories and auxiliary products specified in the product.
8. Take care when transporting the product to prevent damage.
9. Unplug the device during thunderstorms or when not in use for an extended period.
10. The power cable supplied for the device must remain ready for reuse.
11. Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.
12. This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

The symbol refers to "dangerous voltage" inside the product's cabinet that, when misused and disassembled, may result in electric shock to people.

The symbol refers to "important instructions" for operation and maintenance (repairs).

WARNING:

The manufacturer disclaims all responsibility for damage or deterioration caused by unauthorized modifications.

FOR ALL EUROPEAN UNION COUNTRIES:

For products including audio output

Hearing loss prevention

Caution: Hearing loss may occur if headphones or earphones are used at high volume for extended periods. The products have been tested to verify compliance with the sound pressure level requirements established in the applicable standards NF EN 50332-1:2013 and/or EN 50332-2:2013 required by French Article L.5232-1.

Important: To prevent potential hearing damage, do not listen at high volume for extended periods.

This device complies with the European Union requirements (2014/53/UE) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.

The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20 W/kg over 10 grams of body tissue.

Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0 cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.

WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.

This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.

USER'S MANUAL

Compliance with RoHS requirements.

This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products that include batteries.

EU Directive 2013/56/EU on batteries.

The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

User instructions for extraction, recycling, and disposal of used batteries.

To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.

In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.

In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.

WARNING: Risk of explosion if the battery is replaced incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries.

The symbol for separate collection of all batteries and accumulators is shown in this section.

Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:

Hg Cd Pb

ENGLISH

MANUEL DE L'UTILISATEUR

BOUTONS DE COMMANDE

Appui court: Volume +

Appui court : Volume –

3 Marche/Arrêt

Appui court : Lecture/pause

Akumulator Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

REŽIM AUX INREŽIM USB/TF

1 2

TECHNICKÉ SPECIFIKACE

REŽIM AUX INREŽIM USB/TF

1 2

TECHNICKÉ ŠPECIFIKÁCIE

BLUETOOTH MÓD HOGYAN KELL TÖLTENI?

Compatible with bluetooth 5.3 5.3

TWS (get double power connecting

2 speakers at the same time without

cables) Da Da

Output power 30W 60W

RMS power 15W 30W

AUX audio input Da Da

USB audio input up to 32GB Da Da

TF audio input up to 32GB Da Da

Volume control Da Da

Battery Ion-Li 7.4V/2500mAh Ion-Li 7.4V/5000mAh

Battery life 6 ur* 6 ur*

Waterproof IPX7 IPX7

Operation frequency 2402-2480MHz 2402-2480MHz

Max. RF output power -2.45dBm -2.41dBm

Powerbank Ne Da

Zvočni formati MP3/WAV/WMA MP3/WAV/WMA

* z lučmi

8 ur pri 50% glasnosti

5 ur pri 70% glasnosti

4 ure pri 100% glasnosti

brez luči

9 ur pri 50% glasnosti

6 ur pri 70% glasnosti

5 ure pri 100% glasnosti

Garancija na baterijo

Napomena: Pritisnite i držite +/- dugmad istovremeno 1,5 sekunde da biste proverili nivo baterije

UPUTSTVO ZA UPOTREBU

TWS

	1			2
1			3s
Pritisnite i držite dugme 3 sekunde da biste uključili zvučnike
2				3s 3s
			0.5s
					0.5s
Pritisnite i držite dugme na oba zvučnika 3 sekunde da biste ih odspojili i stavili u režim pretrage

RADIO REŽIM

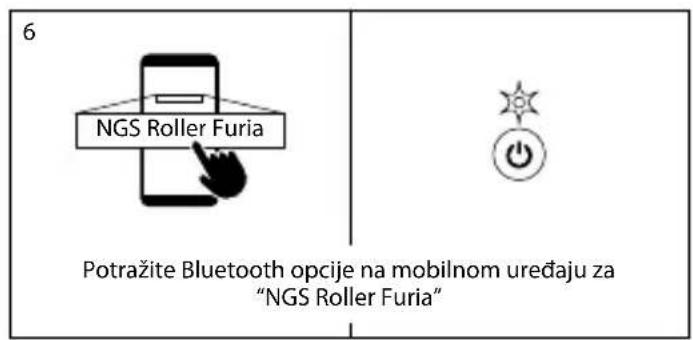

6 NGS Roller Furia Potražite Bluetooth opcije na mobilnom uređaju za "NGS Roller Furia"

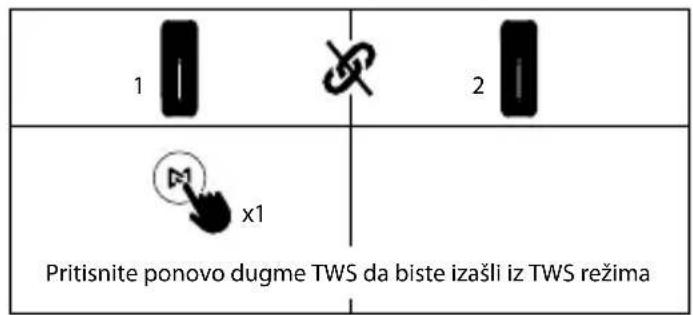

1 2 x1 Pritisnite ponovo dugme TWS da biste izašli iz TWS režima

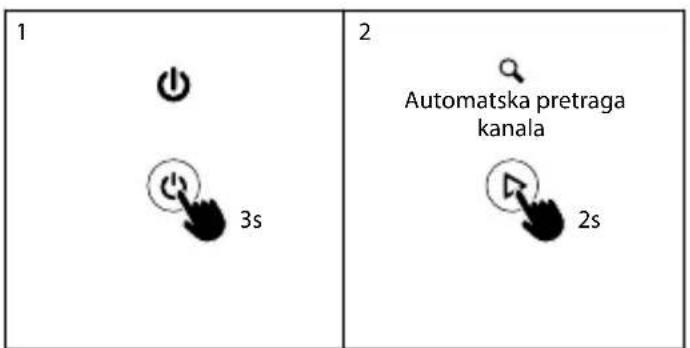

1 2 Automatska pretraga kanala 3s 2s

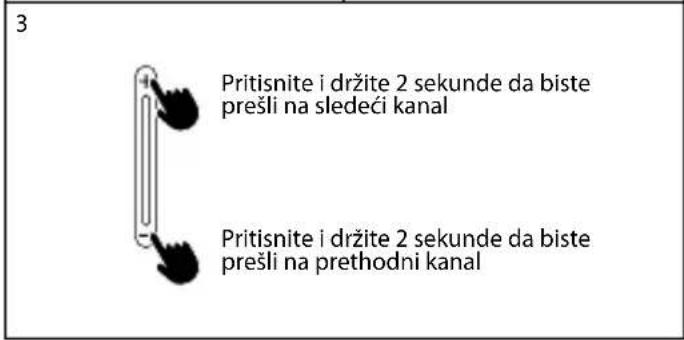

3 Pritisnite i držite 2 sekunde da biste prešli na sledeći kanal Pritisnite i držite 2 sekunde da biste prešli na prethodni kanal

UPUTSTVO ZA UPOTREBU

AUX ULAZNI REŽIMUSB/TF REŽIM

1 2

TEHNIČKE SPECIFIKACIJE

"AUX IN" REŽIMAS"USB/TF" REŽIMAS

1 2

TECHNINĖS SPECIFIKACIJOS

EU DECLARATION OF CONFORMITY

DECLARACIÓN UE DE CONFORMIDAD DECLARATION "UE" DE CONFORMITÉ DECLARAÇÃO DE CONFORMIDADE DA UE DICHIARAZIONE DI CONFORMITÀ DELL'UE EU-KONFORMITÄTSERKLÄRUNG

The undersigned, on behalf of the manufacturer:

NGS

LURBE GRUP, S.A.

Calle Portuetxe, 27

20018 - San Sebastián, Guipúzcoa (Spain)

Declares that the design and construction of the PRODUCT/

This declaration of conformity is issued the sole responsibility of the manufacturer.

Complies with the relevant Union harmonisation legislation / Cumple con la legislación de armonización de la Unión pertinente / Conforme à la législation d'harmonisation de l'Union applicable / Atende à legislação de harmonização da União pertinente / È conforme alla legislazione di armonizzazione dell'Unione pertinente / Entspricht der einschlägigen Unionsharmonisierungsgesetzgebung /

2014/53/UE - RED 2011/65/UE - ROHS amended by 2015/863/UE Reglamento (CE) n° 1907/2006 Reglamento UE 2019/1021

References to the relevant harmonised standards used or references to the other technical specifications / Referencias a las normas armonizadas pertinentes utilizadas o referencias a otras especificaciones técnicas / References aux normes harmonisées pertinentes utilisées ou références aux autres spécifications techniques / Referências às normas harmonizadas relevantes utilizadas ou referências a outras especificações técnicas / Riferimenti alle norme armonizzate pertinenti utilizzate o riferimenti ad altre specifiche tecniche / Verweise auf die relevanten harmonisierten Normen oder Verweise auf andere technische Spezifikationen /

Safety (Art. 3.1 (a) of RE Directive): EN IEC 62368-1:2020 EN 62311:2020 EMC (Art. 3.1 (b) of RE Directive): EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 301 489-1 Radio (Art. 3.2 of RE Directive): EN 300 328 ROHS: EN IEC 63000:2018

Date of issue of this declaration of conformity:

25/09/2023

SIGNATURE

RAÚL MARTÍN

PRODUCT MANAGER

Paul J. Martin

NGS®

technical support: www.ngs.eu/support

www.ngs.eu
