Product type	Wireless motion detector
Brand	Perel
Model	HAM220
Sensor	PIR sensor
Transmitter frequency	433 MHz
Sensor range	≤ 10 m (without obstacles)
Detection angle	110°
Receiver range	≤ 120 m (without obstacles)
Sensor power supply	3 AAA LR03 batteries (not included)
Receiver power supply	3 C LR14 batteries (not included) or 5 VDC 200 mA adapter
Minimum mounting height	1 m
Low battery indicator	Yes
Usage	Indoor only
Main functions	On/off, volume adjustment, melody selection
Cleaning and maintenance	Clean with a damp cloth; do not use harsh chemicals
Safety	Protect from rain, moisture, and water splashes; do not open the device
Spare parts and repairability	No user-serviceable parts except batteries
General information	Compliant with RED directive 2014/53/EU; 24-month warranty

Frequently Asked Questions - HAM220 Perel

How to install the Perel HAM220 motion detector?

Mount the sensor at a minimum height of 1 m from the ground. Avoid pointing the sensor towards heat sources (sun, radiators). Secure the sensor and receiver with the provided screws and wall plugs. The receiver must be within 120 m of the sensor.

How to test the detector's operation?

Turn on the receiver. Wait about 30 seconds for warm-up. The receiver emits two short beeps. Walk into the surveillance area; the alarm should sound. If not, adjust the sensor position.

What types of batteries to use and how to replace them?

The sensor uses 3 AAA LR03 batteries (not included). The receiver uses 3 C LR14 batteries (not included) or a 5 VDC adapter. Open the battery compartment, insert the batteries respecting polarity, then close.

The detector does not detect movements, what to do?

Check that the batteries are inserted correctly and sufficiently charged. Ensure the sensor is not obstructed or pointed towards a heat source. Mount the sensor at least 1 m from the ground and adjust its orientation.

What is the maximum range of the sensor and receiver?

The sensor range is 10 m (without obstacles). The receiver range is 120 m (without obstacles). Walls and obstacles reduce the range.

How to clean the motion detector?

Clean the device with a damp cloth. Never use solvents, strong detergents, or harsh chemicals.

Can I use the detector outdoors?

No, the device is designed for indoor use only. It must be protected from rain, moisture, and water splashes.

What to do in case of frequent false alarms?

Ensure the sensor is not pointed towards a heat source (radiator, air conditioner) or pets. Reduce sensitivity by adjusting the position. Mount the sensor higher (≥2 m) by tilting it downwards.

How to recycle the device at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE directive, return it to a collection point or your retailer for proper recycling. Batteries must be removed and recycled separately.

Is the device under warranty?

Yes, the product comes with a 24-month warranty against manufacturing defects. The warranty does not cover damage due to incorrect use, normal wear (batteries), or unauthorized modifications.

USER MANUAL HAM220 Perel

PIR WIRELESS HOME ALARM SYSTEM DRAADLOOS HUISALARM MET PIR-SENSOR ALARME DOMESTIQUE SANS FIL AVEC CAPTEUR PIR SISTEMA DE ALARMA INALÁMBRICO CON DETECTOR PIR FUNK-ALARMANLAGE MIT PIR-BEWEGUNGSMELDER DOMOWY BEZPRZEWODOWY SYSTEM ALARMOWY PIR SISTEMA DE ALARME DOMÉSTICO PIR SEM FIOS

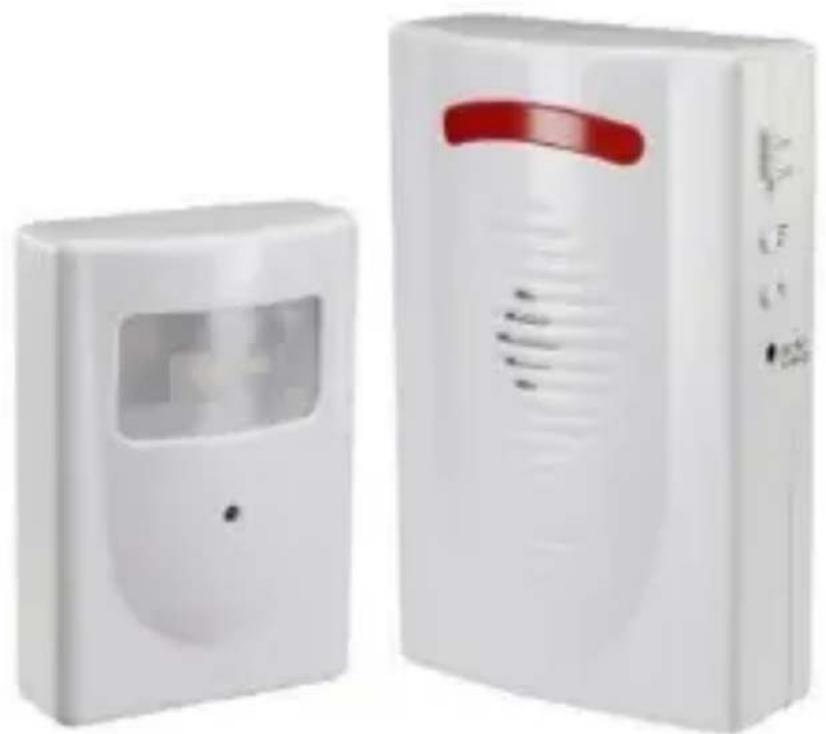

Two white electronic devices with ventilation grilles, one displaying a digital display and the other a red-lit device (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 12

MANUAL DEL USUARIO 17

Image showing a white electronic device with a red-lit cover and labeled four numbered list items in Chinese.

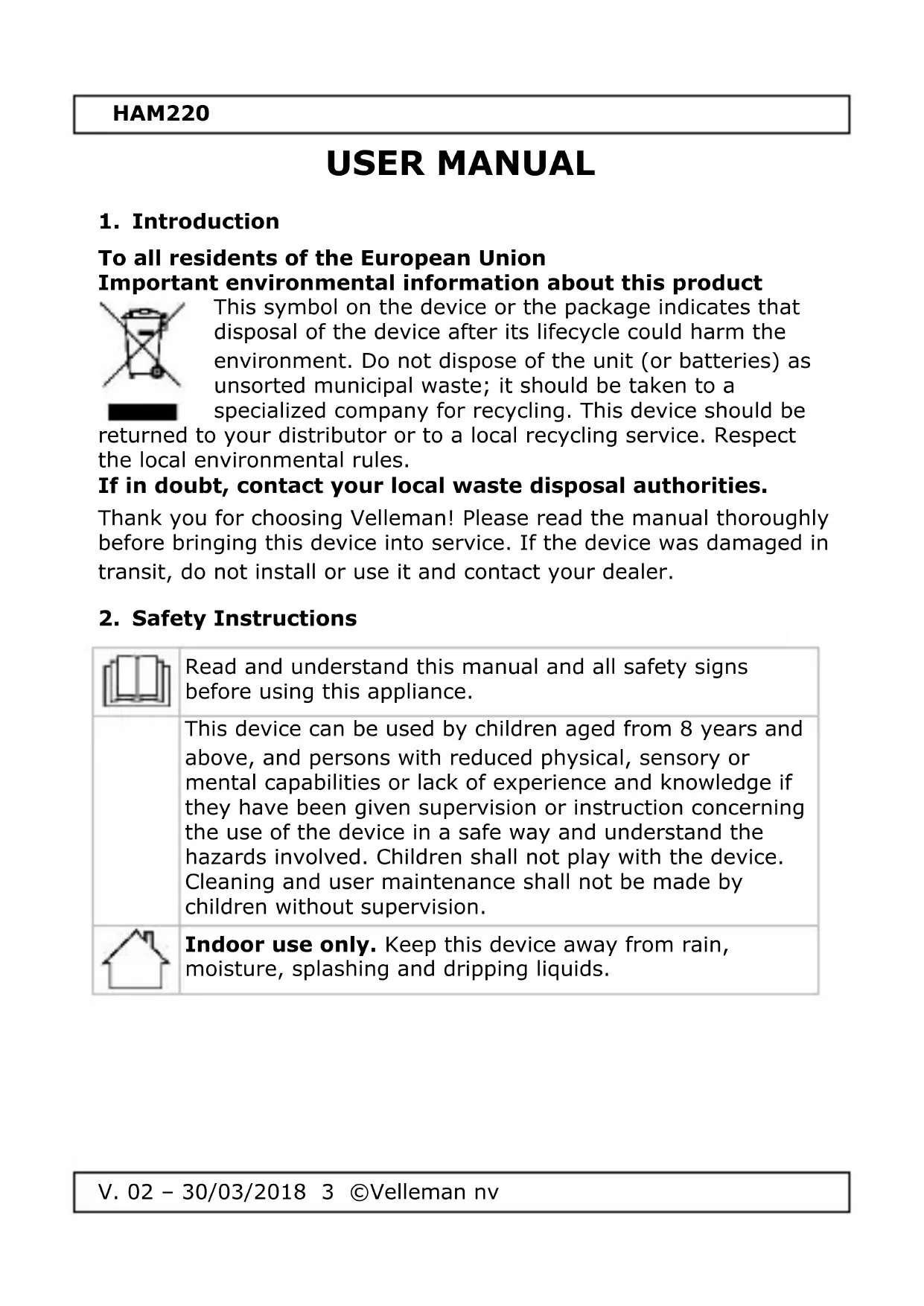

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• This system can provide valuable protection for your home and property if used properly. However, it cannot guarantee complete protection against burglary or robbery. Therefore, Velleman nv will not be responsible for any losses or damages which occur during the use of this product.
• Keep this device away from dust and extreme temperatures.
• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Do not aim the camera at the sun or other extremely bright objects.
• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• There are no user-serviceable parts inside the device except for the batteries. Refer to an authorized dealer for service and/or spare parts.
• Do not use this product to violate privacy laws or perform illegal activities. Respect the legislation in your region when installing an alarm system. If necessary, refer to local authorities.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	on-off
2	volume

3	alarm melodies
4	5 VDC input

5. Battery

WARNING

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

WARNING

Remove the batteries if you are no longer using the device or if the device is left unused for an extended period of time. Remove used batteries promptly.

Sensor

1. Open the battery compartment and insert three AAA batteries according to the correct polarity.
2. Close the battery compartment.

Receiver

1. Open the battery compartment and insert three C batteries according to the correct polarity.
2. Close the battery compartment.

Note

The receiver can also be powered using a 5 VDC, 200 mA power supply.

6. Installation

1. Choose the installation spot considering the following:

○ Make sure that there is no hidden wiring which could be sectioned when drilling holes.
- The PIR sensor detects heat. Avoid aiming the sensor towards the sun, spotlights and heat-producing devices such as radiators and heaters.

HAM220

o Mount the sensor at a minimum height of 1 m above the ground. If installed under garage eaves, make sure that the sensor is not blacked by gutters and the like.
- If installed at a height of 2 m or more, the sensor should be aimed downward and pointed toward the area to be monitored.
○ Make sure the installation spot is flat, dust-free, protected from rain and other weather elements, and not prone to vibrations.

1. Use the installation holes on the devices to determine the distance of the mounting holes. Drill the holes and install the sensor and receiver using the included mounting accessories. Remember to install the receiver within 120 m of the sensor.

7. Operation

1. Switch on the receiver. Allow about 30 seconds for warm-up. The receiver will emit two short beeps, indicating the unit is working.
2. Test the sensor by walking into the covered area. Relocate or reinstall the sensor or receiver if no alarm is heard.
3. Finally, select the desired volume and melody.

8. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

9. Technical Specifications

sensor module
passive infrared (PIR) motion detector
transmitter.....433 MHz
.....range ≤ 10 m in open area
sensor detection ..... 110° angle
..... @ 8 m, installation height 1.2 m
low battery LED indicator
power supply ..... 3 x AAA LR03 (not incl.)

HAM220

receiver module

range .... ≤ 120 m in open area

power supply .... 3 x C LR14 (not incl.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type

[HAM220] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
  • Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
