Model Air - Hair dryer TAURUS - Free user manual and instructions

Brand	Taurus
Model	Model Air
Product type	Styling hair dryer with accessories
Power	1800 W
Power supply	220-240 V ~ 50/60 Hz
Adjustable temperatures	3 settings (cool, warm, hot) + special cool mode (wave) to set your hairstyle
Adjustable speeds	2 speeds
Included accessories	Air concentrator, double-action brush, retractable bristle brush, carrying case
Special features	Retractable bristle system to facilitate detangling curls
Cable length	1.8 m
Dimensions (body)	Approximately 23 x 8 x 8 cm
Weight	Approximately 450 g
Material	ABS plastic
Safety	Certified compliant with EU directives (low voltage, electromagnetic compatibility, RoHS, ecodesign); do not use near water
Cleaning	Clean with a damp cloth; do not immerse
Warranty	Legal warranty; Taurus approved technical service

Frequently Asked Questions - Model Air TAURUS

How to use the cool mode (wave)?

The cool mode (symbol wave) offers a lower temperature ideal for setting your hairstyle after drying. Turn the selector to this position after using a higher temperature.

How to remove an accessory from the hair dryer?

Press the release button located on the body of the device, turn the accessory slightly and pull to remove it. Do the same to install a new one.

How to use the retractable bristle brush?

Wrap a strand of hair around the brush, then slide the device gently. To remove the curl, press the end of the brush and turn to retract the bristles, which releases the hair without pulling.

Can I use this hair dryer in the bathroom near the shower?

No, it is forbidden to use the device near a bathtub, shower, or swimming pool. Always unplug it after use, even for a short moment.

How to clean the Taurus Model Air hair dryer?

Unplug the device and let it cool down. Clean the body with a damp cloth and dry it. Do not use solvents or abrasive products. Do not let water enter the ventilation openings.

What to do if the device does not produce hot air?

Check that the temperature selector is on a position other than 0. If the problem persists, there may be overheating or a defect. Consult a Taurus approved technical service.

Can the power cord be replaced?

No, the cord must not be replaced by the user. If it is damaged, the device must be repaired by an approved technical service to avoid any danger.

Can I use this device to dry an animal's hair?

No, this device is intended for domestic use only for drying and styling human hair. Do not use it on animals or clothes.

What is the power of the Taurus Model Air hair dryer?

The power is 1800 W (check on the device label). This power allows fast and efficient drying.

How to store and maintain the device?

Store the device in the carrying case provided, in a dry, dust-free place. Do not wrap the cable around the device. Clean the ventilation grills regularly to prevent blockage.

USER MANUAL Model Air TAURUS

Line drawing of a handheld hairdryer with ventilation slots and a handle (no text or symbols)

Technical diagram of hairdryers with labeled parts including a hairdryer, brush holder, and open case.

Fig.1 Fig.2

Illustration of a hand performing a medical procedure on an ear with a magnified inset showing the needle insertion (no text or symbols)

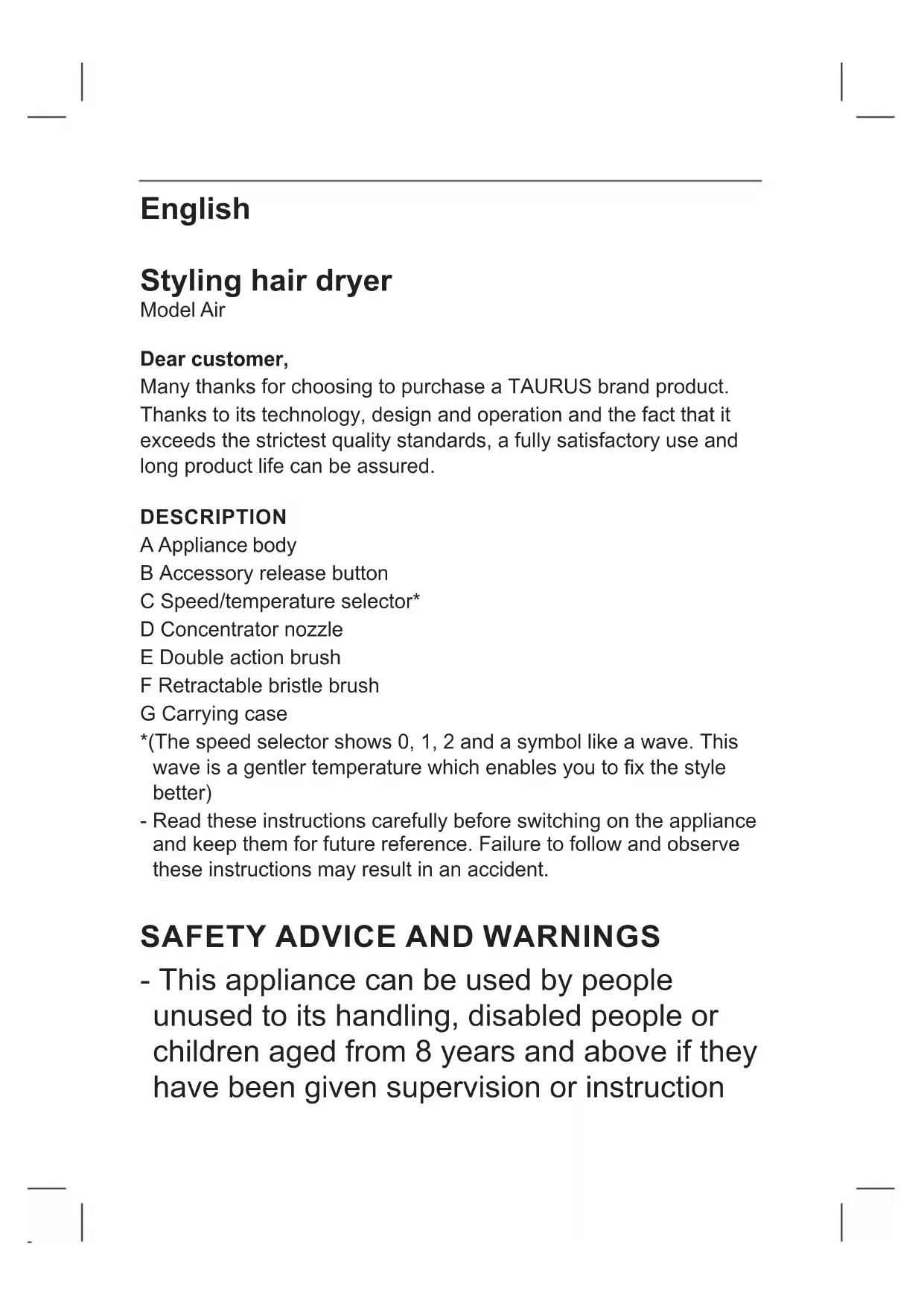

Español

Secador moldeador

Model Air

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

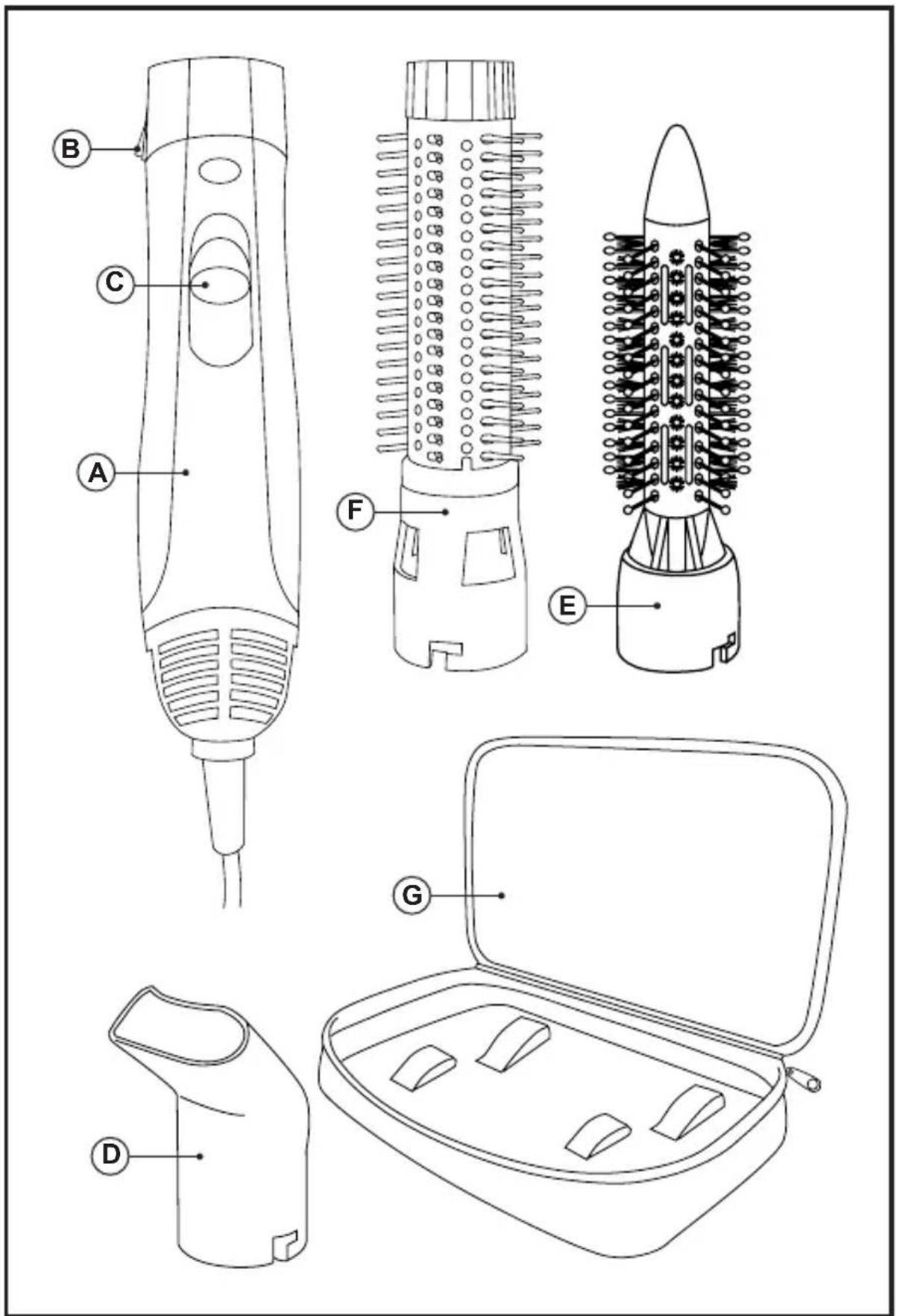

DESCRIPTION

A Appliance body
B Accessory release button
C Speed/temperature selector*
D Concentrator nozzle
E Double action brush
F Retractable bristle brush
G Carrying case

*(The speed selector shows 0, 1, 2 and a symbol like a wave. This wave is a gentler temperature which enables you to fix the style better)

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WARNINGS

- This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

- As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30mA. Ask for advice from a competent installer.

- If the connection is damaged it must be replaced. Take the appliance to an authorised Technical Assistance Service. Do not try to dismantle or repair without assistance, as this may be dangerous.

- CAUTION: Do not use this appliance near

baths, showers, wash-hand basins or other recipients which contain water.

This symbol signifies that the appliance must not be used near water

• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or

if it has a leak.
- CAUTION: Maintain the appliance dry.
- CAUTION: Do not use the appliance near water.
- Do not use the appliance near bathtubs, showers or swimming pools.
- Do not use the appliance with damp hands or feet, or when barefooted.
- The power cord must be regularly examined for signs of damage and if damaged, the appliance must not be used.
- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
- The temperature of the accessible surfaces may be high when the appliance is in use.
- Do not use hair sprays or other spray product whilst the machine is switched on.
- Place the appliance on a horizontal, flat, stable surface

away from heat sources and contact with water (splashes etc.).

• CAUTION: In order to prevent overheating, do not cover the appliance.
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective.
• Do not use the appliance if the on/off switch does not work.
• Disconnect the appliance from the mains when not in use, before cleaning, making any adjustment, battery charge or accessory change.
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not expose to extreme temperatures or strong magne-

tism.

• Keep the appliance in a dry, dust-free place, out of direct sunlight.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Never rest the appliance into a surface while in use.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance to dry textiles of any kind.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all the product's packaging has been removed.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Guide the diffuser of the appliance to direct the flow of

air in the desired direction.

• Turn the appliance on, by using the speed selection buttons.
• Select the desired temperature.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn off the appliance by selecting 0 on the speed regulator C.
• Unplug the appliance to the mains.

HOW TO DRY THE HAIR:

• Move the appliance around in circles to distribute the air along the hair.
• For best results, we recommend selecting minimum speed and temperature.

ACCESSORIES:

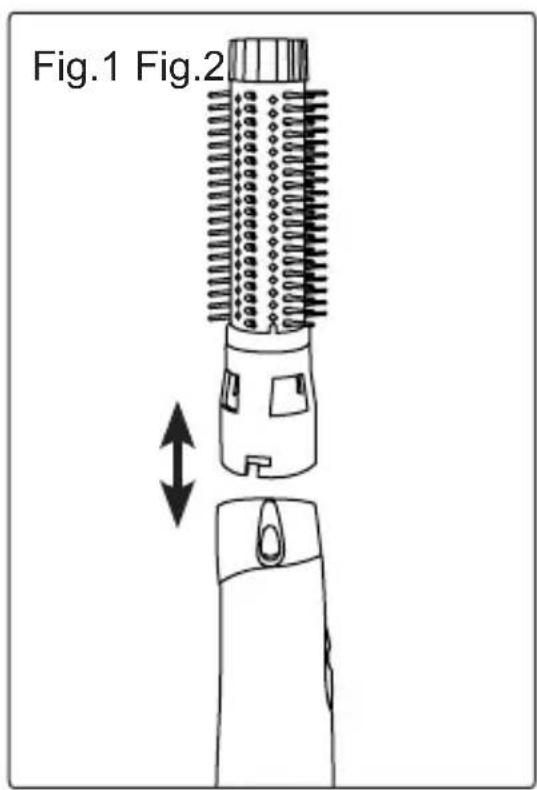

• To attach and remove the accessories, press the accessory release button, turn slightly and pull (Fig.1).
• Air concentrator D: Designed to dry and fix the style. Concentrates the air flow into a specific zone.
• Double action brush (E): Designed to create large curls and waves in the hair and obtain volume.
• It has two types of bristles for

detangling and brushing the hair.

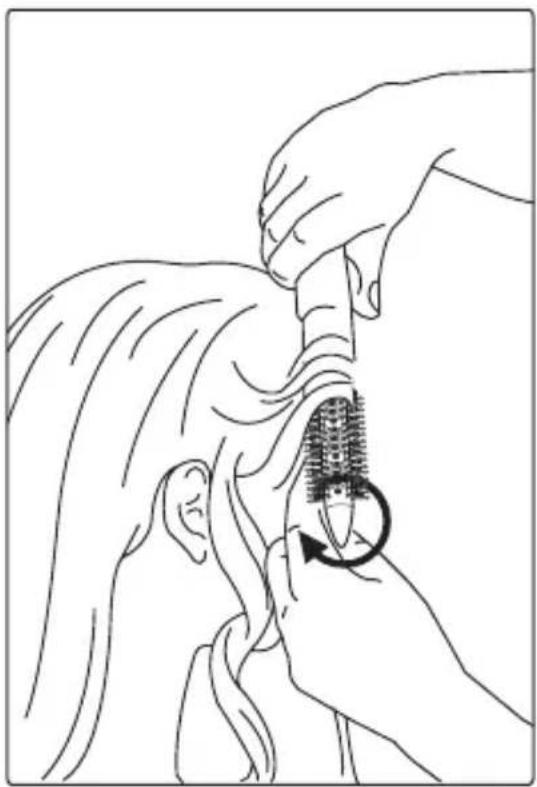

• Take a strand of hair and wrap it around the brush, rotating the appliance in a gentle manner. The closer to the hair root, the more volume will be created (Fig. 2)
• Retractable bristle brush (F): Designed to create curls with a special system for separating them afterwards. Follow the same step described for the double action brush.
• Use the retractable function to release the curls easily: press the end of the brush and spin it until the bristles are retracted,

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Do not submerge the appliance

in water or any other liquid, or place it under a running tap.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOREUPRODUCTVERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABI- LITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an ised waste agent for the ve collection of waste cal and electronic ment (WEEE)

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

VOOR PRODUKTEN AFKOM-STIG UIT DE EUROPESE UNIE EN/OF INDIEN DE WETGE-VING VAN HET LAND WAA-RUIT HET PRODUKT AFKOM-STIG IS DIT VEREIST:

MILIEUVRIENDELIJKHEIDEN RECYCLEERBAARHEID VAN HET PRODUCT

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français GARANTIE ET ASSISTANCE TECHNIQUE

Democratic Republic of the Congo

AV. Pont Canale N° 3440, Kinshasa 00243-991223232

Equatorial Guinea

SN Av Patricio Lumumba y C/ Jesus B, Bata 00240 333 082958 / 00240 333 082453

Equatorial Guinea

28 Basman St Down town, Amman [phone]

Kuwait

P.O. BOX 3379 hawally, 32034, Hawally [phone]

Lebanon

Damascus Highway; Sciale Building, Jamhour 9615922963

Luxembourg

Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg ([phone]

Tunisia

United Arab Emirates

P.O.BOX 8543, Dubai 14506246200

Uruguay

Luis Alberto de Herrera 3468, 11600, Montevideo 598 2209 28 00

Vietnam

Lot 7 Ind. Zone for, Ha Noi 84437658111 / 84437658110

taurus

Avda. Barcelona, s/n

25790 Oliana

Spain

Rev 13/07/2020
