Flowclear 58499 - Water pump BESTWAY - Free user manual and instructions

Product type	Sand filter for swimming pool
Brand	Bestway
Model	Flowclear 58499
Filter diameter	320 mm
Actual filtration area	0.075 m²
Maximum operating pressure	1.58 bar (23 PSI)
Operating pressure	< 0.56 bar (8 PSI)
Maximum water temperature	35 °C
Recommended sand type	#20 silica sand, 0.45-0.85 mm
Sand capacity	Approximately 20 kg
Power supply	Single-phase, with RCD device 30 mA
Minimum distance from pool	3.5 m for the outlet, 2 m for the filter
Integrated timer	Cycles of 4 to 24 hours (on/off)
Valve functions	Filtration, closed, backwash, rinse, drain, recirculate
Compatible pool type	Above-ground pools
Maintenance	Monthly backwash, strainer cleaning
Safety	Grounding required, unplug before maintenance
Weight (with sand)	Approximately 20 kg (sand included)
Warranty	Refer to the manual
Certifications	Compliant with European standards

Frequently Asked Questions - Flowclear 58499 BESTWAY

What is the function of the 6-way valve?

The valve allows 6 modes: Filtration (normal operation), Closed (flow stop), Backwash (sand cleaning), Rinse (after backwash), Drain (pool emptying), Recirculate (filter bypass).

How to install the Flowclear 58499 sand filter?

Place the filter on a solid, level ground, at least 2 m from the edge of the pool. Make sure the electrical outlet is more than 3.5 m from the pool and connect the hoses according to the diagram in the manual. Fill the tank with #20 silica sand (approximately 20 kg) before first use.

What type of sand to use and how much?

Use #20 silica sand (0.45-0.85 mm), approximately 20 kg. Do not use limestone or clay sand. You can also use Flowclear™ polyspheres (28 g replaces 1 kg of sand).

How to perform the first start-up?

After filling the filter with sand, set the valve to Backwash, turn on the pump for 3-5 minutes until clear water, then turn off and switch to Rinse for 1 minute. Finally, set the valve to Filtration for normal use.

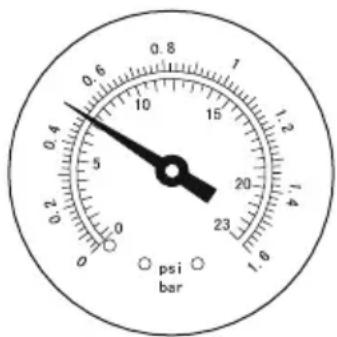

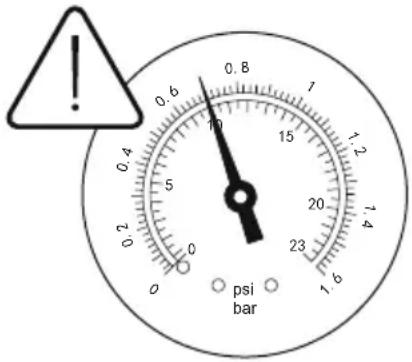

The pressure gauge exceeds 0.56 bar, what to do?

This indicates that the filter is dirty. Perform a backwash until the discharged water is clear, then a Rinse before switching back to Filtration.

How to clean the pump strainer?

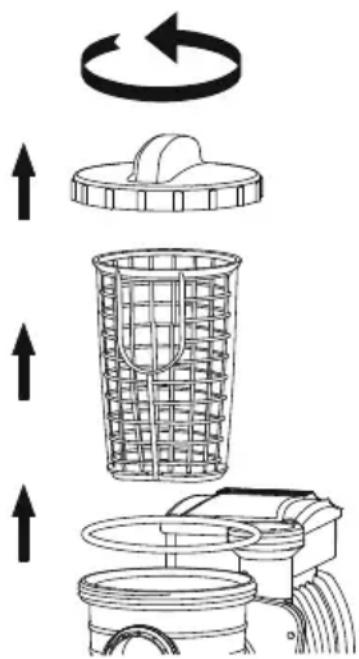

Unplug the unit, close the valve, remove the strainer cover by unscrewing it, take out the strainer and clean it with clean water. Reinstall while checking the seal. Perform this operation periodically.

Can I use an extension cord?

No, use of an extension cord is prohibited. The pump must be plugged directly into a grounded wall outlet and protected by a 30 mA RCD.

How to winterize the sand filter?

Drain the pool, backwash the filter, unscrew the drain plug at the bottom of the tank to remove residual water, remove the sand, dry all components and store the filter in a dry, frost-free place.

What to do if sand flows into the pool?

Check that the sand is #20 (correct size), that the sand level is between the MAX and MIN marks, and that the skimmer (basket) is not broken. Avoid changing the valve position while the pump is running.

How long to run the filtration per day?

It is recommended to filter at least 8 hours per day to maintain clean water. The timer allows programming cycles of 4, 6, 8, 10, 12 or 24 hours.

USER MANUAL Flowclear 58499 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

58499 Hmax 1.5 m

OWNER'S MANUAL

bestwaycorp.com/support

Visit Bestway YouTube channel YouTube

SAND FILTER OWNER'S MANUAL

Visit Bestway YouTube channel YouTube

Visit www.be.stwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

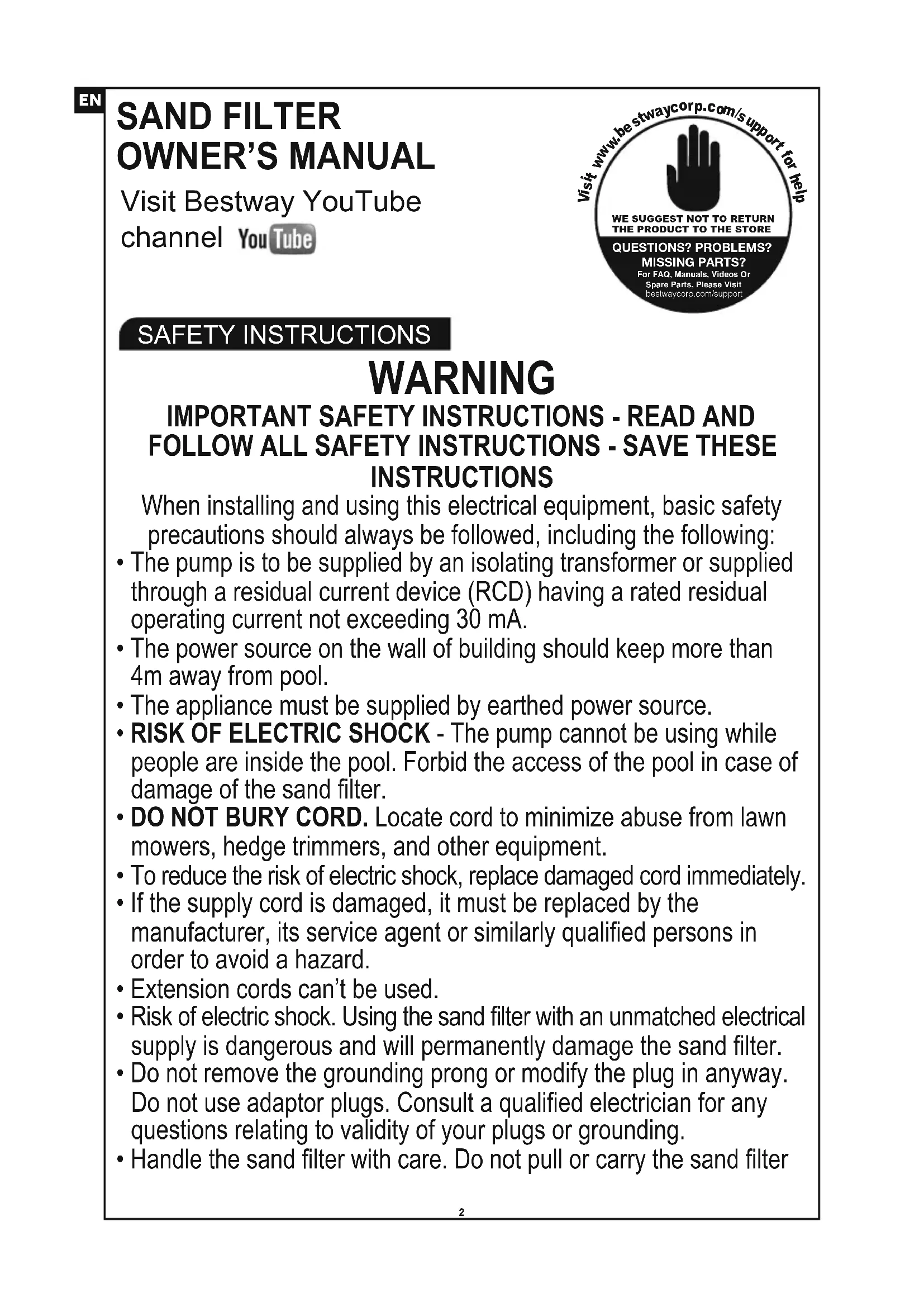

SAFETY INSTRUCTIONS

WARNING

IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

• The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The power source on the wall of building should keep more than 4m away from pool.
• The appliance must be supplied by earthed power source.
• RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the sand filter.
• DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, replace damaged cord immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Extension cords can't be used.
• Risk of electric shock. Using the sand filter with an unmatched electrical supply is dangerous and will permanently damage the sand filter.
• Do not remove the grounding prong or modify the plug in anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity of your plugs or grounding.
• Handle the sand filter with care. Do not pull or carry the sand filter

by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the sand filter.

• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.
- Don't plug or unplug the appliance if hand is wet.

• Always unplug the appliance:

• On raining days
• Before cleaning or other maintenance
• Leave it unattended on holidays

- When the appliance will be not used for long time, such as in the winter, the pool set should be disassembled and stored indoor.

- CAUTION: Read the instruction before using the appliance and installation/reassembly every time.

- Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions.

- If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com

- Electric installations should follow national wiring rules. Consult a qualified electrician for any questions.

CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)

- Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.

NOTES:

- Place the sand filter on solid, level ground. Ensure the sand filter is at least 2 meters away from poolside. Keep distance as far as possible.

- Pay attention to position pool and sand filter so adequate ventilation, drainage, and access for maintenance is available. Never place the sand filter in an area that may accumulate water, or on a walking path with lots of foot traffic.

- It is necessary to have the plug accessible after installation of the pool. The plug of the sand filter shall be at least 3.5m away from the pool.

- Atmospheric conditions may affect the performance and life span of the sand filter; take adequate precautions to protect the sand filter from unnecessary wear and tear that may occur during periods of cold or hot weather and/or exposure to sun.

- Please examine and verify all sand filter components are present before use. Notify Bestway at the customer service address listed on this manual for any damaged or missing parts at the time of purchase.

- It is imperative to change as soon as possible all deteriorated parts. Only use parts approved by the manufacturer.

- Do not allow children or adults to lean or sit on the apparatus.

- Do not add chemicals to the sand filter.

- When chemical products are used to clean the pool water, it is recommended to respect a minimum filtration time to preserve the health of swimmers which depends on compliance of health regulation.

- Only the media provided or specified by the manufacturer is to be used with product installation.

- It is essential to check that the suction openings are not obstructed.

- It is advisable to stop the filtration during maintenance operations on the filtration system.

- Regularly monitor the filter clogging level.

- A weekly check is recommended for backwashing or cleaning. Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.

- It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.

- All filters and filter media shall be inspected regularly to ensure that

there is not a build-up of detritus thus preventing good filtration.

The disposal of any used filter media should also be in accordance with applicable regulations/legislation.

• Mind all the safety requirements and recommendations described in the manual. In case of doubt on the pump or any circulation devices, contact a qualified installer, or the manufacturer/importer/distributor. The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.

- This product is not intended for commercial use. PLEASE READ THE INSTRUCTION MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

SAVE THESE INSTRUCTIONS

PUMP DISPOSAL

Meaning of crossed-out wheeled dustbin:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

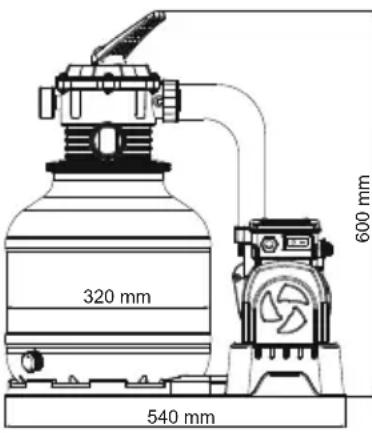

SPECIFICATIONS

	Filter Diameter:	320 mm
	Effective Filter Area:	0.075 m^2 (0.81 ft^2)
	Max. Operating Pressure:	1.58 Bar (23 PSI)
	Working sand filter pressure:	<0.56 Bar (8 PSI)
	Max. Water Temperature:	35°C
	Sand:	Not included
	Sand Size:	#20 silica sand,0.45-0.85 mm
	Sand Capacity:	Approximately 20 kg

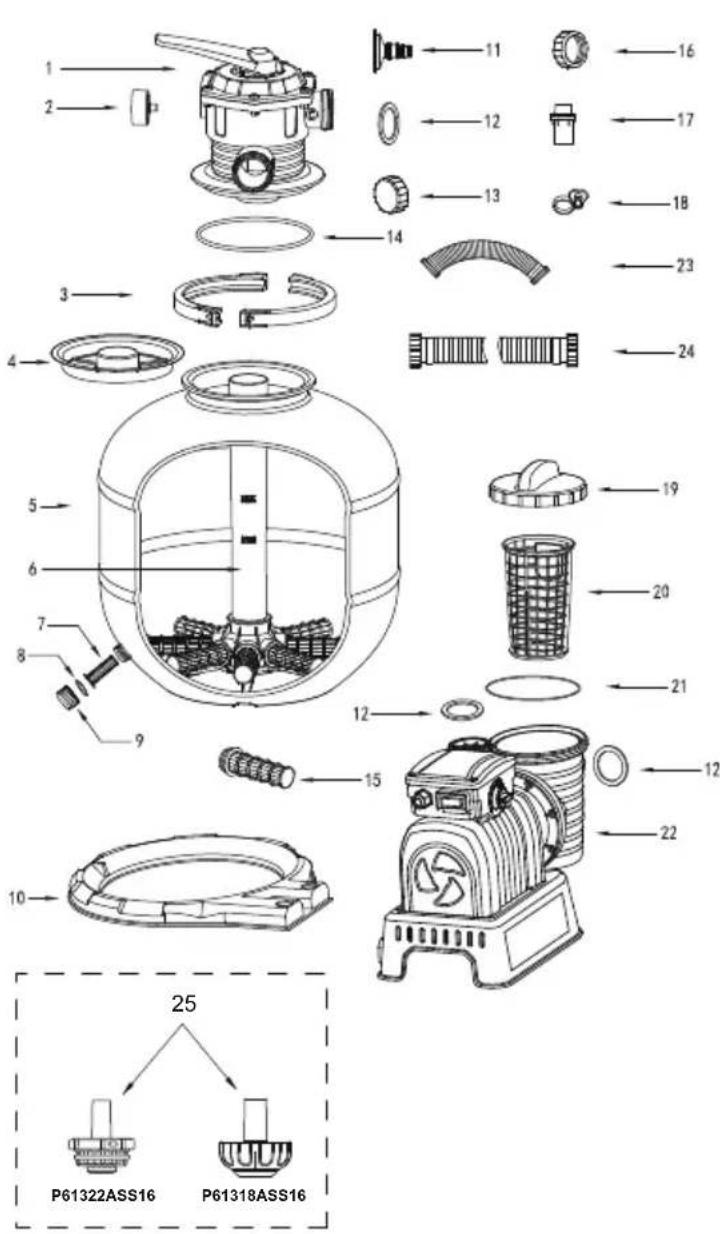

PARTS REFERENCE OVERVIEW

Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two labeled components (A and B) with no visible text or symbols on the objects themselves.

REF.NO	$PARE PART NO. A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

ASSEMBLY (You will need a screwdriver.)

1. Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased.

2. The sand filter should be placed on solid, level ground, preferably a

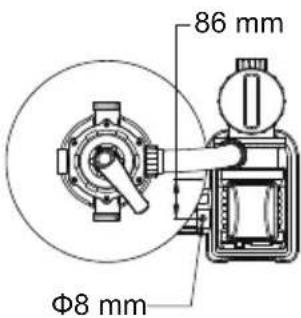

86 mm Φ8 mm

concrete slab. Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.

1. EN60335-2-41 TEST standard requires the sand filter to be vertically fixed on ground or a certain pedestal made of wood or concrete before use to prevent the sand filter from accideutally falling. Fully assembled sand filter will exceed 18 kg. The mounting holes should be 8 mm in diameter and spaced 86 mm apart. Use two bolts and nuts with a maximum of 8 mm in diameter to fasten the sand filter to the pedestal.

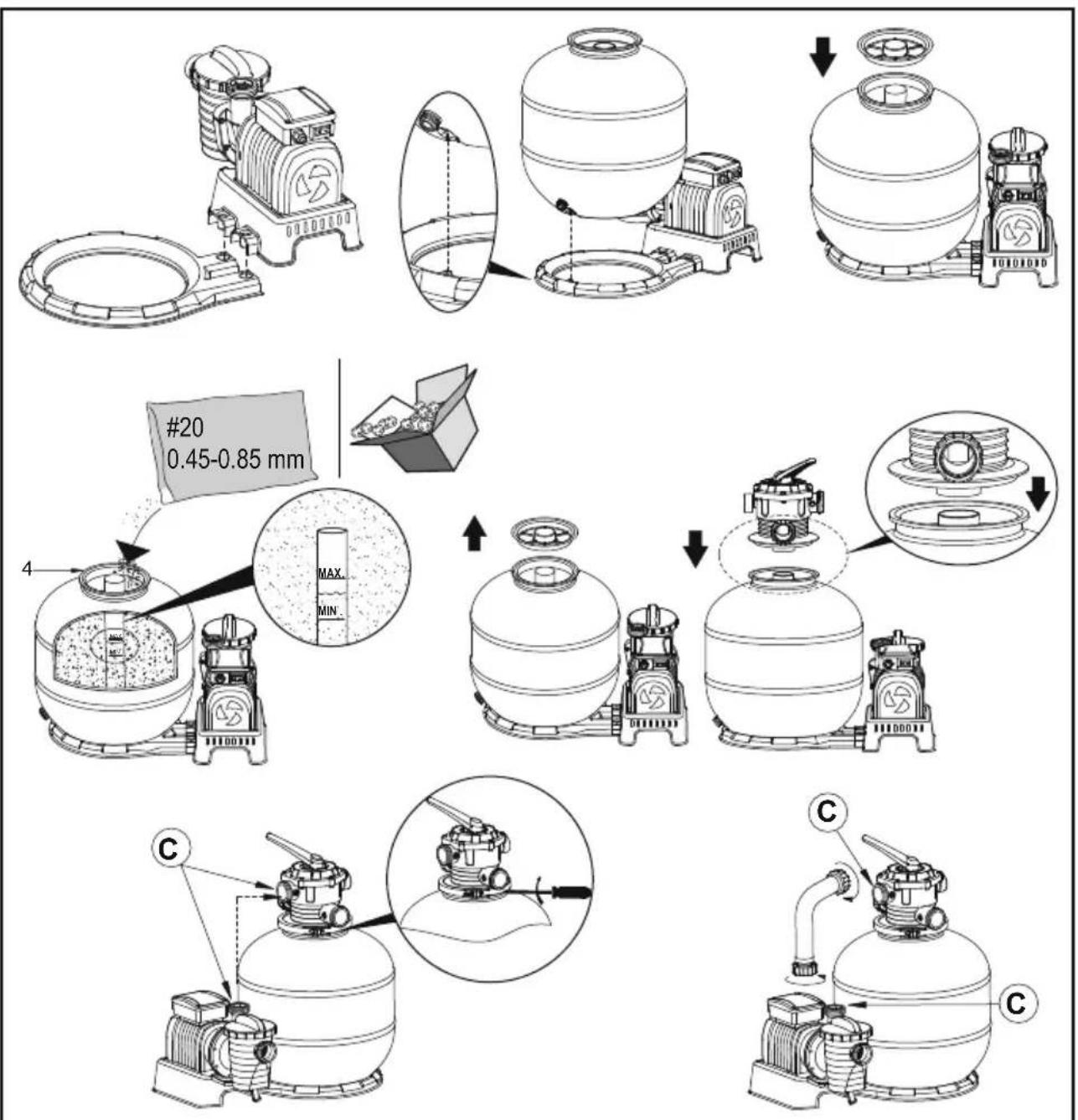

LOAD POOL-GRADE FILTER SAND/FLOWCLEAR™ POLYSPHERE.

NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20 Silica sand 0.45-0.85 mm, approximately one 20 kg bag should suffice.

If you do not use the recommended size of filter sand, filtering performance will be reduced and the sand filter may damaged, thereby voiding the warranty.

IMPORTANT: We suggest using #20 silica sand with your pool sand filter. It is specially graded to trap particles in the 20 - 100 micron range.

Some small debris can pass throw the sand and back into the pool. This is normal, especially if the debris is fine or silt.

To limit this, it is better to follow the maintenance instructions, and backwash and rinse when necessary.

We also suggest contacting your pool dealer for the chemical product specifically made to clean the sand. The correct maintenance of the sand will optimize the cleaning efficiency and avoid accumulation of oils or scale.

When you are vacuuming the bottom of the pool that has a large amount of debris, we suggest to backwash the sand when you finish cleaning half of the pool.

Remember to backwash and rinse the sand after vacuuming the bottom of the pool each time.

NOTE: To avoid damaging the Skimmer when adding sand, pour some water into the Bottom Tank to submerse the Skimmer on the Hub.

NOTE: Sand/Flowclear™ Polysphere not included.

NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace 1 kg (2.20 lbs) sand.

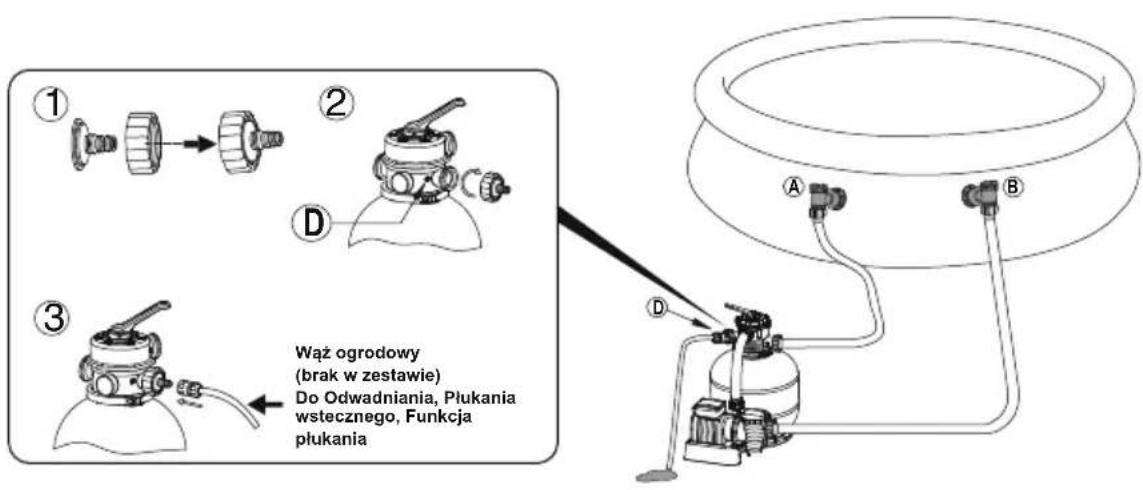

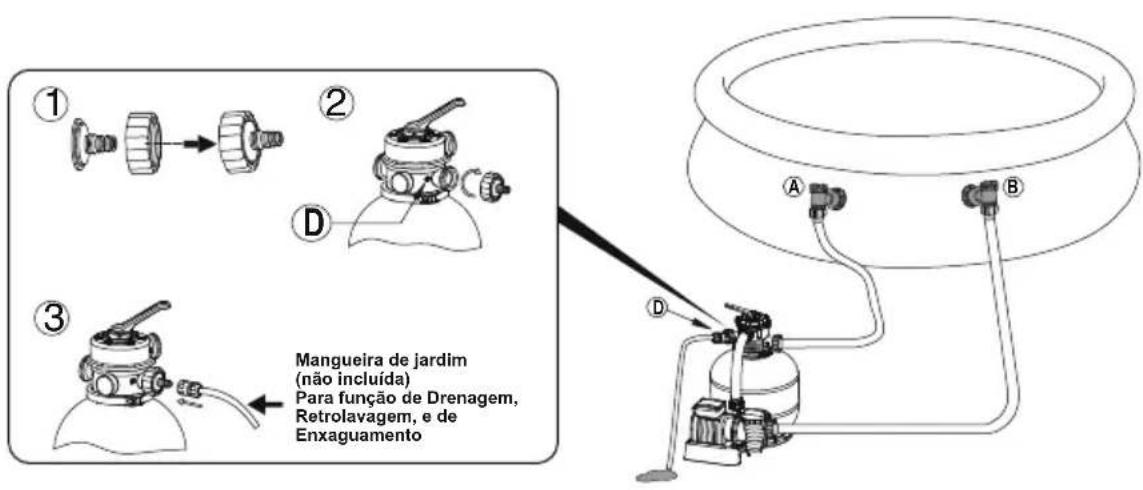

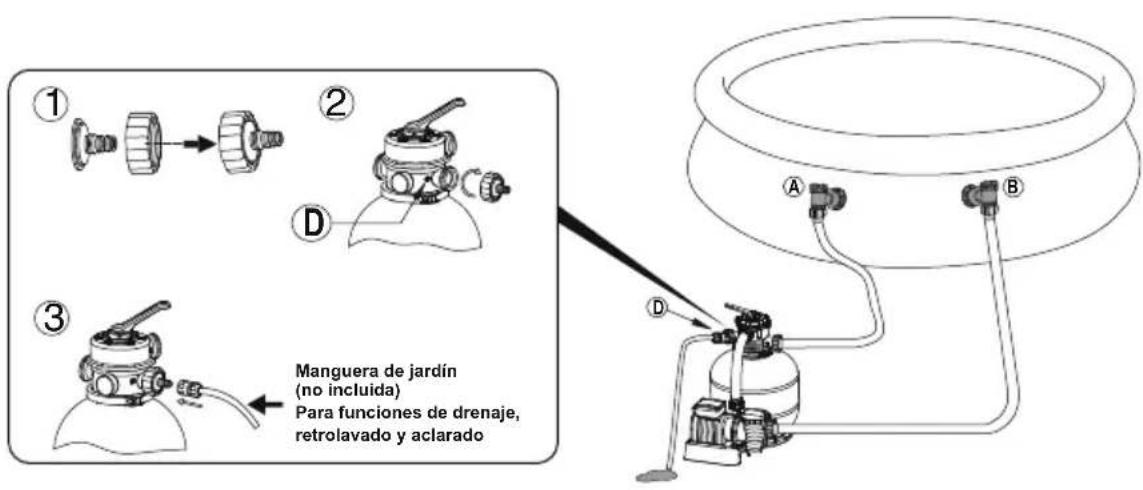

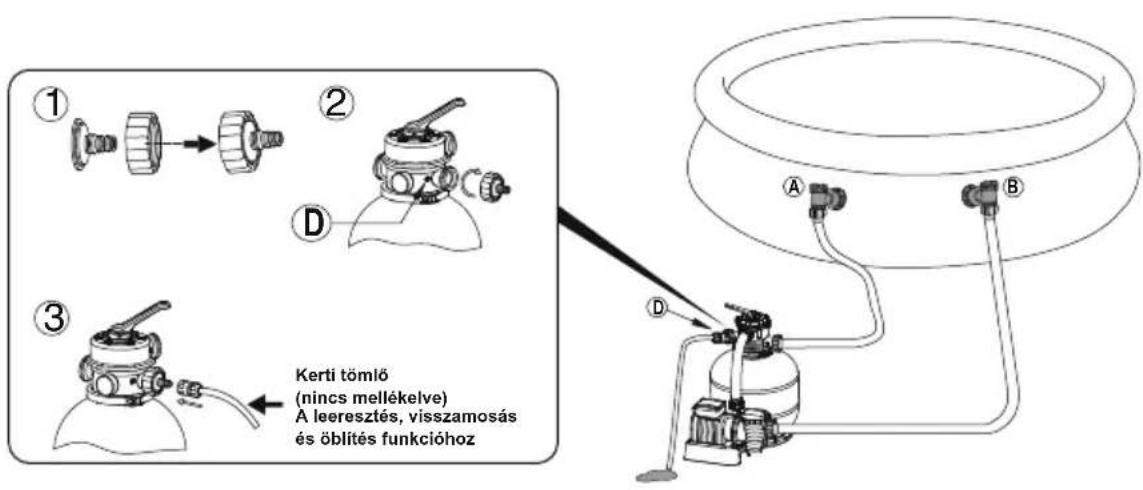

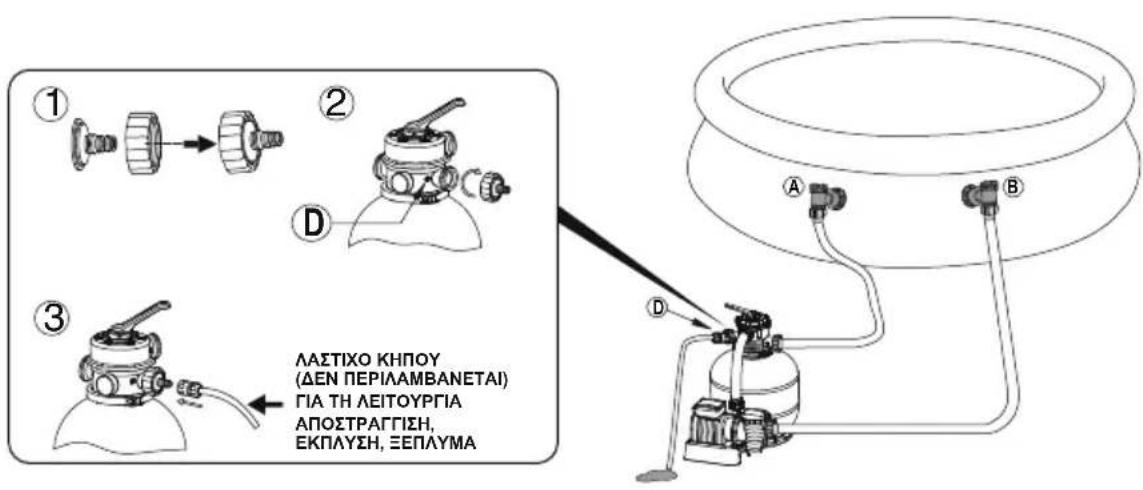

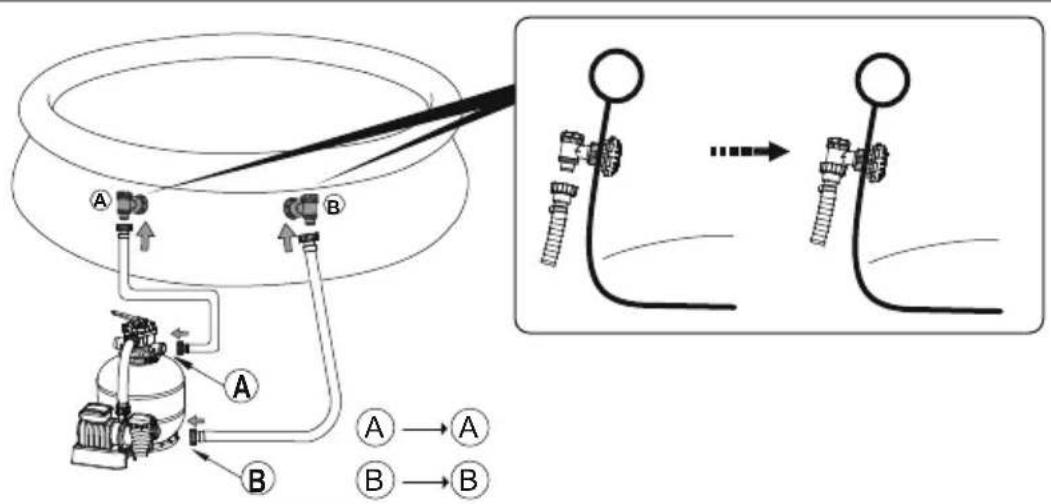

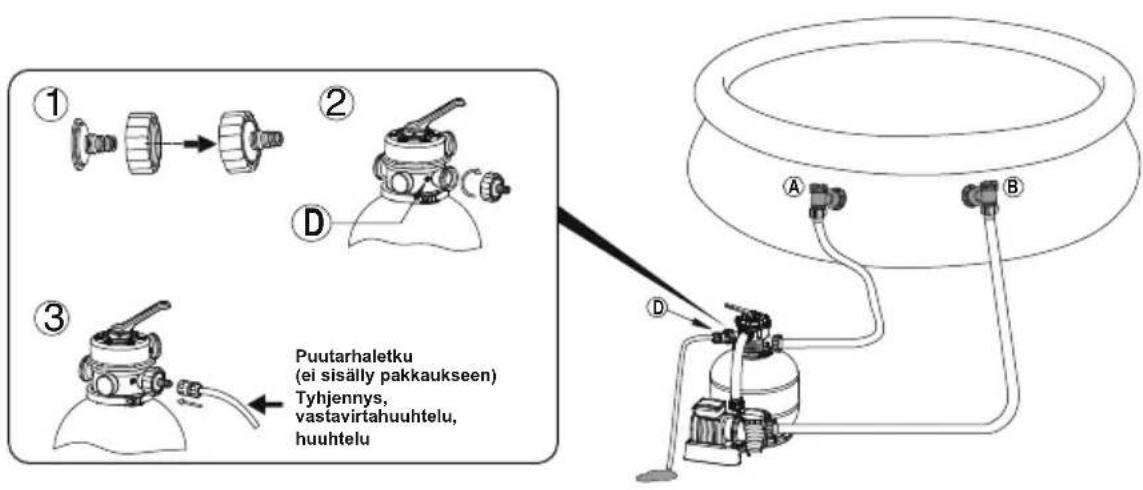

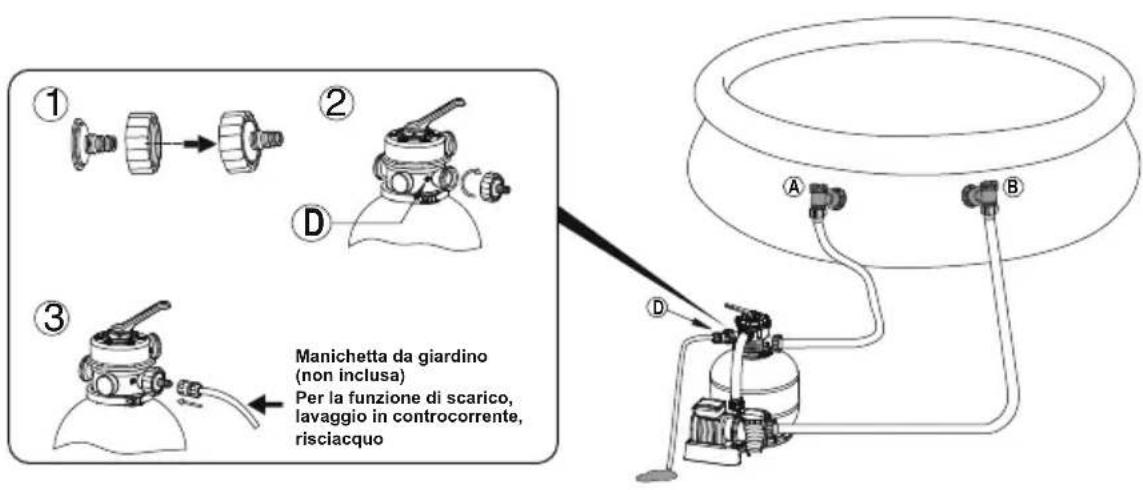

CONNECT TO THE POOL
1

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

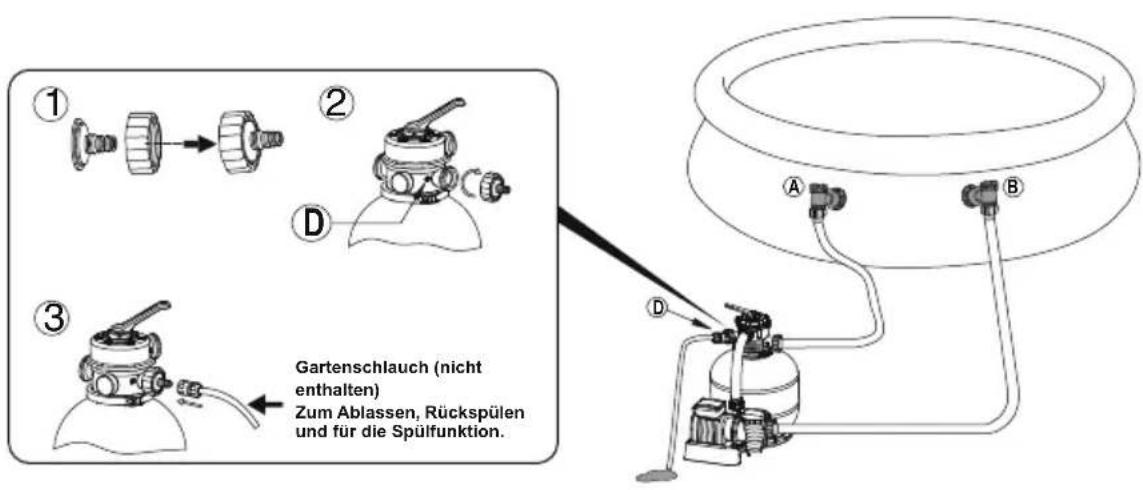

① ② D ③ Garden hose (not Included) For Drain, Backwash, Rinse function A B D

FOR POOL WITH 32 MM VALVES

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

STOP Before switching on, please read the manual carefully.

OPERATION

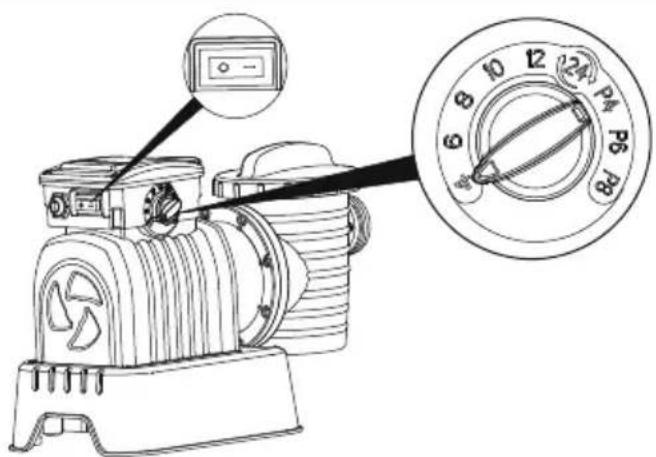

TIMER

1. Plug into power source, adjust power switch to "ON" (-) position. The sand filter will begin working immediately.
2. Adjust power switch to "OFF" (0) position. The sand filter will stop working immediately.
3. After turning on, you can adjust work time, rest time and cycle time by turning the knob to desired position. See the table below for more details.
4. When the timer knob is moved into new position, the filter's previous cycle automatically cancels so new cycle can begin.
5. Each time the filter is powered on or restarted, a new cycle will begin based on timer knob position.

NOTE: If the knob is adjusted to the 24-hour position (24), the sand filter will work continuously without any rest period.

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Knob Position	Working time(H)	Rest time(H)	Cycle period(H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

CONTROL VALVE OVERVIEW

WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the Control Valve function.

Changing valve positions while the pump is running can damage the Control Valve,

A C D

which may cause personal injury or property damage.

How to Use the Control Valve:

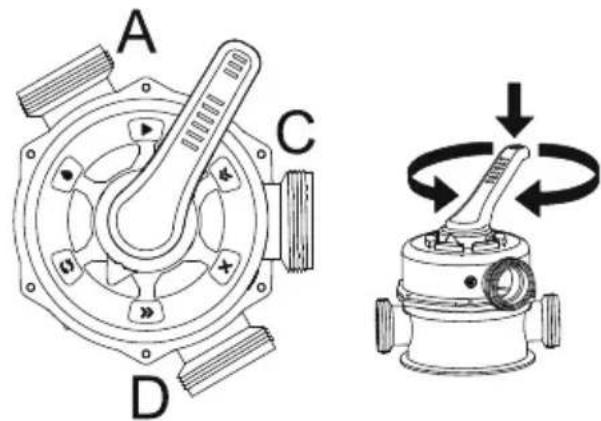

Press down on the Control Valve handle and rotate to desired function.

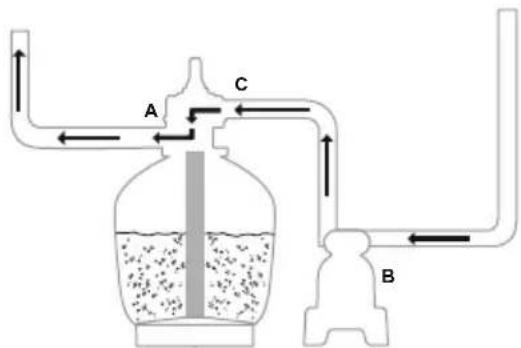

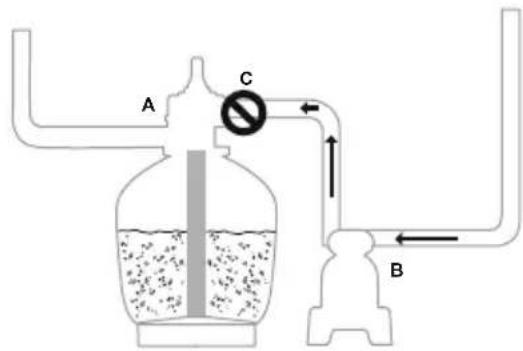

Filter: This function is used to filter pool water and should be positioned here 99% of the time. Water is pumped through the sand filter, where it is cleaned and returned to the pool.

A C B

Closed: This function stops water flowing between the sand filter and the pool.

A C B

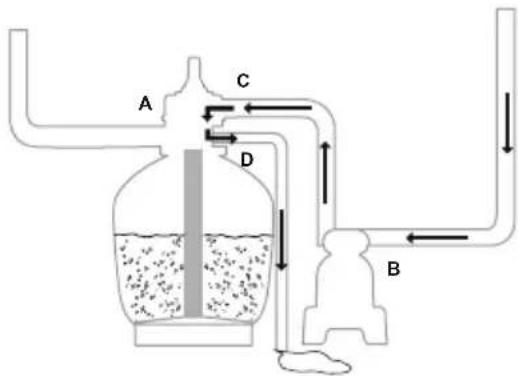

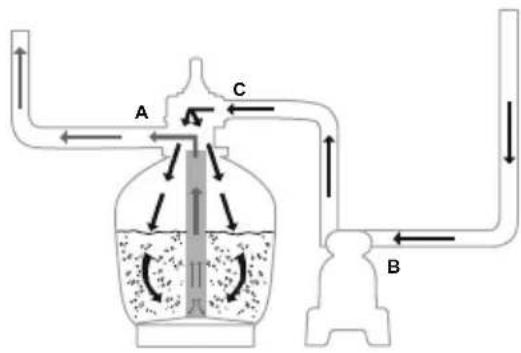

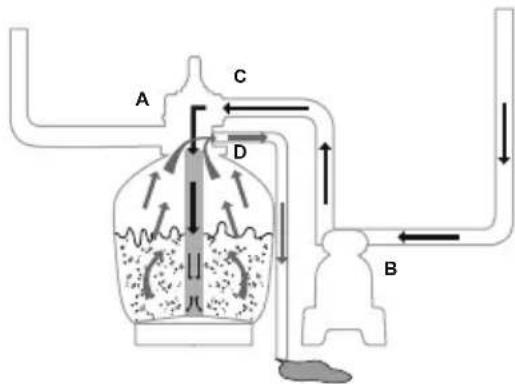

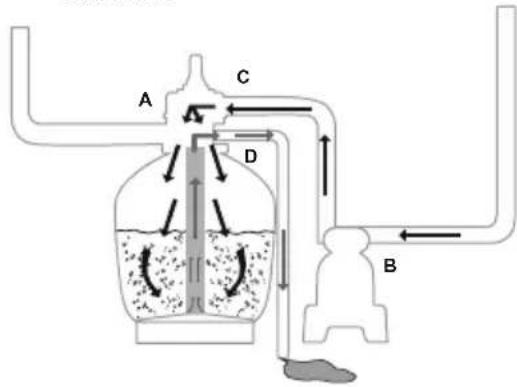

Backwash: This function is used to clean the sand bed; water is pumped down through the Collector Hub, upwards through the sand bed, and deposited out of Port D.

A C D B

Rinse: This function for initial startup, cleaning, and sand bed leveling after Backwash; water is pumped downwards through the sand bed, up through the Collector Hub and deposited out of the valve Port D.

A C D B

Drain: This function drains water from the pool; another filter bypass setting, water is pumped and deposited out of Port D, instead of returning it to the pool.

A C D B

Circulate: This function circulates pool water bypassing the sand filter; use this function if the filter is broken to collect debris in the Debris Screens.

A C B

NOTE:

• Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage.
• When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve.
• Do not switch on or operate the sand filter with the Control

Valve set to the Closed function or it will seriously damage the sand filter.

• Do not set the Control Valve between two functions, or it will lead to leaking.
• To avoid water leakage, screw the Port D Cap onto the Control Valve Port D before operating the filter or circulate function.

AIR RELEASE

Press down the control valve handle and wait until the water flow from Port D to release the air.

NOTE: It is important to repeat this operation every time you start the pump after winterizing, maintenance and backwashing the sand bed.

FIRST TIME USE INSTRUCTIONS

Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand.

CAUTION: DO NOT DRY RUN THE SAND FILTER

1. Press down on the Control Valve handle and rotate to the Backwash function.
2. Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
3. Switch off the sand filter and set the Control Valve to the Rinse function.
4. Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards through the sand filter and drains water out Port D.
5. Switch off the sand filter. Set the Control Valve to the Closed function.
6. Top up pool water if required.

IMPORTANT: This procedure removes water from the pool, which you'll need to replace. Switch off the sand filter immediately if water levels near the pool's Inlet and Outlet valves.

1. Now the sand filter is ready for use. Set the Control Valve to the Filter function.

NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter. IMPORTANT: Before operation, make sure the tank is placed steadily on its base and connected correctly to the pump.

1. Switch on the sand filter to run it.

NOTE: The sand filter has now started its filtering cycle. Check that water is returning to the pool and take note of the filter pressure on Pressure Gauge. Generally, the recommended sand filter pressure is less than 0.56 Bar (8.0 PSI) when it is running.

0.8 0.6 1 0.4 5 10 15 20 23 1.6 psi bar

SAND FILTER MAINTENANCE

CAUTION: You must ensure the sand filter is switched off and unplugged before any maintenance begins or severe risk of injury or death exists. As dirt builds up in the sand filter, the pressure reading on Pressure Gauge will increase. When the Pressure Gauge is 0.56 Bar (8.0 PSI) or higher, or water flow to the pool is too low, it is time to clean the sand. To clean the sand bed, follow all instructions outlined previously in : Backwash and Rinsing.

0.8 0.6 1 0.4 70 15 1.2 5 20 0 23 1.6 psi bar

NOTE:

1. The Pressure Gauge is just used for measuring the water pressure, not used for precision measurement.
2. We recommend you clean the sand bed once a month or less regularly depending on how often the pool is used. Do not clean the sand too frequently.

CLEANING THE STRAINER

1. Switch off the sand filter and set the Control Valve to the Closed function.
2. Close the connection valves.
3. Remove the Strainer Cover by unscrewing it.
4. Take out the Strainer, remove any debris.
5. Put the Strainer back into position. Ensure the hole in the strainer is aligned.
6. Ensure the Seal Ring is in place. Secure the Strainer Cover back.
7. Open the connection valves.

NOTE: The Strainer must be emptied and cleaned periodically. A dirty or blocked strainer will reduce the performance of the sand filter.

Diagram illustrating the working principle of a waste bin with recycling mechanism, showing top-down and side-view views.

LOWERING OR DRAINING POOL WATER

1. Switch off the sand filter and set Control Valve to the Drain function.
2. Detach the Hose from the connection valve's Port A and sand

filter Port A and attach to Port D.

1. Switch on the sand filter to remove pool water.

WARNING: DO NOT DRY RUN THE SAND FILTER.

STORAGE

In areas that have freezing winter temperatures, pool equipment must be winterized to protect against damage. Allowing water to freeze will damage the sand filter and void warranty.

1. Backwash the sand filter.
2. Drain the pool according to the pool owner's manual.
3. Unscrew the drain valve cap at the bottom of the tank and release the remaining water.
4. Disconnect the two Hoses from the pool and the sand filter.
5. Completely spill the sand out of the tank and dry all components.
6. Move away sand filter from pool area, store the sand filter in a dry indoor location out of child's reach.

TROUBLESHOOTING

Problems Probable Causes Solutions
Sand is flowing to the pool	- Sand is too small- Move the control valve from the backwash to the filter function without stop the sand filter- The level of the sand is too high- The skimmer is broken	- Recommend 0.45 mm to 0.85 mm #20 silica sand- Stop the sand filter every time set the control valve- Check if the level of the sand is between the marked “MAX” and “MIN” on the collector hub- Replace the skimmer
No water flow	- Stopper plugs were not removed- Air was not released- The control valve is set to Closed- The strainer is blocked- Sand filter broken	- Remove the stopper plugs and insert the debris screens- Release the air- Set to filter function- Clean the strainer- Call for service
Excessive filter pressure	- Dirty filter- Calcified sand bed- Insufficient backwashing- The pressure gauge is broken	- Backwash- Inspect sand and change if necessary- Backwash until water runs clear- Replace the pressure gauge
Control Valve leaks from the port D	- Control Valve is set between two functions- The gasket is broken	- Set to one function- Replace the gasket
Connectors leak	- Washer of the connectors not in place- Washer of the connectors broken- Loose Hoses	- Reposition the washer- Replace the washer- Tighten them

FILTRO DE AREIA MANUAL DO PROPRIETÁRIO

Visite o canal da Bestway no YouTube YouTube

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two components labeled A and B, with no visible text or symbols beyond labels.

REF.NR.	PEÇA SOBRESSALENTE NR	A	B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Diagram illustrating a recycling process with labeled steps and arrows indicating rotation and recycling.

Exploded view diagram of a washing machine with numbered parts and assembly instructions

A

B

The image is too blurry to recognize any text content.

X2

N° REF.	N° PIEZA RECAMBIO A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

MONTAJE

(Se requiere un

destornillador.)

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

ALTO

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Diagram illustrating a recycling process with labeled steps and arrows indicating rotation and recycling.

VACIAR O REDUCIR EL NIVEL DE AGUA DE LA PISCINA

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

A

B

[NO TEXT]

X2

REF.-NR.	ERSATZTEIL NR. A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

MONTAGE

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Diagram illustrating the working principle of a waste bin with recycling mechanism, showing top-down and side-view views.

POOLWASSER ABSENKEN ODER ABLASSEN

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two components labeled A and B, with a 3D box and a circular base (no text or symbols present)

VIITENRO	VARAOSAN NRO A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

KOKOAMINEN

(Tarvitset

ruuvimeisselin.)

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Nupin asento	Toiminta-aika (H)	Lepoaika (H)	Käyntisykli (H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

SÄÄTÖVENTTIILIN YLEISKATSAUS

Diagram illustrating the working principle of a waste bin with recycling mechanism, showing top-down and side-view views.

ALTAAN VEDEN MÄÄRÄN VÄHENTÄMINEN TAI ALTAAN TYHJENTÄMINEN

Exploded view diagram of a mechanical device with numbered parts and assembly instructions

Diagram showing two labeled components (A and B) with a 3D box, a circular tank, and a pipe fitting (X2), no text or symbols present.

REF.NR.	NR. WISSELOND. A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

MONTEREN

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

STOP Lees de handleiding zorgvuldig alvorens in te schakelen.

WERKING

TIMER

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Diagram illustrating a recycling process with labeled steps and arrows indicating rotation and recycling.

ZWEMBADWATER DOEN ZAKKEN OF AFVOEREN

WAARSCHUWING: LAAÏ DE ZANDFILTER NIET DROOG WERKEN

OPSLAG

Exploded view diagram of a washing machine with numbered parts and assembly instructions

A

B

X2

N. RIF.	N. PARTE DI RICAMBIO	A	B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Diagram illustrating the working principle of a cleaning or recycling device, showing steps from top to bottom with circular arrows indicating rotation.

RIDUZIONE O SCARICO DELL'ACQUA DELLA PISCINA

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two components labeled A and B, with no visible text or symbols beyond labels.

RÉF.N°	PIÈCE DE RECHANGE N°.	A	B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

MONTAGE

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Diagram illustrating the working principle of a cleaning or recycling device, showing steps from top to bottom with circular arrows indicating rotation.

DIMINUTION OU VIDANGE DE L'EAU DE LA PISCINE

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two components labeled A and B, with no visible text or symbols beyond labels.

AP. ANAΦ.	ΚΩΔ. ΕΙΔΟΥΣ ΑΝΤΑΛΛΑΚΤΙΚΟΥ	A	B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

ΣΥΝΑΡΜΟΛΟΓΗΣΗ

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Diagram illustrating the working principle of a cleaning or recycling device, showing steps from top to bottom with circular arrows indicating rotation.

Exploded view diagram of a washing machine with numbered parts and assembly instructions

A

B

[NO TEXT]

X2

No 3A	ПЧАСТЬ No А В
111	P03850
2 11	P61138ASS16
3 2 2	P03832
4 11	P61209ASS16
5 11	P03833
6 11	P03834
7 11	P61211ASS16
8 11	P6581ASS16
911	P6580ASS16
10 11	P03835
1111	P6614ASS16
12 5 5	P6029ASS16
13 11	P03830
14 11	P61214ASS16
15 8 8	P61210ASS16
16 11	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
1911	P6561ASS16
20 11	P6562ASS16
2111	P6563ASS16
22 11	P03851(EU)/P00577(GB)
23 11	P03840
24 2 2	P6518ASS16
25	P61322ASS16	10
	P61318ASS16	10

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

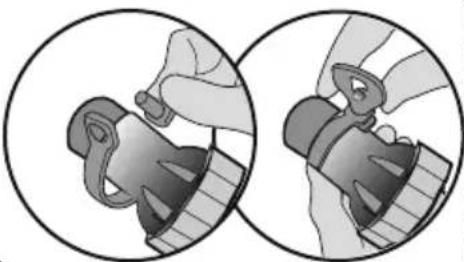

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Diagram illustrating a recycling process with labeled steps and arrows indicating rotation and recycling.

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two labeled components (A and B) with no visible text or symbols

NR REF.	NR CZEŚCI AB
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

SKŁADANIE

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and a schematic of connected devices.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and adjustment indicators.

Diagram illustrating a recycling or cleaning process with labeled steps and directional arrows indicating rotation.

OBNIŻANIE LUB SPUSZCZANIE WODY W BASENIE

Exploded view diagram of a washing machine with numbered parts and assembly instructions

A

B

The image is too blurry to recognize any text content.

X2

SORSZÁM	ALKATRÉSZ SZÁMA A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1 0
	P61318ASS16	1 0

ÖSSZESZERELÉS

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Diagram illustrating a recycling process with labeled steps and arrows indicating rotation and recycling.

Exploded view diagram of a mechanical device with numbered parts and assembly instructions for P61322ASS16 and P61318ASS16.

Technical diagram showing two labeled components (A and B) with no visible text or symbols

REF.NR.	RESERVDELSNR. A B
1 1 1	P03850
2 1 1	P61138ASS16
3 2 2	P03832
4 1 1	P61209ASS16
5 1 1	P03833
6 1 1	P03834
7 1 1	P61211ASS16
8 1 1	P6581ASS16
9 1 1	P6580ASS16
10 1 1	P03835
11 1 1	P6614ASS16
12 5 5	P6029ASS16
13 1 1	P03830
14 1 1	P61214ASS16
15 8 8	P61210ASS16
16 1 1	P03829
17 2 0	P6916ASS16
18 2 0	P6124ASS16
19 1 1	P6561ASS16
20 1 1	P6562ASS16
21 1 1	P6563ASS16
22 1 1	P03851(EU)/P00577(GB)
23 1 1	P03840
24 2 2	P6518ASS16
25	P61322ASS16	1	0
	P61318ASS16	1	0

MONTERING

FYLL PÅ MED POOLFILTERSAND/FLOWCLEAR™ POLYSPHERE.

Diagram illustrating a mechanical system with labeled components A and B, showing fluid flow and assembly steps.

2

P6916ASS16

A P61318ASS16

B P61322ASS16

Illustration of two hands adjusting a mechanical component, shown in two circular views (no text or symbols)

Technical diagram of a motor with labeled rotary dial and control panel, showing mechanical components and a close-up view.

Knopp-lägePosition	Arbete	Vilotid(H)	Cykeltid period(H)
4	4	20	24
6	6	18	24
8	8	16	24
10	10	14	24
12	12	12	24
24	24	0	24
P4	4	4	8
P6	6	6	12
P8	8	8	16

ÖVERSIKT ÖVER KONTROLLVENTILEN

Diagram illustrating a recycling or recycling process with labeled components and directional arrows indicating rotation.

MINSKNING ELLER TÖMNING AV POOLVATTNET

For support please visit us at:

bestwaycorp.com/support

©2021 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America

Tel: [phone] (For U.S. and Canada)

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com
