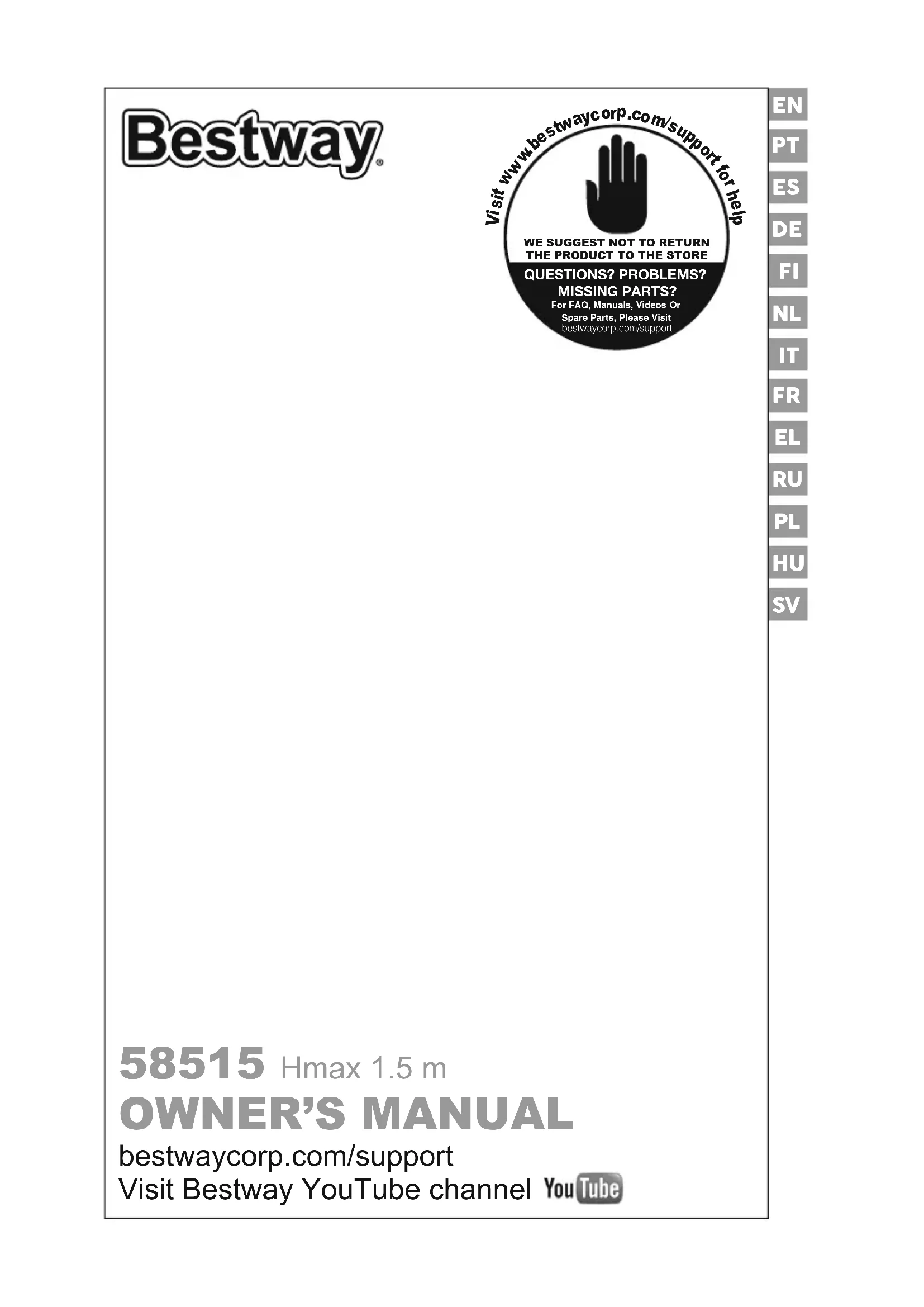

USER MANUAL Flowclear 58515 BESTWAY
58515 Hmax 1.5 m
OWNER'S MANUAL
bestwaycorp.com/support
Visit Bestway YouTube channel YouTube
SAND FILTER OWNER'S MANUAL
Visit Bestway YouTube channel YouTube
SAFETY INSTRUCTIONS
WARNING
IMPORTANT SAFETY INSTRUCTIONS - READ AND FOLLOW ALL SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
- The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
- The power source on the wall of building should keep more than 4 m away from pool.
- The appliance must be supplied by earthed power source.
- RISK OF ELECTRIC SHOCK - The pump cannot be using while people are inside the pool. Forbid the access of the pool in case of damage of the sand filter.
- DO NOT BURY CORD. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
- To reduce the risk of electric shock, replace damaged cord immediately.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Extension cords can't be used.
- Risk of electric shock. Using the sand filter with an unmatched electrical supply is dangerous and will permanently damage the sand filter.
- Do not remove the grounding prong or modify the plug in
anyway. Do not use adaptor plugs. Consult a qualified electrician for any questions relating to validity of your plugs or grounding.
- When the appliance will be not used for long time, such as in the winter, the pool set should be disassembled and stored indoor.
- CAUTION: Read the instruction before using the appliance and installation/reassembly every time.
- Safekeeping the instruction. For reconstruction the pool set every time, please always refer to the instructions.
- If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com
- Electric installations should follow national wiring rules. Consult a qualified electrician for any questions.
CAUTION: This sand filter is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)
- Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.
NOTES:
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
SAVE THESE INSTRUCTIONS
PUMP DISPOSAL
Meaning of crossed-out wheeled dustbin:
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

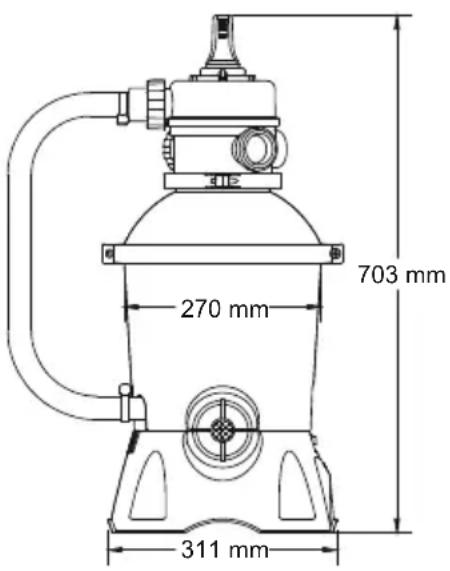

SPECIFICATIONS
 | Filter Diameter | 270 mm |
| Effective Fiter Area: | 0.059 m2(0.635 ft2) |
| Max. Operating Pressure: | 0.42 Bar(6 PSI) |
| Working sand filter pressure: | <0.25 Bar(3.5 PSI) |
| Max. Water Temperature: | 35°C |
| Sand: | Not included |
| Sand Size: | #20 silica sand,0.45-0.85 mm |
| Sand Capacity: | Approximately 8.5 kg |

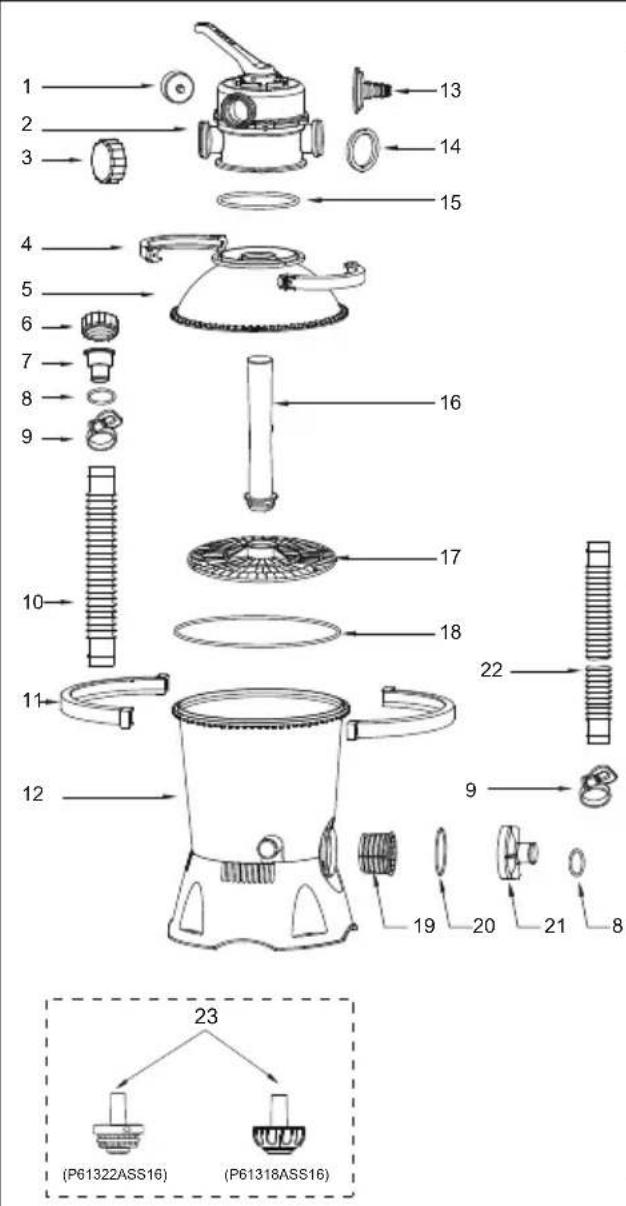

PARTS REFERENCE OVERVIEW
Before assembling the sand filter, take a few minutes to become familiar with all the sand filter parts.
| REF.NO | SPARE PART NO. A B | | |
| 1 | P61138ASS16 | 1 | 1 |
| 2 | P03822 | 1 | 1 |
| 3 | P03830 | 1 | 1 |
| 4 | P03823 | 2 | 2 |
| 5 | P03825 | 1 | 1 |
| 6 | P03829 | 3 | 3 |
| 7 | P03824 | 2 | 2 |
| 8 | P6005ASS16 | 4 | 4 |
| 9 | P6124ASS16 | 6 | 4 |
| 10 | P6132ASS16 | 1 | 1 |
| 11 | P03828 | 2 | 2 |
| 12 | P05881(EU)/P05883(GB) | 1 | 1 |
| 13 | P6614ASS16 | 1 | 1 |
| 14 | P6029ASS16 | 3 | 3 |
| 15 | P6149ASS16 | 1 | 1 |
| 16 | P6660ASS16 | 1 | 1 |
| 17 | P6661ASS16 | 1 | 1 |
| 18 | P6662ASS16 | 1 | 1 |
| 19 | P6663ASS16 | 1 | 1 |
| 20 | P6664ASS16 | 1 | 1 |
| 21 | P6665ASS16 | 1 | 1 |
| 22 | P6022ASS16 | 2 | 2 |
| 23 | P61322ASS16 | 1 | 0 |
| P61318ASS16 | 1 | 0 |
ASSEMBLY (You will need a screwdriver).
-
Carefully remove all components from the package and check to ensure nothing is damaged. If equipment is damaged, immediately notify the retailer from where the equipment was purchased.
-

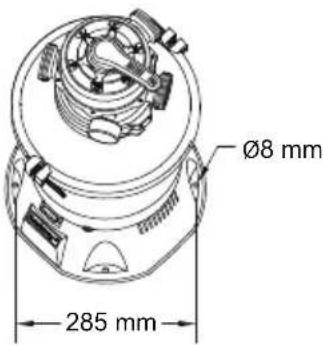

The sand filter should be placed on solid,
level ground, preferably a concrete slab. Position the sand filter so the Ports and Control Valve are accessible for operation, servicing and winterizing.
- EN60335-2-41 TEST standard requires the sand filter to be vertically fixed on ground or a certain pedestal made of wood or concrete before use to prevent the sand filter from accidentally falling. Fully assembled sand filter will exceed 18 kg. The mounting holes should be 8 mm in diameter and spaced 285 mm apart. Use two bolts and nuts with a maximum of 8 mm in diameter to fasten the sand filter to the pedestal.

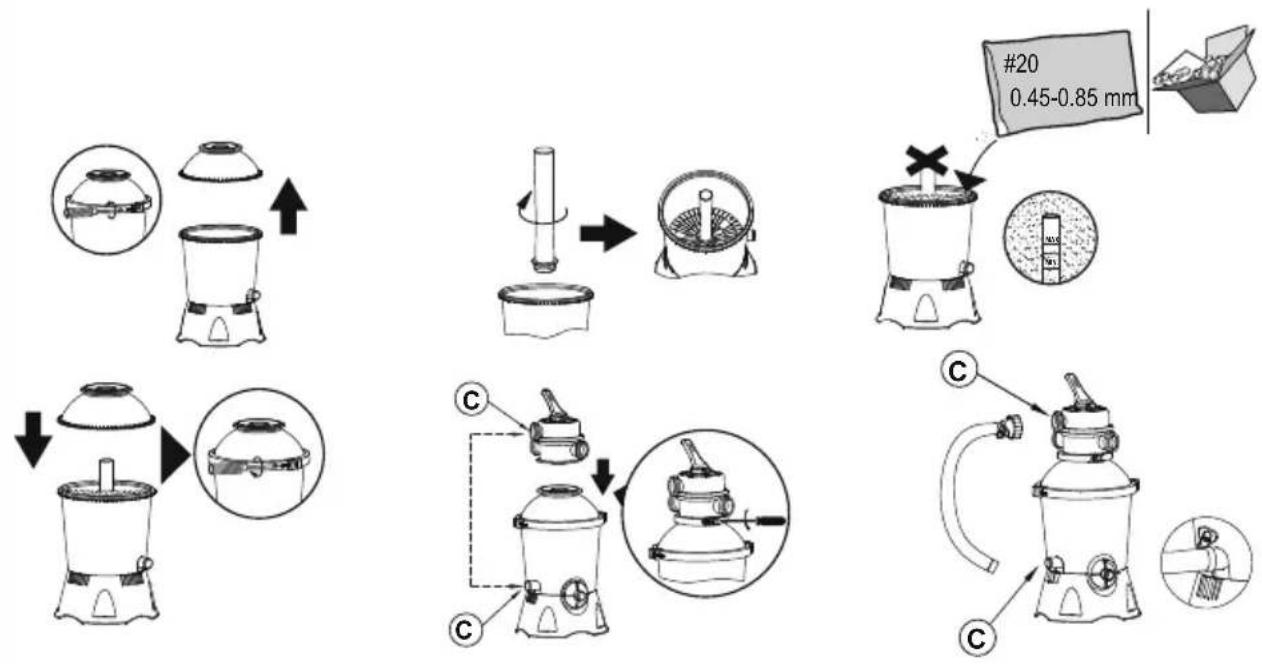

LOAD POOL-GRADE FILTER SAND/FLOWCLEAR™ POLYSPHERE.
NOTE: Use only special pool-grade filter sand, free of all limestone or clay: #20 Silica sand 0.45-0.85 mm, approximately one 8.5 kg bag should suffice. If you do not use the recommended size filter sand, filtering performance will be reduced and the sand filter may damaged, thereby voiding warranty.
NOTE: To avoid damaging the Skimmer when adding sand, pour some water into the Bottom Tank to submerse the Skimmer on the Collector Hub.
NOTE: Sand/Flowclear™ Polysphere not included.
NOTE: Use 28 g (0.06 lbs) Flowclear™ Polysphere to replace 1 kg (2.20 lbs) sand.


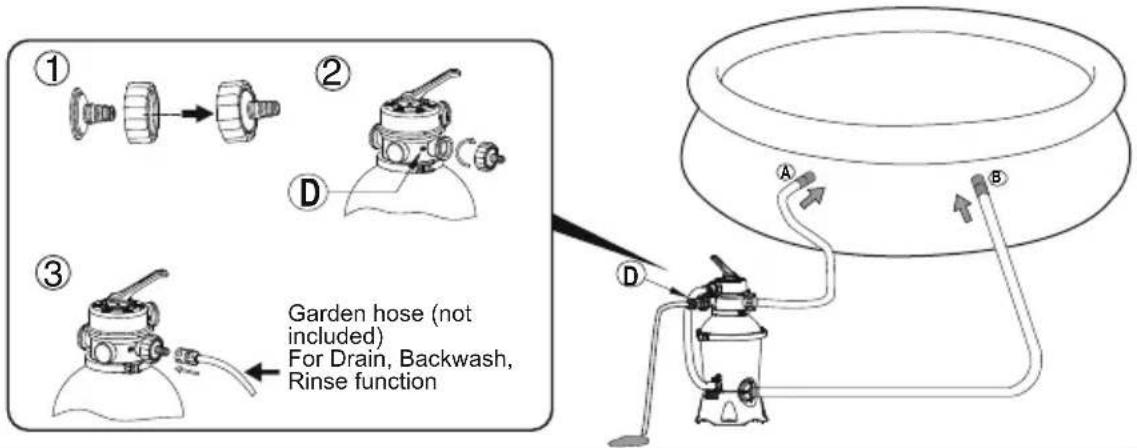

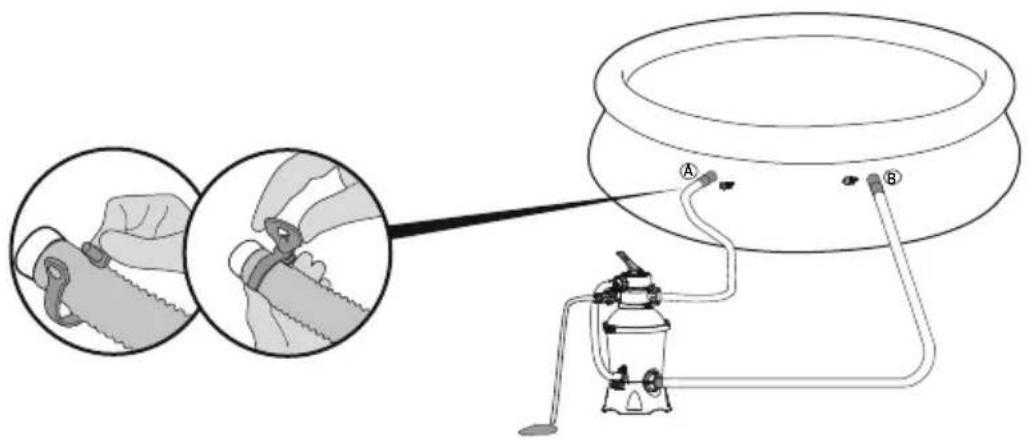

CONNECT TO THE POOL
For 38 mm(1.5 in) connection
1
2
3
STOP
Before switching on, please read the manual carefully.
OPERATION
CONTROL VALVE OVERVIEW
WARNING: To prevent equipment damage and possible injury, always switch off sand filter before changing the
Control Valve function. Changing valve positions while the pump is running can damage the Control Valve, which may cause personal injury or property damage.
How to Use the Control Valve:
Press down on the Control Valve handle and rotate to desired function.
CONTROL VALVE FUNCTIONS
The Control valve is used to select 6 different filter functions: Filter, Closed, Backwash, Rinse, Drain and Circulate.
Filter: This function is used to filter pool water and should be positioned here 99% of the time. Water is pumped through the sand filter, where it is cleaned and returned to the pool.
Closed: This function stops water flowing between the sand filter and the pool.

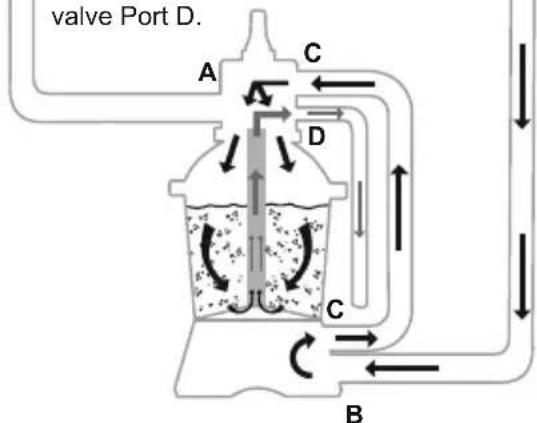

Backwash: This function is used to clean the sand bed; water is pumped down through the Collector Hub, upwards through the sand bed, and deposited out of Port D.
Rinse: This function for initial startup, cleaning, and sand bed leveling after Backwash; water is pumped downwards through the sand bed, up through the Collector Hub and deposited out of the valve Port D.

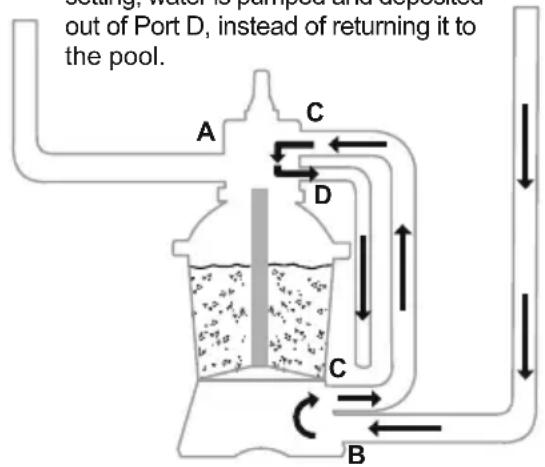

Drain: This function drains water from the pool; another filter bypass setting, water is pumped and deposited out of Port D, instead of returning it to the pool.
note["Setting, water is pumped and deposited out of Port D, instead of returning it to the pool."]
Circulate: This function circulates pool water bypassing the sand filter; use this function if the filter is broken to collect debris in the Debris Screens.
NOTE:
- Be sure all provisions for wastewater disposal meet applicable local, state or national codes. Do not discharge water where it will cause flooding or damage.
- When the Control Valve is set to the Backwash, Rinse, or Drain position, water will discharge from Port D on the Control Valve.
- Do not switch on or operate the sand filter with the Control Valve set to the Closed function or it will seriously damage the sand filter.
- Do not set the Control Valve between two functions, or it will lead to leaking.
- To avoid water leakage, screw the Port D Cap onto the Control Valve Port D before operating the sand filter.
AIR RELEASE
Press down the control valve handle and wait until the water flow from Port D to release the air.
NOTE: It is important to repeat this operation every time you start the pump after winterizing, maintenance and backwashing the sand bed.
FIRST TIME USE INSTRUCTIONS
Backwash and Rinsing must be performed to prepare the pump for its first use and to wash the sand.
CAUTION: DO NOT DRY RUN THE SAND FILTER
- Press down on the Control Valve handle and rotate to the Backwash function.
- Plug in and run the sand filter for 3-5 minutes, or until the water runs clear.
- Switch off the sand filter and set the Control Valve to the Rinse function.
- Switch on the sand filter and run the sand filter for 1 min. This circulates water backwards through the sand filter and drains water out Port D.
- Switch off the sand filter. Set the Control Valve to the Closed function.
- Top up pool water if required.
IMPORTANT: This procedure removes water from the pool, which you'll need to replace.
Switch off the sand filter immediately if water levels near the pool's Inlet and Outlet valves.
- Now the sand filter is ready for use. Set the Control Valve to the Filter function.
NOTE: To prevent the risk of electrical shock dry any excess water from yourself and the sand filter.
- Switch on the sand filter to run it.
NOTE: The sand filter has now started its filtering cycle. Check that water is returning to the pool and take note of the filter pressure on Pressure Gauge. Generally, the recommended sand filter pressure is less than 0.25 Bar (3.5 PSI) when it is running.
SAND FILTER MAINTENANCE
CAUTION: You must ensure the sand filter is switched off and unplugged before any maintenance begins or severe risk of injury or death exists. As dirt builds up in the sand filter, the pressure reading on Pressure Gauge will increase. When the Pressure Gauge is 0.25 Bar (3.5 PSI) or higher, or water flow to the pool is too low, it is time to clean the sand. To clean the sand bed, follow all instructions outlined previously in: Backwash and Rinsing.
NOTE: Pressure gauge is for maintenance purpose only, and the pressure gauge value is just for reference, it should not be used as a precision instrument.
NOTE: We recommend you clean the sand bed once a month or less regularly depending on how often the pool is used. Do not clean the sand too frequently.
CLEANING THE STRAINER
- Switch off the sand filter and set the Control Valve to the Closed function.
-
Replace the Debris Screens with Stopper Plugs to prevent water from escaping.
-
Remove the Strainer Cover by unscrewing it.
- Take out the Strainer, remove any debris.
- Put the Strainer back into position. Ensure the hole in the strainer is aligned.
- Ensure the Seal Ring is in place. Secure the Strainer Cover back.
- Remove the Stopper Plugs and insert the Debris Screens.
NOTE: The Strainer must be emptied and cleaned periodically. A dirty or blocked strainer will reduce the performance of the sand filter.
LOWERING OR DRAINING POOL WATER
- Switch off the sand filter and set Control Valve to the Drain function.
- Detach the Hose from the pool's Port A and sand filter Port A and attach to Port D.
NOTE: Remember to replace the Debris Screen with Stopper Plug to prevent water from escaping.
- Switch on the sand filter to run the filter and remove the pool water.
WARNING: DO NOT DRY RUN THE SAND FILTER.
STORAGE
In areas that have freezing winter temperatures, pool equipment must be winterized to protect against damage. Allowing water to freeze will damage the sand filter and void warranty.
- Backwash the sand filter.
- Drain the pool according to the pool owner's manual.
- Disconnect the two Hoses from the pool and the sand filter.
- Completely pour the sand out of the tank and dry all components.
- Store the sand filter in a dry location out of child's reach.
TROUBLESHOOTING
| Problems Probable Causes Solutions | |
| Sand is flowing to the pool | - Sand is too small- Move the control valve from the backwash to the filter function without stop the sand filter- The level of the sand is too high- The skimmer is broken | - Recommend 0.45 mm to 0.85 mm #20 silica sand- Stop the sand filter every time set the control valve- Check if the level of the sand is between the marked “MAX” and “MIN” on the collector hub- Replace the skimmer |
| No water flow | - Stopper plugs were not removed- Air was not released- The control valve is set to Closed- The strainer is blocked- Sand filter broken | - Remove the stopper plugs and insert the debris screens- Release the air- Set to filter function- Clean the strainer- Call for service |
| Excessive filter pressure | - Dirty filter- Calcified sand bed- Insufficient backwashing- The pressure gauge is broken | - Backwash- Inspect sand and change if necessary- Backwash until water runs clear- Replace the pressure gauge |
| Control Valve leaks from the port D | - Control Valve is set between two functions- The gasket is broken | - Set to one function- Replace the gasket |
| Connectors leak | - Washer of the connectors not in place- Washer of the connectors broken- O-ring on the hose connection is broken- Loose Hoses | - Reposition the washer- Replace the washer- Replace the O-ring- Tighten them |
FILTRO DE AREIA MANUAL DO PROPRIETÁRIO


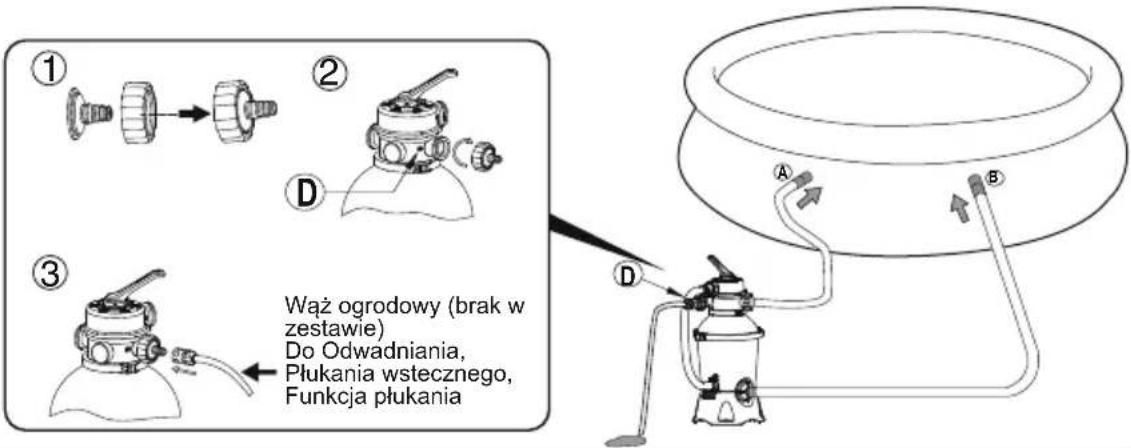

LIGUE À PISCINA
PARE
ALTO
VACIAR O REDUCIR EL NIVEL DE AGUA DE LA PISCINA
SEIS
SÄÄTÖVENTTIILIN TOIMINNOT
ALTAAN VEDEN MÄÄRÄN VÄHENTÄMINEN TAI ALTAAN TYHJENTÄMINEN
STOP
ZWEMBADWATER DOEN ZAKKEN OF AFVOEREN
WAARSCHUWING: LAAT DE ZANDFILTER NIET DROOG WERKEN
OPSLAG
COLLEGARE ALLA PISCINA
STOP
RIDUZIONE O SCARICO DELL'ACQUA DELLA PISCINA
STOP
PODŁĄCZ DO BASENU
1
2
STOP
OBNIŻANIE LUB SPUSZCZANIE WODY W BASENIE
CSATLAKOZTATÁS A MEDENCÉHEZ
A MEDENCEVÍZ SZINTJÉNEK LEJJEBB ENGEDÉSE, ILLETVE A MEDENCEVÍZ LEERESZTÉSE
FYLL PÅ MED POOLFILTERSAND/FLOWCLEAR™ POLYSPHERE.
ANSLUT TILL POOLEN
STOPP
MINSKNING ELLER TÖMNING AV POOLVATTNET
For support please visit us at:
bestwaycorp.com/support
©2021 Bestway Inflatables & Material Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati
Trademarks used in some countries under license from/
Manufactured, distributed and represented in the European Union by/
Bestway (USA) Inc., 3411 E. Harbour Drive, Phoenix, Arizona 85034, United States of America
Tel: +86 21 69135588 (For U.S. and Canada)
Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia
Tel: Australia: (+61) 29 0371 388; New Zealand: 0800 142 101
Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL
Exported by/Exporté par/Exportado por/Exportiert von/Esportato da
Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited
Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong
www.bestwaycorp.com
