USER MANUAL CLMPARFOOTPLUS Cameo

Exterior view of a four-pin electrical control panel with buttons and indicator lights (no readable text or symbols beyond labels)

CLMPARFOOTPLUS

FOOT SWITCH FOR CLMPAR LIGHTING SYSTEMS

Thank you for choosing Cameo Lights!

We have designed this product to give you reliable operation over many years.

Please, take a few moments to read these instructions carefully, as we want you to enjoy your new Cameo Lights products quickly and to the fullest.

Further information about Cameo Lights check our website WWW.CAMEOLIGHT.COM

CLMPARFOOTPLUS

FOOT PEDAL FOR CLMPAR LIGHTING SYSTEMS

Exterior view of a four-pin electronic device with control buttons and indicator lights (no readable text or symbols beyond labels)

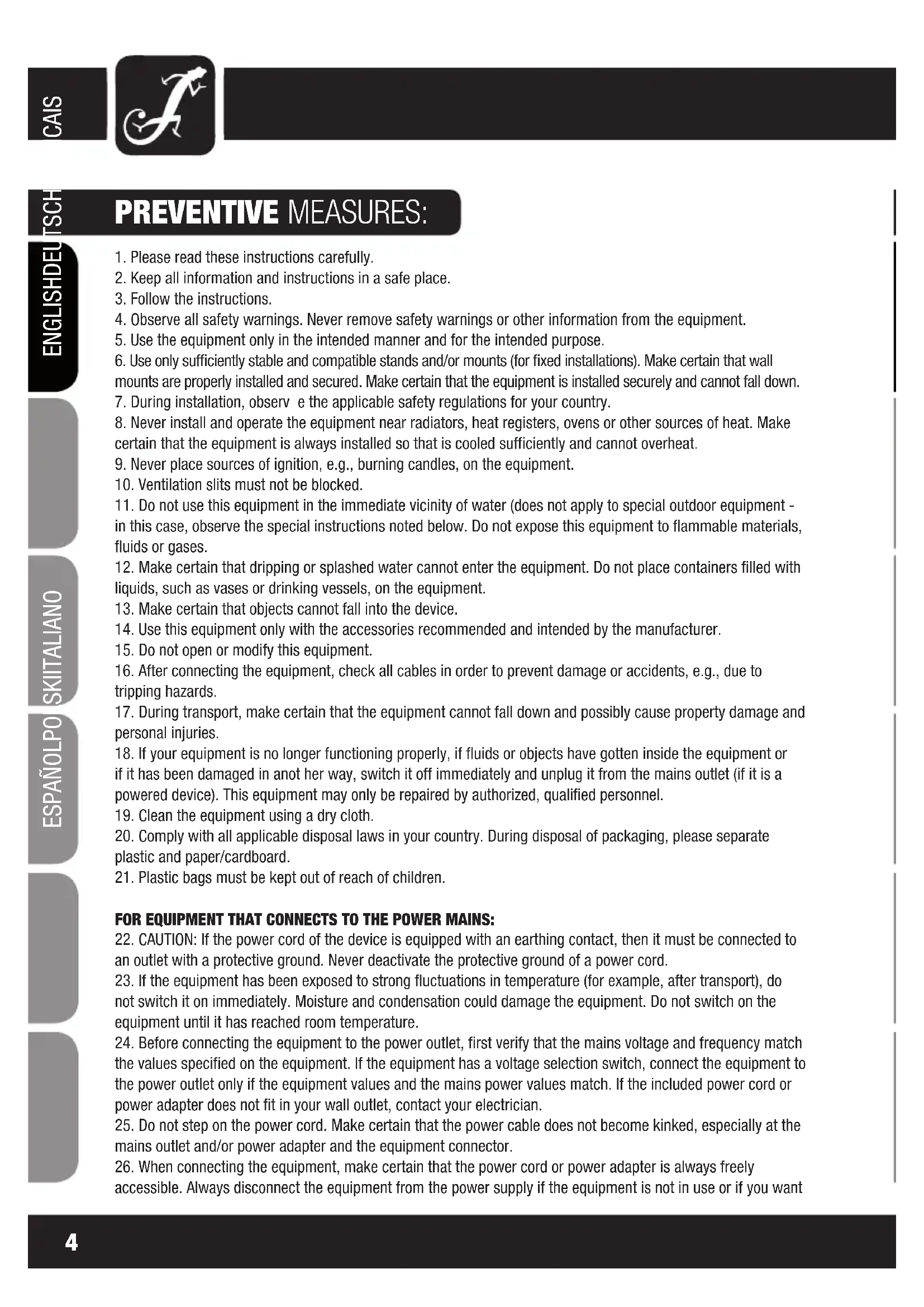

PREVENTIVE MEASURES:

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.

5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want

SAFETY:

to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

1. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.

2. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.

3. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.

4. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

5. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION:

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS

1. Do not look into the beam from a distance of less than 40 cm.

2. Do not stare into the beam for extended periods at short-to-medium distances.

3. Do not view the beam directly with optical instruments such as magnifiers.

4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

The product has been developed for professional use in the field of event technology and is not suitable as household lighting.

INTRODUCTION:

CLMPARFOOTPLUS

The Cameo 4 x Multi PAR foot + foot pedal is a controller specifically developed for the Cameo Multipar LED lighting systems, allowing you to control your light systems quickly and easily. You will need to switch your Cameo Multipar LED lighting system to slave mode and bring the MODE switch on the back of the pedal on your Multipar lighting system to the corresponding position MODE 1 or MODE 2, and already you can operate all functions easily with your foot. Cameo Multipar lighting systems with RGB colour spectrum: MODE 1 Cameo Multipar lighting systems with RGBW colour spectrum: MODE 2

CONTROLLER-FUNCTIONS

• Static colours
• Music control
• Program mode
  • Full On
• Blackout
  • Power Out 1/2 (depending on model)

OPERATING AND DISPLAY ELEMENTS:

1 5 COLOR SODD PROGRAM POWER OUT 1 2 3 4 POWER OUT 2 FULL ON 7 MODE 1 MODE 2 6 CE 8 CAMOO® CLOUB OUT RQR CLIMPARFOOT... CAMOO MULTIPAR - 4 PLATR. SWITCH FOR CLIMPAR REMOTE OUTPUT MINTOUT MOSSO BMC SENSIT: MODE 1 MODE 2

In order to control your Cameo Multipar lighting system using the multi-PAR Foot + pedal, you will need to switch it to the SLAVE mode and to connect both using the supplied 5-pin XLR cable. Now, set the MODE switch (No. 6) on the back of the pedal to the corresponding position of your Multipar lighting system.

Cameo Multipar lighting systems with RGB colour spectrum: MODE 1

Cameo Multipar lighting systems with RGBW colour spectrum: MODE 2

1 MODE

The MODE switch lets you select the various operating modes of the pedal (COLOUR, SOUND, PROGRAM).

OPERATING AND DISPLAY ELEMENTS:

2 UP / POWER OUT 1

Briefly pressing the UP switch selects the next highest program or the preset.

A long press (2 seconds) turns on the power socket POWER OUT 1 - or off (only for models with power sockets for additional projectors).

Briefly pressing the DOWN switch selects the next lowest program or the preset.

A long press (2 seconds) turns on the power socket POWER OUT 2 - or off (only for models with power sockets for additional projectors).

4 BLACKOUT / FULL ON

BLACKOUT: By briefly pressing the BLACKOUT button, all LEDs on the Multipar lighting system are switched off (light off), and all three LEDs on the pedal indicator light up. The BLACKOUT MODE also affects the additional power sockets POWER OUT 1 and 2 (depending on the model). To switch back to the previously selected mode, press the BLACKOUT button again.

FULL ON: By pressing for a long time (2 seconds), the COLOUR MODE (static colours) and the preset for FULL ON are activated (all LEDs are activated, the result is a bright, white light). To switch back to the previous SOUND activated or PROGRAM mode, select it using the MODE button (the preset selected in the respective operating mode is retained). To select a different static colour in COLOUR MODE, use the UP and DOWN buttons.

5 INDICATOR LEDS

Display LEDs for the operating modes COLOUR (red LED), SOUND (green LED), PROGRAM (yellow LED) and BLACKOUT (all 3 LEDs light up).

6 SWITCH MODE 1 / MODE 2

Move the MODE switch to the corresponding position of your Multipar lighting system.

Cameo Multipar lighting systems with RGB colour spectrum: MODE 1

Cameo Multipar lighting systems with RGBW colour spectrum: MODE 2

7 REMOTE OUTPUT

5-pin XLR connector. Connect the pedal to your Cameo Multipar lighting system using the supplied 5-pin XLR cable, which is also the power supply for the pedal. A separate power supply is therefore not required.

8 MIC SENSITIVITY

Controller for setting the sensitivity level of the noise-sensitive microphone which is integrated into the pedal (bass impulses). Turning it to the right increases and turning it to the left reduces the sensitivity.

OPERATION:

COLOUR:

Mode for static colours. All 4 Multipar projectors emit light in the same colour.

Press the MODE switch until the red LED lights up (COLOUR). Using the buttons UP and DOWN, you can then select the desired colour preset (short press).

SOUND:

In the music control operating mode (Sound Mode), the lighting system responds to noise (bass impulses), in order to produce different colour combinations in succession.

Press the MODE switch until the green LED lights up (SOUND). The MIC SENSITIVITY controller on the back of the pedal is used to set the sensitivity of the noise-sensitive microphone which is integrated into the pedal. Turning it to the right increases and turning it to the left reduces the sensitivity. Using the buttons UP and DOWN, you can then select one of the integrated presets (short press).

PROGRAM:

Operating mode for automatic program sequence (varying programmed colour effects).

Press the MODE switch until the yellow LED lights up (PROGRAM). Using the buttons UP and DOWN, you can then select one of the integrated programs (short press).

NOTE: The connection of a Cameo Multipar lighting system to the multi PAR foot + pedal must be done via a 5-pin XLR cable with fully allocated connector pins and parallel wiring, because it will supply both the power for the pedal and the control signal (suitable cable included).

TECHNICAL DATA:

Model Name: CLMPARFOOTPLUS

Product Type: 4-way directional control pedal for Cameo Multi PAR lighting systems

Controls: Button for Mode, Up, Down, Blackout, controllers for microphone sensitivity

Indicators: LEDs for Colour Mode, Sound Mode, Program Mode

Connector: 5-pin XLR socket male

Power Supply: via 5-pin XLR cable, no separate power supply needed

Housing Material: metal

Housing Colour: black

Width: 291 mm

Height: 65 mm

Depth: 103 mm

Weight: 1 kg

Other Features: 10 m 5-pin XLR cable included

MANUFACTURER'S DECLARATIONS:

MANUFACTURER'S WARRANTY

This warranty extends to the CAMEO branded product you purchased from Adam Hall. The statutory warranty rights against the vendor shall not be affected by this warranty. Rather, this warranty gives you additional independent claims against Adam Hall.

With this warranty, Adam Hall ensures that products you have purchased from Adam Hall or Adam Hall partners, under normal use, are free of defects in material or workmanship for a period of 2 years from the date of purchase. The warranty period begins on the date of purchase. In order to assert a claim for warranty service, the proof of date of purchase is provided by the receipt bearing the date of purchase or the date of purchase on the delivery note. You are entitled to warranty service under the conditions and provisions set out in this document, if a repair within the warranty period is required.

This warranty applies only to the original purchaser of the products supplied by Adam Hall and is not transferable to any person to whom the property is transferred by the original purchaser.

Within the warranty period, the defective parts or the product from Adam Hall will be repaired or replaced. Under the terms of this warranty, all the replaced or removed components become the property of Adam Hall.

In the unlikely event that a product acquired from Adam Hall, repeatedly exhibits a defect, Adam Hall may decide, at its discretion, to replace this product with a comparable product of at least the same performance.

Adam Hall does not guarantee that the operation of this product will be uninterrupted or error-free. Adam Hall accepts no responsibility for any damage due to incorrect compliance with the instructions received in the delivery.

This warranty does not extend to:

• wearing parts (eg battery, tubes).
• devices that have had their serial number removed or damaged, or failed as a result of an accident
• inappropriate or abusive use or other external causes
• devices that were not used in accordance with the operating parameters defined in the user documentation shipped with the product
• devices that have been repaired using parts not made or distributed by Adam Hall
• devices that have been serviced, modified or repaired by someone other than Adam Hall or an authorised service partner. These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.

This warranty is valid only within Europe. Outside of Europe please contact our official distributors.

MANUFACTURER'S DECLARATIONS:

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.

This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.

REQUESTING WARRANTY SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

EC DECLARATION OF CONFORMITY

The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.

MANUFACTURER'S DECLARATIONS:

PROPER DISPOSAL OF THIS PRODUCT

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION

Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrity of this user's manual is prohibited.
