Product Type	Cordless Impact Wrench
Brand	HiKOKI
Model	WR 18DBDL2
Power Source	18V lithium-ion battery (BSL1830C, 3.0 Ah)
No-Load Speed	High mode: 0-2700 rpm Medium mode: 0-2000 rpm Low mode: 0-1000 rpm Single mode: 0-2700 rpm
Max Torque	225 ft-lb (305 N·m)
Screw Capacity	Ordinary bolts: M10 to M20 (3/8" to 25/32") High-tensile bolts: M10 to M16 (3/8" to 5/8")
Square Drive	1/2" (12.7 mm)
Weight (with battery)	1.5 kg (3.3 lbs)
Charger	Model UC18YFSL, input voltage AC 120V 60Hz, charging time approx. 45 min
Tightening Modes	4 modes: Low, Medium, High, Single (auto-stop after a few impacts)

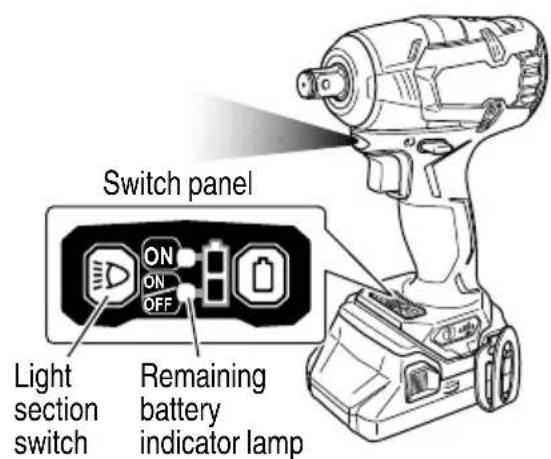

Light	Built-in LED with 3 modes: always on, lock, always off

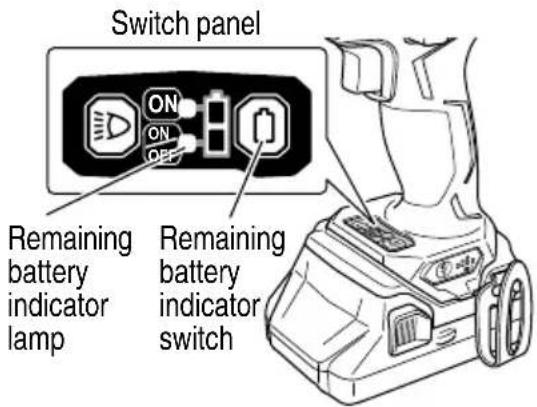

Battery Indicator	Residual power indicator (3 levels)
Protection Rating	IP56 (dust-resistant and protected against powerful water jets)
Maintenance	Clean with a damp soft cloth, do not use solvents. Regularly check the condition of screws and sockets.
Safety	Wear safety glasses and ear protectors. Do not expose to rain or moisture. Use only with recommended batteries and chargers.
Replacement Parts	Battery BSL1830C, charger UC18YFSL, hex sockets, O-ring, pin. Available at authorized metabo HPT service centers.
Warranty	Refer to the manual or dealer for warranty conditions.

Frequently Asked Questions - WR 18DBDL2 HiKOKI

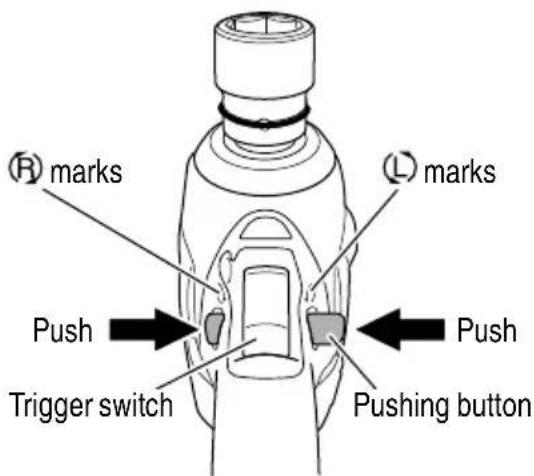

How to change the rotation direction?

Use the push button located above the trigger. Press the R side for clockwise rotation (tightening) and the L side for counterclockwise rotation (loosening). Never change direction while the tool is running.

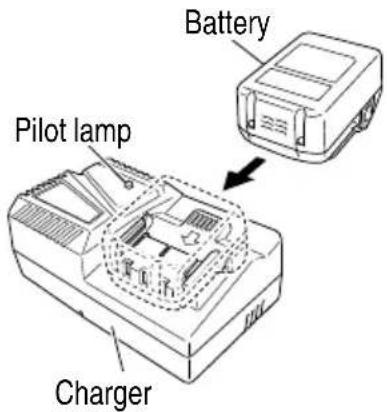

What is the battery charging time?

With the UC18YFSL charger, the BSL1830C battery charges fully in about 45 minutes. Time may vary depending on ambient temperature.

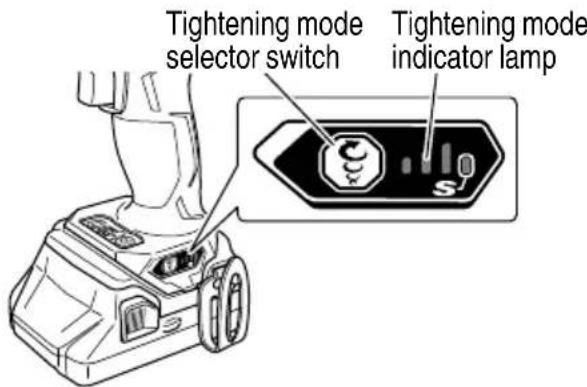

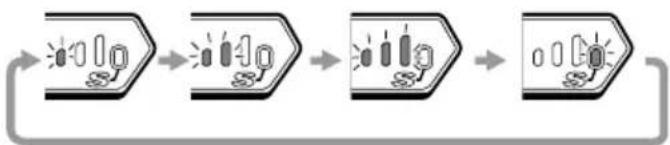

How to select the appropriate tightening mode?

Press the tightening mode selector located on the side of the body. Four modes are available: Low (light work), Medium, High (heavy work), and Single (auto-stop after a few impacts for precision work). Test on a few bolts to choose the best setting.

What to do if the battery does not charge?

First check that the battery is fully inserted into the charger. If the indicator blinks rapidly red, remove the battery, clean the contacts, and try again. If the problem persists, the battery or charger may be defective; contact an authorized service center.

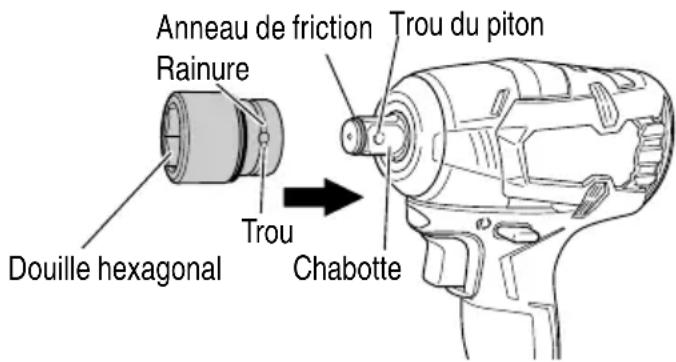

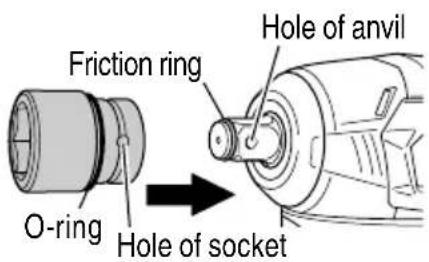

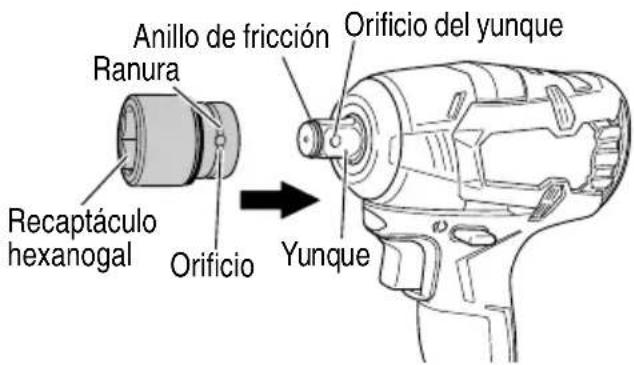

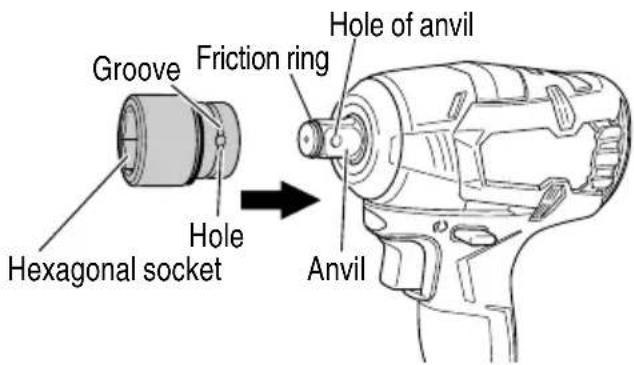

How to install a socket on the anvil?

Slide the O-ring out of the groove, insert the pin into the hole of the socket and anvil, then replace the O-ring. Make sure the socket is securely attached before use to avoid accidents.

What accessories are included with the tool?

Depending on the version, the kit may include: a UC18YFSL charger, two BSL1830C batteries, a battery cover, and a plastic case. Check the packaging or manual.

How to clean and maintain the impact wrench?

Wipe the tool with a slightly damp soft cloth. Never use solvents like gasoline or thinner. Regularly check the condition of screws and sockets.

Is the tool waterproof?

Yes, the main body (with battery) is certified IP56, meaning it is resistant to dust and powerful water jets. However, do not immerse it and avoid prolonged exposure to rain.

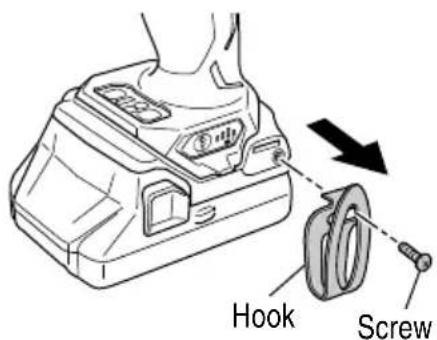

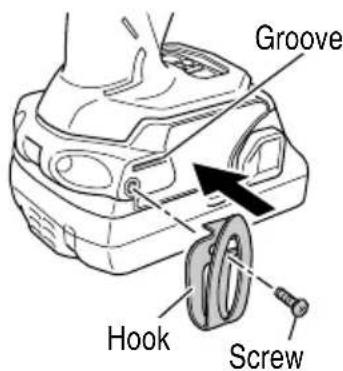

How to use the belt hook?

The hook attaches to your belt to hang the tool. To install, remove the screws from the hook, place it in the groove of the tool, and tighten the screws. Ensure it is securely fastened to prevent dropping.

What to do if the tightening torque seems insufficient?

Check the condition of the socket (wear, deformation) and replace if necessary. Make sure the battery is fully charged. Torque may also decrease with the use of an extension or universal joint. Use a torque wrench to check actual torque.

USER MANUAL WR 18DBDL2 HiKOKI

Cordless Impact Wrench

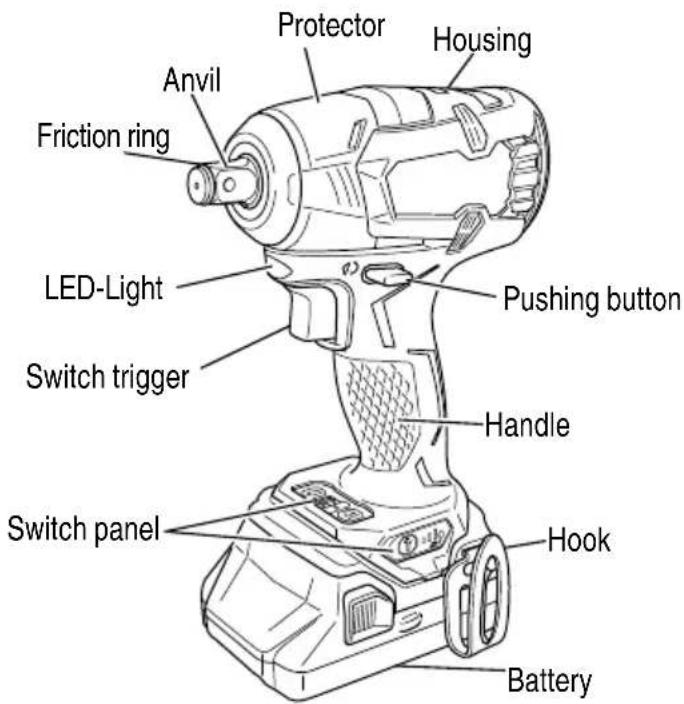

Illustration of a handheld power tool with cylindrical head and base (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fi re.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

- WARNING -

To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tools by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.
   Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. ALWAYS wear ear protectors when using the tool for extended periods.

Prolonged exposure to high intensity noise can cause hearing loss.

1. NEVER place hands or other body parts near the drill bit or chuck during operation. Hold the impact wrench by its handle only.
2. Because the cordless impact wrench operates by battery power, be aware of the fact that it can begin to operate at any time.
3. When working at elevated locations, clear the area of all other people and be aware of conditions below you.
4. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool's moving parts.

1. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted.

Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

1. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

1. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

1. ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI Standard Z87.1.

1. Definitions for symbols used on this tool

V ...... volts

== ...... direct current

no ...... no load speed

---/min .... revolutions or reciprocation per minute

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE CORDLESS IMPACT WRENCH

WARNING

Death or serious bodily injury could result from improper or unsafe use of the cordless impact wrench. To avoid these risks, follow these basic safety instructions:

1. Never use this impact wrench handle for any application other than those in this manual.
2. When working in high places, always make sure that there is no one below before starting to work.

3. Always wear eye and ear protection when you work.

4. Confir rm whether the socket has any crack in it.

5. Attach the hex. socket securely onto the anvil. Be sure to fasten the socket with the pin and O-ring before use. If the hex. socket is insufficiently secured, it may drop out and cause an accident. For hex. socket attachment refer to "OPERATION".
6. Confirm the tightening torque by a before use in order to ascertain the correct tightening torque to be used.
7. If a universal joint is used, be sure not to operate the unit in a no-load condition. Operating in this condition is dangerous. When the socket section spins around it may cause injury to hands or bodies, or the resulting intense vibration may cause the user to drop the tool.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YFSL.

2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) or qubattery, andb(8) product using battery.

3. To reduce risk of injury, charge metabo HPT rechargeable battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cc pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure:

a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
b. That extension cord is properly wired and in good electrical condition; and
c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes*		AWG Size of Cord
Equal to or greater than	but less than	Length of Cord, Feet (Meter)
		25 (7.5)	50 (15)	100 (30)	150 (45)
0	2	18	18	18	16
2	3	18	18	16	14
3	4	18	18	16	14

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.

2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YFSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

CAUTION

USE ONLY metabo HPT BATTERY TYPE BSL18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fi re.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.
6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C). Charging the battery at temperatures outside the range of 32^ F – 104^ F ( 0^ C – 40^ C) may prevent proper charging and reduce battery life.
7. NEVER connect two battery chargers together.
8. NEVER insert foreign objects into the hole for the battery or the battery charger.
9. NEVER use a booster transformer when charging.
10. NEVER use an engine generator or DC power to charge.
11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C) such as inside metal box or car.
12. NEVER expose the battery or battery charger to rain or wet conditions.
13. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.
14. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.
15. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
   In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution.

WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.
   ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
2. Do not store an unused battery in a location exposed to swarf and dust.
   Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).
3. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.
4. Do not use an apparently damaged or deformed battery.
5. Do not use the battery in reverse polarity.
6. Do not connect directly to an electrical outlets or car cigarette lighter sockets.
7. Do not use the battery for a purpose other than those specified.
8. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.
9. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.
10. Keep away from fire immediately when leakage or foul odor are detected.

11. Do not use in a location where strong static electricity generates.

12. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

13. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid ingress, such as water, can cause damage resulting in fire or explosion. Store your battery in a cool, dry place, away from combustible and flammable items. Corrosive gas atmospheres must be avoided.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If an electrically conductive fore terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.
○ Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

REGARDING LITHIUM-ION BATTERY TRANSPORTATION

When transporting a lithium-ion battery, please observe the following precautions.

WARNING

Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

• Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classification of Dangerous Goods and will require special application procedures.
• For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

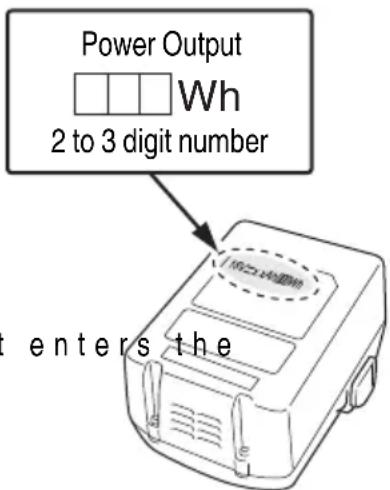

Power Output Wh 2 to 3 digit number t enters the

Fig. 1

PRECAUTIONS REGARDING THE DUST-RESISTANCE AND WATER-PROOFING FUNCTIONS

This product conforms to IP56 protection class ratings (dust-resistance and water-proofing) for electrical equipment as stipulated by the international IEC regulations. (Only the main unit conforms to the IP56 protection class ratings when equipped with a battery.)

[Descriptions of IP Codes] IP56

Protection rating for water penetration Must be no adverse effects on the equipment when sprayed with powerful jets of water from all directions (water-proofed). (100 L of water per minute sprayed for approximately three minutes from a distance of approximately three meters with the use of a spray nozzle with a diameter of 12.5 mm.)

Protection rating for external assault by solid objects Dust that may cause adverse effects on the equipment must not be able to enter (dust-resistance). (The equipment to be left non-operable in a test chamber in which particles of talcum powder with a diameter of less than 75 µm are floating in the air with the use of an agitation pump at a rate of 2 kg per cubic meter for eight hours.)

The equipment has been designed to withstand the effects of dust and water, but there is no guarantee that it will not malfunction. Do not use or leave the equipment in locations where it is subject to excessive amounts of dust, or in locations where it is submerged in water or subject to rainwater.

SAVE THESE INSTRUCTIONS AND MAKE THEM AVAILABLE TO OTHER USERS AND OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

1. Cordless Impact Wrench

Protector Anvil Friction ring Housing LED-Light Switch trigger Pushing button Handle Switch panel Hook Battery

Fig. 2

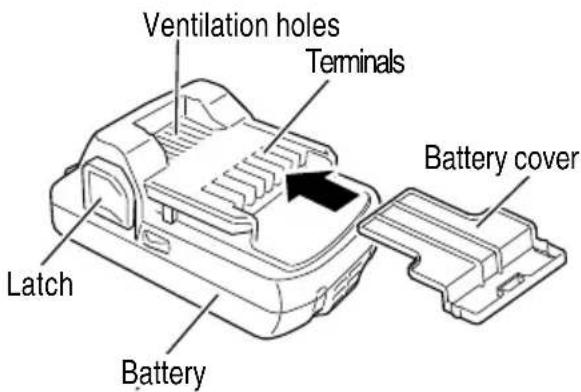

○ Battery (BSL1830C)

Ventilation holes Terminals Battery cover Latch Battery

Fig. 3

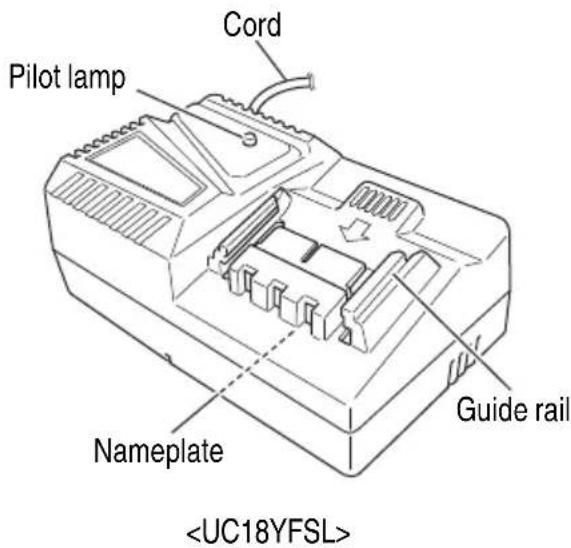

2. Battery Charger

Pilot lamp Cord Guide rail Nameplate

Fig. 4

SPECIFICATIONS
1. Cordless Impact Wrench

Model WR18DBDL2
No-load speed		High mode 0 – 2,700 /minMedium mode 0 – 2,000 /minLow mode 0 – 1,000 /minSingle mode 0 – 2,700 /min
Capacity	Ordinary bolt 3/8" (M10) – 25/32" (M20)
	High tension bolt 3/8" (M10) – 5/8" (M16)
Tightening torque		Maximum 225 ft-lbs {305 N·m 3,110 kgf·cm}Tightening is 25/32" (M20) F10Twhen fully charged at 68°F (20°C) temp.Tightening time: 5 sec.
Square Drive 1/2" (12.7 mm)
Rechargeable battery BSL1830C: Li-ion 18 V (3.0 Ah)
Weight 3.3 lbs. (1.5 kg)

1. Battery Charger

Model UC18YFSL
Input power source Single phase: AC 120 V 60 Hz
Charging time Approx. 45 min
Charger	Charging voltage	DC 14.4 – 18 V
	Charging current	DC 14.4 V: DC 3.5 ADC 18 V: DC 3.5 A
Weight		1.1 lbs. (0.5 kg)

NOTE The charging time may vary according to temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

Tightening and loosening of all types of bolts and nuts, used for securing structural items

REMOVAL AND INSTALLATION METHOD OF BATTERY

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Fig. 5).

CAUTION

Never short-circuit the battery.

1. Battery installation

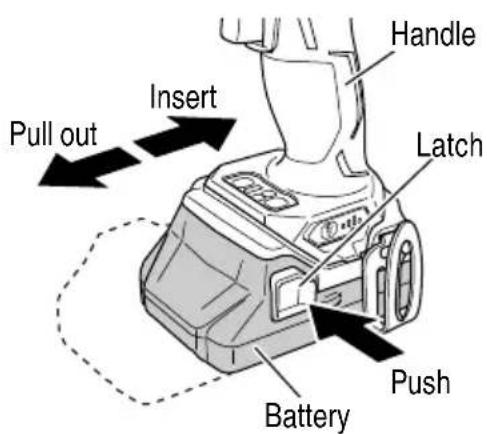

Insert the battery while observing its polarities (see Fig. 5).

Pull out Insert Handle Latch Battery Push

Fig. 5

CHARGING METHOD

NOTE

Before plugging into the receptacle, make sure the following points.

○ The power source voltage is stated on the nameplate.
○ The cord is not damaged.

WARNING

Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals)

WARNING

Do not use the electrical cord if damaged. Have it immediately.

1. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 6.

Battery Pilot lamp Charger

Fig. 6

1. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2)

NOTE

If the pilot lamp flikers in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.

Table 2

Indications of the pilot lamp
Pilot lamp(red)	Before charging Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging Lights	Lights continuously
	Charging complete Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Overheat standby Blinks	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery overheated. Unable to charge. (Charging will commence when battery cools)
	Charging impossible	Flickers Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger

(2) Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged.

Table 3 Recharging ranges of batteries

Rechargeable batteries	Temperatures at which the battery can be recharged
BSL1830C	32°F–104°F(0°C–40°C)

(3) Regarding recharging time (At 68°F (20°C))

Table 4 Charging time (At 20°C)

Battery\Charger	UC18YFSL
BSL1830C	Approx. 45 min.

NOTE

The charging time may vary according to temperature and power source voltage.

1. Disconnect battery charger from the receptacle.

CAUTION

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

How to make the batteries perform longer

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION

- When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

- If the battery is rechraged when it is warm due to battery use or exposure to sunlight, the pilot lamp may light in green.

The battery will not be recharged. In such a case, let the battery cool before charging.

- When the pilot lamp fl ikers rapidly in red (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

OPERATION

1. Selecting the socket matched to the bolt

Be sure to use a socket which is matched to the bolt to be tightened. Using an improper socket will not only result in insufficient tightening but also in damage to the socket or nut.

A worn or deformed hex. or square-holed socket will not give an adequate tightness for fitting to the nut or anvil, consequently resulting in loss of tightening torque.

Pay attention to wear of socket hole, and replace before further wear has developed.

1. Installing a socket

Select the socket to be used.

● Pin, O-ring type

(1) Slide the O-ring out of the groove, then align the hole of the socket with the hole of the anvil and insert the anvil into the socket.

Friction ring O-ring Hole of anvil Hole of socket

Fig. 7

(2) Insert the pin into the socket.

Pin

Fig. 8

(3) While making sure that the pin doesn't fall, attach the O-ring to the groove on the socket.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 9

Groove Friction ring Hole of anvil Hexagonal socket Hole Anvil

Fig. 10

CAUTION

• Please use the designated attachments which are listed in the operations manual and metabo HPT's catalog. Accidents or injuries could result from not doing so.
  ● Make sure to firmly install the socket in the anvil. If the socket is not firmly installed it might come out and cause injuries.
• When sliding the O-ring out of the groove of the socket, be careful not to drop and lose the pin.

• It is possible to temporarily hold the socket in place with the friction ring, but be sure to insert the pin and attach the O-ring before use. If the power tool is used while the socket is temporarily held in place, the socket may fall off and cause an injury.

• Confir rm that the battery is mounted correctly.

• Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the pushing button.

The L-side of the pushing button is pushed to turn the bit counterclockwise. (See Fig. 11). (The(L) and (R) marks are engraved on the body.)

marks L marks Push Trigger switch Push Push Pushing button

Fig. 11

CAUTION

The pushing button can not be switched while the impact wrench is turning. To switch the pushing button, stop the impact wrench, then set the pushing button.

1. Switch operation
   When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.
   ☐ The rotational speed can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.
   When releasing the trigger of the switch, the brake will be applied for immediate stopping.

NOTE

A buzzing noise is produced when the motor is about to rotate; this is only a noise, not a machine failure.

1. Tightening and loosening bolts

A hex. socket matching the bolt or nut must first be selected. Then mount the socket on the anvil, and grip the nut to be tightened with the hex. socket. Holding the wrench in line with the bolt, press the power switch to impact the nut for several seconds.

If the nut is only loosely fitted to the bolt, the bolt may turn with the nut, therefore mistaking proper tightening. In this case, stop impact on the nut and hold the bolt head with a wrench before restarting impact, or manually tighten the bolt and nut to prevent them slipping.

1. Using the hook

The hook is used to hang up the power tool to your waist belt while working.

CAUTION

• When using the hook, hang up the power tool firmly not to drop accidentally. If the power tool is dropped, it may lead to accident.
• When carrying the power tool with your waist belt, remove the tool bit from the body of the power tool. Failure to do so may result in an unexpected injury.
  ● Install securely the hook. Unless the hook is securely installed, it may cause an injury while using.

(1) Removing the hook.

Remove the screws fixing the hook with Philips screw driver. (Fig. 12)

Hook Screw

Fig. 12

(2) Replacing the hook and tightening the screws.

Install securely the hook in the groove of power tool and tighten the screws to fix the hook firmly. (Fig. 13)

Groove Hook Screw

Fig. 13

1. About Remaining Battery Indicator

When pressing the remaining battery indicator switch, the red indicator lamp lights and the battery remaining power can be checked. (Fig. 14)

When releasing your finger from the remaining battery indicator switch, the indicator lamp changes indication of LED light mode. The Table 5 shows the state of red indicator lamp and the battery remaining power.

Switch panel ON ON OFF Remaining battery indicator lamp Remaining battery indicator switch

Fig. 14

Table 5

State of lamp Battery Remaining Power
	The battery remaining power is enough.
	The battery remaining power is a half.
	The battery remaining power is nearly empty.Re-charge the battery soonest possible.

As the remaining battery indicator shows somewhat differently depending on ambient temperature and battery characteristics, read it as a reference.

NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

9. How to use the LED light

By pressing the light selector switch on the switch panel, the LED light mode changes as Table 6. It is indicated by green lamp. (Fig. 15)

To prevent the battery power consumption, turn off the LED light frequently.

Switch panel ON ON OFF Light section switch Remaining battery indicator lamp

Fig. 15

Table 6

	Always-ON mode	SW interlocked mode	Always-OFF mode
Panel display
State	Always ON (turn off after 2 minutes)	Light only SW-ON	Always OFF

CAUTION

• Do not expose directly your eye to the light by looking into the light.
  If your eye is continuously exposed to the light, your eye will be hurt.
  ● Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens.
  Scratches on the lens of the LED light can result in decreased brightness.

NOTE

To prevent the battery power consumption caused by forgetting to turn off the LED light, the light goes off automatically in about 2 minutes.

1. Tightening mode selector function (Fig. 16)

CAUTION

• Do not subject the switch panel to shock or damage.
• Select tightening mode while the trigger switch is released. Failure to do so could result in malfunction.

Tightening mode selector switch Tightening mode indicator lamp

Fig. 16

(1) Tightening mode selector switch

By using the Tightening mode selector switch on the side of the tool body, the tightening torque can be adjusted according to the type of work.

The Tightening mode switches between 4 different modes each time the Tightening mode selector switch is pressed.

In Single mode, when the switch is pulled and impacting begins, the power tool automatically stops after a few impacts.

In Low, Medium, and High modes, when the switch is pulled and impacting begins, the power tool impacts continuously (without automatically stopping).

NOTE

○ The appropriate mode differs depending on the bolt and the material being screwed. Tighten in a few test bolts and adjust the mode setting accordingly.

☐ The tightening mode selector switch can only be set after the battery has been installed in the wrench and the trigger switch has been pulled once.

Examples of tightening mode selector function settings

	Low mode	Medium mode	High mode	Single mode
Rotation speed	0 – 1,000 /min	0 – 2,000 /min	0 – 2,700 /min
Use	"Light load work"Installing pipe supports, scaff olding, etc.		"Heavy load work"Assembling steelframes, etc.	"Delicate work"Tightening smalldiameter screws (M6or similar), etc.

OPERATIONAL CAUTIONS

1. Resting the unit after continuous work

After use for continuous bolt-tightening work, rest the unit for 15 minutes or so when replacing the battery. The temperature of the motor, switch, etc., will rise if the work is started again immediately after battery replacement, eventually resulting in burnout.

CAUTION

Do not touch the protector as it gets very hot during continuous work.

1. Cautions on use of the speed control switch

This switch has a built-in, electronic circuit which steplessly varies the rotation speed. Consequently, when the switch trigger is pulled only slightly (low speed rotation) and the motor is stopped while continuously driving in screws, the components of the electronic circuit parts may overheat and be damaged.

1. Work at a tightening torque suitable for the bolt under impact

The optimum tightening torque for nuts or bolts differs with material and size of the nuts or bolts.

An excessively large tightening torque for a small bolt may stretch or break the bolt. The tightening torque increases in proportion to the operation time. Use the correct operating time for the bolt.

1. Holding the tool

Hold the tool firmly with both hands. In this case hold the tool in line with the bolt.

It is not necessary to push the tool very hard. Hold the tool with a force just sufficient to counteract the impact force.

1. Confir rm the tightening torque

The following factors contribute to a reduction of the tightening torque. So confirm the actual tightening torque needed by screwing up some bolts before the job with a hand torque wrench. Factors affecting the tightening torque are as follows.

(1) Voltage

When the discharge margin is reached, voltage decreases and tightening torque is lowered.

(2) Operating time

The tightening torque increases when the operating time increases. But the tightening torque does not increase above a certain value even if the tool is driven for a long time.

(3) Diameter of bolt

The tightening torque differs with the diameter of the bolt. Generally a larger diameter bolt requires larger tightening torque.

(4) Tightening conditions

The tightening torque differs according to the torque ratio, class, and length of bolts even when bolts the same size threads are used. The tightening torque also differs according to the condition of the surface of workpiece through which the bolts are to be tightened. When the bolt and nut turn together, torque is greatly reduced.

(5) Using optional parts

The tightening torque is reduced a little when an extension bar, universal joint or a long socket is used.

(6) Clearance of the socket

A worn or deformed hex. or a square-holed socket will with not give an adequate tightness to the fi tting between the nut or anvil, consequently resulting in loss of tightening torque. Using an improper socket which does not match to the bolt will result in an insufficient tightening torque.

(7) Tightening torque varies, depending on the battery's charge level.

MAINTENANCE AND INSPECTION

CAUTION

Pull out battery before doing any inspection or maintenance.

1. Checking the condition of the socket

A worn or deformed hex. or a square-holed socket will not give an adequate tightness to the fitting between the nut or anvil, consequently resulting in loss of tightening torque. Pay attention to wear of a socket holes periodically, and replace with a new one if needed.

1. Check the Screws

Loose screws are dangerous. Regularly inspect them and make sure they are tight.

CAUTION

Using this power tool with loosened screw extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

WARNING

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable.

At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

NOTE

Storing lithium-ion batteries

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to five times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the metabo HPT cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

ACCESSORIES

WARNING

ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool.

The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE

Accessories are subject to change without any obligation on the part of the metabo HPT.

STANDARD ACCESSORIES

WR18DBDL2(2LSRK)	1 Battery Charger (UC18YFSL)....12 Battery (BSL1830C)....23 Battery cover (Code No. 329897)....14 Plastic Case (Code No. 330592)....1
WR18DBDL2(NN)	Battery, battery charger, plastic case and battery cover are not contained.

OPTIONAL ACCESSORIES

1. Battery (BSL1830C)
2. Sockets

Form B

Form C

Form D

Square head drive dimensions S	Part Name Code No.		Suitable Bolt Diameter				Hexagonal width across fl ats H	Form	Main Socket Dimensions
			High tension	ISO (ordinary)	ISO (small)	Inch bolts			L	L	1
1/2" (12.7 mm)	Hexagonal Socket	14 mm 873540 M10					9/16"(14 mm)	B	1-9/16"(40 mm)	11/32"(9 mm)	1"(25 mm)
		17 mm 873536 M10 M12 W3/8"					11/16"(17 mm)	C	1-1/4"(32 mm)	5/16"(8 mm)	1-3/32"(28 mm)
		19 mm 873624 M12 M14 W7/16"					3/4"(19 mm)	C	1-11/32"(34 mm)	11/32"(9 mm)	1-3/32"(28 mm)
		21 mm 873626 W1/2"					13/16"(21 mm)	D	1-13/32"(36 mm)	3/8"(10 mm)	1-1/4"(32 mm)
		22 mm 873627 M12 M14 M16					7/8"(22 mm)	D	1-9/16"(40 mm)	9/16"(14 mm)	1-3/8"(35 mm)
		24 mm 873629 M16	M18				15/16"(24 mm)	D	1-9/16"(40 mm)	9/16"(15 mm)	1-1/2"(38 mm)
		26 mm	873630			W5/8"	1"(26 mm)	D	1-9/16"(40 mm)	9/16"(15 mm)	1-1/2"(38 mm)
		27 mm	985195 M16	M18	M20		1-1/16"(27 mm)	D	1-9/16"(40 mm)	11/16"(17 mm)	1-21/32"(42 mm)
		30 mm	985196		M20	M22		1-3/16"(30 mm)	D	1-31/32"(50 mm)	3/4"(19 mm)

3. Long Socket

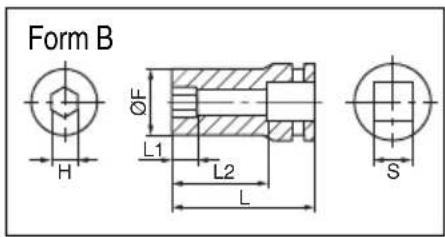

Form B ØF L1 L2 L S

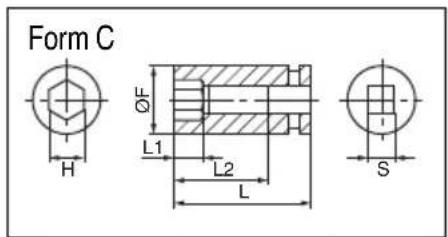

Form C H ØF L1 L2 L S

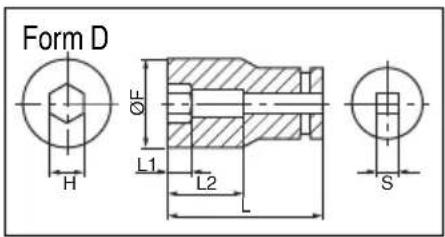

Form D H ØF L1 L2 S

Square head drive dimensions S

Part Name Code

No.

Suitable Bolt Diameter

Hexagonal width across fl ats H

Form

Main Socket Dimensions

High tension

ISO (ordinary)

ISO (small)

Inch bolts

L

L1

L2

øF

1/2" (12.7 mm)

Long Socket

14 mm

955140

M10

9/16" (14 mm)

B

2-3/64" (52 mm)

25/32" (20 mm)

1-11/32" (34 mm)

7/8" (22 mm)

17 mm

955141

M10 M12

W3/8"

11/16" (17 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1" (25 mm)

17 mm

955149

M10 M12

W3/8"

11/16" (17 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1" (25 mm)

19 mm

955142

M12 M14

W7/16"

3/4" (19 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-3/32" (28 mm)

19 mm

955150

M12 M14

W7/16"

3/4" (19 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-3/32" (28 mm)

21 mm

955143

W1/2"

13/16" (21 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-7/32" (31 mm)

21 mm

955151

W1/2"

13/16" (21 mm)

D

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-7/32" (31 mm)

21 mm

991480

W1/2"

13/16" (21 mm)

D

4-15/16" (125 mm)

15/16" (24 mm)

4-7/32" (107 mm)

1-7/32" (31 mm)

22 mm

955144

M12 M14

M16

7/8" (22 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-9/32" (32.5 mm)

24 mm

955146

M16 M18

15/16" (24 mm)

D

2-3/64" (52 mm)

63/64" (25 mm)

1-11/32" (34 mm)

1-11/32" (34 mm)

26 mm

955147

W5/8"

1" (26 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-1/2" (38 mm)

30 mm

985197

M20

M22

1-3/16" (30 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-21/32" (42 mm)

4. Extension bar:

The extension bar is convenient for working in very restricted spaces or when the socket provided cannot reach the bolt to be tightened.

CAUTION

When the extension bar is used, the tightening torque is reduced slightly compared with the ordinary socket.

S B

Code No. Dimention B, S

873633 1/2" (12.7 mm)

5. Universal joint:

The universal joint is convenient for impacting nuts when there is an angle between the socket and wrench, or when working in a very narrow space.

B S

Code No. Dimention B, S

992610 1/2" (12.7 mm)

6. Duct socket:

This is used for tightening bolts and nuts on flange sections of air conditioners, type ducts, etc.

Technical line drawing of a mechanical connector with labeled dimension 'S' (no text or symbols beyond the label)

Code No.	Hexagonal width across fl ats	Dimention S
993658 15/32" (12 mm)		1/2"(12.7 mm)
992613 1/2" (13 mm)
992615 9/16" (14 mm)

7 Bit adaptor:

This is used for tightening small screws (M6).

NOTE

This adaptor is set only on the anvil (drive angle) of the main unit.

th the S

Code No. Dimention S
991476	1/2" (12.7 mm)

NOTE

Specifications are subject to change without any obligaiton on the part of the metabo HPT.

CONSIGNES DE SÉCURITÉ IMPORTANTES

● Broche, type joint torque

Technical line drawing of a mechanical connector with an arrow indicating direction (no text or symbols)

Fig. 9

Anneau de friction Rainure Trou Trou du piton Douille hexagonal Chabotte

Fig. 10

PRECAUTION

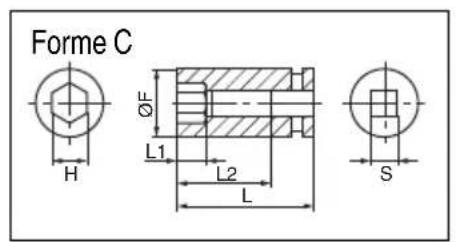

Forme C H ØF L1 L S

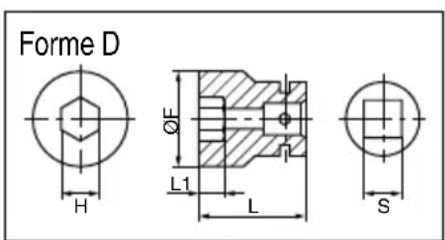

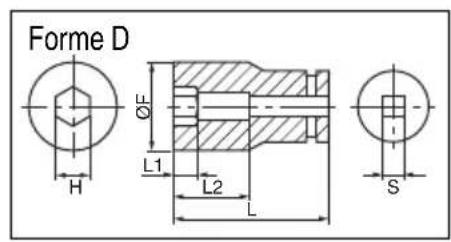

Forme D H ØE L1 L S

Dimensions de l'entraînement carré S

Nom du produit

N°de Code

Diamètre de boulon adéquat

Largeur hexagonale mesurée aux bords H

Forme

Douille principale Dimensions

Haute tension

ISO (ordinaire)

ISO (réduit)

Boulons en pouces

L

L1

øF

1/2^ (12.7 mm)

Douille hexagonale

14 mm

873540

M10

9/16"(14 mm)

B

1-9/16"(40 mm)

11/32"(9 mm)

1"(25 mm)

17 mm

873536

M10

M12

W3/8"

11/16"(17 mm)

C

1-1/4"(32 mm)

5/16"(8 mm)

1-3/32"(28 mm)

19 mm

873624

M12

M14

W7/16"

3/4"(19 mm)

C

1-11/32"(34 mm)

11/32"(9 mm)

1-3/32"(28 mm)

21 mm

873626

W1/2"

13/16"(21 mm)

D

1-13/32"(36 mm)

3/8"(10 mm)

1-1/4"(32 mm)

22 mm

873627

M12

M14

M16

7/8"(22 mm)

D

1-9/16"(40 mm)

9/16"(14 mm)

1-3/8"(35 mm)

24 mm

873629

M16

M18

15/16"(24 mm)

D

1-9/16"(40 mm)

9/16"(15 mm)

1-1/2"(38 mm)

26 mm

873630

W5/8"

1"(26 mm)

D

1-9/16"(40 mm)

9/16"(15 mm)

1-1/2"(38 mm)

27 mm

985195

M16

M18

M20

1-1/16"(27 mm)

D

1-9/16"(40 mm)

11/16"(17 mm)

1-21/32"(42 mm)

30 mm

985196

M20

M22

1-3/16"(30 mm)

D

1-31/32"(50 mm)

3/4"(19 mm)

1-21/32"(42 mm)

3. Douille longue

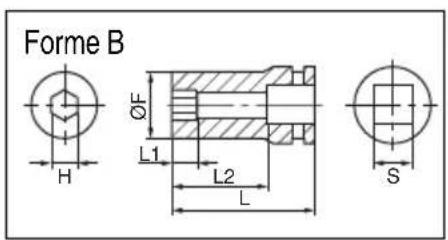

Forme B ØF L1 L2 L S

Forme C H ØF L1 L2 L S

Forme D ØF L1 L2 L S

Dimensions de l'entraînement carré S

Nom du produit

N°de Code

Diamètre de boulon adéquat Largeur

hexagonale mesurée aux bords H

Forme

Douille principale Dimensions

Haute tension

ISO (ordinaire)

ISO (réduit)

Boulons en pouces

L

L

1

L

1/2" (12.7 mm)

Douille longue

14 mm 955140 M10

9/16" (14 mm)

B

2-3/64" (52 mm)

25/32" (20 mm)

1-11/32" (34 mm)

7/8" (22 mm)

17 mm

955141

M10

M12

W3/8"

11/16" (17 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1" (25 mm)

17 mm 955149

M10

M12

W3/8"

11/16" (17 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1" (25 mm)

19 mm 955142

M12

M14

W7/16"

3/4" (19 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-3/32" (28 mm)

19 mm 955150

M12

M14

W7/16"

3/4" (19 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-3/32" (28 mm)

21 mm 955143

W1/2"

13/16" (21 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-7/32" (31 mm)

21 mm 955151

W1/2"

13/16" (21 mm)

D

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-7/32" (31 mm)

21 mm 991480

W1/2"

13/16" (21 mm)

D

4-15/16" (125 mm)

15/16" (24 mm)

4-7/32" (107 mm)

1-7/32" (31 mm)

22 mm

955144

M12

M14

M16

7/8" (22 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-9/32" (32.5 mm)

24 mm

955146

M16

M18

15/16" (24 mm)

D

2-3/64" (52 mm)

63/64" (25 mm)

1-11/32" (34 mm)

1-11/32" (34 mm)

26 mm

955147

W5/8"

1" (26 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-1/2" (38 mm)

30 mm

985197

M20

M22

1-3/16" (30 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-21/32" (42 mm)

4. Barre de rallonge:

Technical line drawing of a mechanical connector with labeled dimension 'S' (no text or symbols beyond the label)

Technical line drawing of a mechanical component with a cylindrical shaft and flange, labeled 'S' (no text or symbols beyond the label)

N° de code dimention S

991476 1/2" (12.7 mm)

REMARQUE

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 9

Technical diagram of a camera with labeled parts and a magnified inset showing a button labeled 'S' and a circular button with 'C'.

Fig. 16

(1) Interruptor selector del modo de apriete

Forma B ØF L1 L2 L S

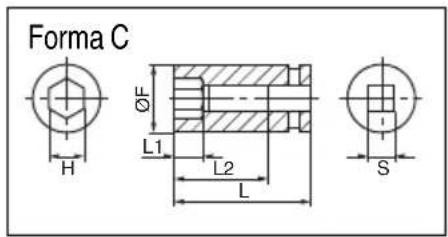

Forma C H ØF L1 L2 L S

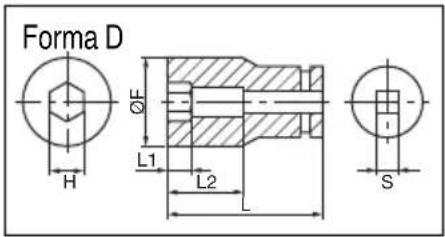

Forma D ØF L1 L2 S

Dimensión S de la boca impulsora cuadrada

Nombre del producto

No de código

Diámero idóneo del perno Dimensión

entre caras opuestas de la boca hexagonal

Forma

Dimensiones del cubo principal

Gran tensión

ISO (ordinario)

ISO (pequeño)

Pernos en pulgadas

L

L

1

L

1/2 " (12.7 mm)

Cubo largo

14 mm 95

5140 M10

9/16" (14 mm)

B

2-3/64" (52 mm)

25/32" (20 mm)

1-11/32" (34 mm)

7/8" (22 mm)

17 mm 95

5141 M10 M1

2 W3/8"

11/16" (17 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1" (25 mm)

17 mm 95

5149 M10 M1

2 W3/8"

11/16" (17 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1" (25 mm)

19 mm 95

5142 M12 M1

4 W7/16"

3/4" (19 mm)

B

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-3/32" (28 mm)

19 mm 95

5150 M12 M1

4 W7/16"

3/4" (19 mm)

B

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-3/32" (28 mm)

21 mm 95

5143

W1/2"

13/16" (21 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-7/32" (31 mm)

21 mm 95

5151

W1/2"

13/16" (21 mm)

D

2-15/16" (75 mm)

15/16" (24 mm)

2-1/4" (57 mm)

1-7/32" (31 mm)

21 mm 99

1480

W1/2"

13/16" (21 mm)

D

4-15/16" (125 mm)

15/16" (24 mm)

4-7/32" (107 mm)

1-7/32" (31 mm)

22 mm

955144

M12

M14 M16

7/8" (22 mm)

D

2-3/64" (52 mm)

15/16" (24 mm)

1-11/32" (34 mm)

1-9/32" (32.5 mm)

24 mm

955146

M16 M18

15/16" (24 mm)

D

2-3/64" (52 mm)

63/64" (25 mm)

1-11/32" (34 mm)

1-11/32" (34 mm)

26 mm

955147

W5/8"

1" (26 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-1/2" (38 mm)

30 mm

985197

M20

M22

1-3/16" (30 mm)

D

2-15/16" (75 mm)

63/64" (25 mm)

2-1/4" (57 mm)

1-21/32" (42 mm)

Technical line drawing of a mechanical component with labeled dimension 'S' (no text or symbols beyond the label)

Technical line drawing of a mechanical component with a cylindrical shaft and flange, labeled 'S' (no text or symbols beyond the label)

Line drawing of a quill pen with inkwell (no text or symbols)

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

AVERTISSEMENT:

Please contact Koki Holdings America Ltd. at 1-800-59-TOOLS (toll free), or metabo HPT AUTHORIZED POWER TOOL SERVICE CENTER regarding COLLECTION.

Pour le RAMASSAGE, contacter Koki Holdings America Ltd. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR metabo HPT.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
