KF 1600 - Item locator ADE - Free user manual and instructions

Product type	Object locator (Keyfinder radio)
Brand	ADE
Model	KF 1600
Maximum range	Approximately 30 meters in open air
Transmitter power supply	2 LR03 (AAA) 1.5 V batteries (included)
Receiver power supply	2 CR2032 3 V batteries (pre-installed with isolation strip)
Transmitter nominal current	20 mA
Receiver nominal current	5 mA
Number of receivers included	2
Search function	Color buttons on the transmitter, audible beep on the corresponding receiver
Package contents	Transmitter, 2 receivers, 2 LR03 batteries, 2 CR2032 batteries, instruction manual
Intended use	Find keys, bags, etc. Private use
Cleaning and maintenance	Slightly damp cloth, do not immerse
Battery replacement	Respect polarity, use identical batteries, replace both at the same time
Safety	Keep batteries out of reach of young children, do not open, do not throw into fire
Warranty	3 years (material or manufacturing defects)
Repairability	Repairs by a specialized workshop only
Disposal	Follow local regulations for electronic devices and batteries

Frequently Asked Questions - KF 1600 ADE

What is the range of the Keyfinder KF 1600?

The range is approximately 30 meters in open space. Obstacles like concrete walls can reduce this distance.

How to replace the transmitter batteries?

Press the locking tab and remove the battery compartment cover on the back. Insert two LR03 (AAA) 1.5 V batteries respecting polarity (+/-). Close the cover until it clicks.

How to replace the receiver battery?

Open the battery compartment by turning the cover in the OPEN direction using a thin coin. Remove the used battery and insert a CR2032 3 V battery with the + pole facing up. Close by turning to CLOSE.

How to pair the transmitter and receivers?

The receivers are already paired at the factory. Simply press the corresponding color button on the transmitter to activate the beep of the receiver of the same color.

What to do if the Keyfinder stops working?

First check the batteries: insert them correctly or replace them if they are discharged. If the problem persists, contact your retailer.

Is the device waterproof?

No, the device is not waterproof. Do not immerse it in water. Clean it with a slightly damp cloth.

Can I add more receivers?

The KF 1600 comes with two receivers. It is not designed to add more, as each receiver is associated with a specific color button.

How to use the Keyfinder?

Attach the receivers to the objects to find. Press the color button on the transmitter: the button lights up and the corresponding receiver beeps to guide you.

What types of batteries are provided?

The package contains 2 LR03 (AAA) 1.5 V batteries for the transmitter and 2 CR2032 3 V batteries for the receivers (already installed with an isolation strip).

Is there a warranty?

Yes, the device has a 3-year warranty on material and manufacturing defects. Keep the proof of purchase and contact your retailer.

USER MANUAL KF 1600 ADE

Keyfinder with radio signal | Keyfinder a distancia

Ade ADE smartphone with two key buttons and two black USB flash drives (no text or symbols on main body)

Bedienungsanleitung

KF 1600

Operating instructions | Instrucciones de operación | Mode d'emploi

Icon of a person using a computer inside a circle (no text or symbols)

1 2 3 4 5 ADE

22089 Hamburg, Germany

22089 Hamburg, Germany

Garantie

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. With the Keyfinder, thanks to two receivers, you'll have your keys or other items always at hand. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

Don't seek, just find – we wish you much success!

Your ADE Team

General Information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General Information....10

Table of Contents ......11

Scope of delivery....11

Intended Use....12

Safety 12

At a glance....13

Start-up....14

Operation....15

Cleaning....15

Fault/Remedy....15

Technical Data 15

Declaration of Conformity 16

Guarantee 16

Disposal 17

Scope of delivery

• Transmitter
• Receivers
• Battery type LR03 (AAA), 1,5 ¥ = (2x)
• Battery type CR2032, 3 ¥ (2x)
• Operating Manual

The Keyfinder is designed to help you quickly locate keys, bags, etc.

The Keyfinder is designed only for private use.

Safety

These scales can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise.
- Children must not play with the scales.
- Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
- Batteries, when swallowed, can be life-threatening. You should therefore keep the item and batteries out of reach of children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
• Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, flush the affected site immediately with plenty of clean water and see a doctor promptly.

BEWARE of material damage

- Do not immerse the item in water or other liquids.

- Remove the batteries from the item once these have been used up or when you are no longer using the item. You will thus avoid damage that may result from the leakage of battery acid.

- When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not subject the batteries to extreme conditions by, for example, storing them on heaters or under direct sunlight.

Increased risk of leakage!

- Clean the battery and device contacts, as needed, before inserting the battery.

- Only insert batteries of the same type; do not use different types or used and new batteries with each other.

- Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

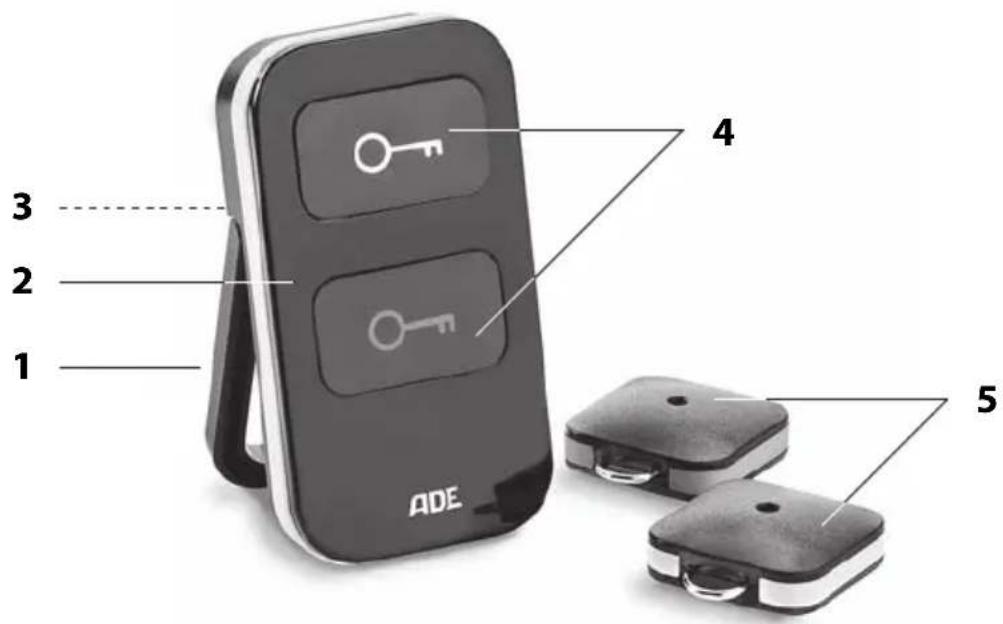

At a glance

1 2 3 4 5 ADE

1 Transmitter fold-out foot

2 Transmitter

3 Battery compartment (backside)

4 Coloured buttons for search function

5 Receivers

Transmitter: Inserting batteries

In order to use the scales, you will need 2 batteries of type LR03 (AAA), 1.5 V (included). The battery compartment is located on the rear side of the transmitter.

1. Push the locking tab downwards and remove the battery compartment cover.
2. Insert the batteries as shown on the base of the battery compartment. Pay attention to the correct polarity (+/-).
3. Put the battery compartment cover back in place. The locking tab must snap securely into place.

Receivers: Remove the iso-strip

The batteries (type CR2032, 3 V) are already inserted on delivery and, for protection against premature discharge, are provided with an iso-strip.

The following description applies to both receivers.

1. With the help of a narrow coin or similar object, open the battery compartment by twisting the battery compartment cover in the OPEN arrow direction.
2. Pull out the iso-strip; to do this, you may need to remove the battery briefly.
3. Then reinsert the battery in the correct orientation.
   Pay attention to the correct polarity (+/-). The plus pole (+) must point upwards.
4. Then, replace the battery compartment cover and twist it in the CLOSE arrow direction until it stops.

Notes on changing the batteries

• If the range of the transmitter diminishes, the beeps can only be heard quietly, or the receivers no longer react, then the batteries have to be exchanged.
• Only use the type of battery that is specified in the "Technical Data".
• Always change both batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see "Disposal").

Operation

1. Attach the receivers to the objects that you wish to find again when you lose them, e.g. to a bunch of keys or a bag.
2. Press one of the coloured buttons on the transmitter.

-The colour flashes.

- The correspondingly coloured receiver emits several beeps so that you can quickly localise the object you're searching for.

• Always check whether the transmitter and receivers are working.
• The radio signal range is approx. 30 metres outdoors. Obstacles, e.g. concrete walls, limit the signal range.

Cleaning

- Wipe down the transmitter and receivers as needed using a lightly dampened, soft cloth.

Fault/Remedy

Fault Possible Cause
No function	• Are the batteries empty or have they been inserted incorrectly?

Technical Data

Model: Keyfinder KF 1600

Range: approx. 30 metres

Batteries:

Transmitter: 2x LR03 / 1,5 V=

Receivers: 2x CR2032 / 3 V=

Rated current: Transmitter: 20 mA

Receivers: 5 mA

Distributor (no service address): Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

This item has been manufactured in accordance with the harmonised European standards.

It conforms to the provisions of the EC directives cited below:

• EMC Directive 2004/108/EC regarding electromagnetic compatibility
• RoHS Directive 2011/65/EU in the currently valid versions.

This declaration loses its validity if any modification is made to the item that has not been agreed with us in advance.

Hamburg, March 2016 Waagen-Schmitt GmbH Hammer Steindamm 27-29 22089 Hamburg, Germany

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
