USER MANUAL VOS 43RA KATHREIN
As of 1 April 2019, KATHREIN SE's (formerly KATHREIN-WERKE KG) "Terrestrial & Satellite Reception" business unit will be transferred to KATHREIN Digital Systems GmbH (limited liability company).
Commerzbank AG
IBAN:DE24 7114 0041 0611 9002 00
BIC: COBADEFFXXX
From 1 April 2019, the new company data are:
KATHREIN Digital Systems GmbH
Anton-Kathrein-Str. 1-3
83022 Rosenheim, Germany
Tax ID No.: 156/117/31083
Preemphase:0...20 dB
Dampfung:0...20 dB
Dampfung:0/10 dB

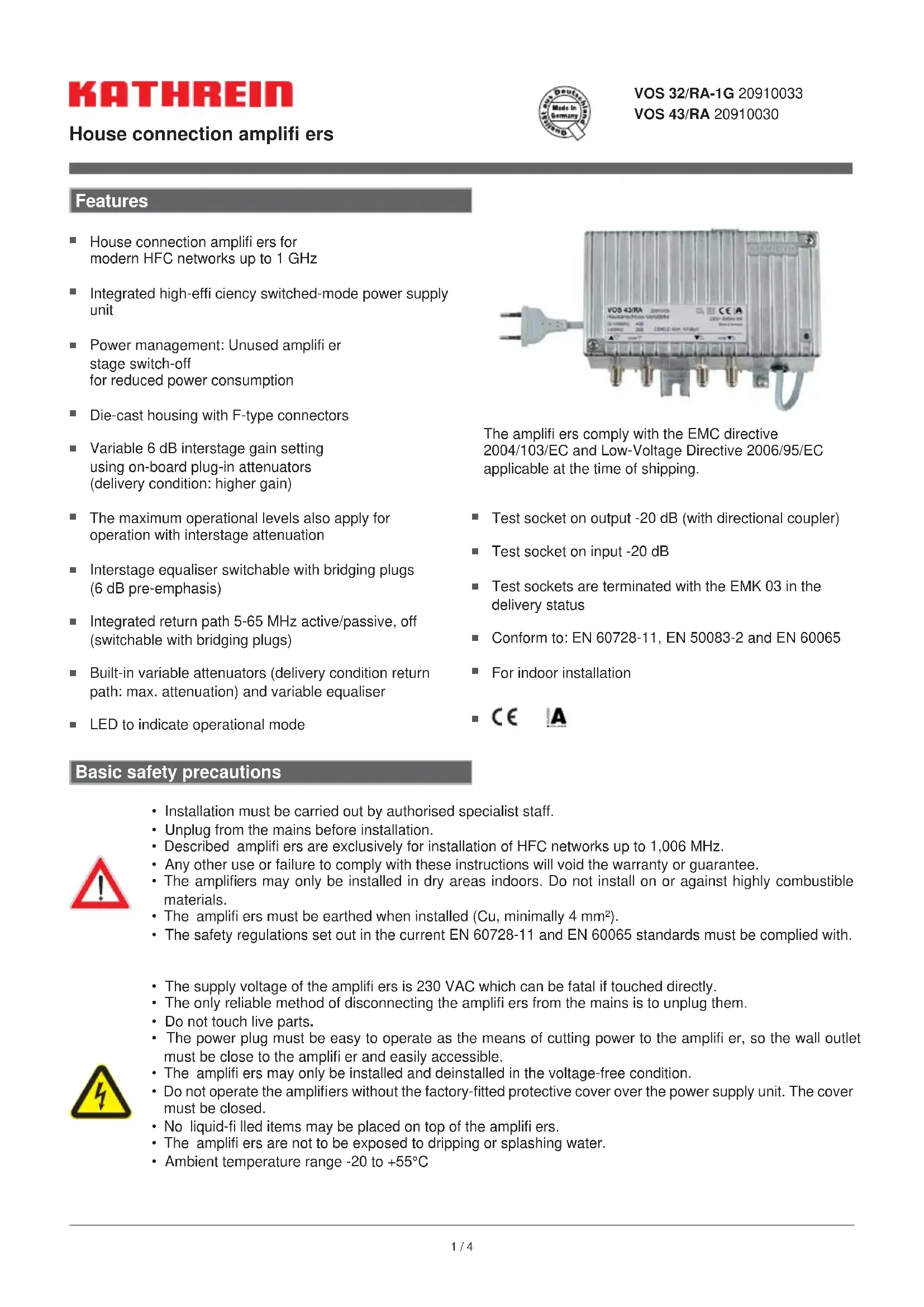

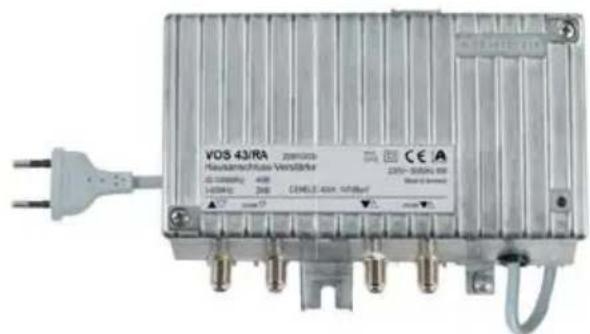

House connection amplifiers for modern HFC networks up to 1 GHz
Integrated high-efficiency switched-mode power supply unit
Power management: Unused amplifier stage switch-off for reduced power consumption
Die-cast housing with F-type connectors
Variable 6 dB interstage gain setting using on-board plug-in attenuators (delivery condition: higher gain)
The maximum operational levels also apply for operation with interstage attenuation
Interstage equaliser switchable with bridging plugs (6 dB pre-emphasis)
Integrated return path 5-65 MHz active/passive, off (switchable with bridging plugs)
Built-in variable attenuators (delivery condition return path: max. attenuation) and variable equaliser
LED to indicate operational mode

The amplifiers comply with the EMC directive 2004/103/EC and Low-Voltage Directive 2006/95/EC applicable at the time of shipping.
Test socket on output -20 dB (with directional coupler)
Test socket on input -20 dB
Test sockets are terminated with the EMK 03 in the delivery status
Conform to: EN 60728-11, EN 50083-2 and EN 60065
For indoor installation
A
Basic safety precautions

- Installation must be carried out by authorised specialist staff.
- Unplug from the mains before installation.
- Described amplifiers are exclusively for installation of HFC networks up to 1,006 MHz.
- Any other use or failure to comply with these instructions will void the warranty or guarantee.
- The amplifiers may only be installed in dry areas indoors. Do not install on or against highly combustible materials.
- The amplifiers must be earthed when installed (Cu, minimally 4mm^2 ).
- The safety regulations set out in the current EN 60728-11 and EN 60065 standards must be complied with.

- The supply voltage of the amplifiers is 230 VAC which can be fatal if touched directly.
- The only reliable method of disconnecting the amplifiers from the mains is to unplug them.
- Do not touch live parts.
- The power plug must be easy to operate as the means of cutting power to the amplifier, so the wall outlet must be close to the amplifier and easily accessible.
- The amplifiers may only be installed and deinstalled in the voltage-free condition.
- Do not operate the amplifiers without the factory-fitted protective cover over the power supply unit. The cover must be closed.
- No liquid-fi lled items may be placed on top of the amplifiers.
- The amplifiers are not to be exposed to dripping or splashing water.
- Ambient temperature range -20 to +55°C
Setting of the amplifi er
To adjust the settings, a Phillips screwdriver is required to remove the housing cover. The settings options are also imprinted on the housing cover.

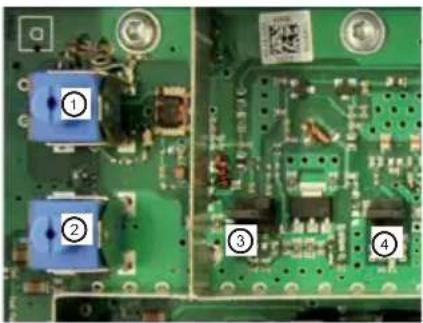

Forward path
Pre-emphasis: 0...20 dB
Attenuation: 0...20 dB
Interstage Attenuation: 6 dB
Interstage Attenuation: 6 dB

Return path
Pre-emphasis: 0...20 dB
Attenuation: 0...20 dB
Atenuation: 0/10 dB
A B C Operation mode return path: (see graphic and block diagram)

Optionally available accessories
De-emphasis equaliser ERZ 120, Order no. 272791
KAZ 12 lightning arrester, Order no. 21810002

Mounting:

The following is required for installation:
Fixings: screws, max. : 4.5 mm

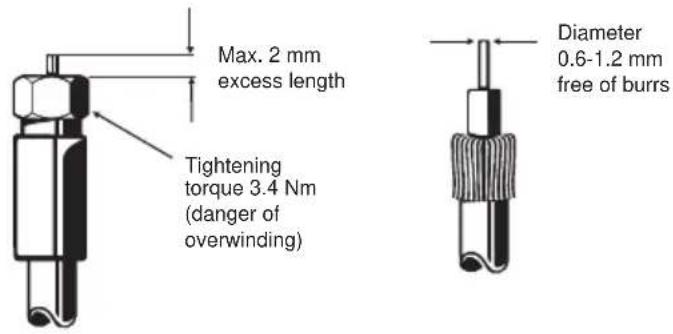

F-type connector plug as per EN 61169-24.

- An inner cable conductor diameter greater than 1.2mm , or the presence of burrs may damage the sockets on the unit.

Block diagram VOS 43/RA

Connection example

Technical data
| Type VOS 32/RA-1G VOS 43/RA | |||
| Order no. 20910033 | 20910030 | ||
| Forward path | |||
| Frequency range MHz 85-1,006 | |||
| Gain (variable through interstage gain) dB 26/32 34/40 | |||
| Amplitude deviation dB ± 1 | |||
| Setting range variable attenuator dB 0-20 | |||
| Setting range equaliser | dB 0-20 | ||
| Setting range interstage attenuation (switchable with bridging plug) | dB 0/6 | ||
| Setting range interstage equaliser (switchable with bridging plug) | dB 0/6 | ||
| Max. operating level 1) (60 dB CTB/CSO) flat with interstage pre-emphasis | dBμV | 101/101 102/102 | 107/109 107/110 |
| Recommended operational level 1) (66 dB CTB/66 dB CSO) flat with 6 dB interstage pre-emphasis | dBμV | 98/95 99/96 | 105/105 |
| Noise figure (interstage attenuation 0/6 dB) | dB | 6/8 | |
| Number of outputs | 1 | ||
| Return path | |||
| Frequency range MHz 5-65 | |||
| Gain (switchable passive/active) | dB | -1/28, can be disconnected | |
| Setting range attenuation on amplifier input (switchable with bridging plug) | dB | 0/10 | |
| Setting range variable attenuator (amplifier output) | dB | 0-20 | |
| Setting range equaliser (amplifier output) | dB | 0-20 | |
| Noise figure | dB | 5 | |
| Input level density (CINR: 55 dB) | dBμV/Hz | -6 | |
| Dynamic range (input level density) | dB | 19 | 18 |
| General | |||
| Impedance input/output | Ω | 75 | |
| Return loss input/output Forward path 2) | dB | 18 20 | |
| Return path | |||
| RF connections | F-type connector | ||
| Test socket output with directional coupler (5-1,006 MHz) | dB -20 | ||
| Test socket input (5-1,006 MHz) | dB -20 | ||
| Nominal input voltage | \(V_{AC}\) | 230 (50/60 Hz) | |
| Power consumption (without/with return path) | W | 6 | 6.5/8 |
| Operational display | Green LED | ||
| Protection class/protection category (to EN 60529) | II/IP 50 | ||
| Classification according to KDG 1 TS 140 | C(3.2) | C(4.3) | |
| Temperature range | °C | -20 to +55 | |
| Dimensions | mm | 184 x 134 x 63 | |
| Packing unit/weight | pc./kg | 1 (10)/1.7 | |
To EN 60728-3; CENELEC channel plan 41 carriers; the level values also apply for interstage attenuation
To EN 60728-3 (category B); from 40 MHz ≥ 18 dB -1.5 dB/ octave

Electronic equipment is not domestic waste - it must be disposed of properly in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27^th January 2003 concerning used electrical and electronic appliances.
At the end of its service life, take this device for disposal at a designated public collection point.
